Key Features:

Individually adjustable saddle height helps support more precise setup across different string positions.
Precision CNC machining helps deliver cleaner edges, more consistent dimensions, and more accurate fitment for upgrade and replacement applications.
Supports different fingerboard radii with an adjustable radius design for custom setups and non-standard neck profiles.
Built with an aluminum alloy bridge body, brass saddles, and steel studs/posts for stable and durable performance.
Suitable for guitars using a Tune-O-Matic style bridge system with matching 74mm post spacing and M8 posts.

Specifications:

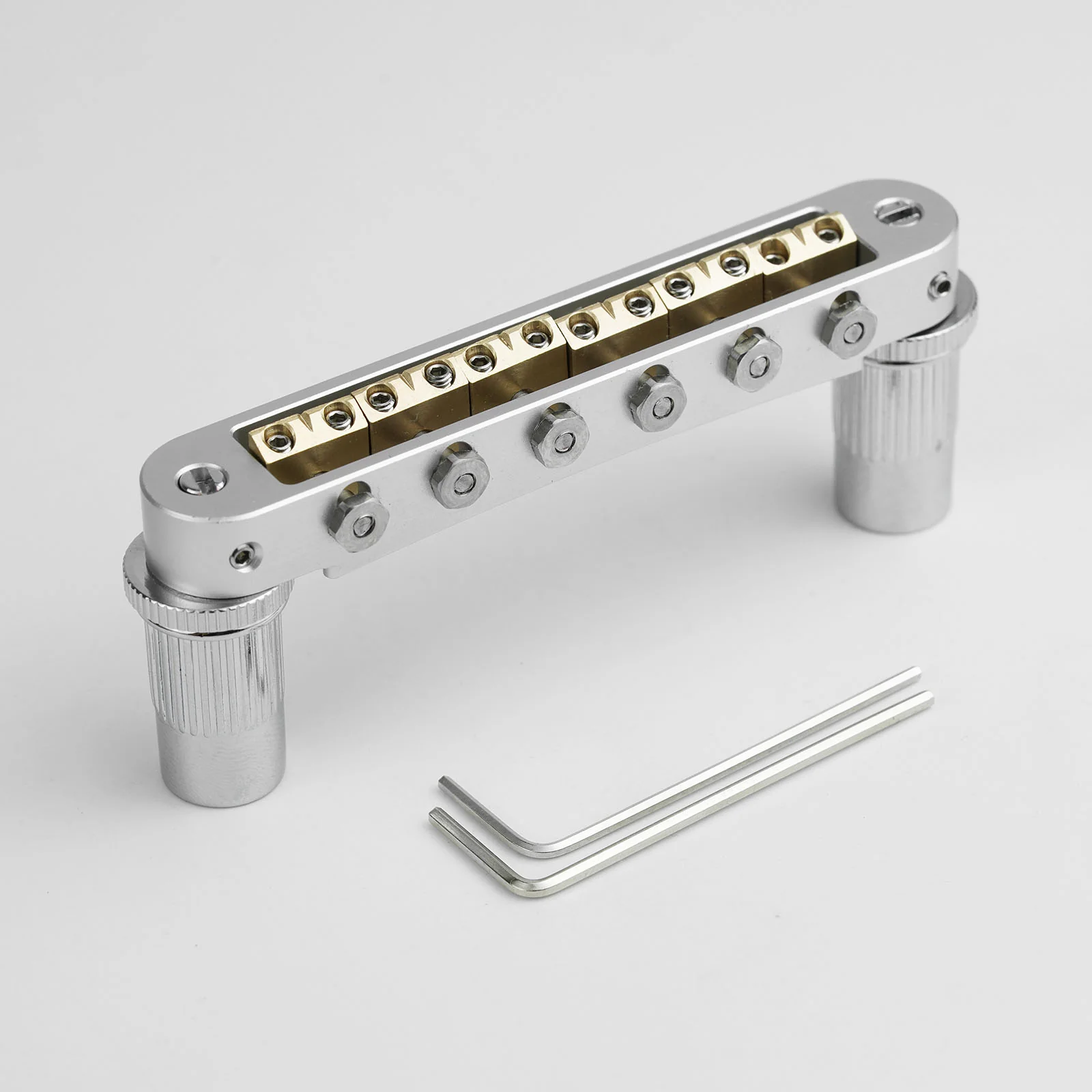

Product Type: Tune-O-Matic Style Guitar Bridge
Model: GMA-009A
Bridge Body Material: Aluminum Alloy
Saddle Material: Brass
Studs / Posts Material: Steel
Length: 84.5mm
Width: 14mm
Body Height: 12.8mm
Overall Height: 33.5mm
String Spacing (E to e): 52mm
Post Spacing (Center to Center): 74mm
Post Thread: M8
Radius: Adjustable Radius (Minimum: R155.7 / 6.13")

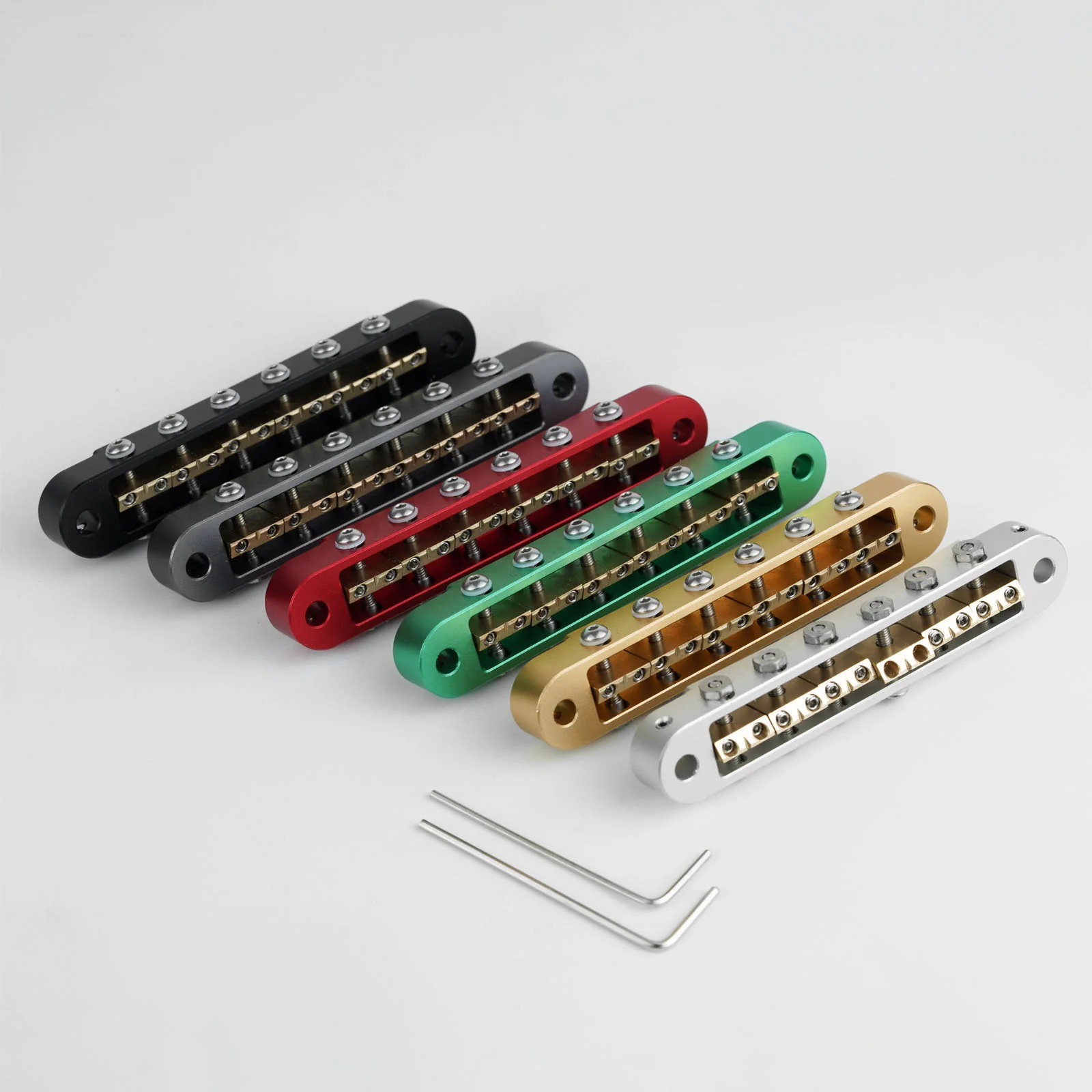

Color Options: Aluminum Anodized Chrome, Aluminum Anodized Black, Aluminum Anodized Gold, Aluminum Anodized Red, Aluminum Anodized Green, Aluminum Anodized Grey

Package Includes:

1 x Guitar Bridge
2 x Posts
2 x Thumbwheels
1 x Wrench

Fitment Note / Warm Reminder:
Please carefully verify your guitar’s post spacing, post thread, bridge dimensions, and fingerboard radius requirements before ordering. This bridge is designed with 74mm post spacing, M8 post thread, and an adjustable radius structure. All dimensions may vary by ±1mm due to manual measurement.

Ferrule Block

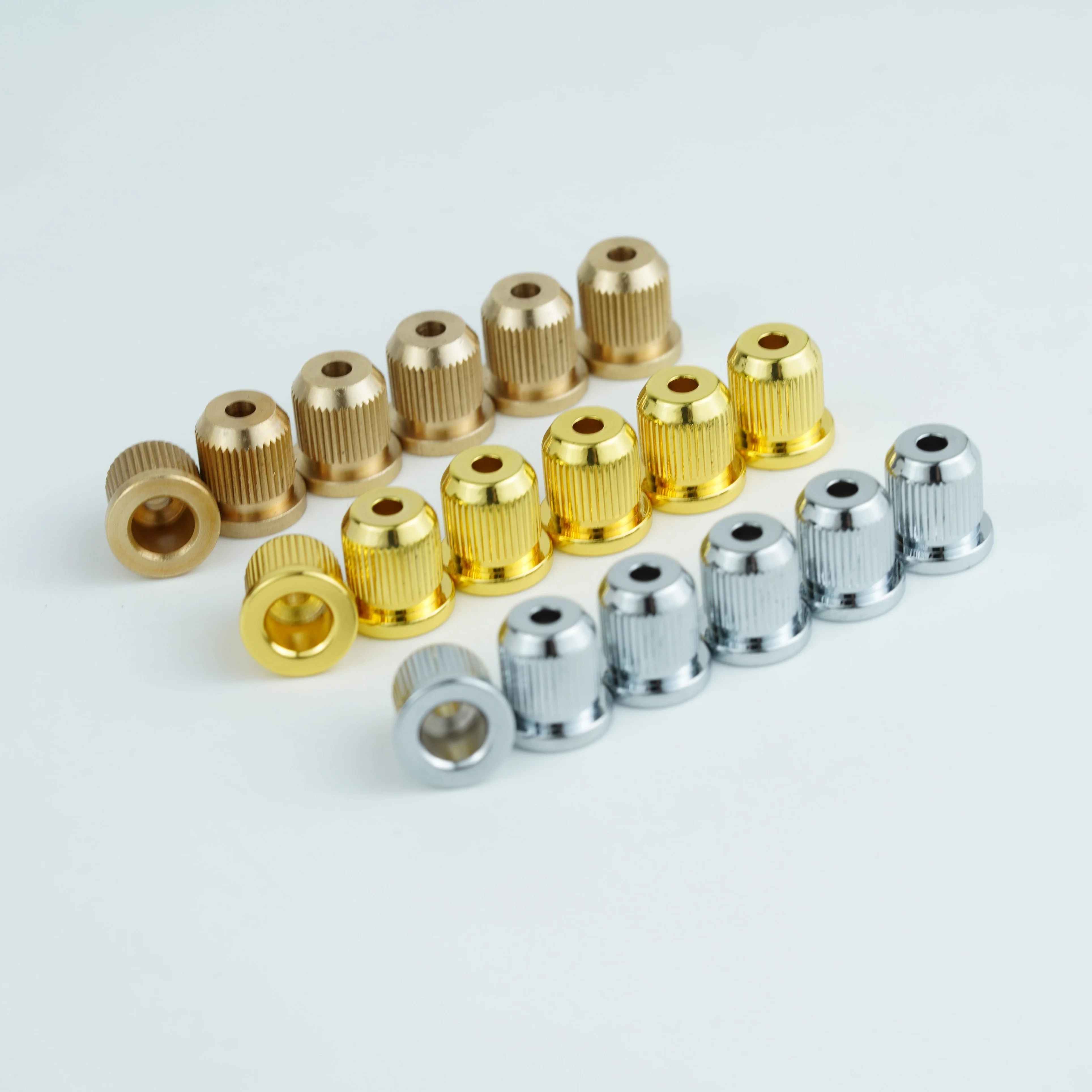

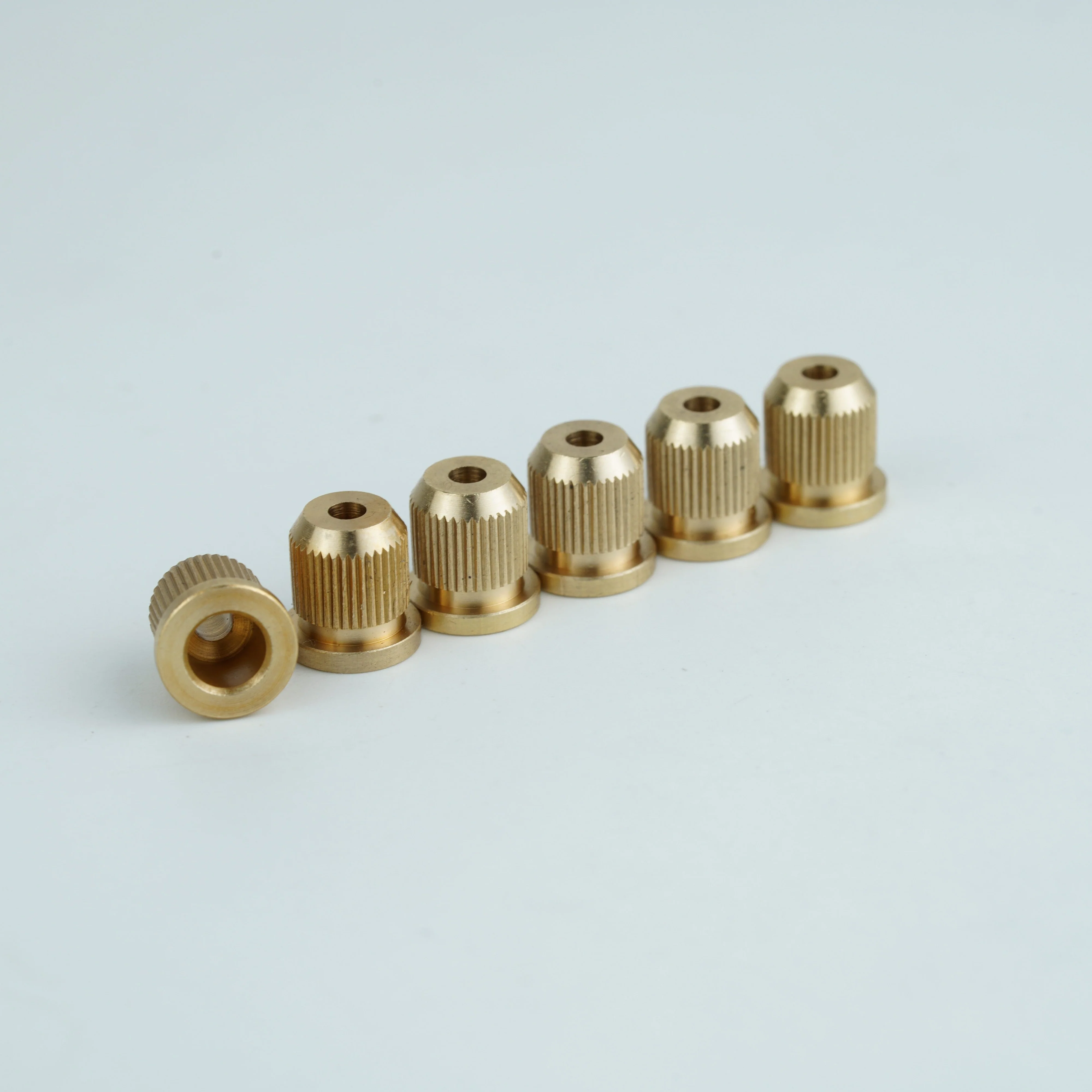

Guyker FB-01 Brass Guitar String Ferrules for String-Through Body Electric Guitar, 9mm Flange Diameter, Set of 6
