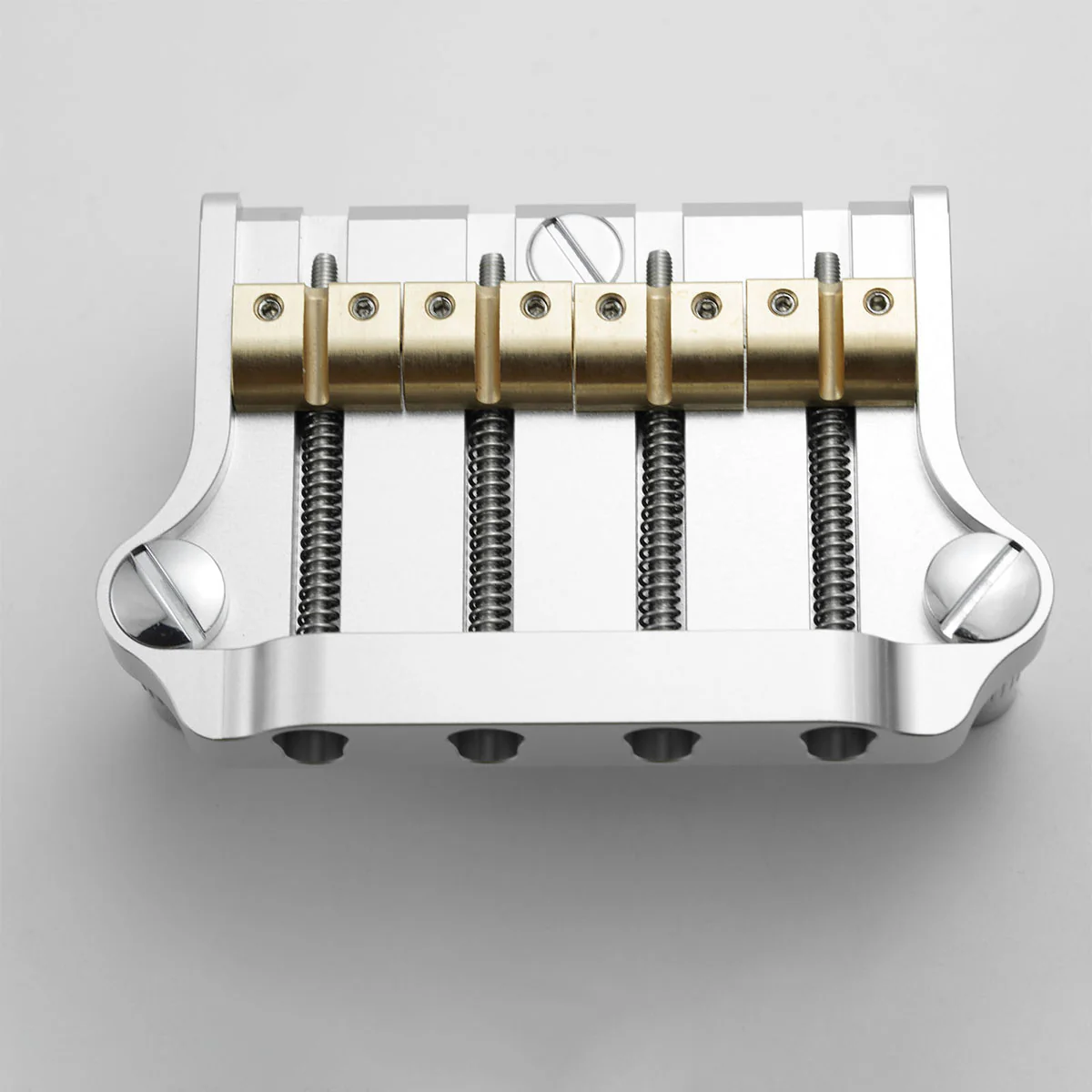

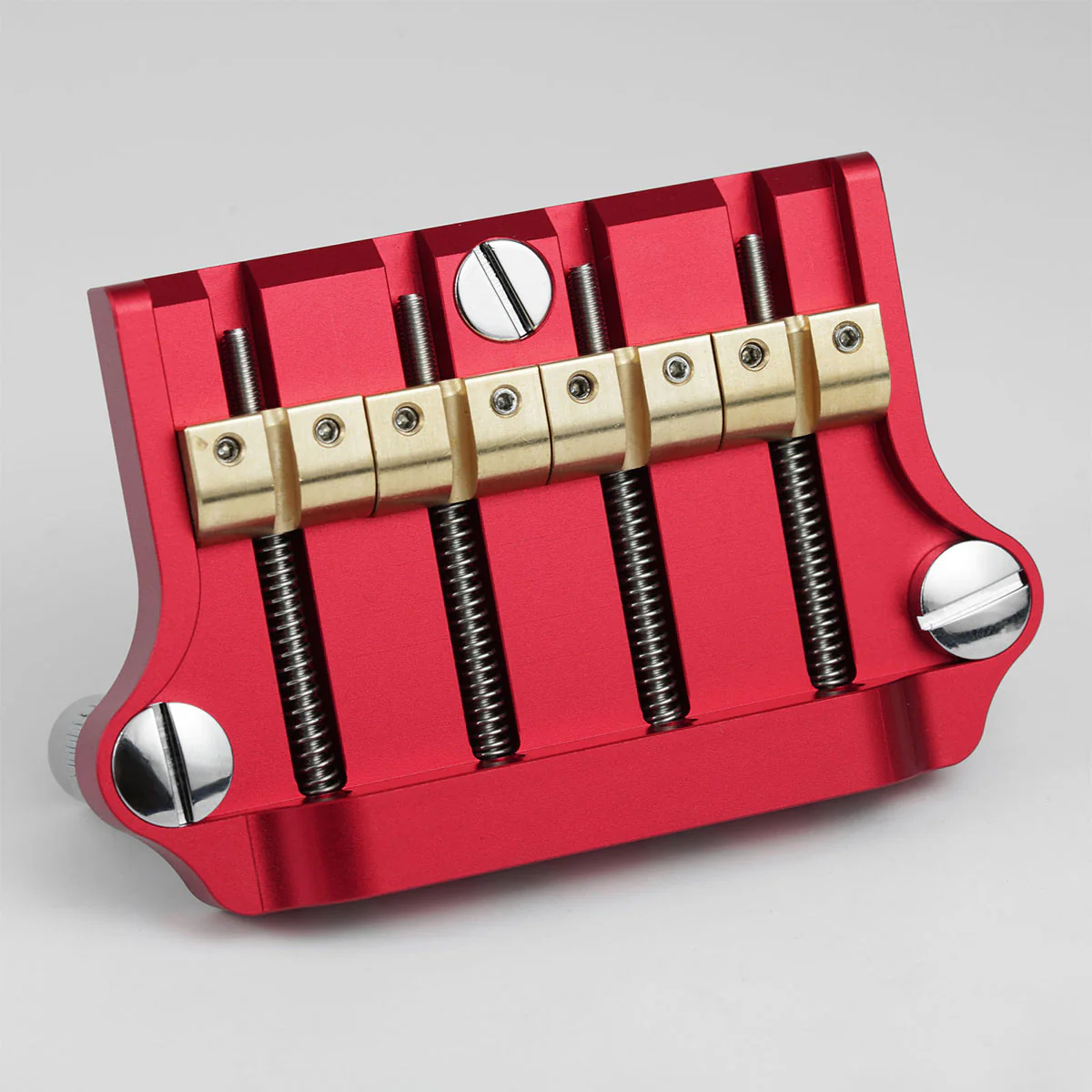

Key Features:

• 3-point mounting design for basses that use a matching 3-point bridge layout
• Built for 4-string bass configuration with four saddles for practical setup and alignment
• CNC aluminum alloy bridge body offers lightweight, durable construction
• Brass saddles provide solid string contact and wear resistance
• Designed for bass projects with matching 84.3 mm post spacing and 54 mm string spacing
• Suitable for Gibson / Epiphone style bass applications with verified matching measurements

Specifications:

• Material: CNC aluminum alloy bridge body, brass saddles
• Type: 3-point bass bridge
• Configuration: 4-string

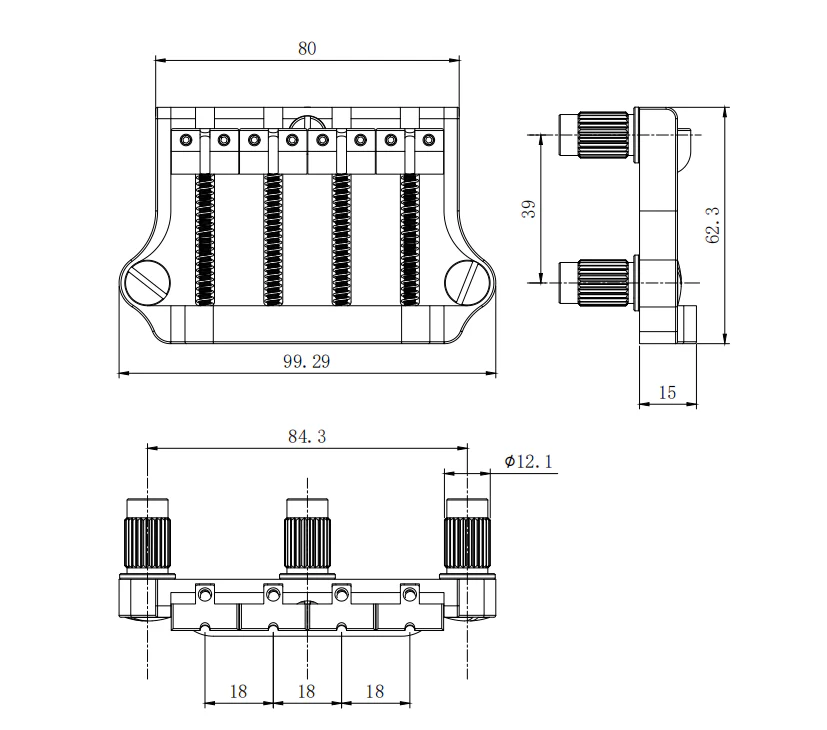

• Length: 99.29 mm
• Width: 62.3 mm
• Height: 15 mm
• Post Spacing: 84.3 mm (outer center to outer center)
• Post Diameter: Ø12.1 mm
• String Spacing: 54 mm (18 mm x 3)
• Suitable For: 4-string bass with matching 3-point mounting layout

Package Includes:

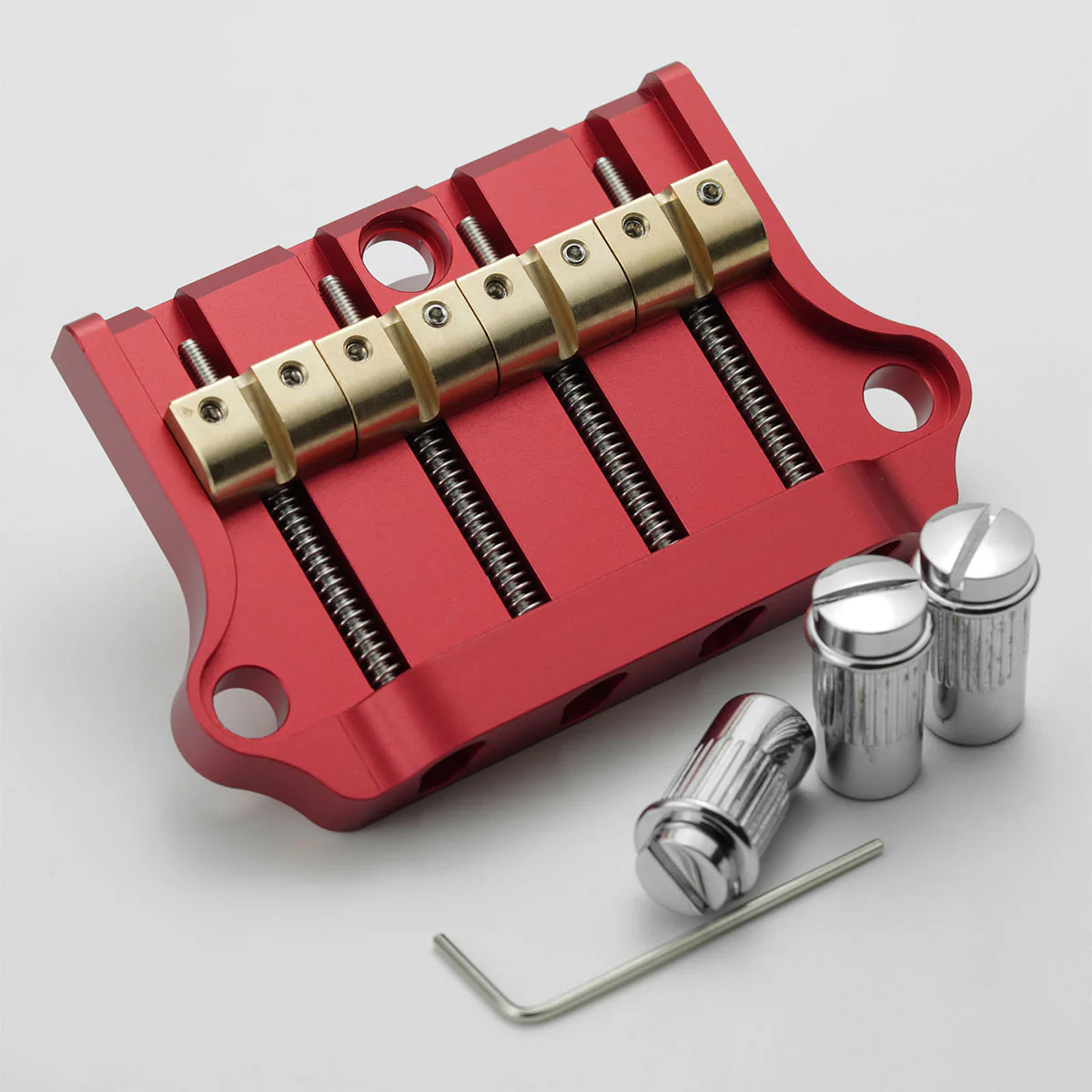

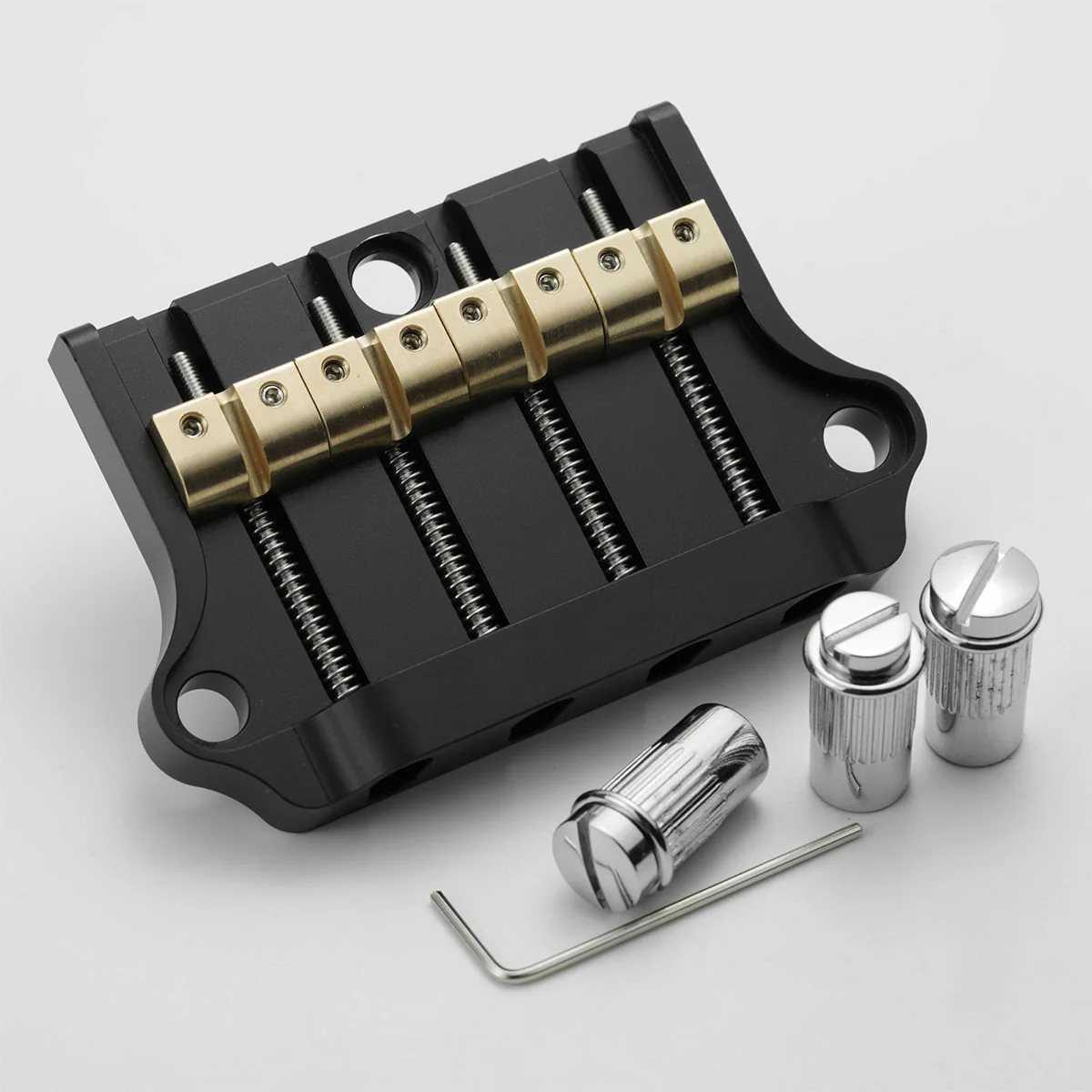

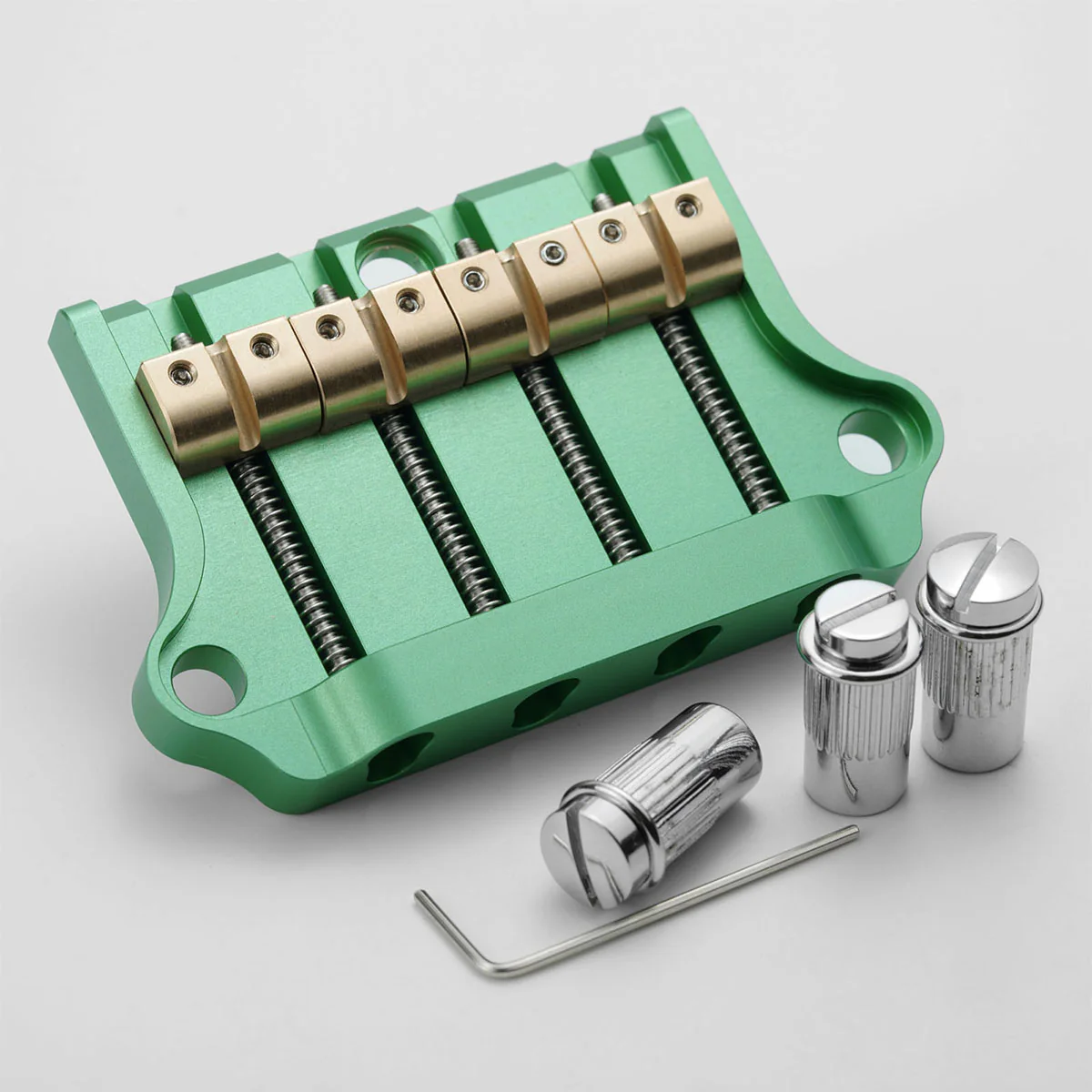

• 1 x GBA-004 3-point bass bridge
• Mounting screws included

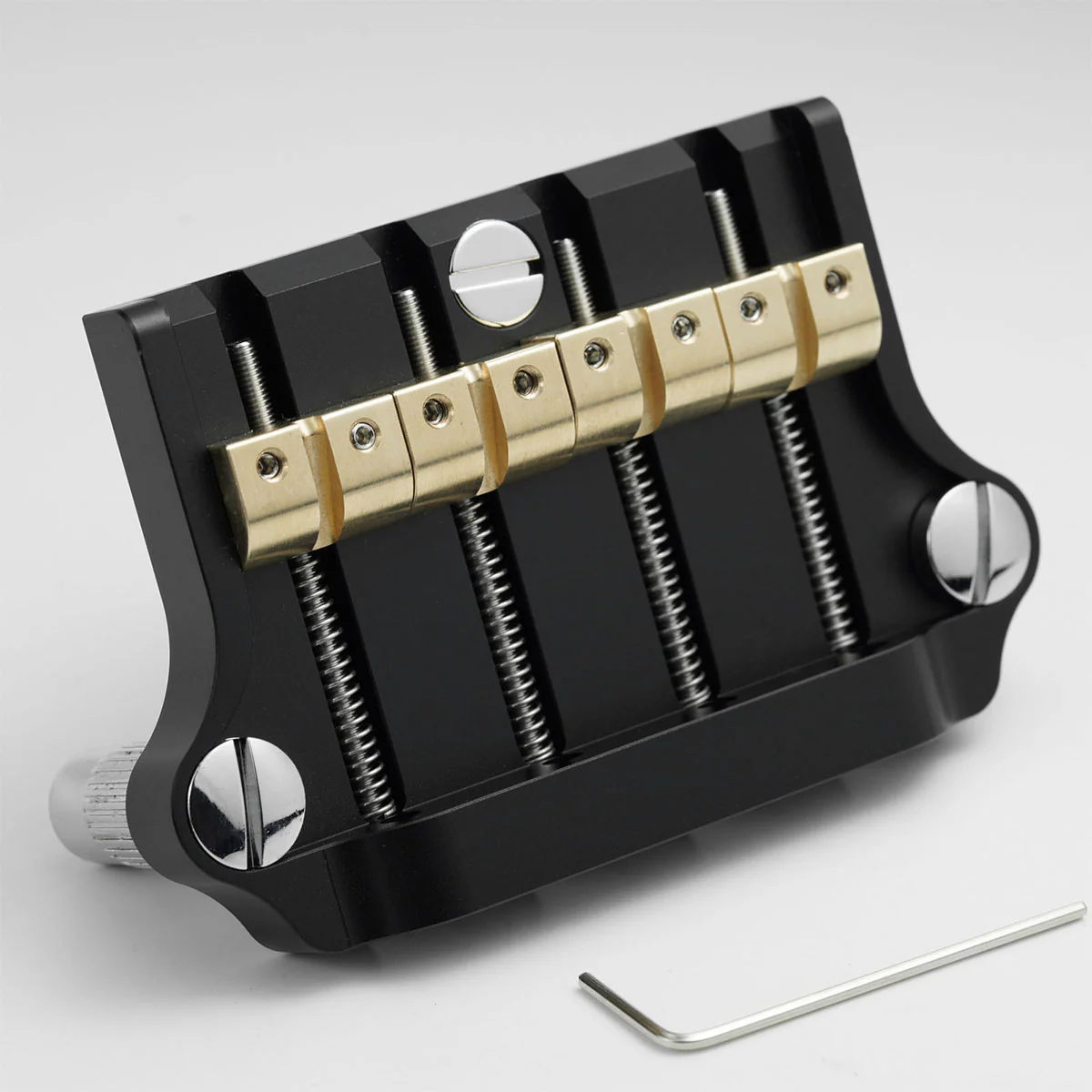

• Hex wrench included

Fitment Note / Warm Reminder:
Please verify that your instrument is a 4-string bass with a 3-point bridge mounting layout, and confirm the post spacing (84.3 mm), post diameter (Ø12.1 mm), and string spacing (54 mm) before ordering. This bridge is for bass use, not standard electric guitar installation.
