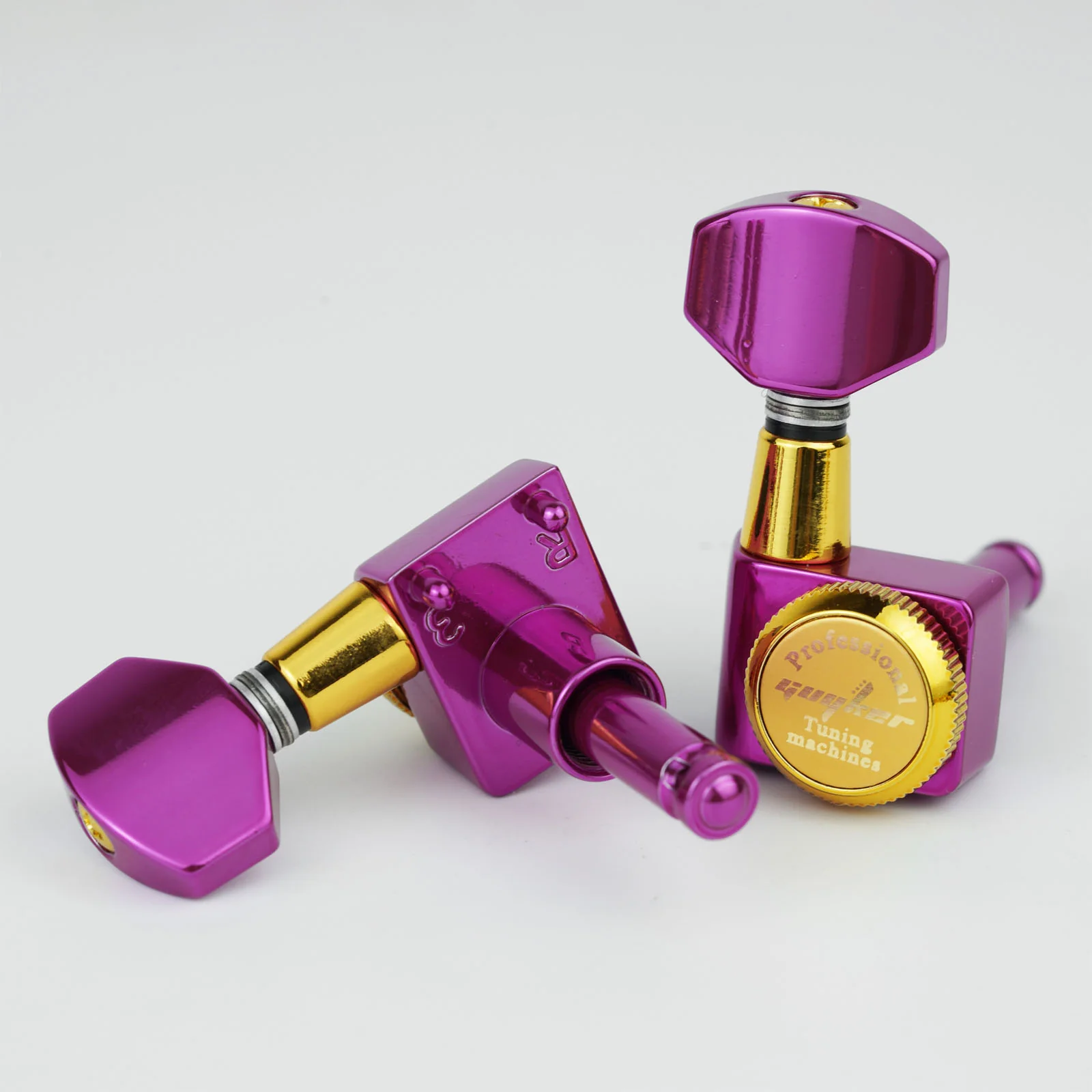

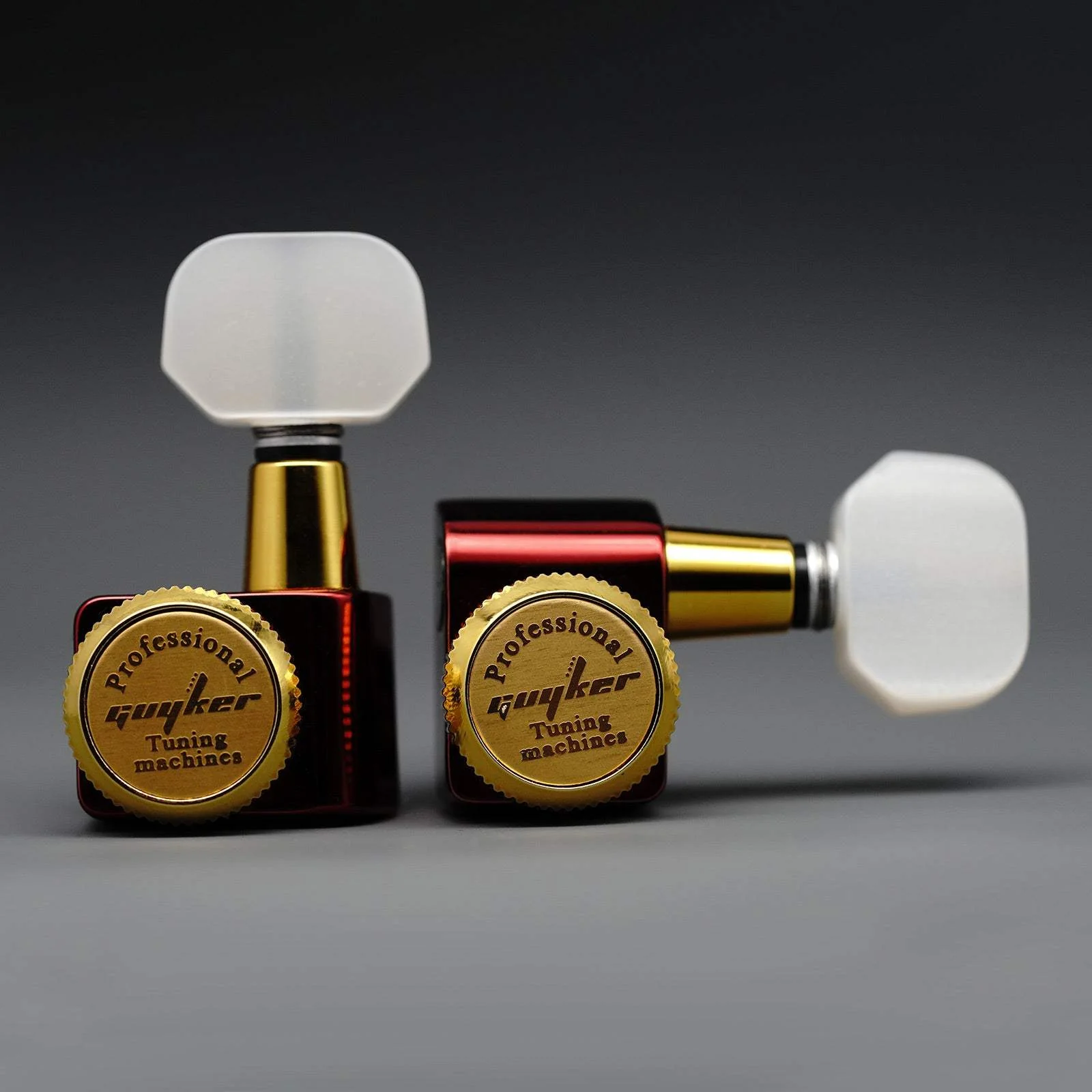

Key Features:

• Locking tuner design helps make restringing faster and supports a more secure string hold.
• No-screw mounting structure offers a cleaner installation style for compatible headstocks.
• 1:18 gear ratio provides smooth and precise tuning adjustment.
• Built with a sealed die-cast zinc alloy housing and buttons for reliable daily use.
• Features iron worm gears and brass shafts and gears for stable mechanical performance.
• Designed for 10mm peg holes with 6mm string posts.

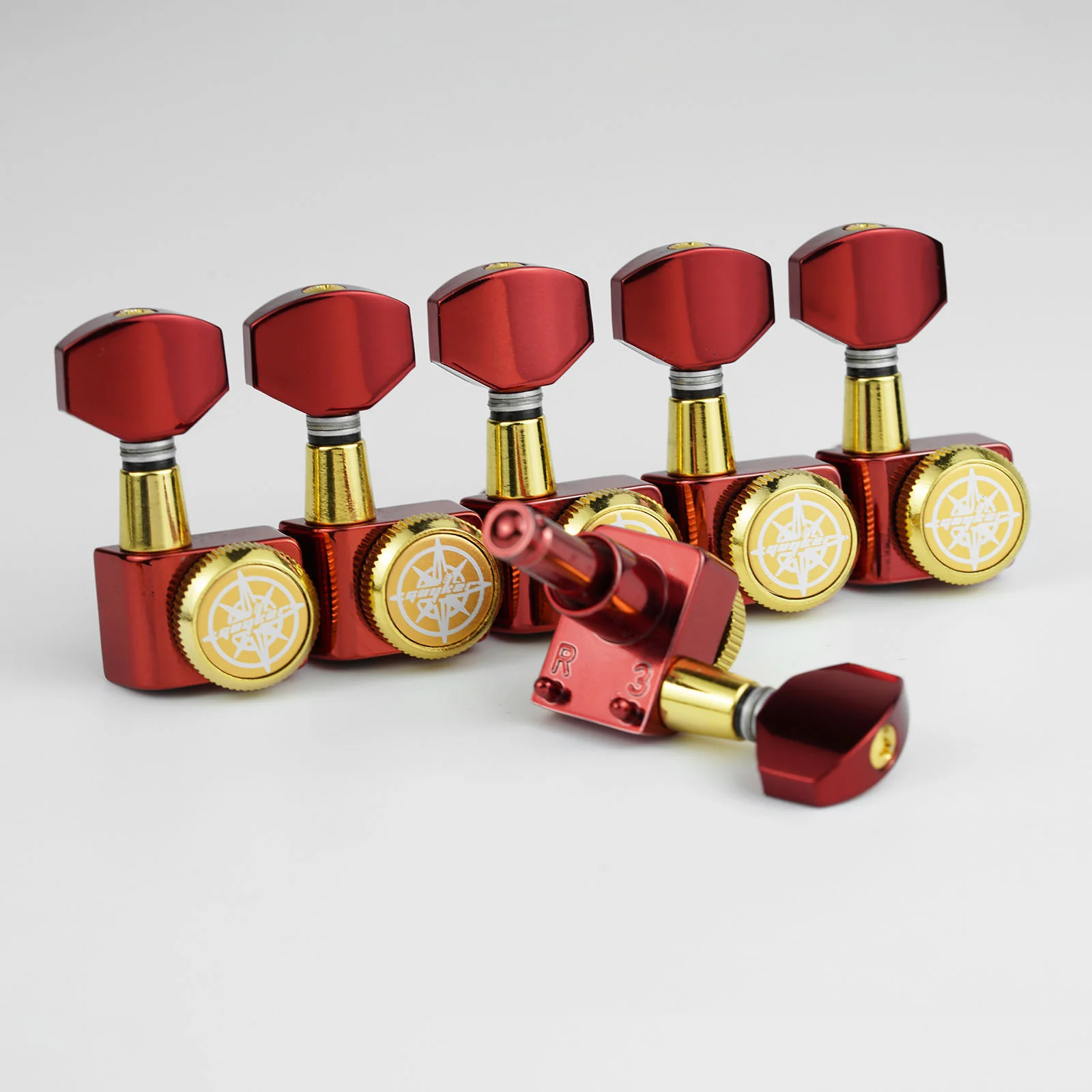

• Available for multiple headstock layouts, including 6R, 6L, and 3R+3L.
• Suitable for replacement and upgrade projects where the mounting structure and dimensions match.

Specifications:

• Gear Ratio: 1:18
• Peg Hole Requirement: 10mm
• String Post Diameter: 6mm
• String Post Overall Height: 26.2mm
• String Thru Hole Center Height: 22.7mm
• Max. String Gauge: 1.8mm
• Mounting Pin to Post Center: 11.7mm
• Bushing Type: Screw-in Hex Head
• Weight: 35g per piece / 216g per set
• Material: Sealed die-cast zinc alloy housing and buttons, iron worm gears, brass shafts and gears
• Layout Options: 6R, 6L, 3R+3L
• Suitable For: Guitar tuners with matching 10mm hole size, mounting structure, and layout

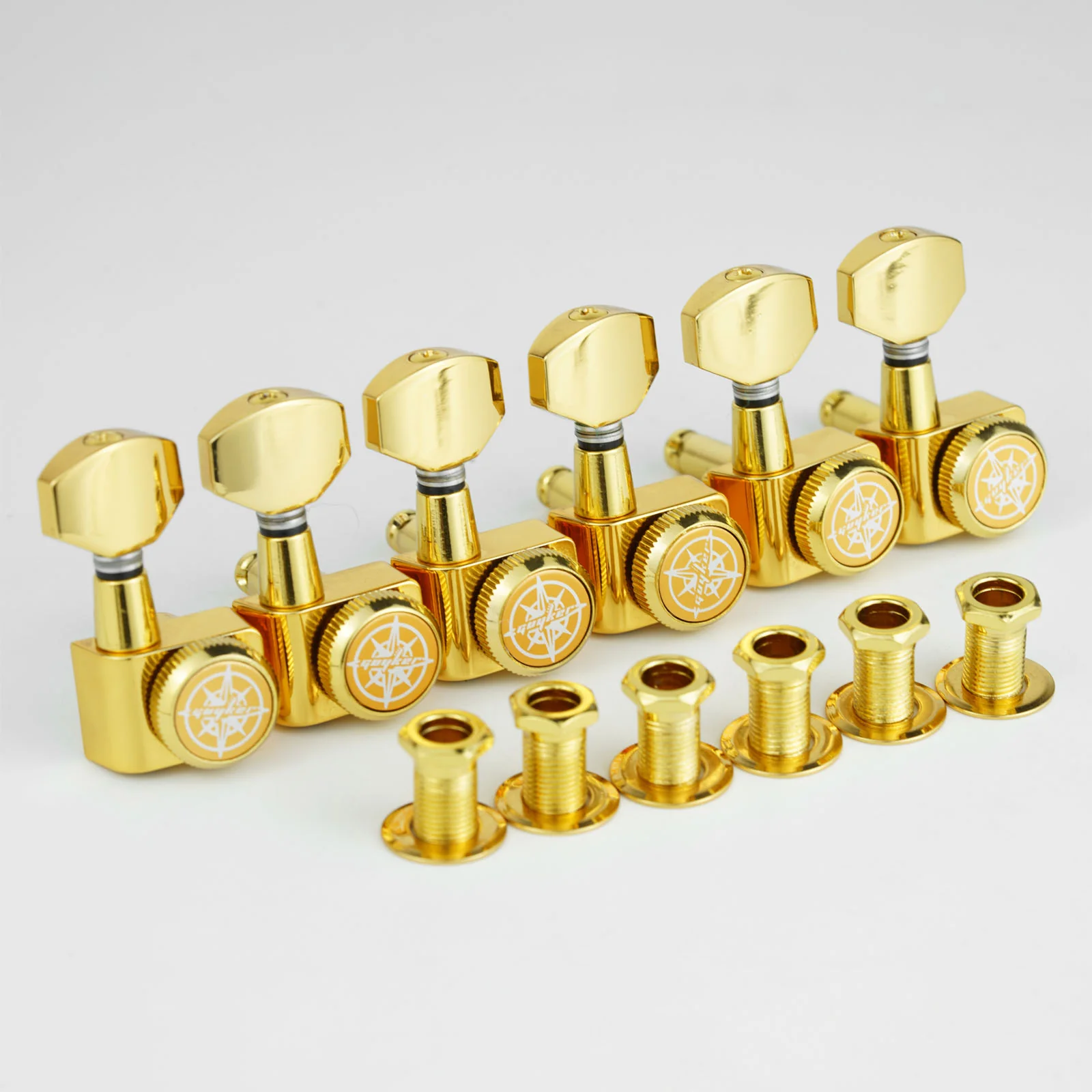

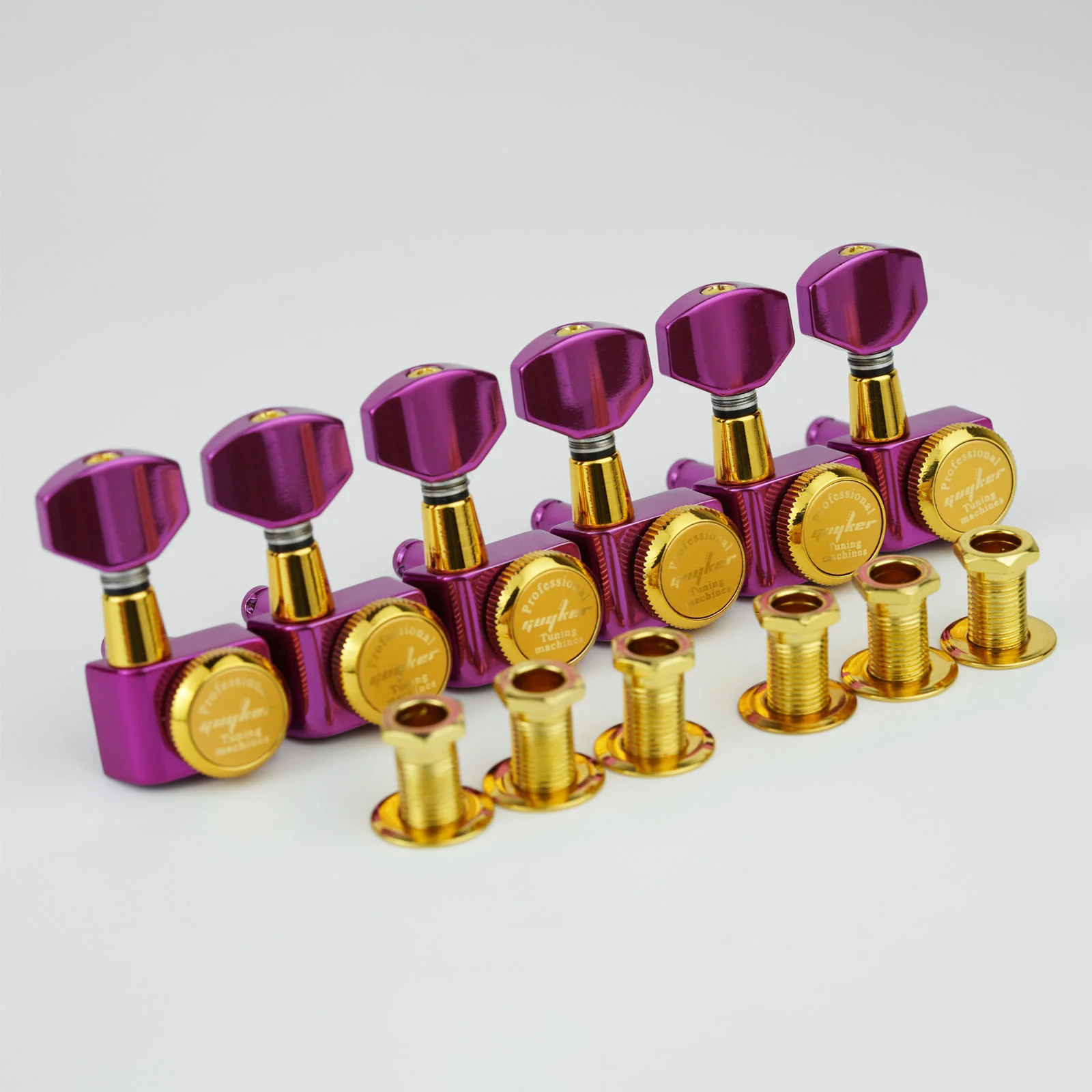

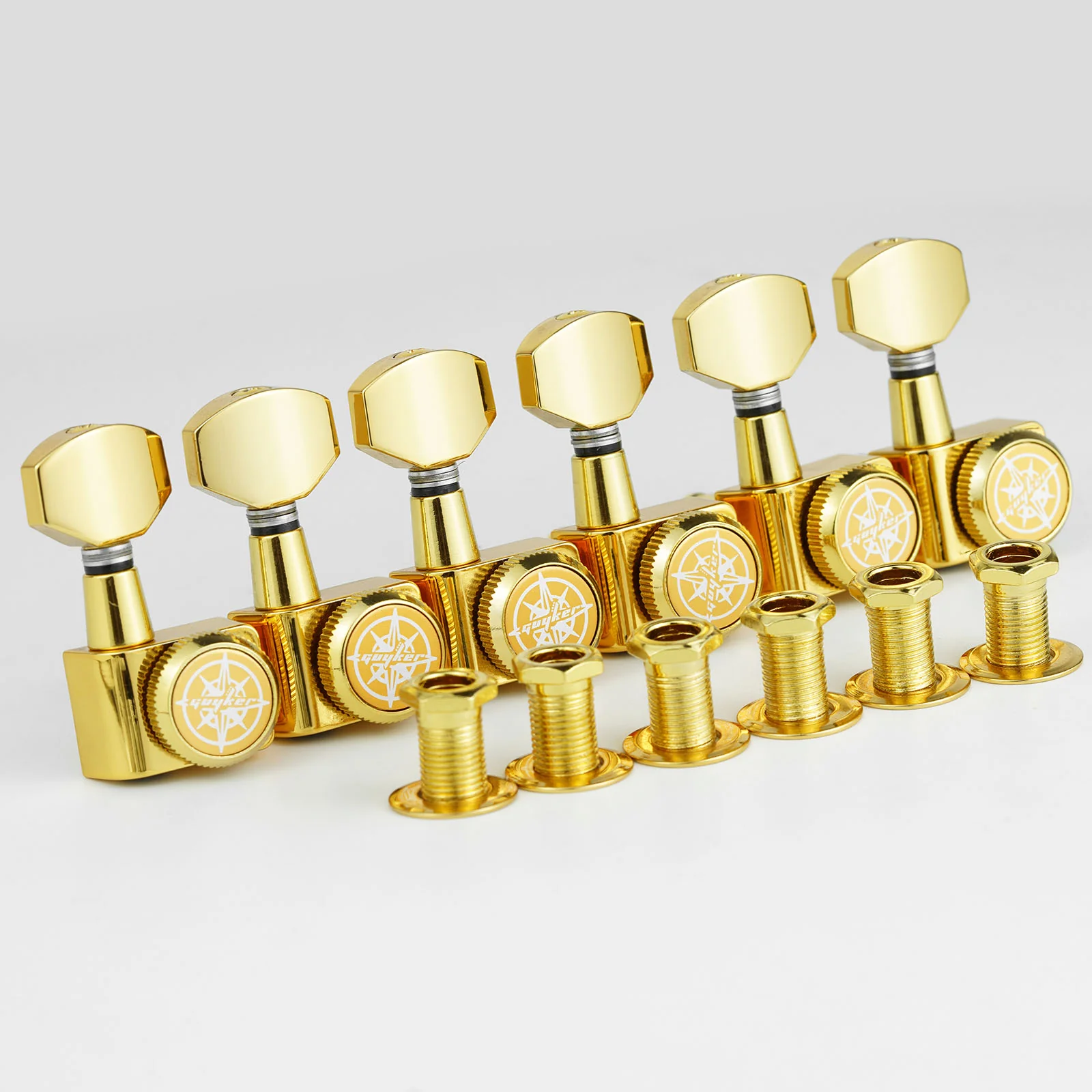

Package Includes:

• 6 x Locking Guitar Tuners
• 6 x Threaded Bushings
• 6 x Ferrules
• 6 x Mounting Screws

Fitment Note / Warm Reminder:
Please verify your peg hole size, headstock layout, mounting structure, and key dimensions such as post diameter, string thru hole height, and mounting pin position before ordering. This tuner set is available in 6R, 6L, and 3R+3L options, so please select the correct version for your instrument. It is not suitable for guitars that do not match the required installation structure.
