Key Features:

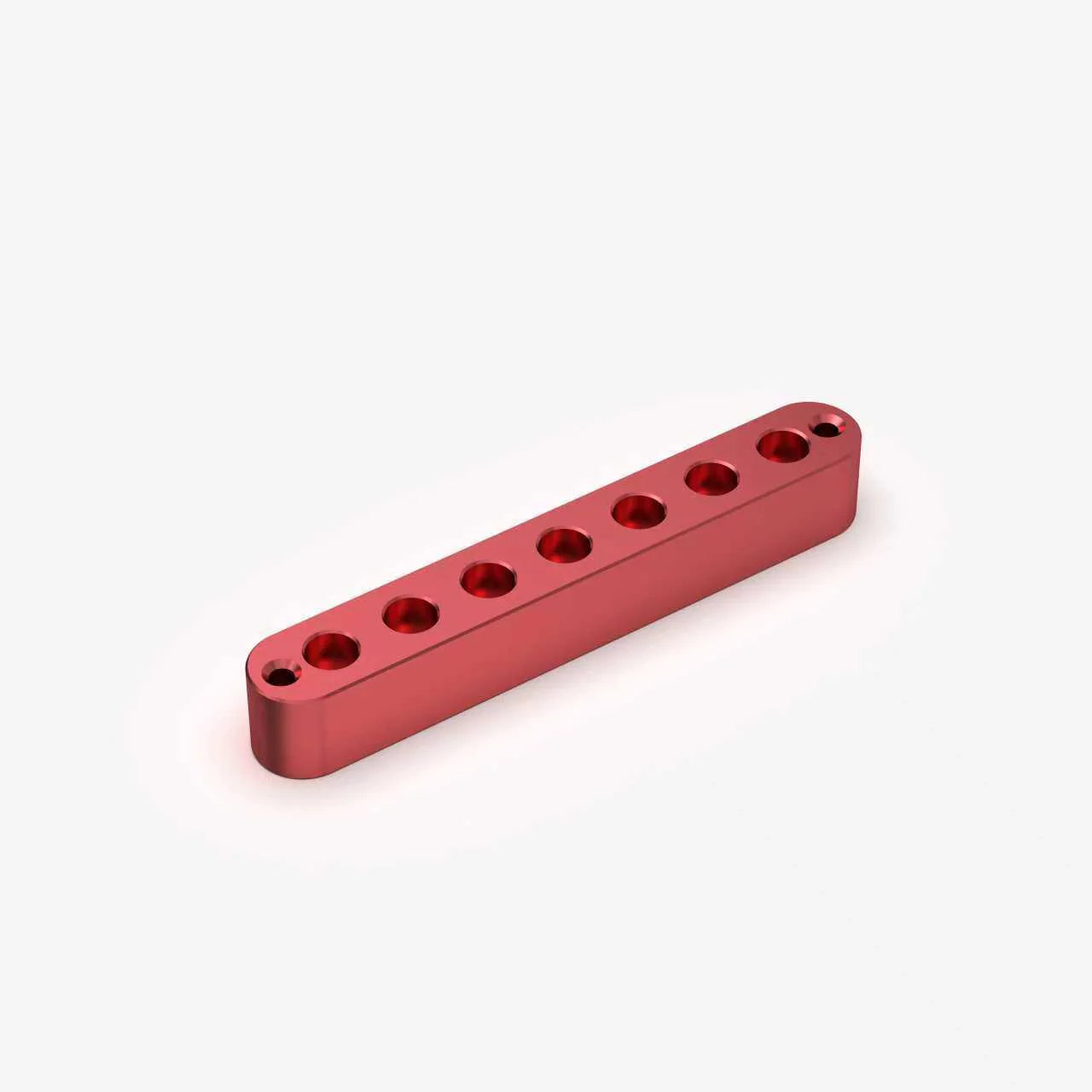

• One-piece 7-string ferrule block design for through-body string mounting.
• CNC machined aluminum construction for durable installation and clean string alignment.
• Designed for 7-string through-body guitars with consistent rear string spacing across the block.
• Helps create a clean back-of-body appearance compared with individual ferrules. This is an inference from the one-piece block design shown on the product page.
• Available in Aluminum Anodized Chrome, Gold, Red, Green, and Black.

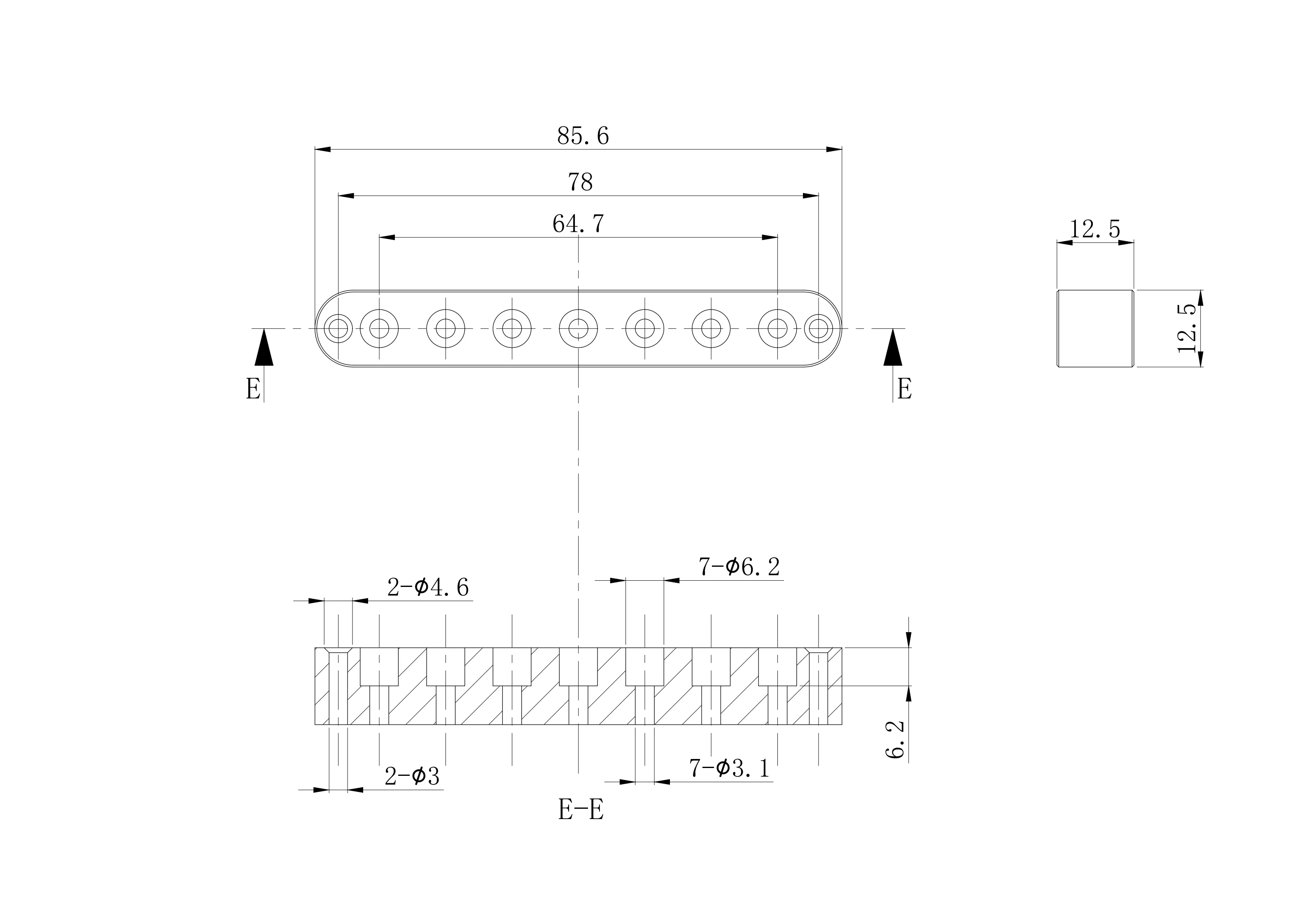

Specifications:

• Material: CNC Machined Aluminum
• Application: 7-String Through-Body Guitar
• Length: 85.6 mm (3.37")
• Width: 12.5 mm (0.49")
• Height: 12.5 mm (0.49")
• String Spacing: 10.8 mm
• Total String Spread: 64.7 mm
• Mounting Screw Spacing: 78 mm
• String Hole Diameter: Ø6.2 mm
• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Gold, Aluminum Anodized Red, Aluminum Anodized Green, Aluminum Anodized Black

Package Includes:

• 1 x 7-String Ferrule Block

Fitment Note / Warm Reminder:
Please verify your guitar body’s through-body layout, mounting screw spacing, string hole size, and installation depth before ordering. This ferrule block is designed for 7-string through-body guitars and uses 78 mm mounting screw spacing with Ø6.2 mm string holes. All dimensions may vary by ±1 mm due to manual measurement.
