Key Features:

• 4-string bass bridge designed for replacement, upgrade, or custom build projects
• Features 4 vintage barrel saddles for practical string support and classic bass bridge styling

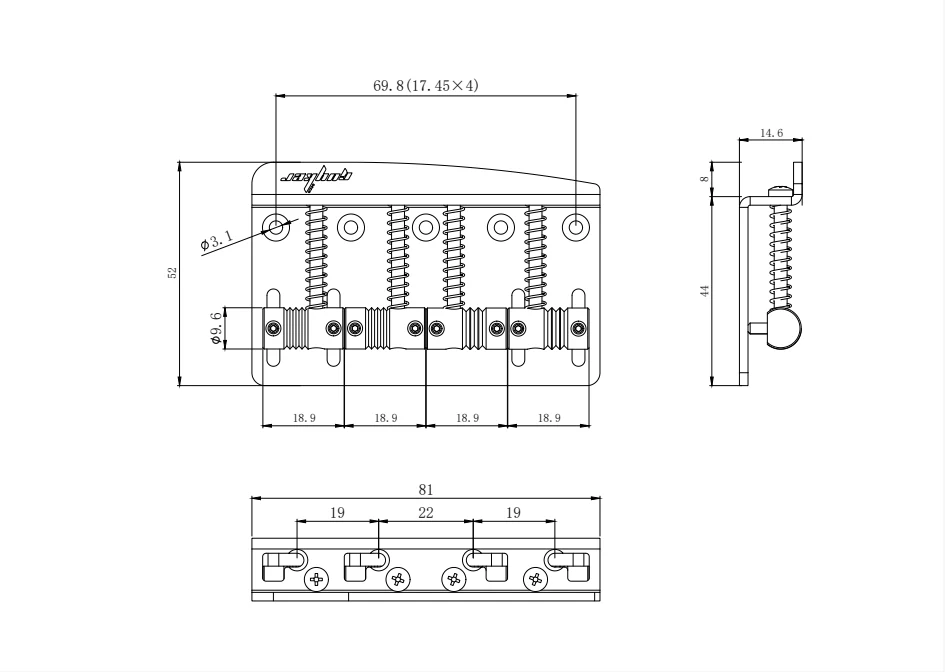

• Dimension drawing confirms 18.9 mm string spacing for each string position
• Built with a screw-mount baseplate and clearly shown mounting hole layout for fitment checking
• Size diagram also shows the mounting hole diameter and saddle barrel diameter for more accurate replacement matching

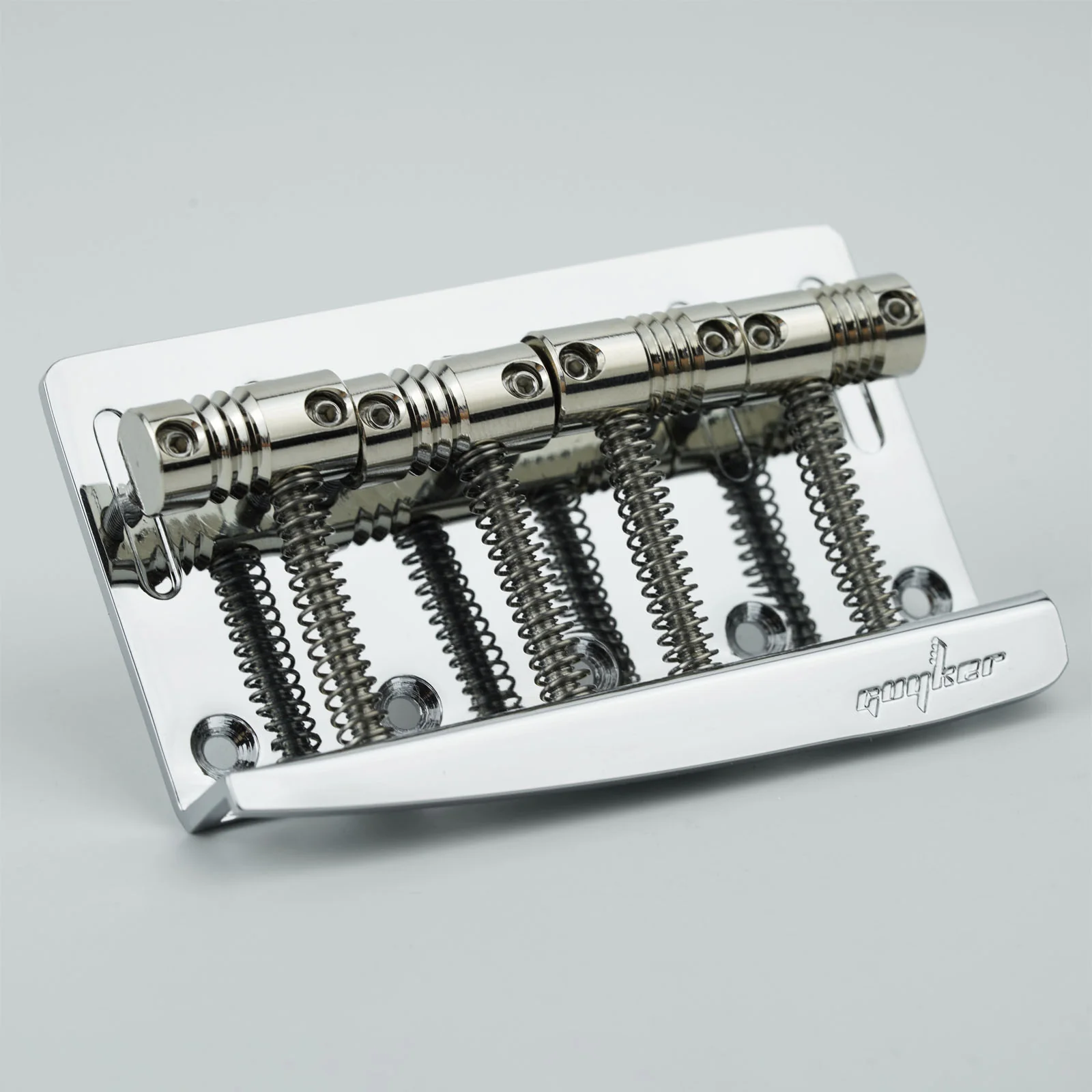

• Chrome-plated metal construction offers solid durability and a traditional hardware look
• Suitable for electric bass projects with matching bridge footprint, mounting structure, and spacing

Specifications:

• Type: 4-string electric bass bridge with vintage barrel saddles
• Configuration: 4-string
• Saddle Type: Vintage barrel saddles
• Material: Chrome-plated metal
• Overall Length: 81 mm
• Bridge Plate Width: 52 mm
• Front-to-Back Depth: 14.6 mm
• Body Height: 44 mm
• Rear Lip Height: 8 mm
• String Spacing: 18.9 mm
• Top Hole Span: 69.8 mm
• Top Hole Pitch: 17.45 mm x 4
• Mounting Hole Diameter: Ø3.1 mm
• Saddle Barrel Diameter: Ø9.6 mm
• Bottom Hole Positioning: 19 mm / 22 mm / 19 mm

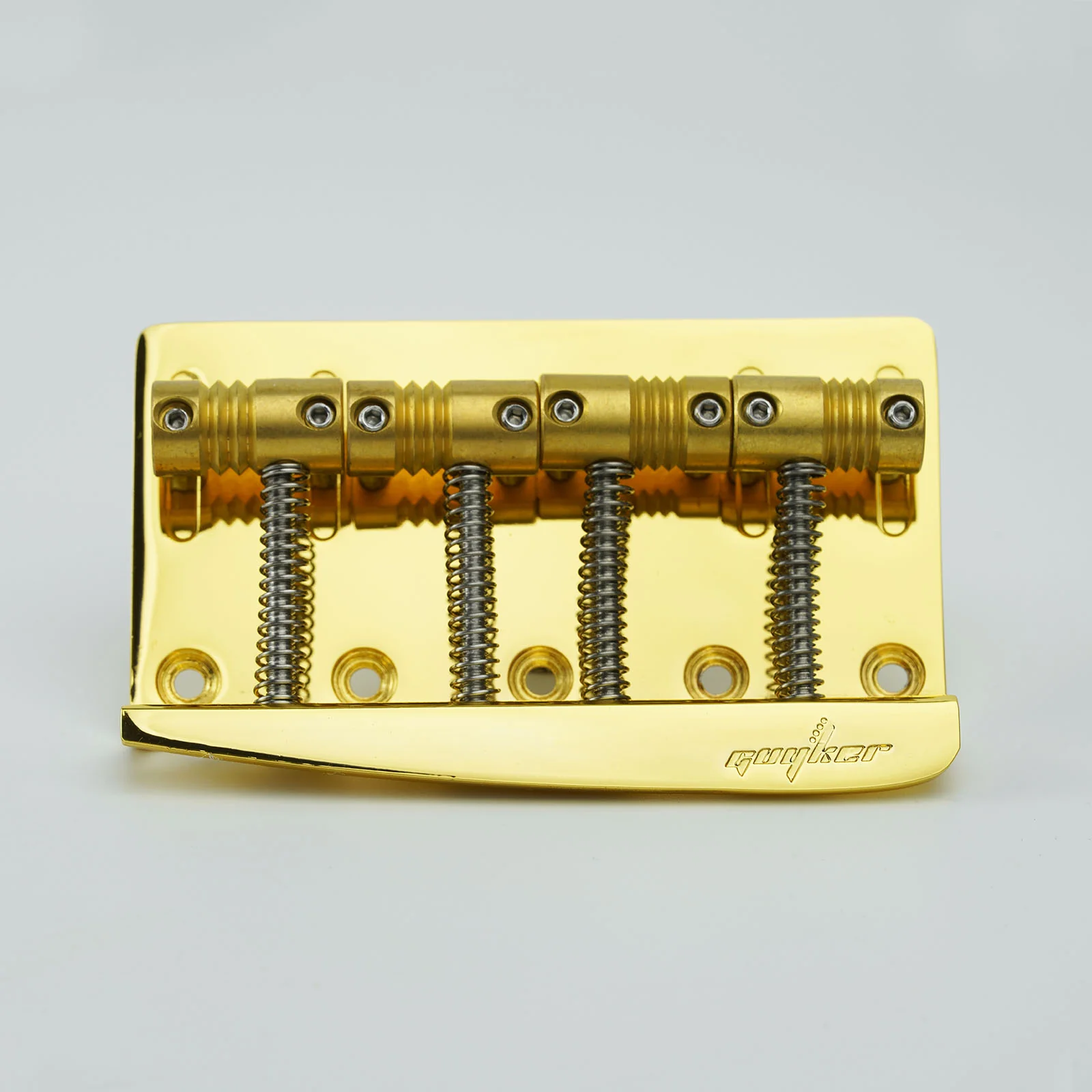

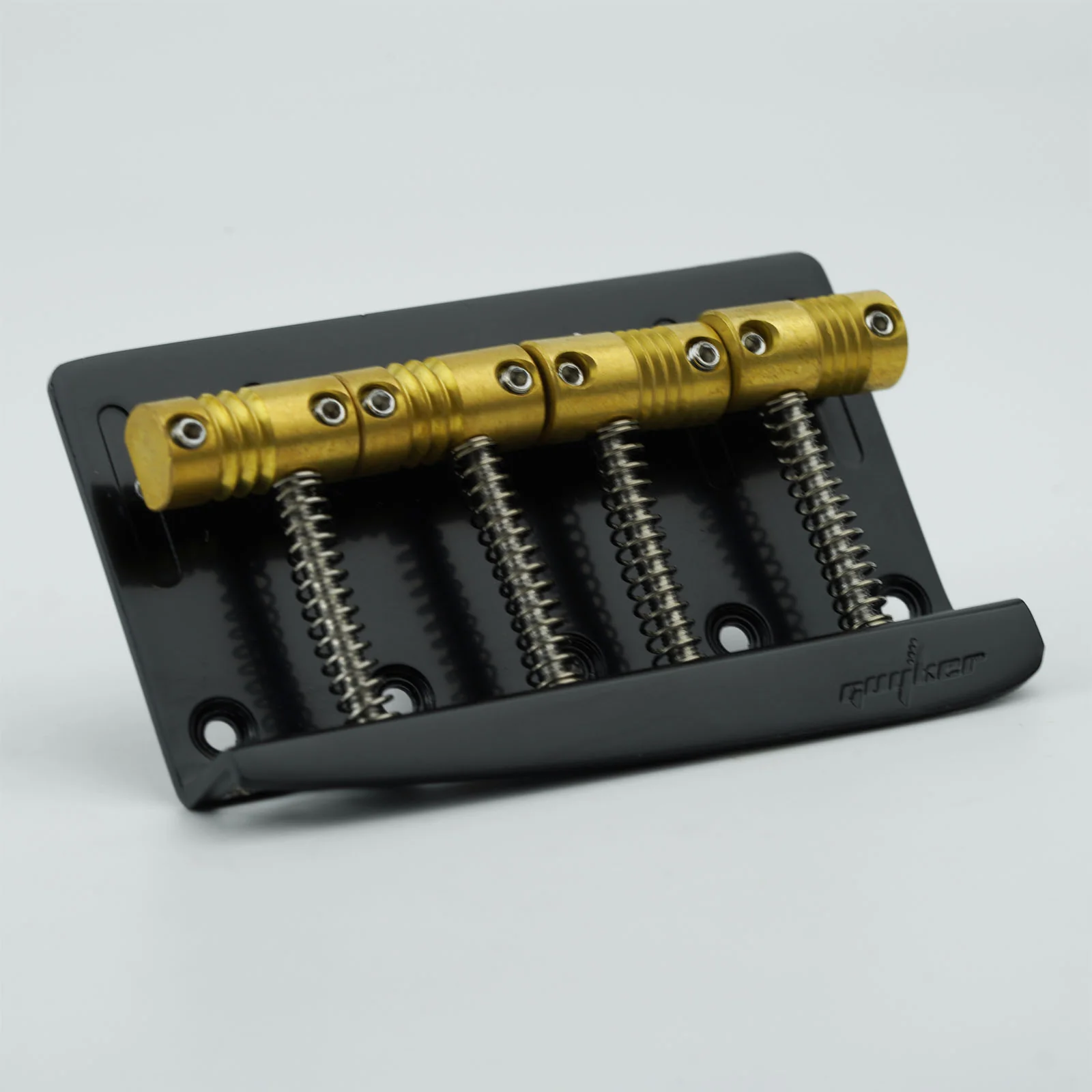

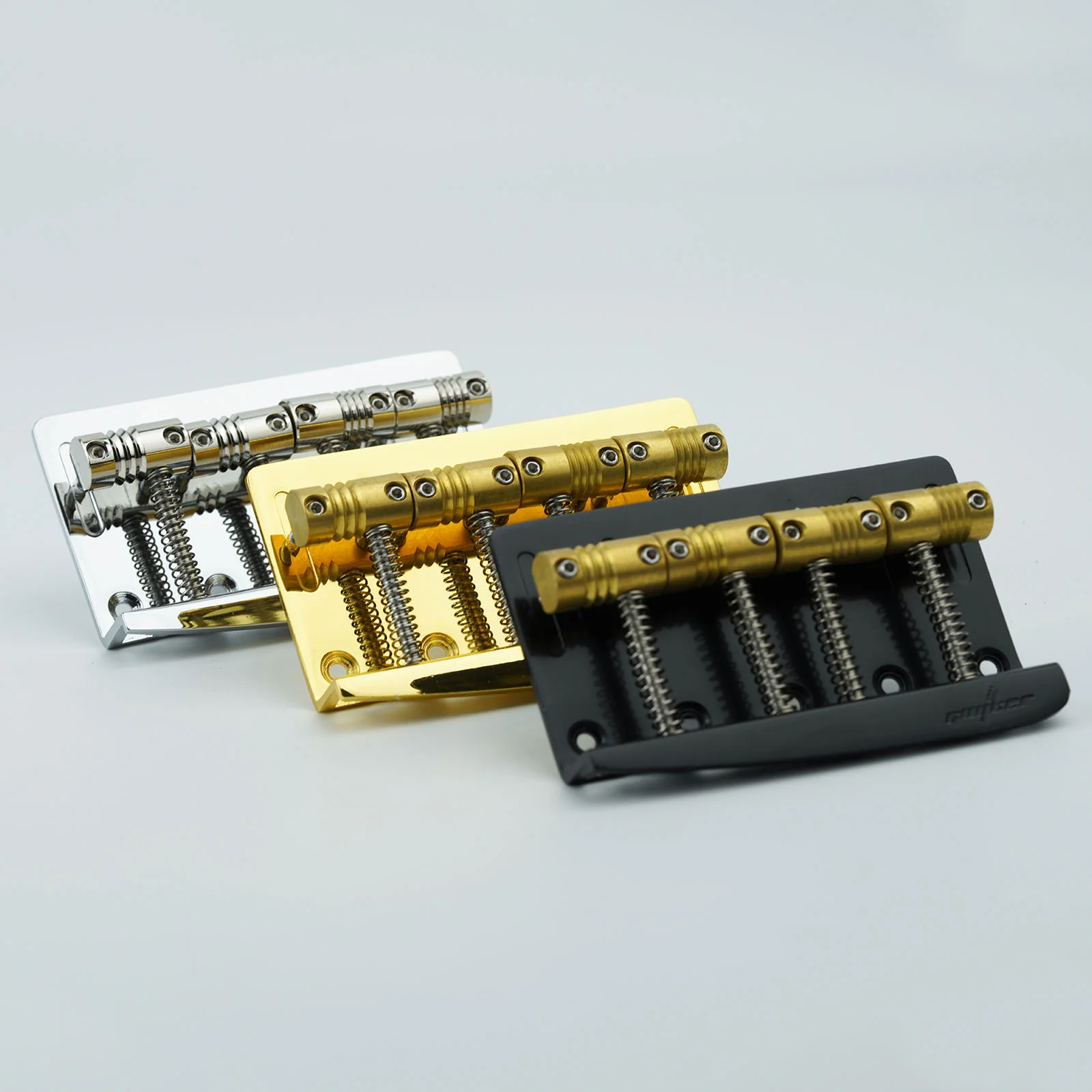

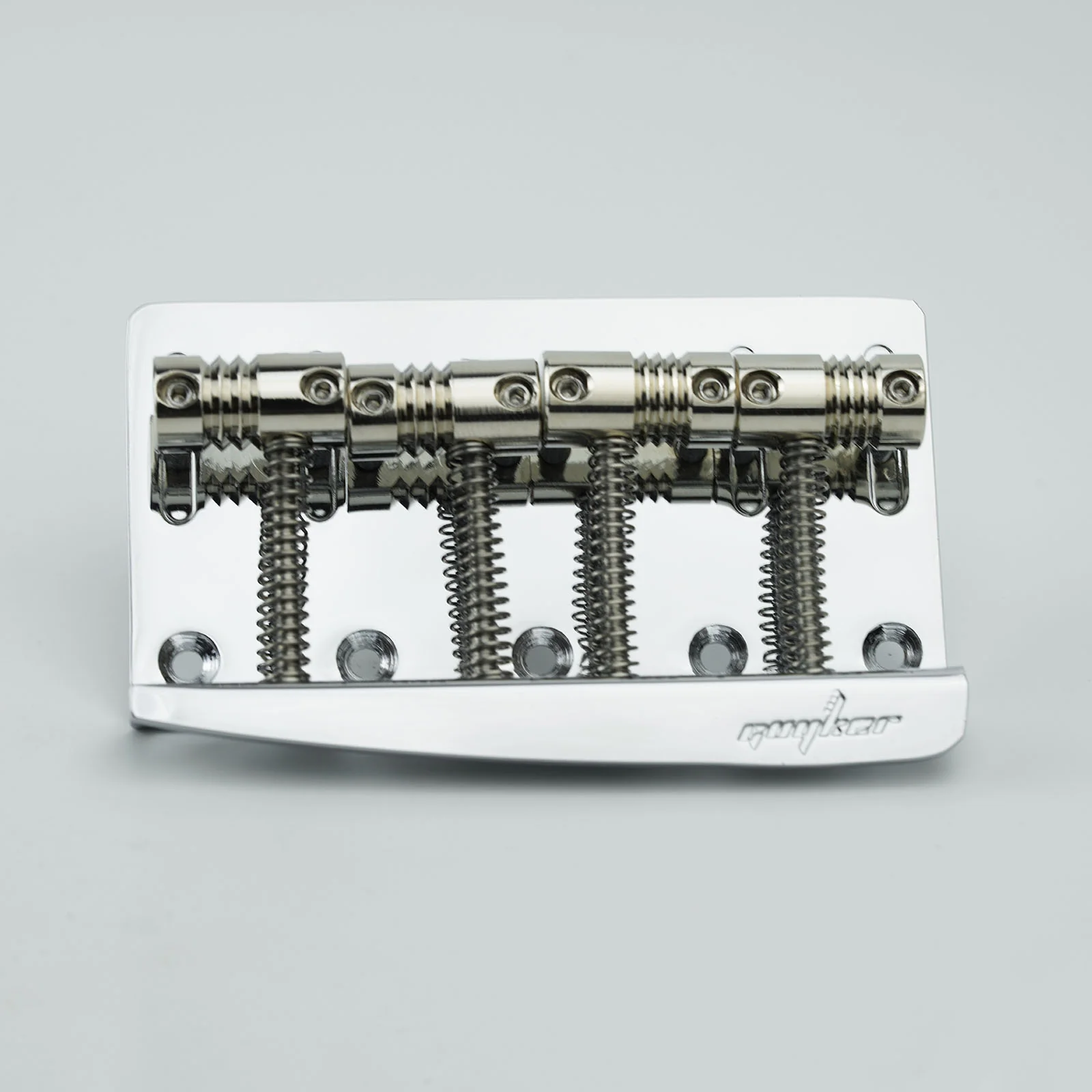

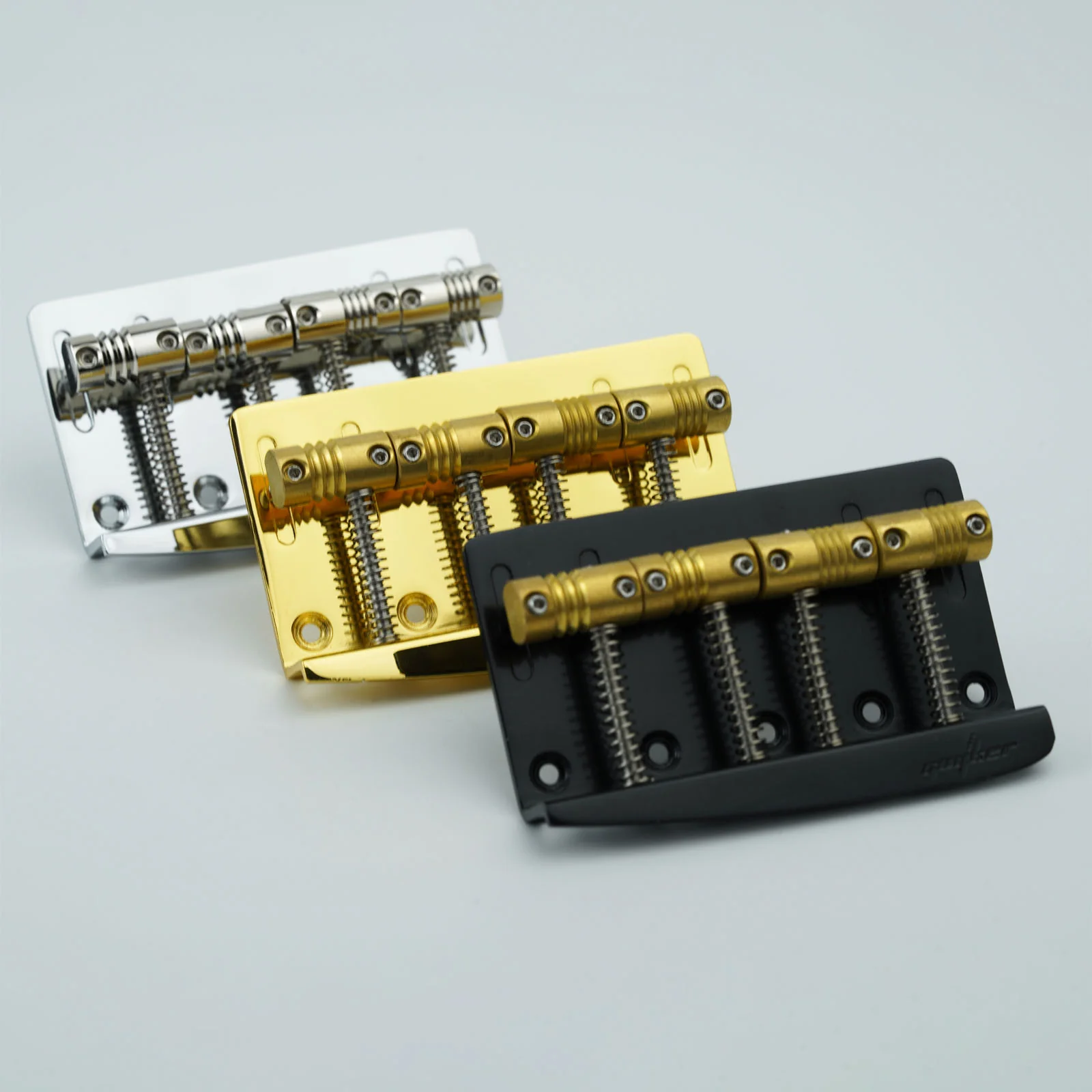

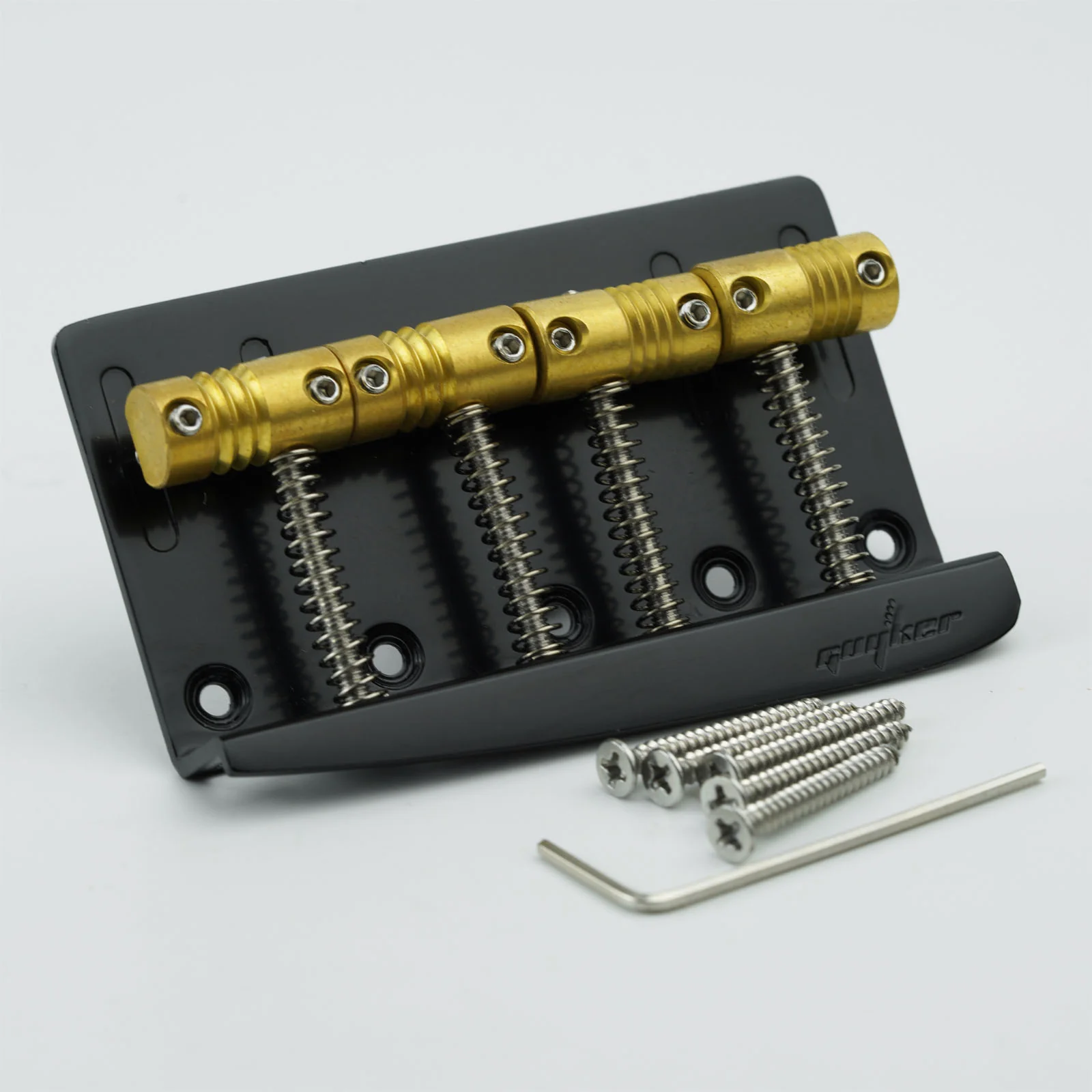

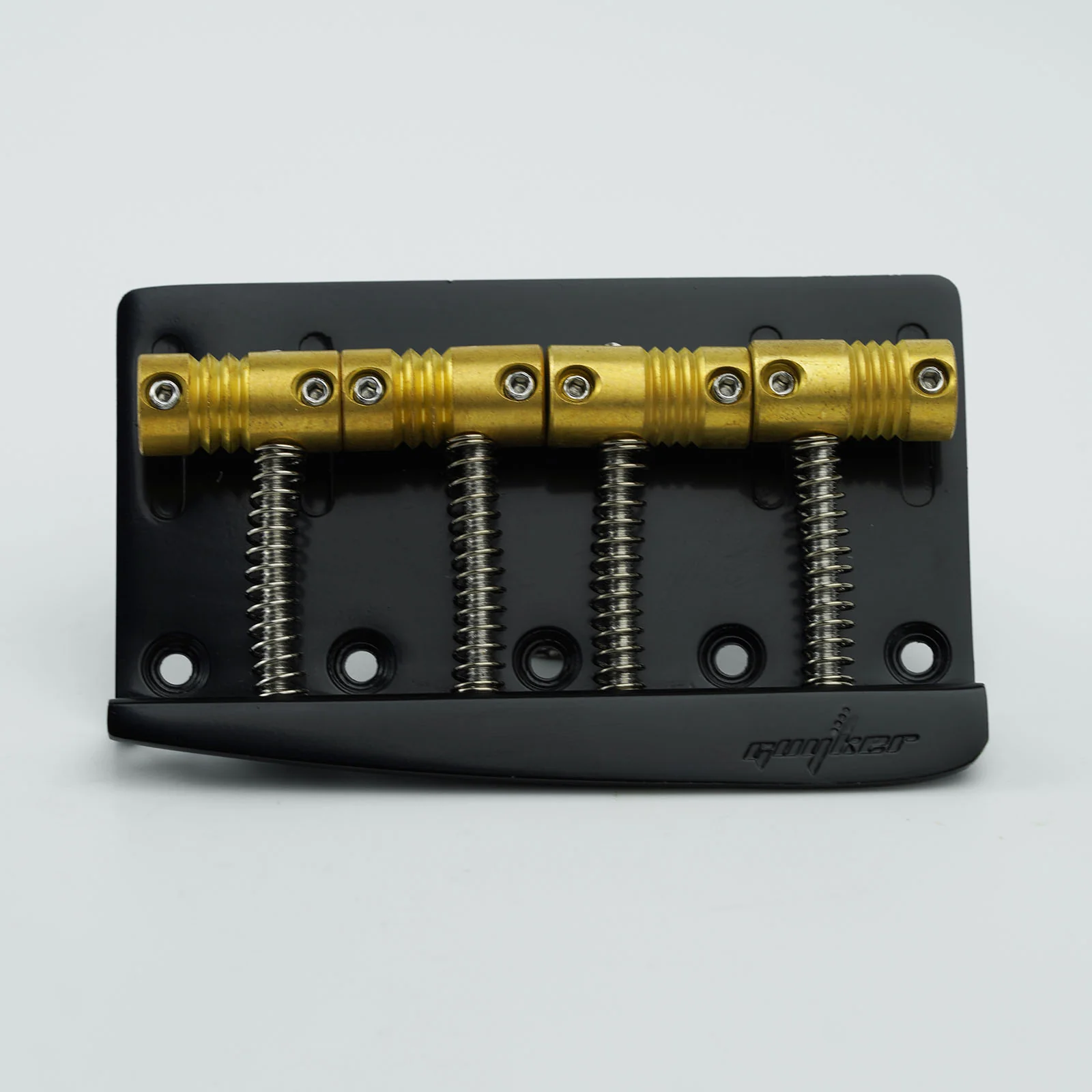

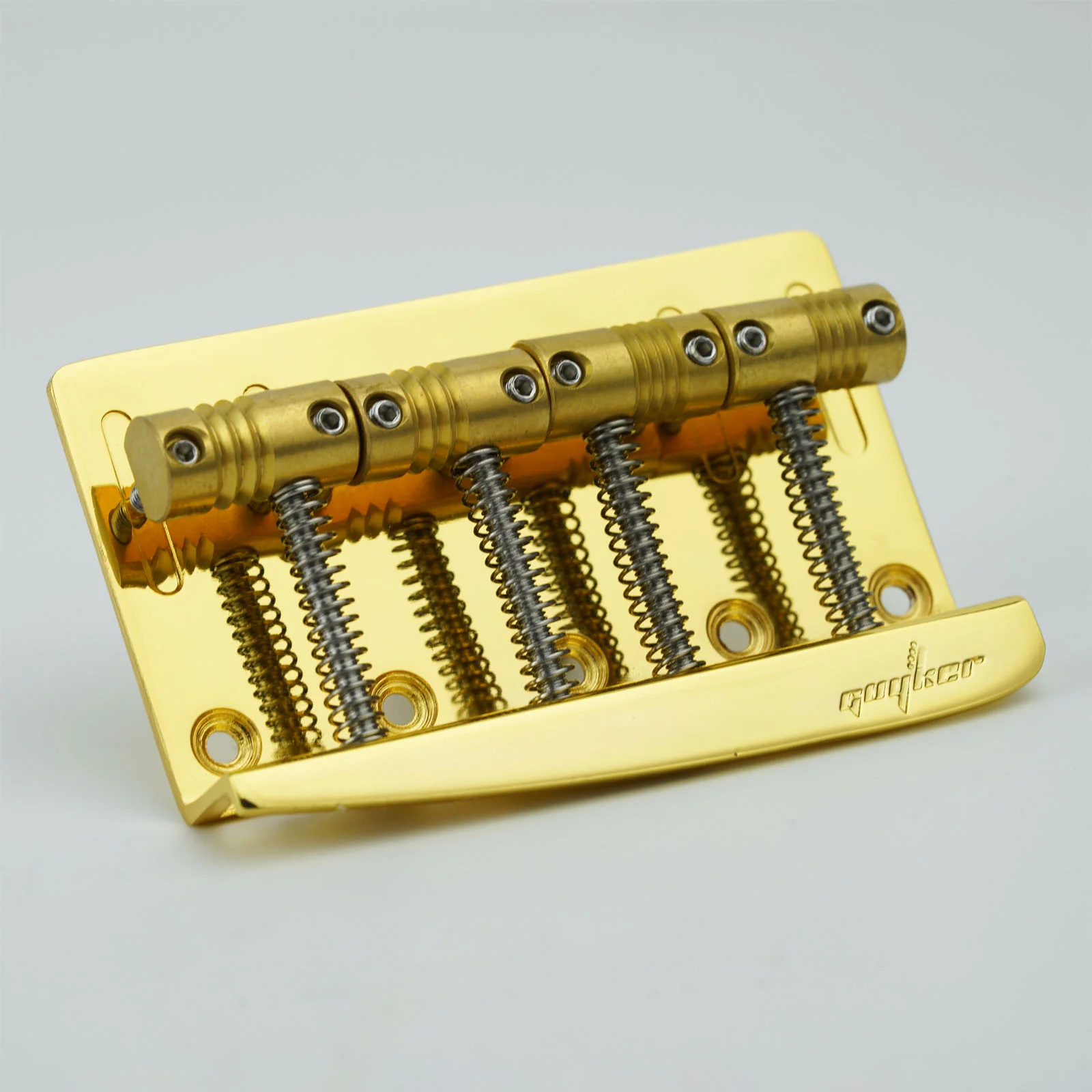

• Color Options: Chrome, Black, Gold
• Suitable For: Electric bass with matching bridge size and mounting layout

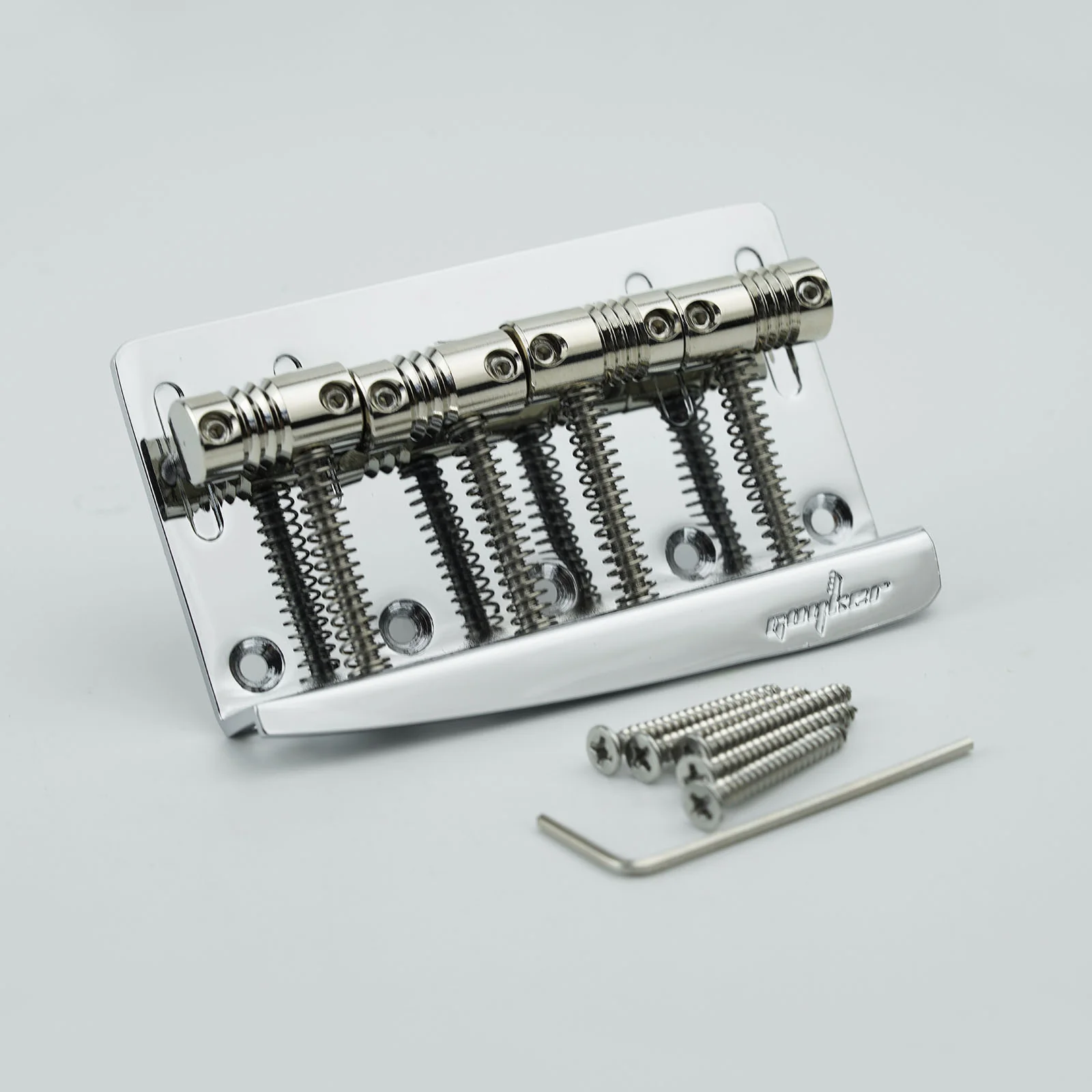

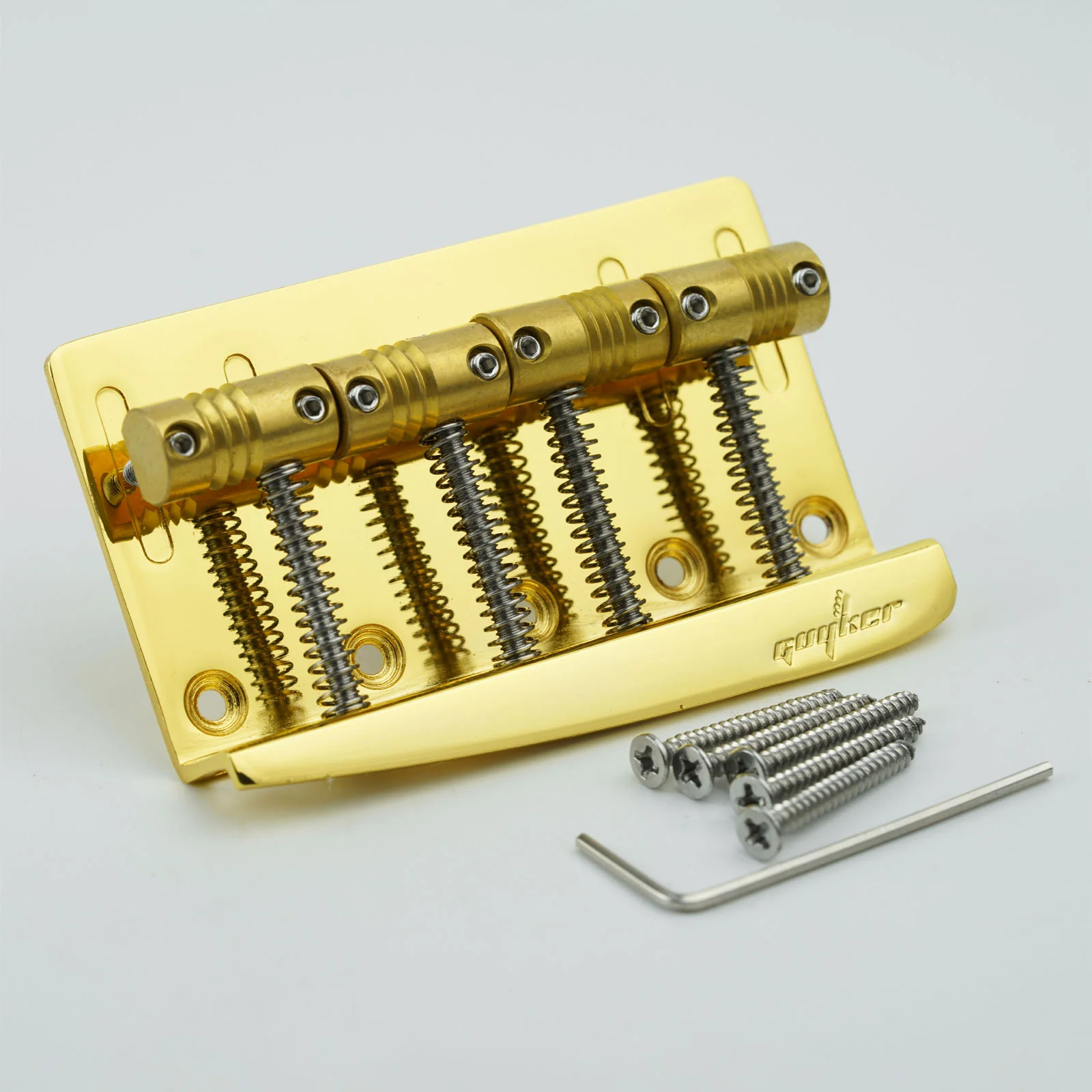

Package Includes:

• 1 x GB-204 bass bridge
• Mounting screws included
• Hex wrench included

Fitment Note / Warm Reminder:
Please verify your existing bridge overall dimensions, mounting hole layout, mounting hole diameter (Ø3.1 mm), bottom hole positioning (19 mm / 22 mm / 19 mm), string spacing (18.9 mm), and saddle structure before ordering. This product uses 4 vintage barrel saddles and a screw-mount baseplate, so customers should confirm both the screw hole position and bridge structure against their original part before installation.
