Key Features:

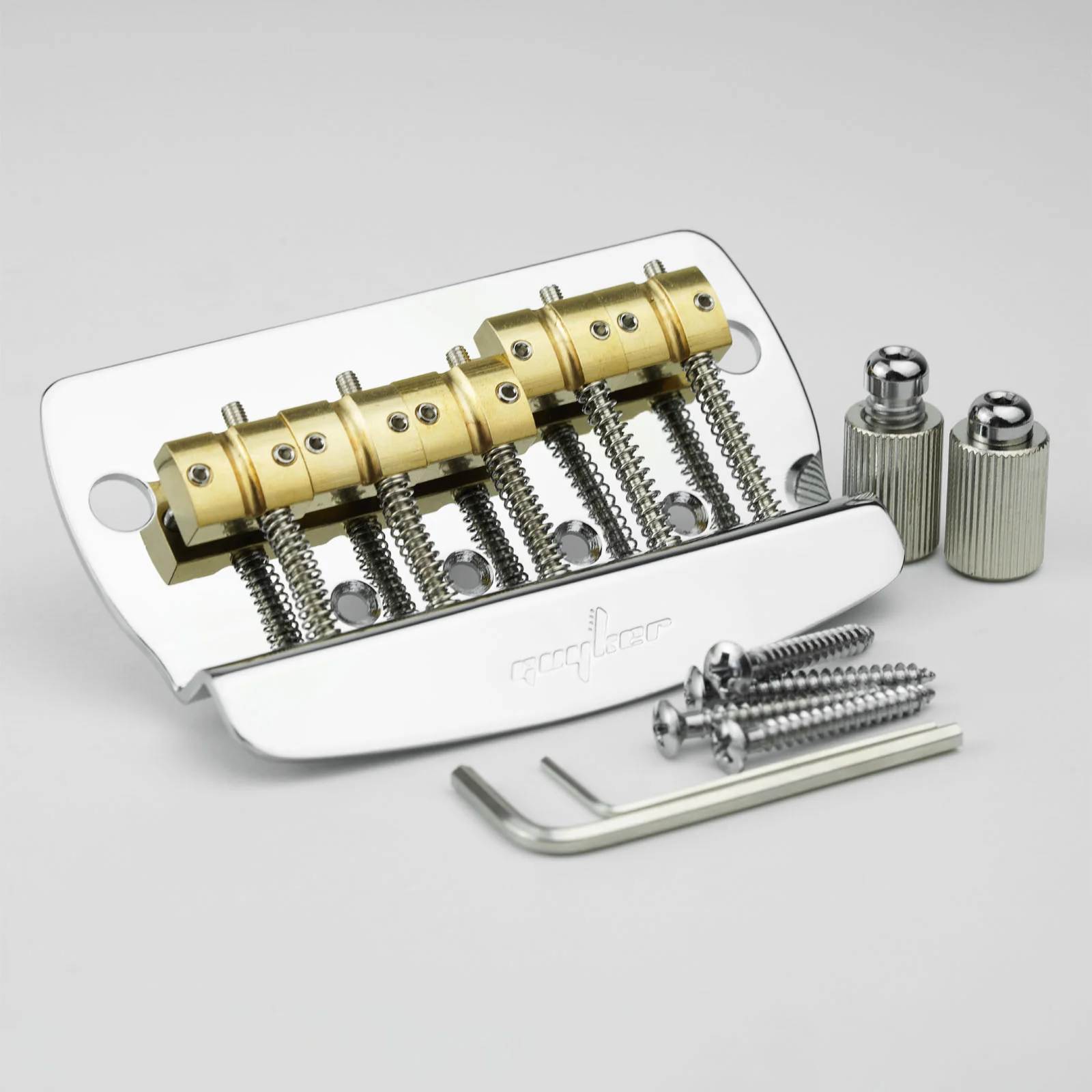

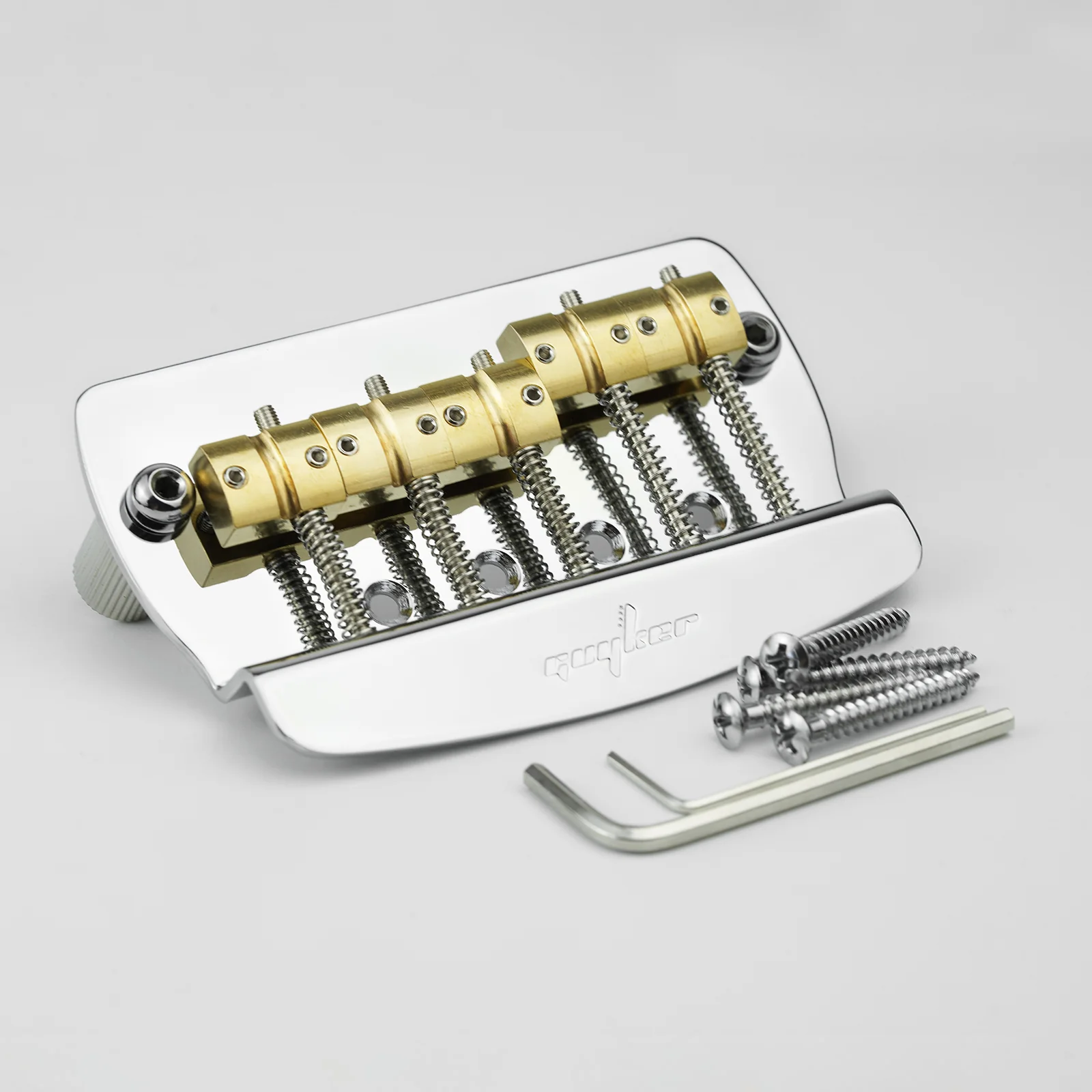

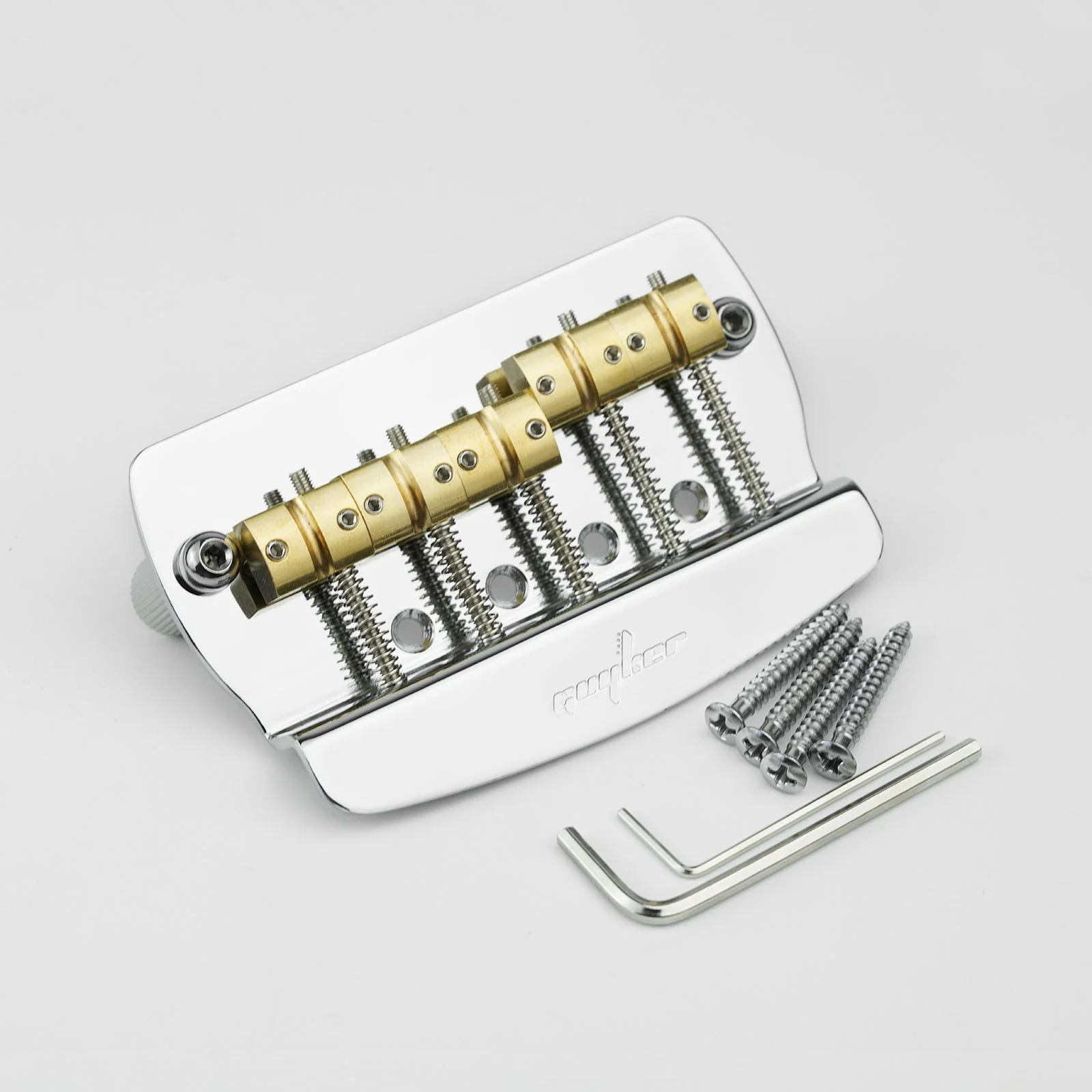

• 5-string bass bridge designed for bass guitar replacement or upgrade projects.
• Brass saddles provide durable string contact for long-term use.
• Iron baseplate offers solid mounting support and structural stability.

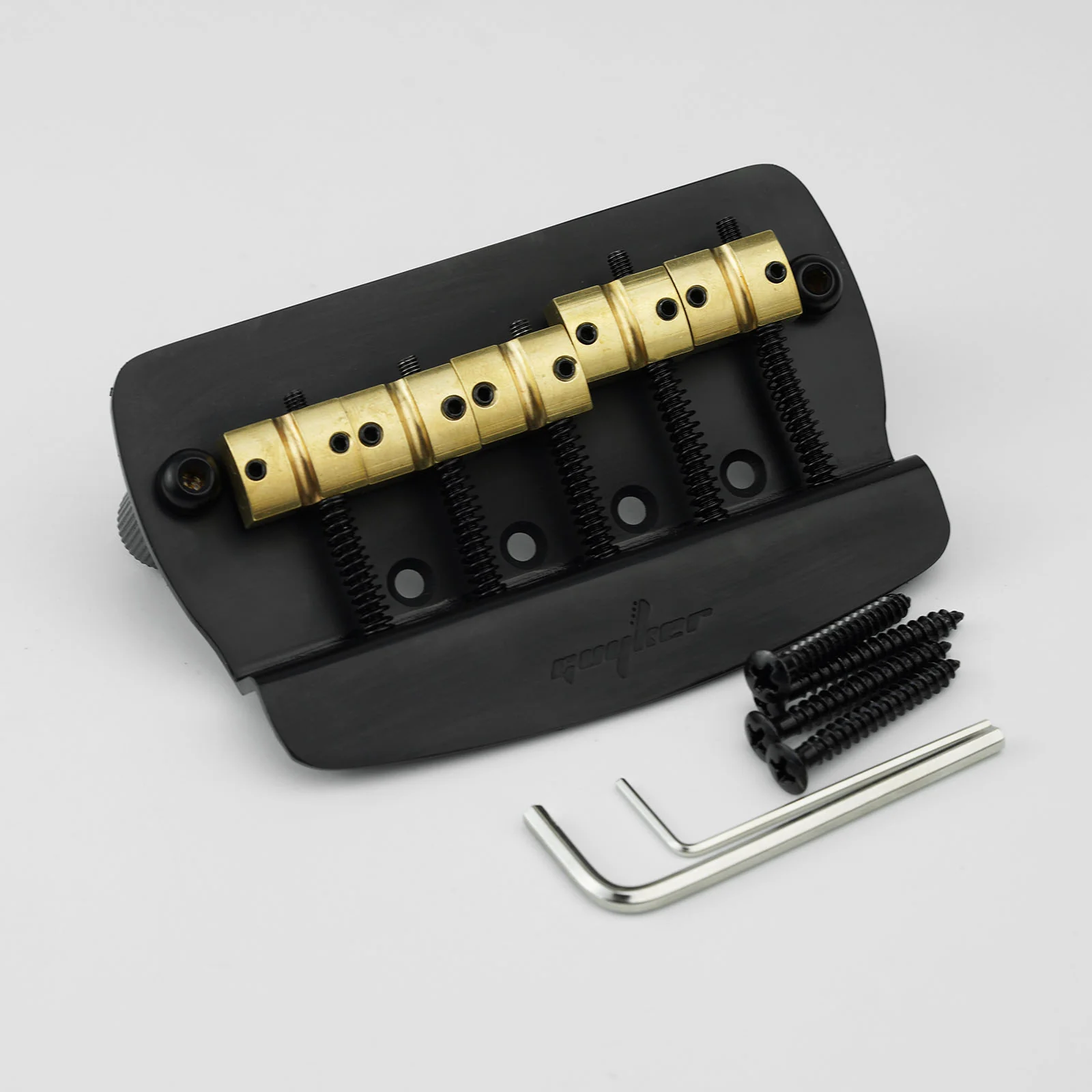

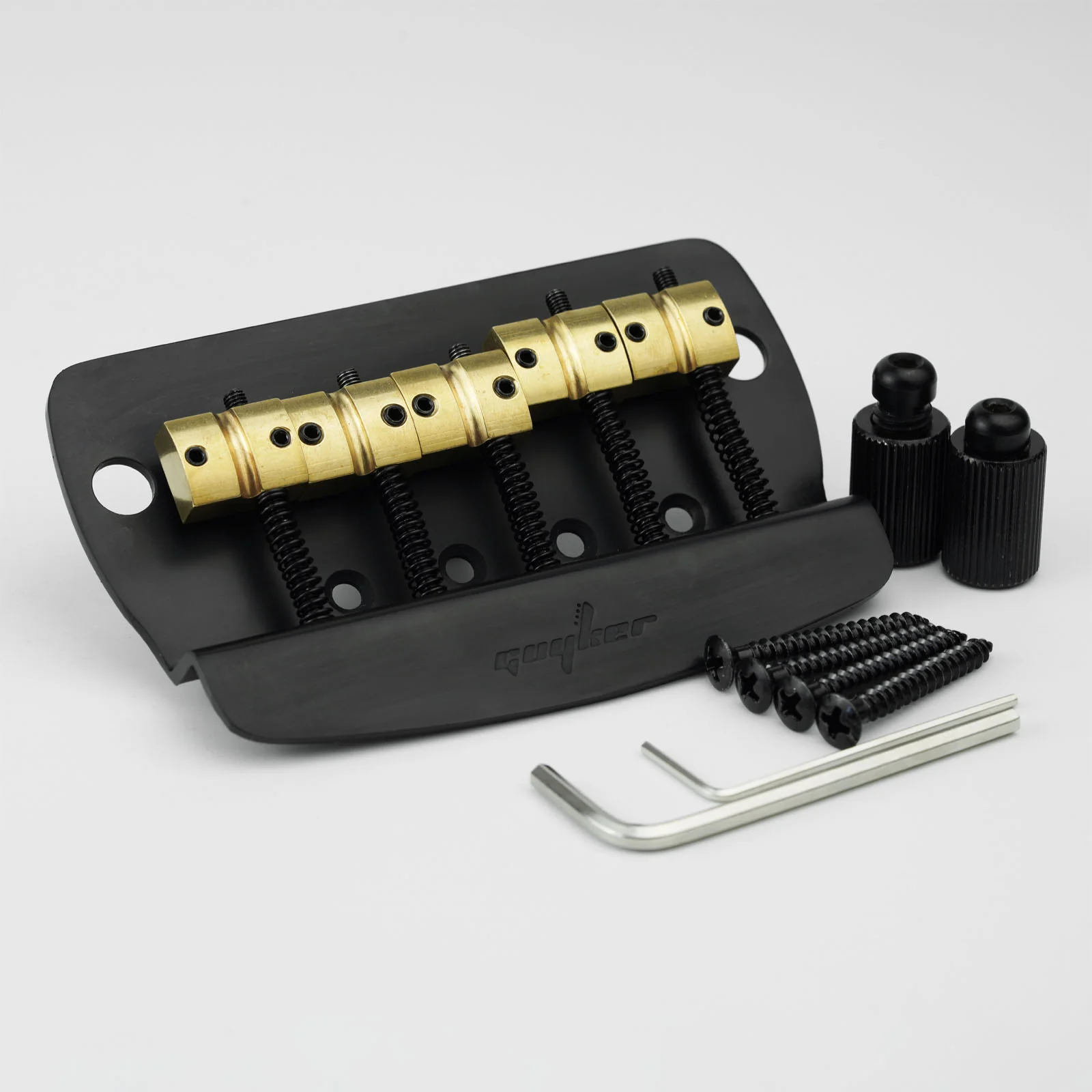

• Available in Chrome and Black finishes.
• Adjustable saddle structure supports practical setup and intonation adjustment.

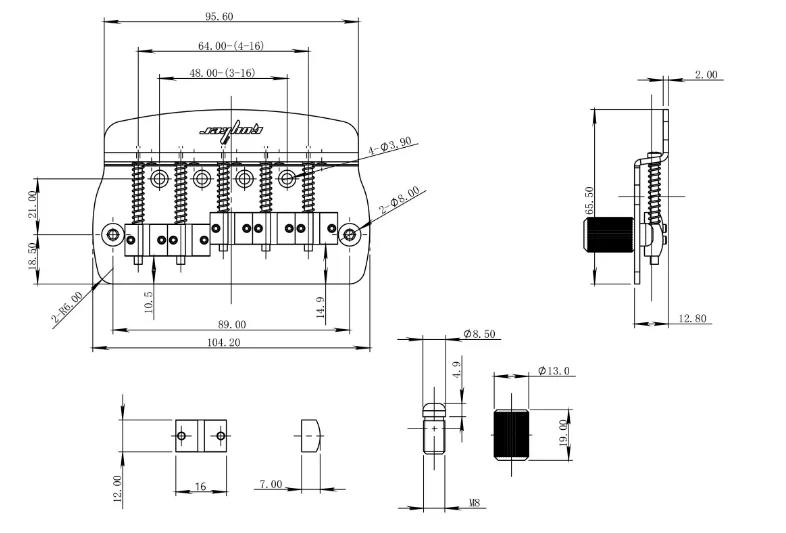

• Compact bridge layout with clearly defined 64.00 mm string spacing and 48.00 mm mounting hole spacing for measurement-based fitment checks.

Specifications:

• Material: Brass saddles, iron baseplate
• Color: Chrome / Black
• Overall Length: 104.20 mm
• Overall Width: 65.50 mm
• Top Width: 95.60 mm
• Inner Base Width: 89.00 mm
• String Spacing: 64.00 mm (4 × 16)
• Mounting Hole Spacing: 48.00 mm (3 × 16)
• Saddle Size: 16 × 12 × 7 mm
• Mounting Hole Diameter: 4 × Φ3.90 mm
• Side Hole Diameter: 2 × Φ6.00 mm
• Thread Size: M8
• Tolerance: Dimensions may vary by ±1 mm due to manual measurement.

Package Includes:

• 1 x 5-string bass guitar bridge
• Mounting screws
• 2 x hex wrenchs
• 2 x posts

Fitment Note / Warm Reminder:
Please verify your original bridge measurements before ordering, especially the 104.20 mm overall length, 65.50 mm overall width, 48.00 mm mounting hole spacing, 64.00 mm string spacing, hole diameters, and 5-string layout. This bridge is recommended only for instruments with a matching mounting structure and dimensions.

Key Features

5-string bass guitar bridge with brass saddles and iron baseplate.
