Guyker GB1028 5-String Bass Bridge with Brass Saddles

Product image 1
1 / 9

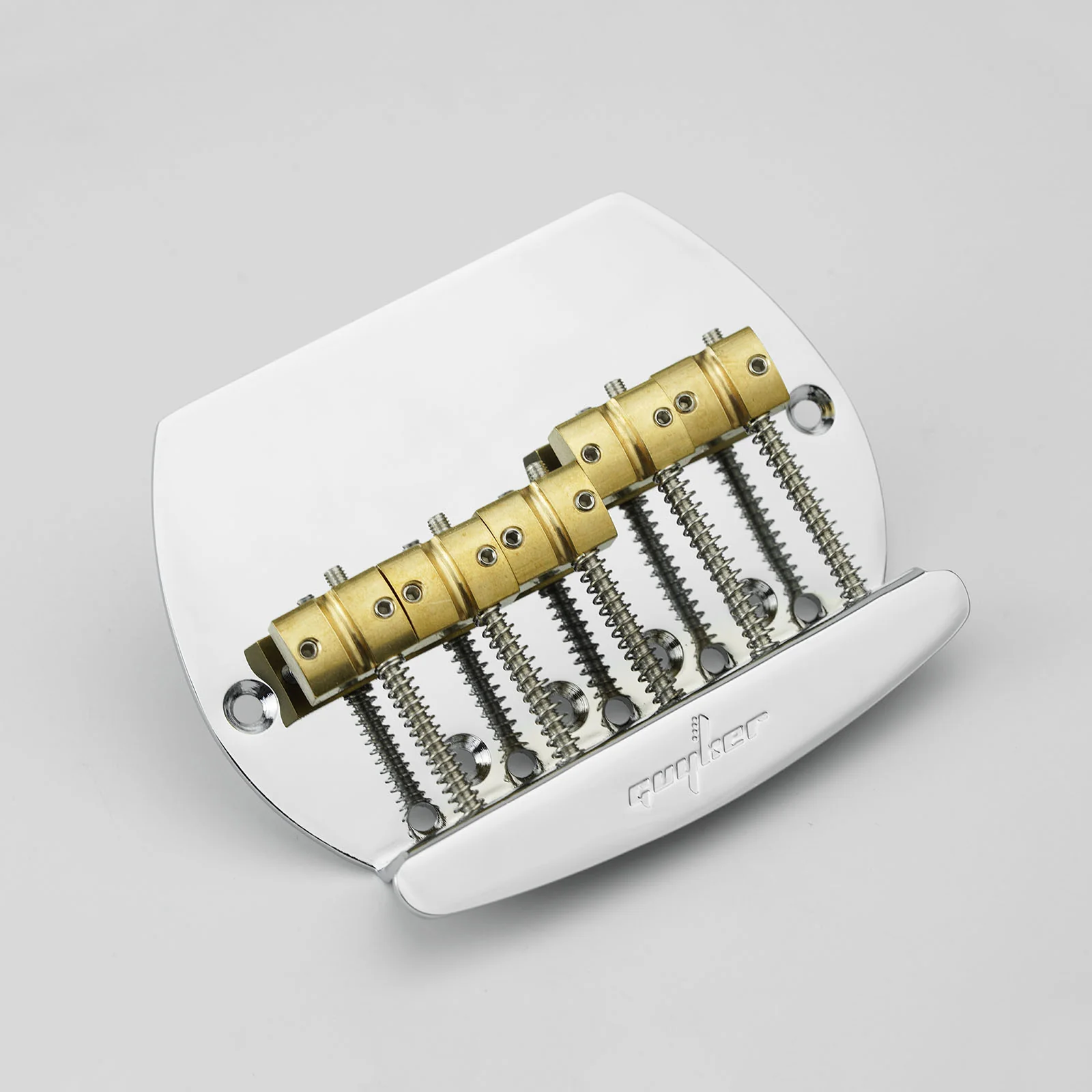

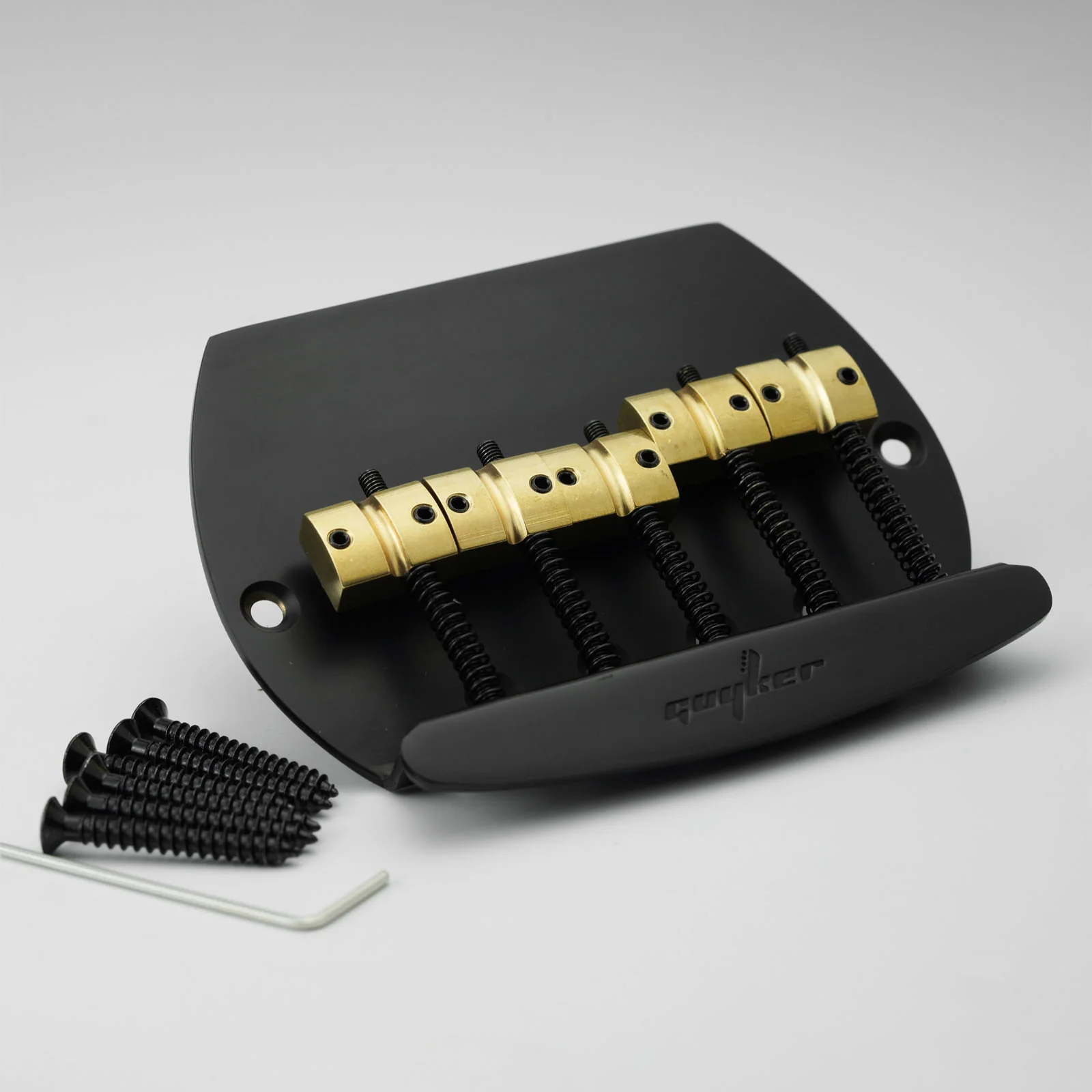

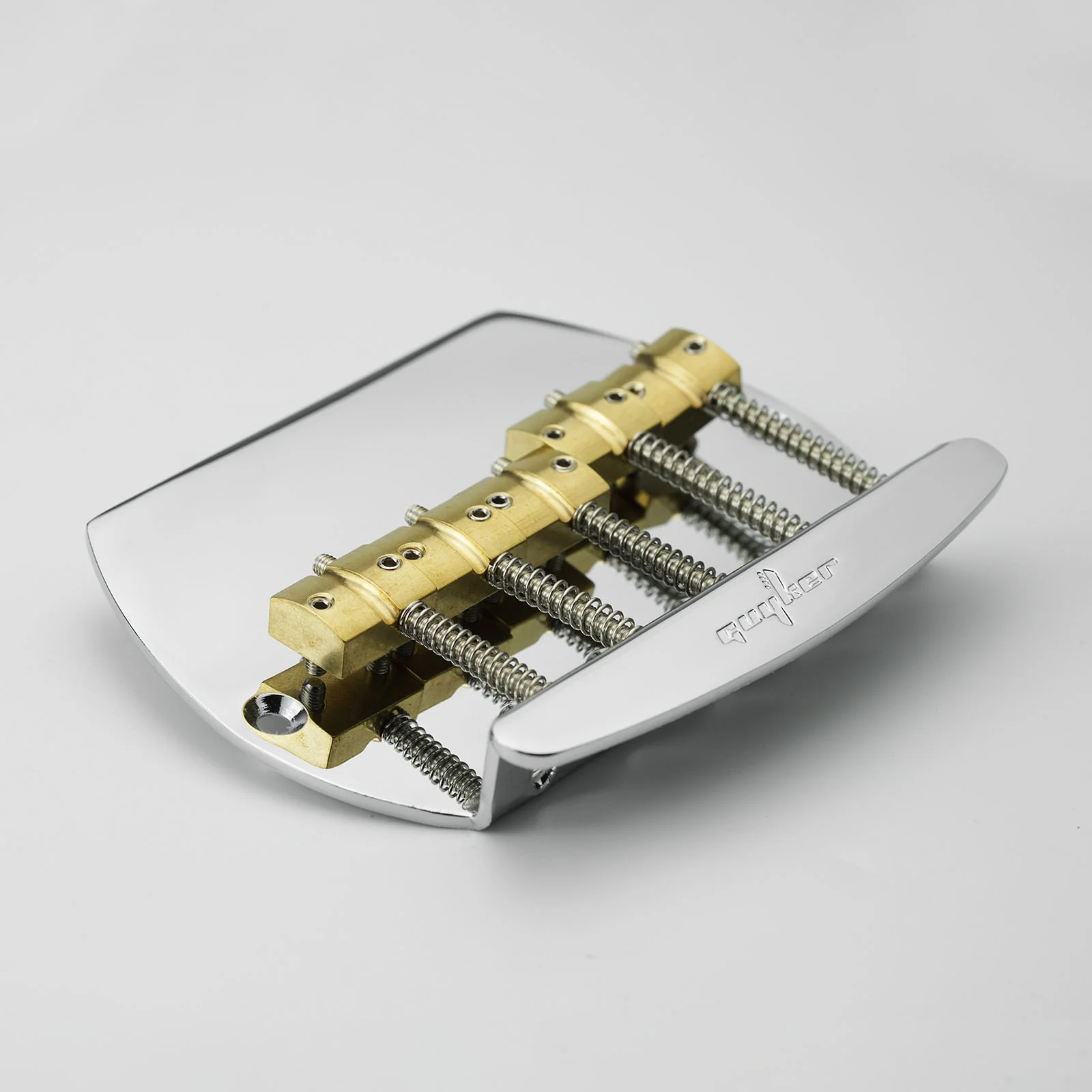

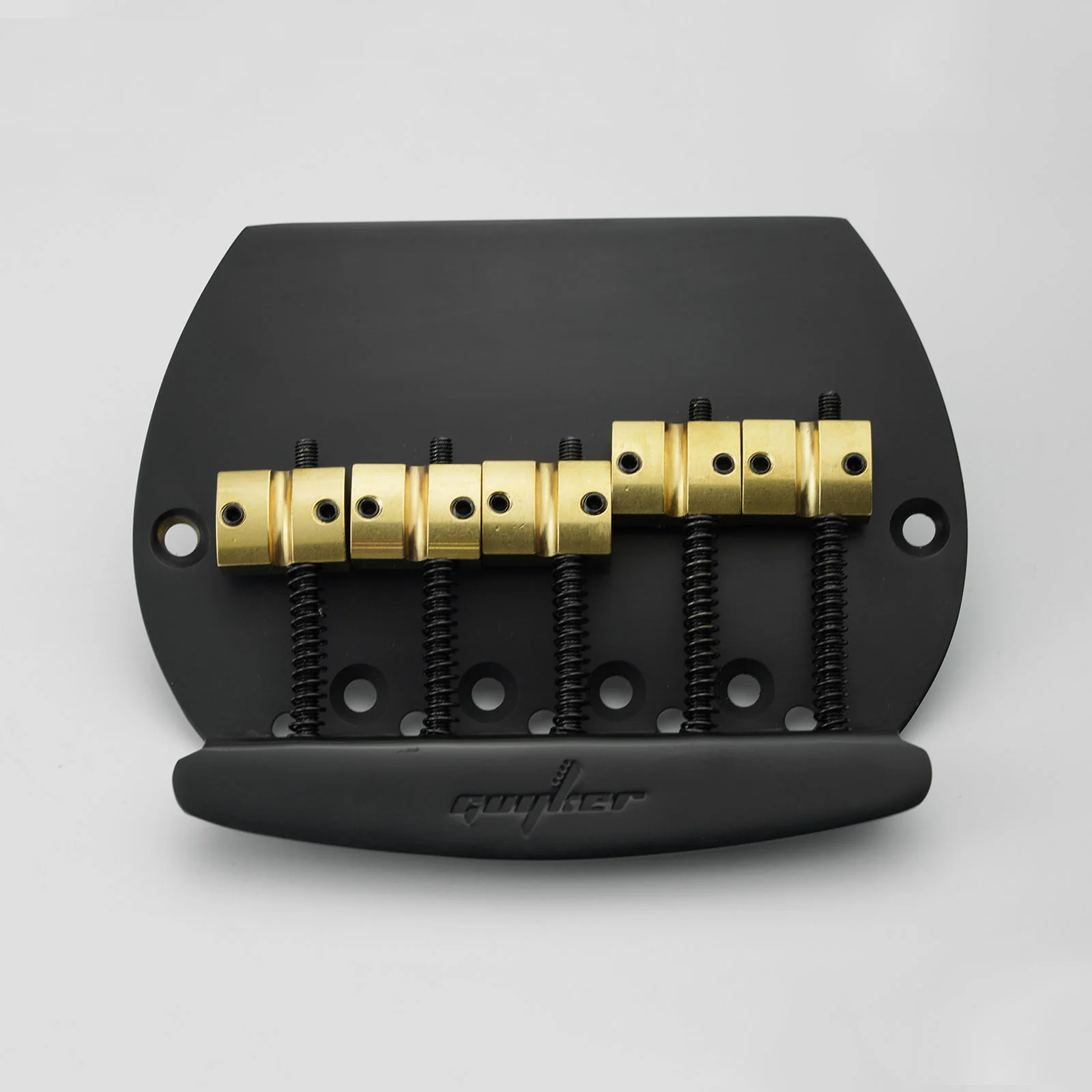

Guyker GB1028 5-String Bass Bridge with Brass Saddles

Key Features:

  • 5-string bass bridge designed for replacement or upgrade projects.
  • Brass saddles provide solid string contact and durable wear resistance.
  • Iron baseplate offers strong structural support for stable installation.
  • Available in Black or Chrome finish options.
  • Individually adjustable saddles support practical setup and intonation adjustment.
  • Compact bridge design with listed dimensions for measurement-based fitment checks.
  • Suitable for bass projects where the mounting pattern and spacing match the bridge specs.

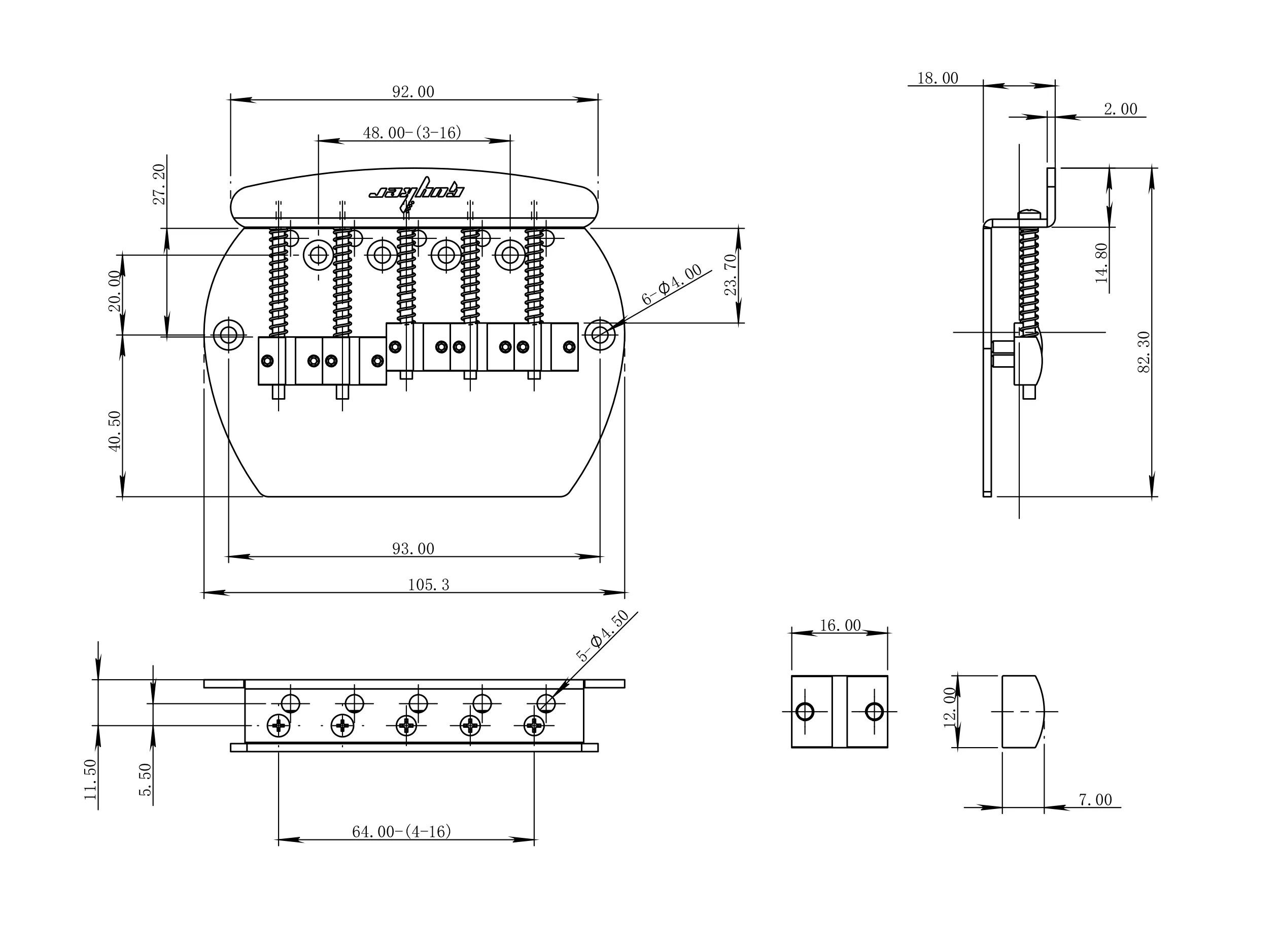

Specifications:

  • Material: Brass saddles, iron baseplate
  • Color: Black / Chrome
  • Overall Length: 105.3 mm
  • Bridge Width: 82.3 mm
  • Bridge Height: 18 mm
  • String Spacing: 64.00 mm (4 × 16)
  • Mounting Hole Spacing: 48.00 mm (3 × 16)
  • Saddle Length: 16 mm
  • Saddle Width: 12 mm
  • Saddle Height: 7 mm
  • Suitable For: 5-string bass guitar
  • Tolerance: Dimensions may vary by ±1 mm due to manual measurement.

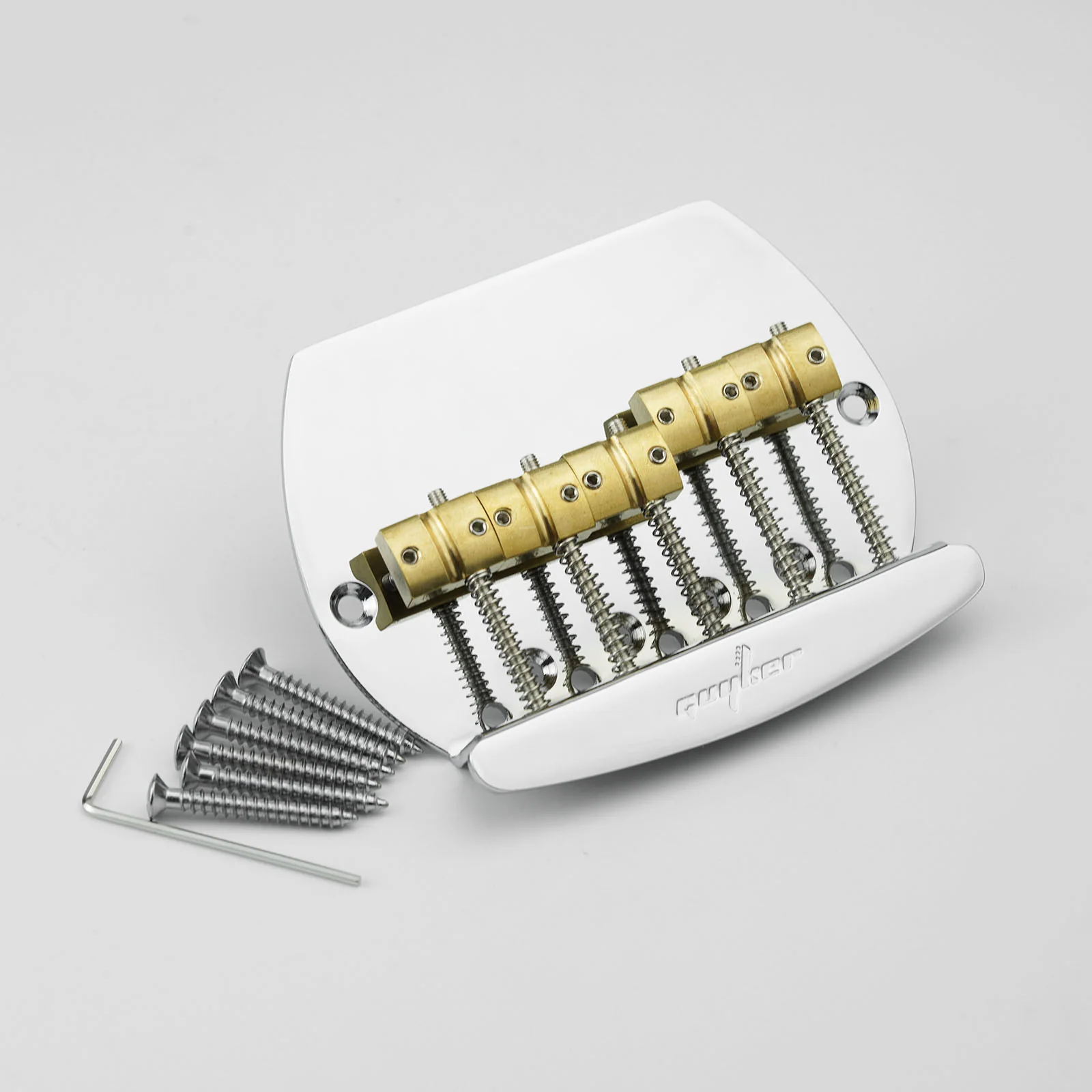

Package Includes:

  • 1 x 5-string bass bridge
  • Mounting screws
  • 1 x hex wrench

Fitment Note / Warm Reminder:
Please verify your original bridge dimensions before ordering, especially the overall size, 48.00 mm mounting hole spacing, 64.00 mm string spacing, and 5-string layout. This bridge is best suited for bass guitars with a matching mounting structure and measurement range.

Select Color
From $12.60

Original: $35.99

-65%
Guyker GB1028 5-String Bass Bridge with Brass Saddles

$35.99

$12.60

Product Information

Shipping & Returns

Description

Key Features:

  • 5-string bass bridge designed for replacement or upgrade projects.
  • Brass saddles provide solid string contact and durable wear resistance.
  • Iron baseplate offers strong structural support for stable installation.
  • Available in Black or Chrome finish options.
  • Individually adjustable saddles support practical setup and intonation adjustment.
  • Compact bridge design with listed dimensions for measurement-based fitment checks.
  • Suitable for bass projects where the mounting pattern and spacing match the bridge specs.

Specifications:

  • Material: Brass saddles, iron baseplate
  • Color: Black / Chrome
  • Overall Length: 105.3 mm
  • Bridge Width: 82.3 mm
  • Bridge Height: 18 mm
  • String Spacing: 64.00 mm (4 × 16)
  • Mounting Hole Spacing: 48.00 mm (3 × 16)
  • Saddle Length: 16 mm
  • Saddle Width: 12 mm
  • Saddle Height: 7 mm
  • Suitable For: 5-string bass guitar
  • Tolerance: Dimensions may vary by ±1 mm due to manual measurement.

Package Includes:

  • 1 x 5-string bass bridge
  • Mounting screws
  • 1 x hex wrench

Fitment Note / Warm Reminder:
Please verify your original bridge dimensions before ordering, especially the overall size, 48.00 mm mounting hole spacing, 64.00 mm string spacing, and 5-string layout. This bridge is best suited for bass guitars with a matching mounting structure and measurement range.
