Key Features:

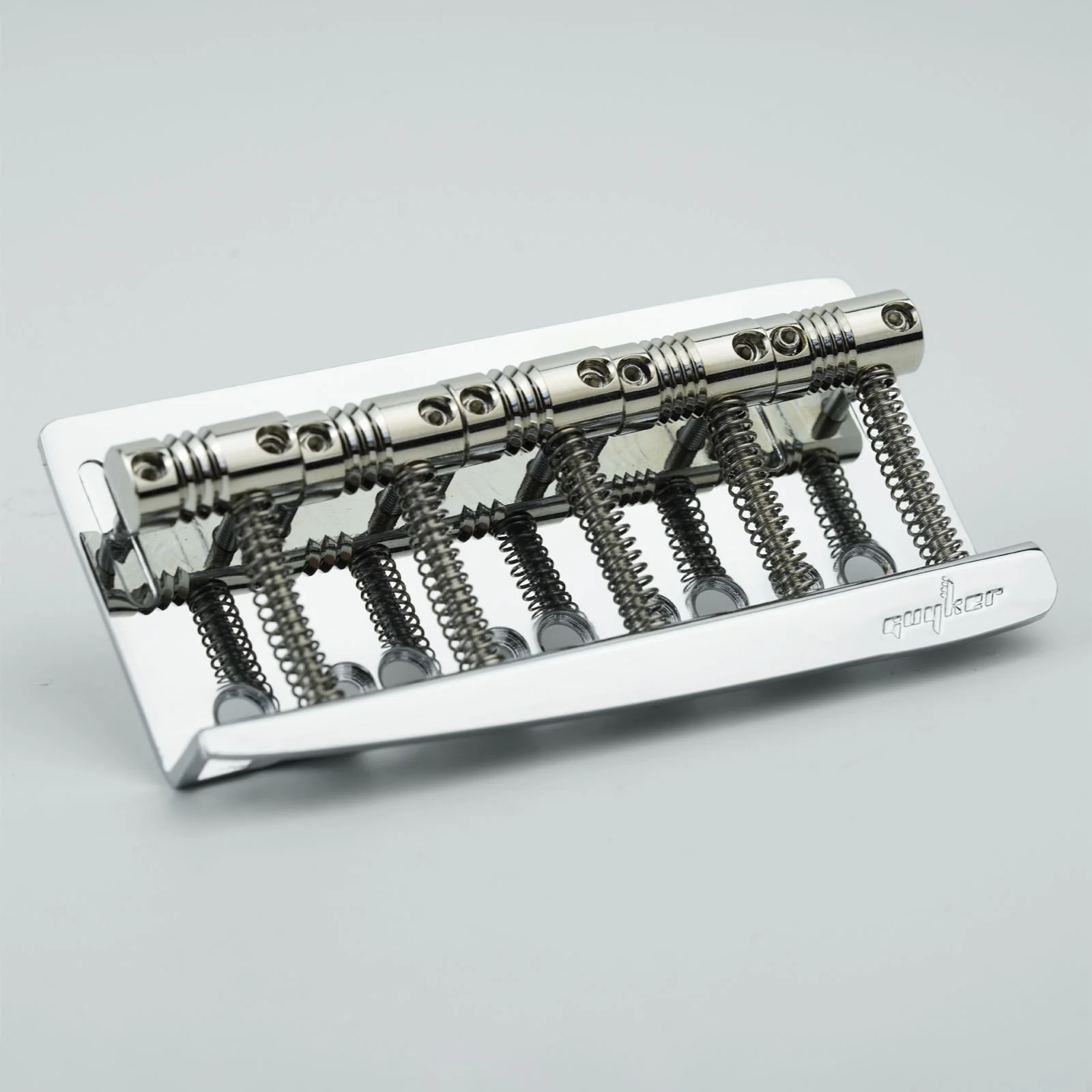

• 5-string bass bridge designed for replacement, upgrade, or custom build projects.
• Features 5 vintage-style barrel saddles for practical string support and classic bass bridge styling.

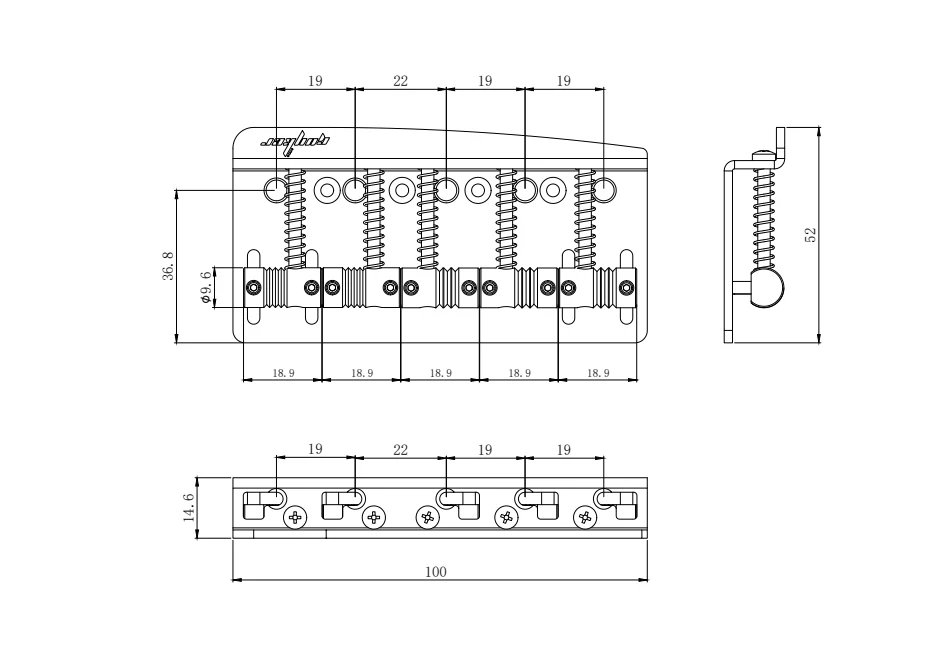

• Dimension drawing confirms 18.9 mm string spacing across all five string positions for fitment checking.
• Built with a screw-mount baseplate and clearly shown mounting hole layout for replacement matching.
• Size diagram shows the bridge plate width, overall length, and mounting hole positioning to help verify compatibility before ordering.
• Chrome-plated metal construction offers solid durability and a traditional hardware look.
• Suitable for electric bass projects with matching bridge footprint, mounting structure, and spacing.

Specifications:

• Type: 5-string electric bass bridge with vintage style saddles
• Configuration: 5-string
• Saddle Type: Vintage-style barrel saddles
• Material: Chrome-plated metal
• Overall Length: 100 mm
• Bridge Plate Width: 38.8 mm
• Side Height: 52 mm
• Front-to-Back Depth: 14.6 mm
• String Spacing: 18.9 mm
• Bottom Mounting Hole Positioning: 19 mm / 22 mm / 19 mm / 19 mm
• Saddle Barrel Diameter: Ø9.6 mm

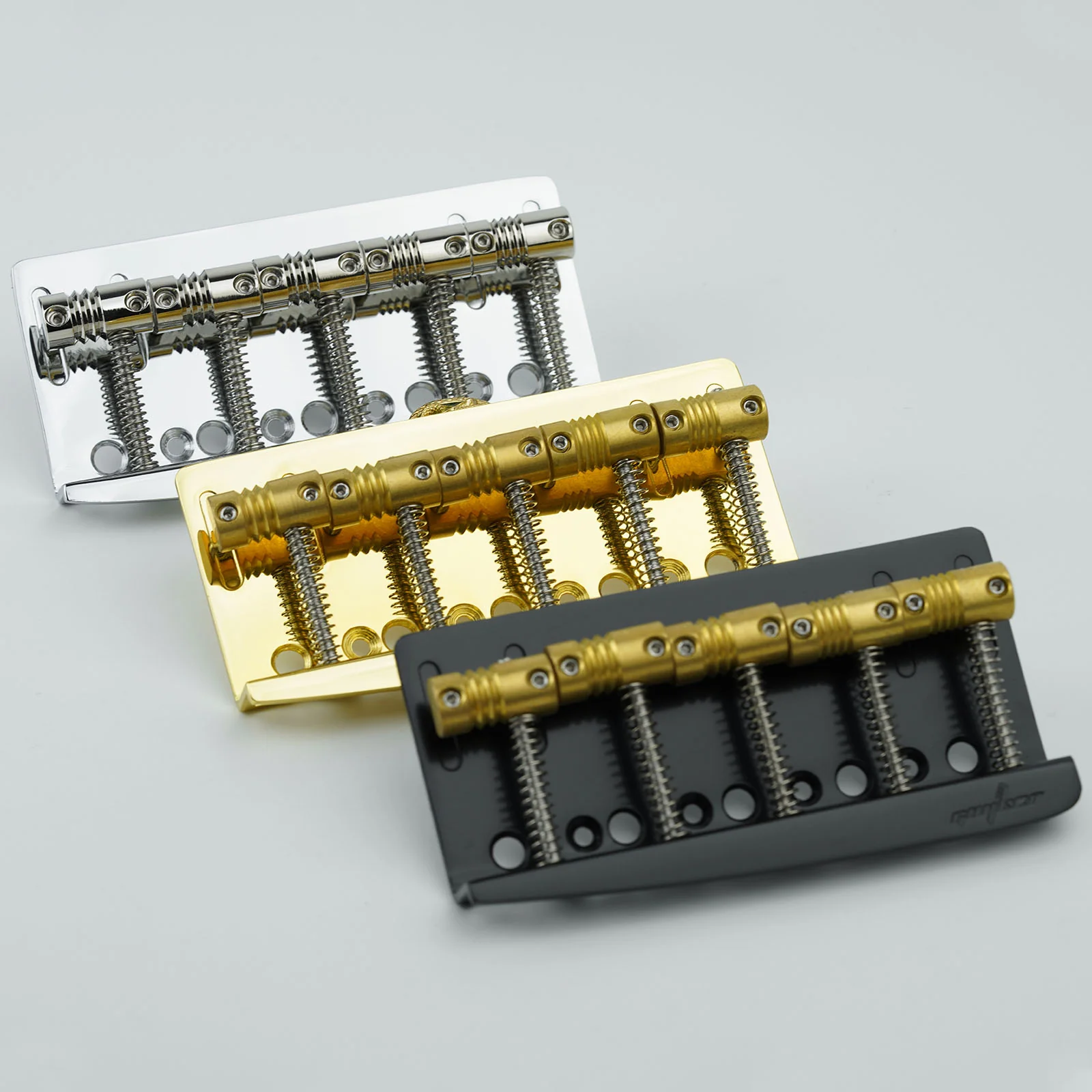

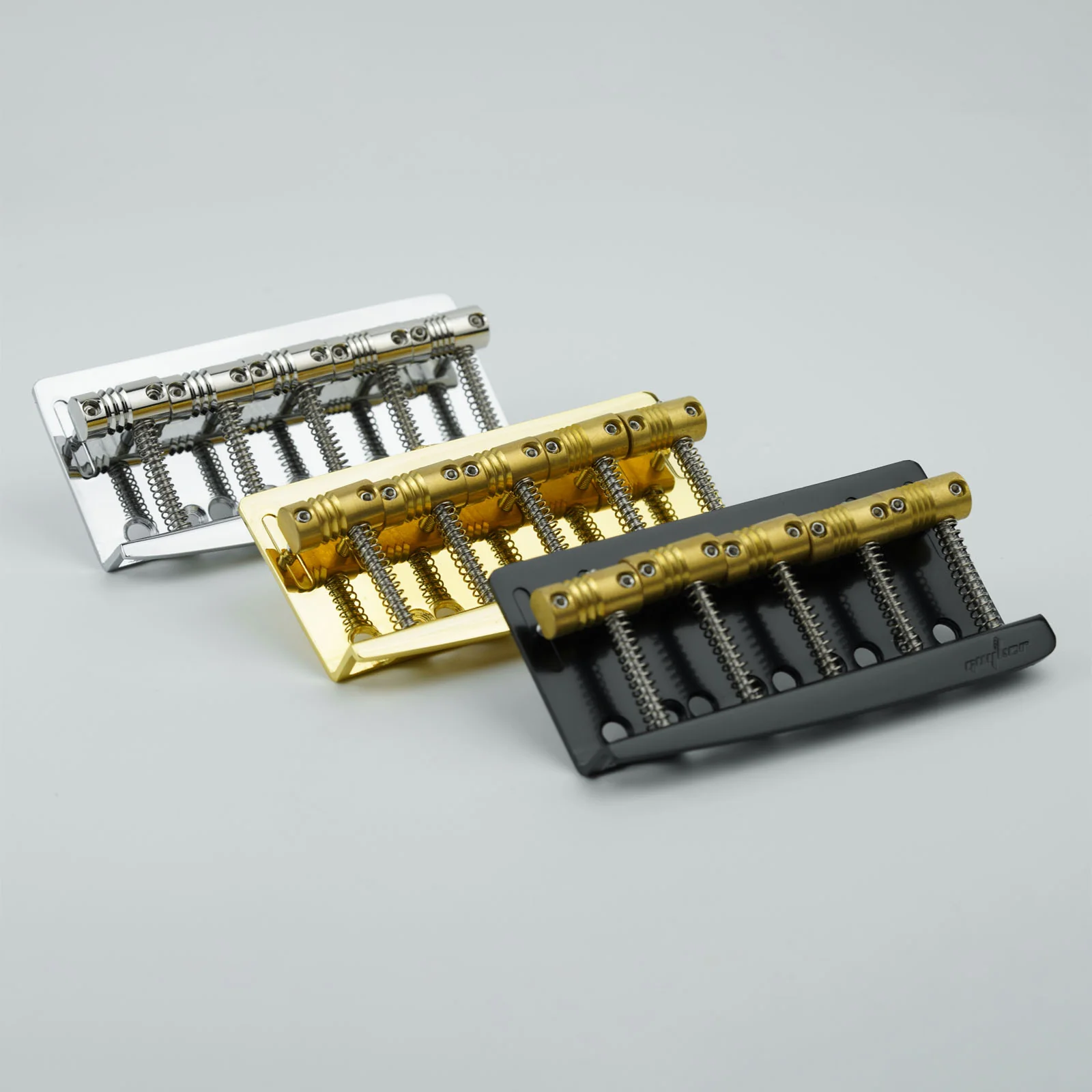

• Color Options: Chrome, Black, Gold
• Suitable For: Electric bass with matching bridge size and mounting layout

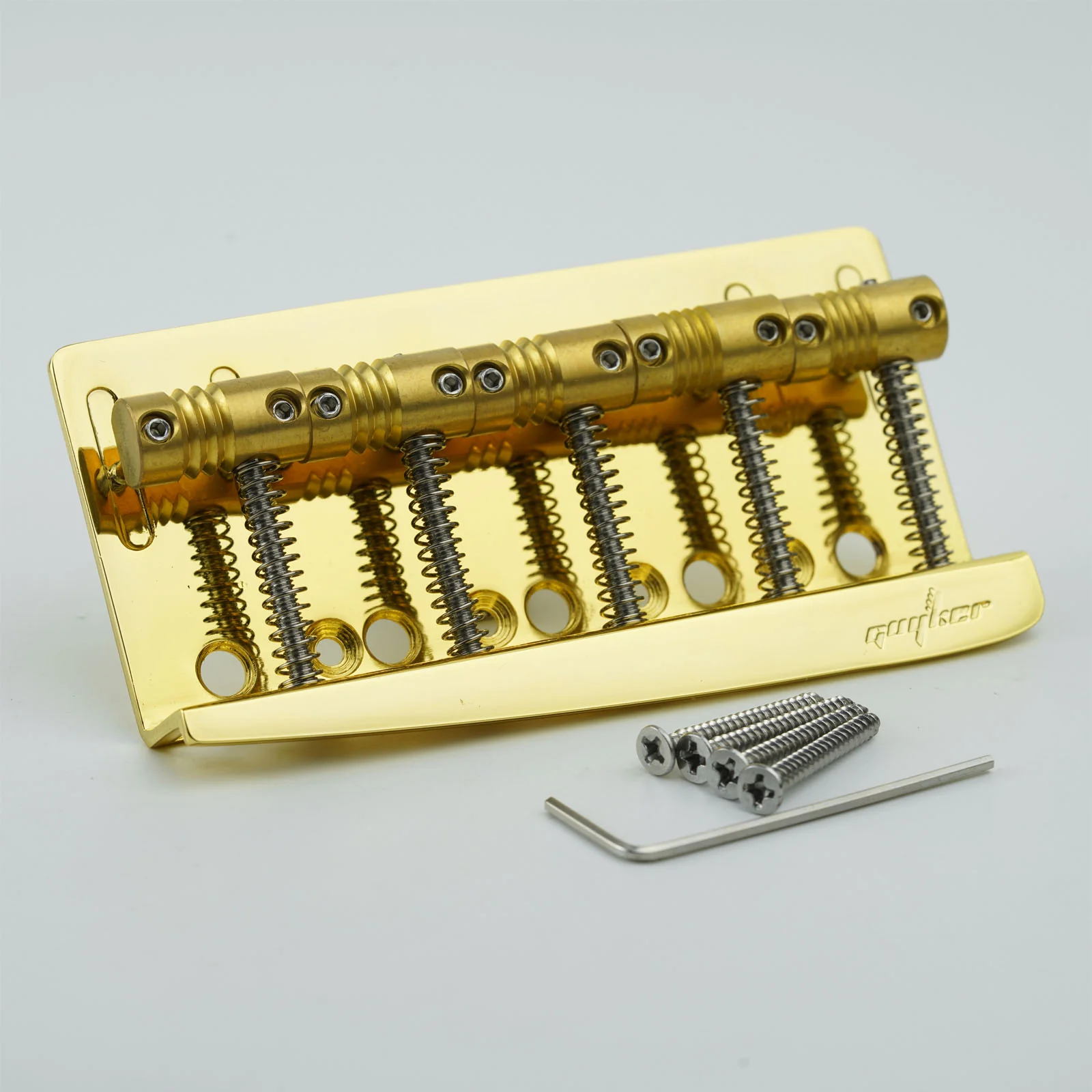

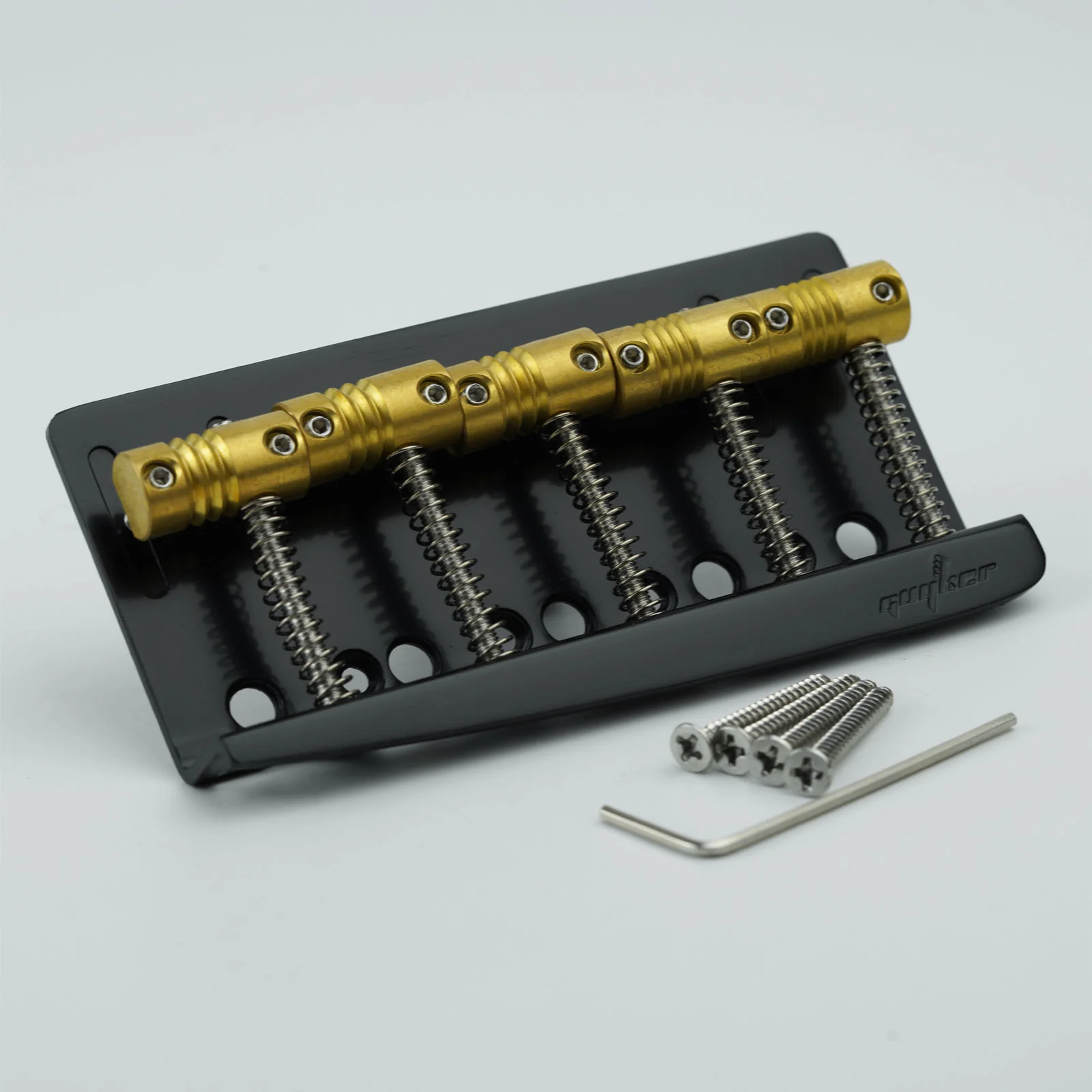

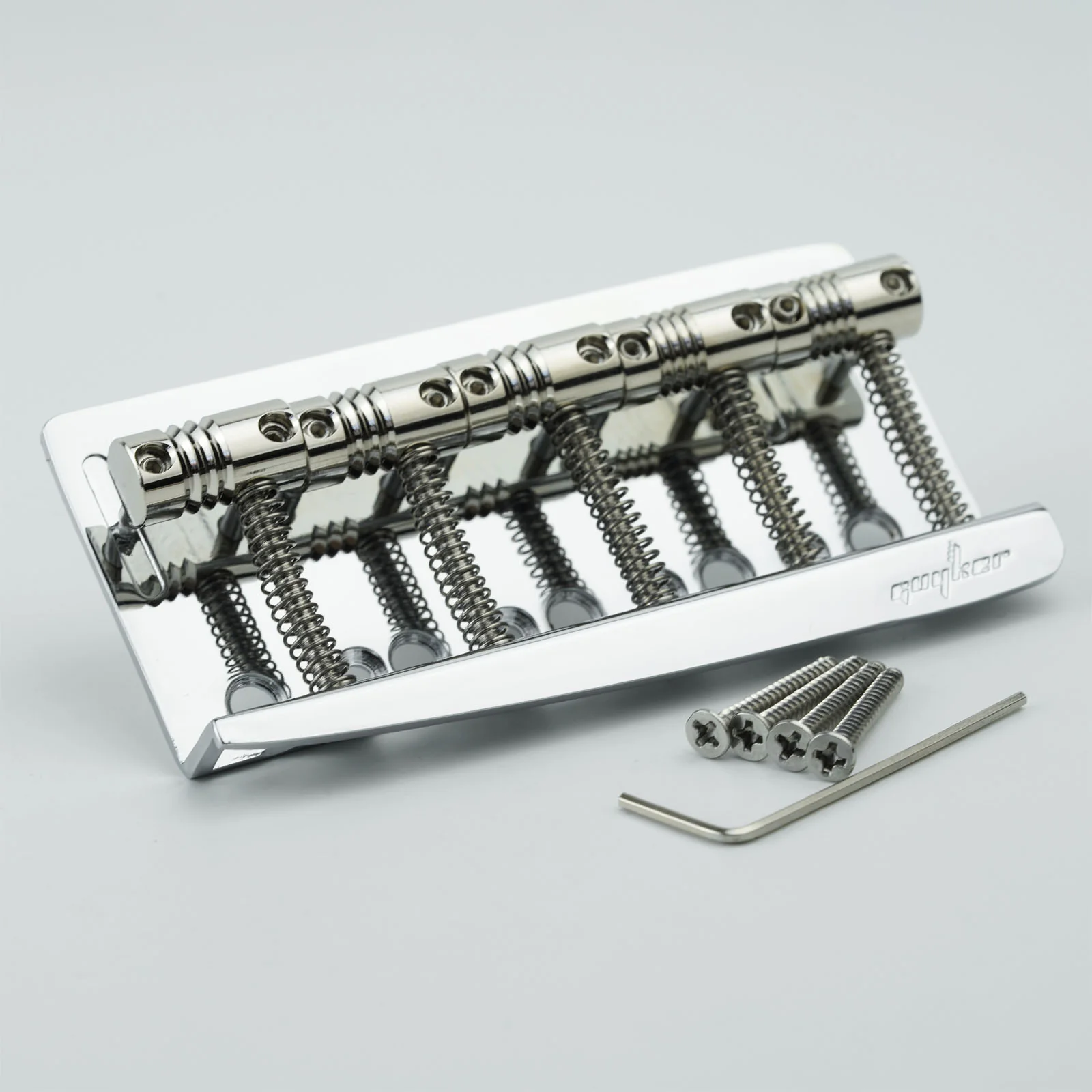

Package Includes:

• 1 x GB-205 bass bridge
• Mounting screws included
• Hex wrench included

Fitment Note / Warm Reminder:
Please verify your existing bridge overall dimensions, mounting hole layout, top and bottom hole positioning (19 mm / 22 mm / 19 mm / 19 mm), string spacing (18.9 mm), and saddle structure before ordering. This product uses a screw-mount bridge design with 5 vintage-style saddles, so customers should confirm both the mounting hole position and bridge structure against their original part before installation.
