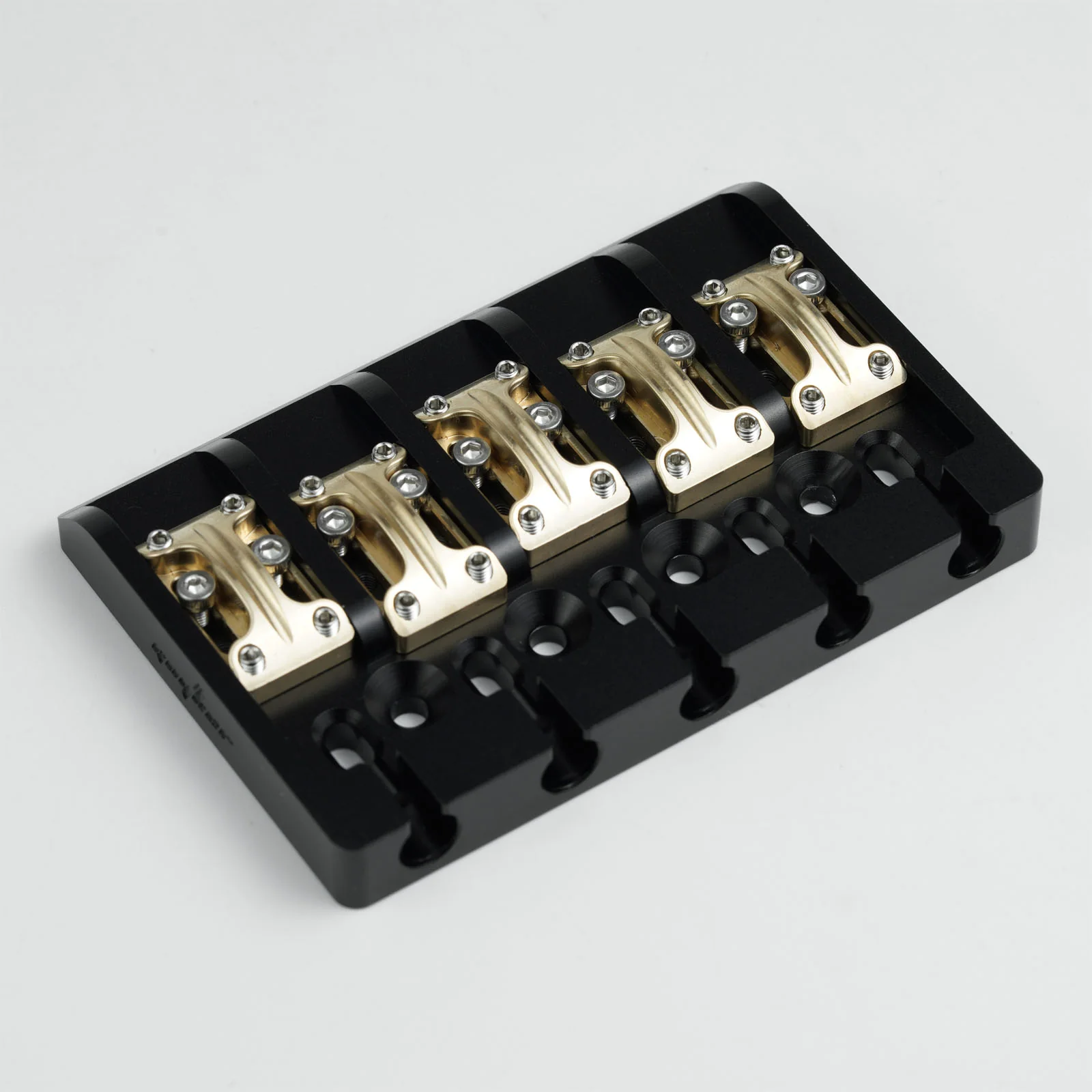

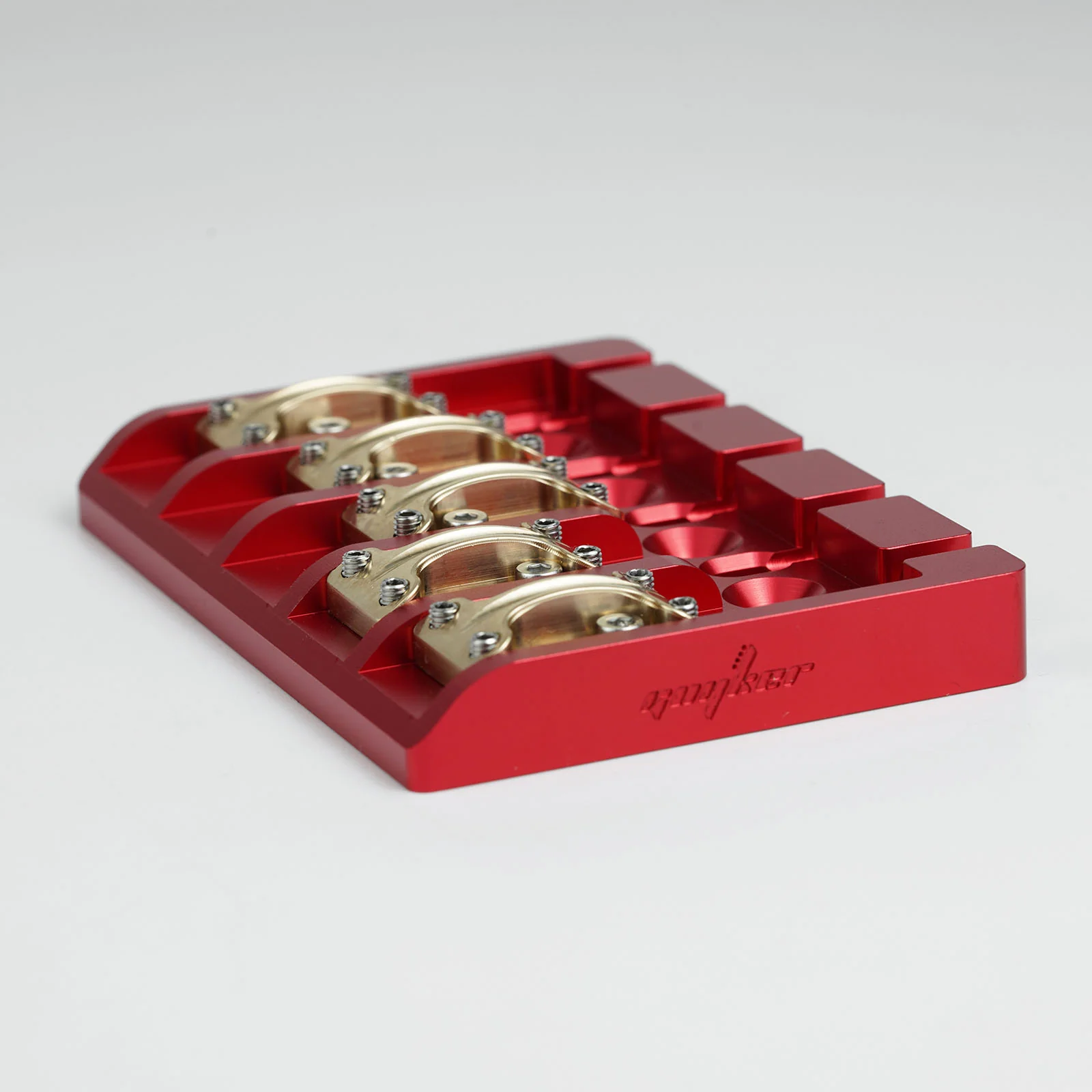

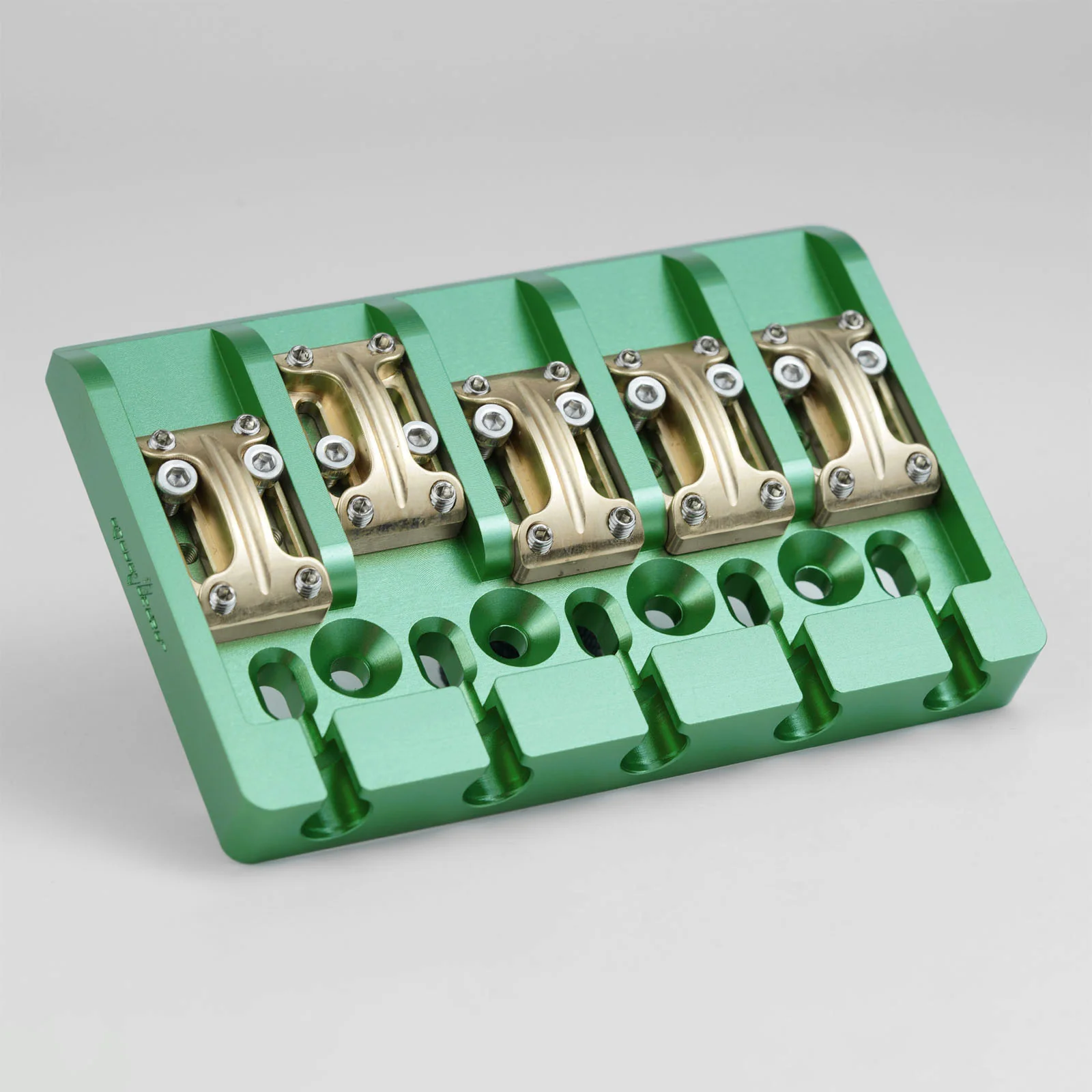

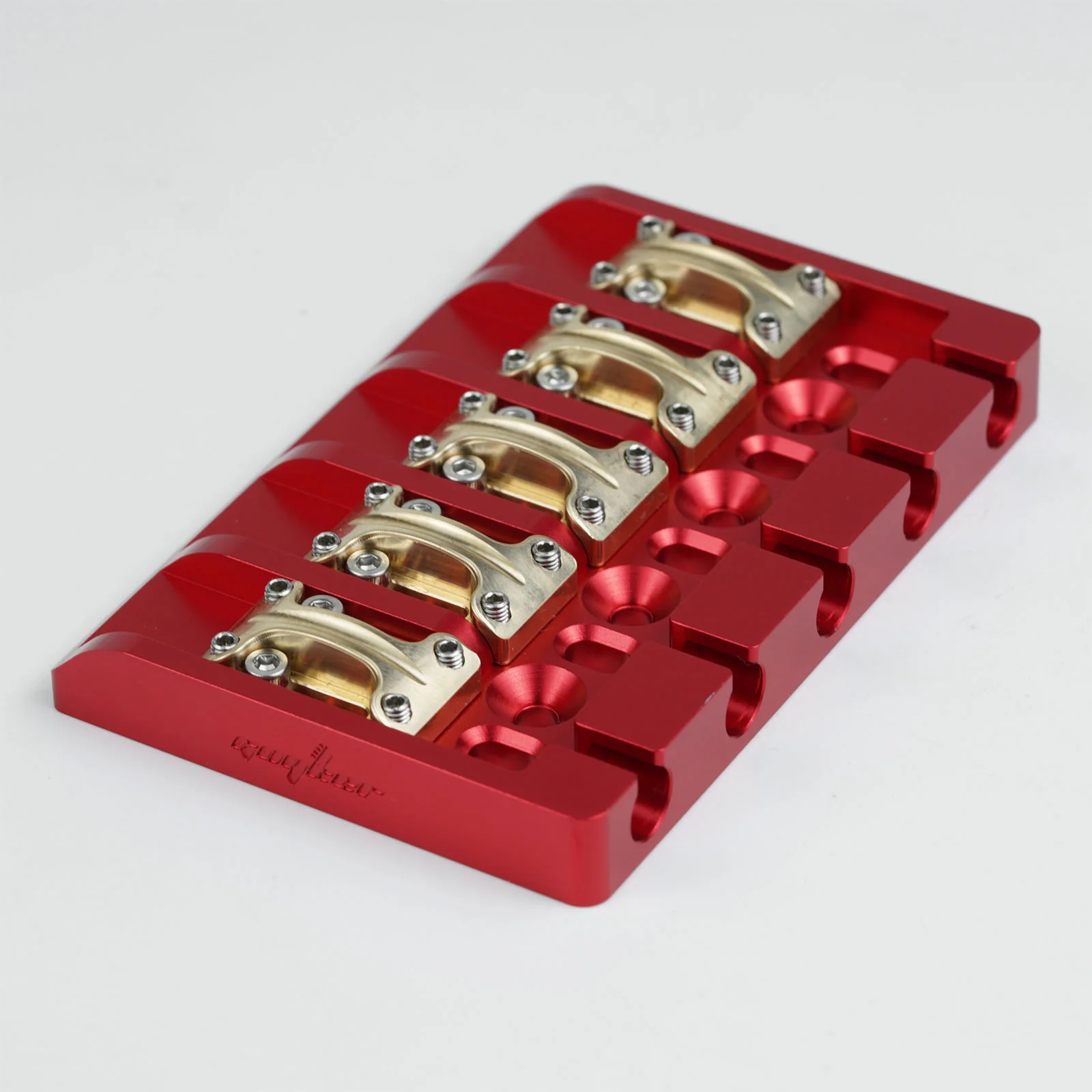

Key Features:

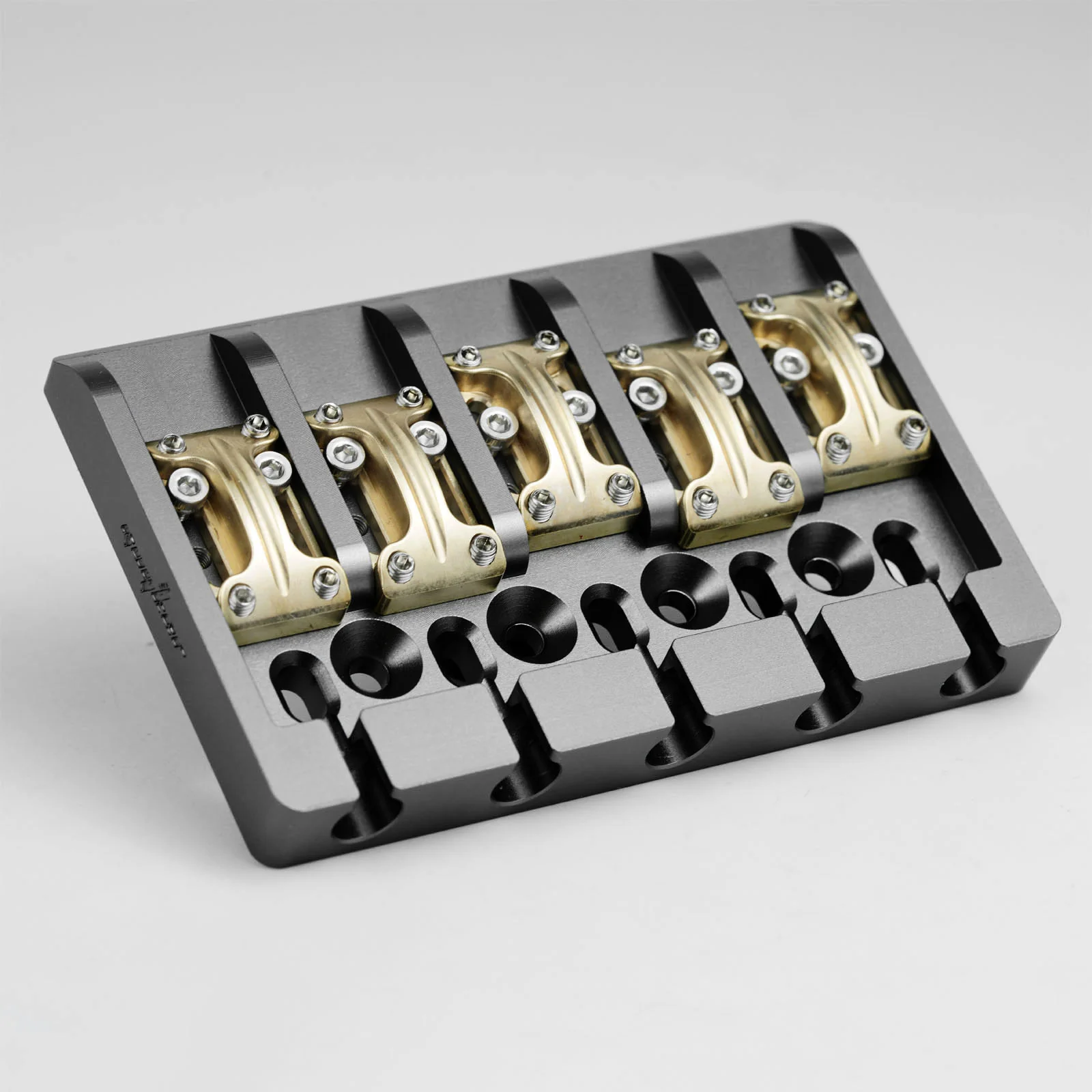

• CNC machined aluminum alloy bridge body for a lightweight and durable build.
• Brass saddles for stable string contact and dependable adjustment.
• Designed for 5-string bass with 72mm total string spacing (18mm × 4).

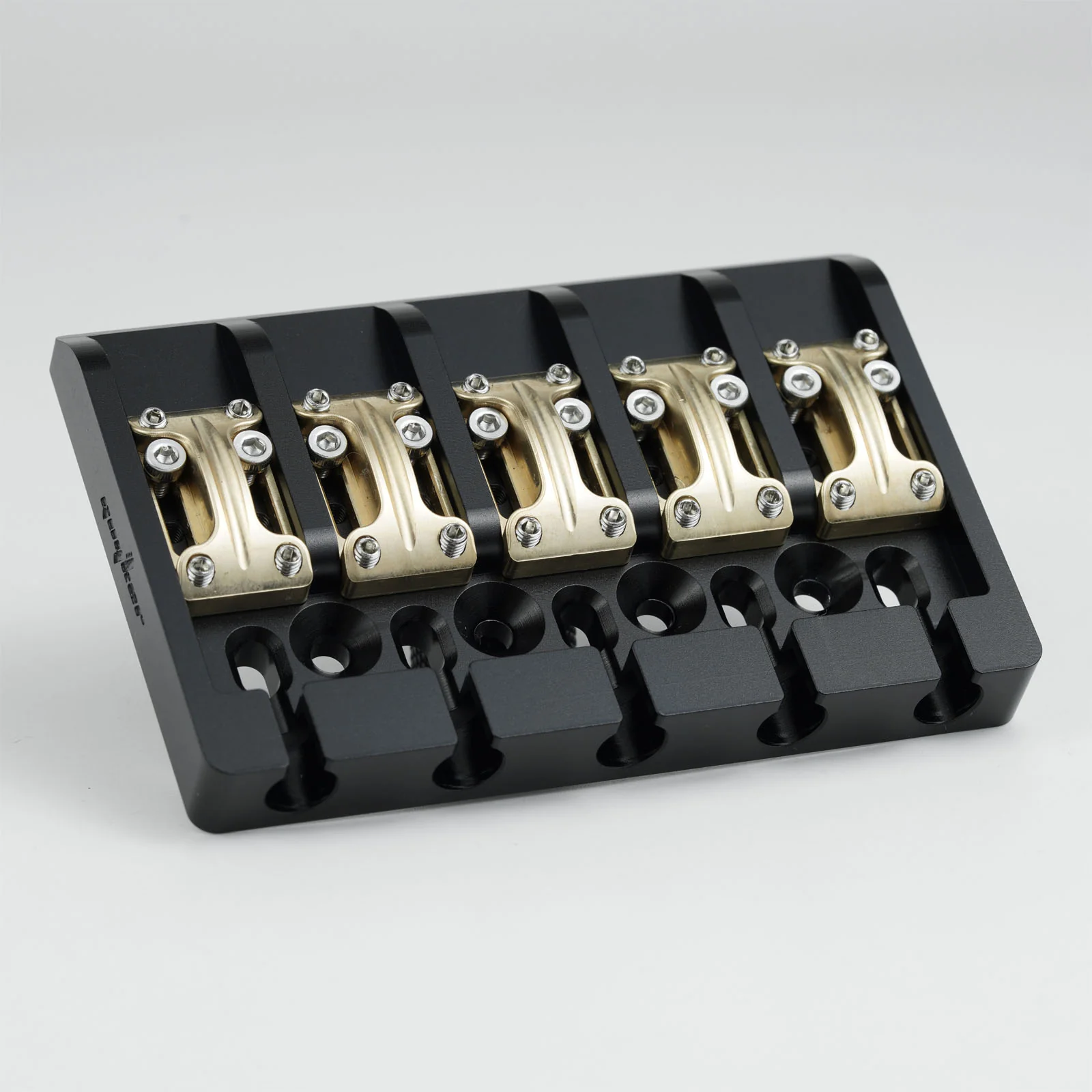

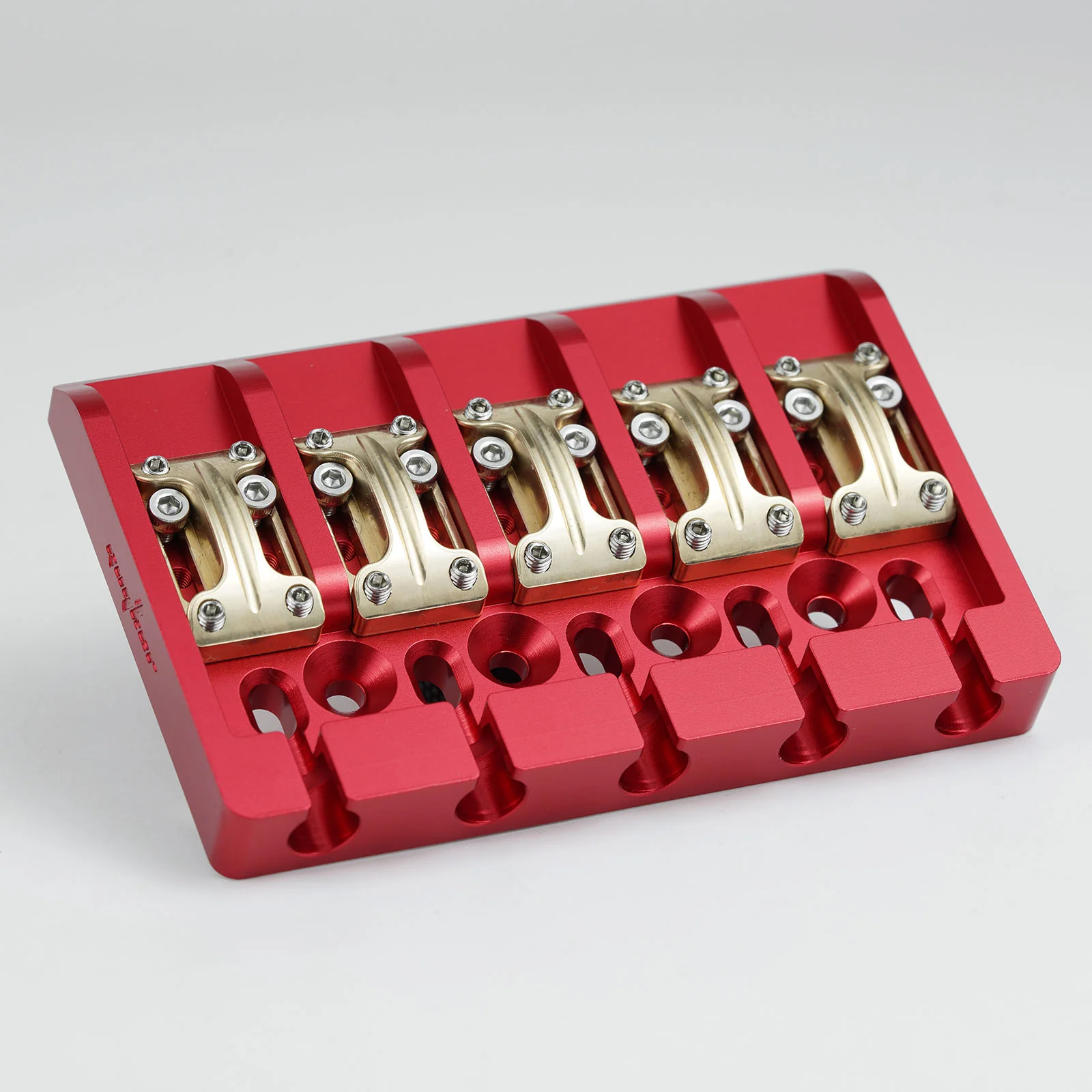

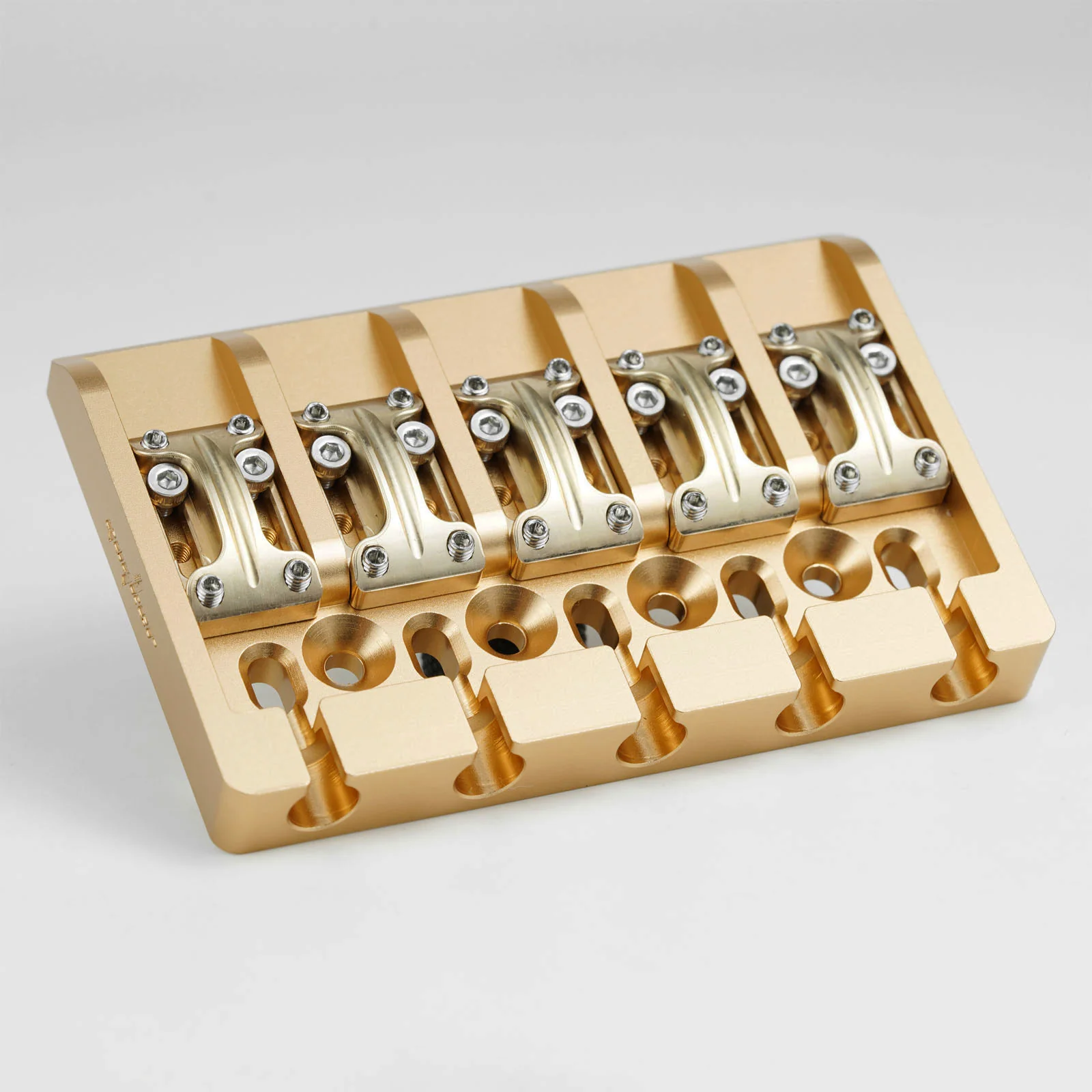

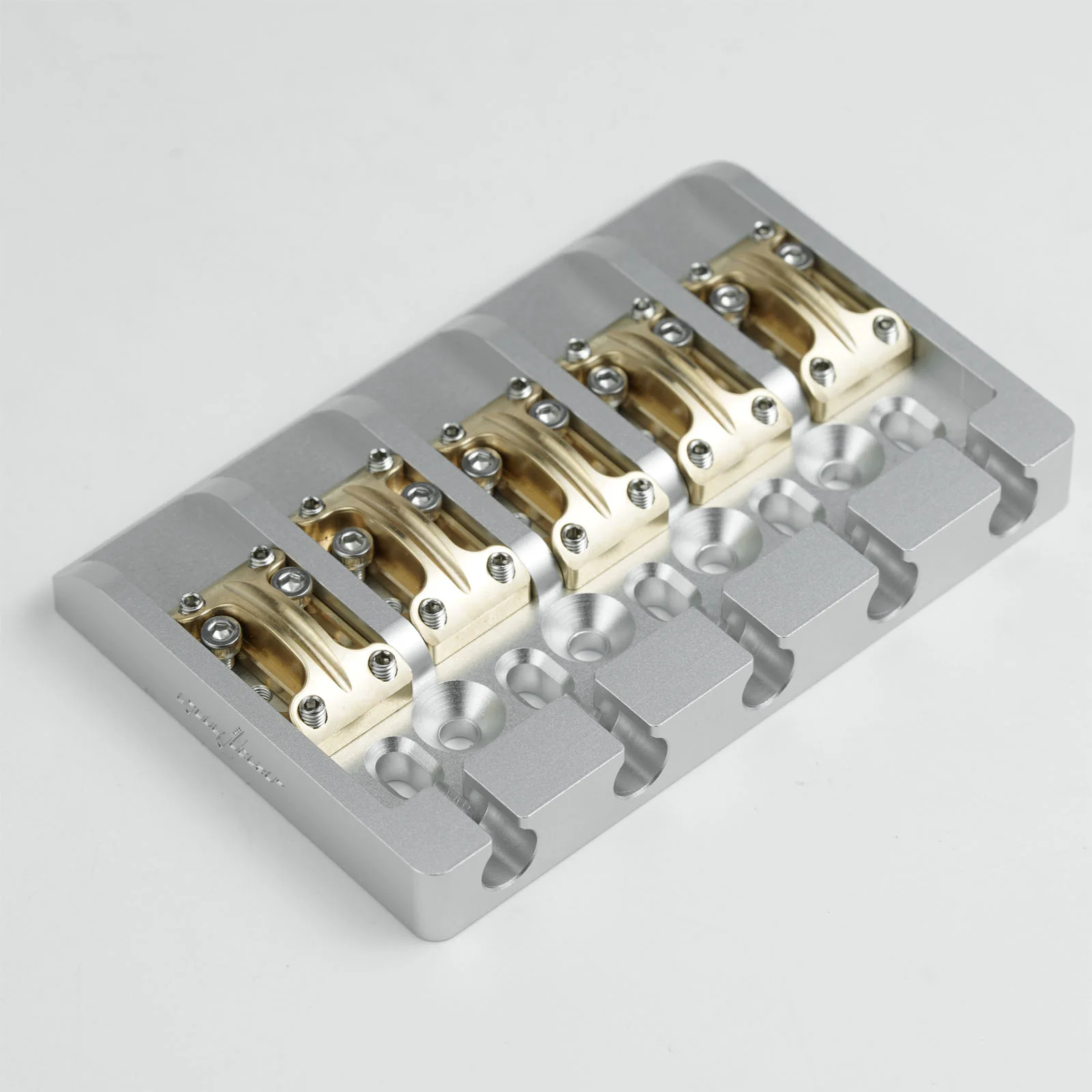

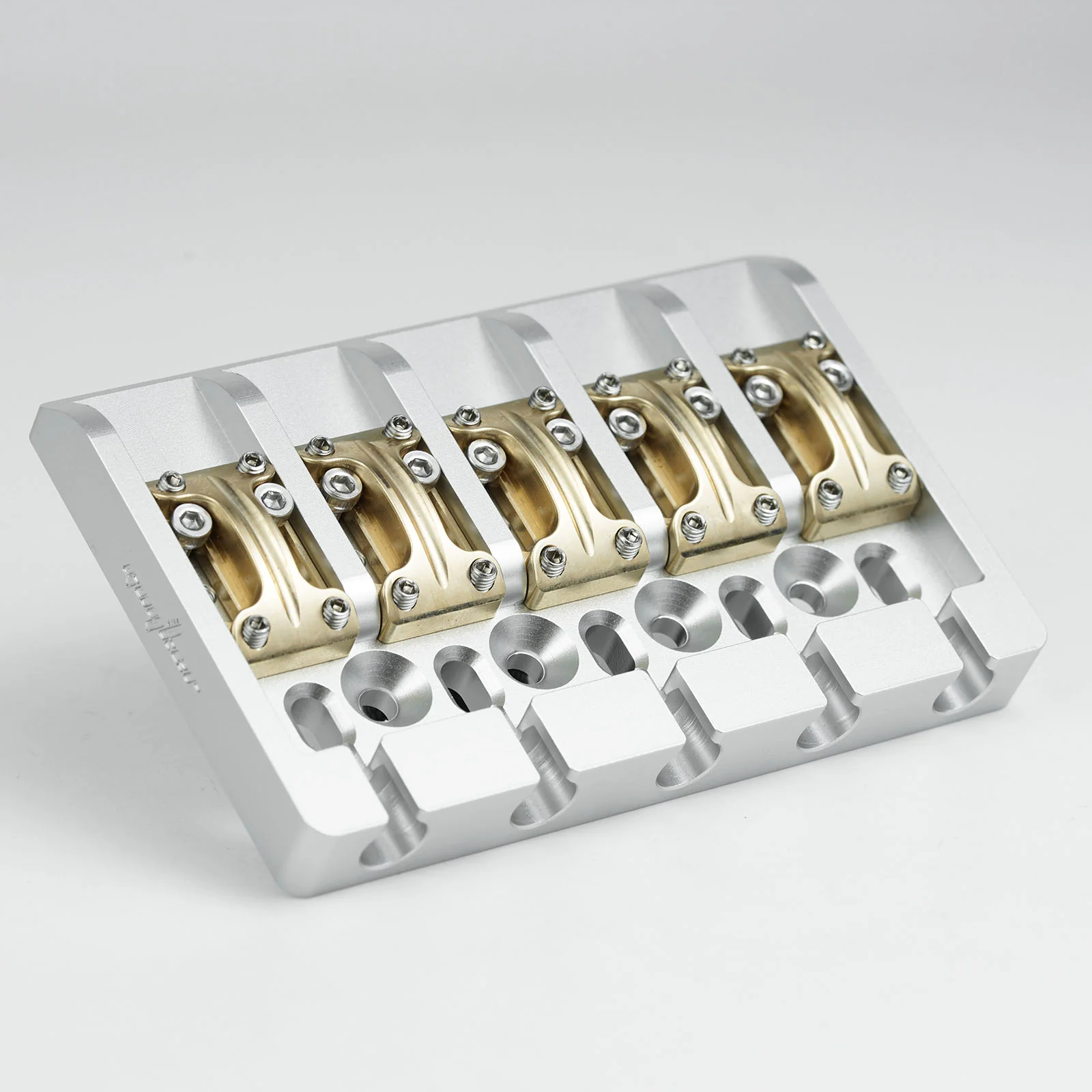

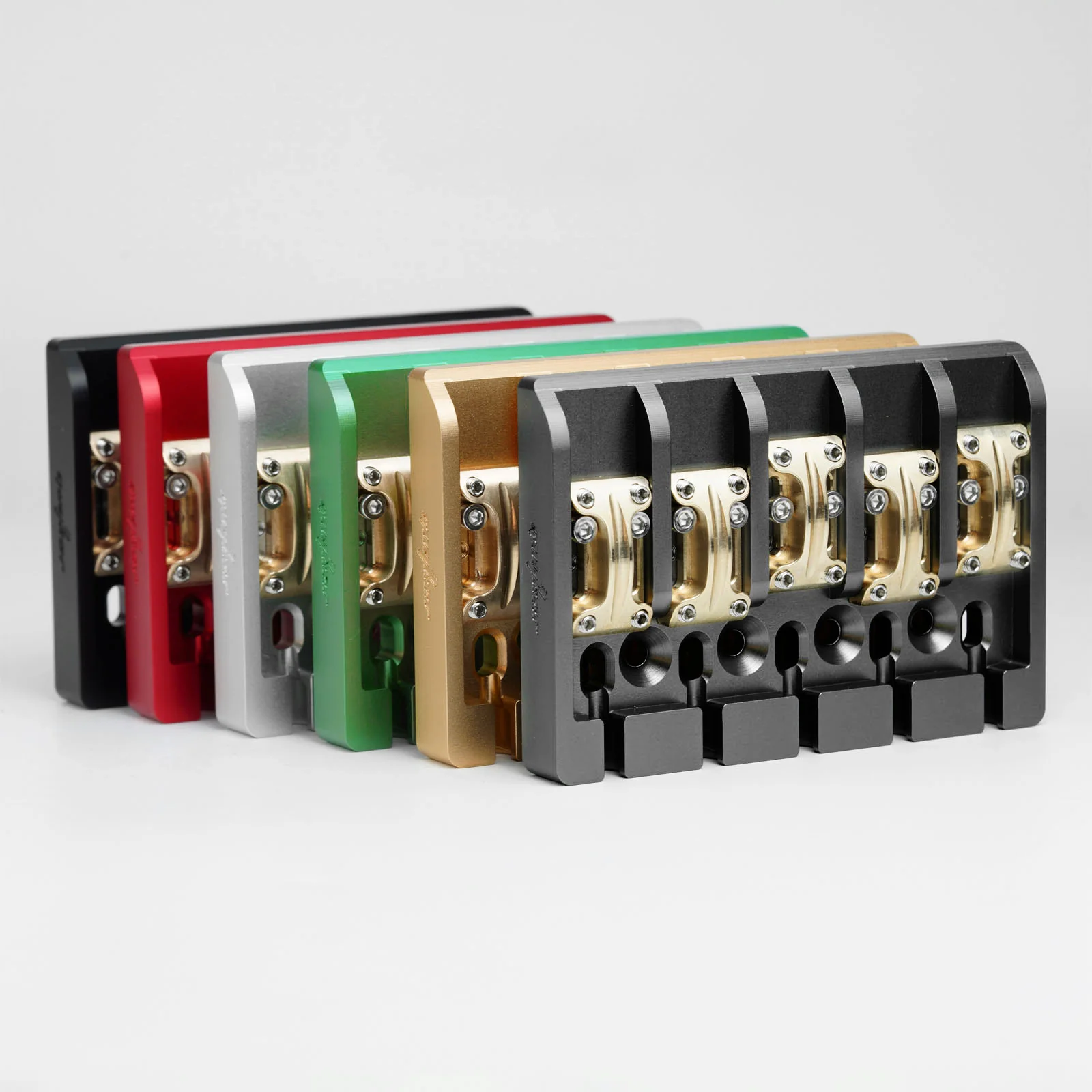

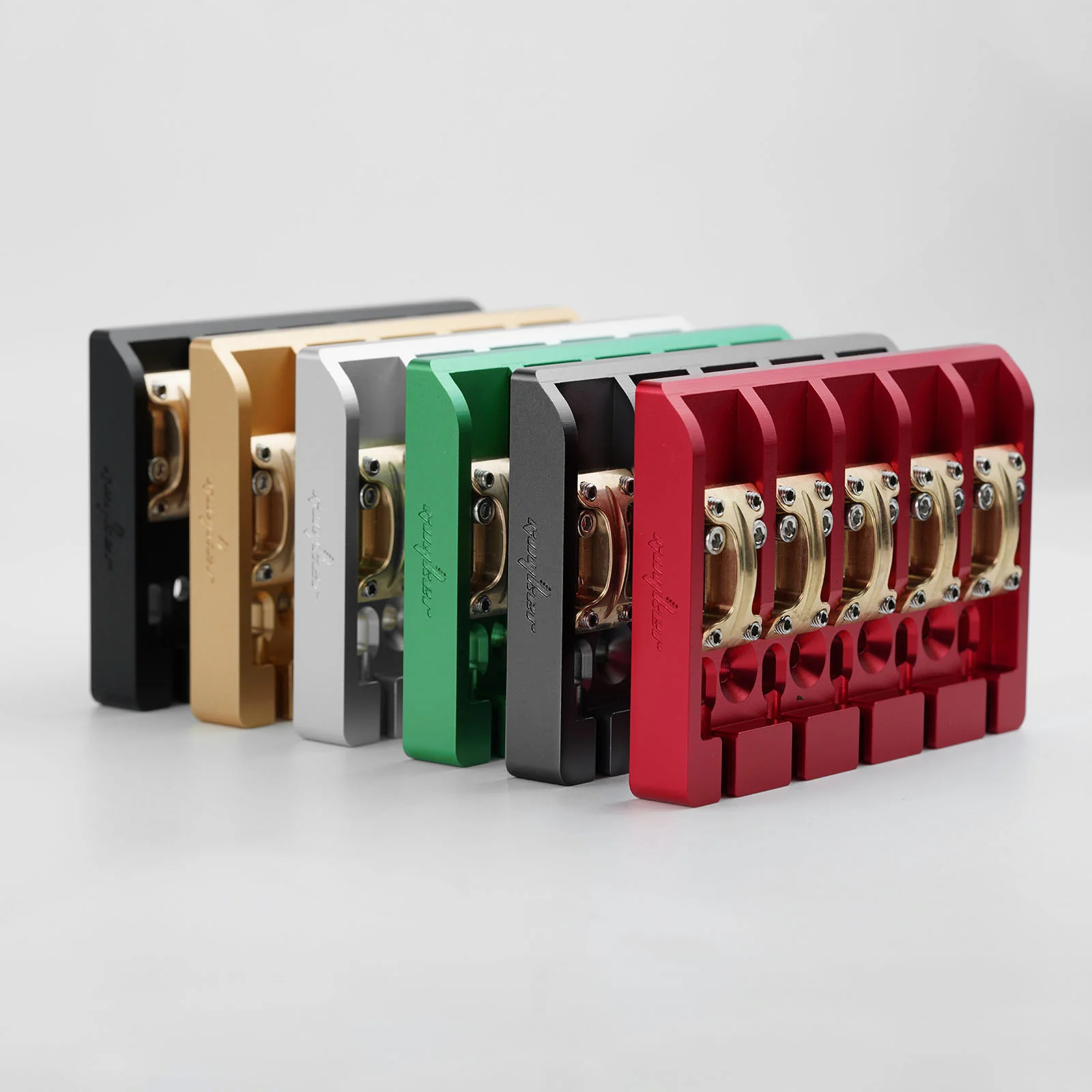

• Available in Aluminum Anodized Chrome, Gold, Black, Red, Green, and Grey.

Specifications:

• Material: CNC Machined Aluminum Alloy bridge body, Brass saddles
• Application: 5-String Bass
• Length: 93mm
• Width: 63mm
• Height: 11mm
• String Spacing: 72mm (18mm × 4)
• Mounting Hole Center Spacing: 54.5mm
• Approx. Front-to-Back Mounting Reference: 18mm
• Weight: Approx. 166g / pc
• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Gold, Aluminum Anodized Black, Aluminum Anodized Red, Aluminum Anodized Green, Aluminum Anodized Grey

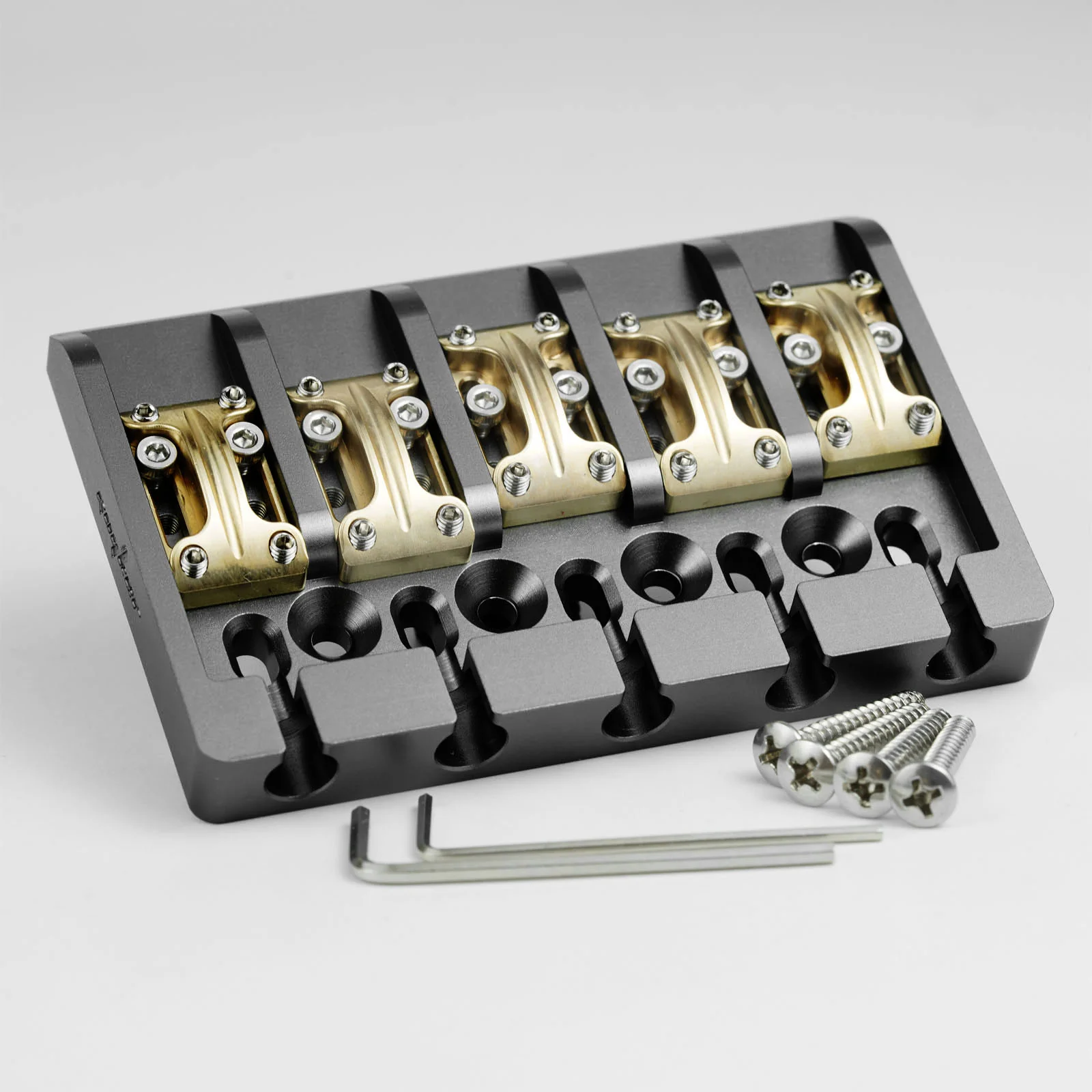

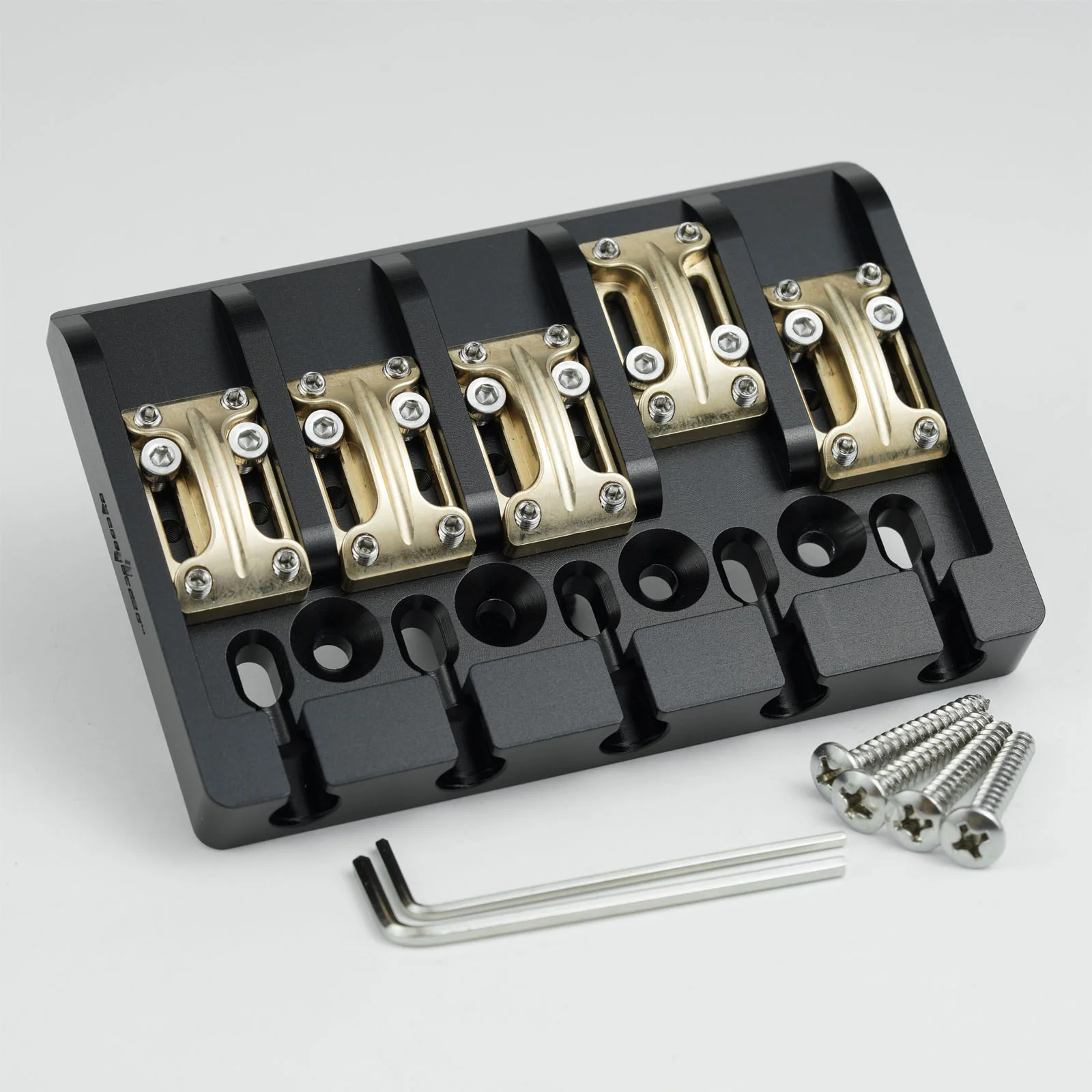

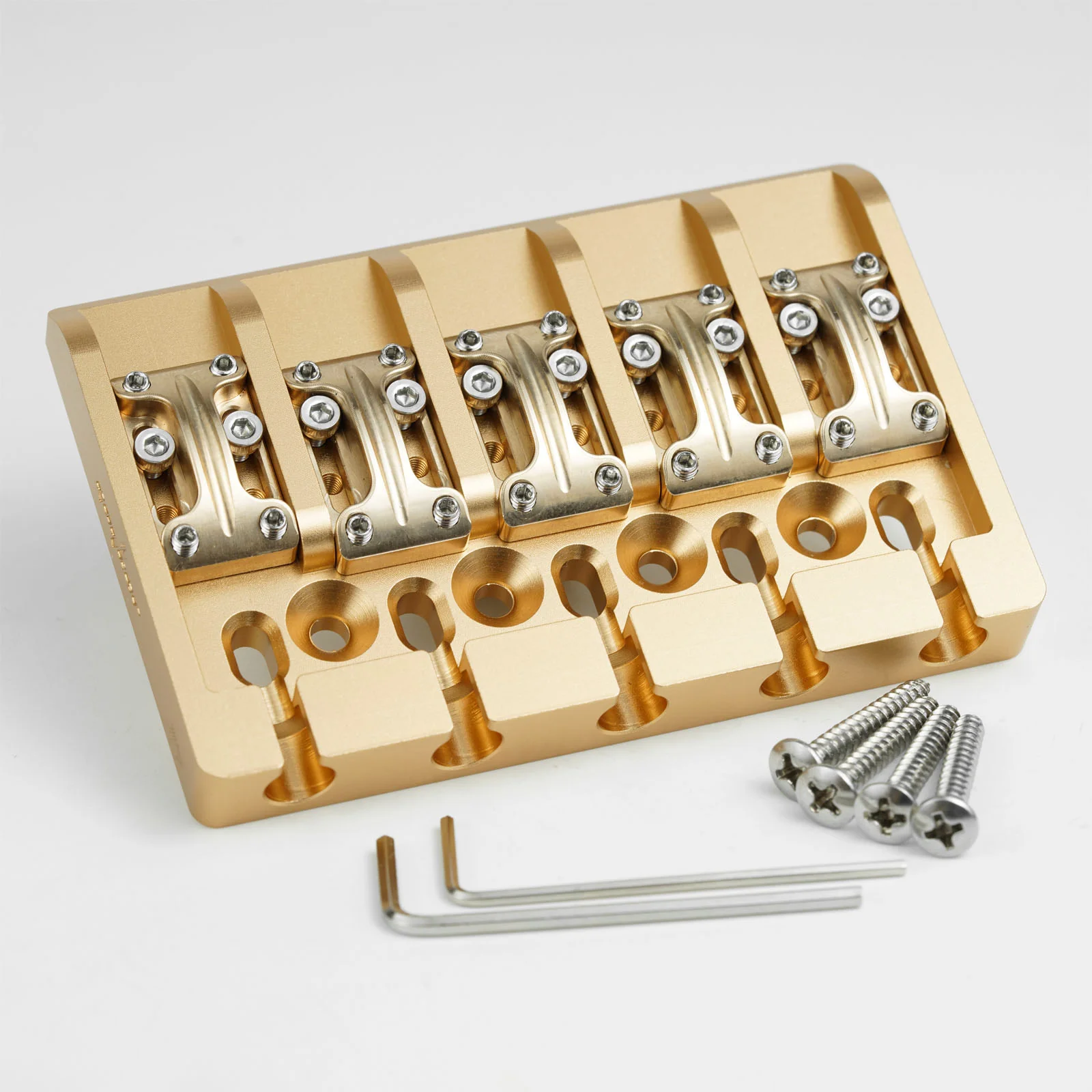

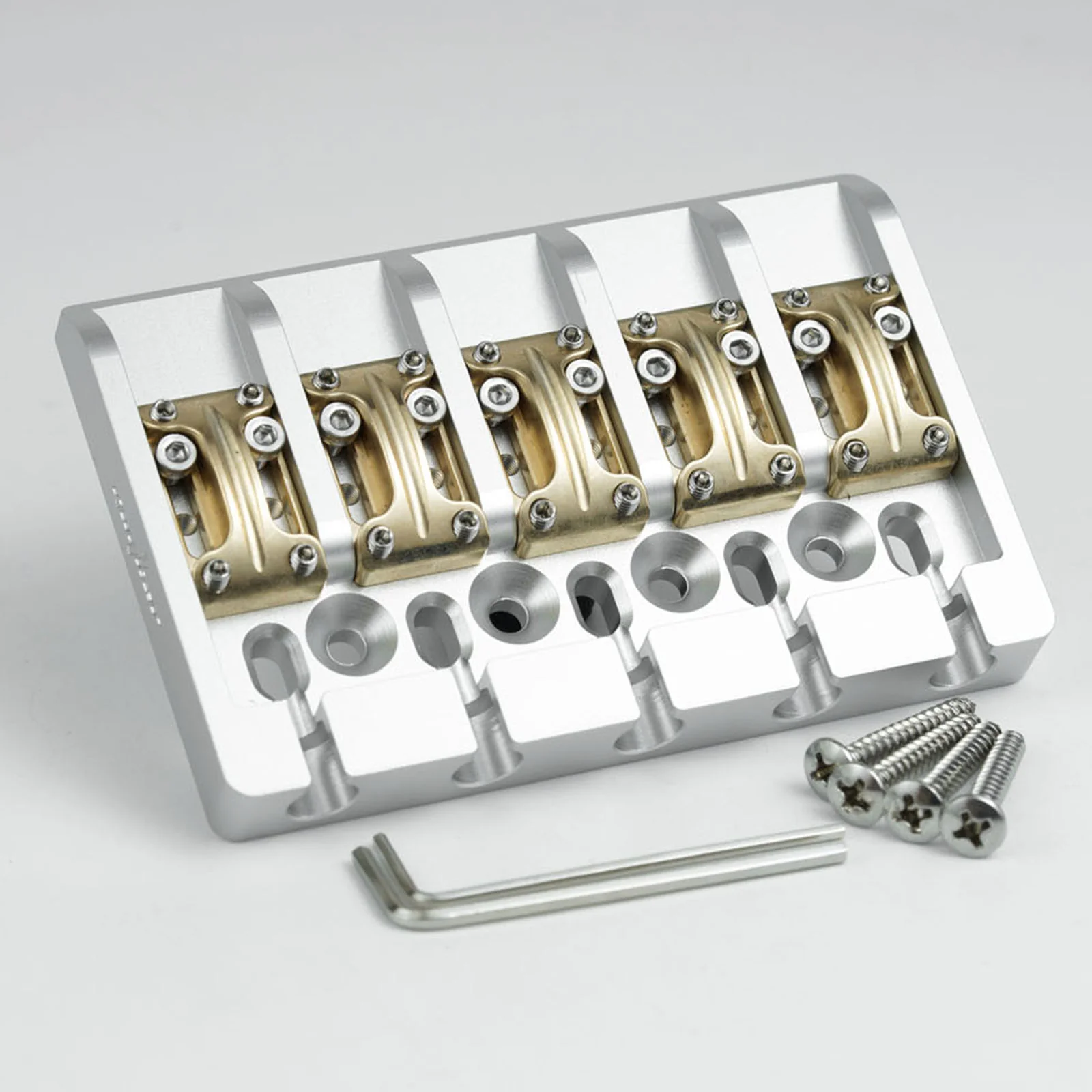

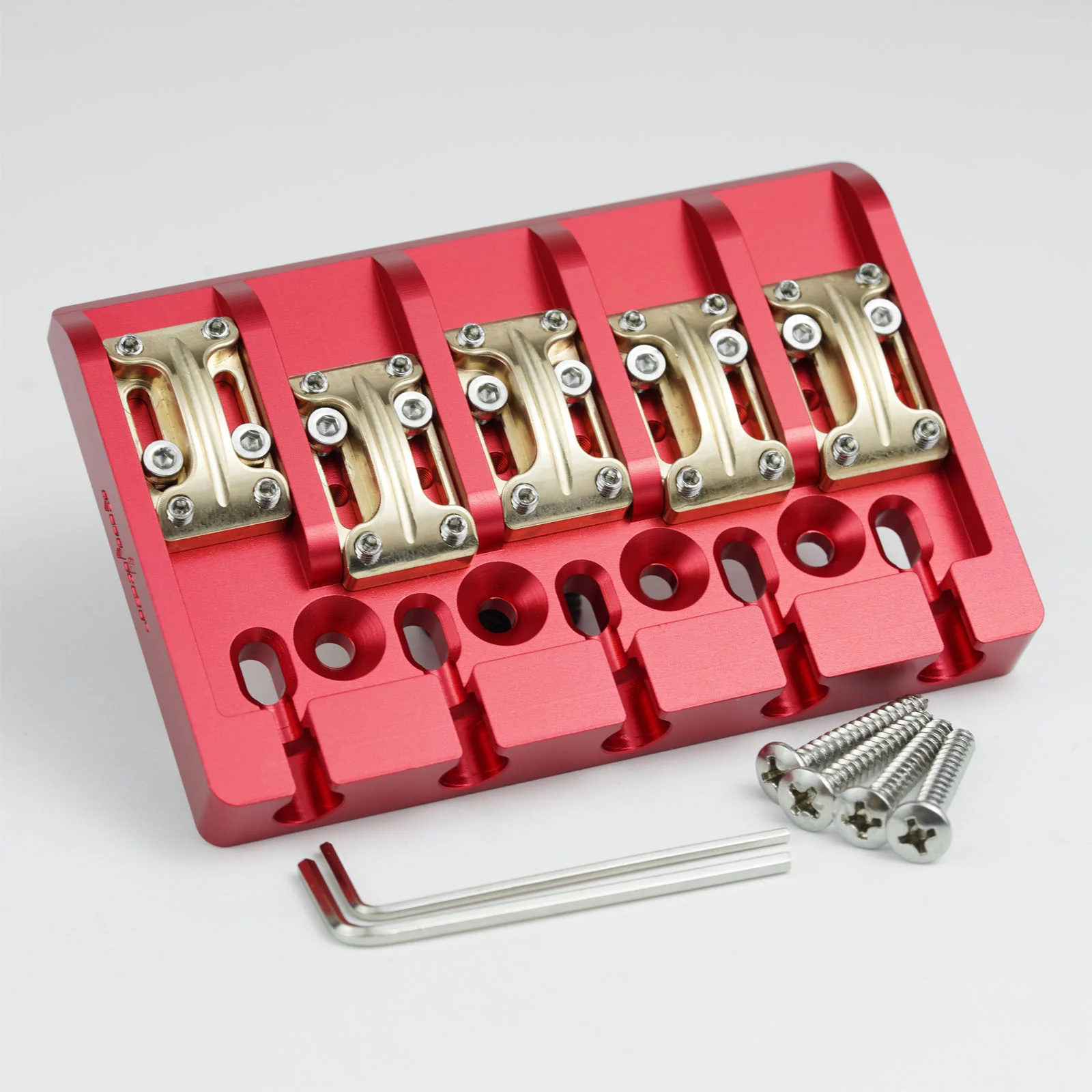

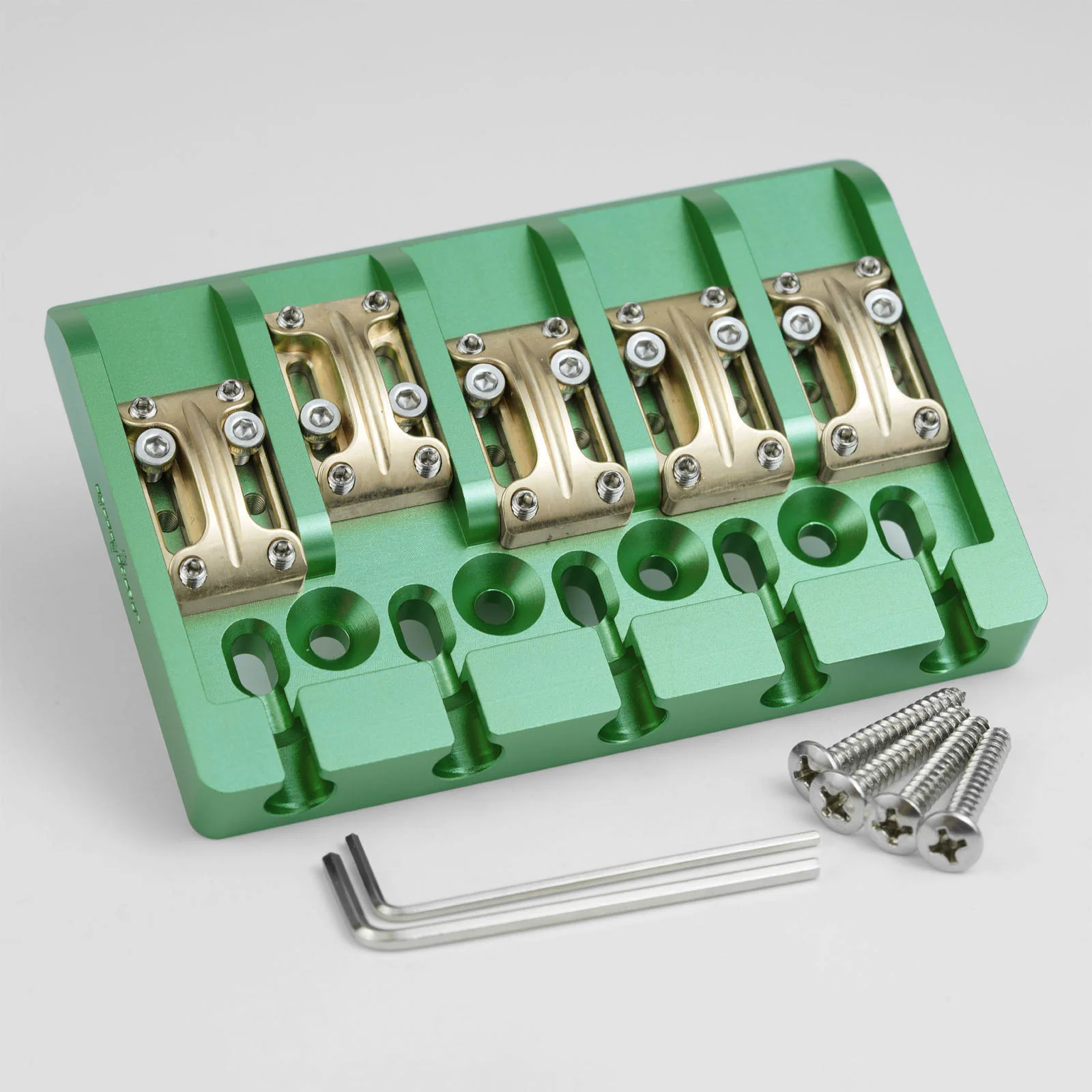

Package Includes:

• 1 x Bass Bridge
• 4 x Mounting Screws
• 2 x Hex Wrenches

Fitment Note / Warm Reminder:

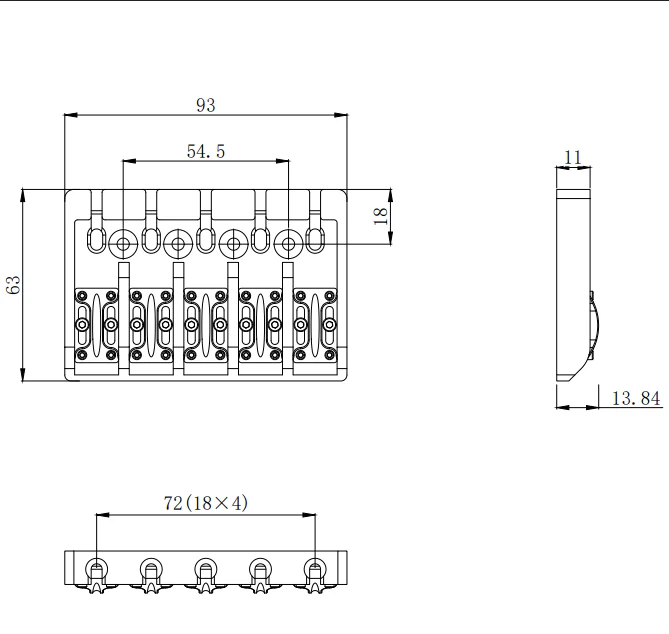

Please carefully verify your bass’s bridge footprint, mounting hole layout, mounting hole spacing, installation space, and string spacing before ordering. This bridge is for 5-string bass and uses 54.5mm mounting hole center spacing with 72mm overall string spacing. The 13.84mm shown in the side drawing is a bridge structure reference dimension, not a mounting hole position. All dimensions may vary by ±1mm due to manual measurement.
