ey Features:

• 2-point non-locking tremolo bridge design for Strat-style electric guitar upgrade or replacement projects.
• Features brass roller saddles for smooth string contact and movement.

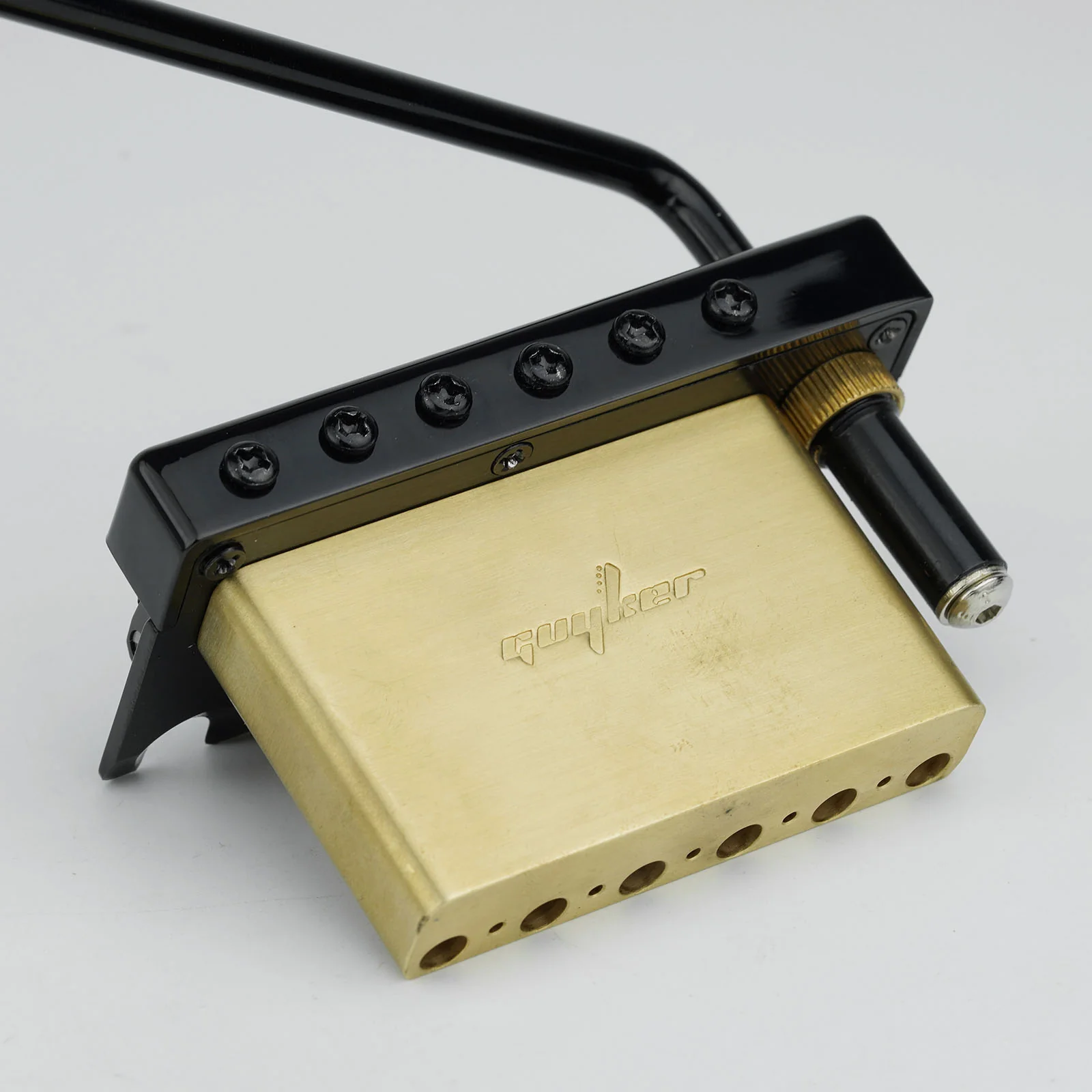

• Uses a solid brass block for stable bridge support.

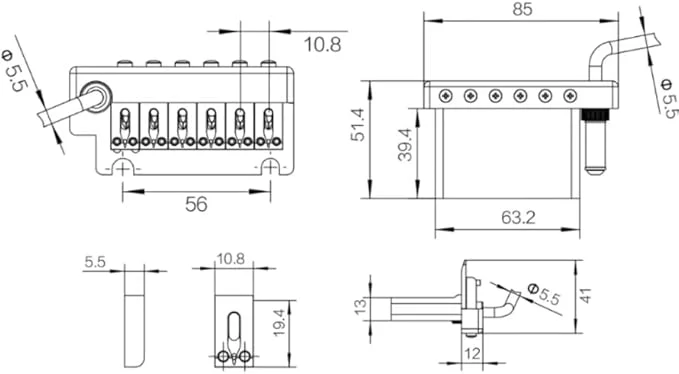

• 10.8 mm single string spacing as shown in the product specs and technical drawing.
• 56 mm mounting hole spacing for matching 2-point installations.

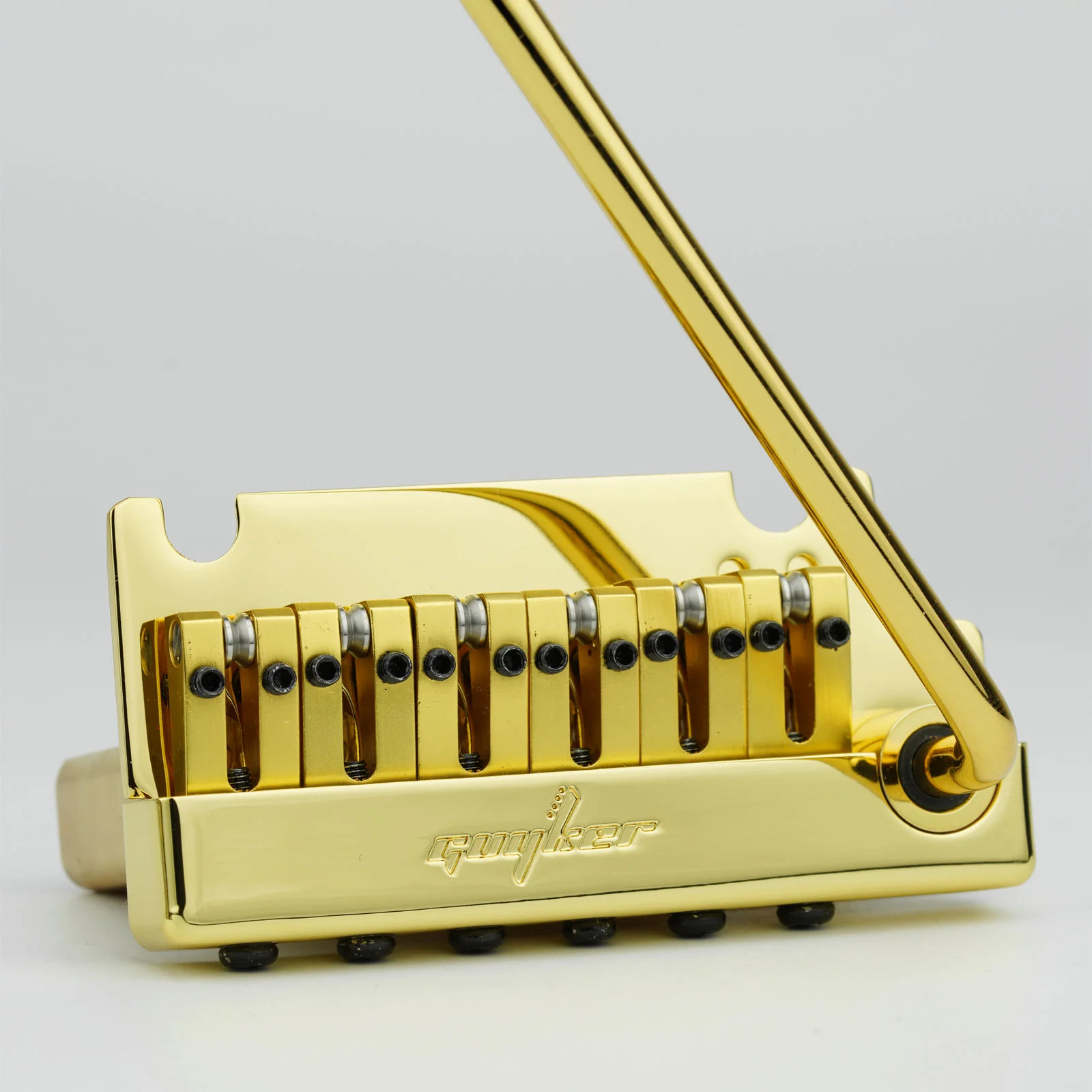

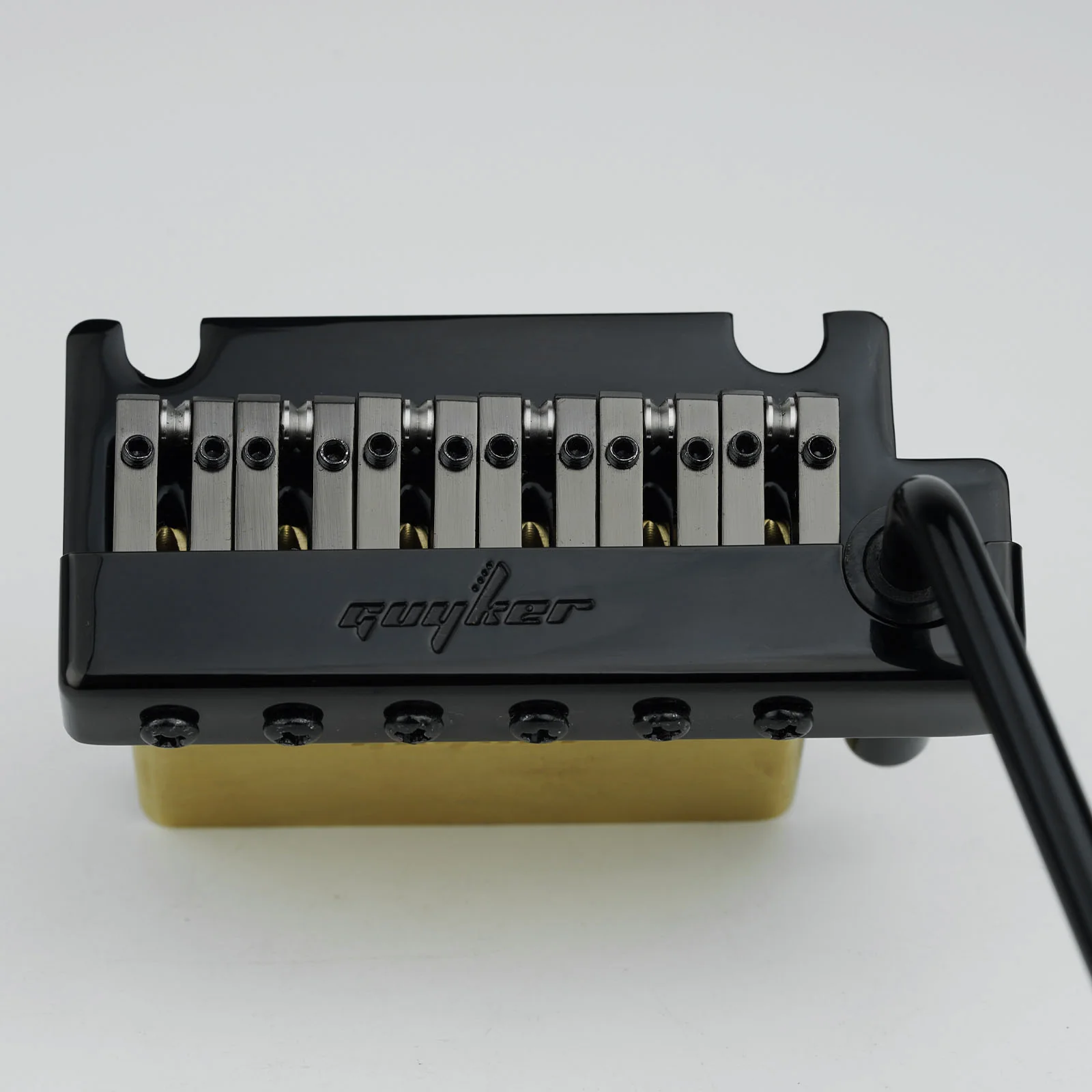

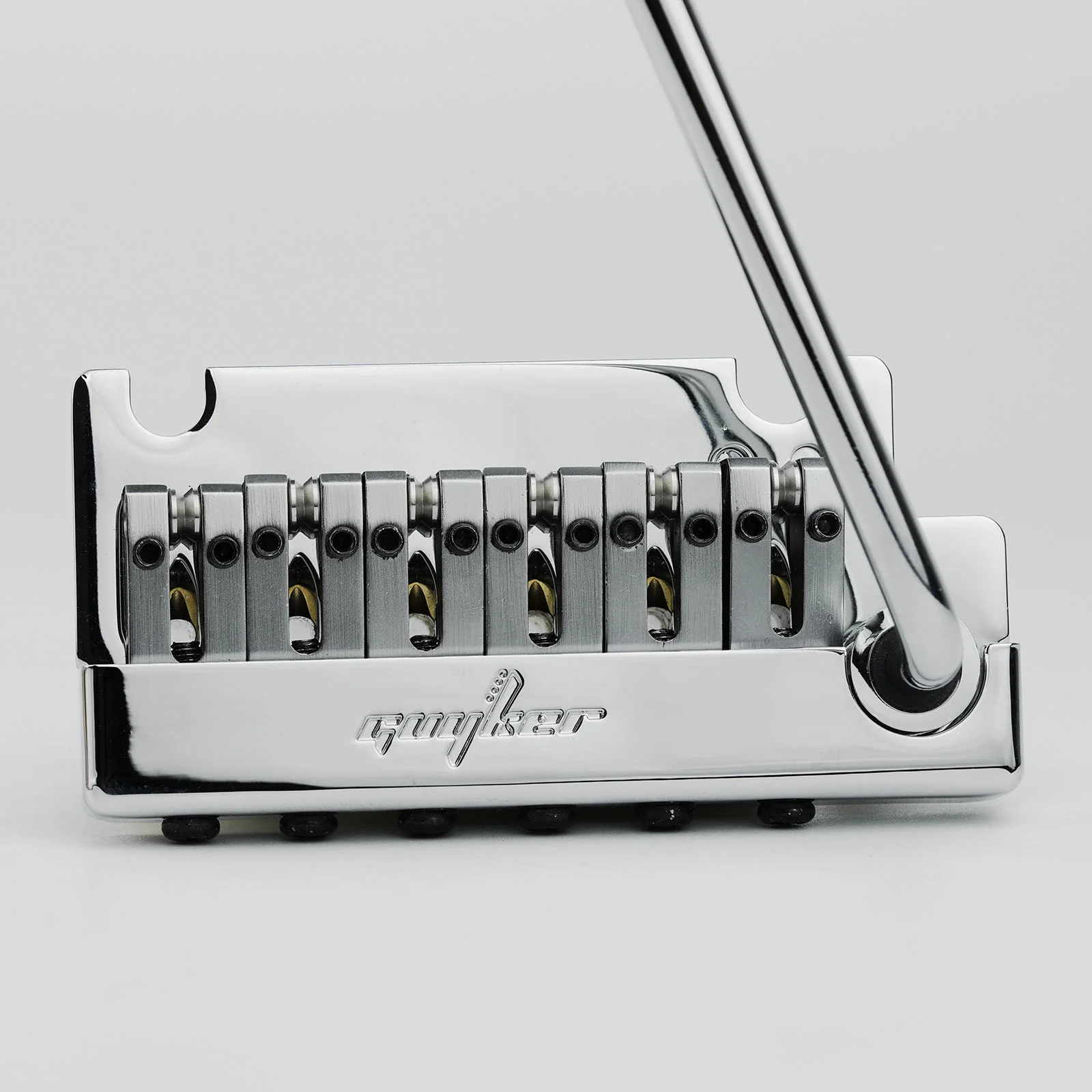

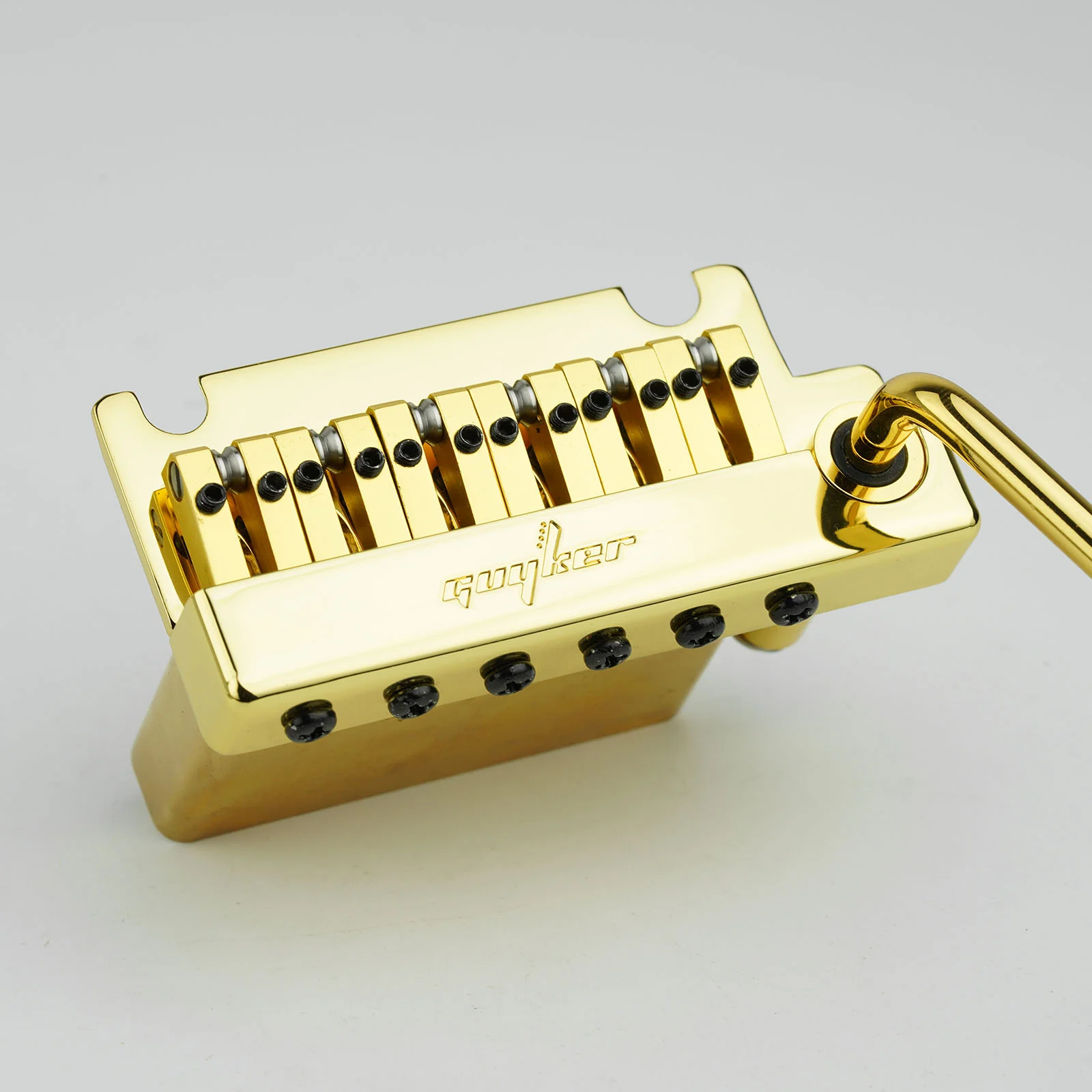

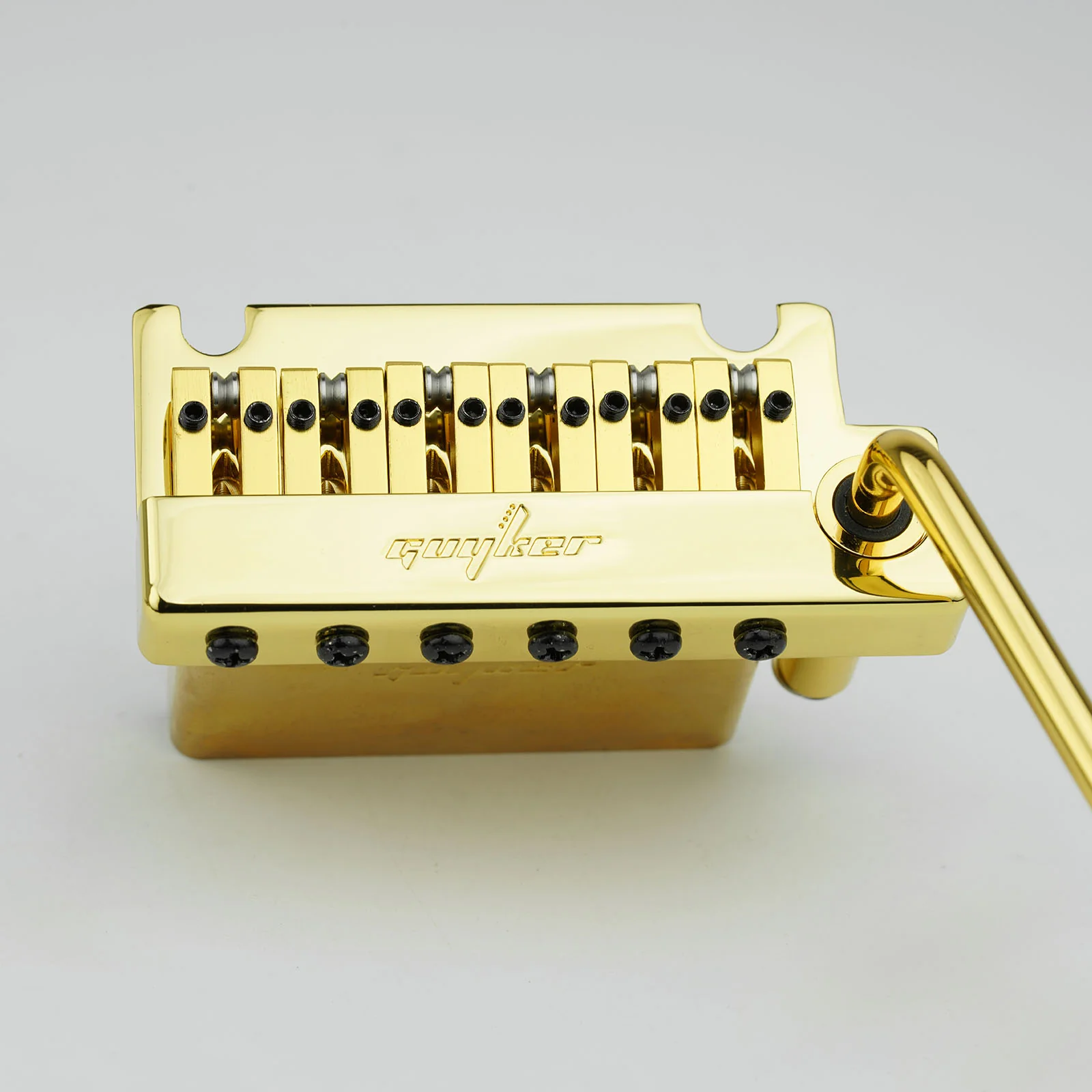

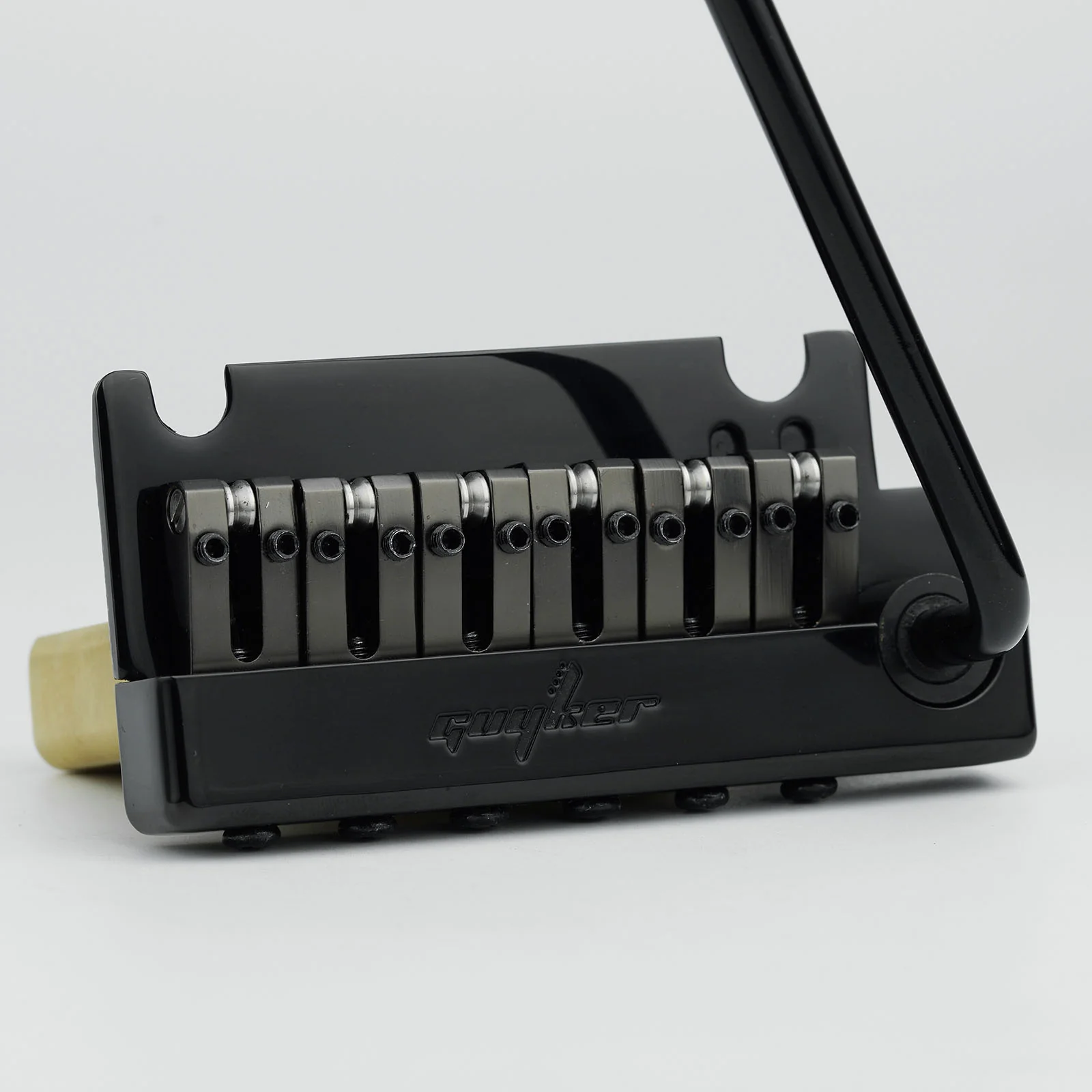

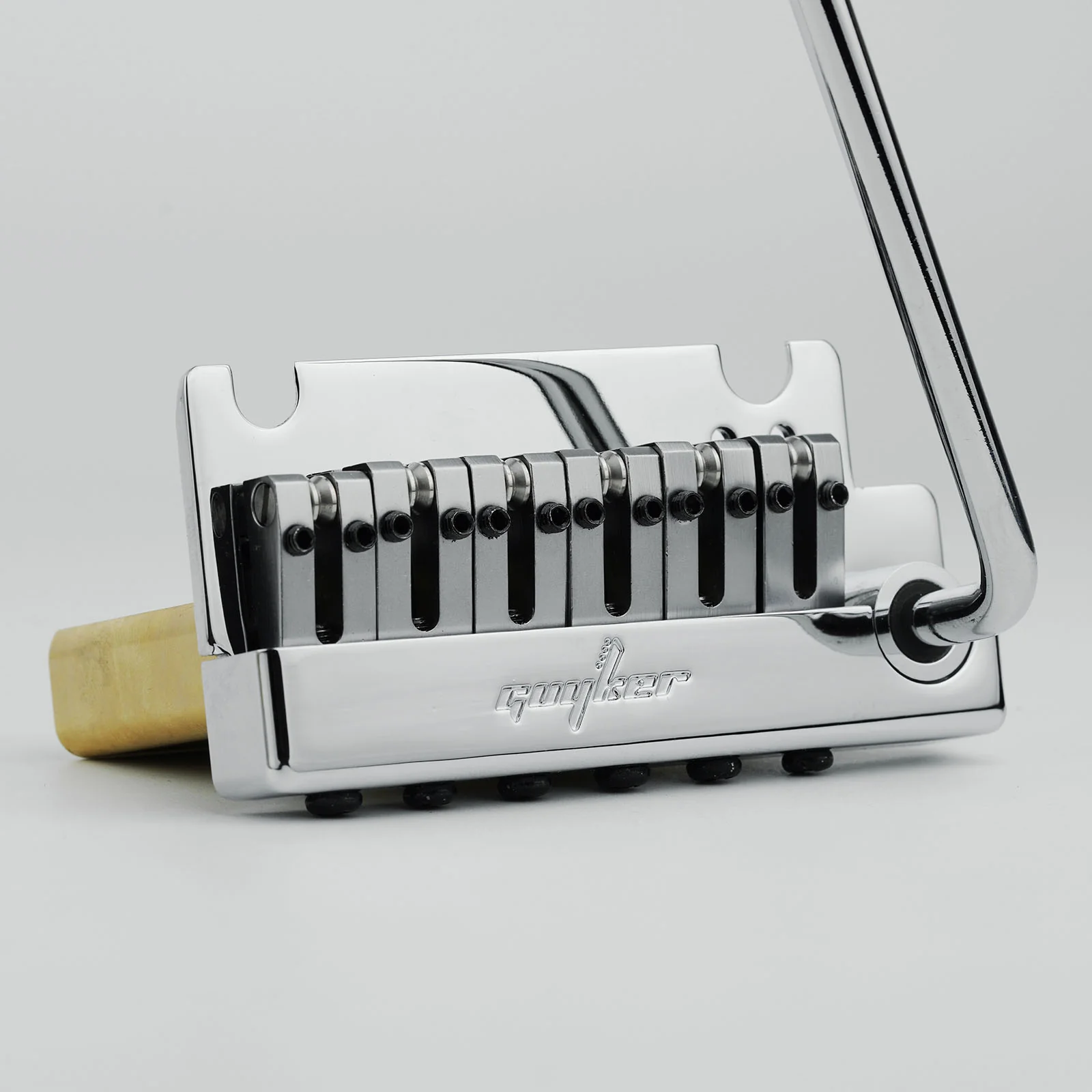

• Available in Chrome, Black, and Gold finishes.
• Includes the tremolo unit and mounting components for installation.

Specifications:

• Material: Brass Roller Saddles / Solid Brass Block
• Color: Chrome / Black / Gold
• Overall Length: 85 mm
• Single String Spacing: 10.8 mm
• Mounting Hole Spacing: 56 mm
• Overall Height: 51.4 mm
• Bridge Body Height: 39.4 mm
• Tremolo Arm Socket Diameter: Ø5.5 mm
• Block Length: 63.2 mm
• Saddle Size: 19.4 x 10.8 x 5.5 mm
• Pivot Post Height: 13 mm
• Suitable For: Strat-Style Electric Guitar

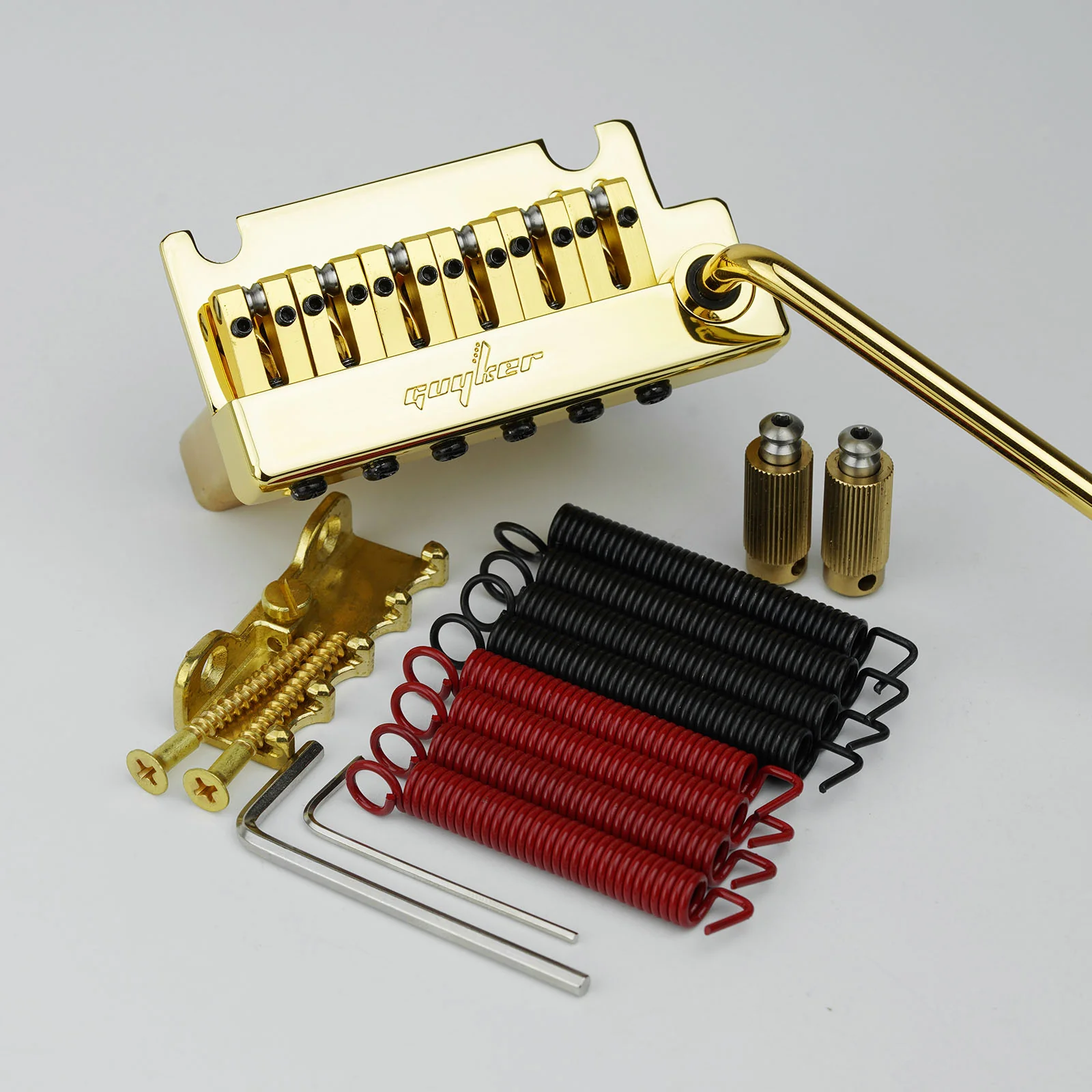

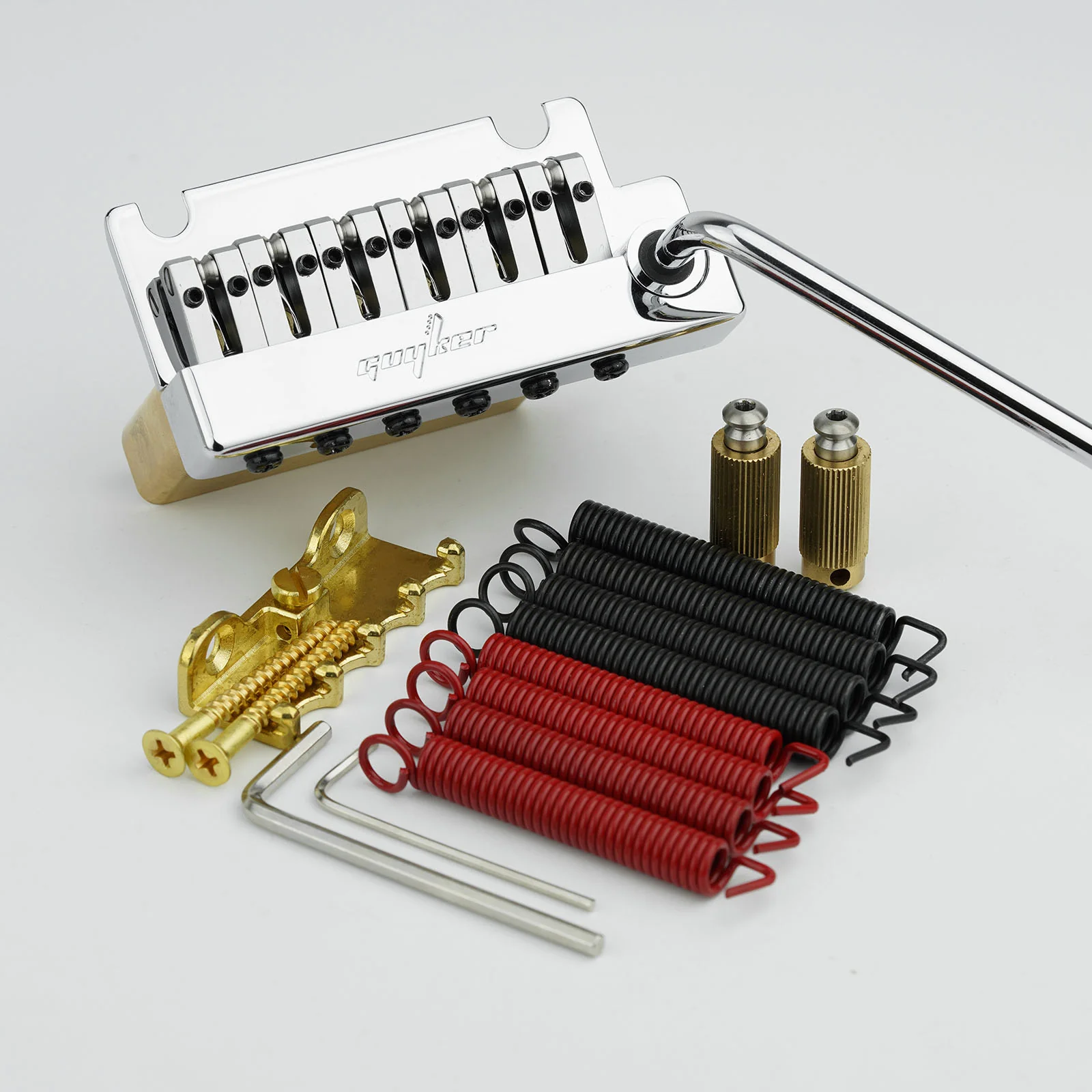

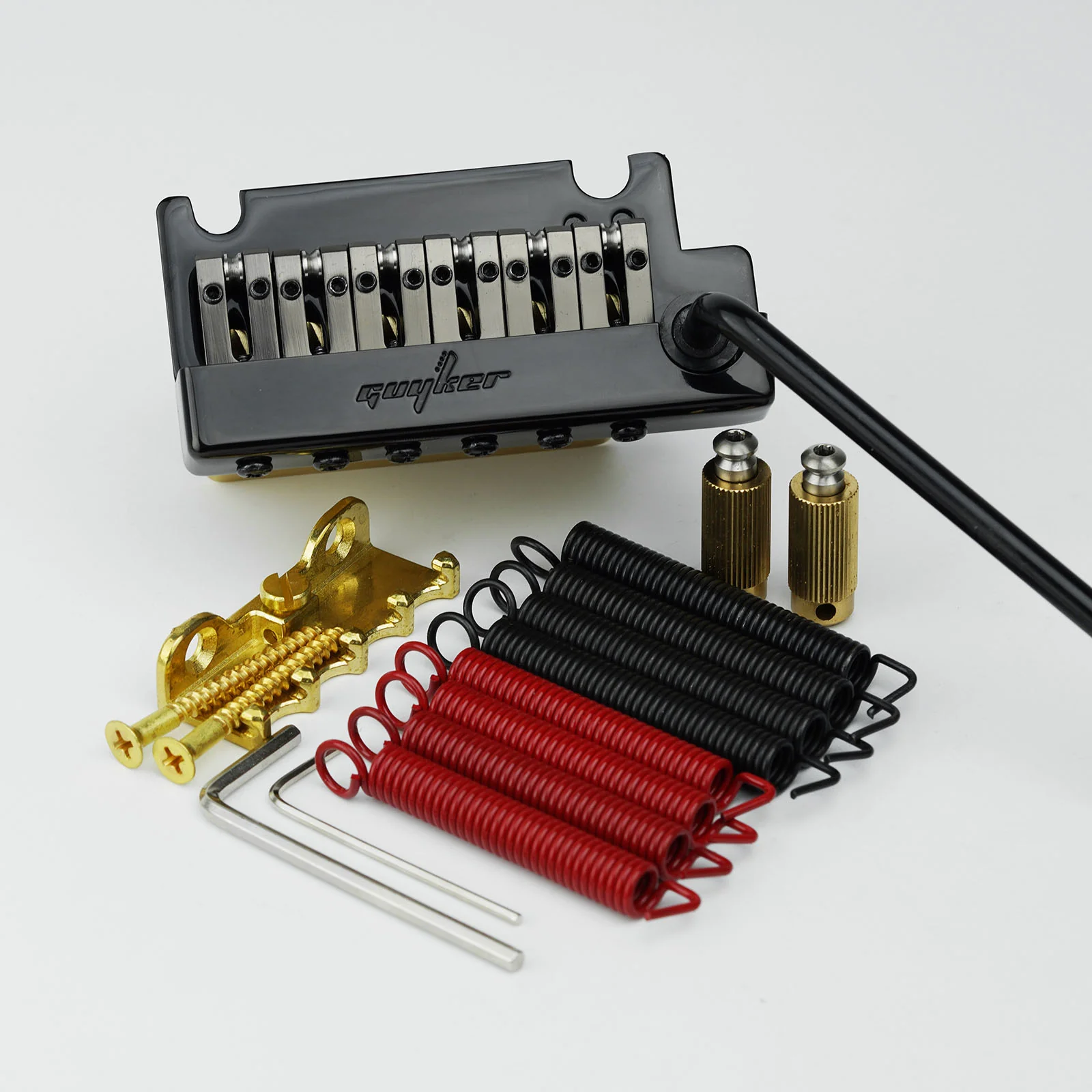

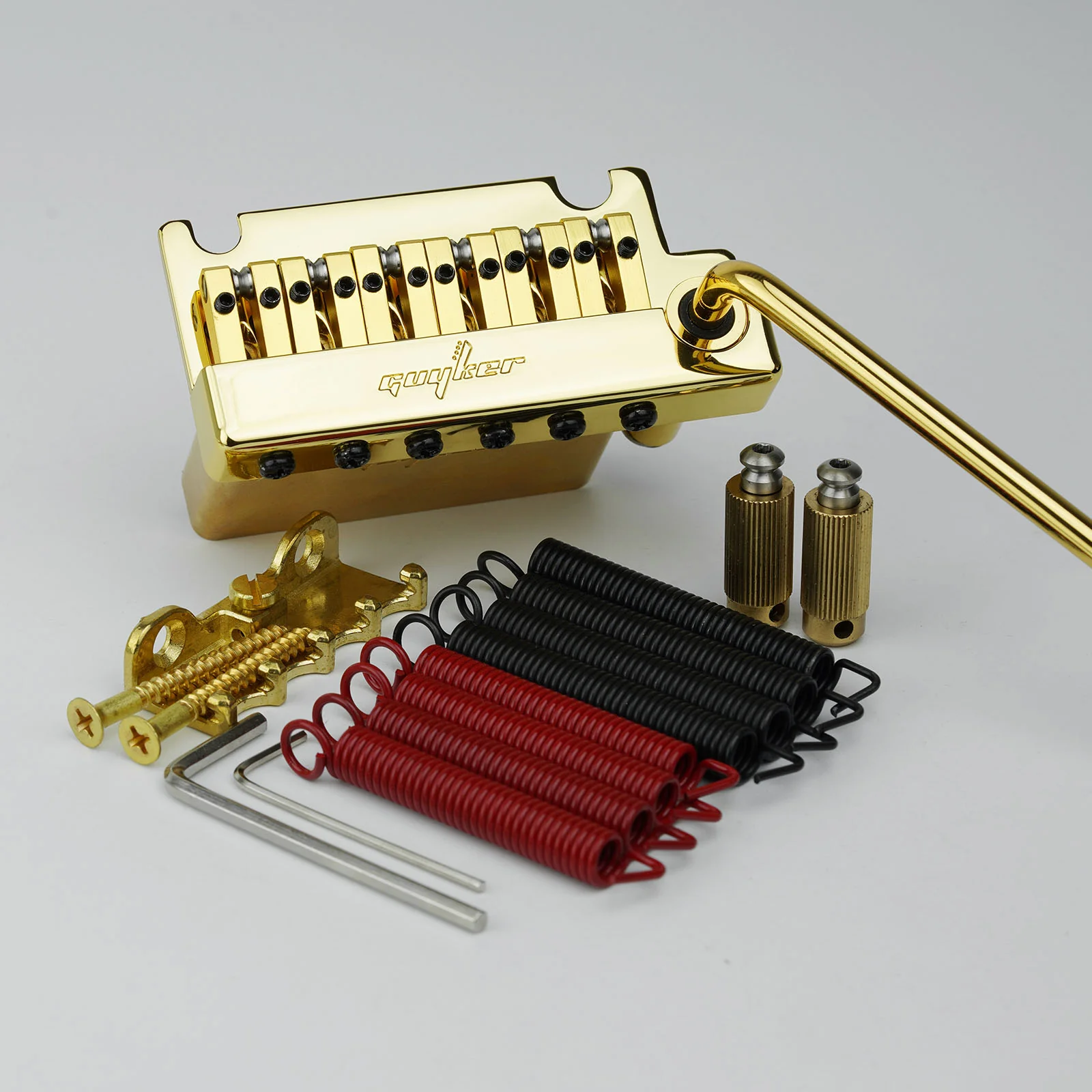

Package Includes:

• 1 x 2-Point Tremolo Bridge Assembly
• 1 x Mounting Components Set

Fitment Note / Warm Reminder:
Please verify your original mounting hole spacing (56 mm), string spacing (10.8 mm), overall bridge dimensions, block length (63.2 mm), and tremolo arm socket size (Ø5.5 mm) before ordering. This bridge is intended for compatible Strat-style 2-point tremolo routing and mounting layouts only. All dimensions may vary by ±1 mm due to manual measurement.
