Key Features:

• Left-handed tremolo bridge design for compatible left-handed 6-string electric guitars.
• 6-point mounting structure for traditional tremolo-style installation.
• Solid brass block for stronger sustain and a tighter response.
• Includes a push-in tremolo arm for quick setup and use.
• Complete set includes the bridge unit, tremolo arm, claw, 4 noiseless springs, Allen keys, and mounting screws.

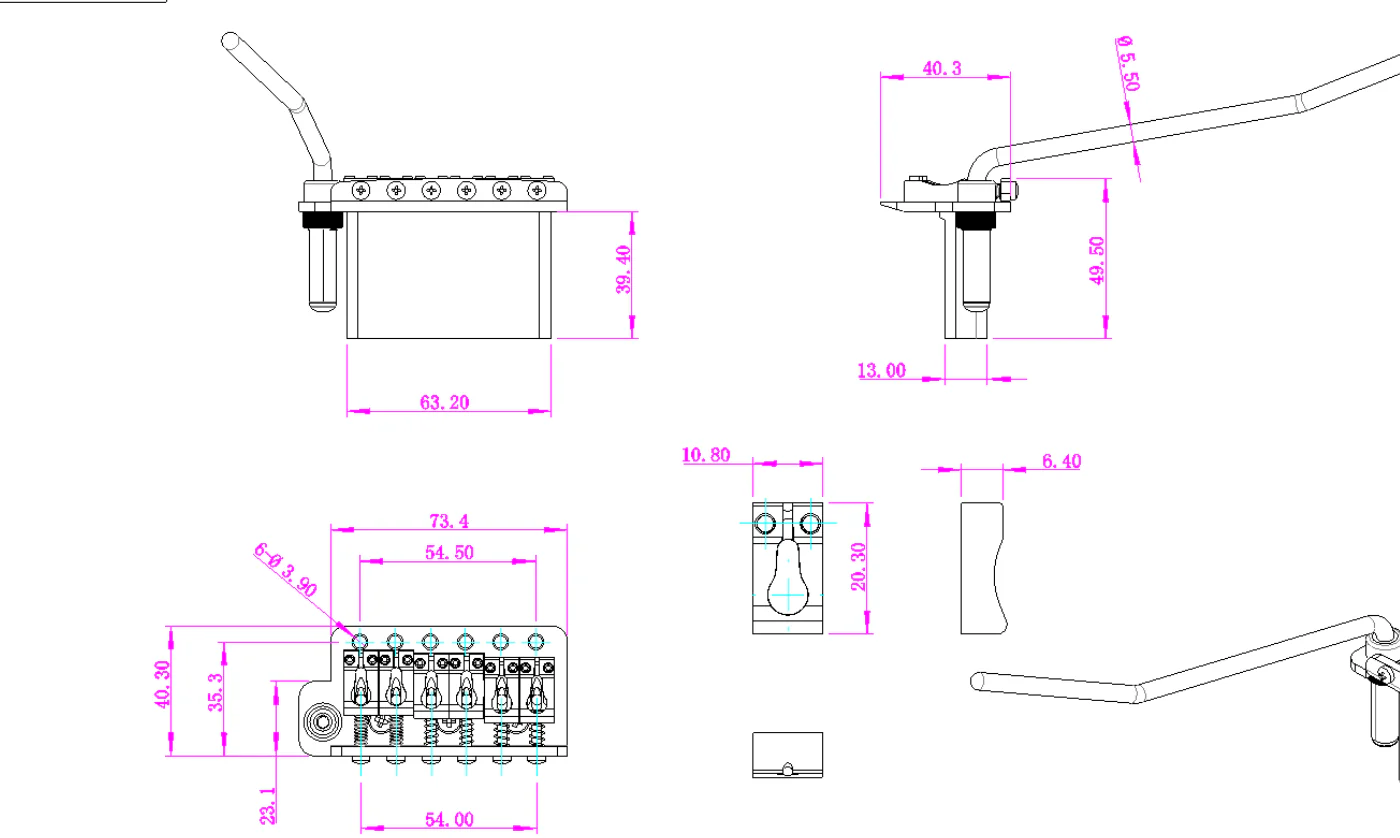

Specifications:

• Product Type: Left-Handed Guitar Tremolo Bridge
• Application: Most left-handed 6-string electric guitars equipped with a tremolo system
• Bridge Body Size: 83.1mm × 40.3mm
• Overall Bridge Width: 73.4mm
• 6-Point Mounting Screw Spread: 54.5mm
• String Spacing: 10.8mm
• Total E-to-e String Spacing: 54.0mm
• Brass Block Width: 63.2mm
• Brass Block Height: 38.4mm
• Brass Block Thickness: 13.0mm
• Saddle Length: 20.8mm
• Saddle Width: 6.4mm
• Bridge Plate to Tremolo Arm Tip Reference: 40.3mm
• Overall Height Reference: 49.5mm
• Tremolo Arm Hole Diameter: Ø5.5mm
• Color Options: Chrome, Black

Package Includes:

• 1 x Left-Handed Tremolo Bridge Unit
• 1 x Tremolo Arm
• 1 x Claw
• 4 x Noiseless Springs
• Allen Keys
• Mounting Screws

Fitment Note / Warm Reminder:
Please verify your guitar’s left-handed orientation, tremolo cavity, 6-point mounting layout, mounting screw spread, bridge footprint, and string spacing before ordering. This model uses 54.5mm 6-point mounting screw spread, 54.0mm total E-to-e spacing, and an 83.1mm × 40.3mm bridge body. Please also compare the 63.2mm × 38.4mm × 13.0mm brass block with your guitar’s tremolo cavity before purchase.
