Key Features:

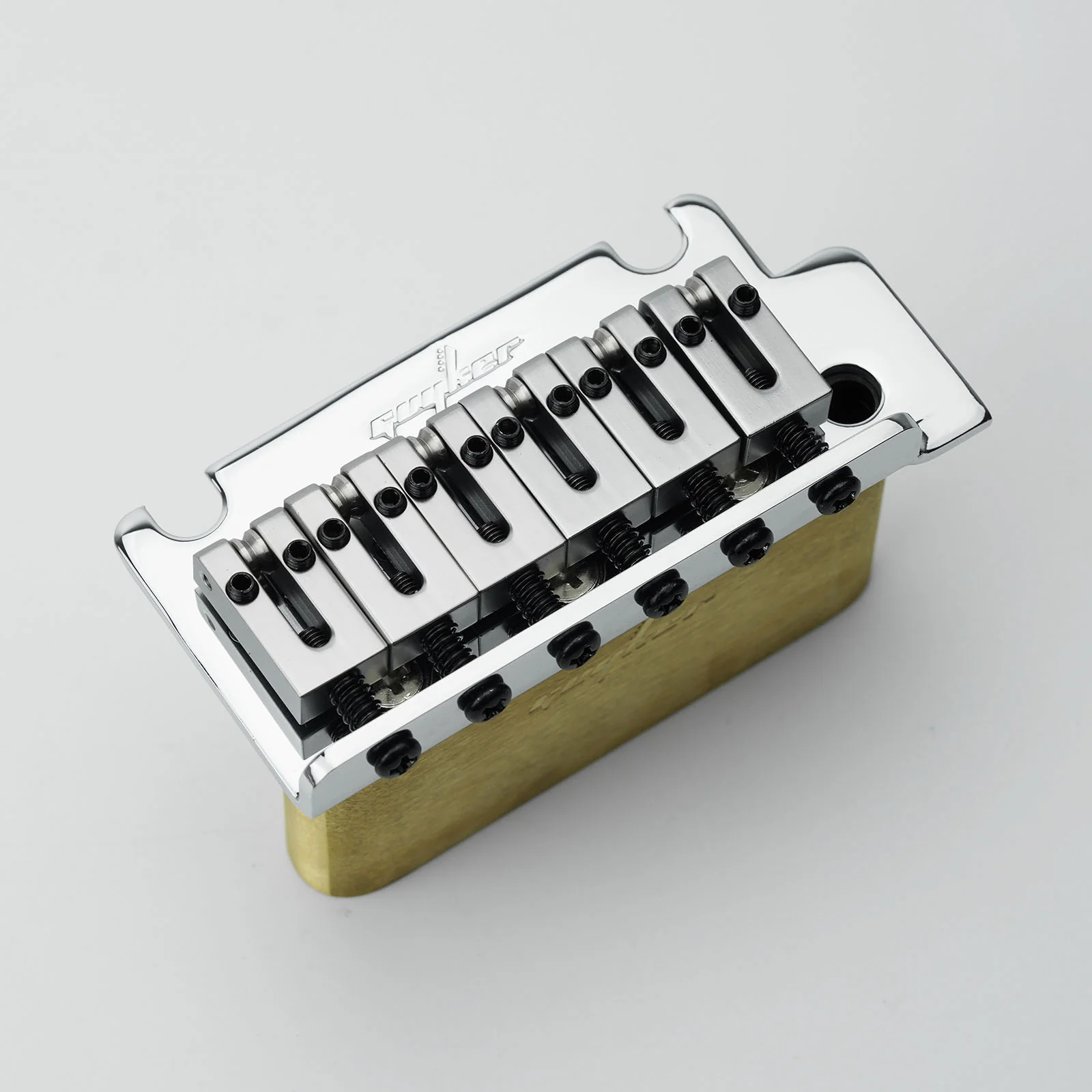

• 2-point tremolo bridge layout for ST style electric guitar replacement or upgrade projects.

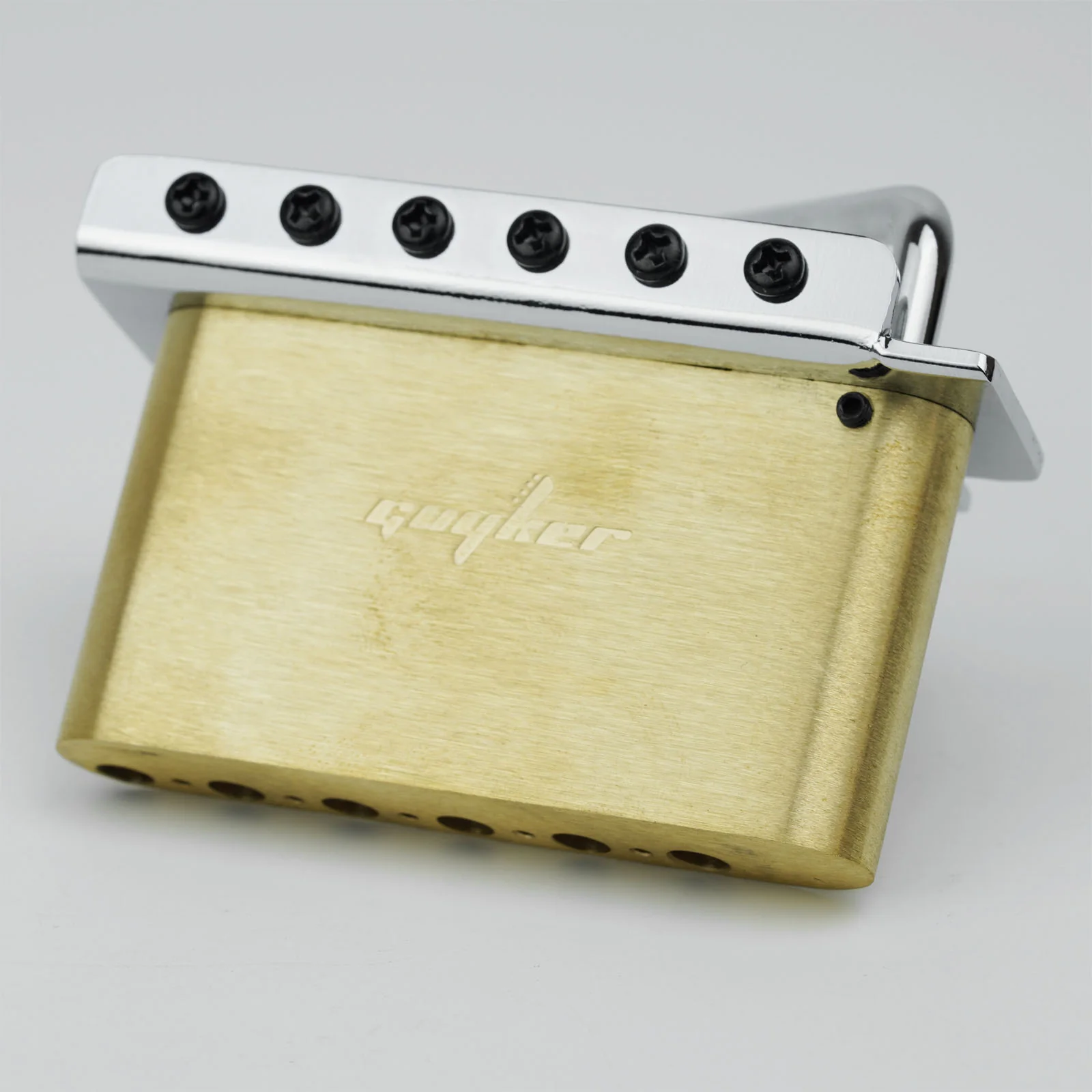

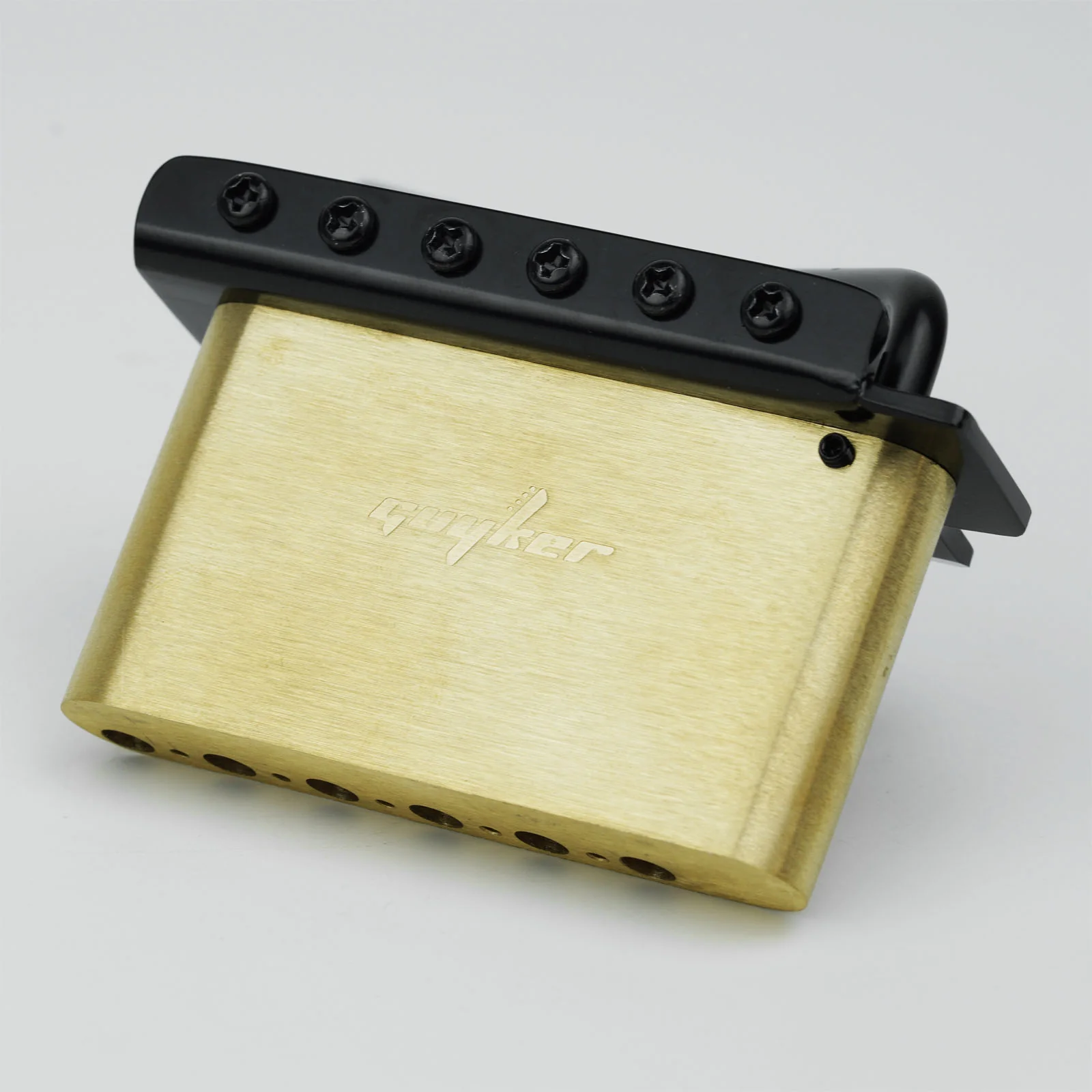

• Built with brass block and brass saddles, plus a steel bridge plate and steel tremolo arm.
• Designed for 10.5mm string spacing.

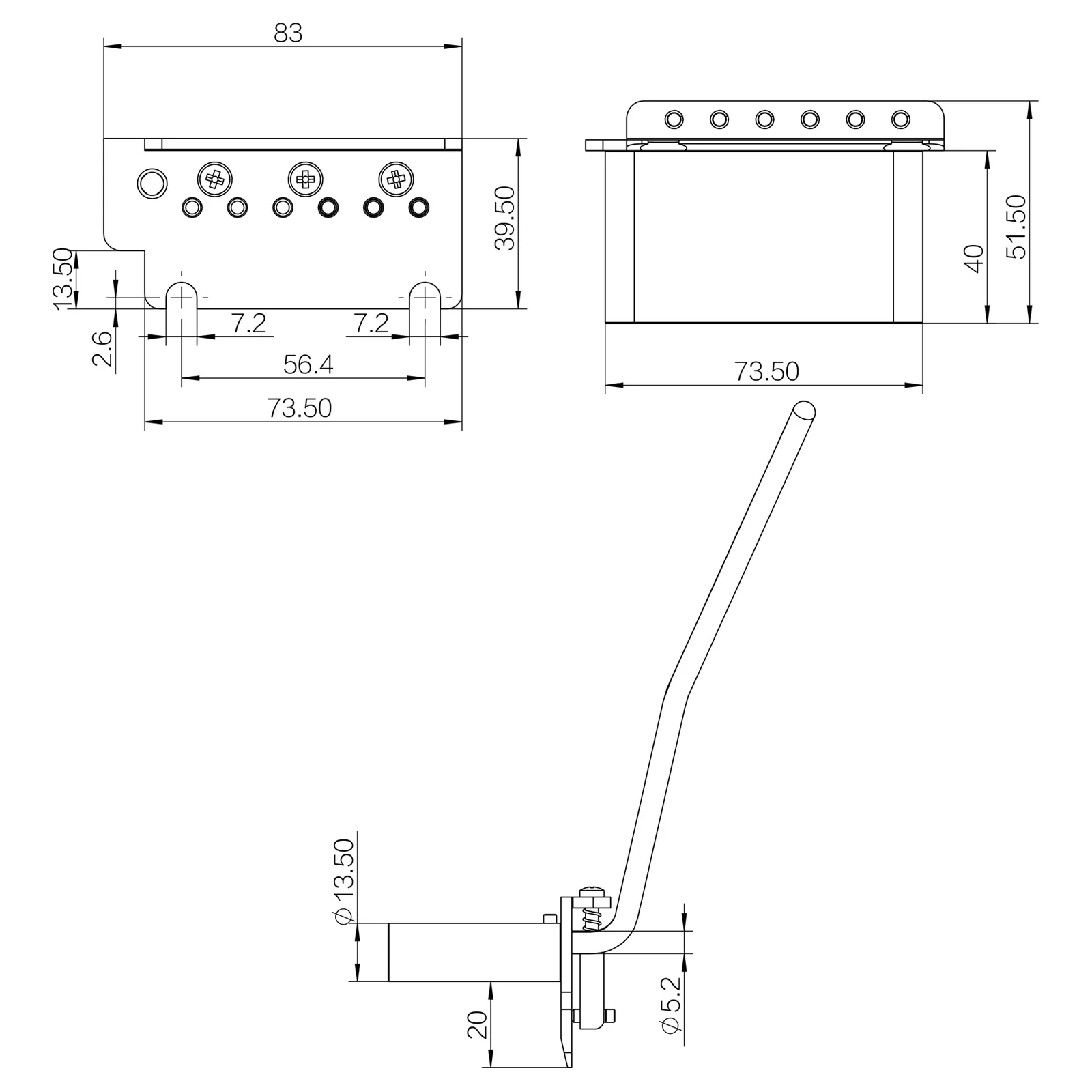

• Confirmed 56.4mm 2-point post spacing from the size diagram.
• Push-in tremolo arm design for quick installation and removal.

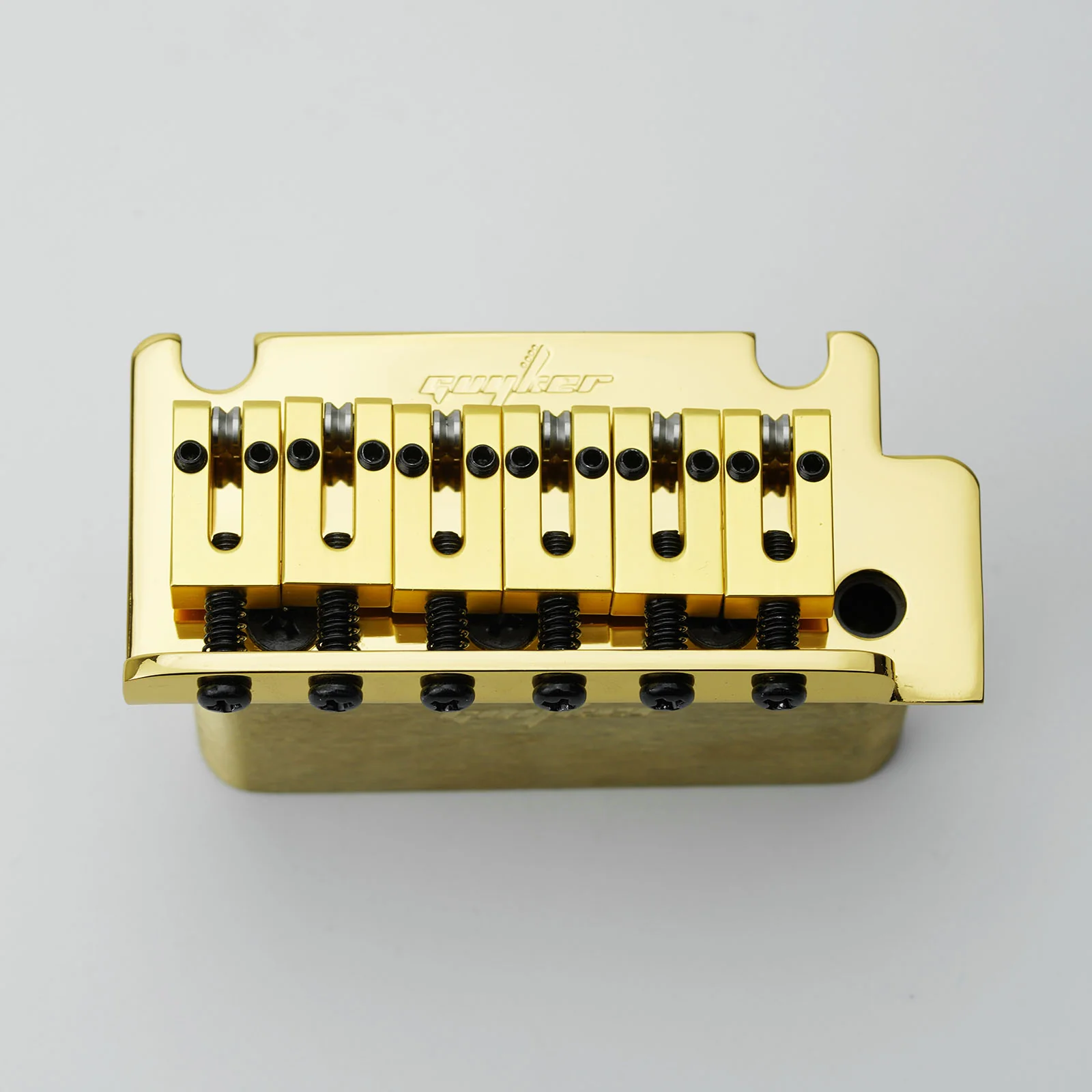

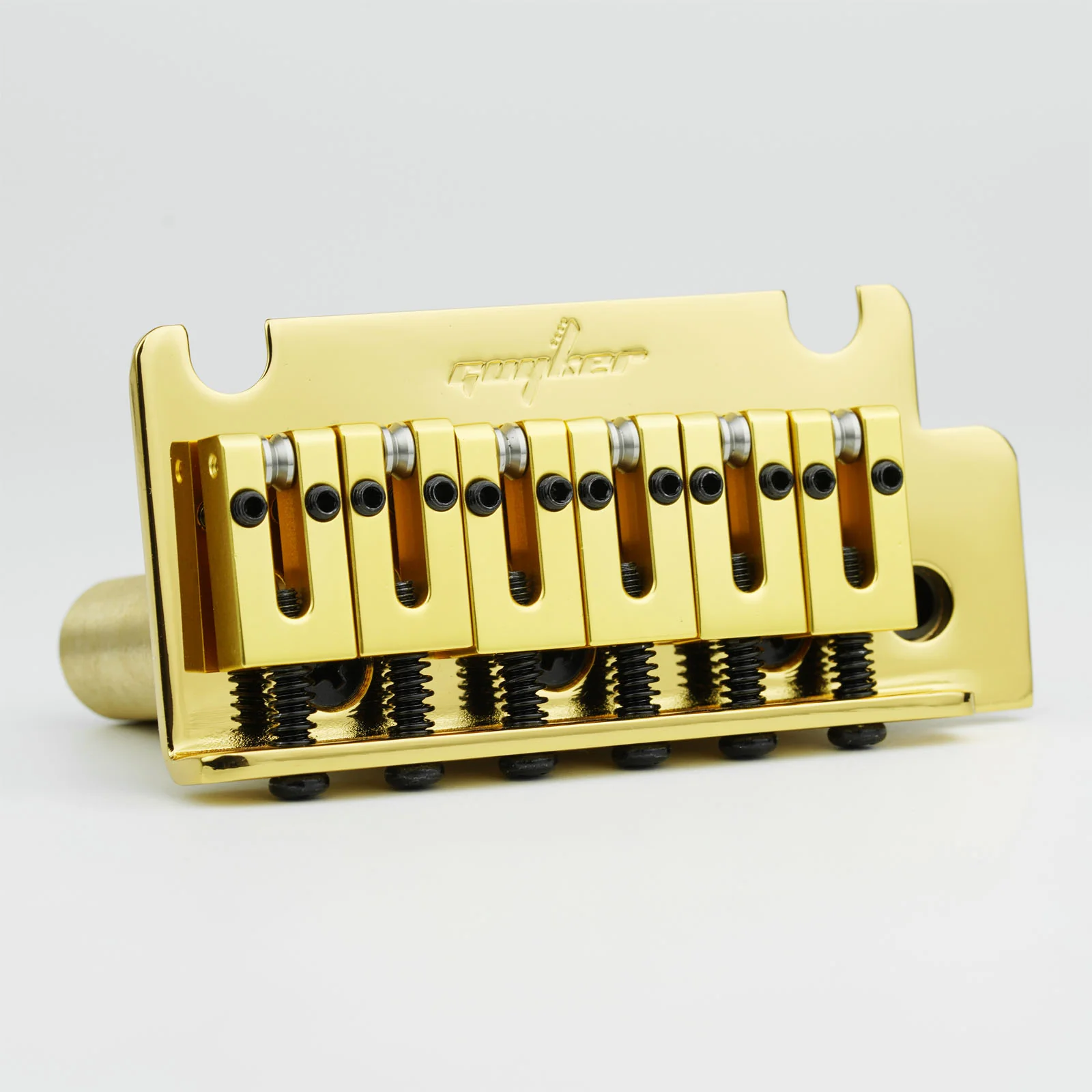

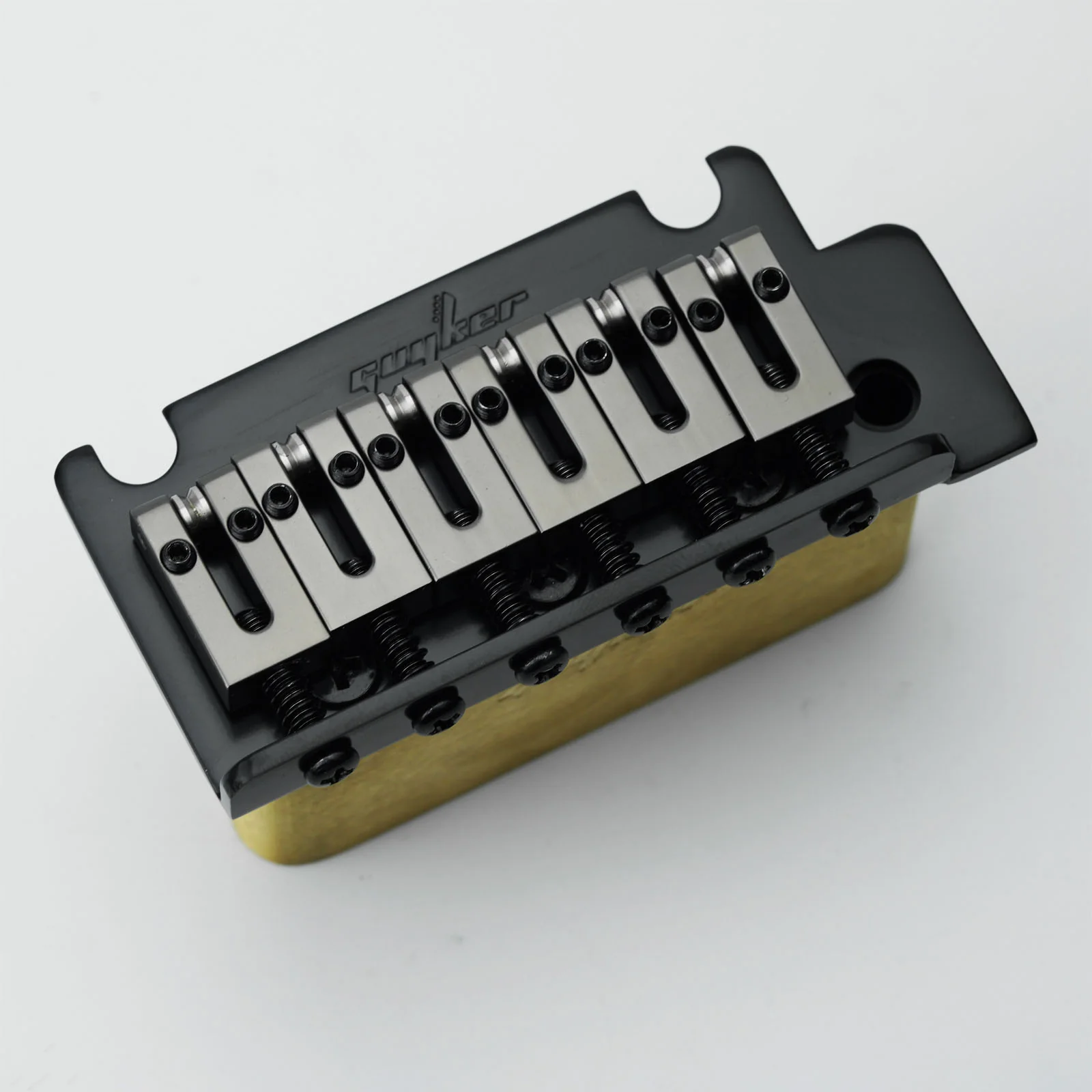

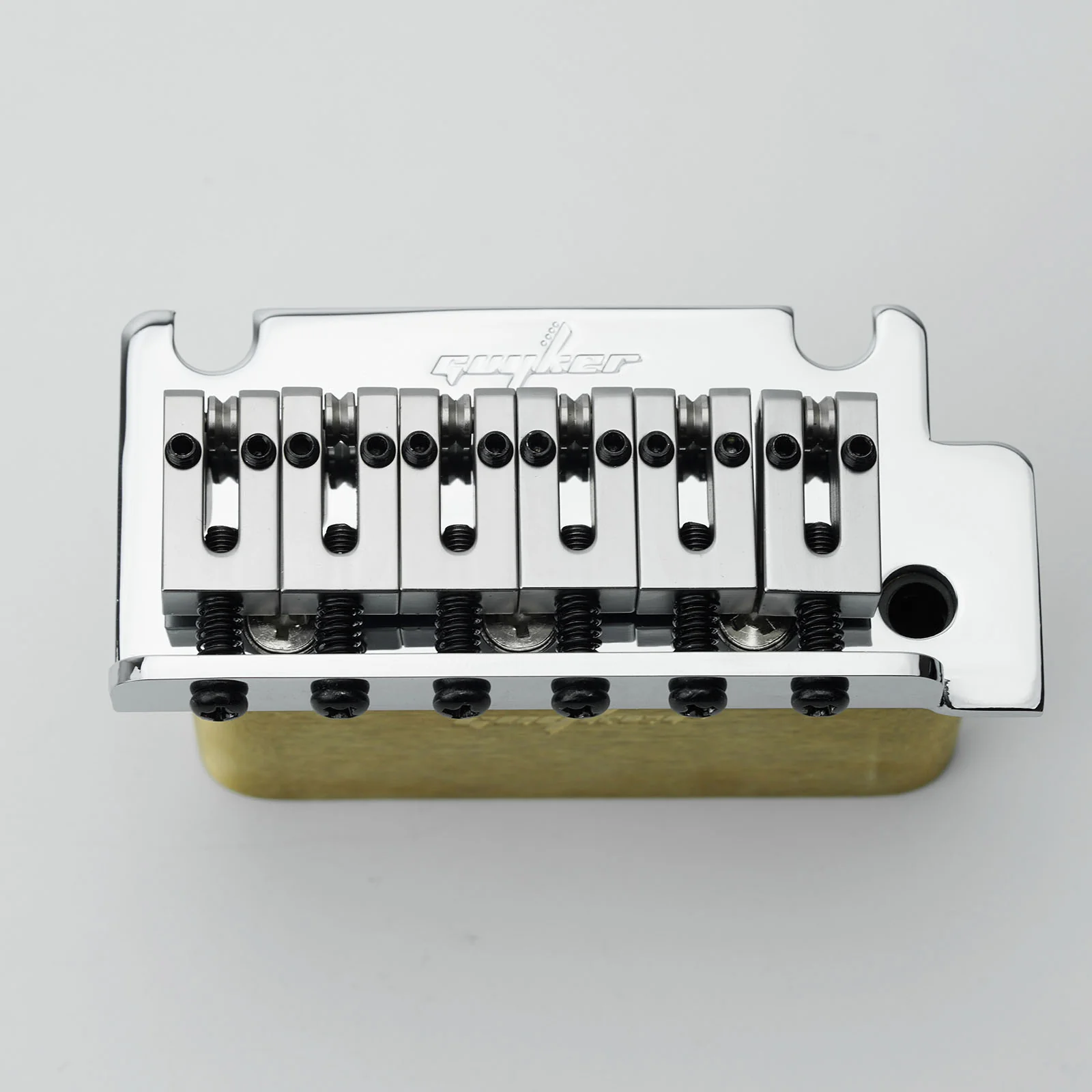

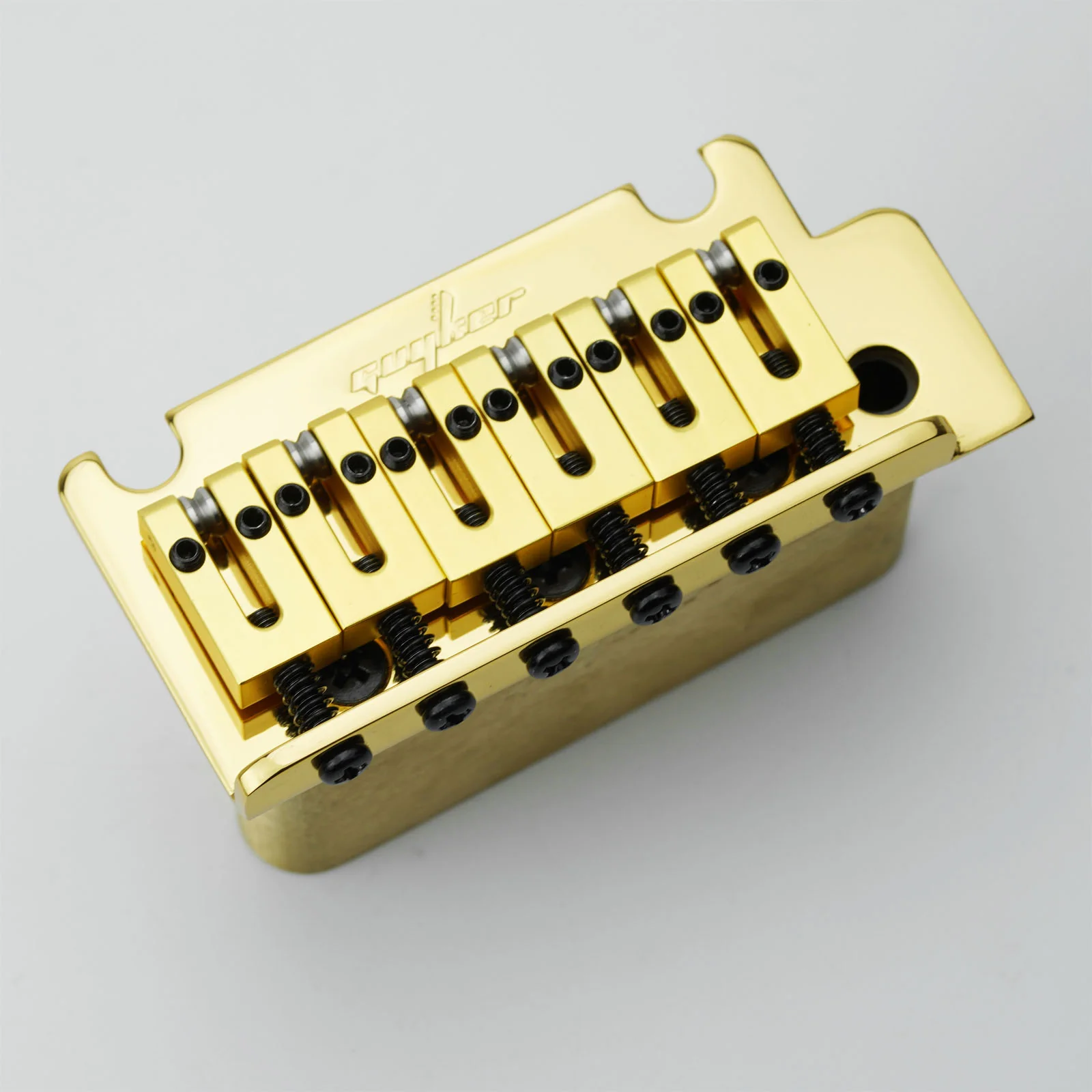

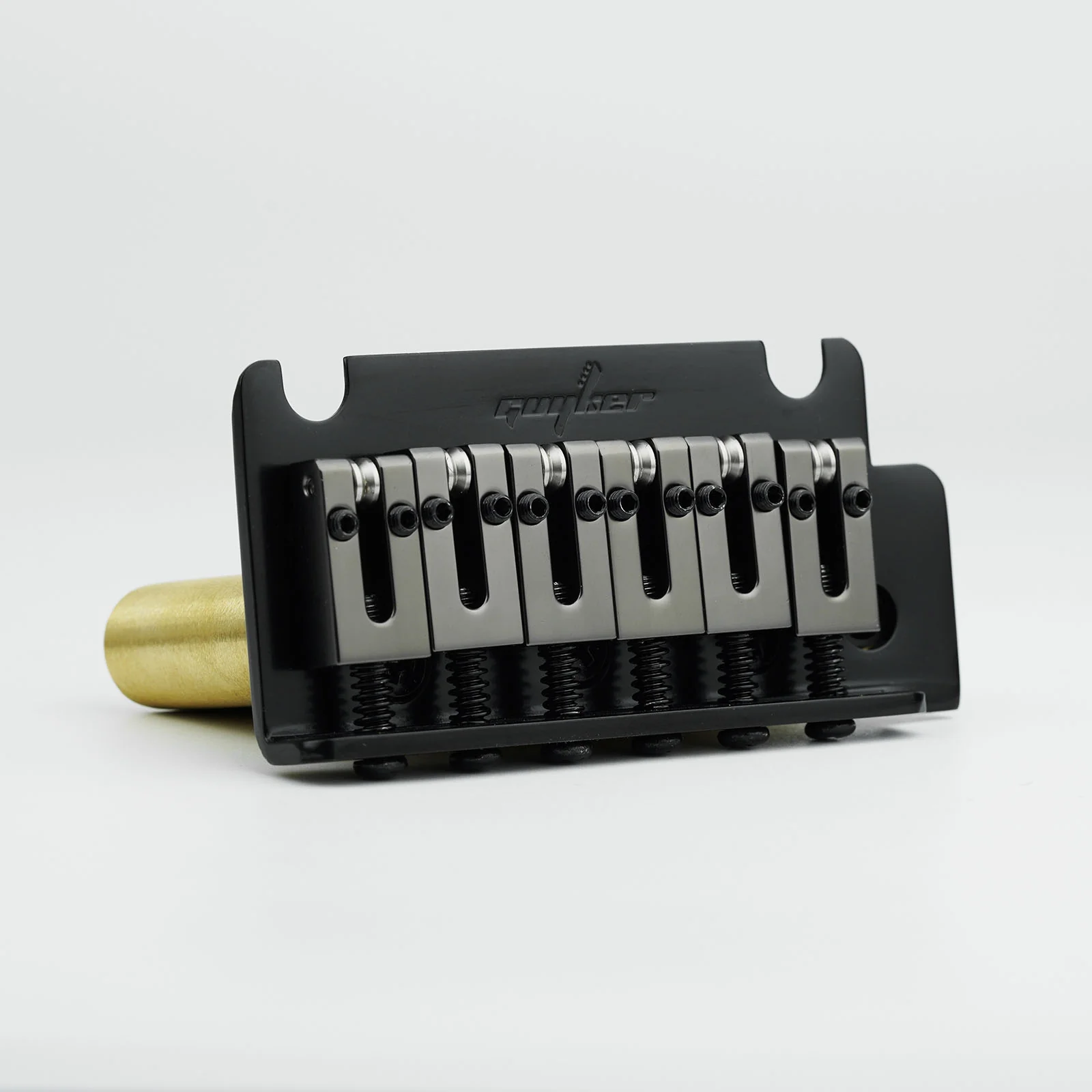

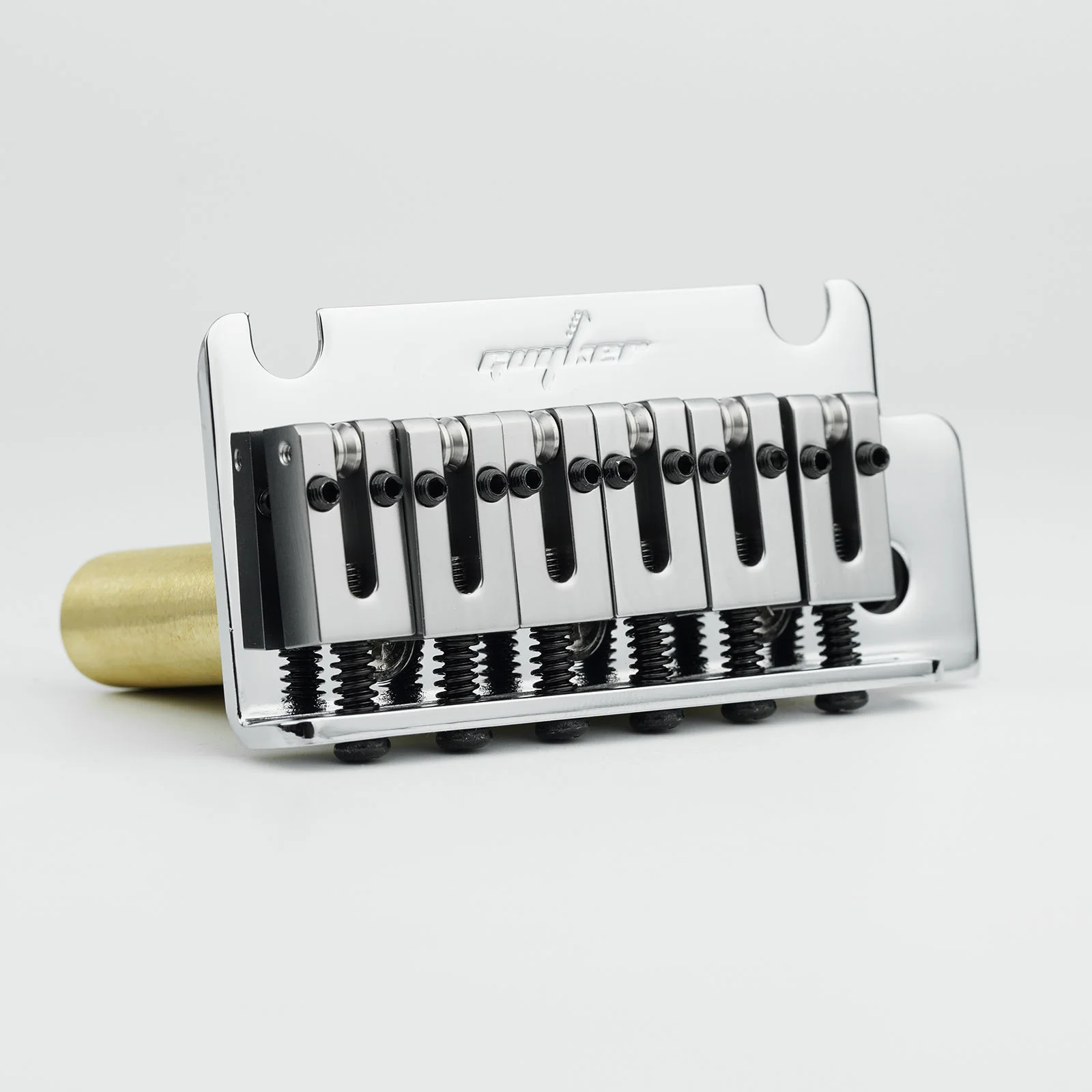

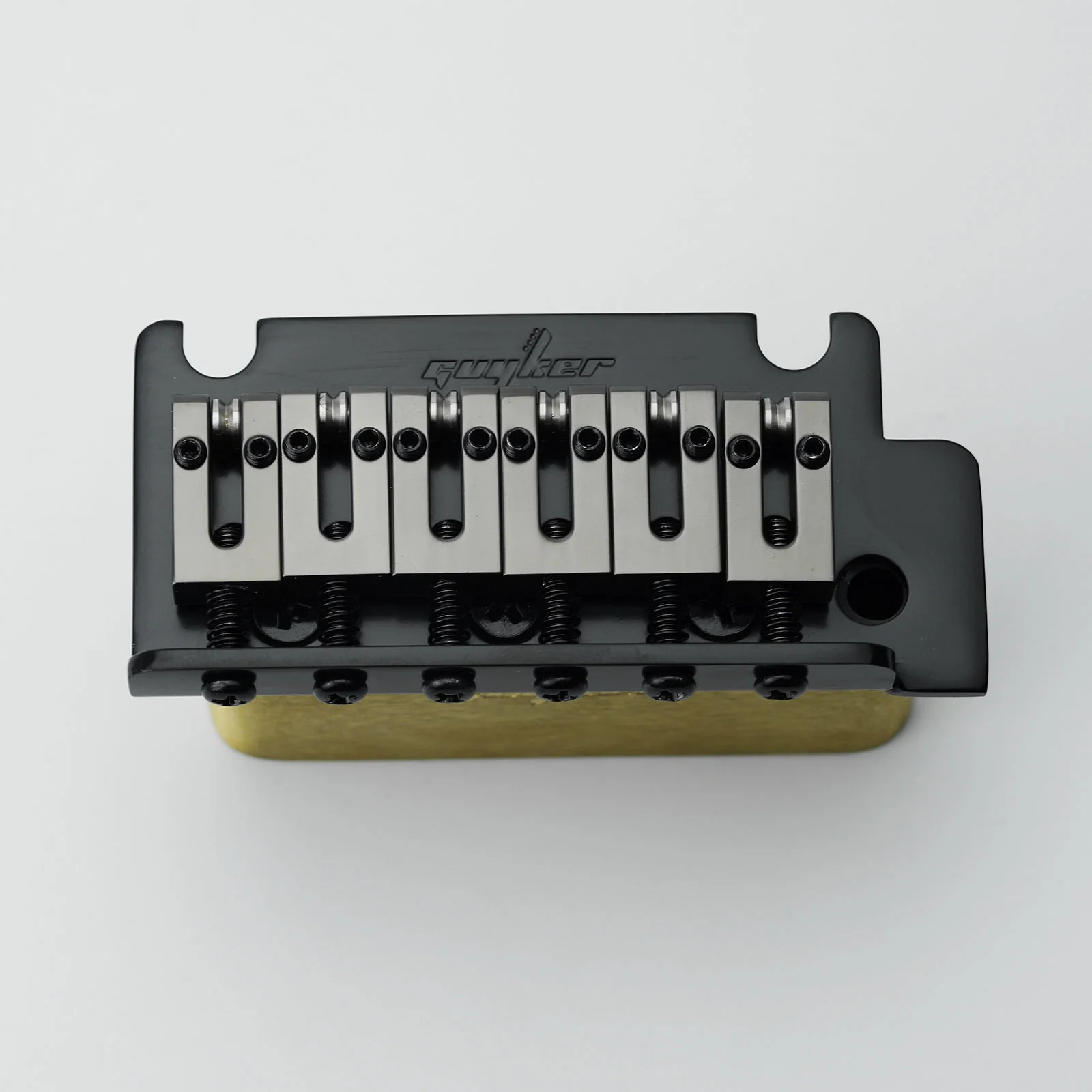

• Available in Chrome, Black, and Gold finishes.

Specifications:

• Material: Brass block and saddles; steel bridge plate; steel tremolo arm
• Bridge Type: 2-point tremolo bridge
• String Spacing: 10.5mm
• Post Spacing: 56.4mm
• Overall Width: 83mm
• Tremolo Arm Type: Push-in

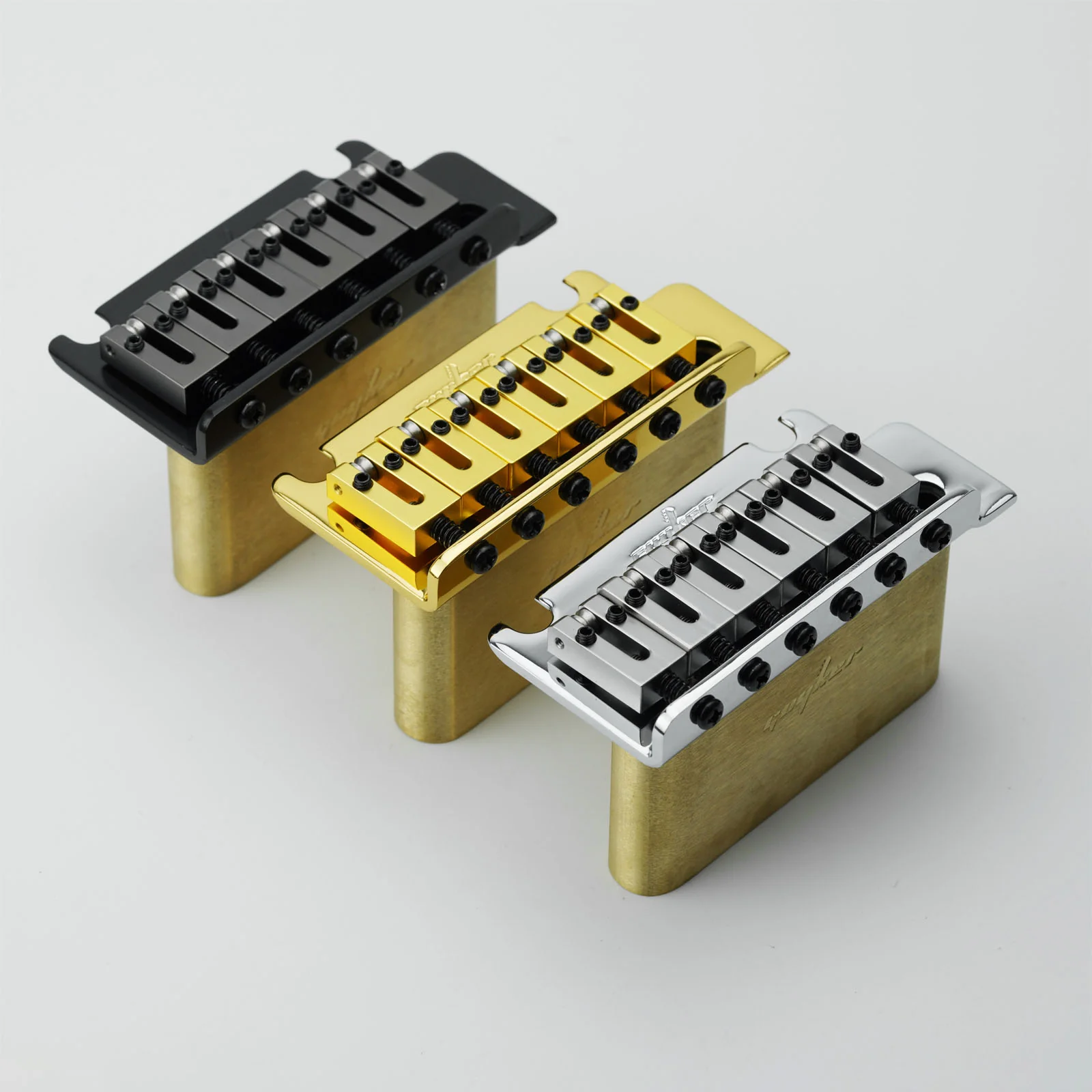

• Color Options: Chrome, Black, Gold
• Suitable For: ST style 6-string electric guitar with matching measurements

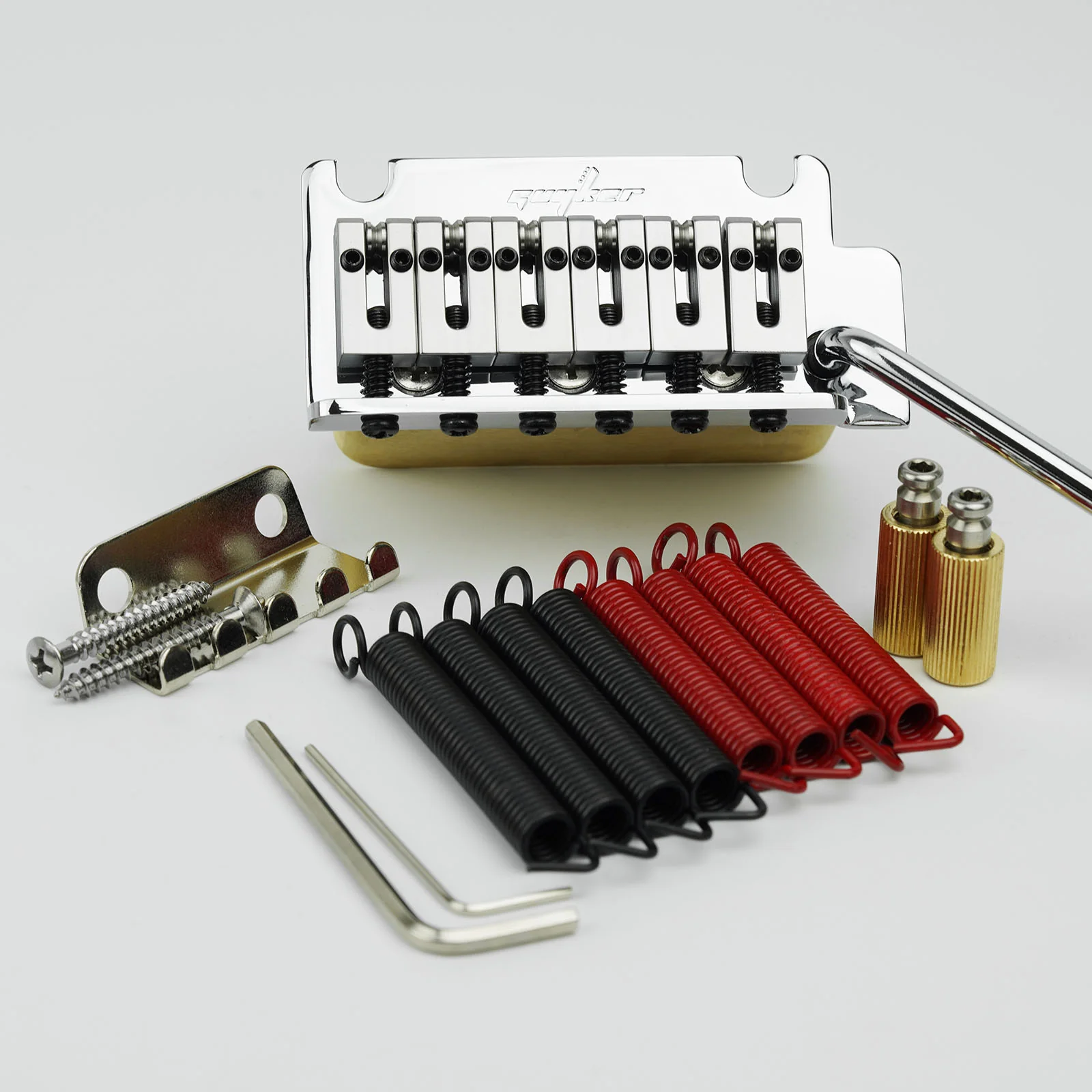

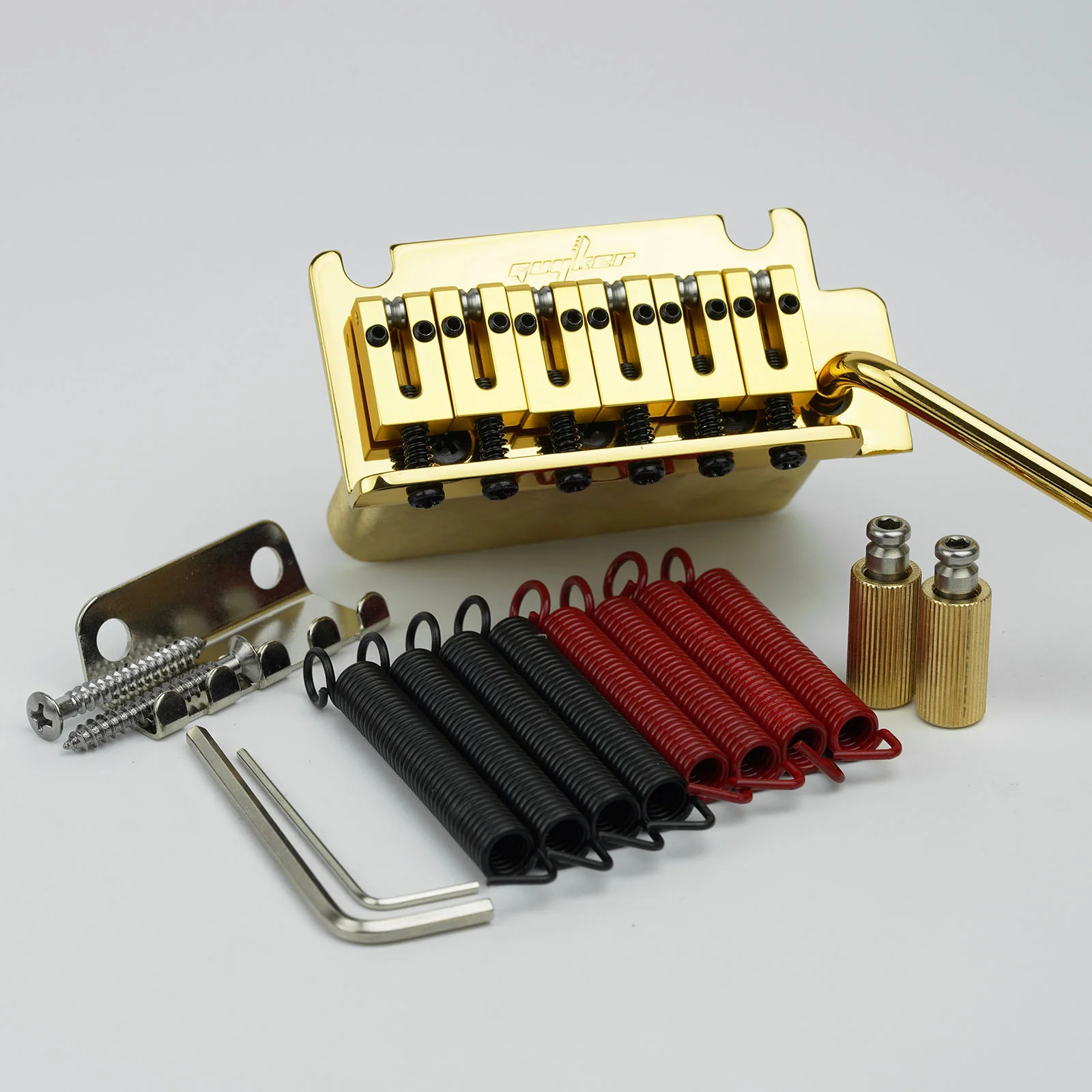

Package Includes:

• 1 tremolo bridge assembly
• 1 push-in tremolo arm
• 2 pivot posts / inserts
• 1 spring claw
• 2 claw screws
• 10 tremolo springs (5 black + 5 red)
• 2 hex wrenches

Fitment Note / Warm Reminder:
Please verify your guitar’s 10.5mm string spacing, 56.4mm 2-point post spacing, 83mm overall width, and tremolo cavity dimensions before ordering. This bridge is intended for ST style electric guitar projects with matching mounting structure and measurements.
