Key Features:

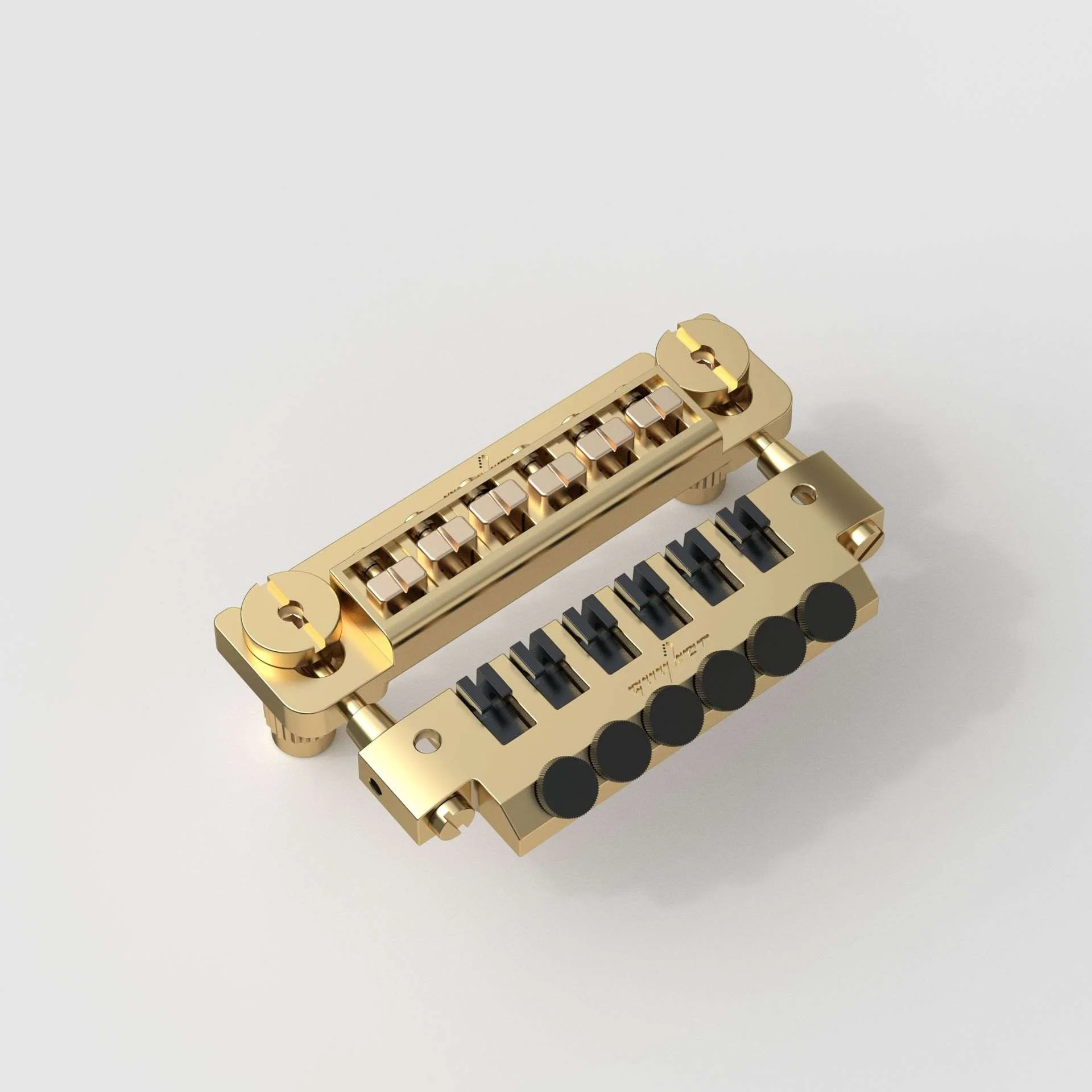

• Wraparound bridge and TP2 tailpiece set for 6-string electric guitar replacement or upgrade projects.
• Solid brass saddles provide durable string contact and practical intonation adjustment.
• Zinc alloy bridge and tailpiece body offers lightweight, durable construction.
• 6 independently adjustable saddles support practical setup and intonation work.
• Locking studs help improve mounting stability on compatible guitars.
• Suitable for projects where the 82.5 mm post spacing and related mounting dimensions match the original hardware.

Specifications:

• Bridge Saddle Material: Solid brass
• Bridge & Tailpiece Body Material: Zinc alloy
• Mounting Stud Material: Zinc alloy with brass core
• Suitable For: 6-string electric guitar with matching wraparound bridge and tailpiece layout
• Bridge Mounting Post Spacing: 82.5 mm
• String Spacing: 10.5 mm
• Total String Span: 52.5 mm
• Bridge Overall Length: 101.5 mm
• Body Width: 14 mm
• Bridge Height (Max): ~13.5 mm
• Stud Diameter: Ø8 mm
• TP2 Tailpiece Mounting Post Spacing: 82.5 mm (
• TP2 Tailpiece String Span: 51.5 mm
• Insert Thread: M8
• Insert Diameter: Ø10.7 mm
• Insert Height: 27.5 mm

Package Includes:

• 1 x wraparound bridge
• 1 x TP2 tailpiece
• Mounting studs / posts

Fitment Note / Warm Reminder:
Please verify your original bridge and tailpiece measurements before ordering, especially the 82.5 mm mounting post spacing, 10.5 mm string spacing, Ø8 mm stud diameter, and M8 / Ø10.7 mm insert specifications. This set is recommended only for guitars with a matching wraparound bridge + TP2 tailpiece installation structure
