Key Features:

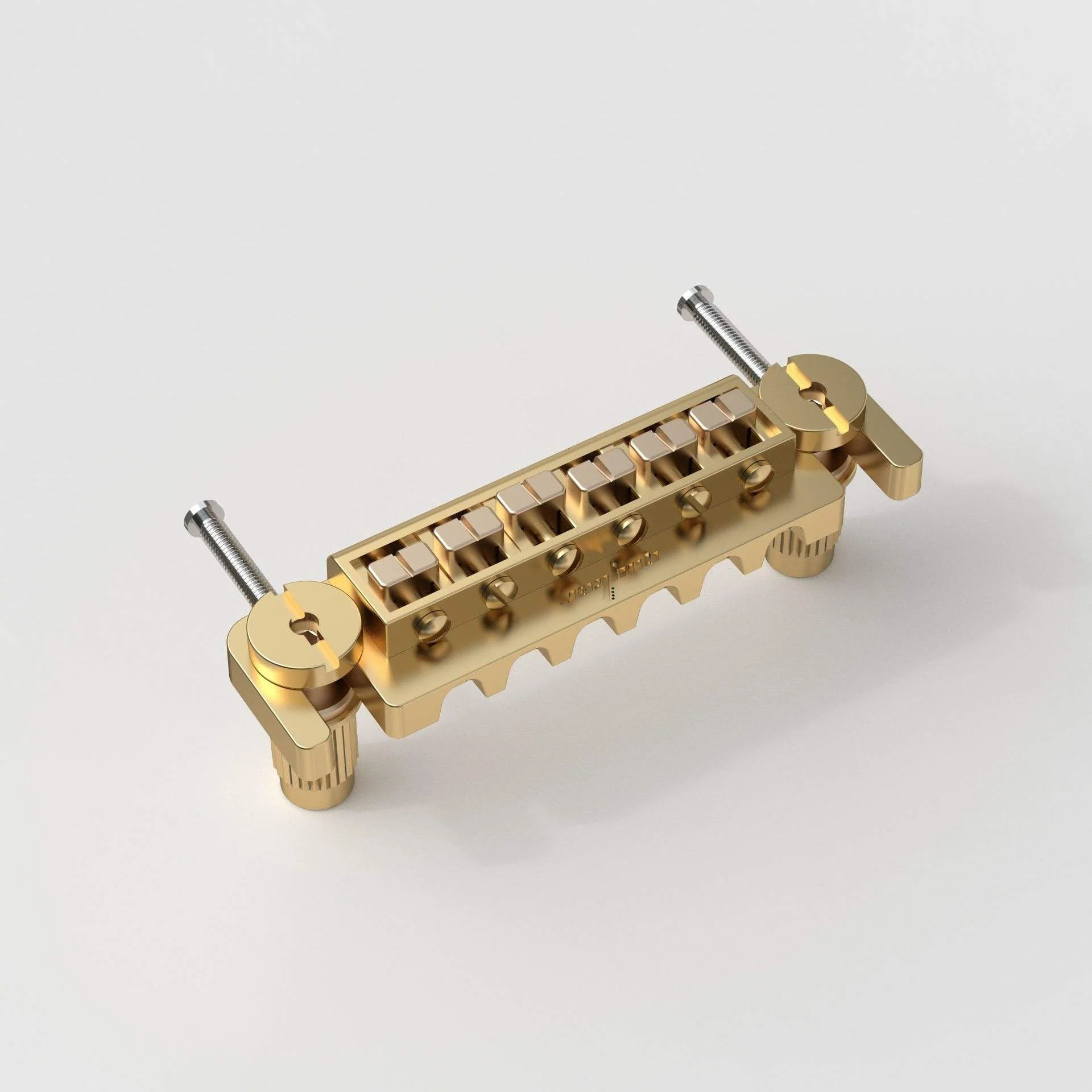

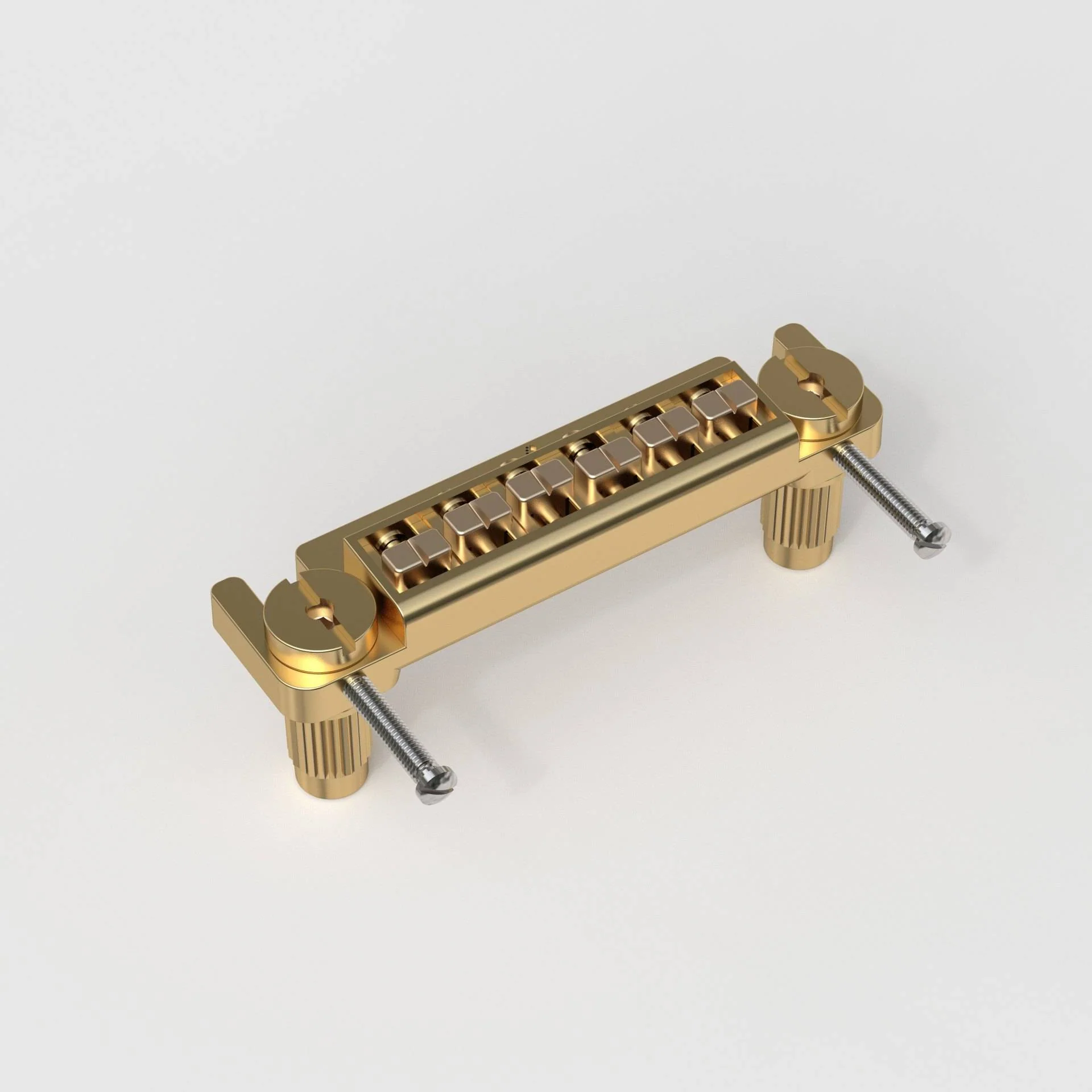

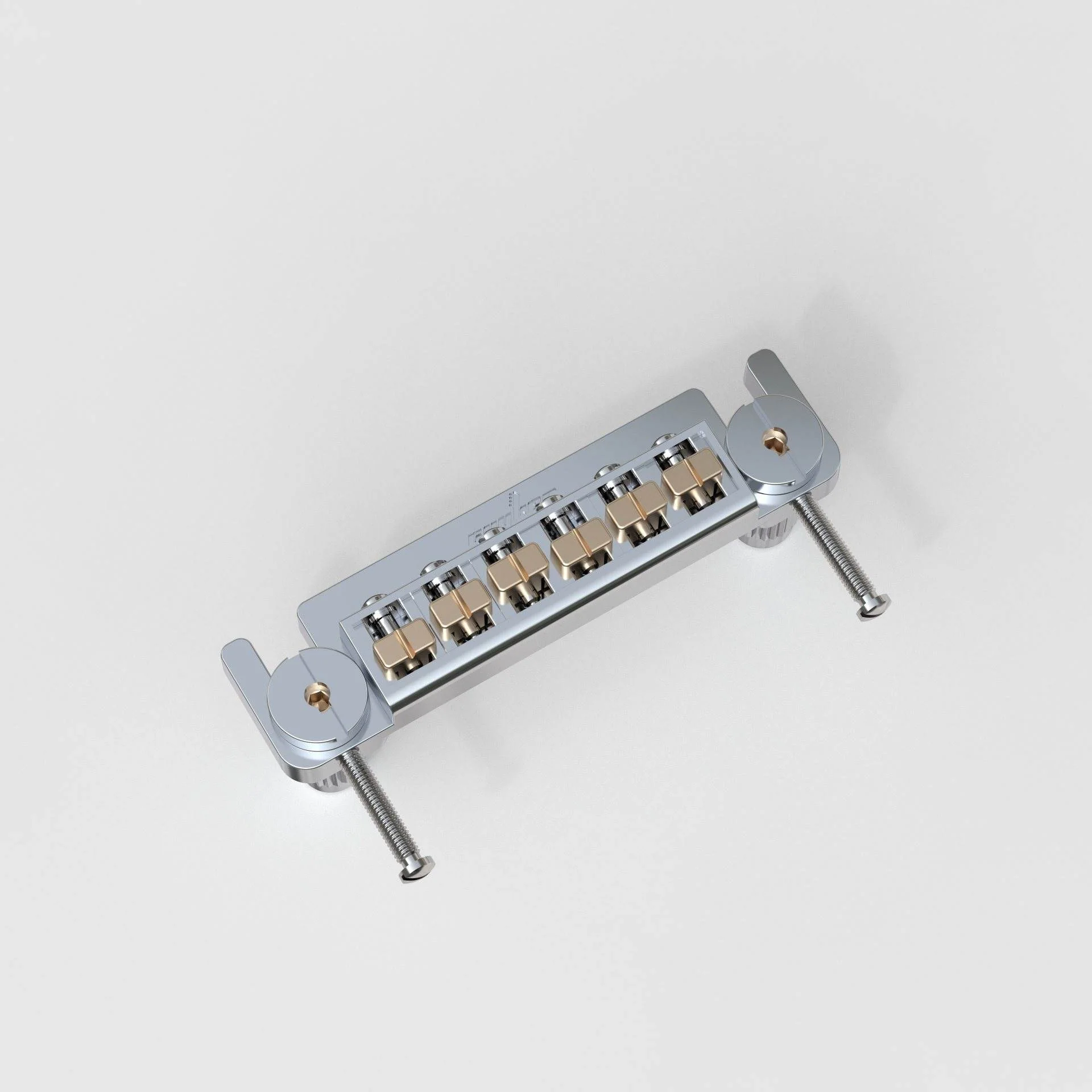

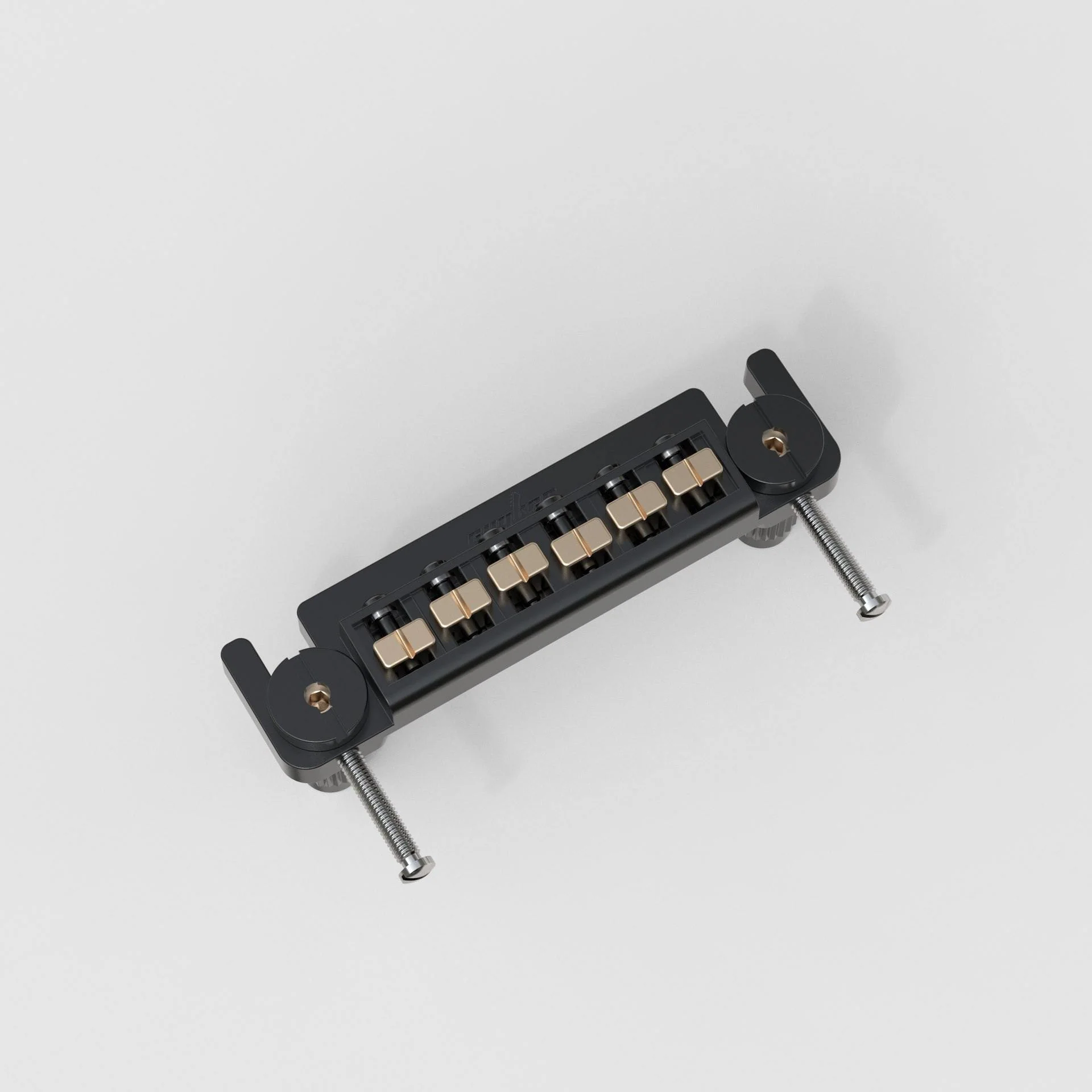

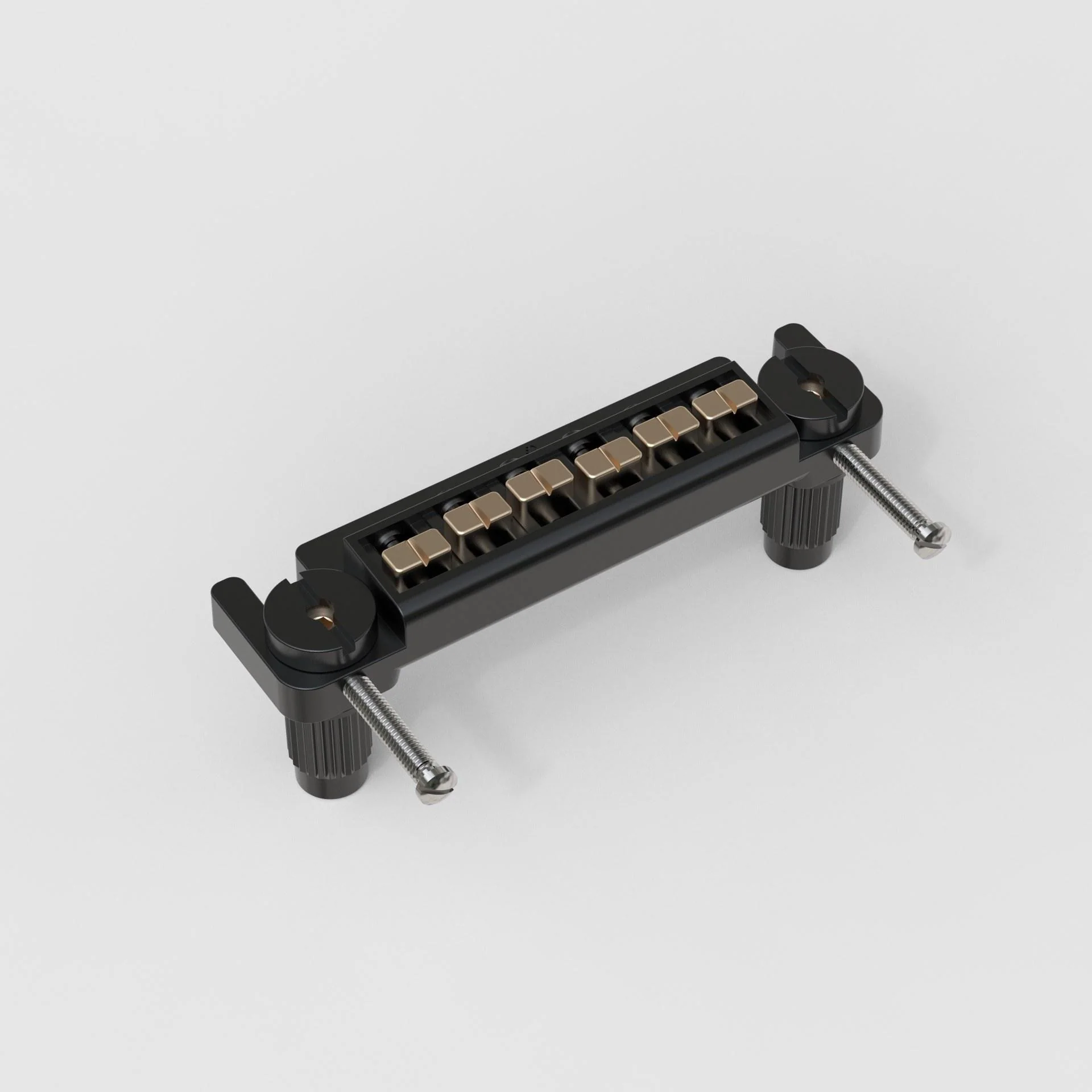

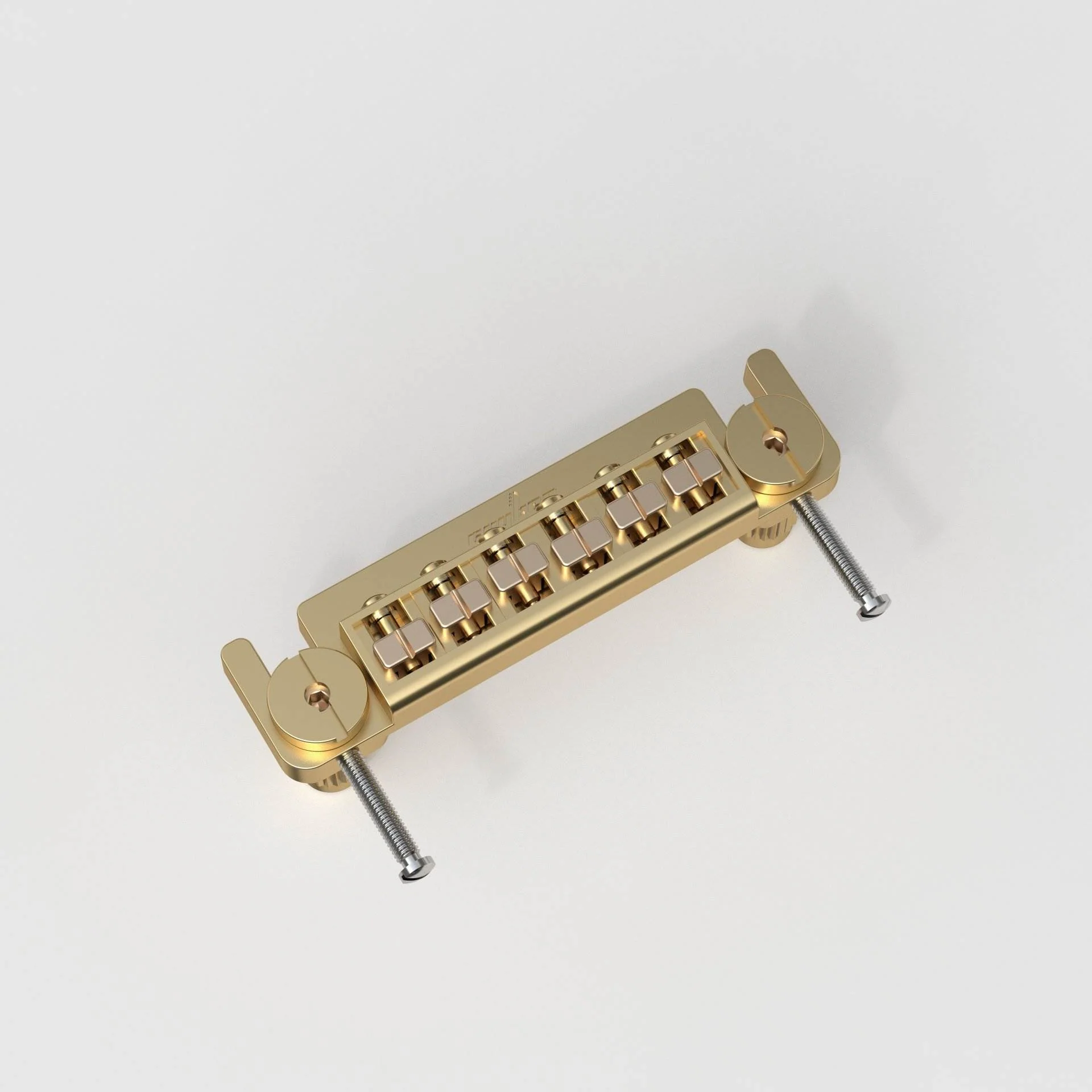

• Wraparound guitar bridge designed for 6-string electric guitar replacement or upgrade projects.
• Solid brass saddles provide durable string contact and support precise setup.
• Zinc alloy bridge base offers a stable and reliable structure.
• Locking studs help secure the bridge and improve mounting stability.
• 6 individually adjustable saddles support practical intonation adjustment.
• Suitable for guitars where the 82.5 mm post spacing and related dimensions match the original hardware.

Specifications:

• Bridge Saddle Material: Solid brass
• Bridge Base Material: Zinc alloy
• Locking Stud Material: Zinc alloy with brass inserts
• Suitable For: 6-string electric guitar with matching wraparound bridge layout

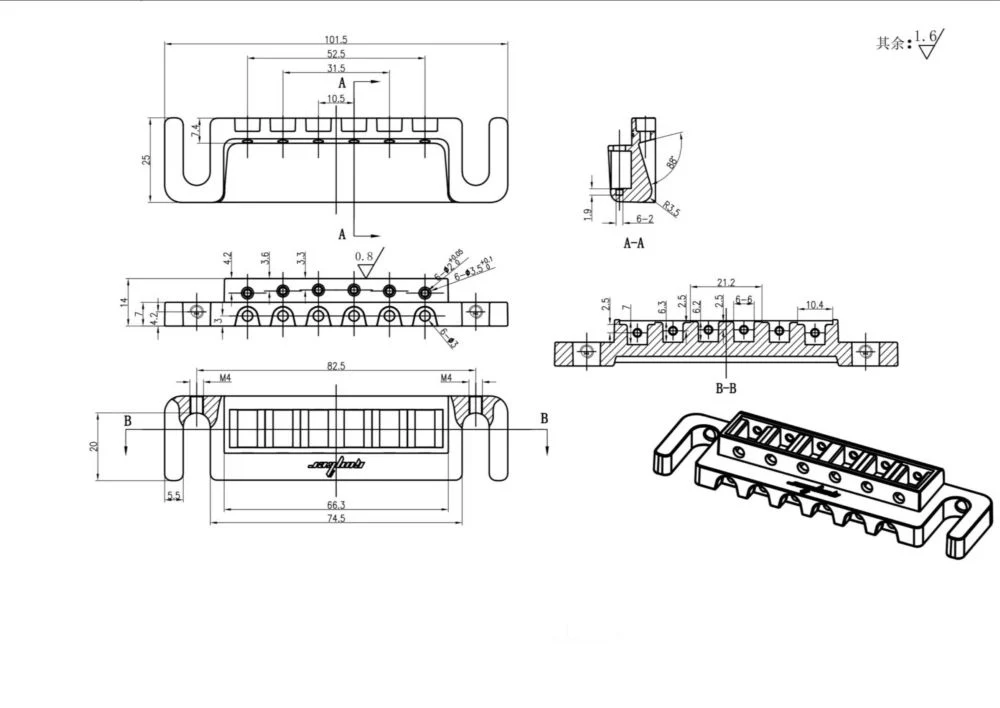

• Mounting Post Spacing: 82.5 mm
• String Spacing: 10.5 mm
• Total String Span: 52.5 mm
• Overall Length: 101.5 mm
• Bridge Height: Adjustable, max approx. 13.5 mm

Package Includes:

• 1 x wraparound guitar bridge
• Locking studs

Fitment Note / Warm Reminder:
Please verify your original bridge measurements before ordering, especially the 82.5 mm mounting post spacing, 10.5 mm string spacing, 52.5 mm total string span, and overall bridge length. This bridge is recommended only for guitars with a matching wraparound bridge mounting structure.
