Key Features:

• TVG-style guitar pickup set for electric guitar replacement or custom wiring projects.
• Includes a 4K neck pickup and an optional bridge pickup in 4.8K or 8.5K output version.
• Humbucker design described by Guyker for clear tone, low noise, and responsive dynamics.

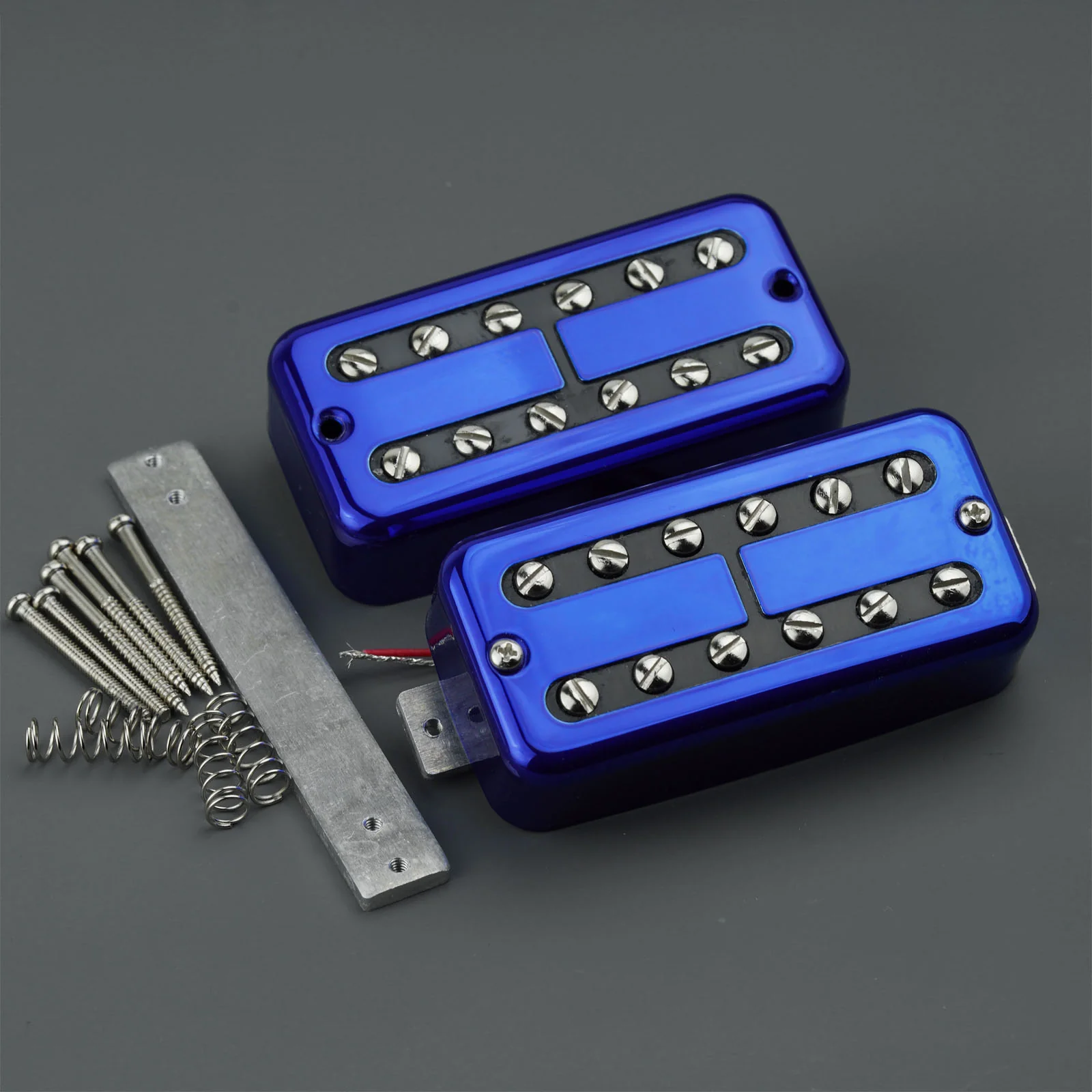

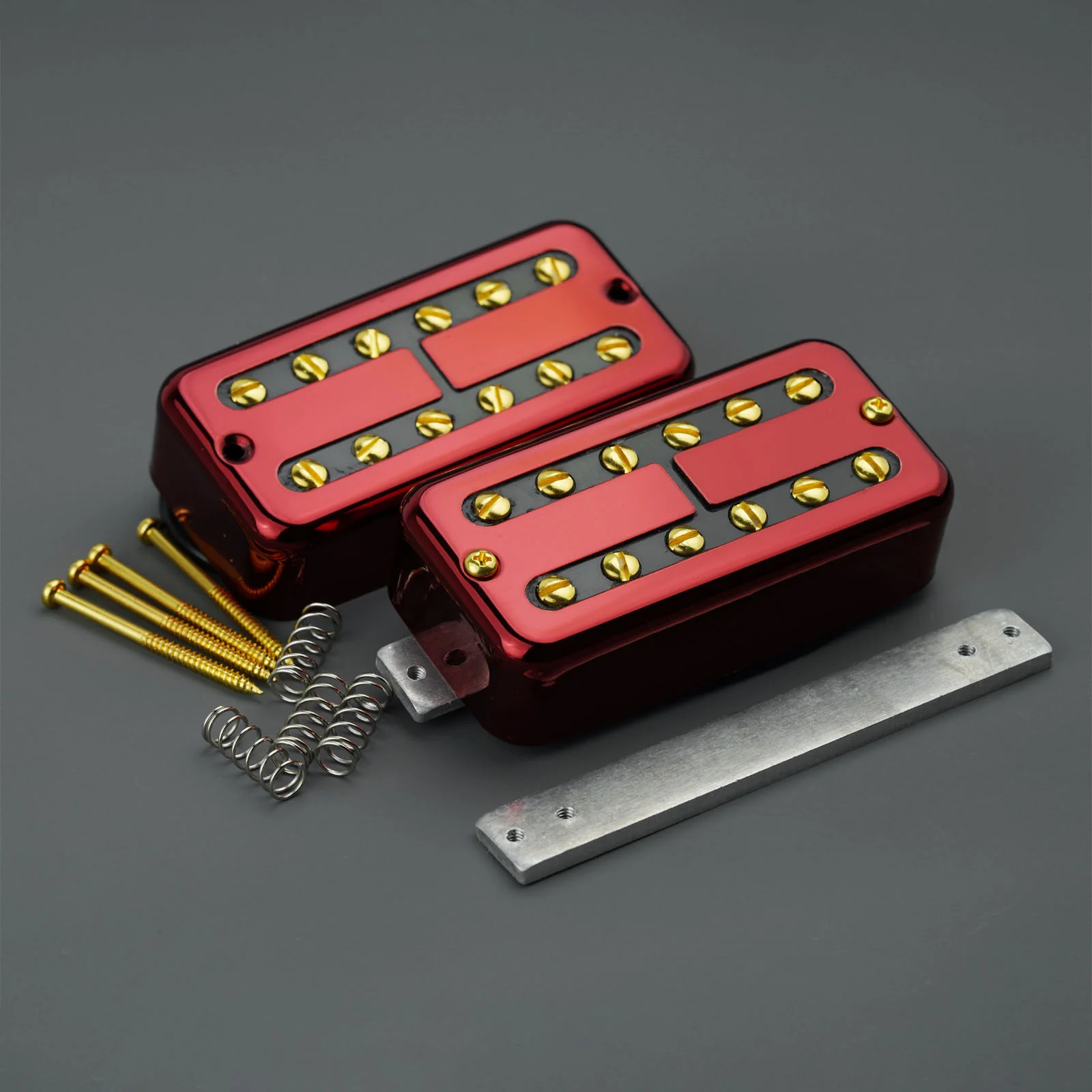

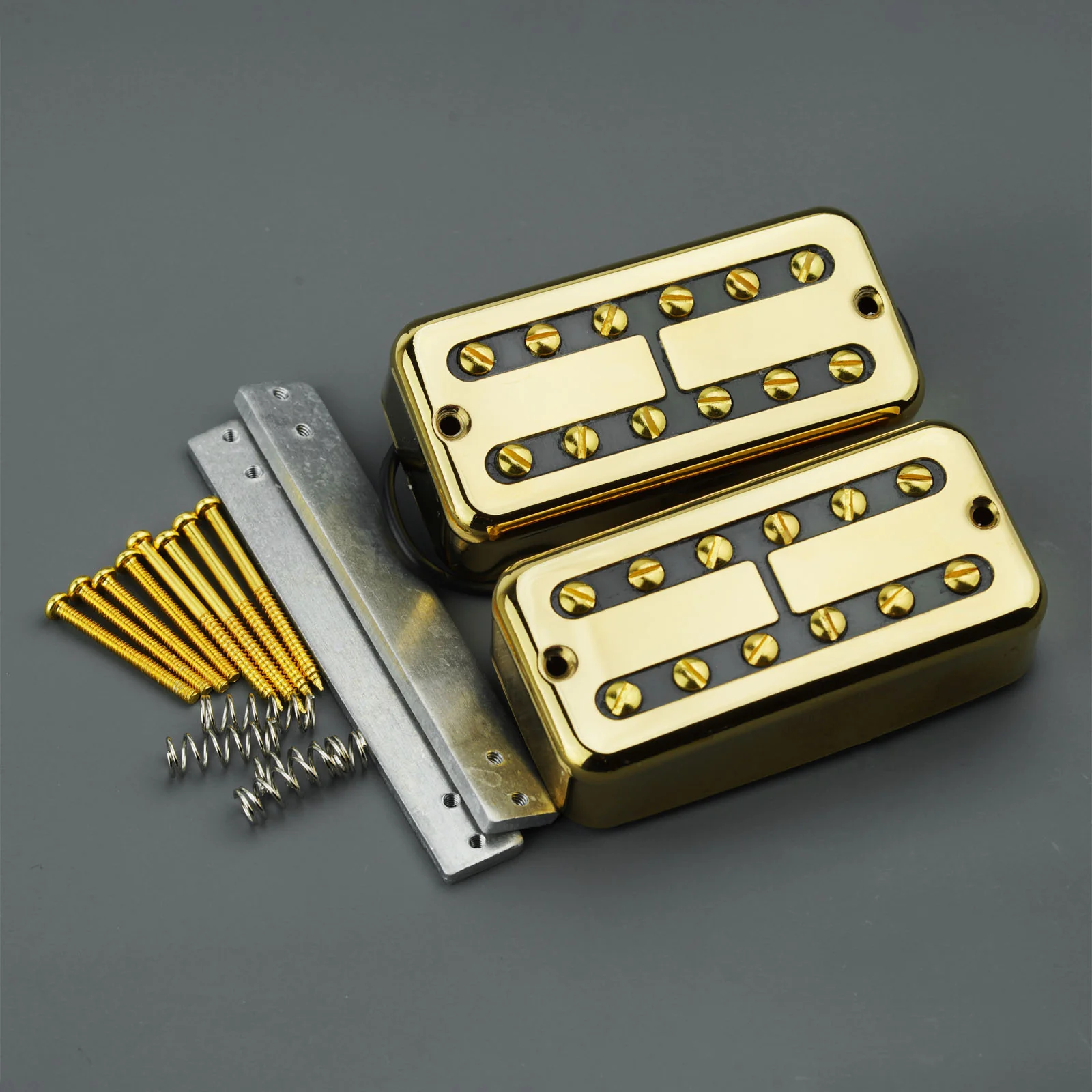

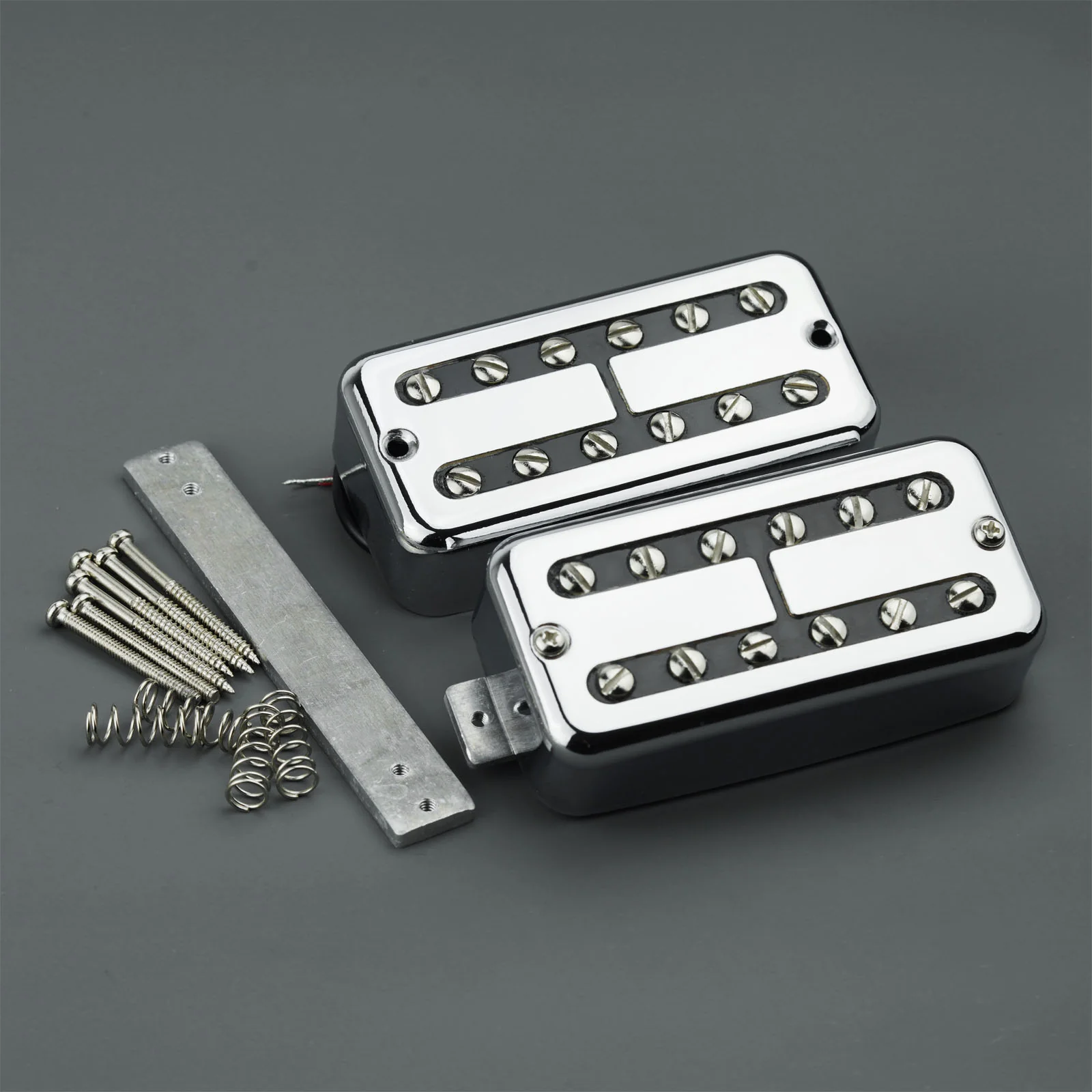

• Available in Chrome, Blue, Gold, and Red finish options.
• Suitable for guitar builds or replacement projects that use a matching TVG-style pickup route and mounting format. This fitment guidance is an inference based on the product type and customer fitment feedback.

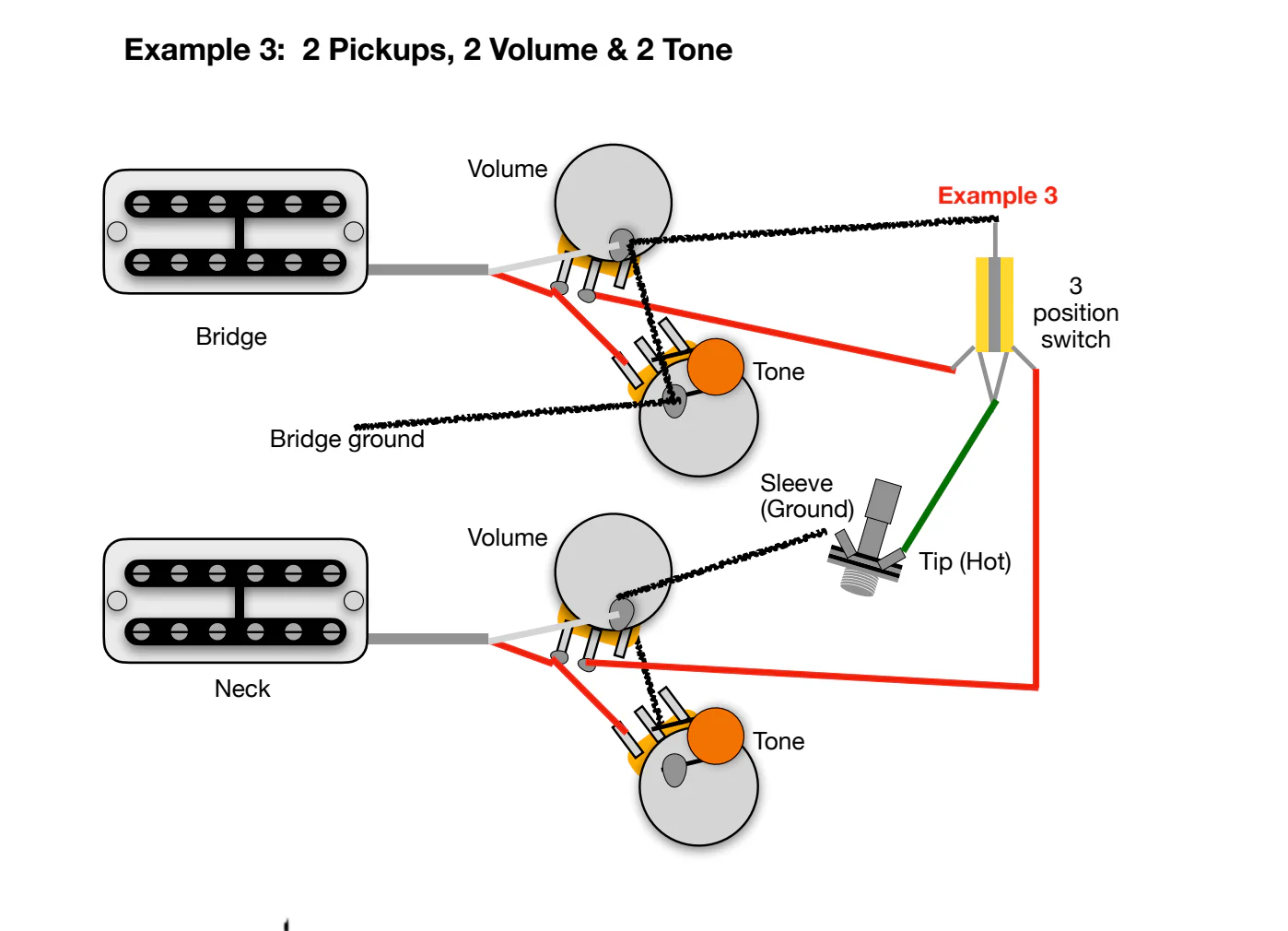

• An example wiring diagram is shown for a setup with 2 pickups, 2 volume controls, 2 tone controls, and a 3-position switch. This is based on the installation image you provided.
• Wiring diagram courtesy of Terry Goyette, January 2026.

Specifications:

• Type: TVG-style guitar pickup set / humbucker set
• Neck DC Resistance: 4K
• Bridge DC Resistance Options: 4.8K / 8.5K
• Color: Chrome / Blue / Gold / Red
• Suitable For: Electric guitar with matching pickup route and mounting format
• Wiring Reference: Example diagram shown for 2 pickups + 2 volume + 2 tone + 3-position switch

Package Includes:

• 1 x neck pickup
• 1 x bridge pickup

Fitment Note / Warm Reminder:
Please verify your pickup cavity size, mounting format, and wiring layout before ordering. This set is best suited for guitars with a matching TVG-style pickup route. If you plan to follow the shown example, please confirm your control layout matches 2 pickups, 2 volume controls, 2 tone controls, and a 3-position switch. A customer review on the product page also warns that the housing may run large for some pickup rings, so checking actual cavity and ring dimensions before ordering is recommended.
