Key Features:

• Designed for 5-string headless bass builds and replacement projects
• Precision CNC machining helps deliver cleaner edges, more consistent dimensions, and more accurate fitment for upgrade and replacement applications
• Built with a lightweight aluminum alloy body to help reduce overall hardware weight
• Features brass saddles for stable adjustment and wear resistance
• Individual saddles support accurate string height and intonation adjustment
• Uses 18mm spacing for 5-string bass string alignment

Specifications:

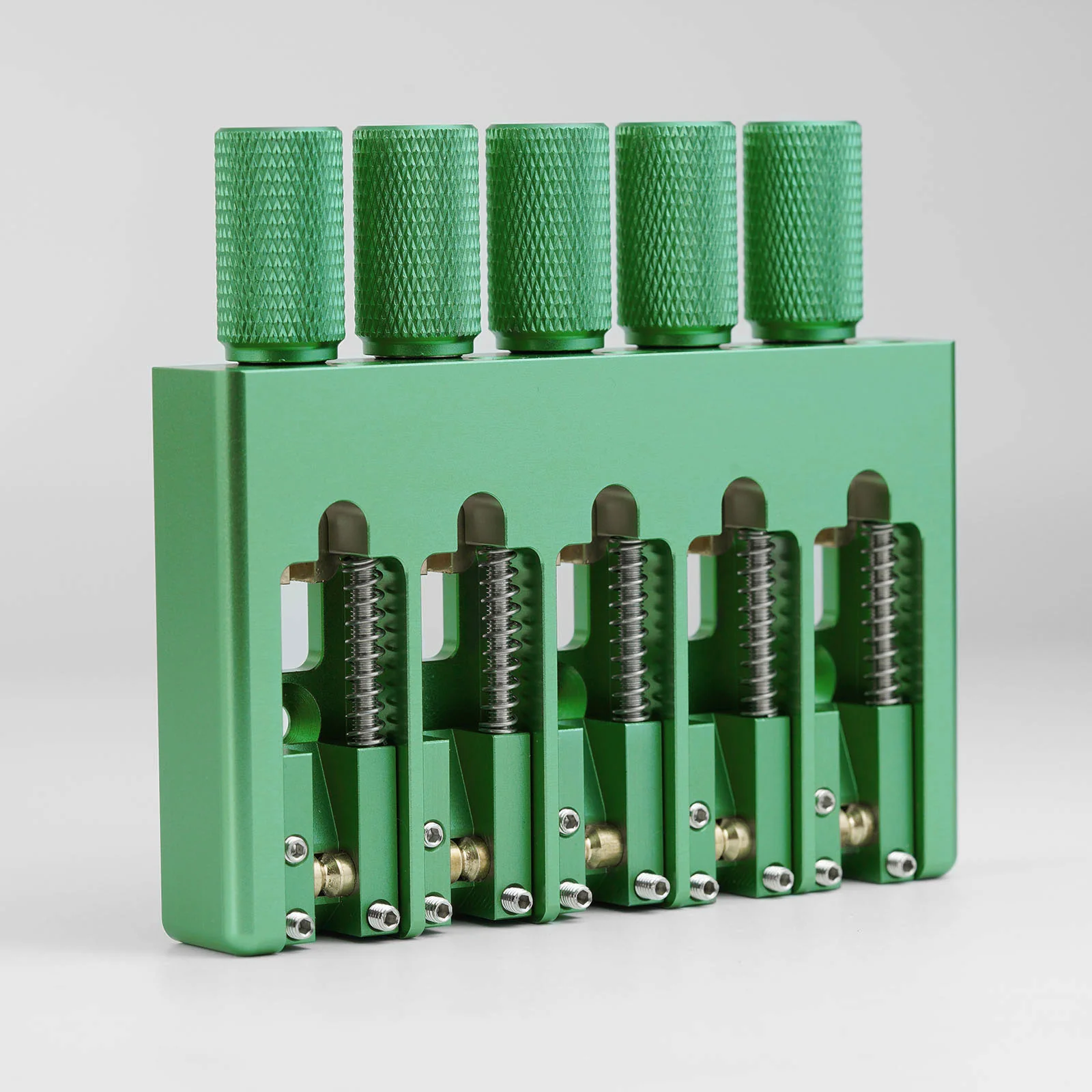

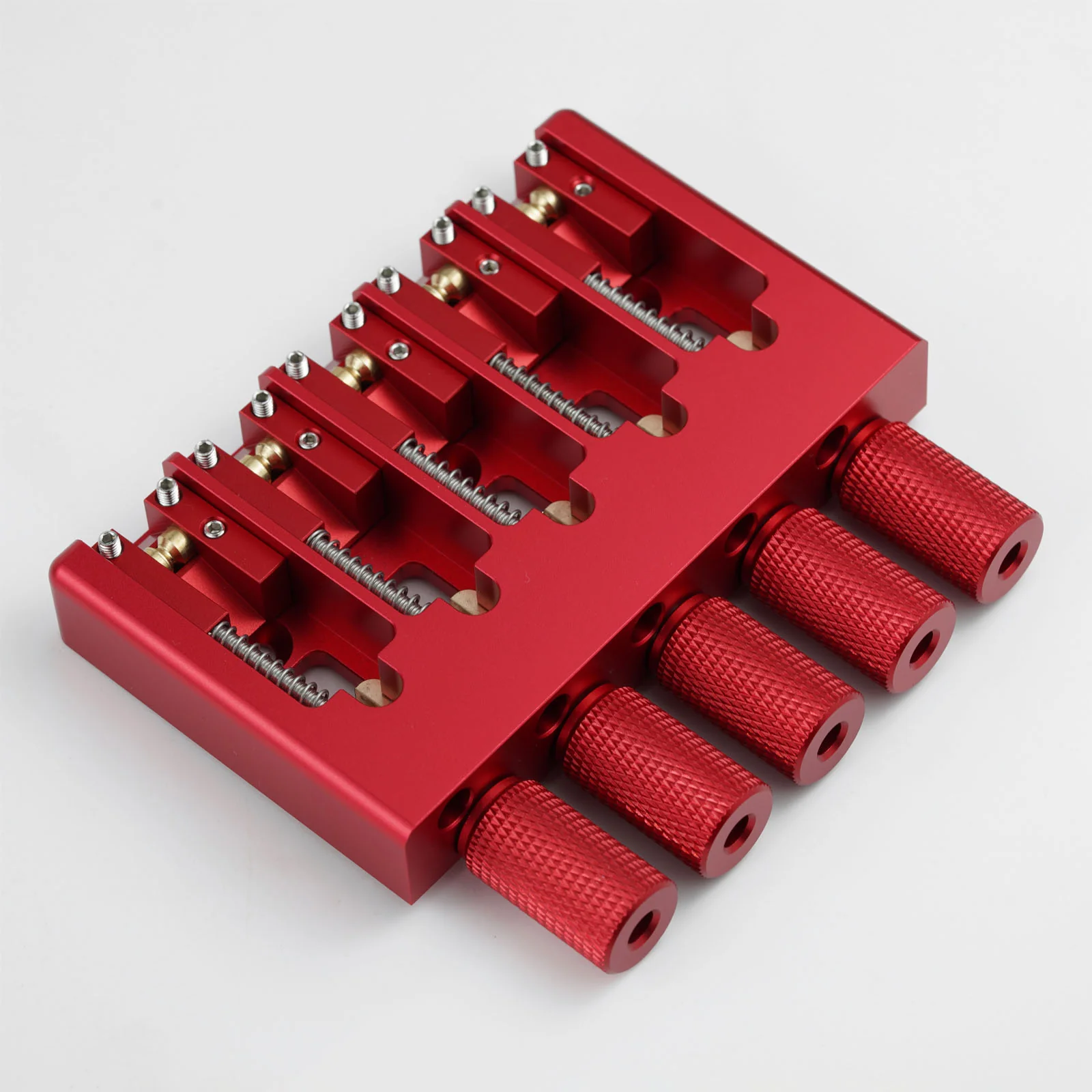

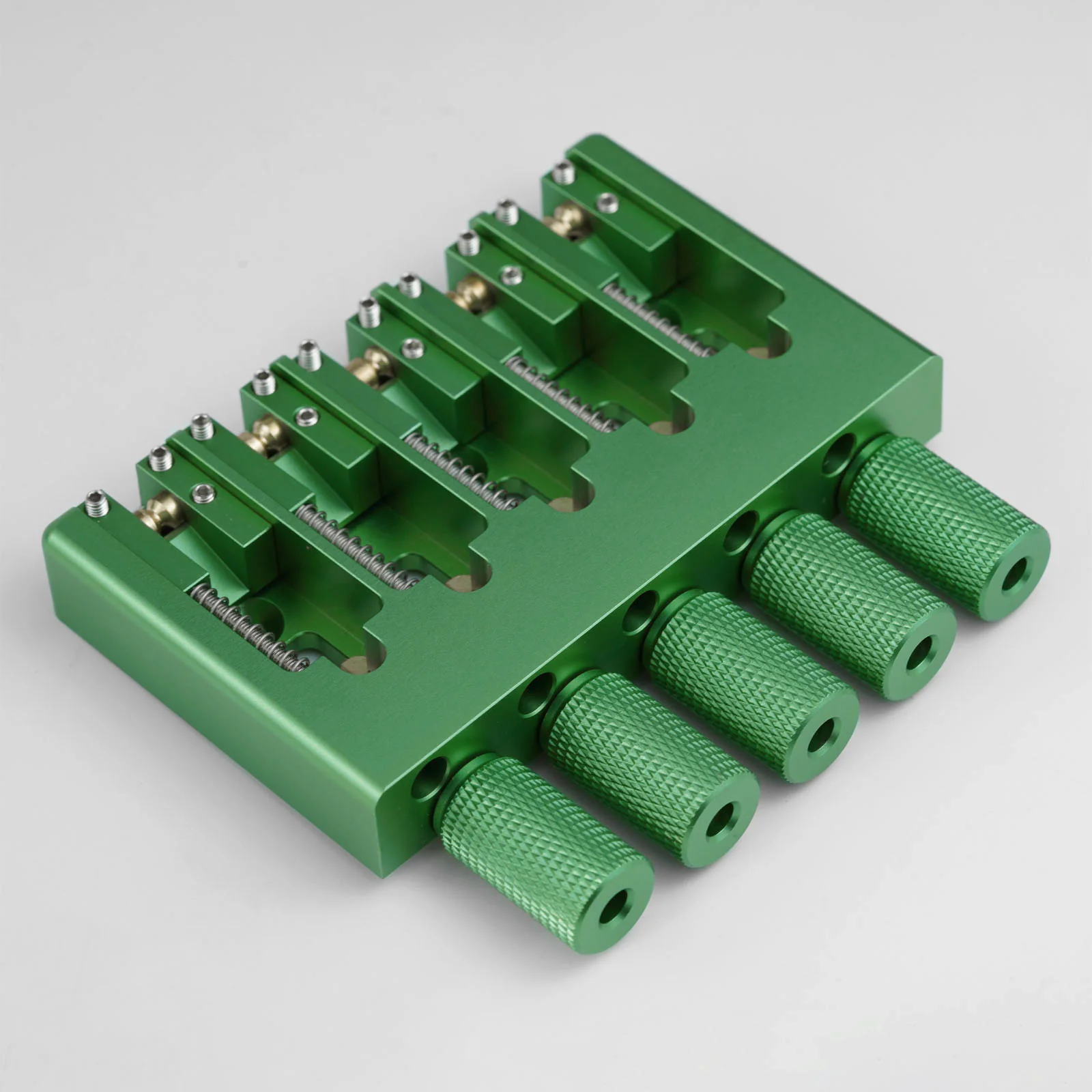

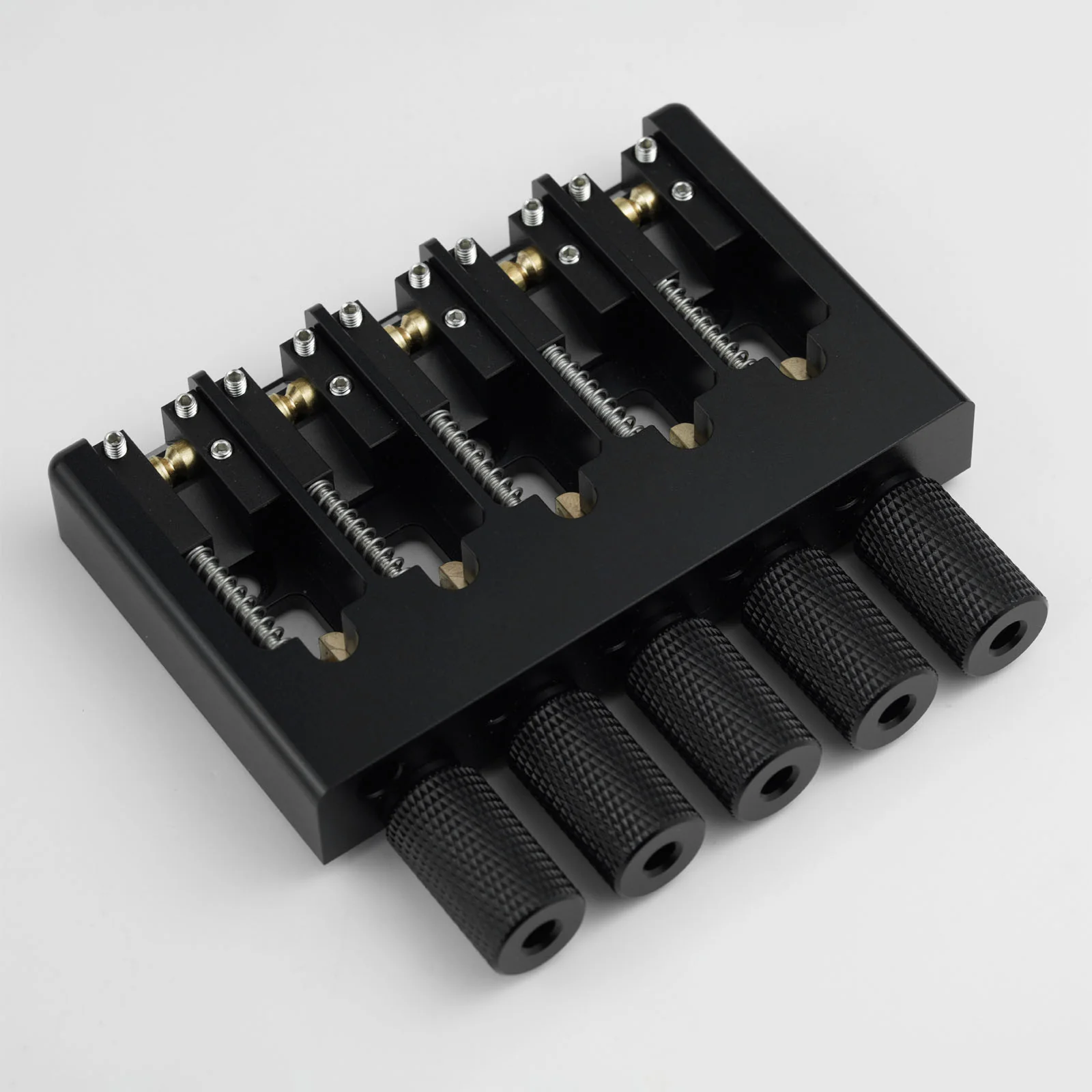

• Product Type: Headless Bass Bridge
• Bridge Body Material: Aluminum Alloy
• Saddle Material: Brass
• Length: 101mm
• Width: 63.5mm
• Height: 16mm
• String Spacing: 72mm (18mm × 4)
• Approximate Weight: 277g

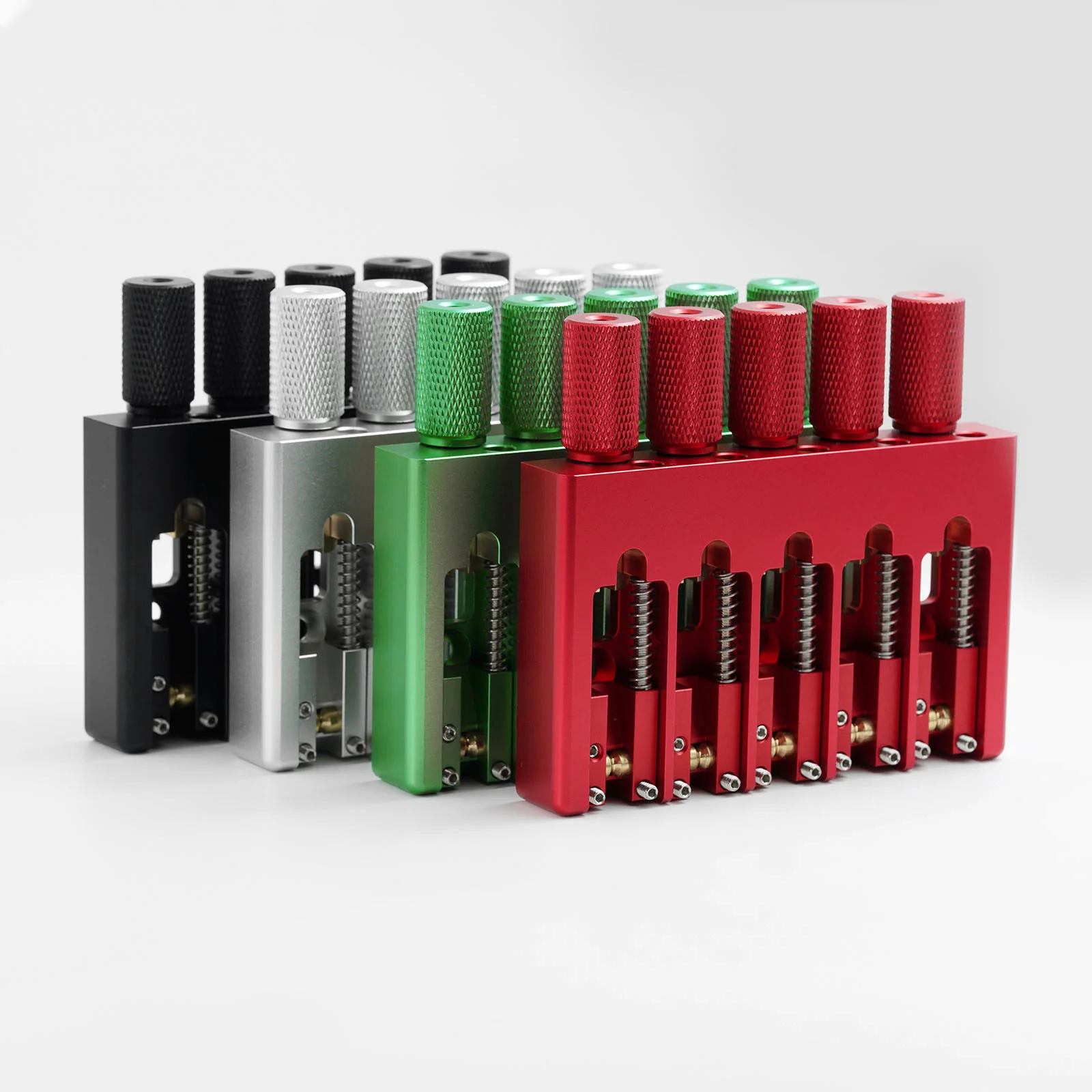

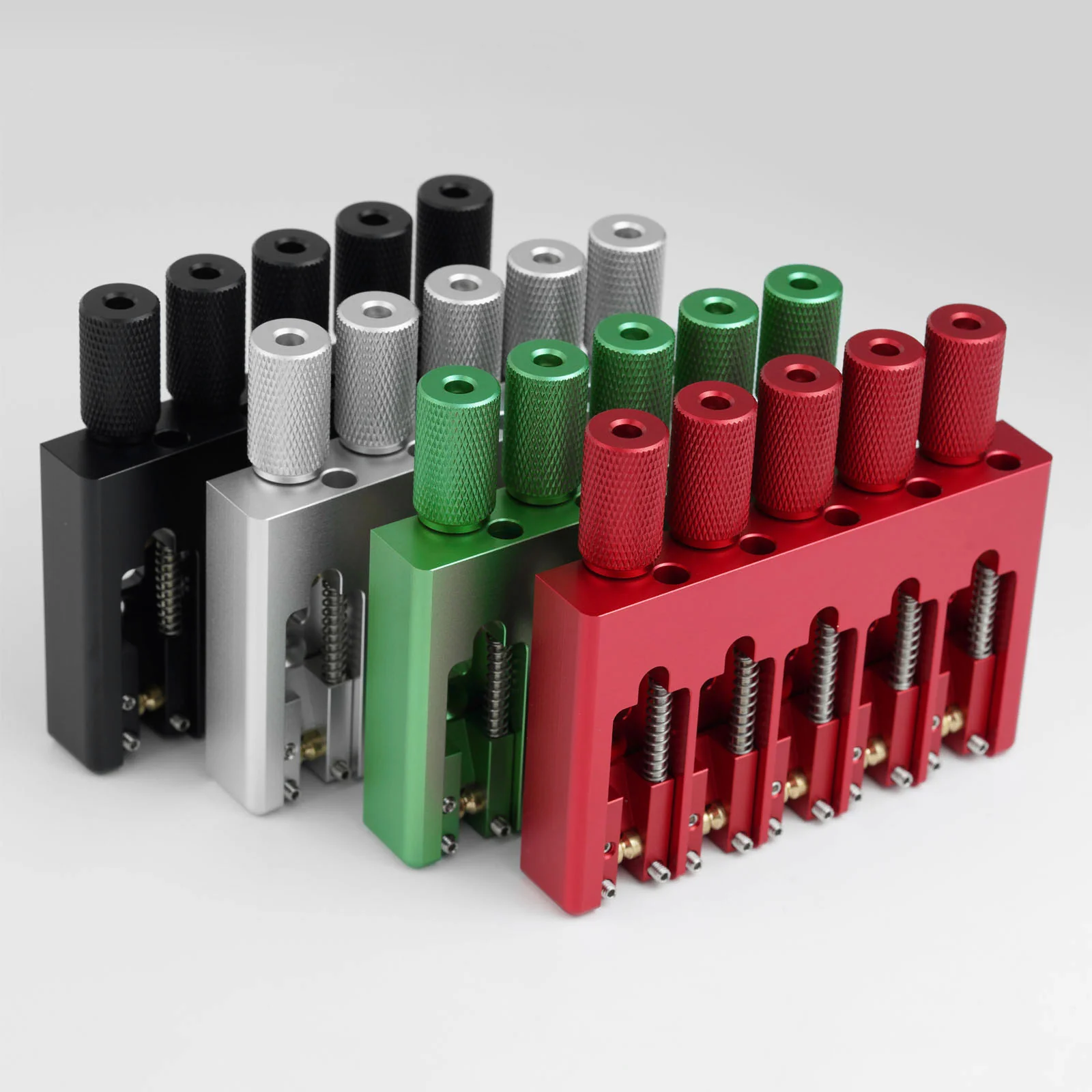

• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Black, Aluminum Anodized Red, Aluminum Anodized Green
• Application: 5-String Headless Bass

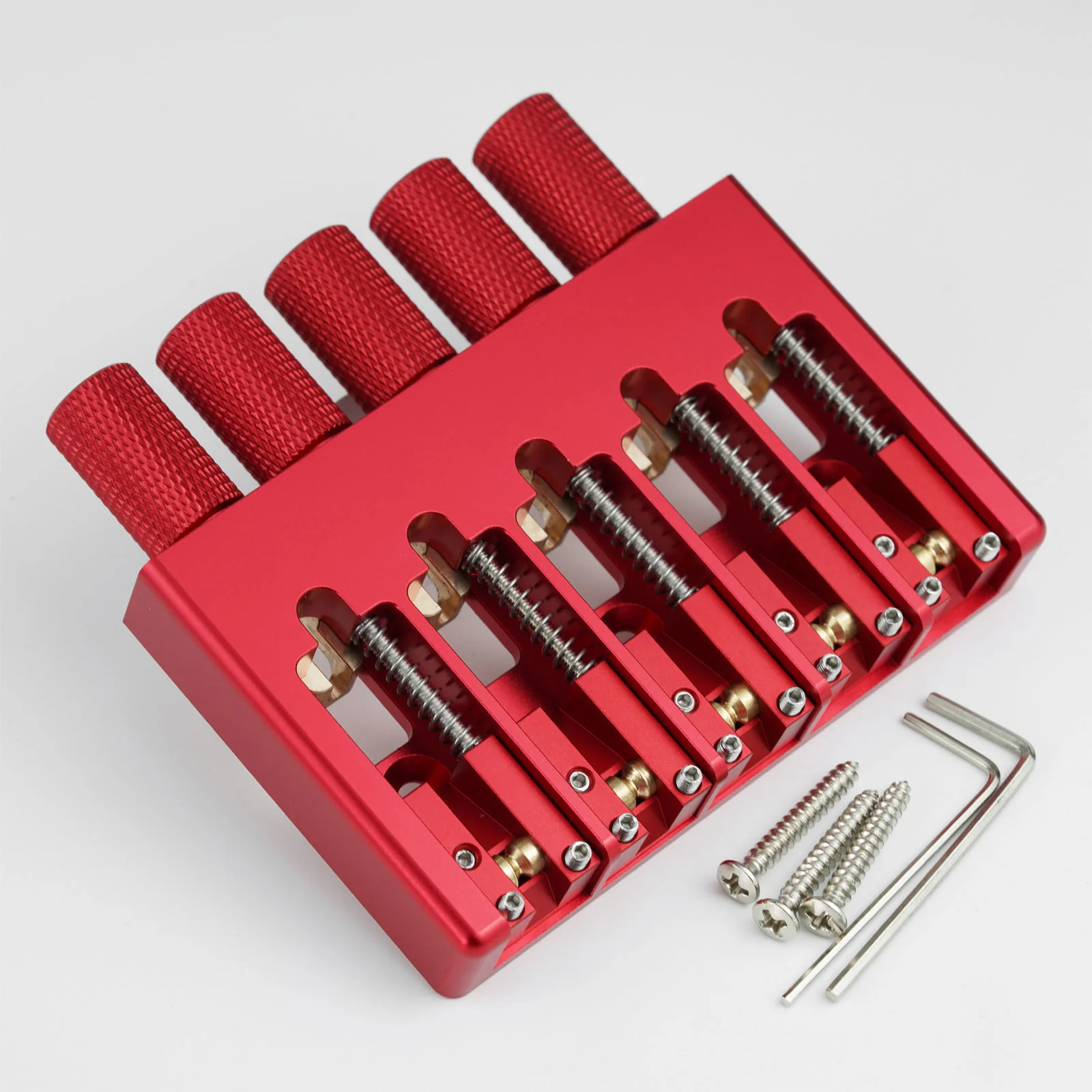

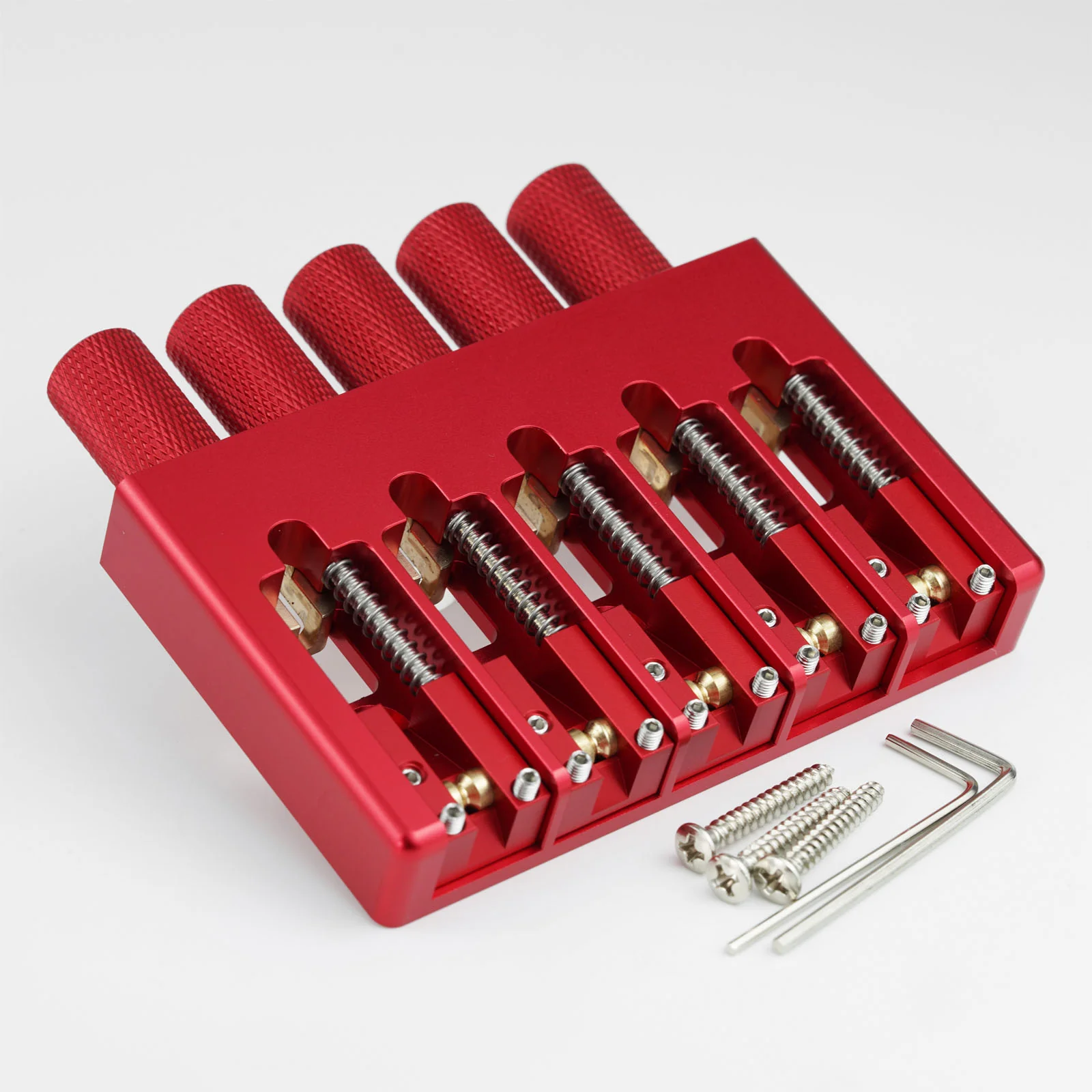

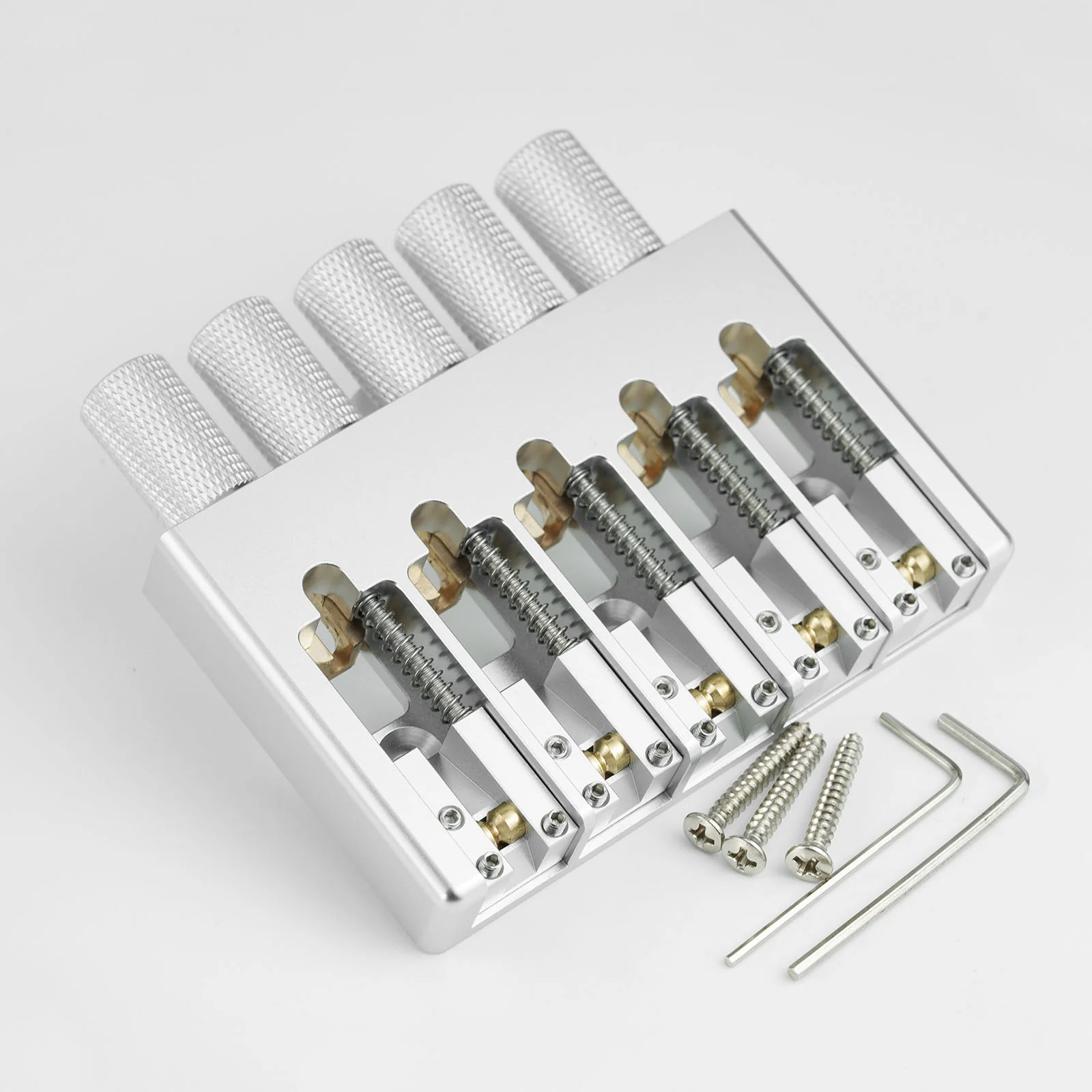

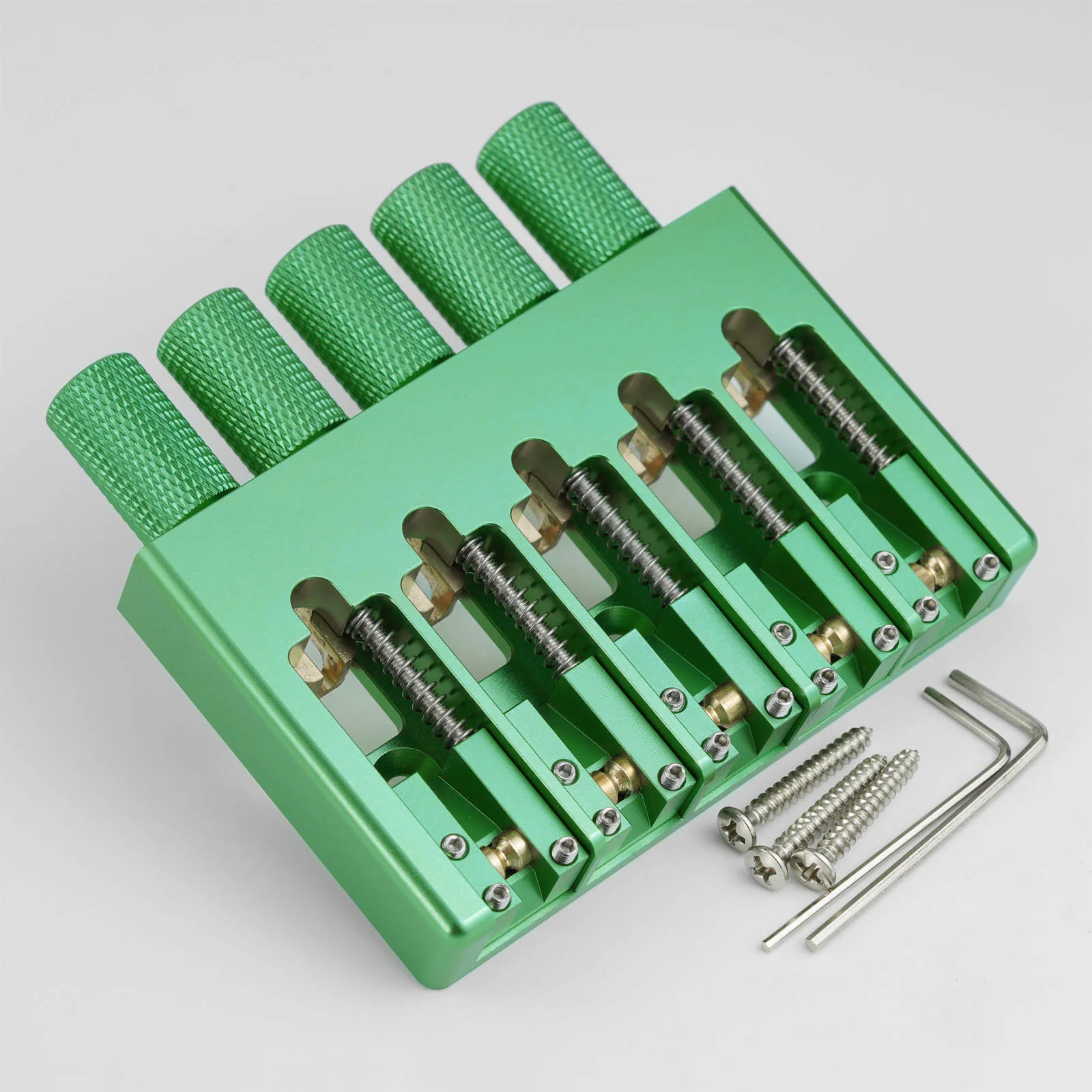

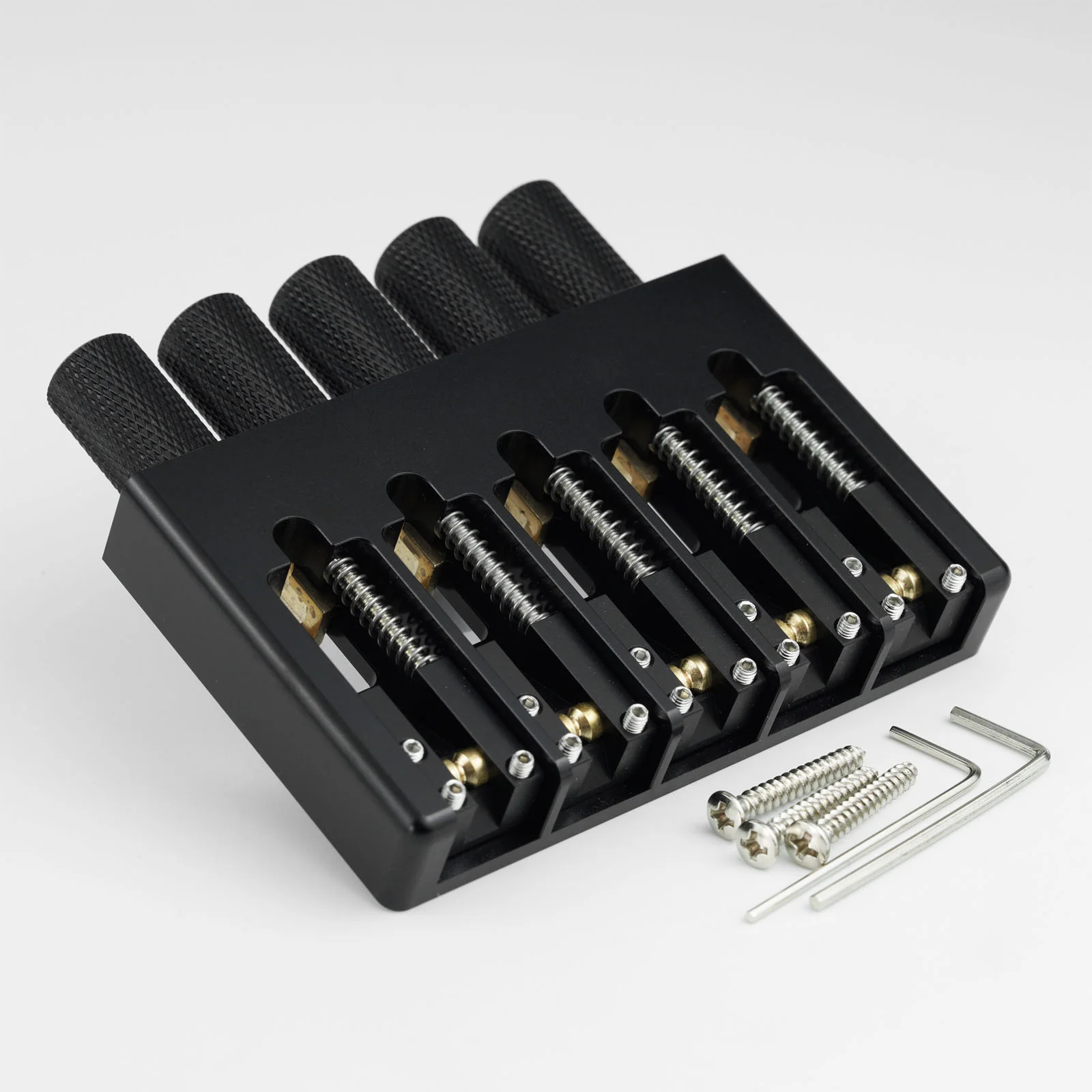

Package Includes:

• 1 x Headless Bass Bridge
• Mounting Screws
• Hex Keys

Fitment Note / Warm Reminder:

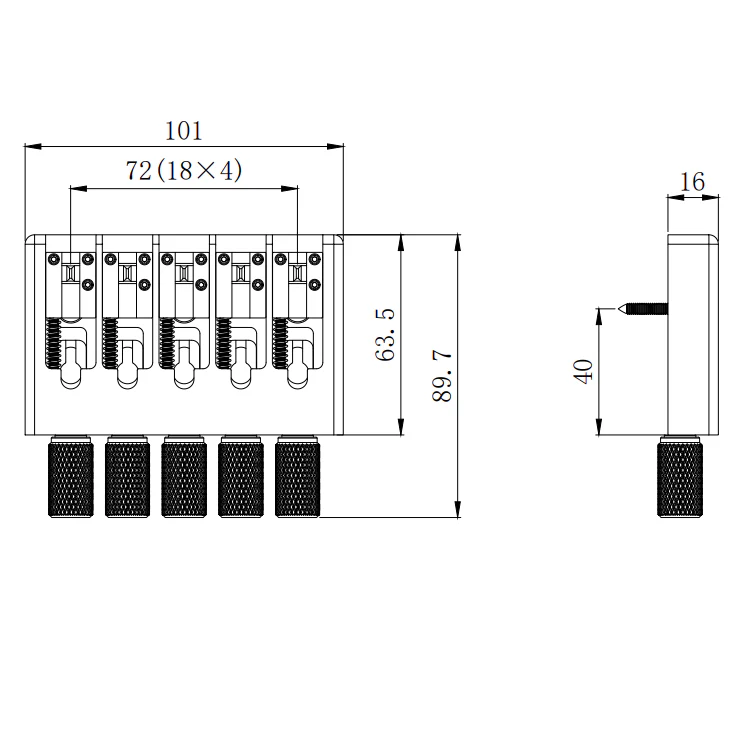

Please carefully verify your bass’s bridge footprint, mounting hole layout, and string spacing before ordering. This bridge measures 101mm x 63.5mm x 16mm with 72mm overall string spacing (18mm × 4). All dimensions may vary by ±1mm due to manual measurement.
