A precision-designed bridge and tailpiece set engineered for enhanced sustain, tonal clarity, and rock-solid tuning stability.

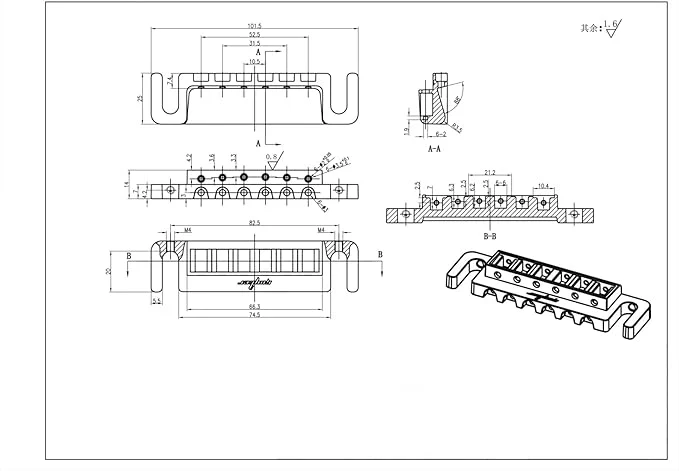

GM004 Bridge Specifications:

• Mounting Post Spacing: 82.5 mm

• String Spacing: 10.5 mm

• Total String Span: 52.5 mm

• Overall Length: 101.5 mm

• Body Width: 14 mm

• Height (Max): ~13.5 mm

• Stud Diameter: Ø8 mm

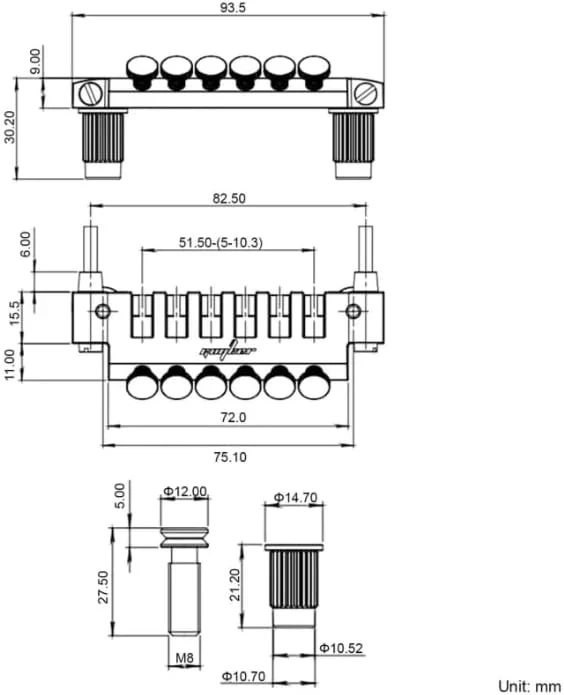

TP2 Tailpiece Specifications:

• Mounting Post Spacing: 82.5 mm

• String Span: 51.5 mm

• Post Dimensions:

  • Insert Thread: M8

  • Insert Diameter: Ø10.7 mm

  • Insert Height: 27.5 mm


Material Composition:

• Bridge Saddles: Solid Brass – for warm, dynamic tone

• Bridge & Tailpiece Body: Zinc Alloy – lightweight yet durable

• Mounting Studs: Zinc Alloy with Brass Core – optimized for vibration transfer and structural integrity

Key Features:

• 6 independently adjustable saddles for precise intonation

• Locking studs enhance tuning stability and sustain

• Full set includes wraparound bridge and TP2 tailpiece for complete installation
