WHAT’S INCLUDED ?

• 1 x Zinc Alloy Bridge
• 1 x Zinc Alloy Stop Bar
• 4 x Mounting Studs

-----------------------------------------------------------------------------------

DIMENSIONS

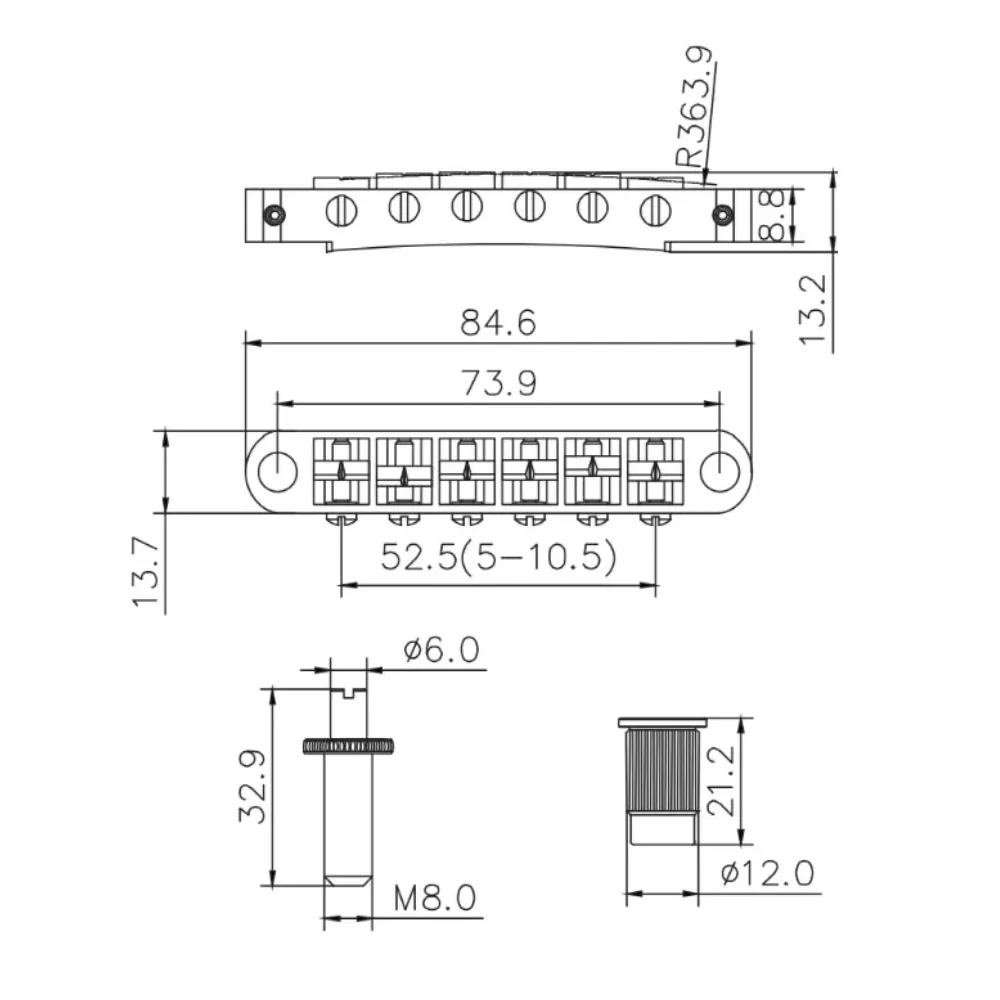

Bridge:

• Saddle bridge: 88.9 mm x 13.7 mm(3.5 inch x 0.54 inch),
• Bridge Post Spacing: Approx. 73.9 mm (2.91 inches),
• Bridge String Spacing: Approx. 10.5mm (0.41 inch).

Material

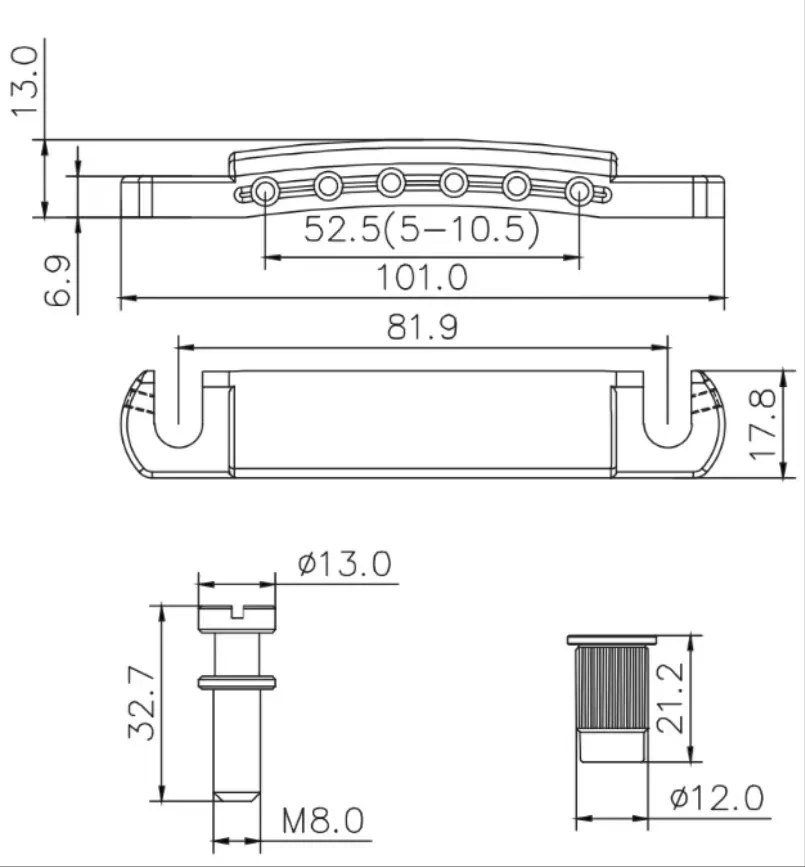

Stop Bar:

• Tailpiece Studs Spacing: Approx. 81.9 mm (3.23 inch)
• Whole tailpiece length: Approx. 101 mm (3.98 inch)
• Tailpiece String spacing: Approx. 10.5 mm (0.41 inch)

Weight per 1 set = 281g

-----------------------------------------------------------------------------------

COMPATIBILITY

The GM003+GS001 set is an ideal replacement bridge and stop bar compatible with LP style, EPI or any 6 strings guitar that has a Tune-O-Matic setup.

-----------------------------------------------------------------------------------

GM003 INSTALLATION:

1. Determine the scale length of your neck. To do this, measure the length from the nut to the 12th fret then double it, and mark the spot.
2. Align the saddles of your bridge right on top of the marked spot and make sure the entire bridge is centered relative to the neck.
3. Mark the screw holes, drill, and screw down the bridge.

GS001 INSTALLATION:

1. Determine the position or placement of your GM003 guitar bridge.
2. From there, measure about 38mm - 44.5mm back and mark that spot for your stop bar.
3. Make sure the stop bar is also centered on the neck, just like the bridge.
4. Screw the stopbar and fix it into your guitar.

-----------------------------------------------------------------------------------

CARE TIPS:

1. Clean your guitar bridge and stop bar regularly to remove dirt, grime, and residue. Use a soft cloth or a mild cleaning solution specifically designed for instrument maintenance. Avoid using abrasive cleaners that could damage the finish or components of the bridge.

2. Apply a small amount of lubricant, such as guitar or instrument-specific lubricant, to the moving parts of the bridge, such as saddles or pivot points. This helps to ensure smooth operation and prevent excess friction.

3. Periodically inspect your tune-o-matic bridge and stop bar for any loose or worn-out parts. Tighten any loose screws or bolts as necessary. If you notice significant wear or damage, consider contacting a professional guitar technician for repairs or replacements.

4. As much as possible, store your bass in a suitable case or controlled environment when not in use.

-----------------------------------------------------------------------------------

ORDER REMINDERS

1. Delayed Orders: Should your order not arrive within 7 days after shipping, we kindly request that you provide product pictures of your order and ensure that the shipping address is accurate. Rest assured that our new products undergo thorough inspection by our quality control team before being shipped.

2. Shipping Times: We offer two delivery options: regular and fast delivery. Regular deliveries take 7-15 working days, while fast deliveries take 7 working days.

3. Secure Packaging: Our company takes utmost care in packaging your order with standardized packing methods. This ensures that the package remains strong and secure during transportation.

4. Customer Feedback: We highly value your feedback. Please take a moment to leave us a review once you receive your GM003+GS001 Tune-O-Matic Guitar Bridge and Stop Bar Set!! For concerns and questions, we kindly request customers to communicate with us directly.

5. Import Duties and Taxes: All products are free of additional tariffs.

Thank you for your attention to these important details. We value your satisfaction and are committed to providing you with a positive customer experience.

Guyker®. Empowering Your Music with Premium-Quality Guitar Parts

Upgrade your guitar with Guyker®’s GM003+GS001 Tune-O-Matic Guitar Bridge and Stop Bar Set and unlock a new level of musical precision and performance!
