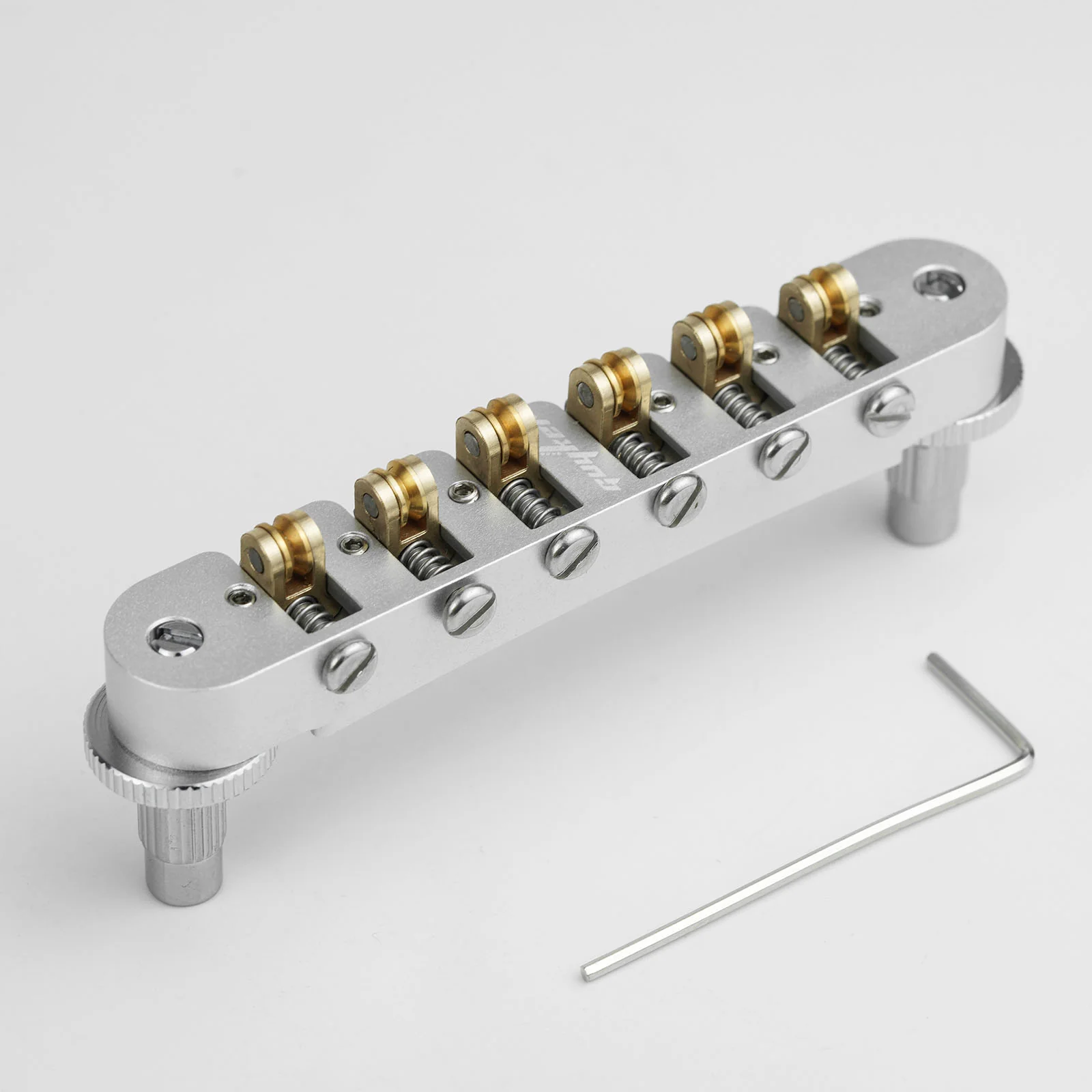

Key Features:

• Adjustable locking roller bridge design helps reduce string friction and supports stable setup performance.
• Brass rollers provide smooth string contact across the saddles.
• Aluminum alloy body with fully machined construction for lightweight strength and precise fit.
• Designed for electric guitar applications that match the required bridge spacing and post size.

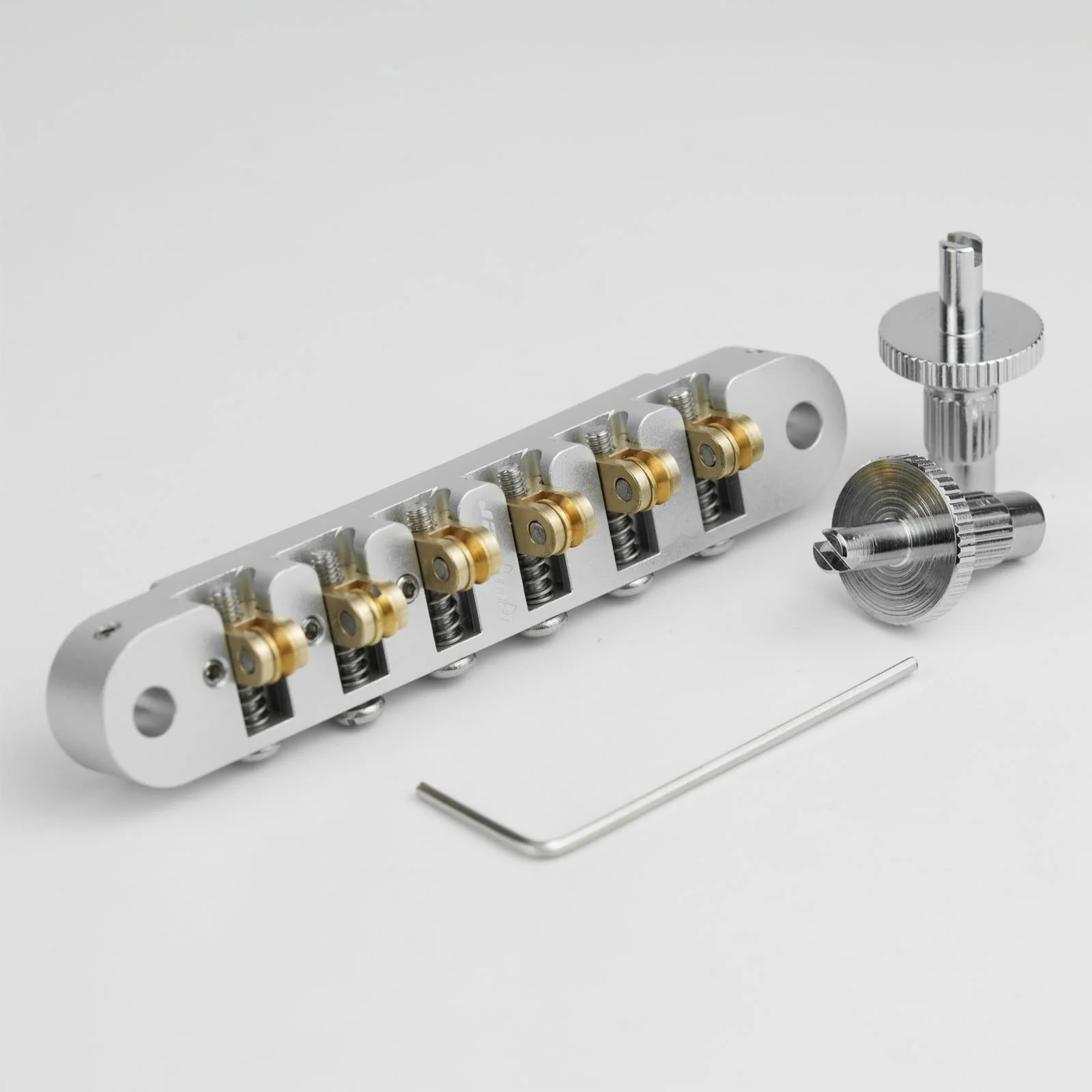

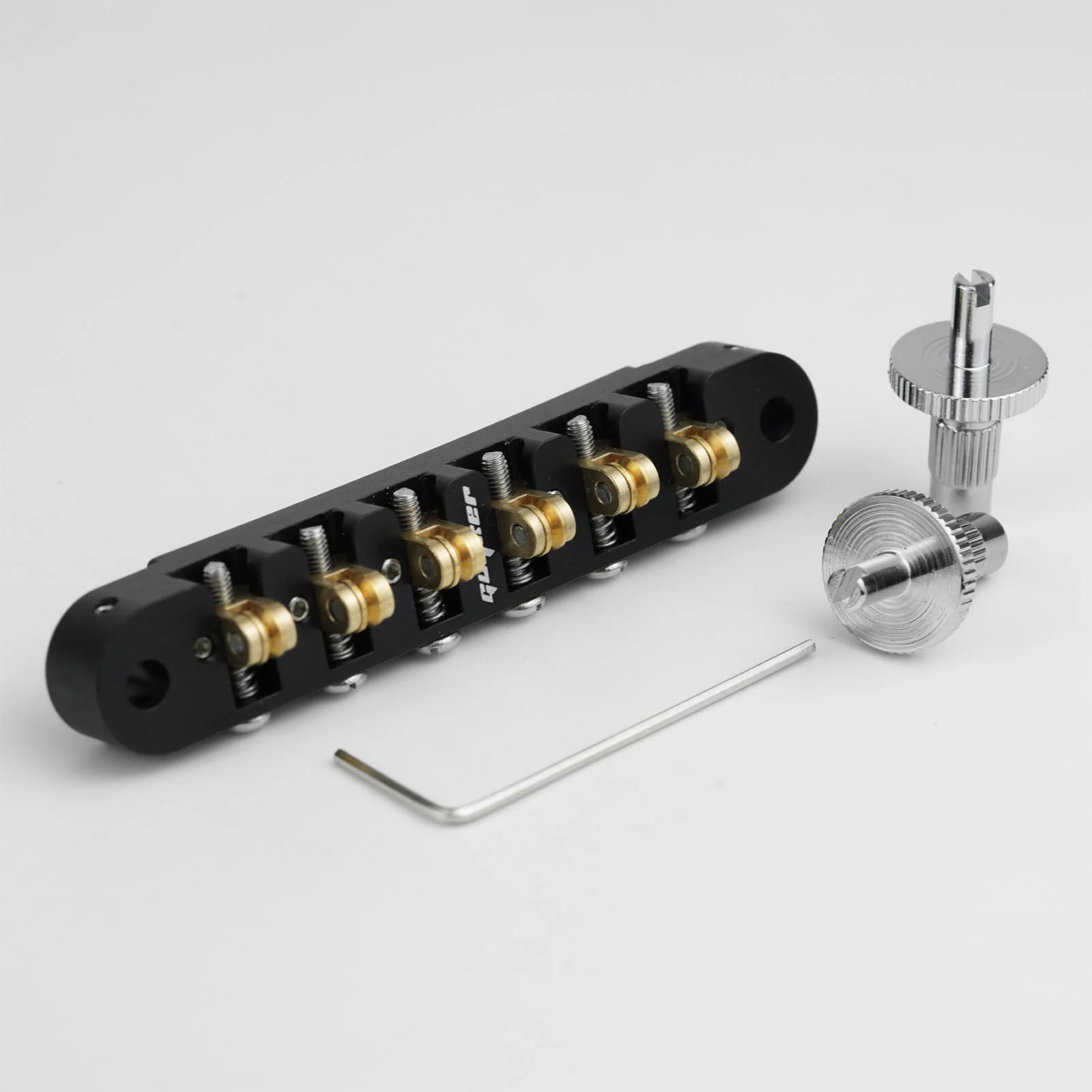

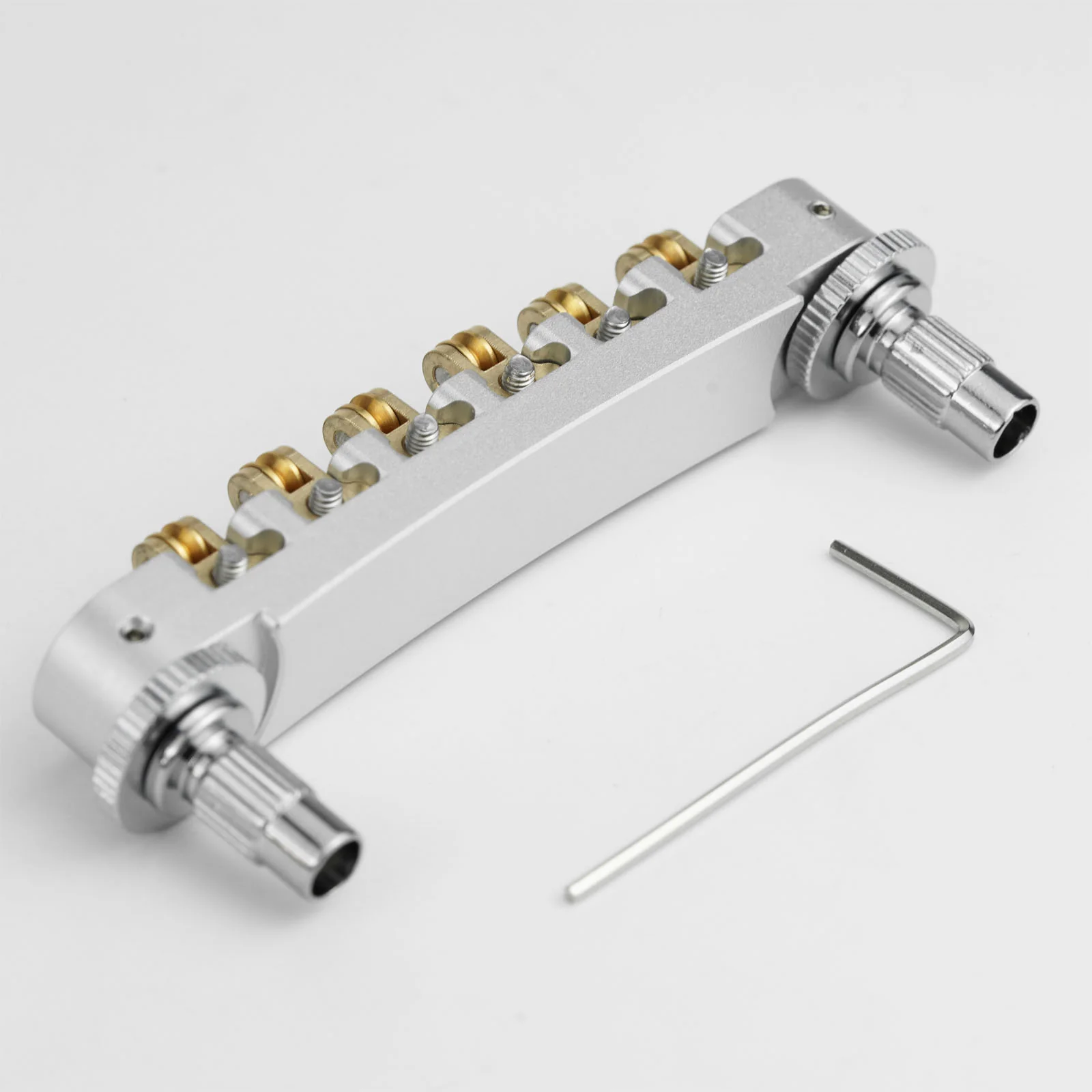

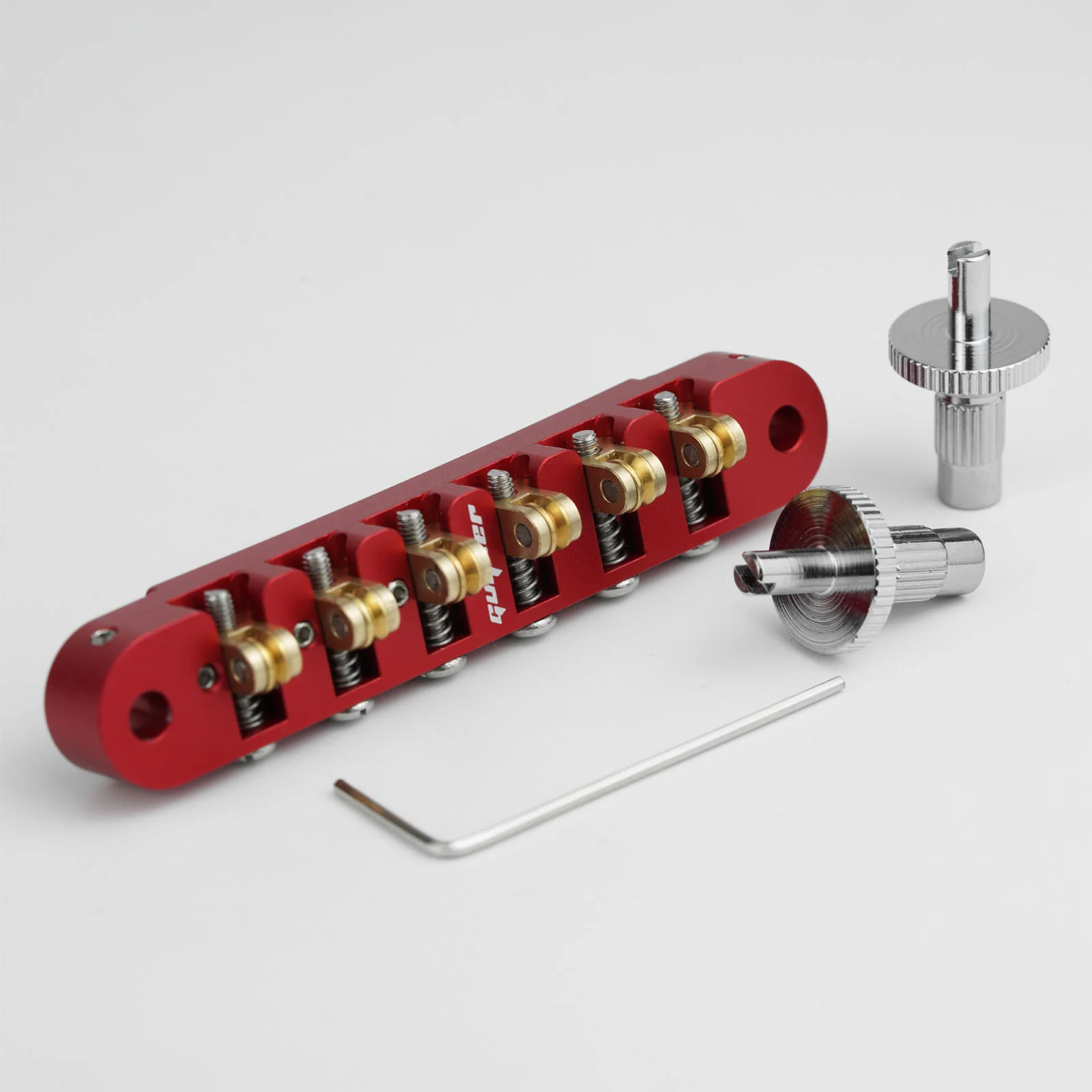

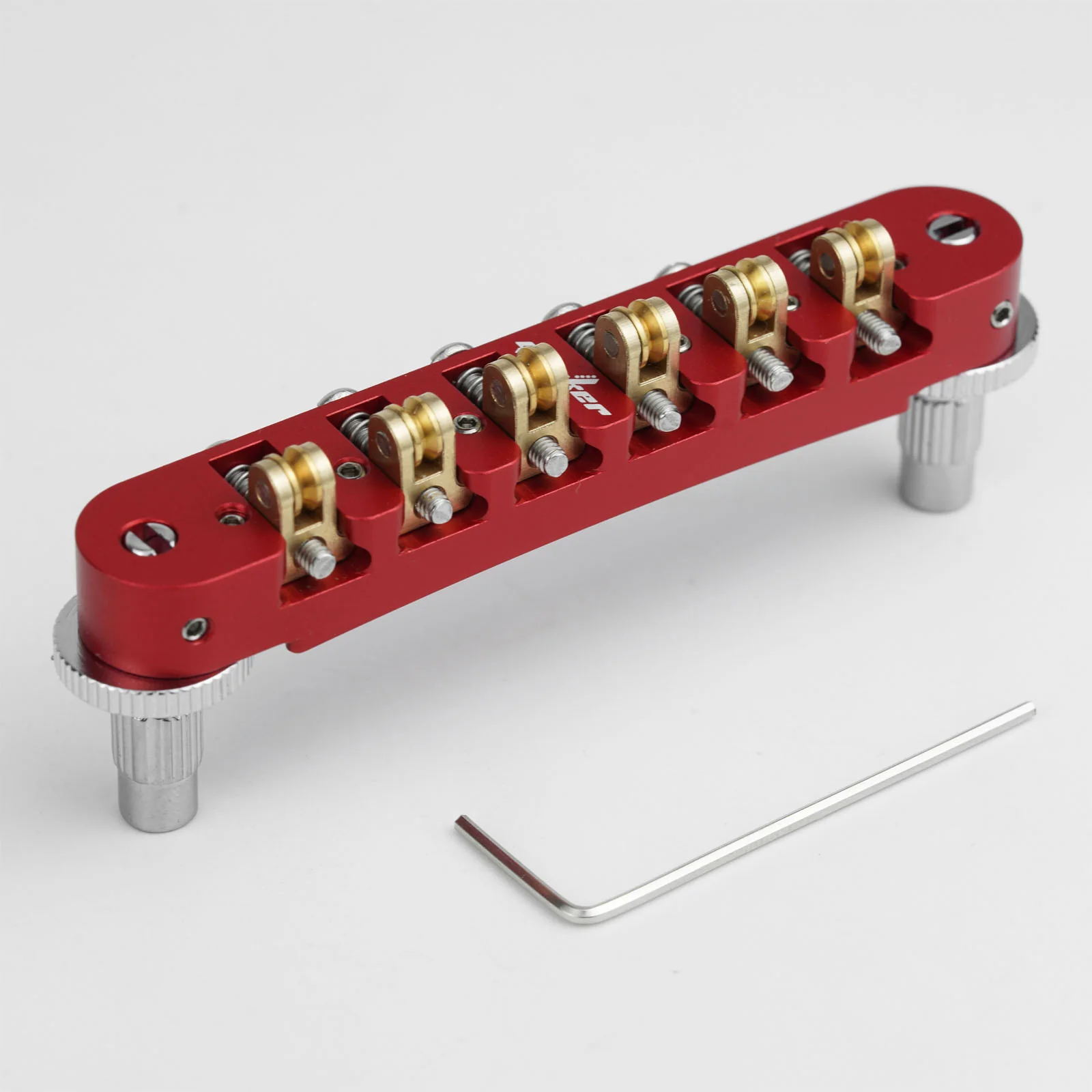

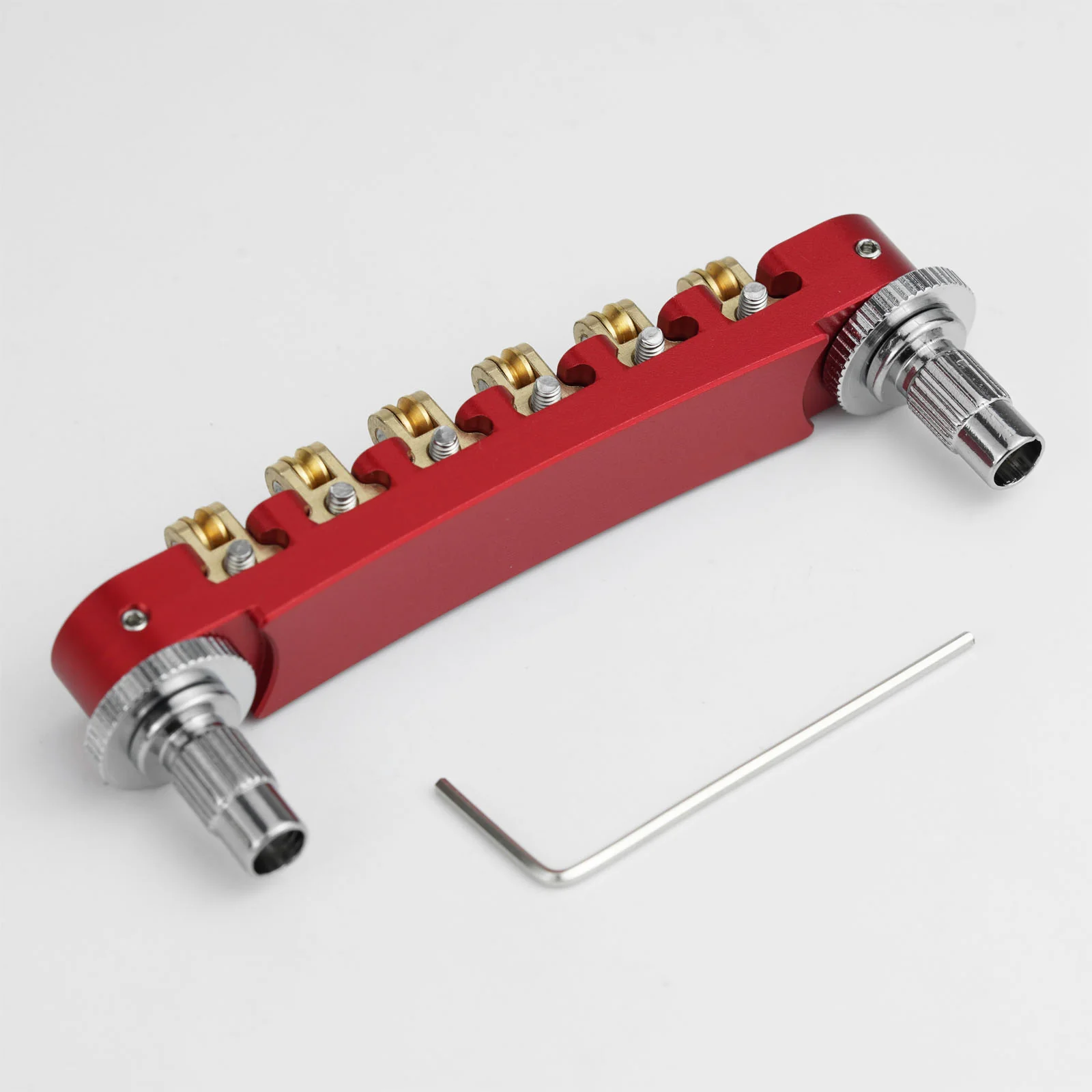

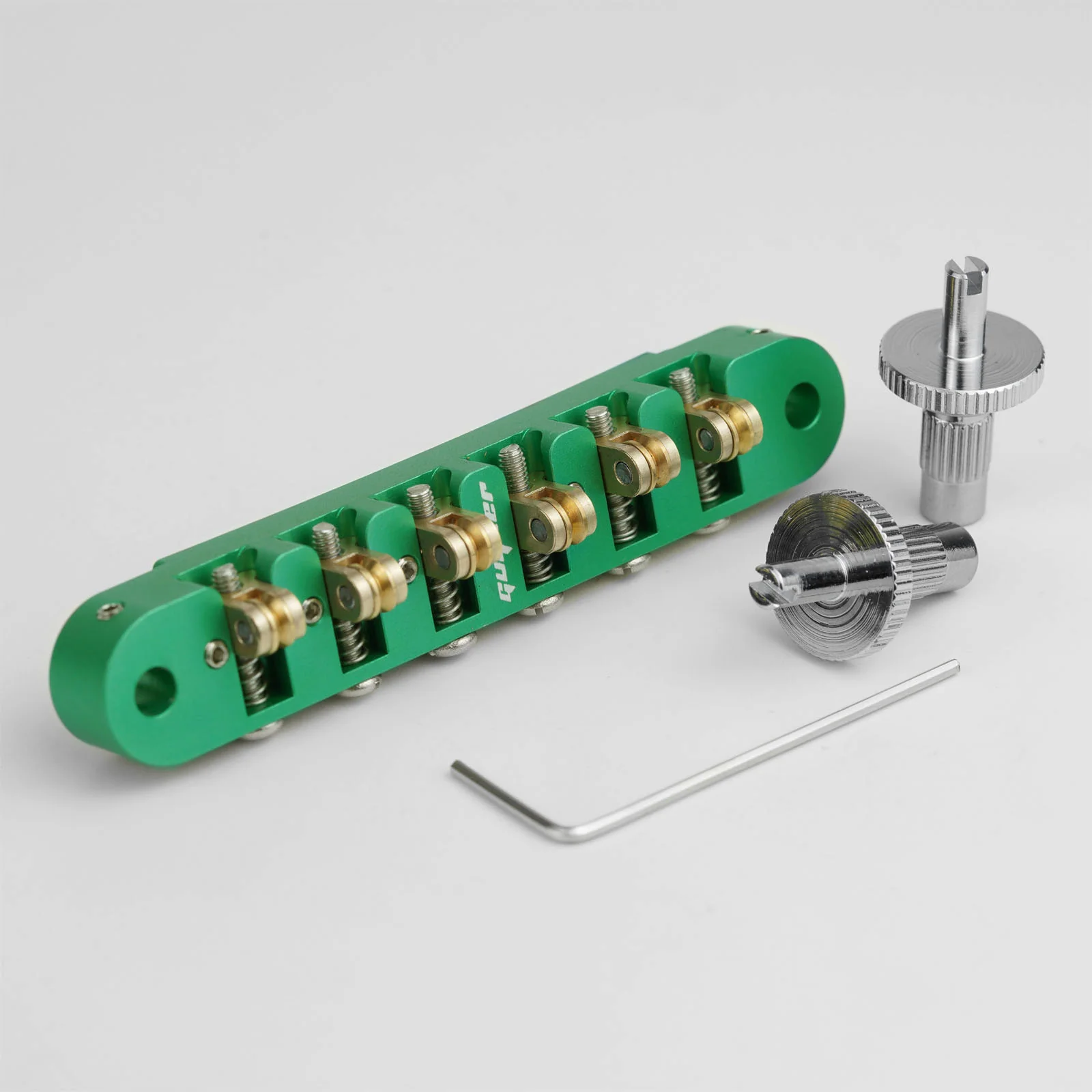

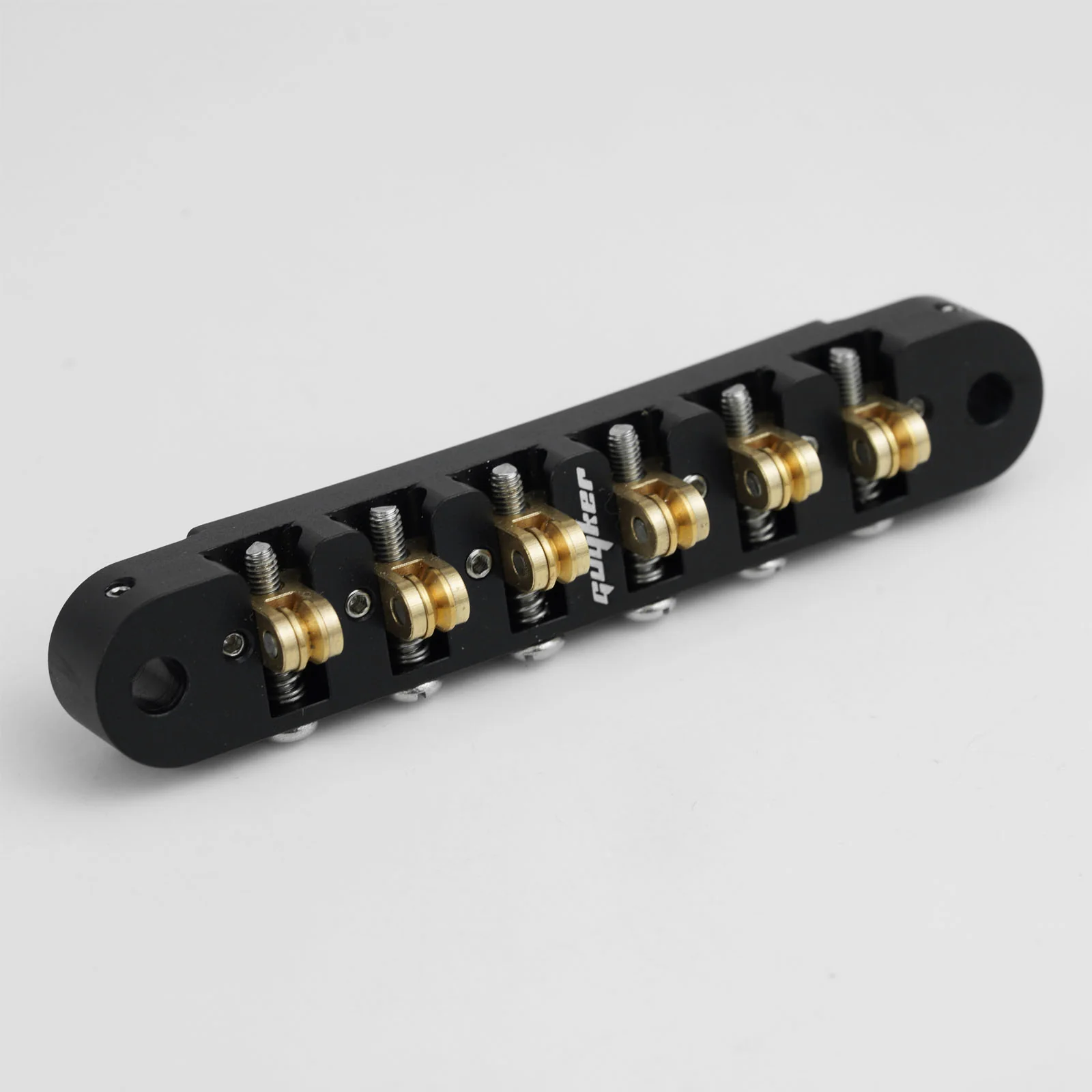

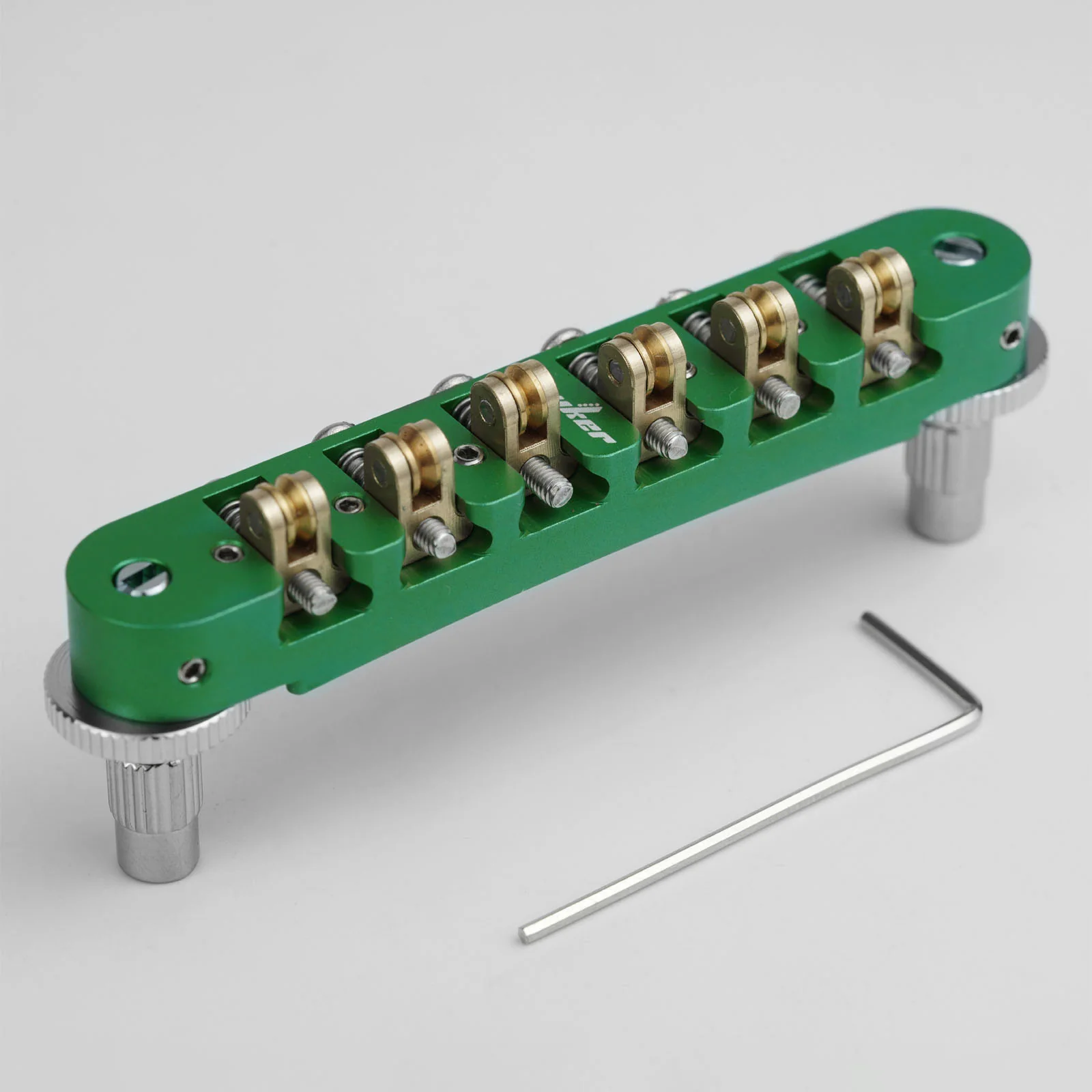

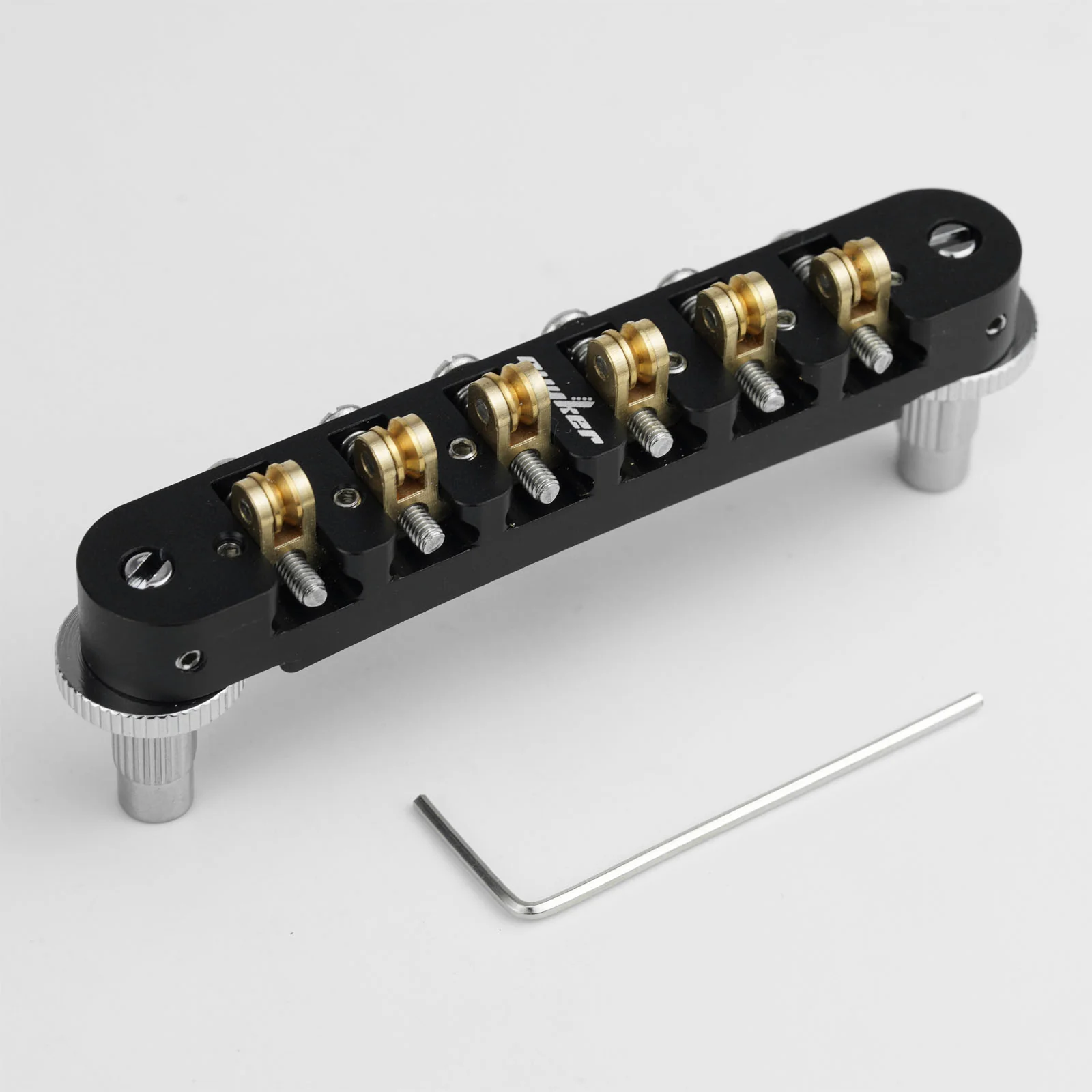

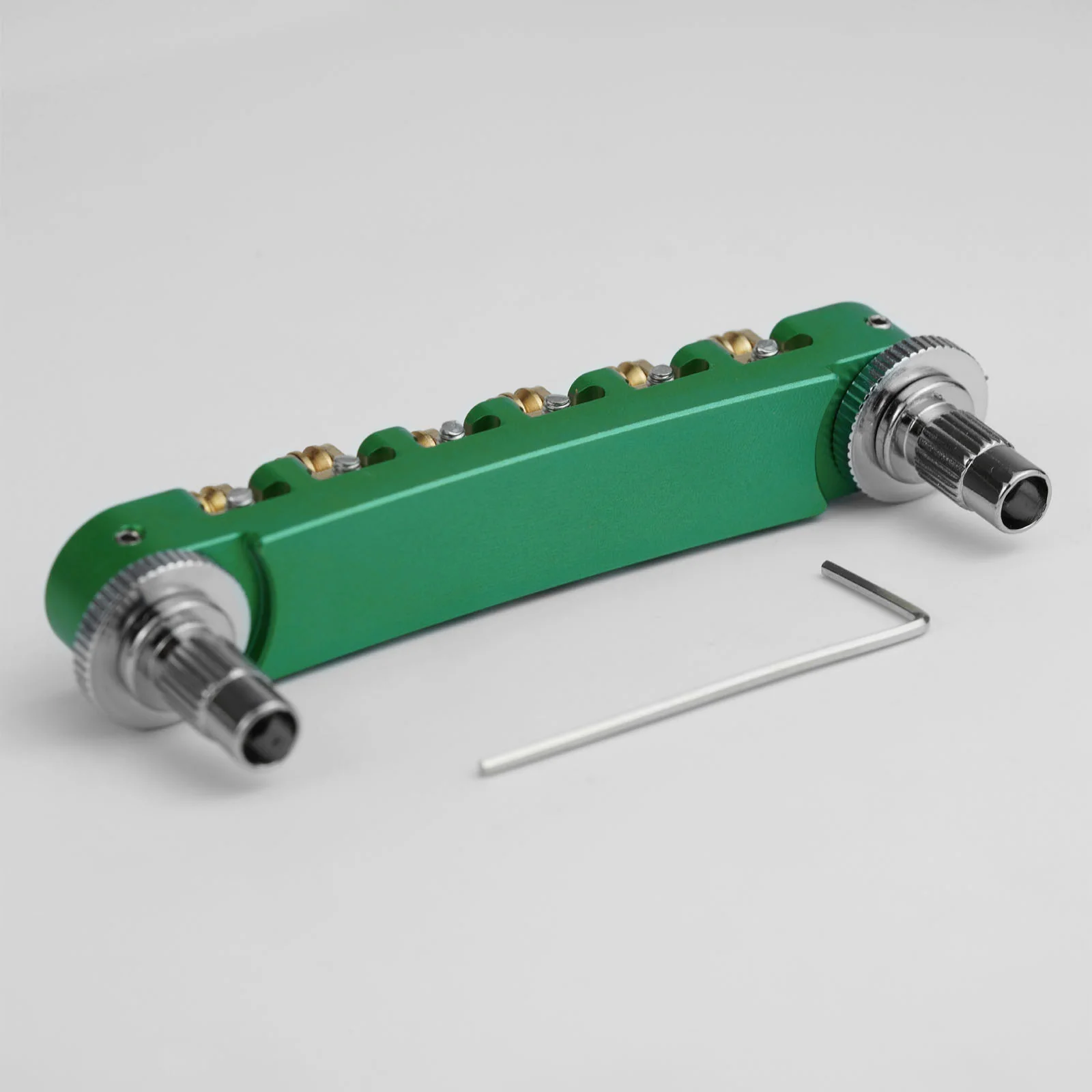

• Available in Aluminum Anodized Chrome, Black, Green, and Red.

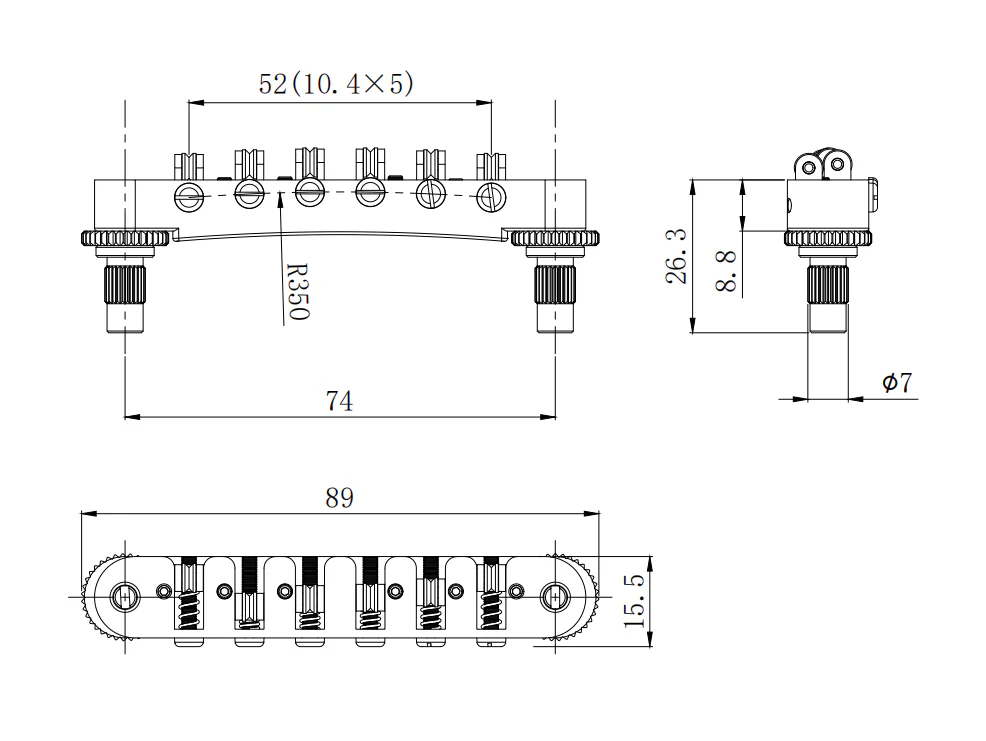

Specifications:

• Material: Aluminum Alloy body, Brass rollers.
• Application: Electric Guitar.
• Post Spacing: 74mm.
• Overall Length: 89mm.
• Bridge Width: 15.5mm.
• String Spacing: 52mm (10.4mm × 5).
• Saddle Radius: R350mm.
• Bridge Height: 8.8mm.
• Overall Height: 26.3mm.
• Post Height: 17.5mm.
• Post Diameter: Ø7mm.
• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Black, Aluminum Anodized Green, Aluminum Anodized Red.

Package Includes:

• 1 x Roller Bridge
• 2 x Bridge Posts
• 1 x Hex Wrench

Fitment Note / Warm Reminder:
Please verify your guitar’s bridge type, post spacing, post diameter, radius, and string spacing before ordering. This bridge uses 74mm post spacing, Ø7mm posts, 52mm string spacing, and R350mm saddle radius. Please compare these dimensions with your current bridge and studs to ensure proper fit. All dimensions may vary by ±1mm due to manual measurement.
