Key Features:

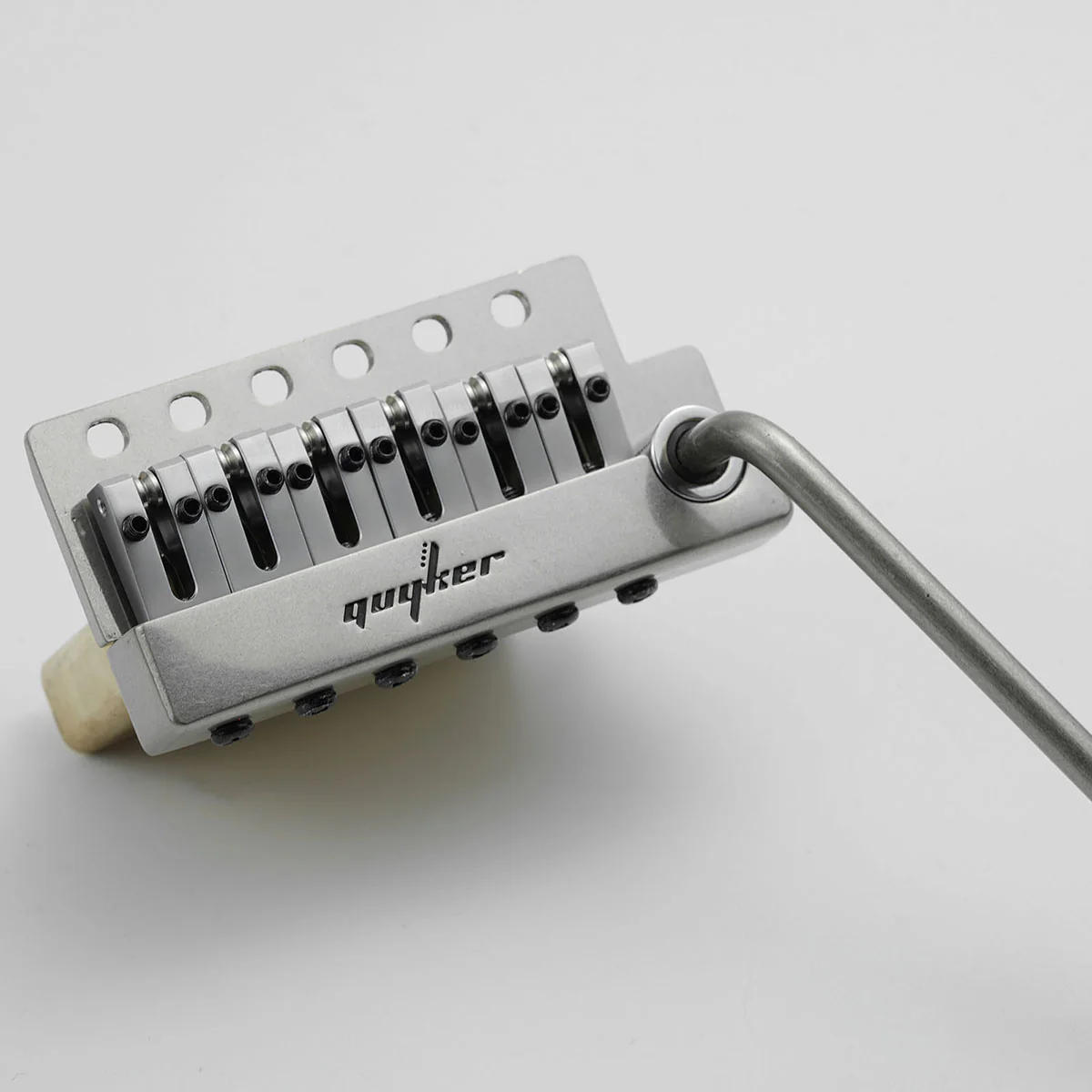

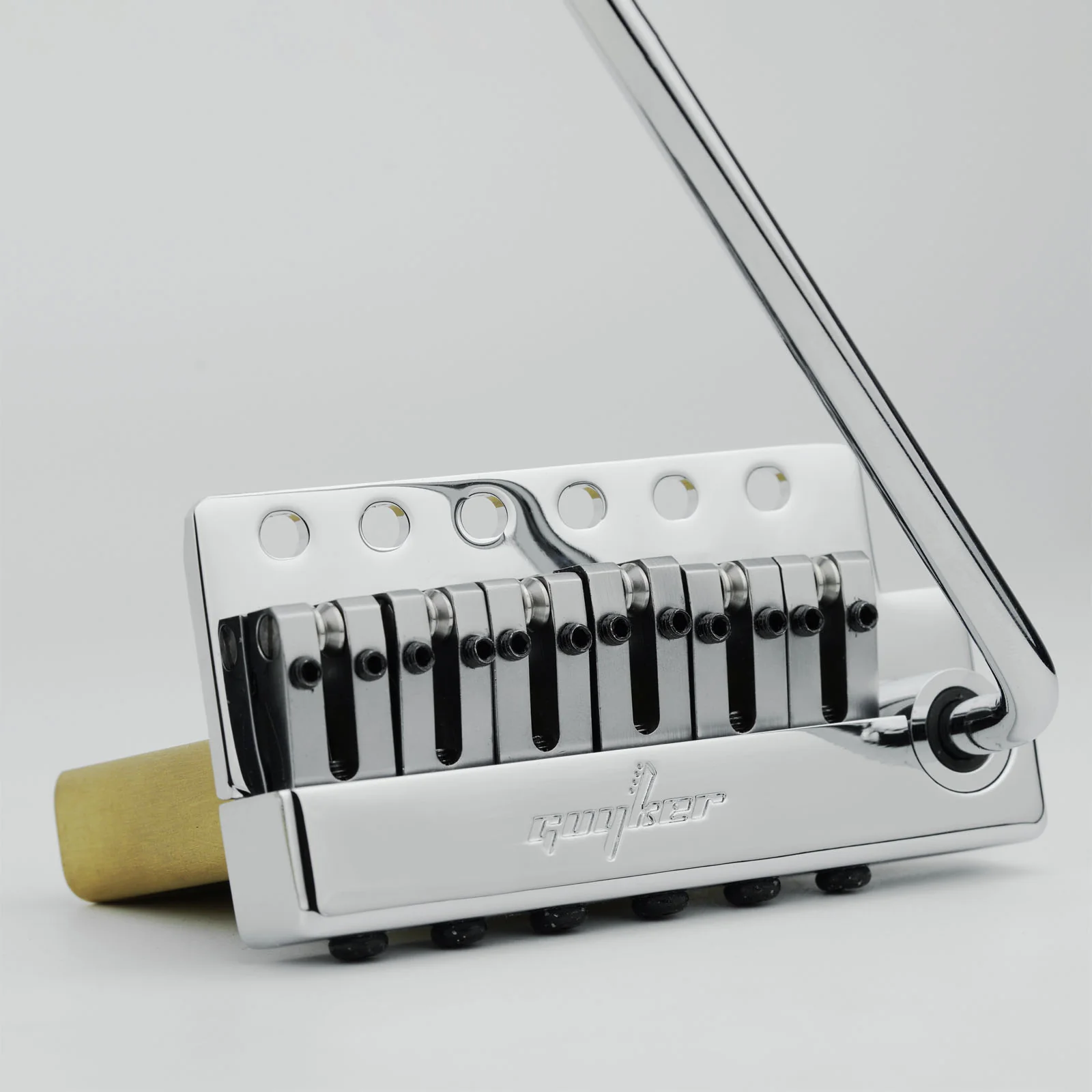

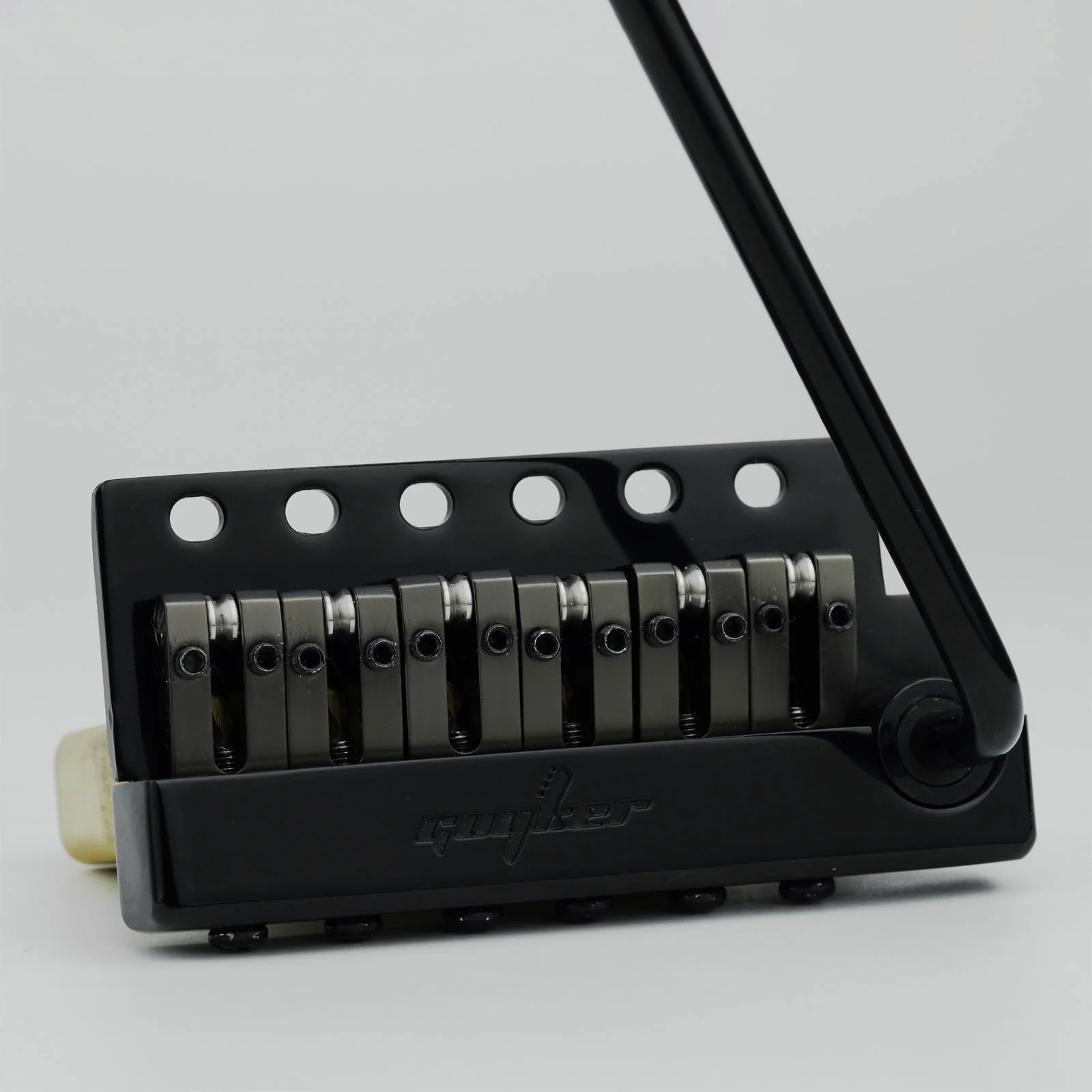

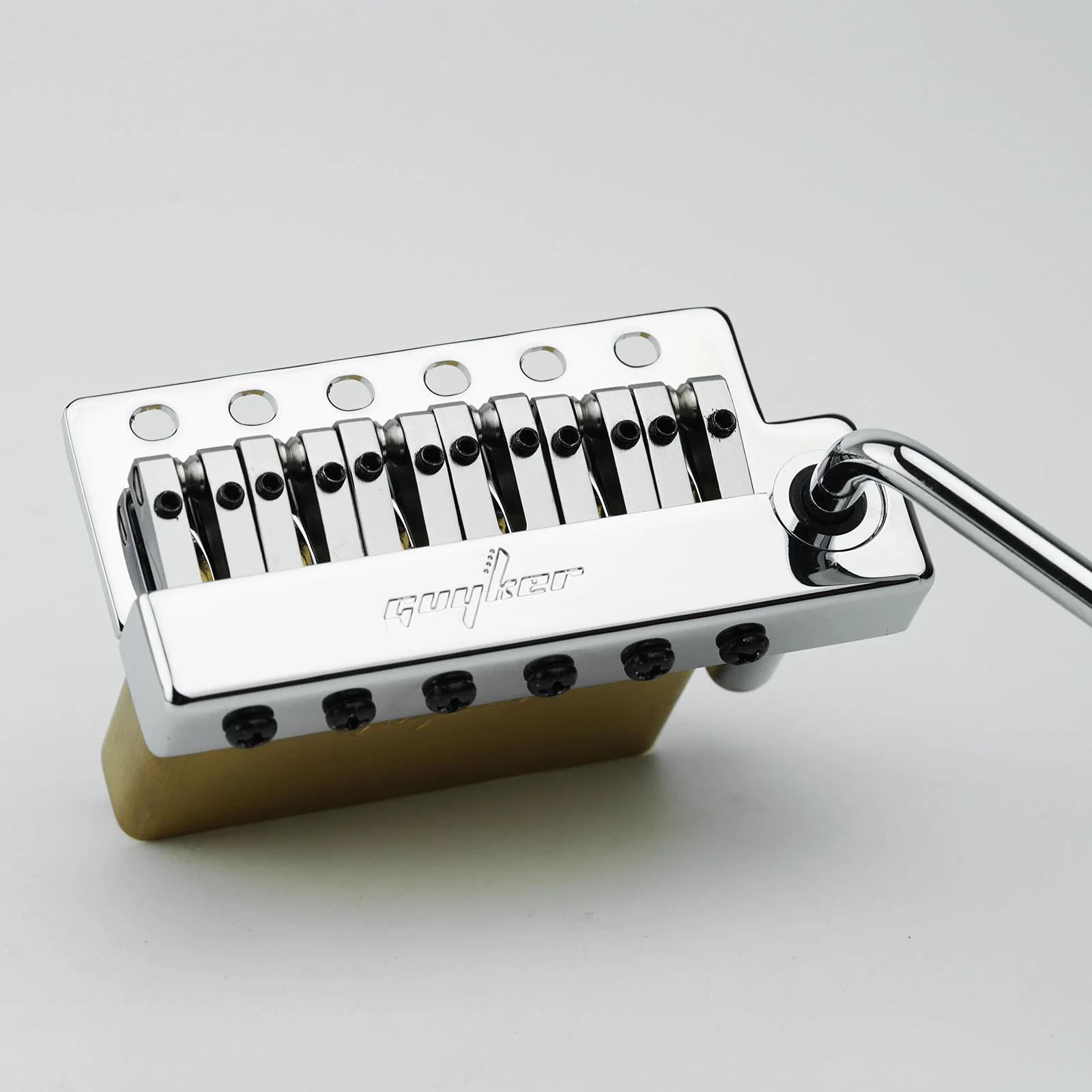

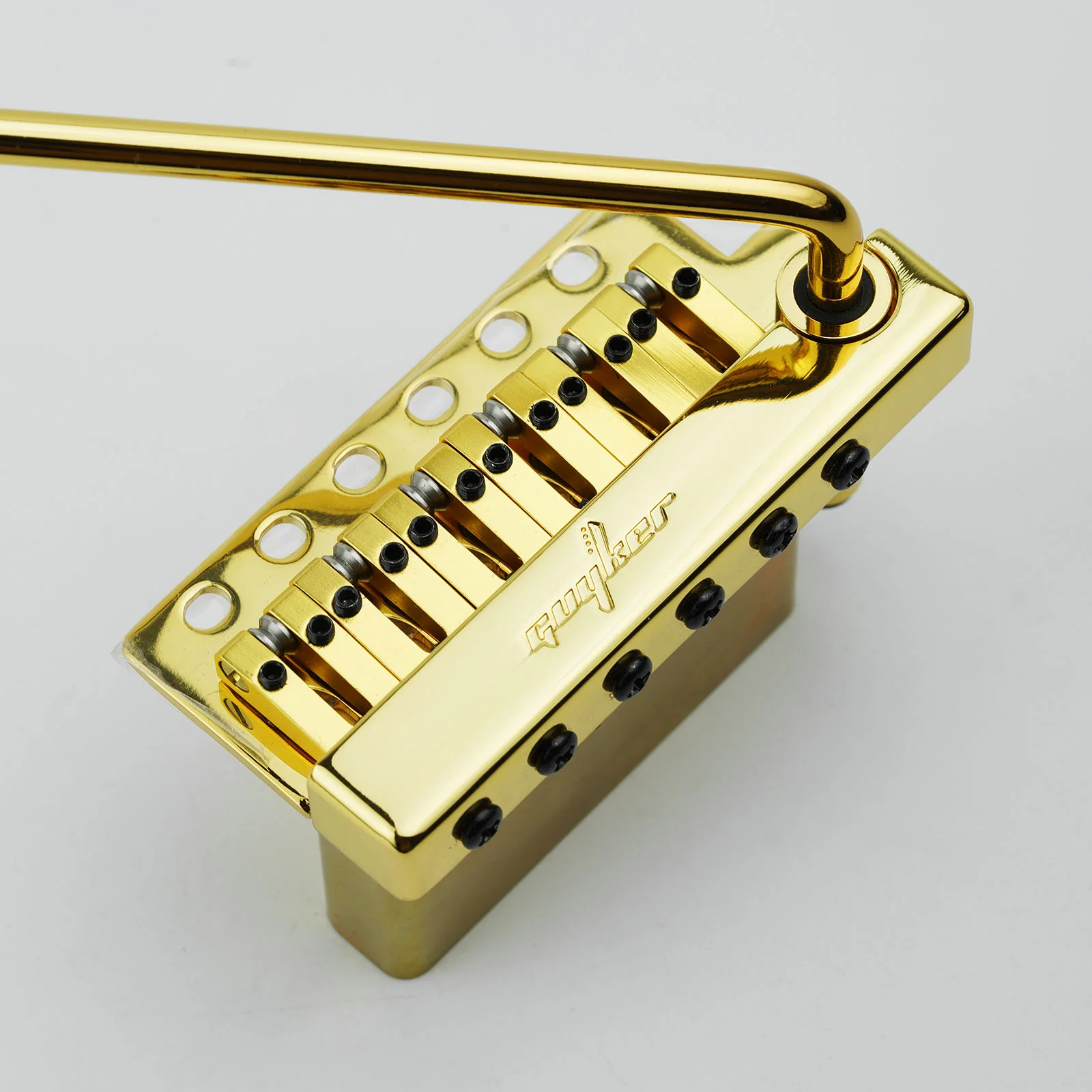

• Non-locking 6-point tremolo bridge designed for Strat style electric guitar applications.

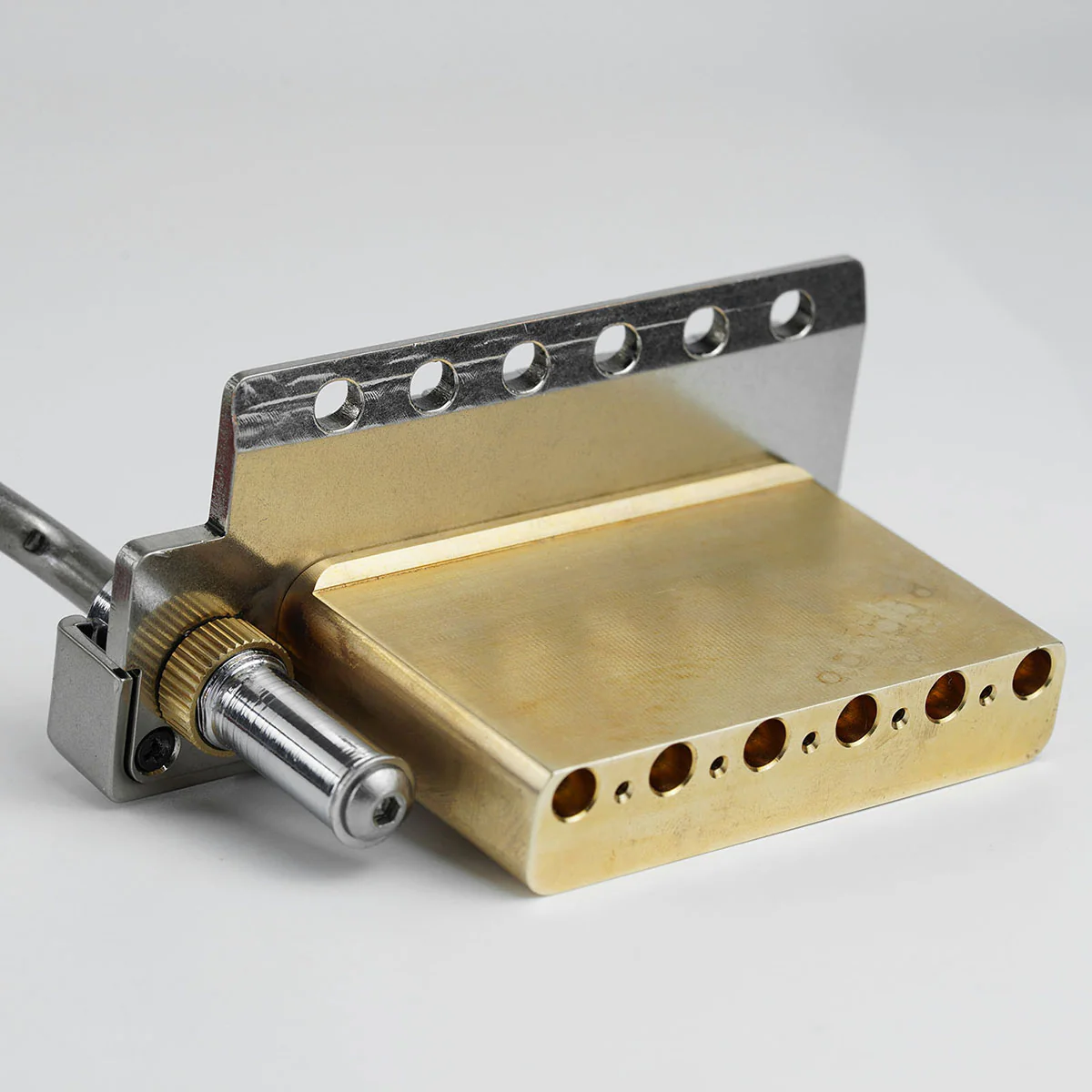

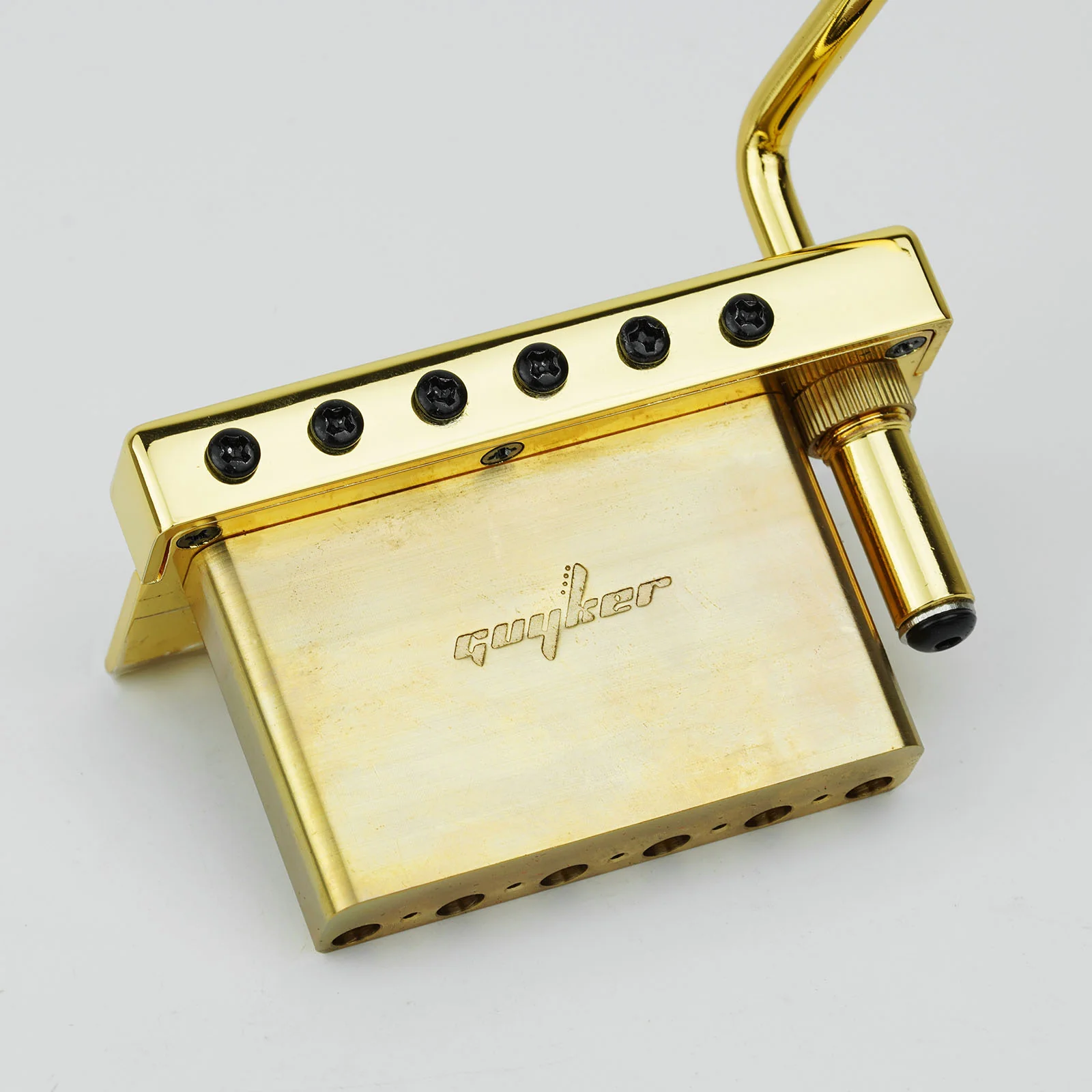

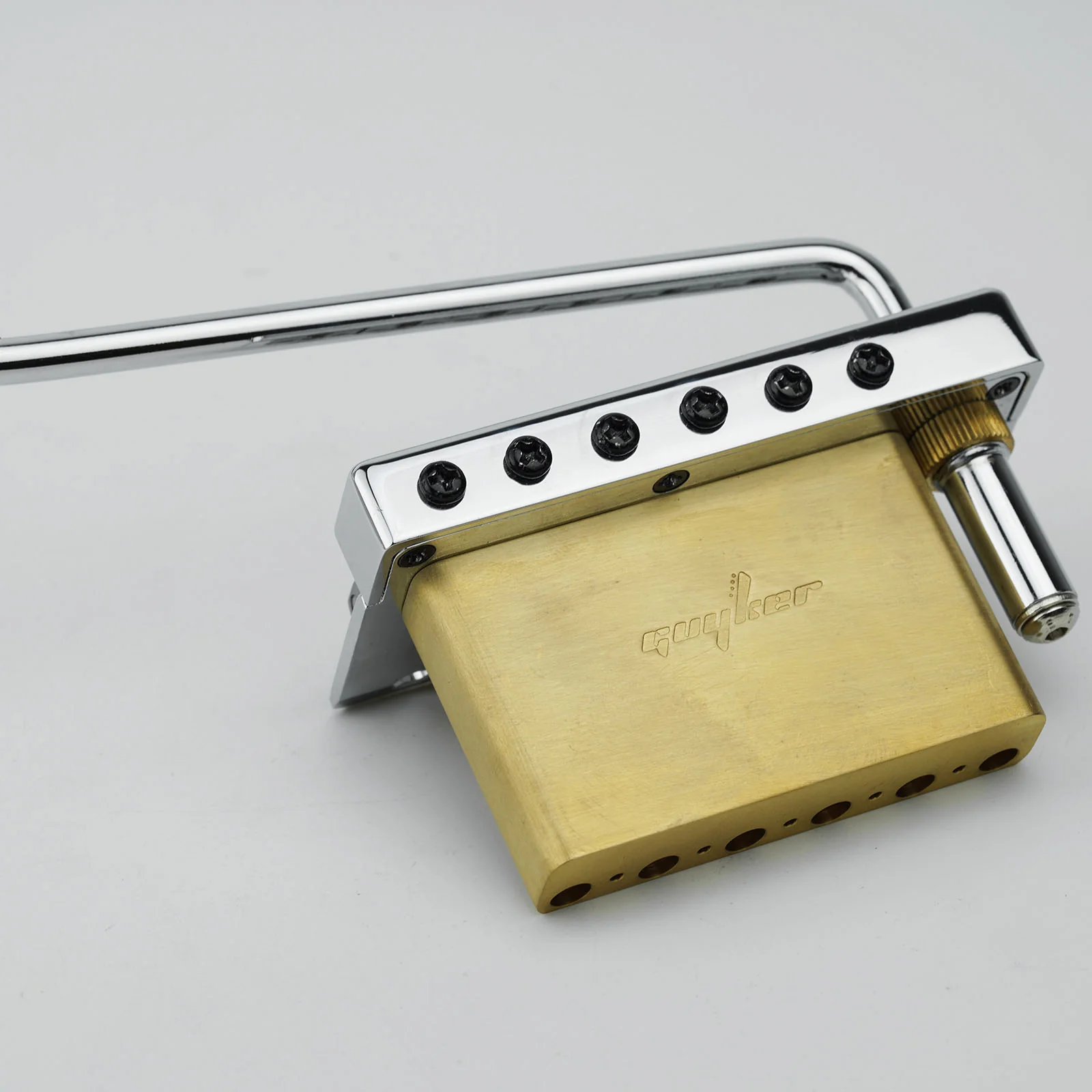

• Built with brass saddles and a brass block as shown on the current product page.
• Confirmed 10.8mm string spacing from the title and size diagram.
• 6-screw mounting layout for vintage-style tremolo installation.
• Includes a matching tremolo arm and installation hardware shown in the product images.

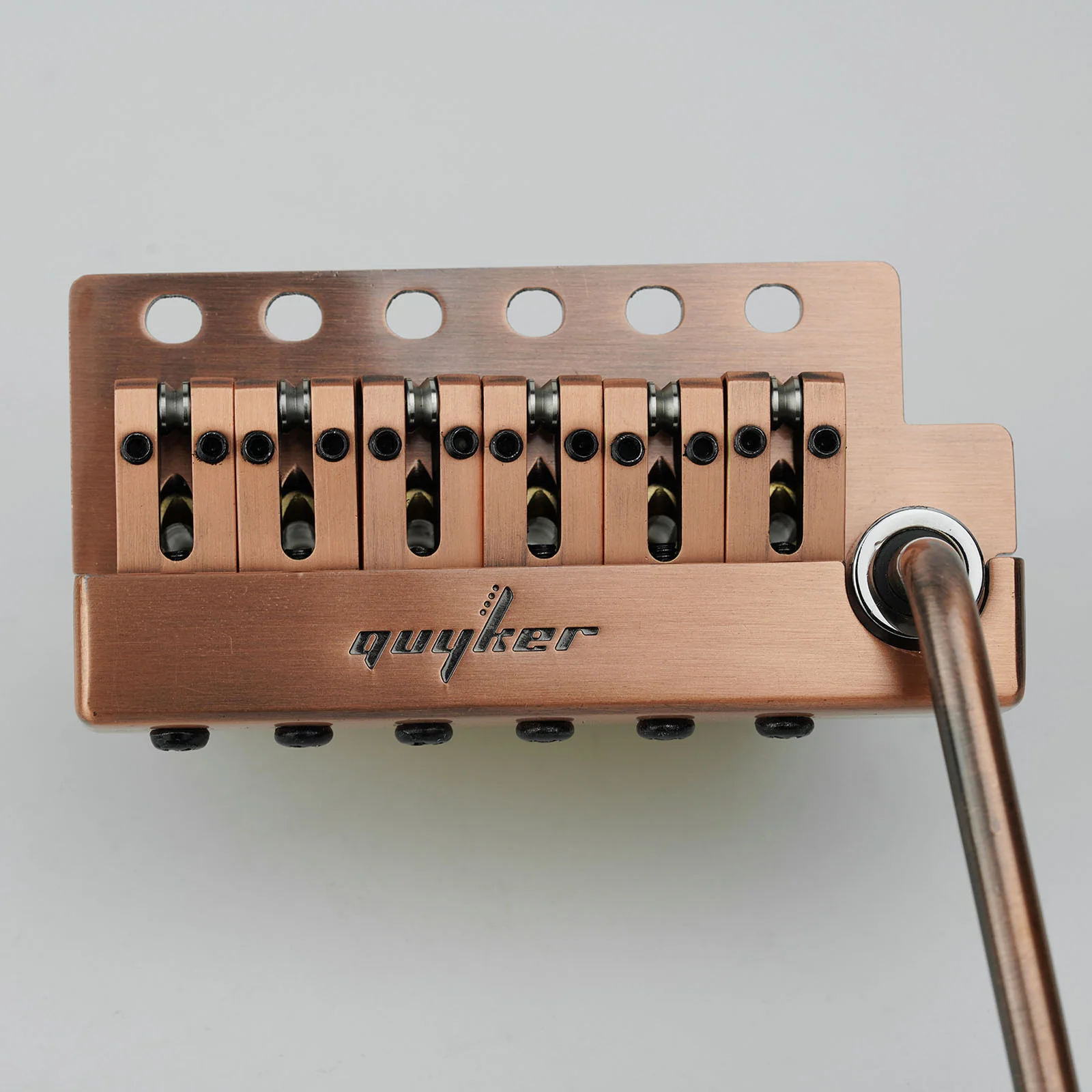

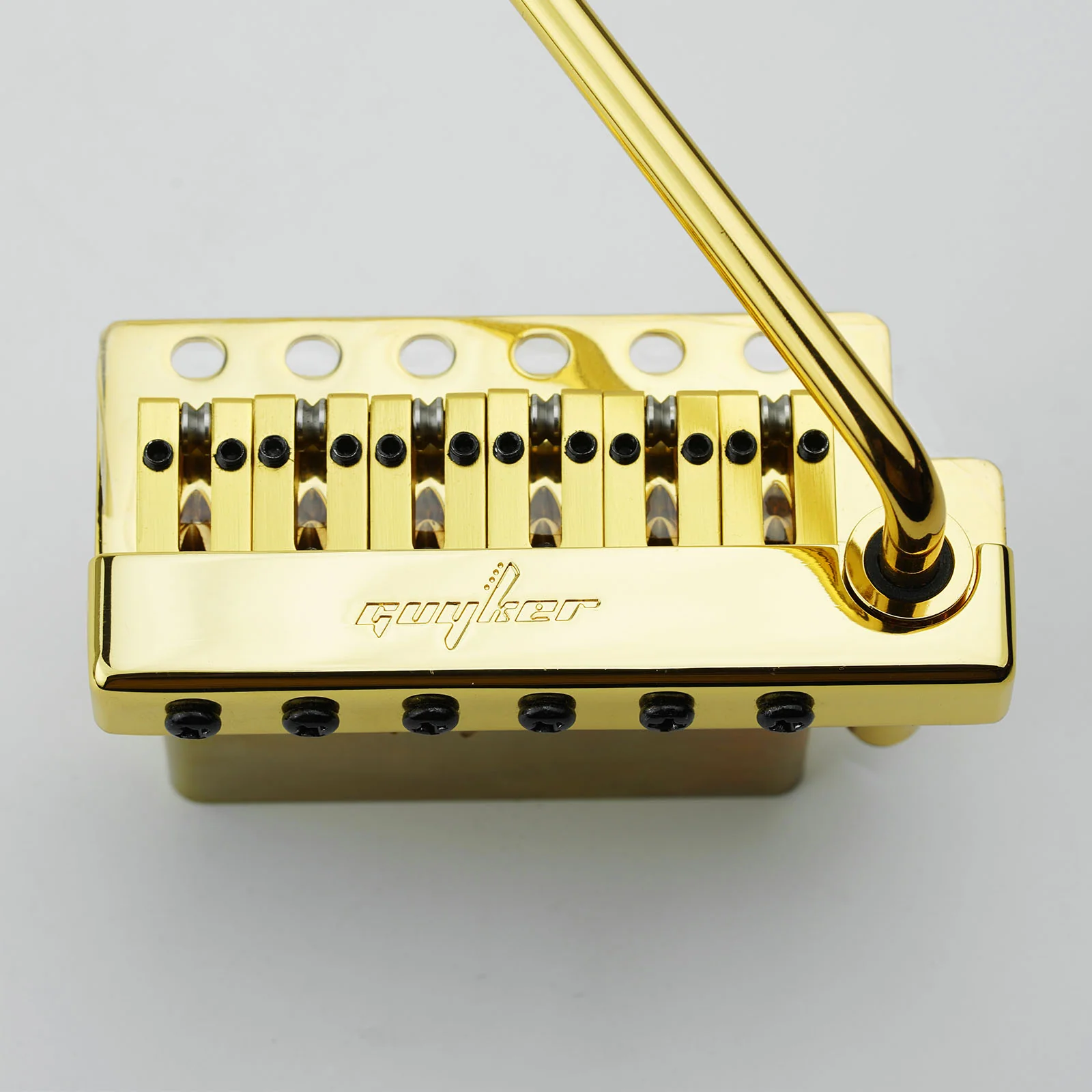

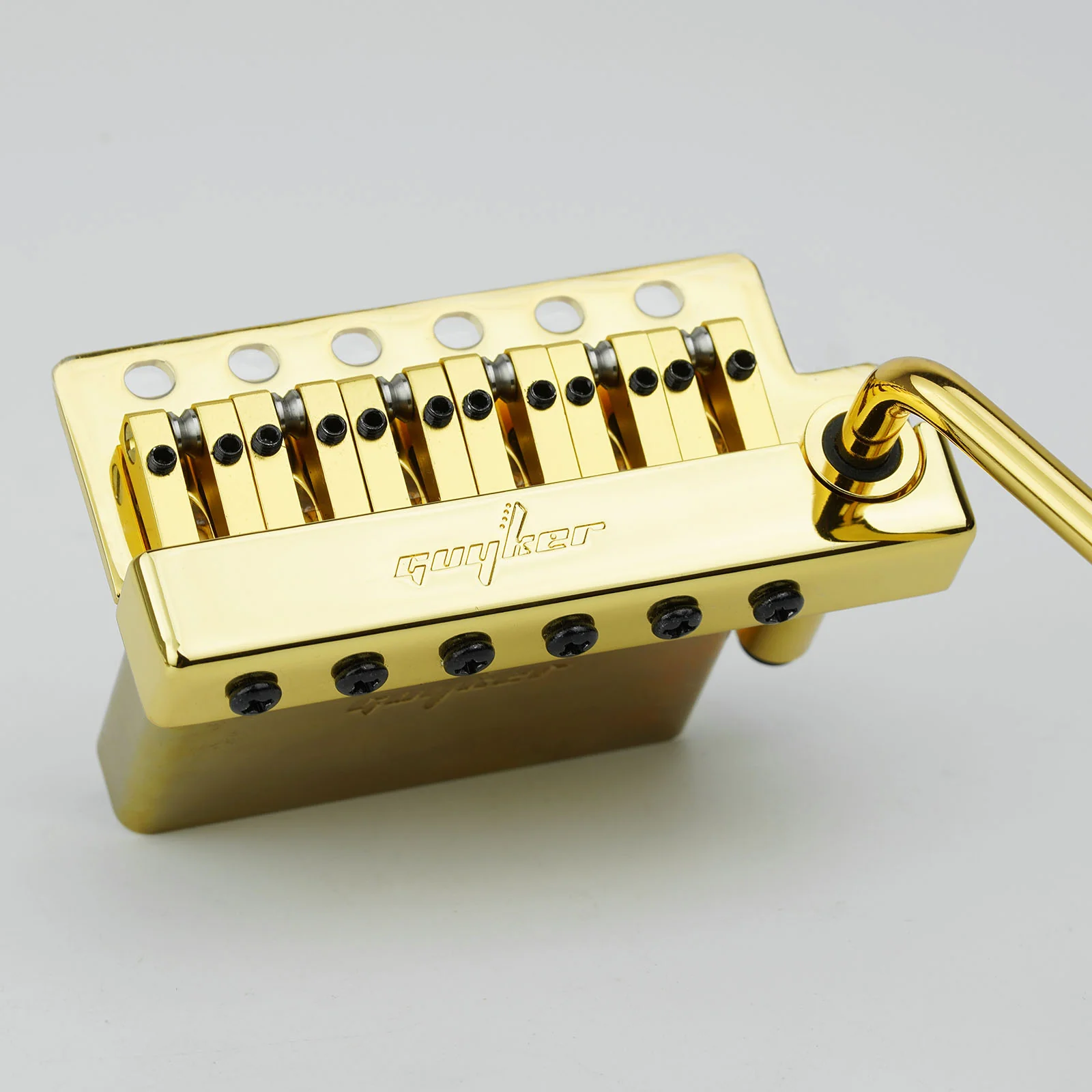

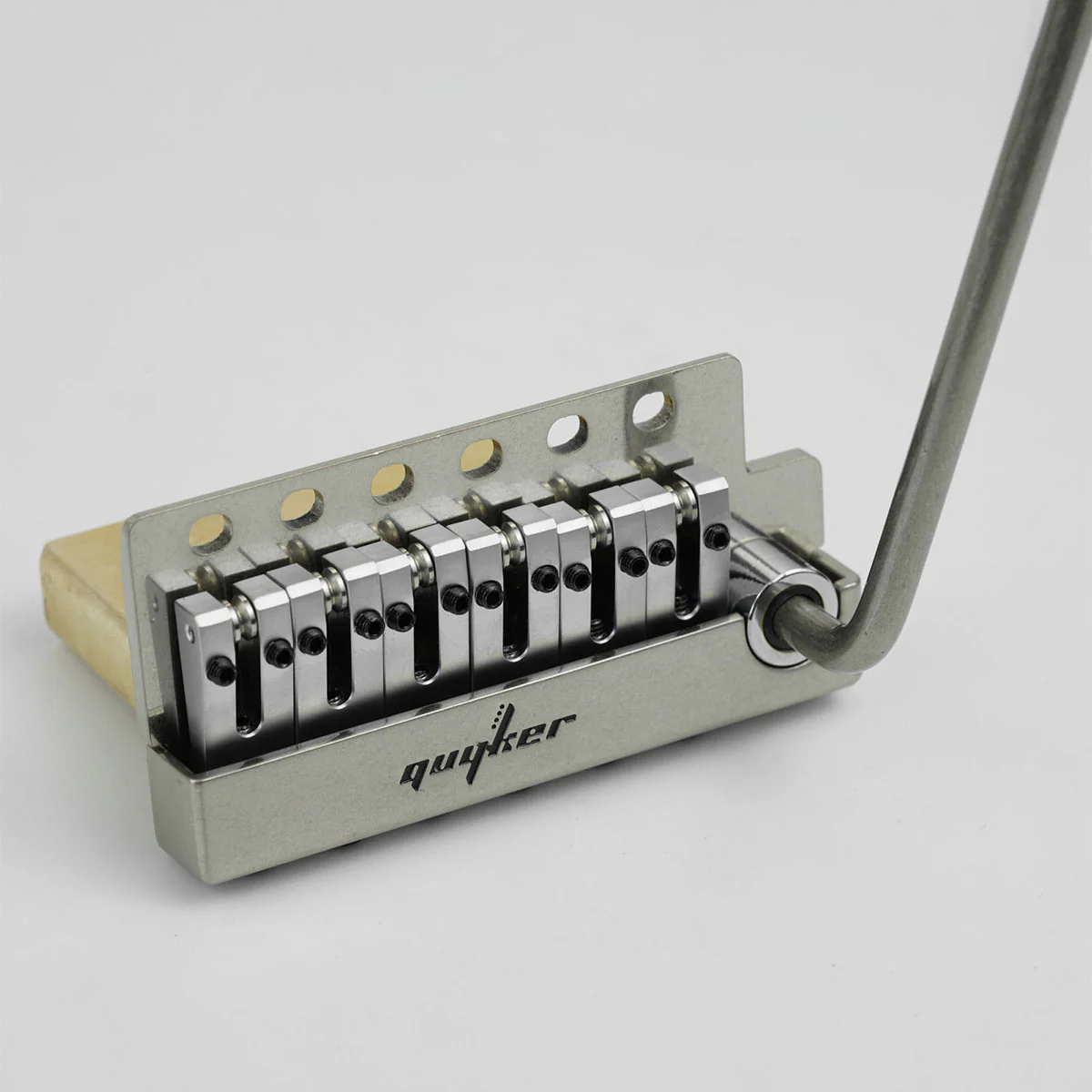

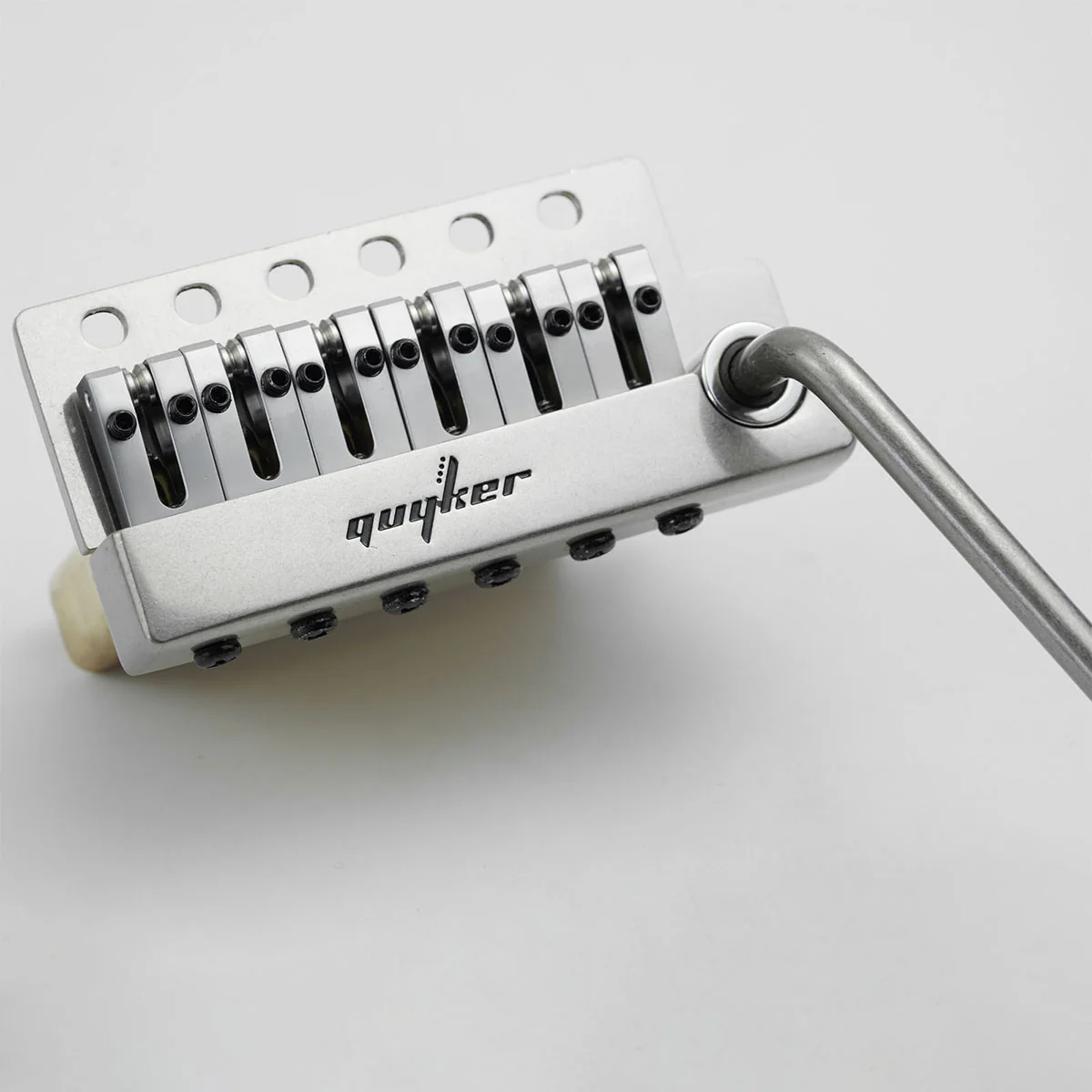

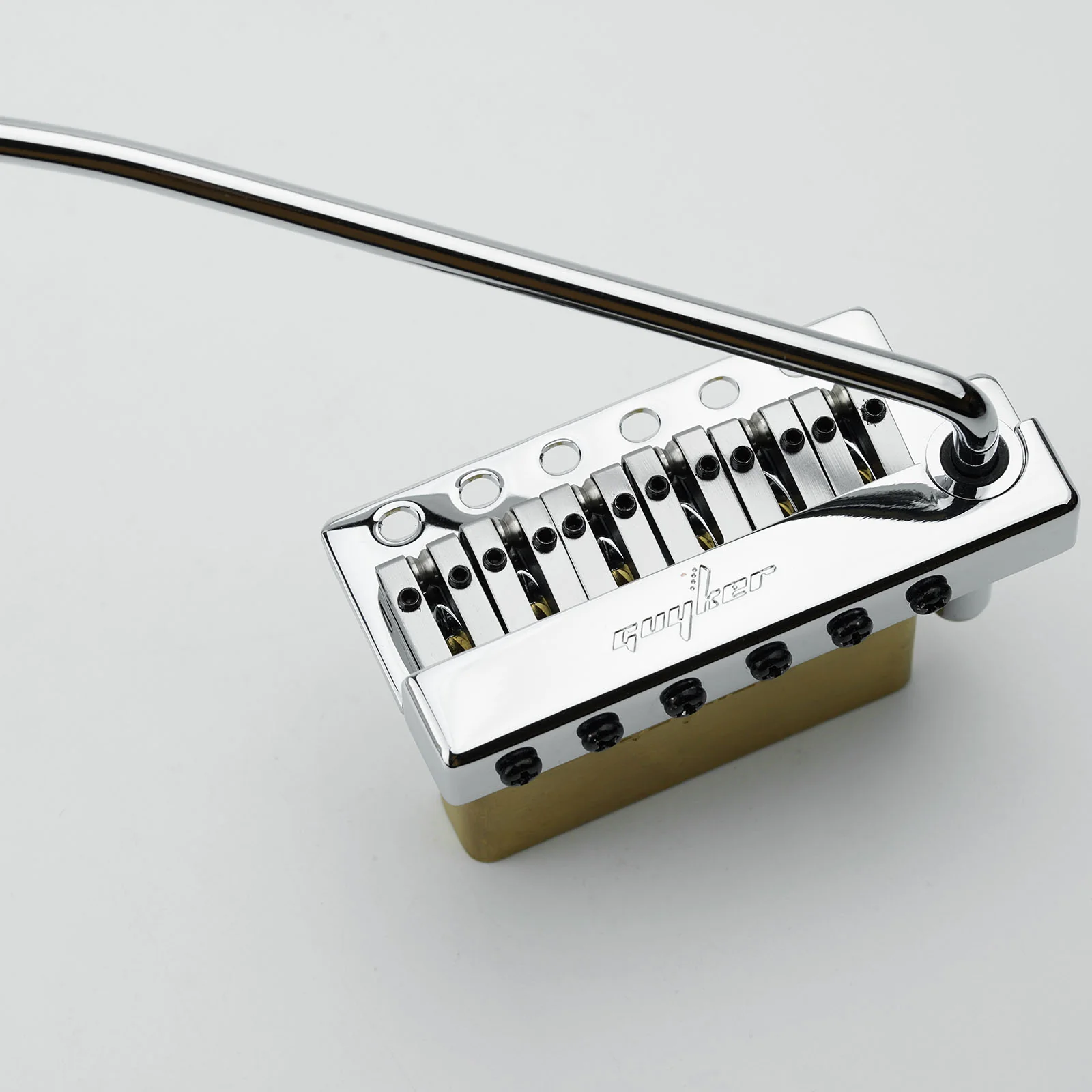

• Available in Chrome, Black, Copper, Gold, and Antique Silver finishes.

Specifications:

• Bridge Type: Non-locking 6-point tremolo bridge
• String Spacing: 10.8mm
• Material: Brass saddles and brass block
• Overall Width: 85mm
• Block Width: 63.2mm
• Front Height: 41mm
• Overall Height: 51.4mm
• Block Height: 39.4mm
• Tremolo Arm Diameter: 5.5mm
• Color Options: Chrome, Black, Copper, Gold, Antique Silver
• Suitable For: Strat style 6-string electric guitar with matching mounting layout and dimensions

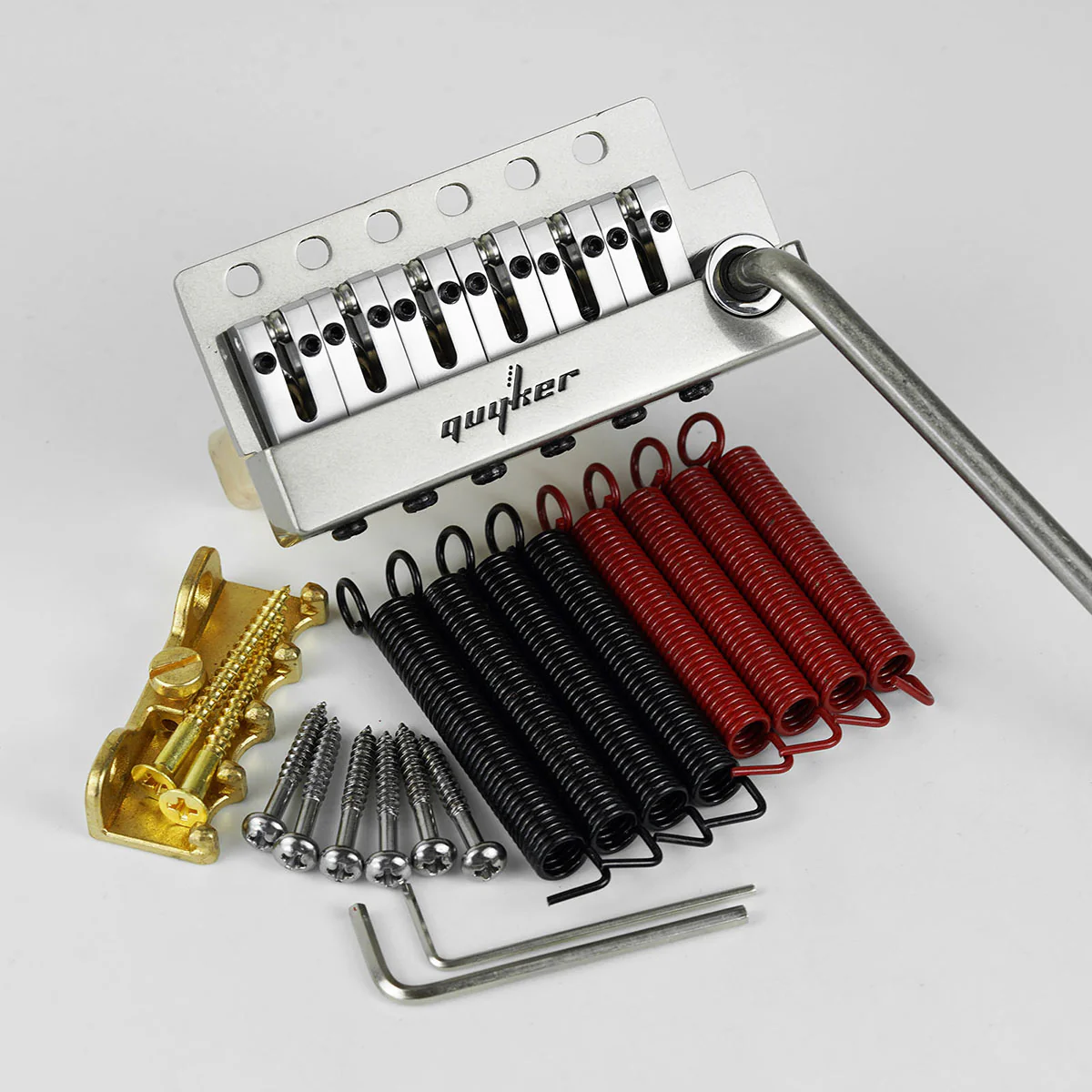

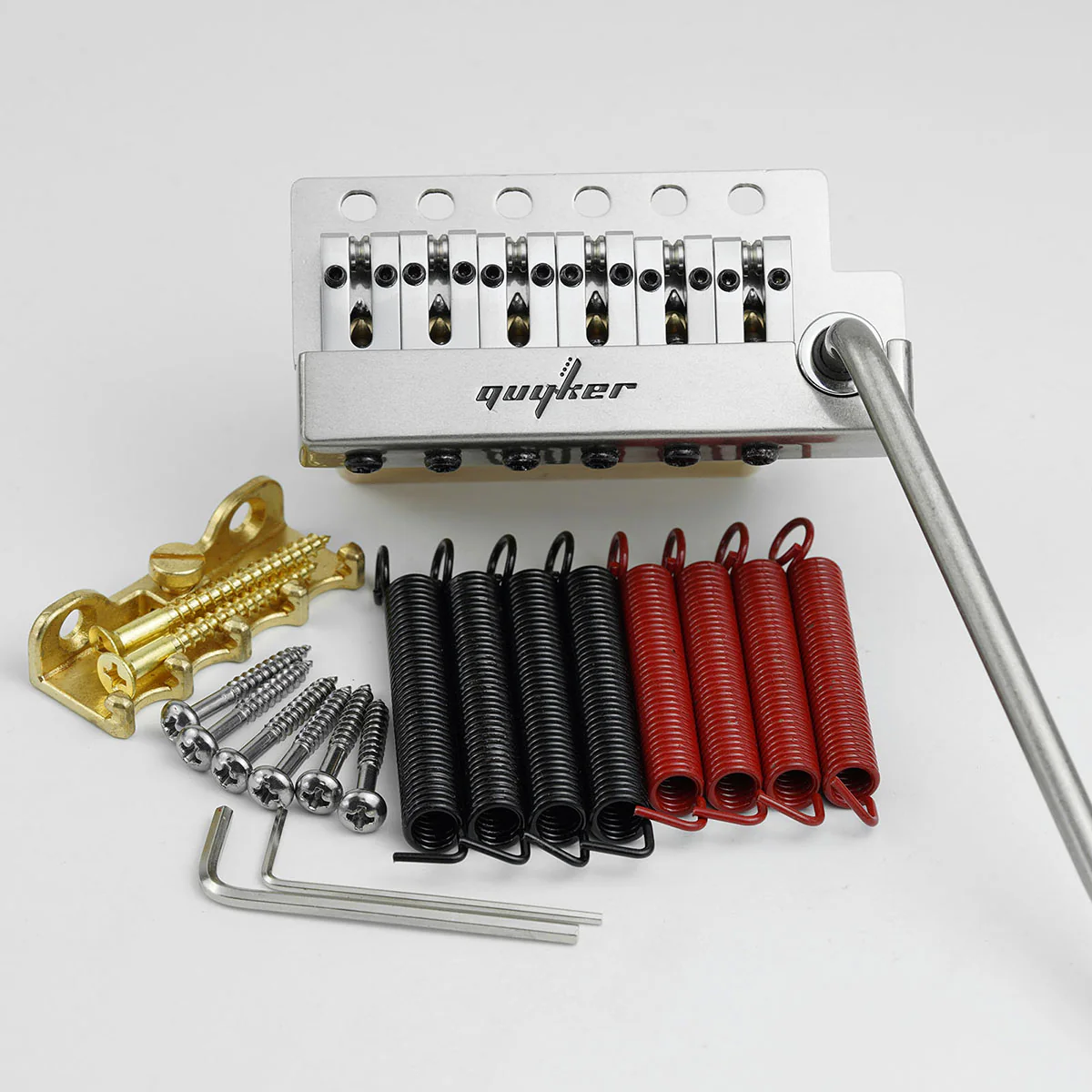

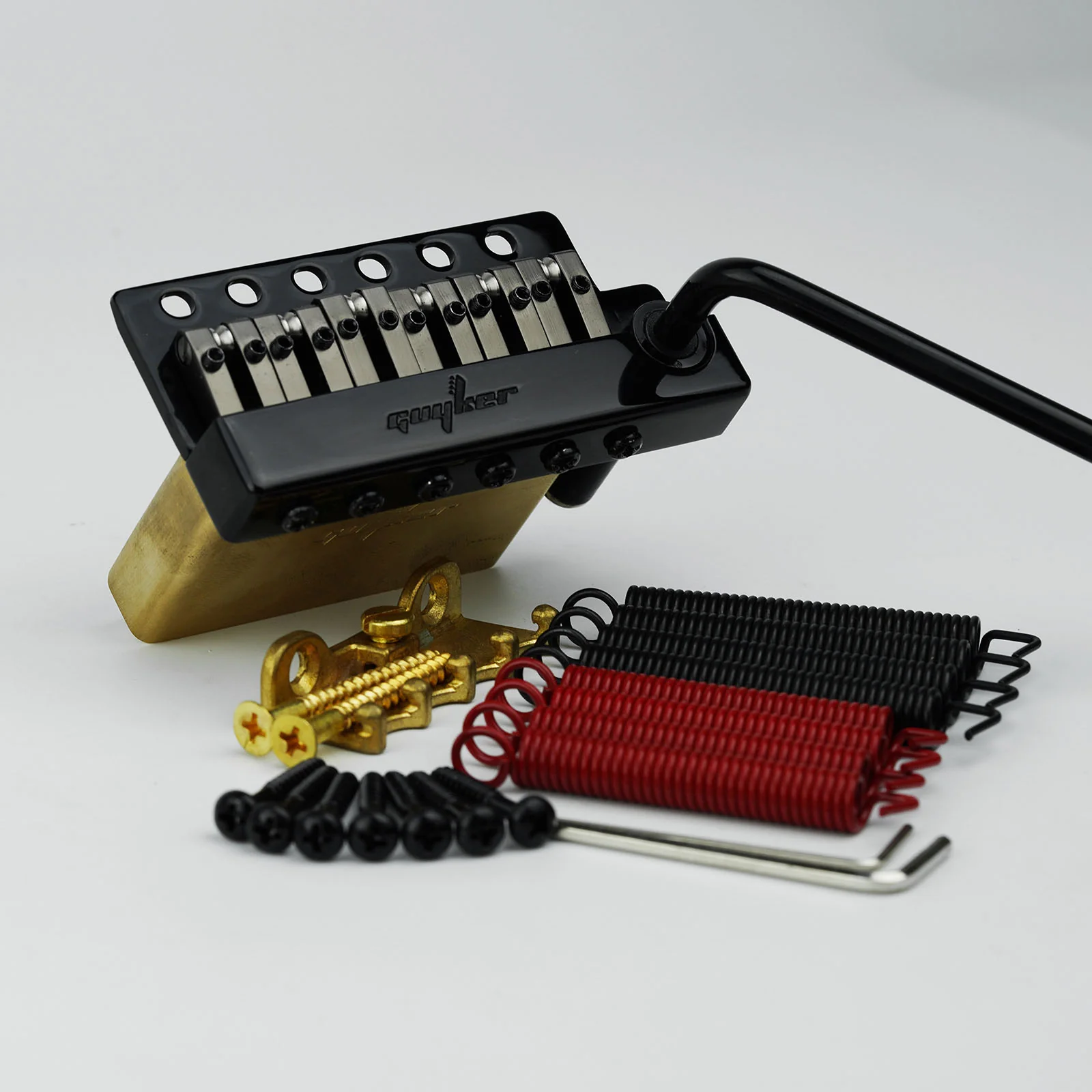

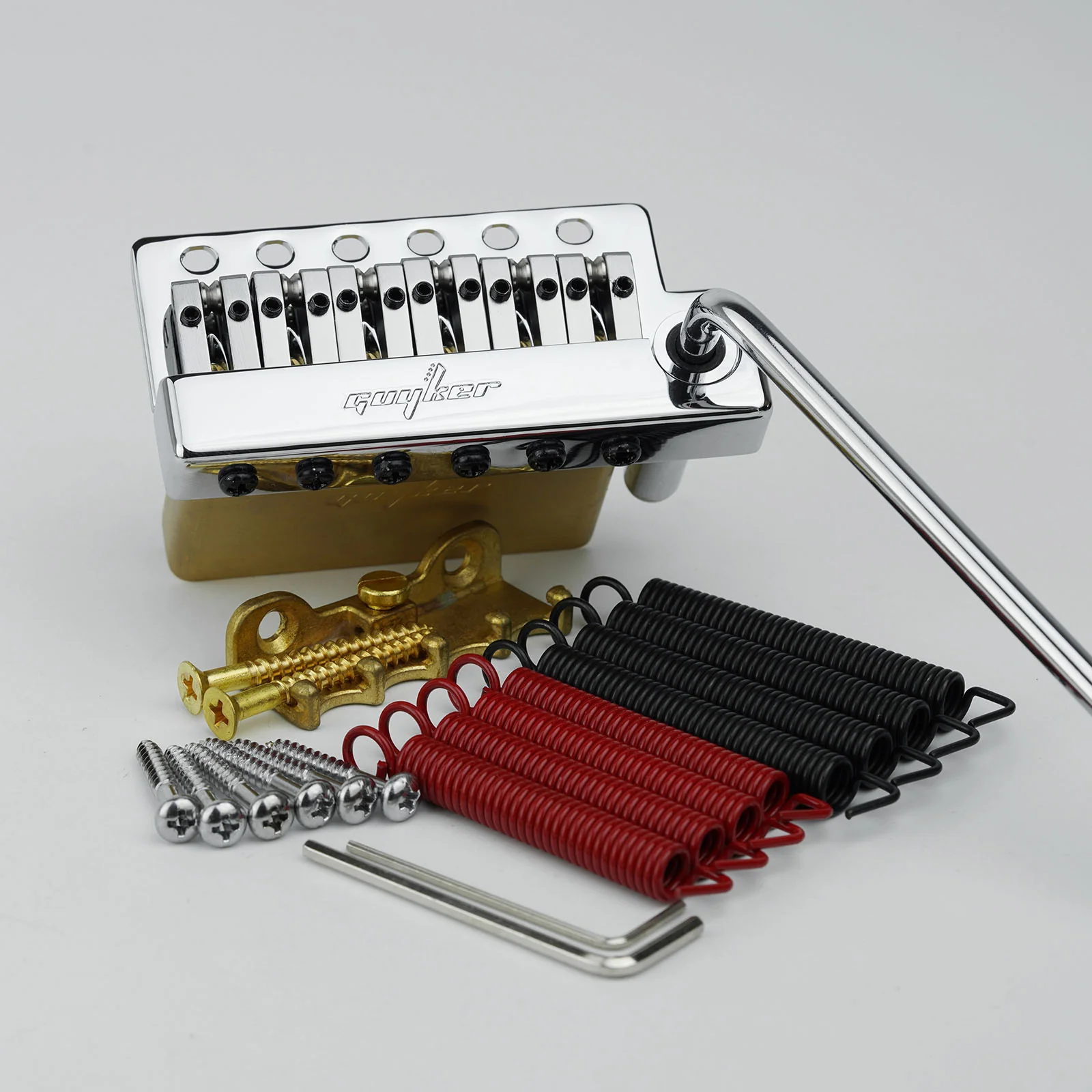

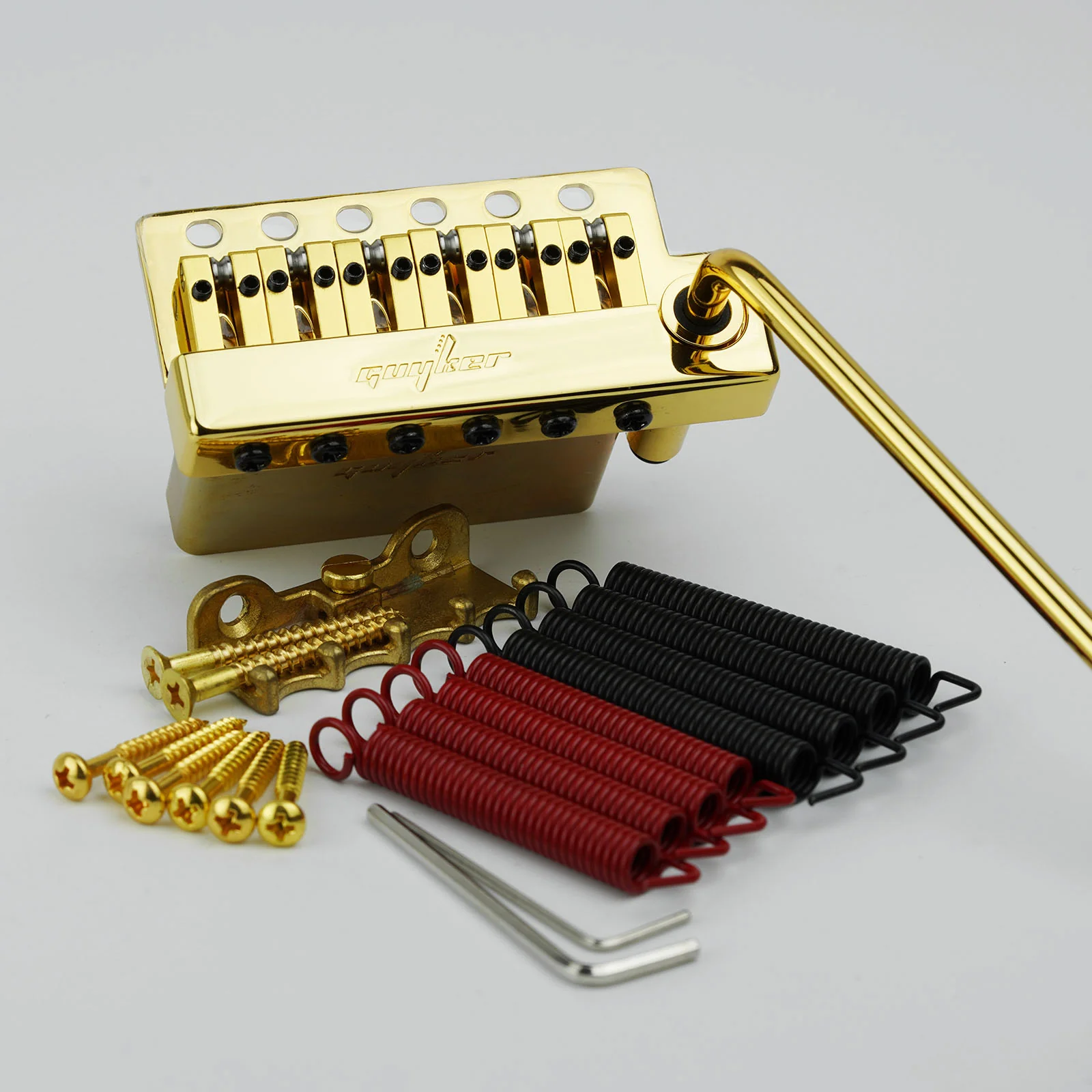

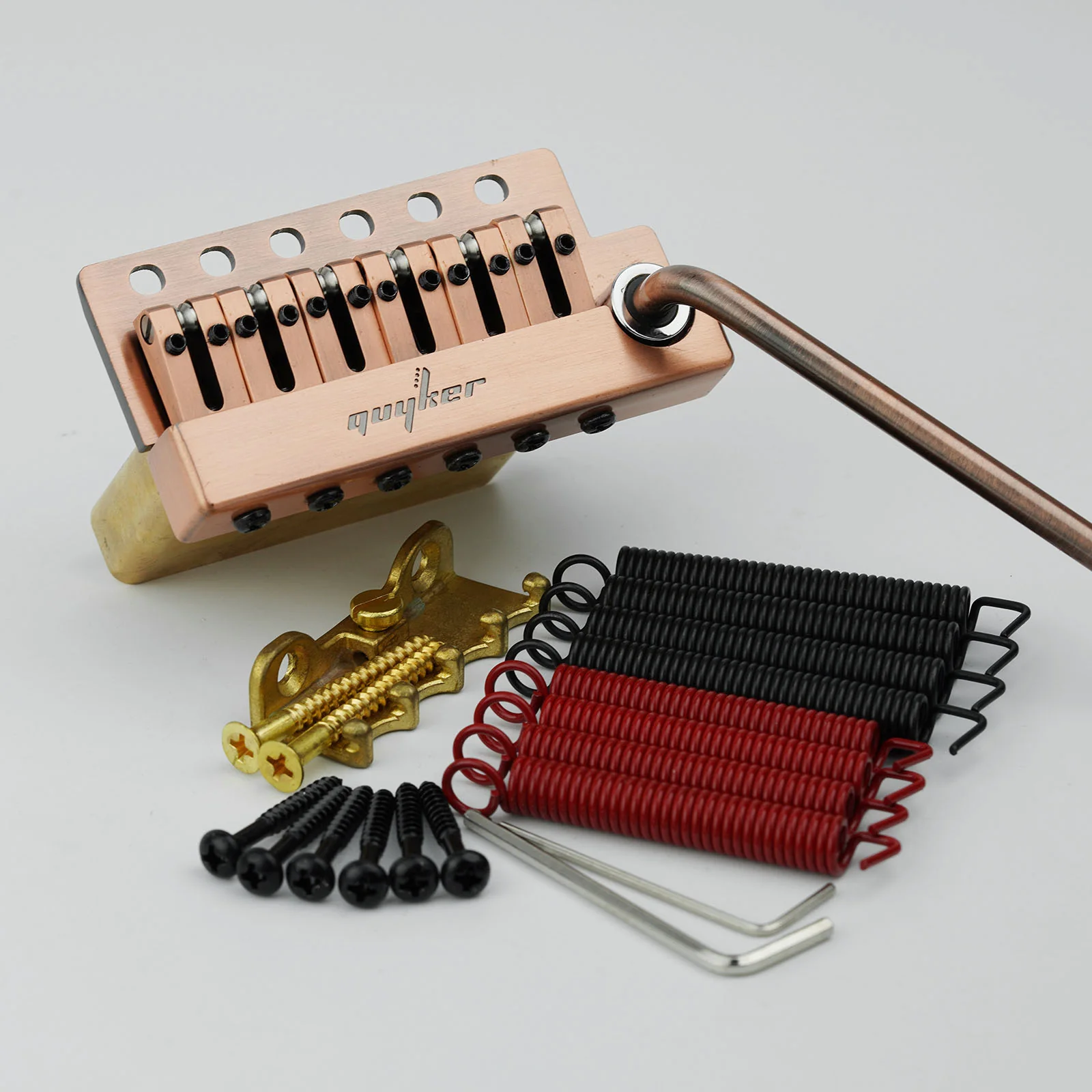

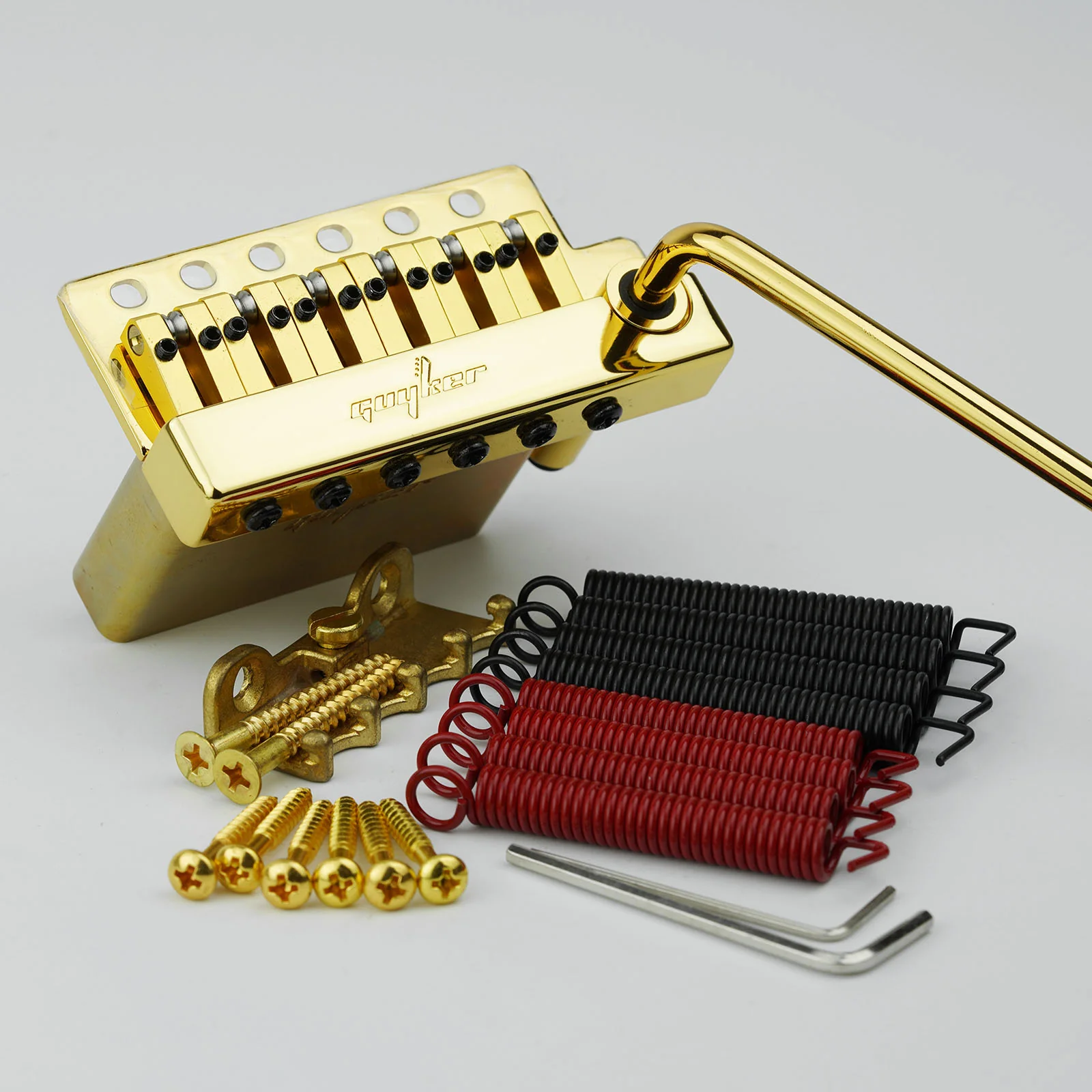

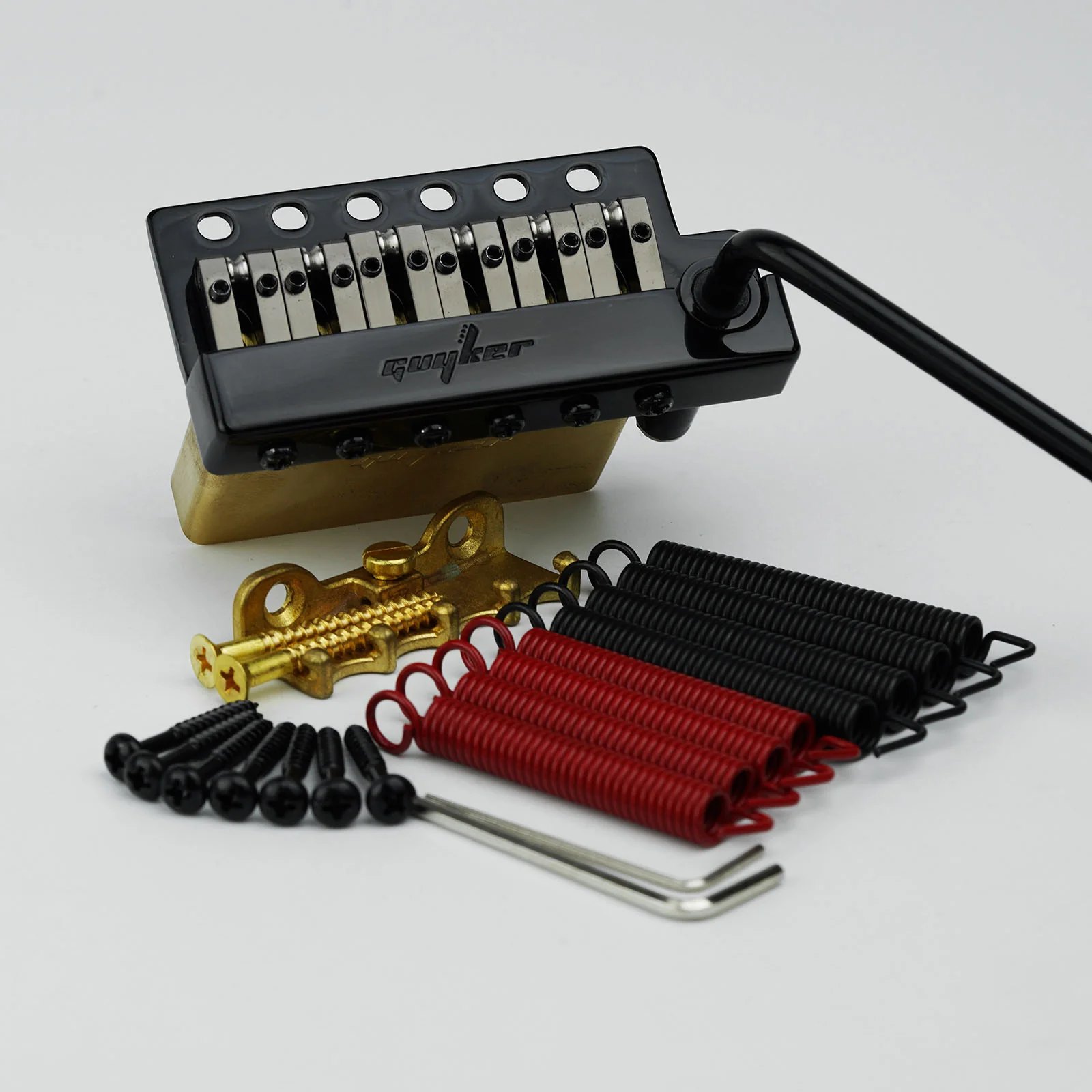

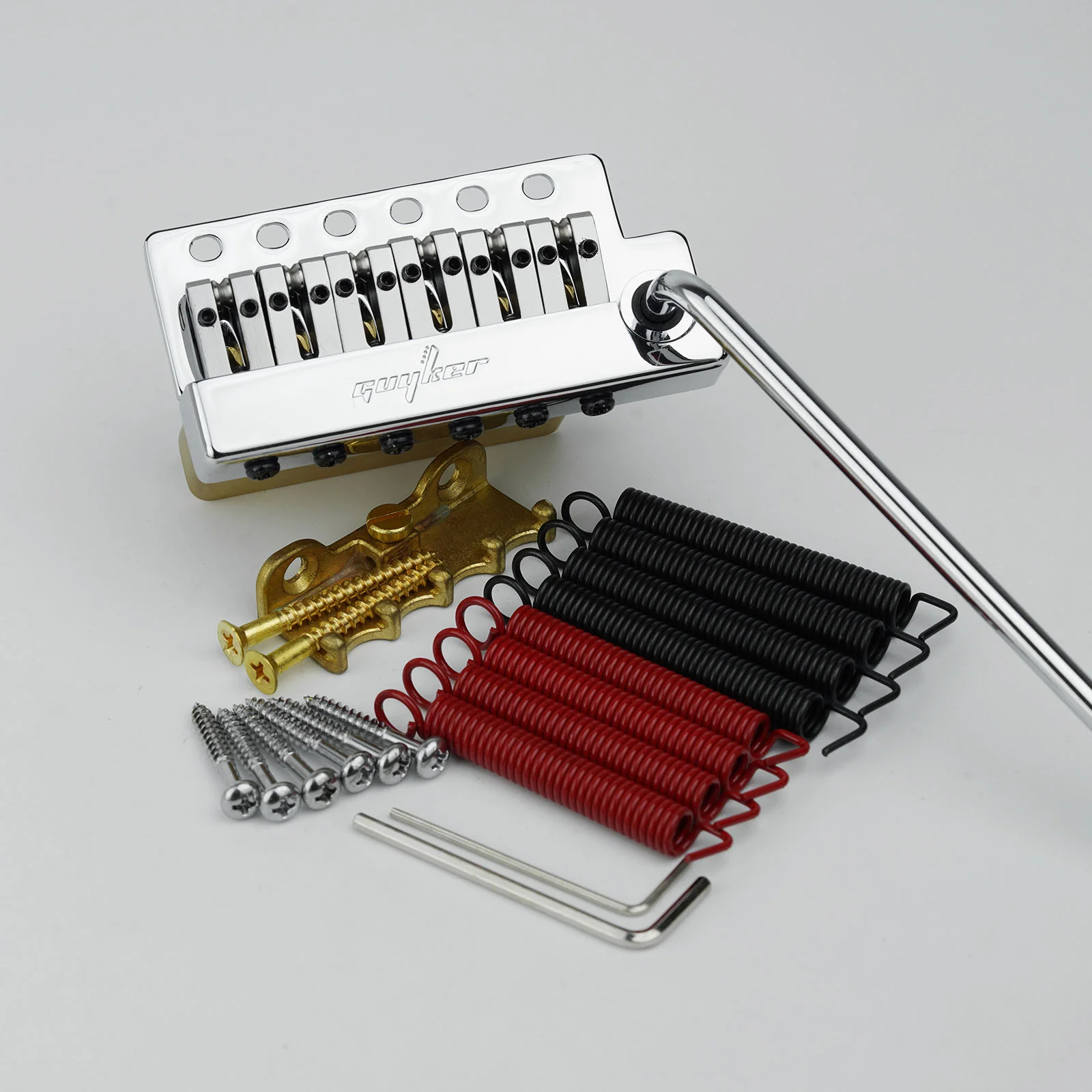

Package Includes:

• 1 tremolo bridge assembly
• 1 tremolo arm
• 1 spring claw
• 2 claw screws
• 6 mounting screws
• 10 tremolo springs (5 black + 5 red)
• 2 hex wrenches

Fitment Note / Warm Reminder:
Please verify your guitar’s 10.8mm string spacing, 6-point screw mounting layout, 85mm overall bridge width, tremolo cavity size, and arm size before ordering. This bridge is best suited for Strat style electric guitar projects with matching measurements and mounting structure.
