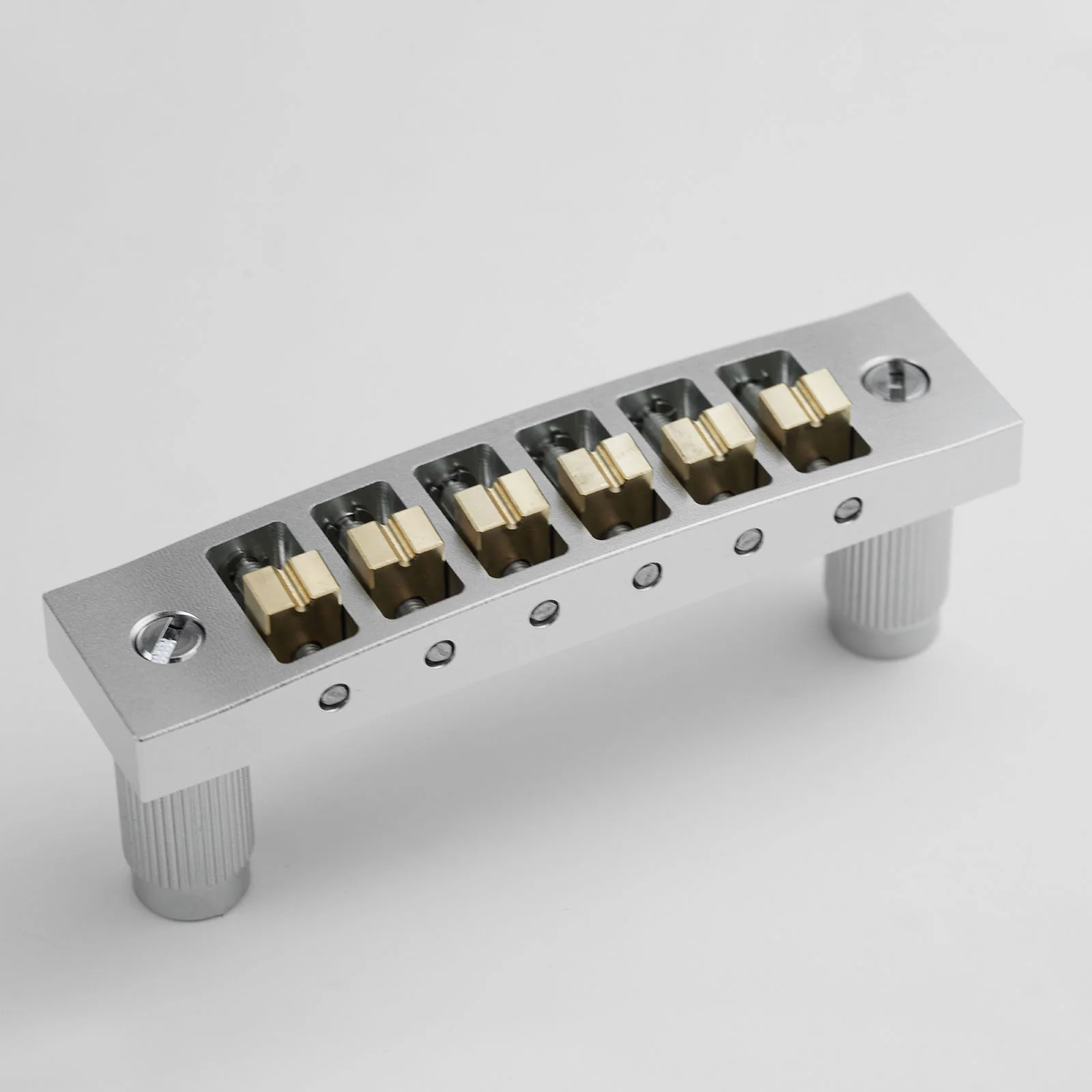

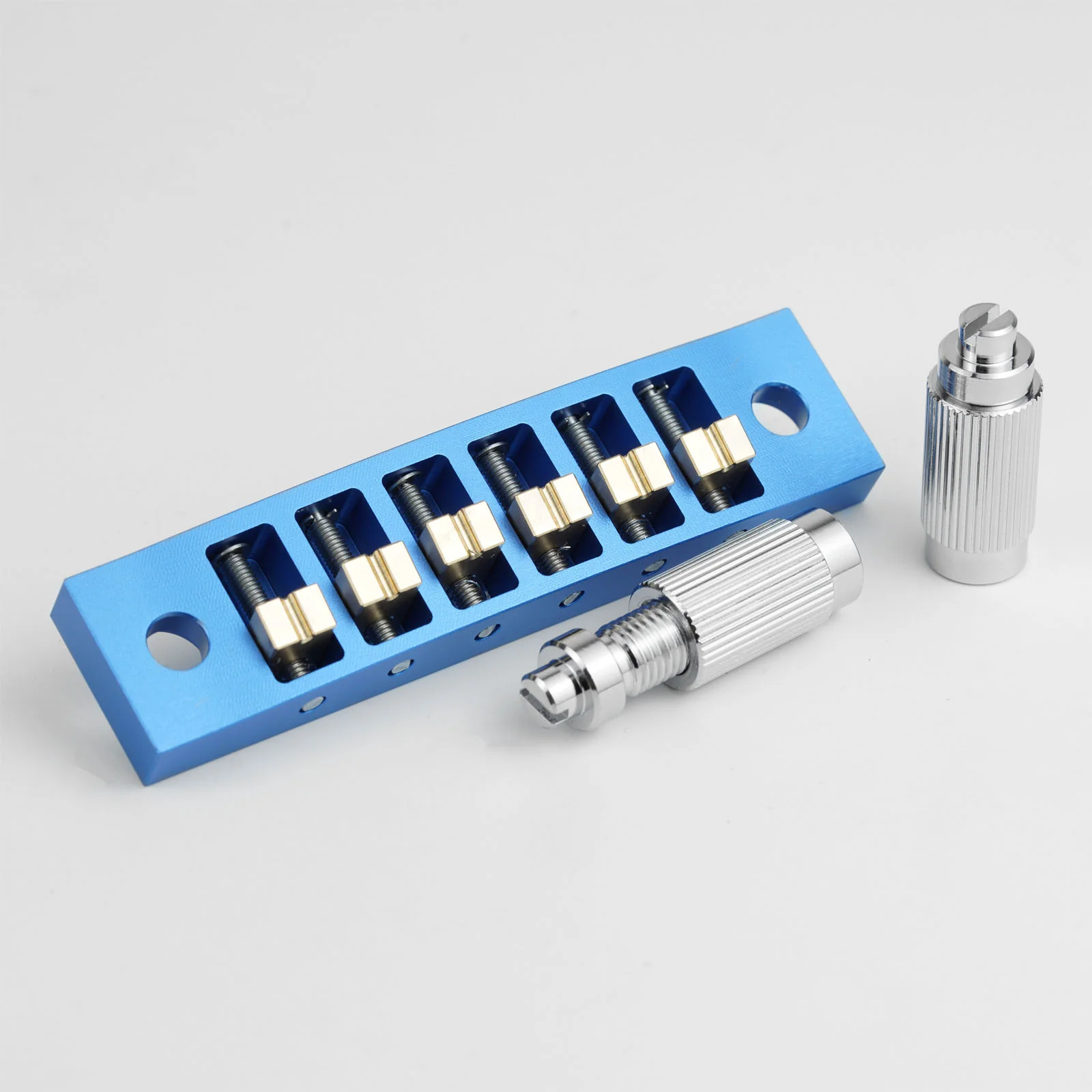

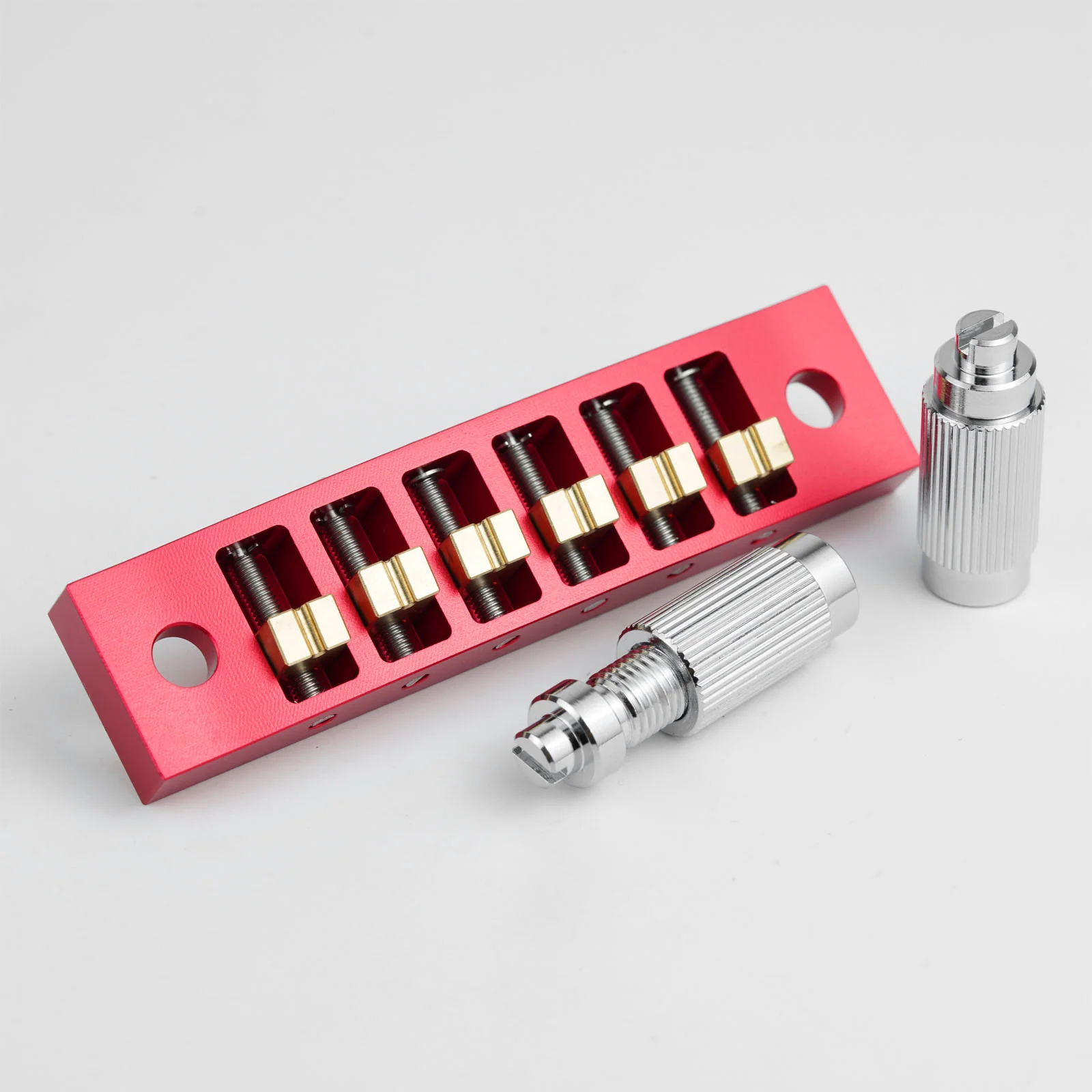

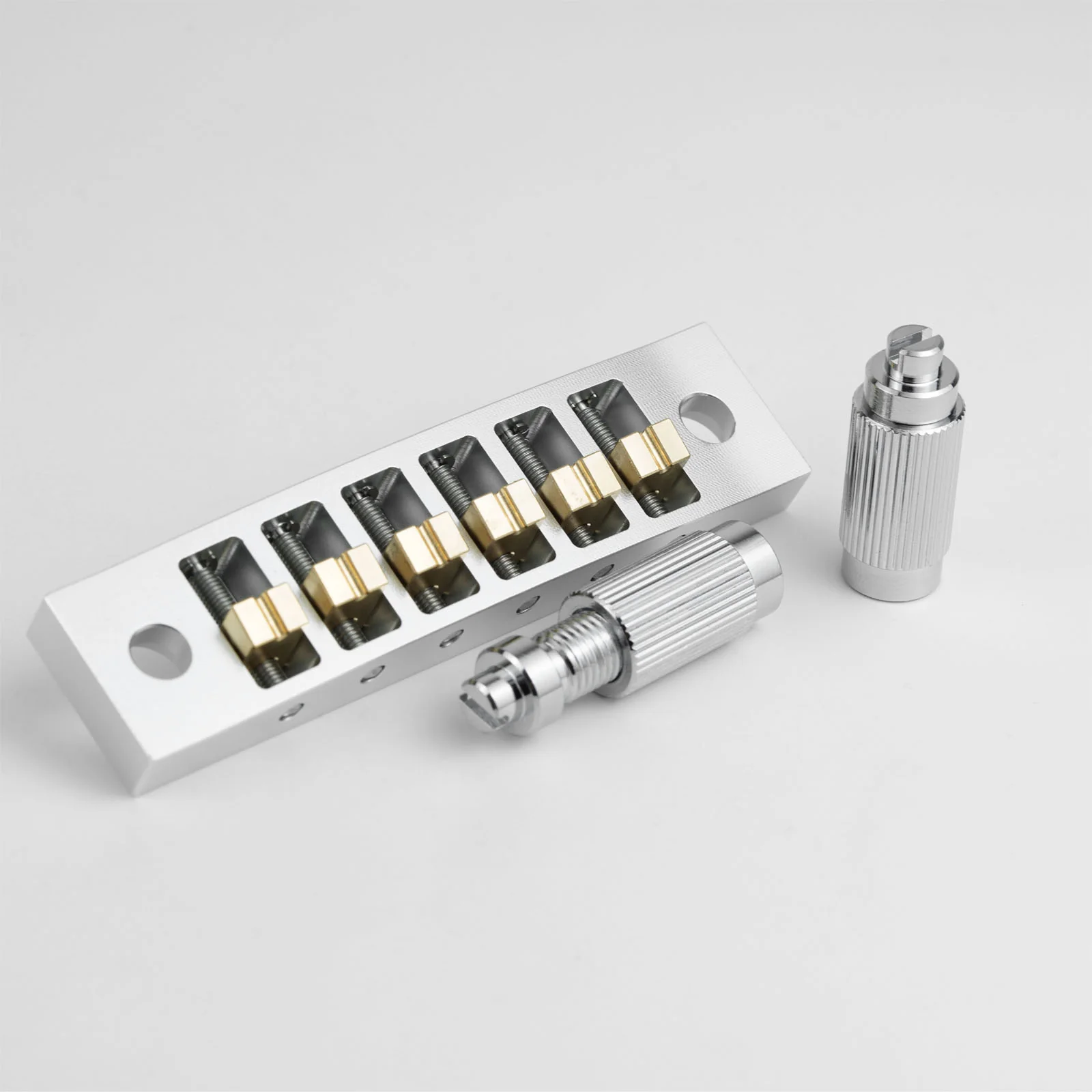

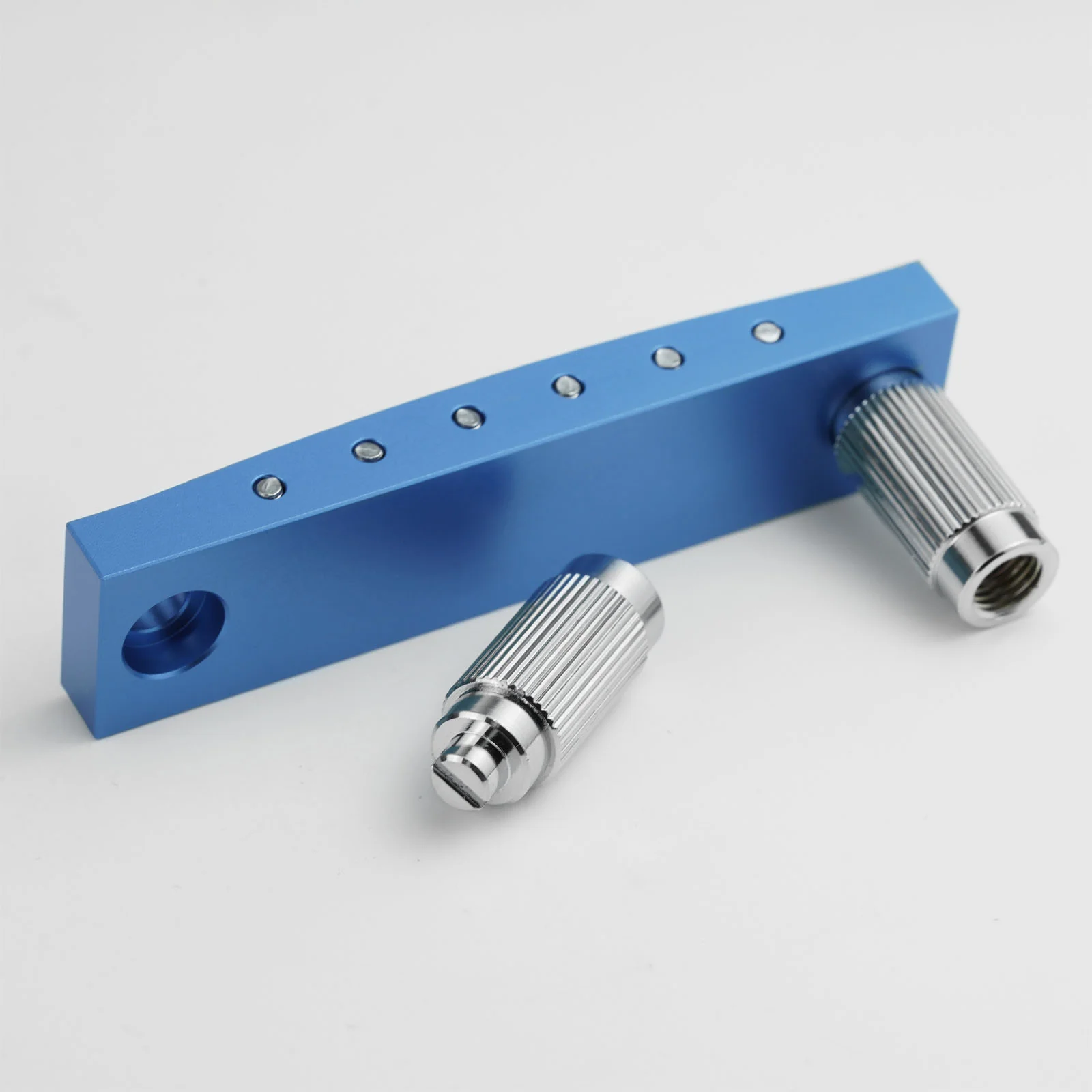

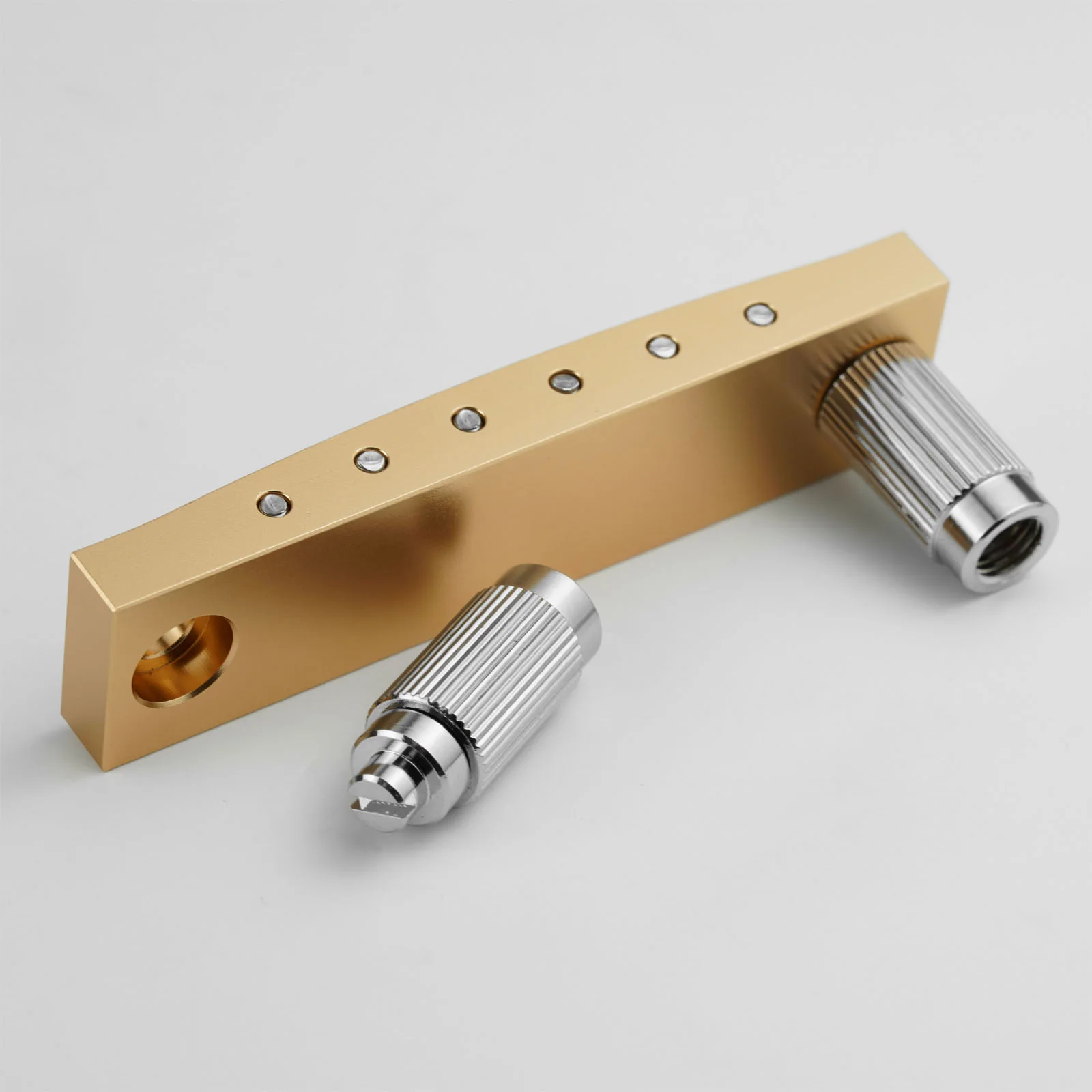

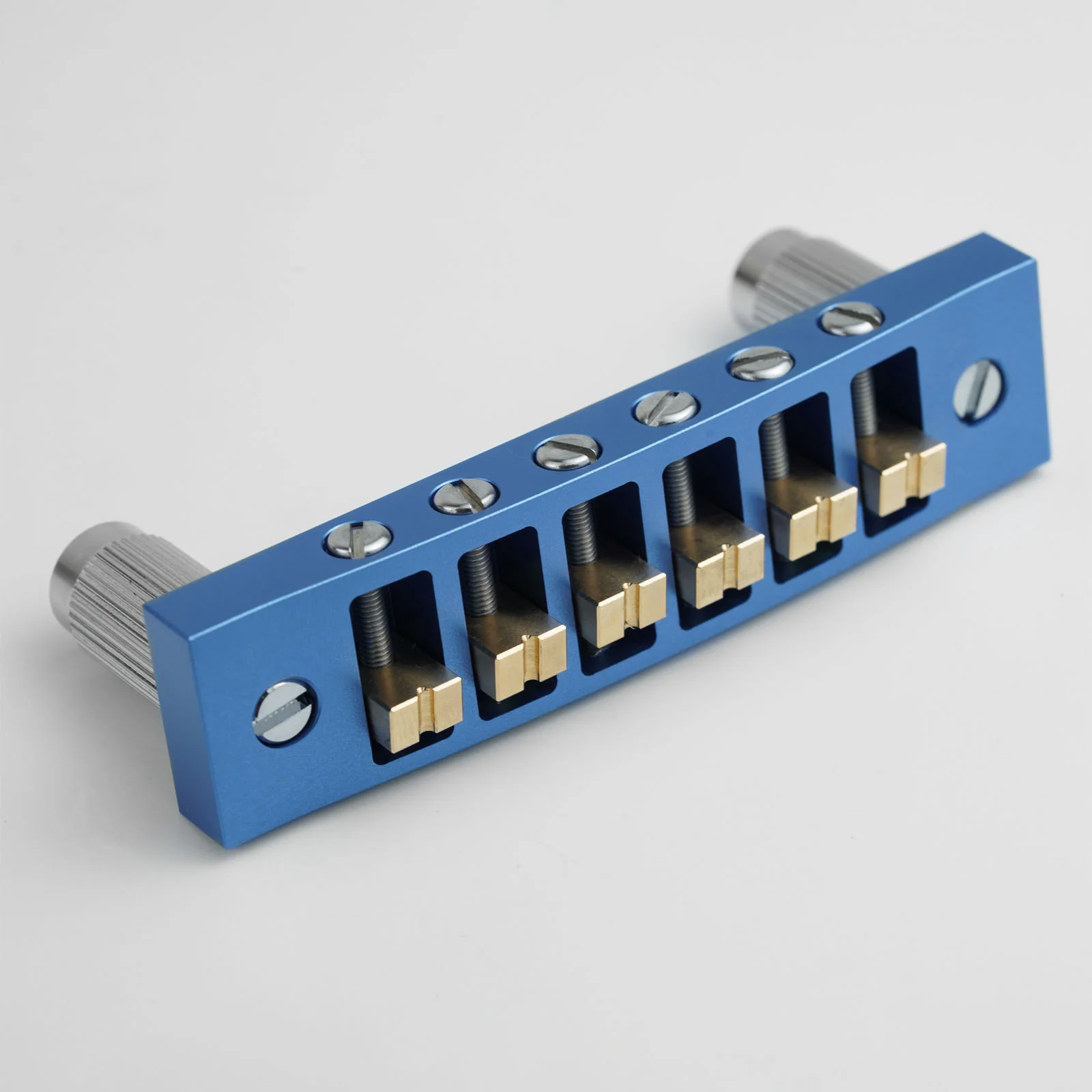

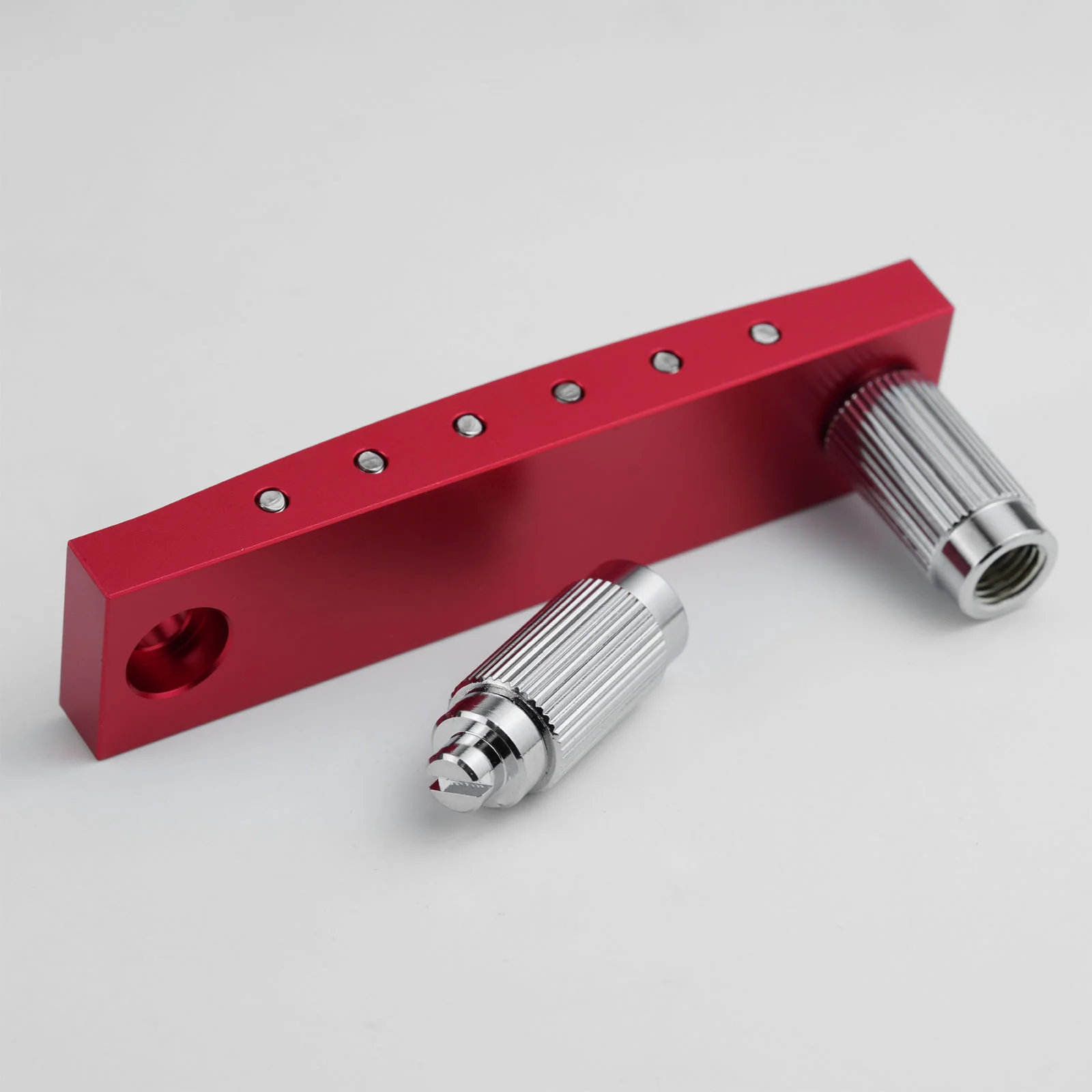

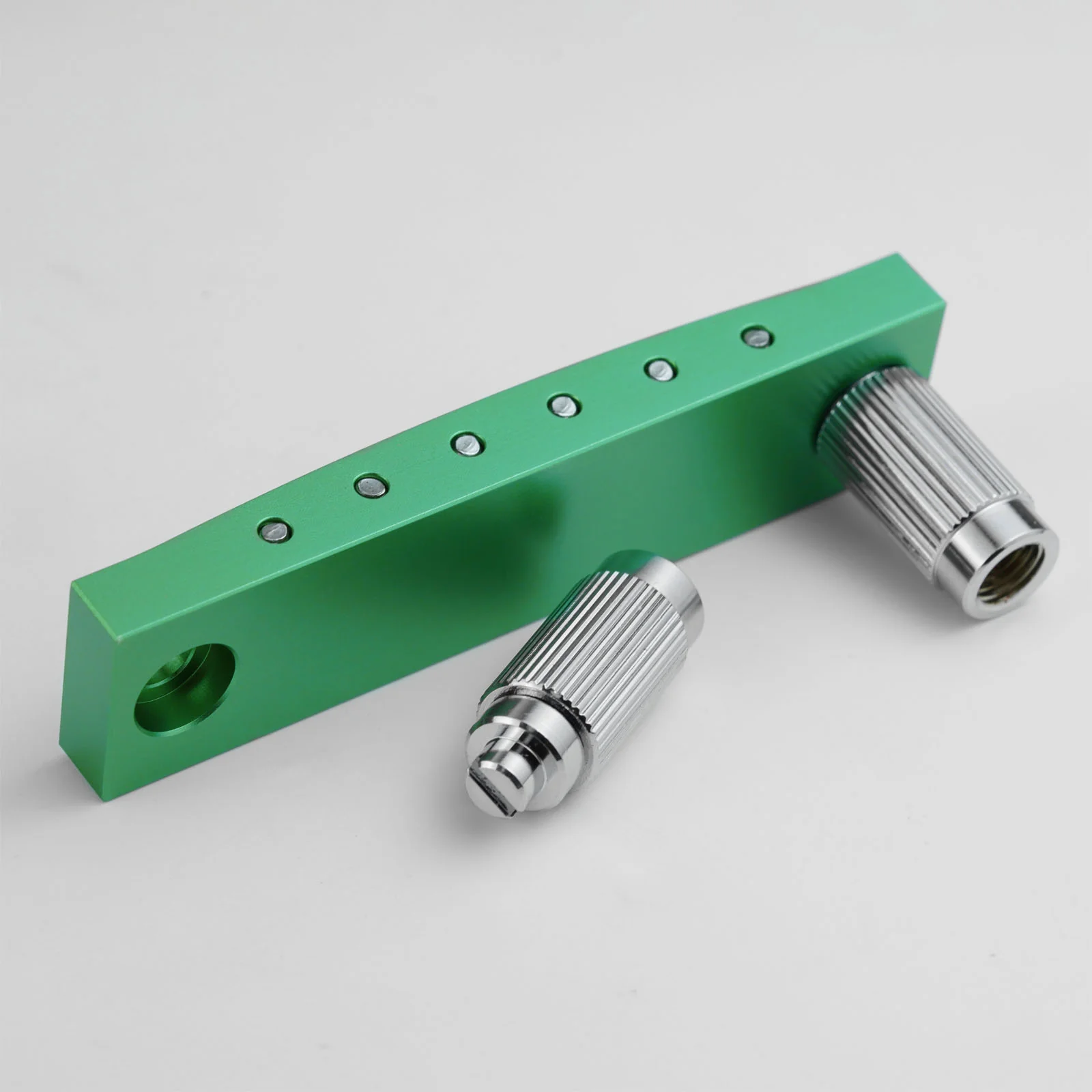

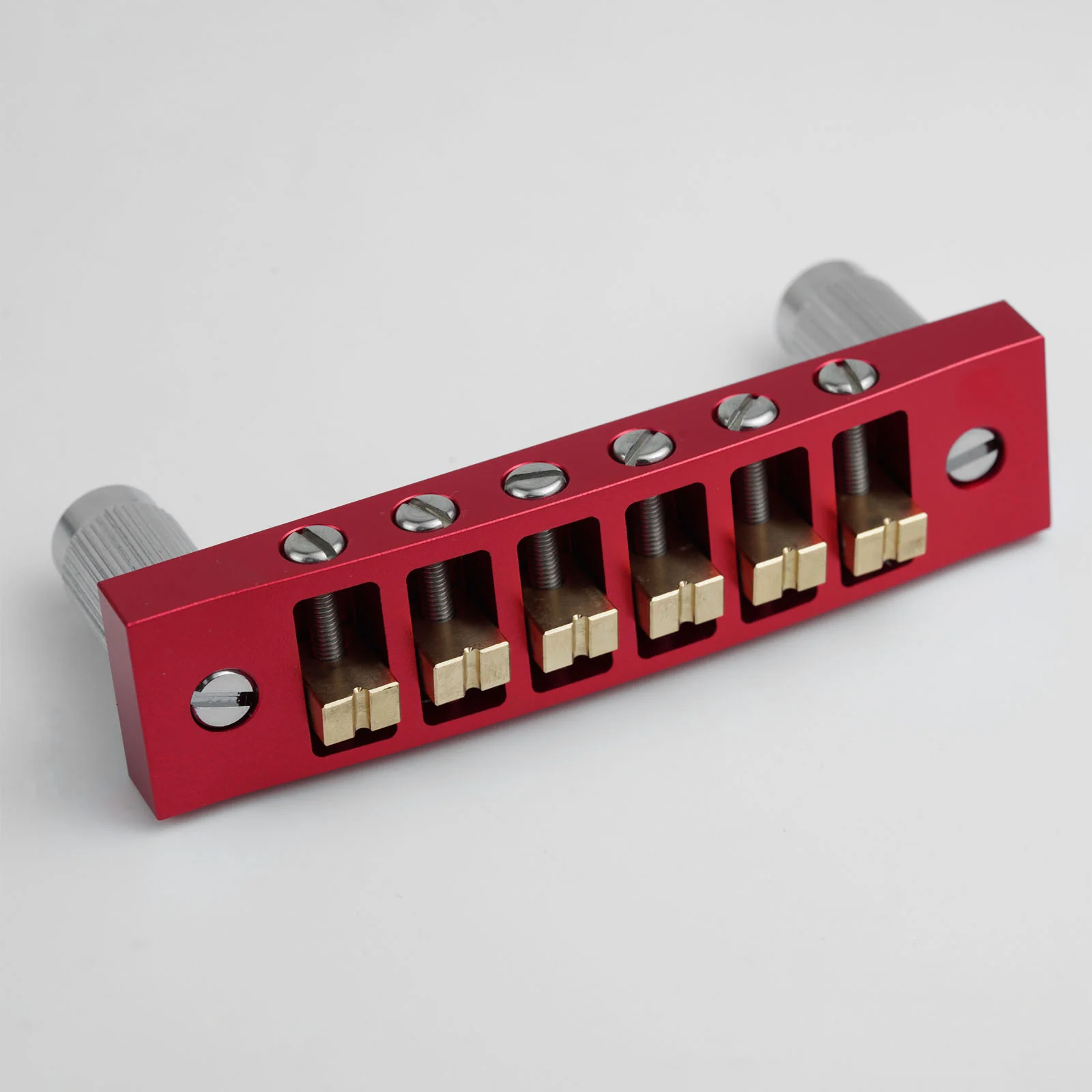

Key Features:
CNC-machined aluminum alloy bridge body for lightweight strength and precise construction.
Designed for LP/SG-style guitars with a Harmonica-Style Tune-O-Matic bridge layout.
Extended saddle travel supports accurate intonation adjustment.
Modern harmonica-style bridge design inspired by classic 1970s layouts.

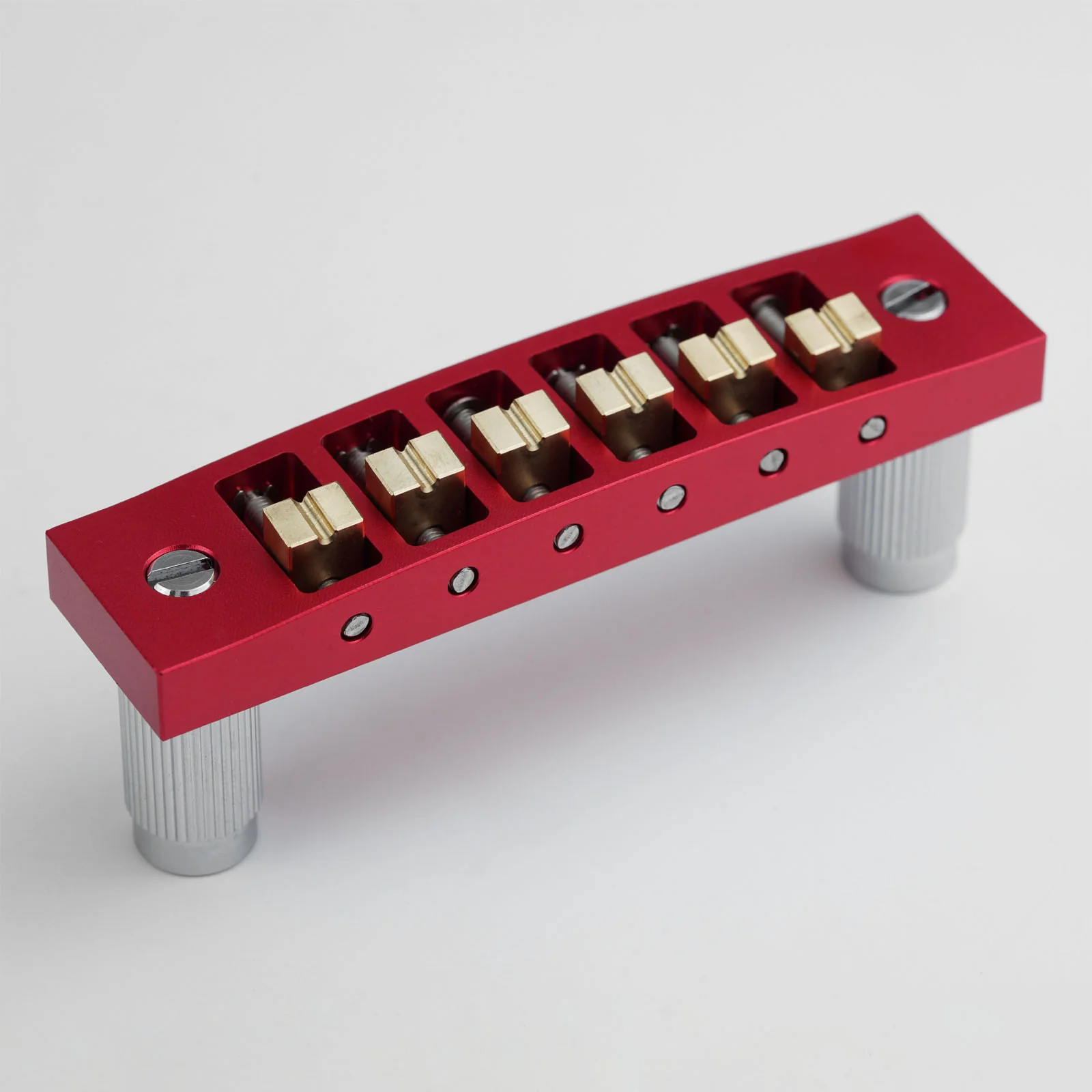

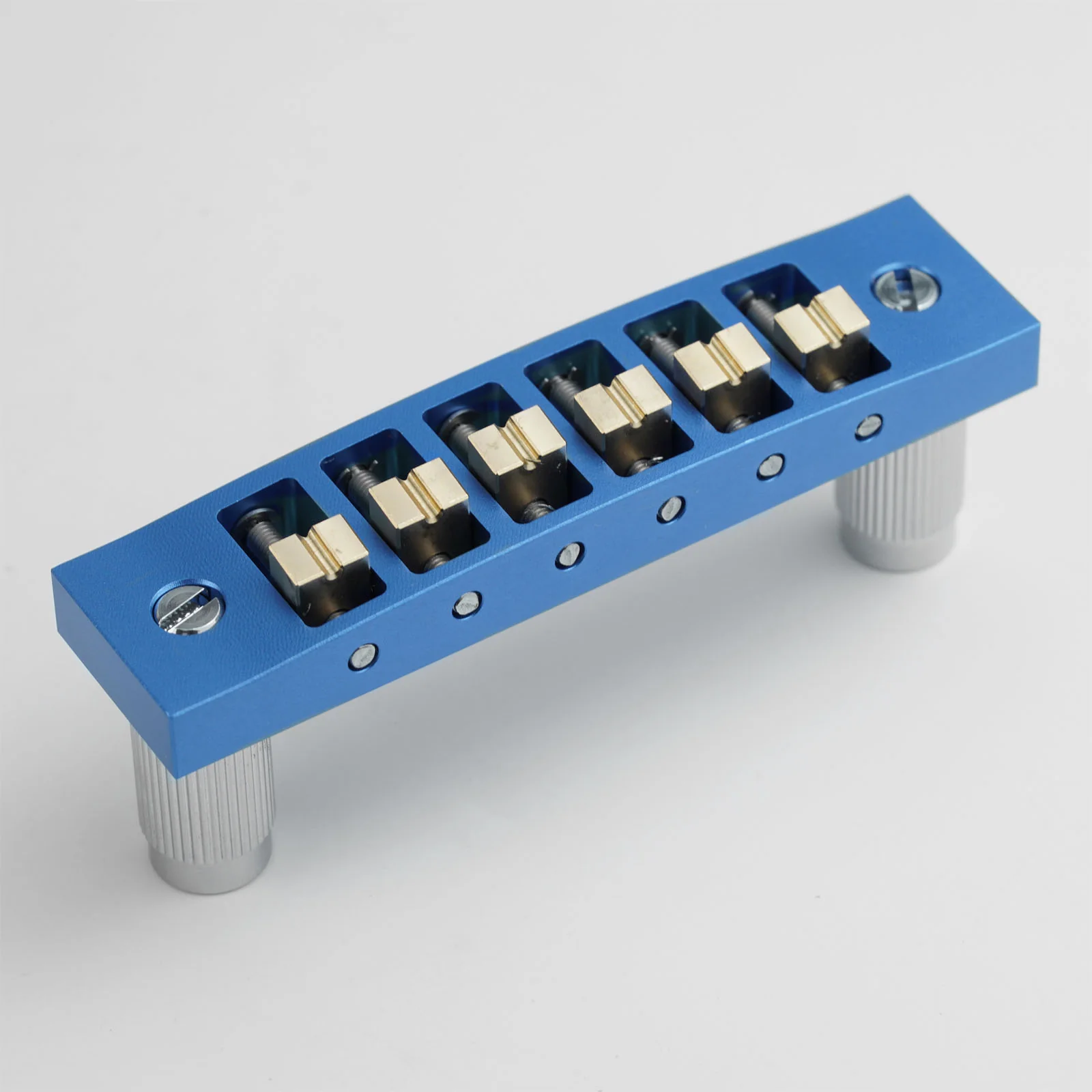

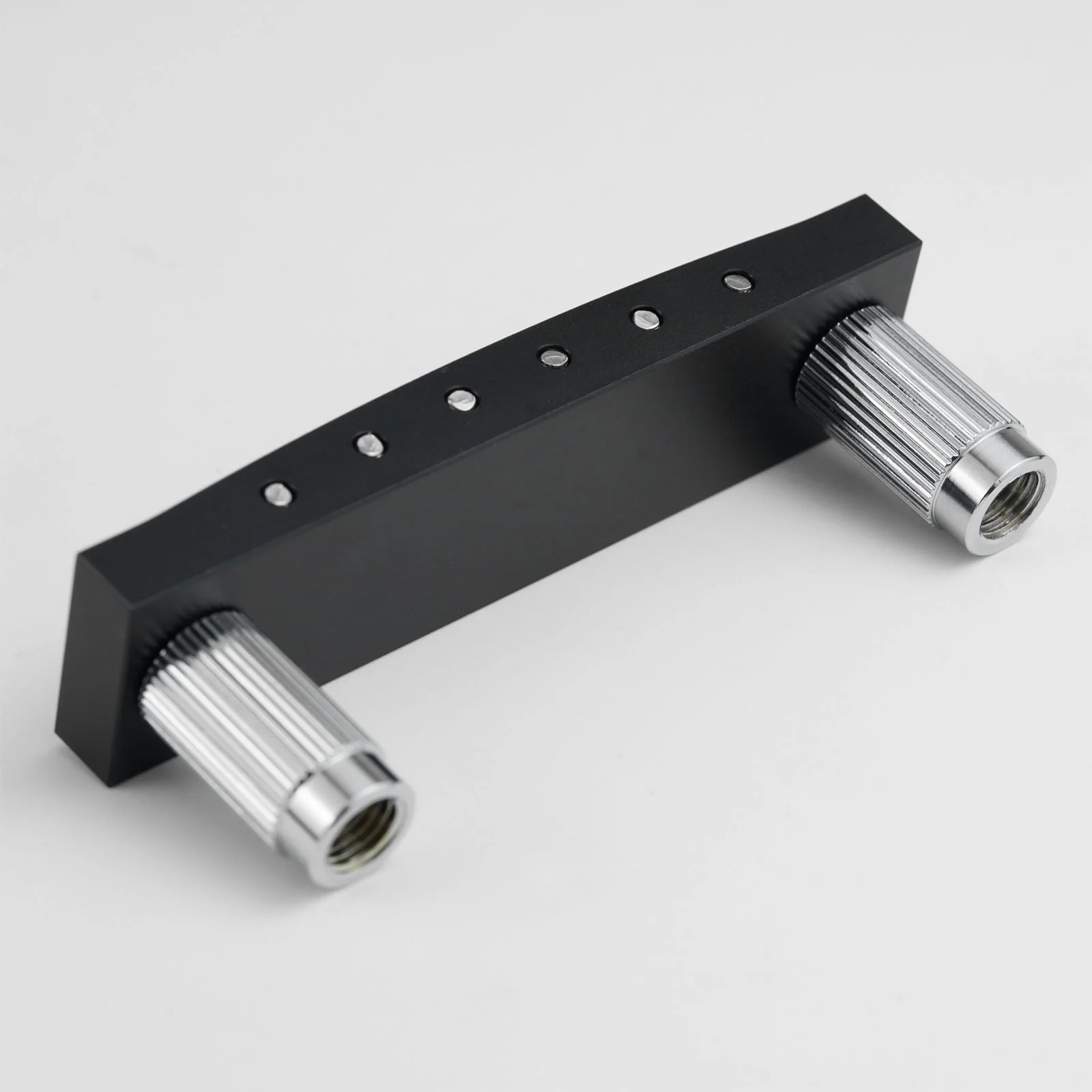

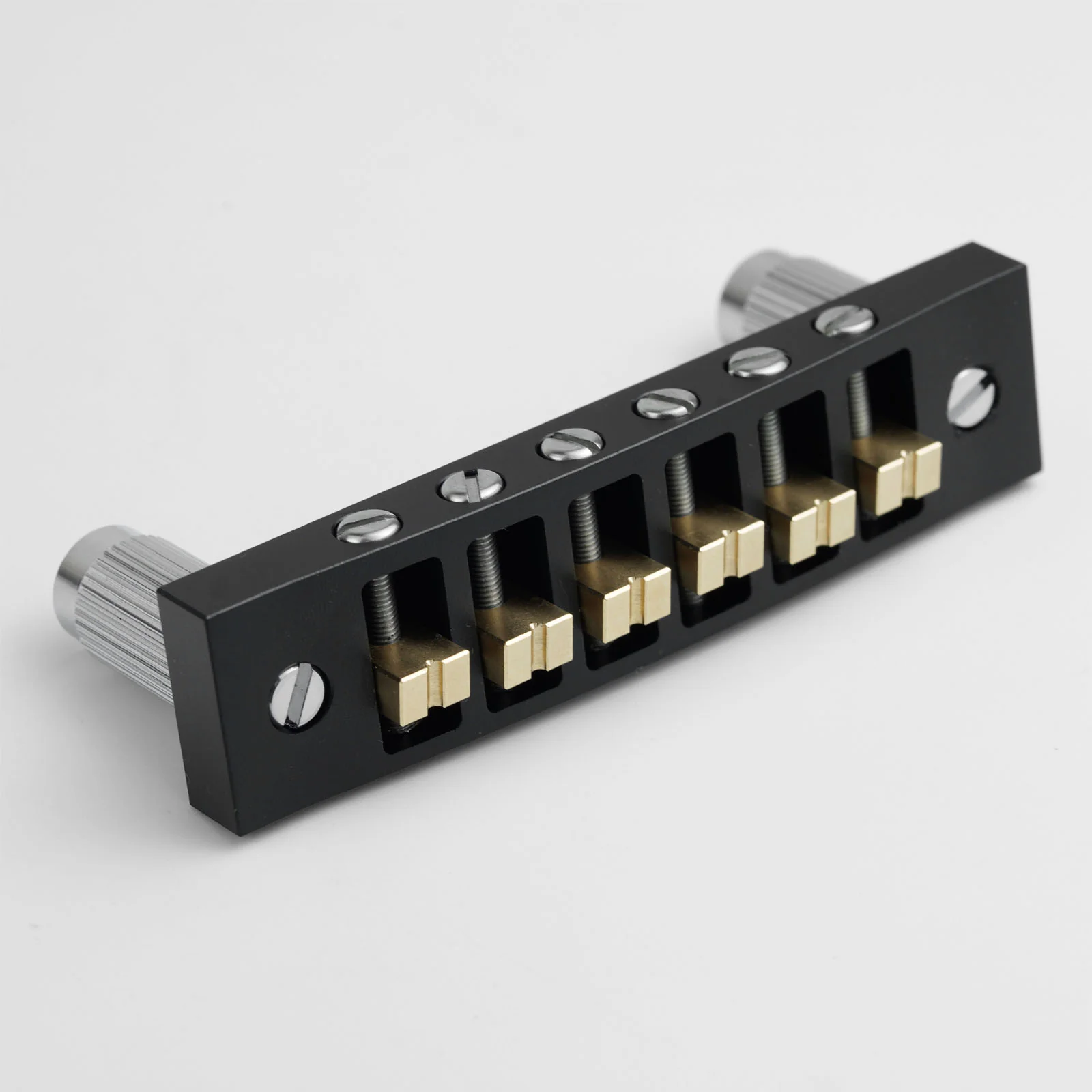

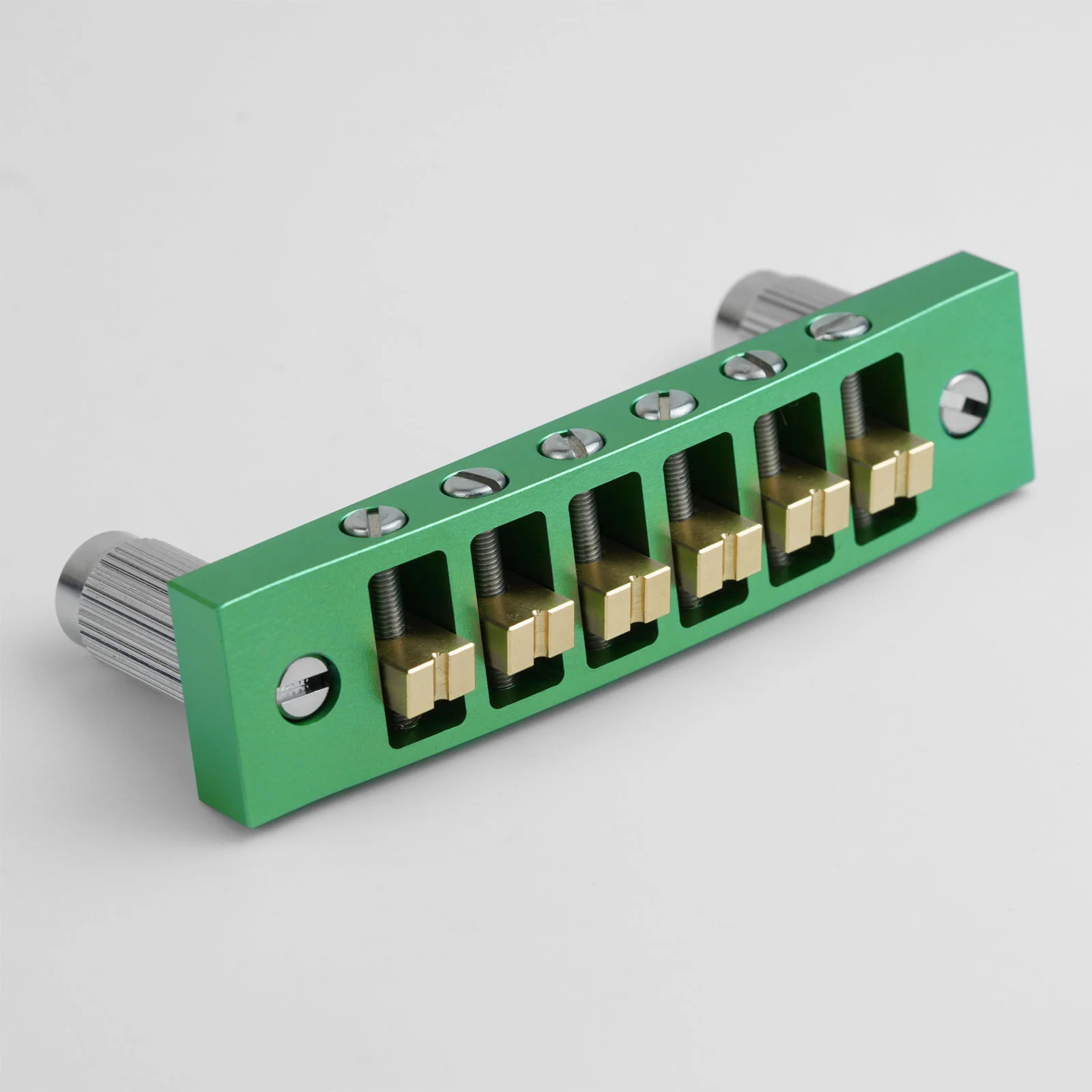

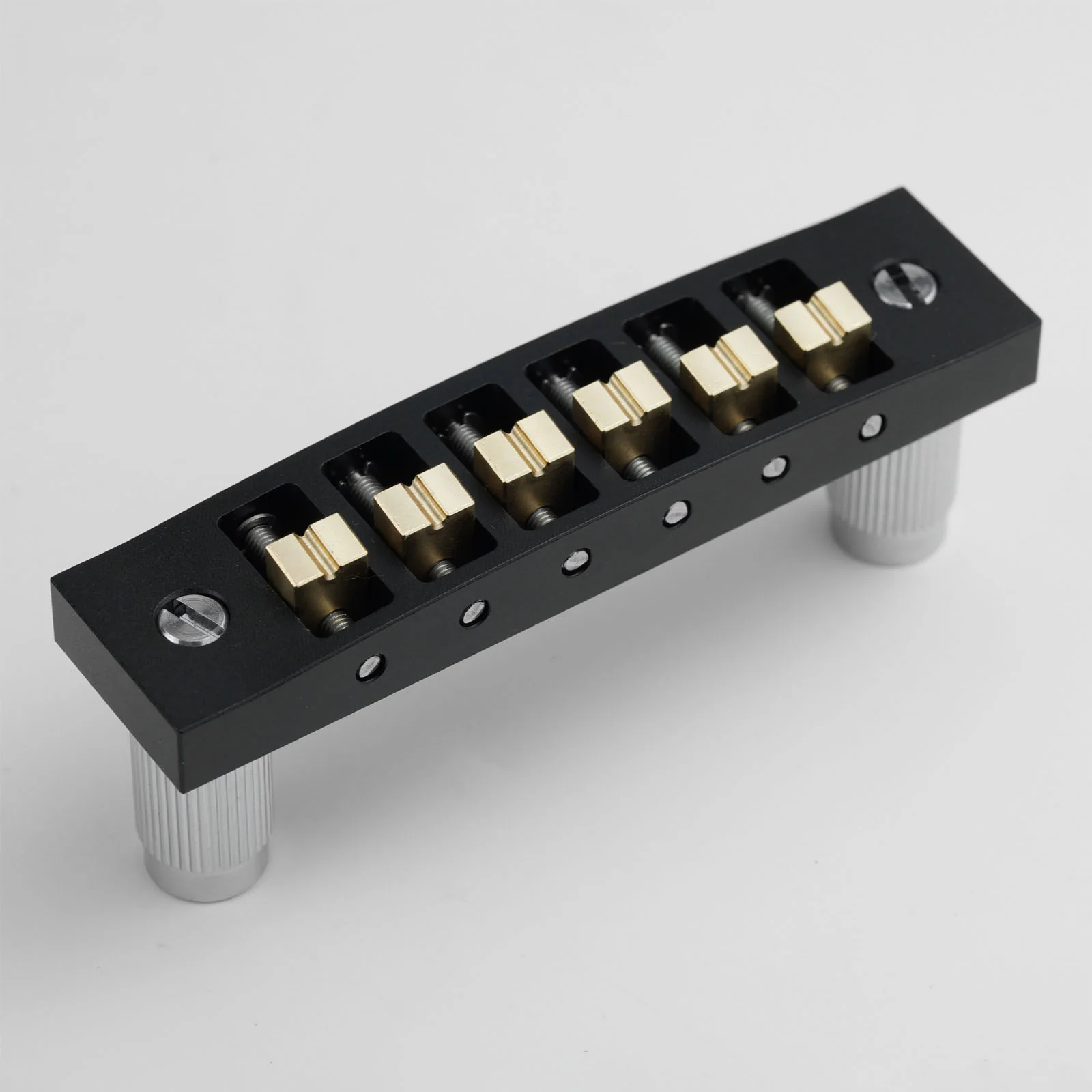

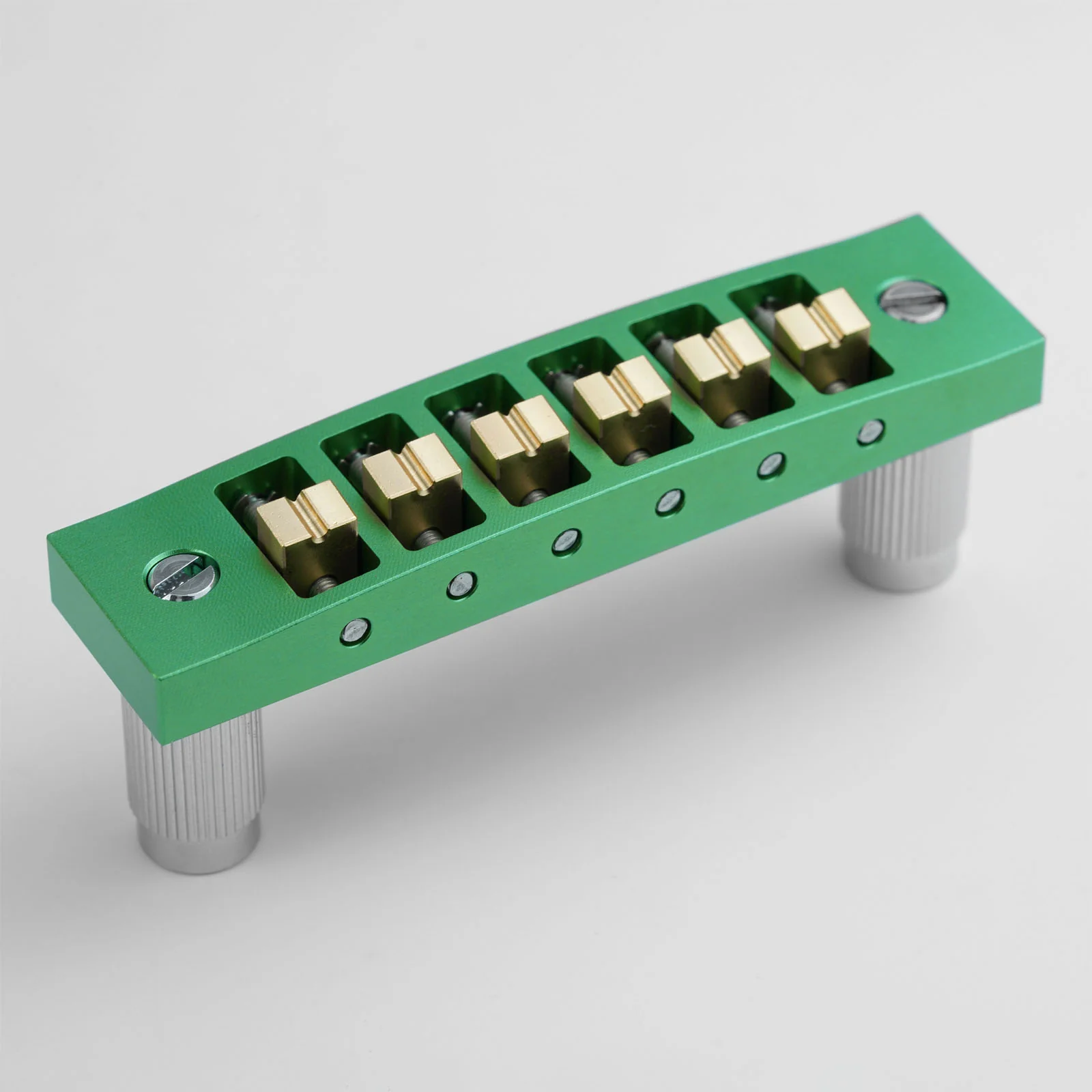

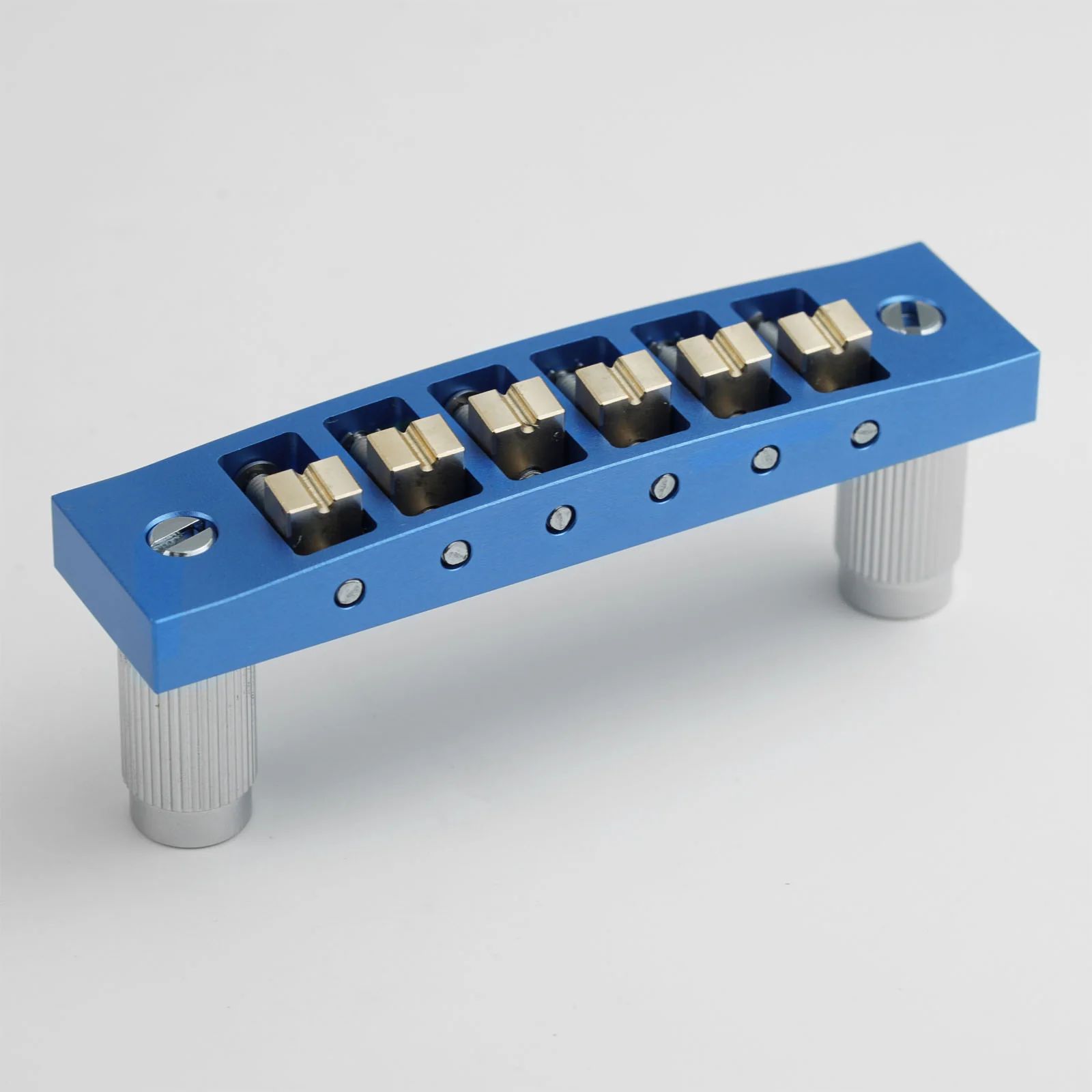

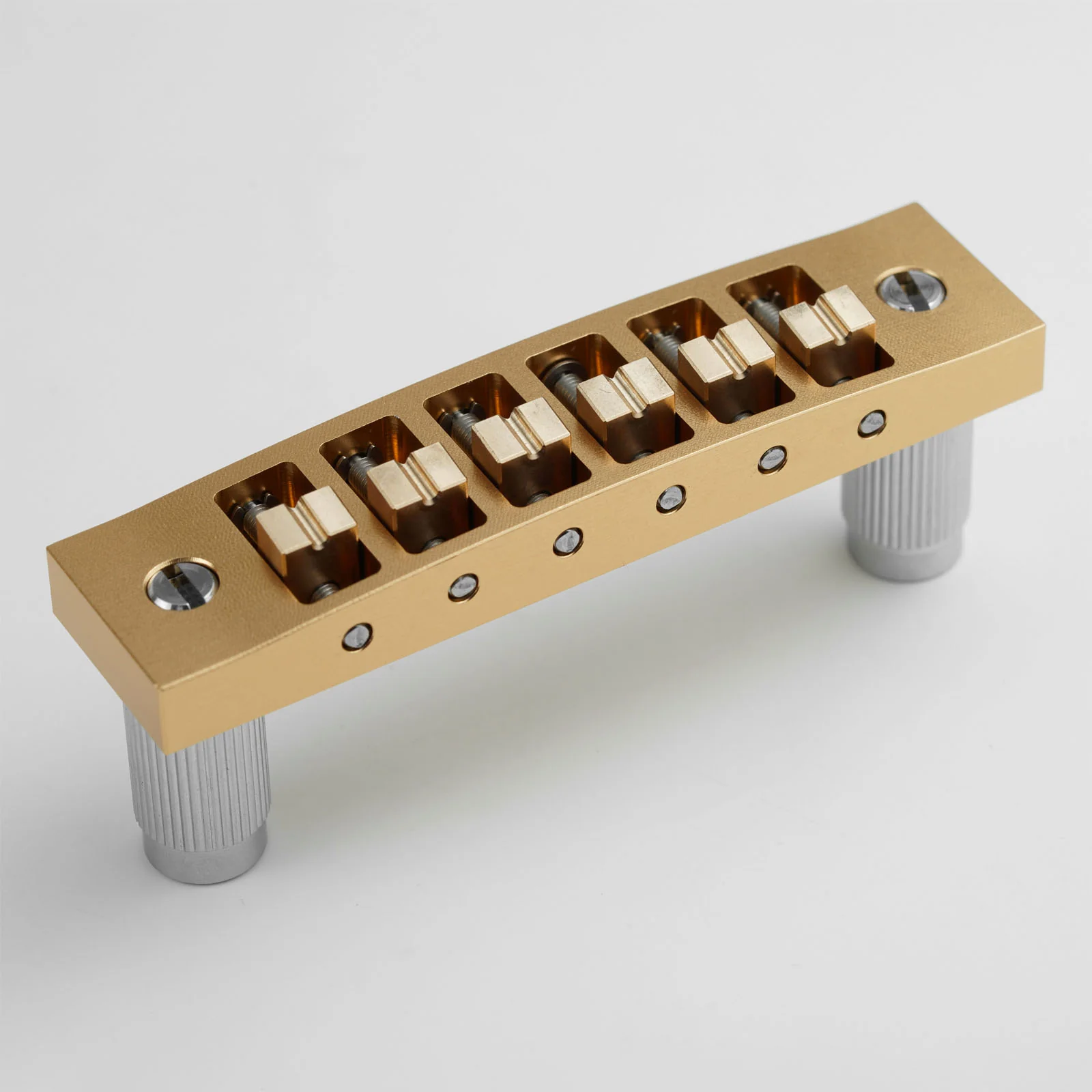

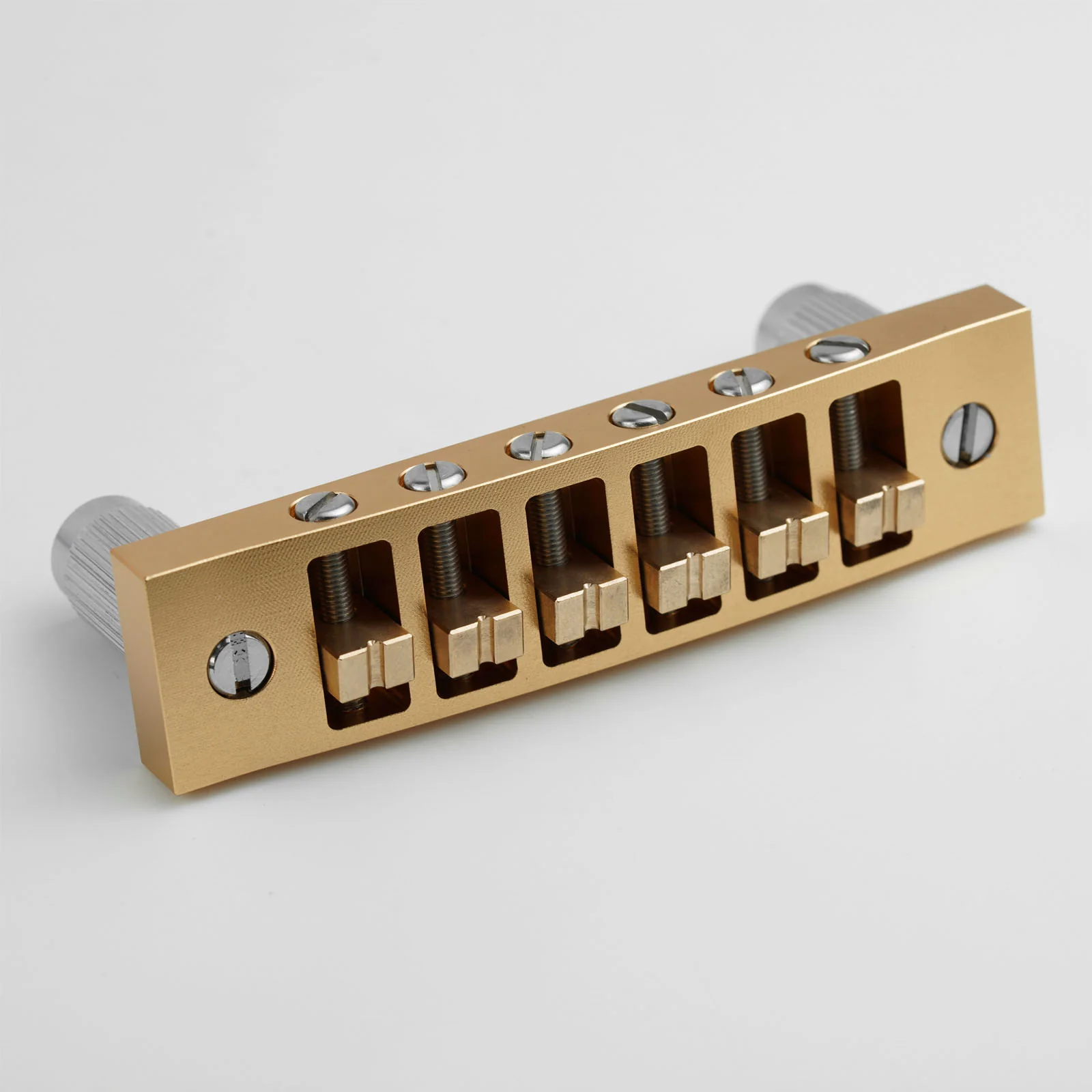

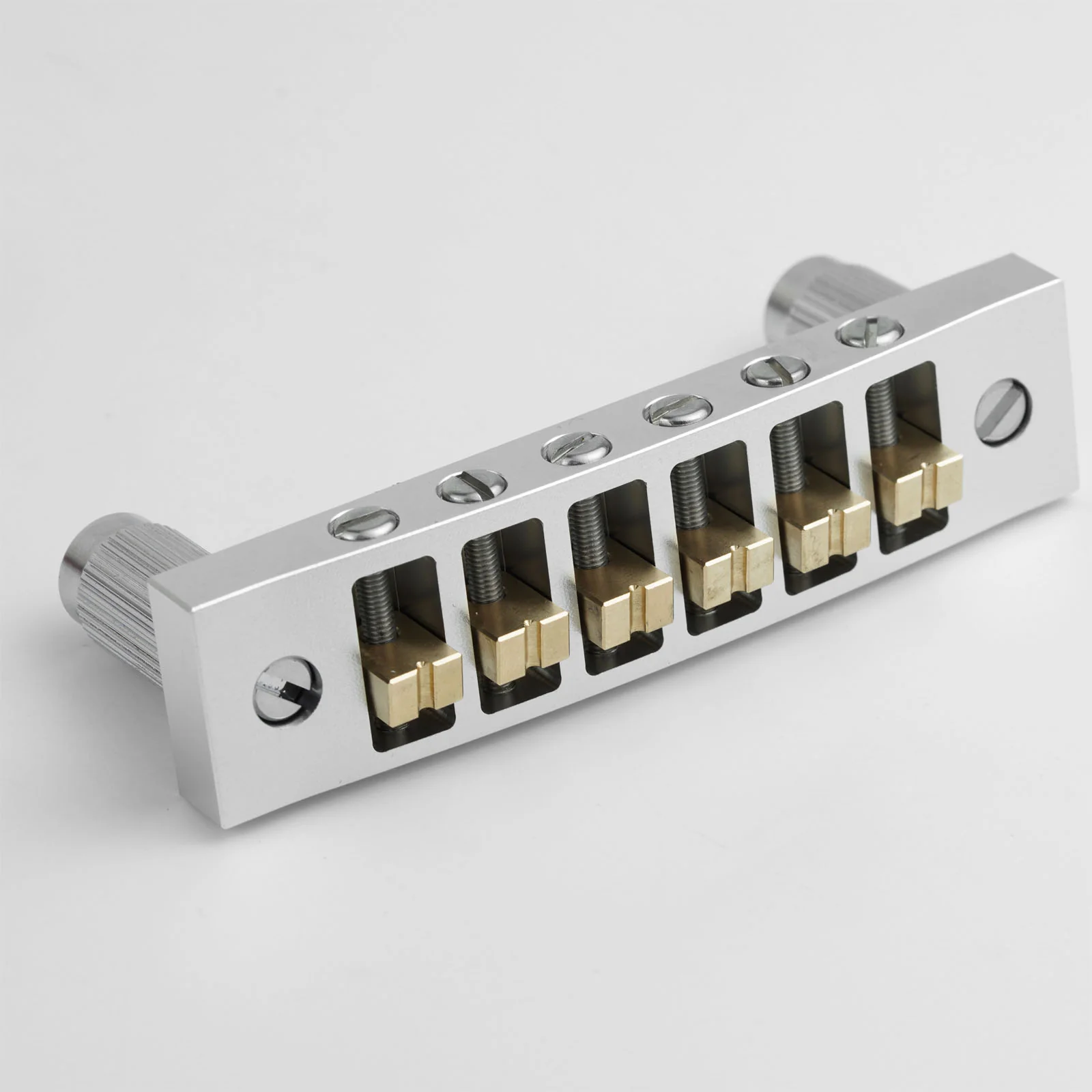

Available in Chrome, Black, Gold, Red, Green, and Blue finishes.

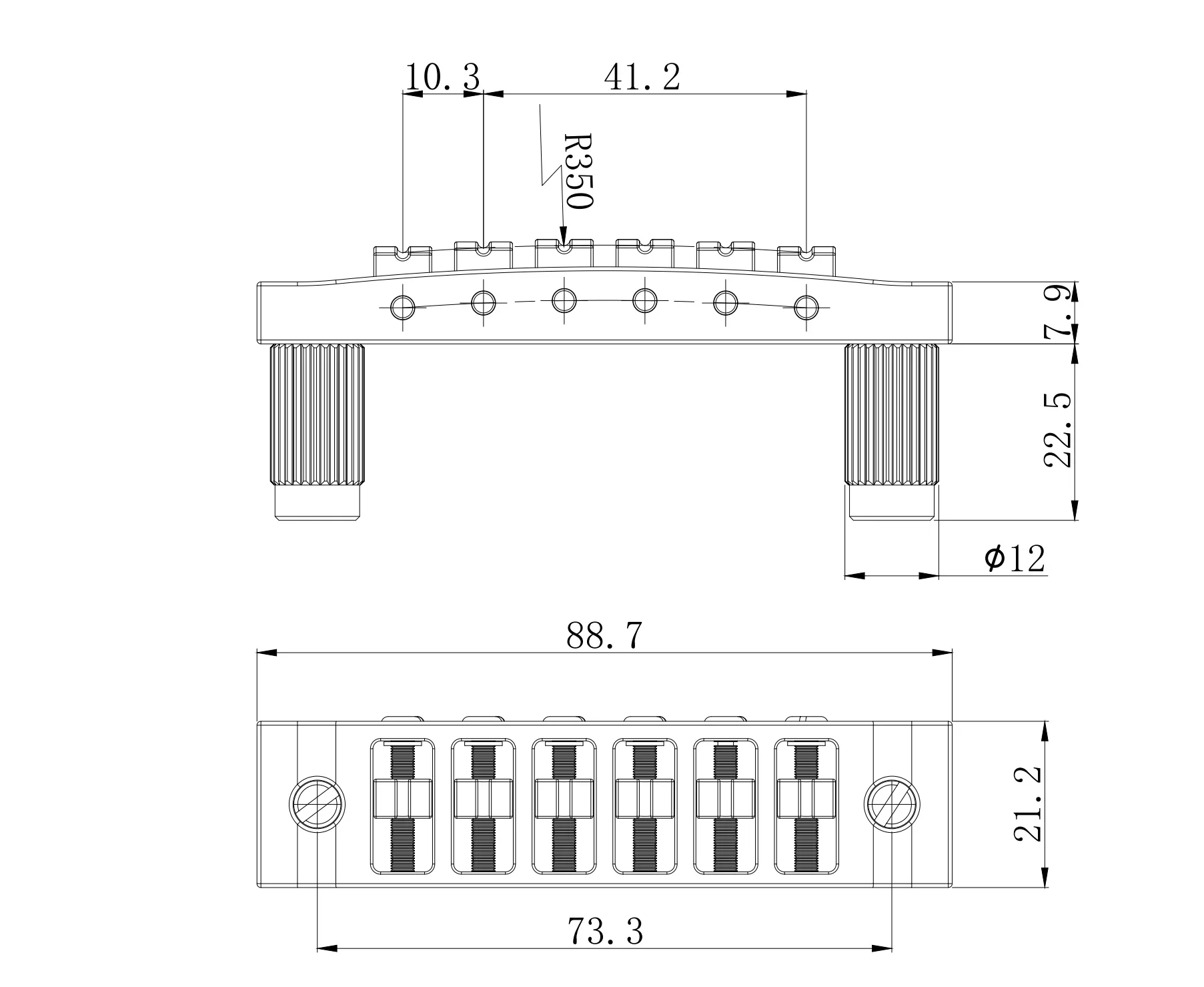

Specifications:
Material: CNC-machined aluminum alloy bridge body
Saddle Material: Aluminum Anodized
Application: LP/SG Guitars
Overall Length: 88.7 mm
Bridge Width: 21.2 mm
Bridge Height: 7.9 mm
Post Height: 22.5 mm
String Spacing (E to e): 51.5 mm
Single String Spacing: 10.3 mm
Post Spacing (Center to Center): 73.3 mm
Post Diameter: Ø12 mm
Saddle Radius: R350
Color Options: Chrome, Black, Gold, Red, Green, Blue

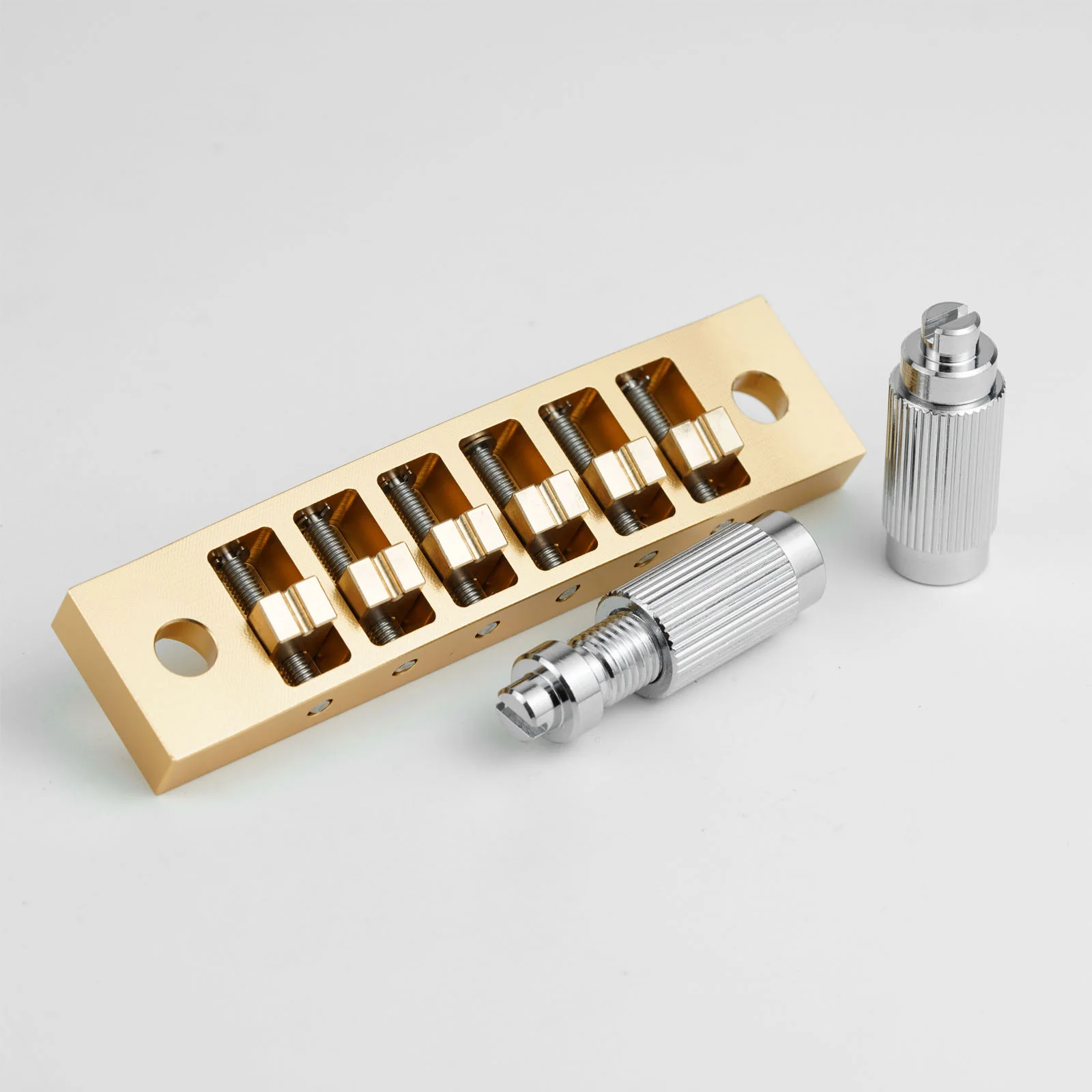

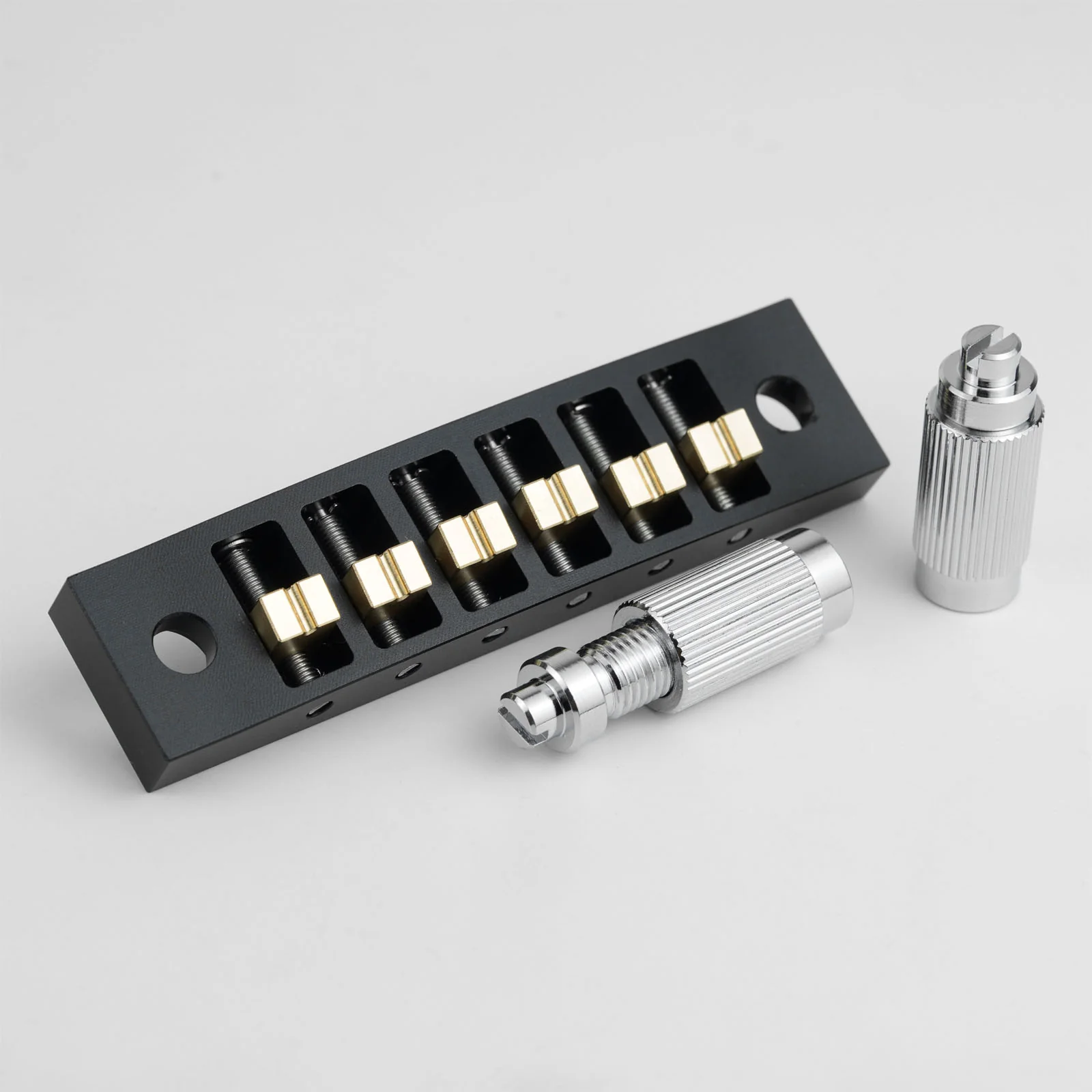

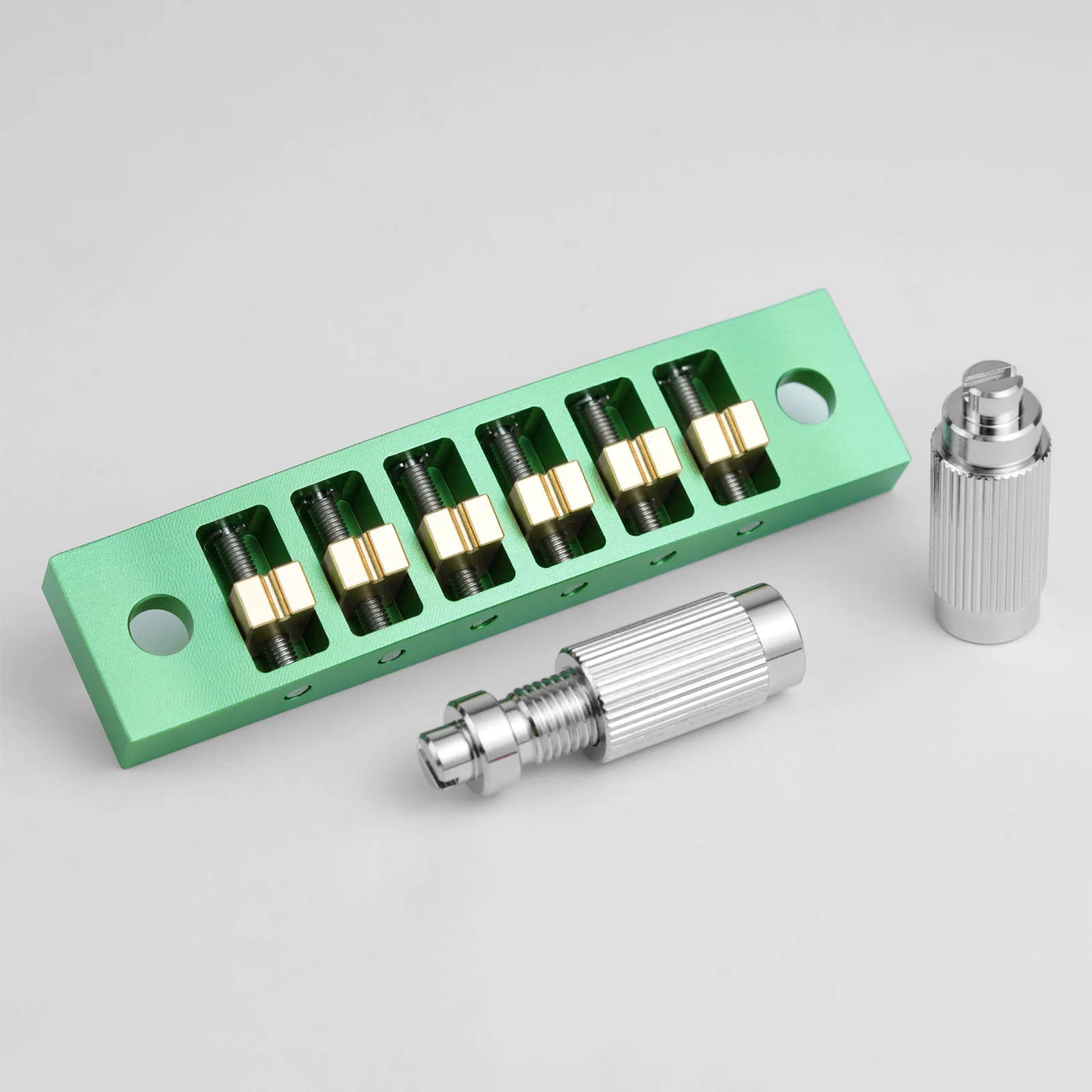

Package Includes:
1 x Tune-O-Matic Bridge

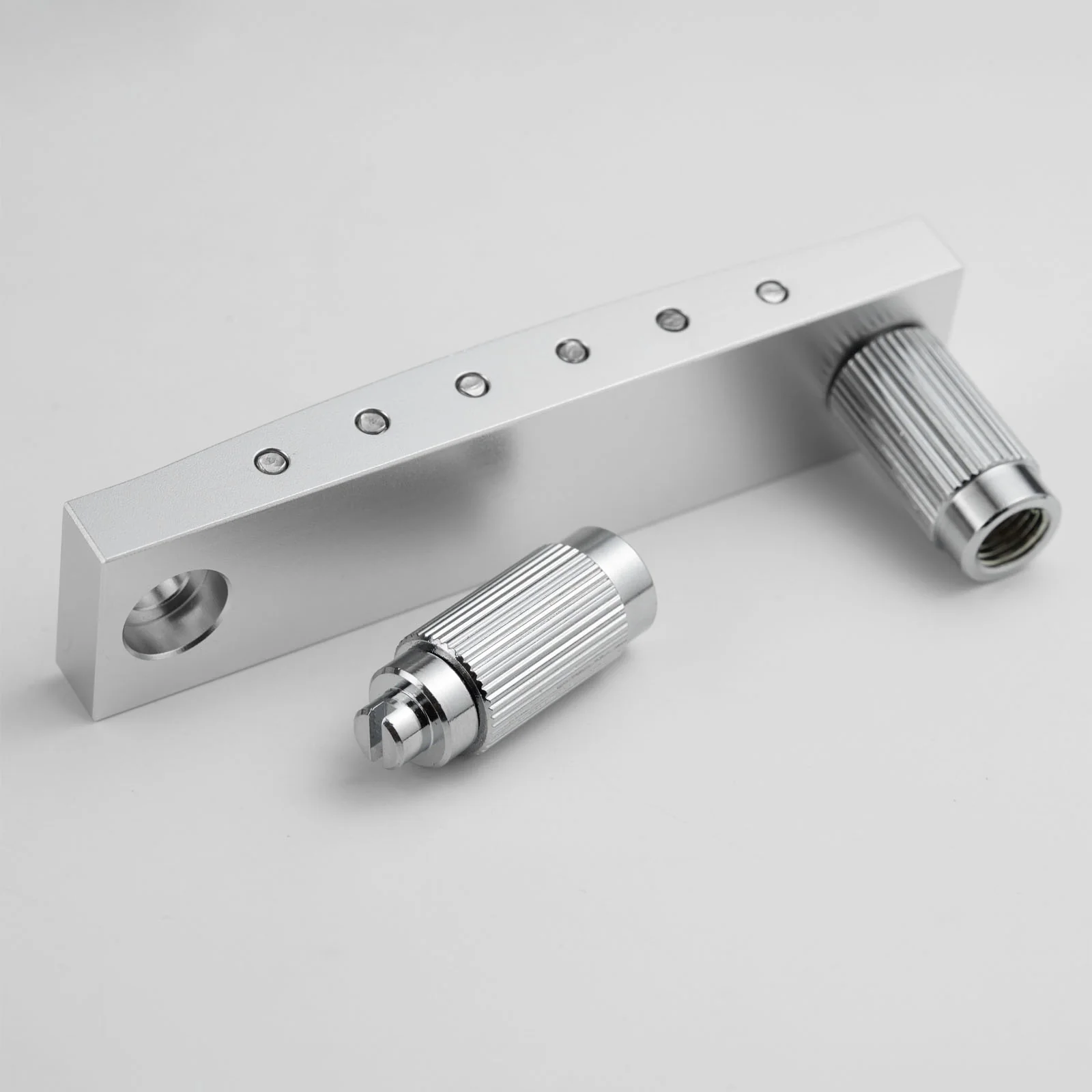

2 x Bridge Posts

Fitment Note / Warm Reminder:
Please verify your guitar’s bridge type, post spacing, post diameter, and string spacing before ordering. This bridge is designed for LP/SG-style guitars and uses 73.3 mm center-to-center post spacing, Ø12 mm posts, and 51.5 mm E-to-e string spacing. All dimensions may vary by ±1 mm due to manual measurement.
