Key Features:

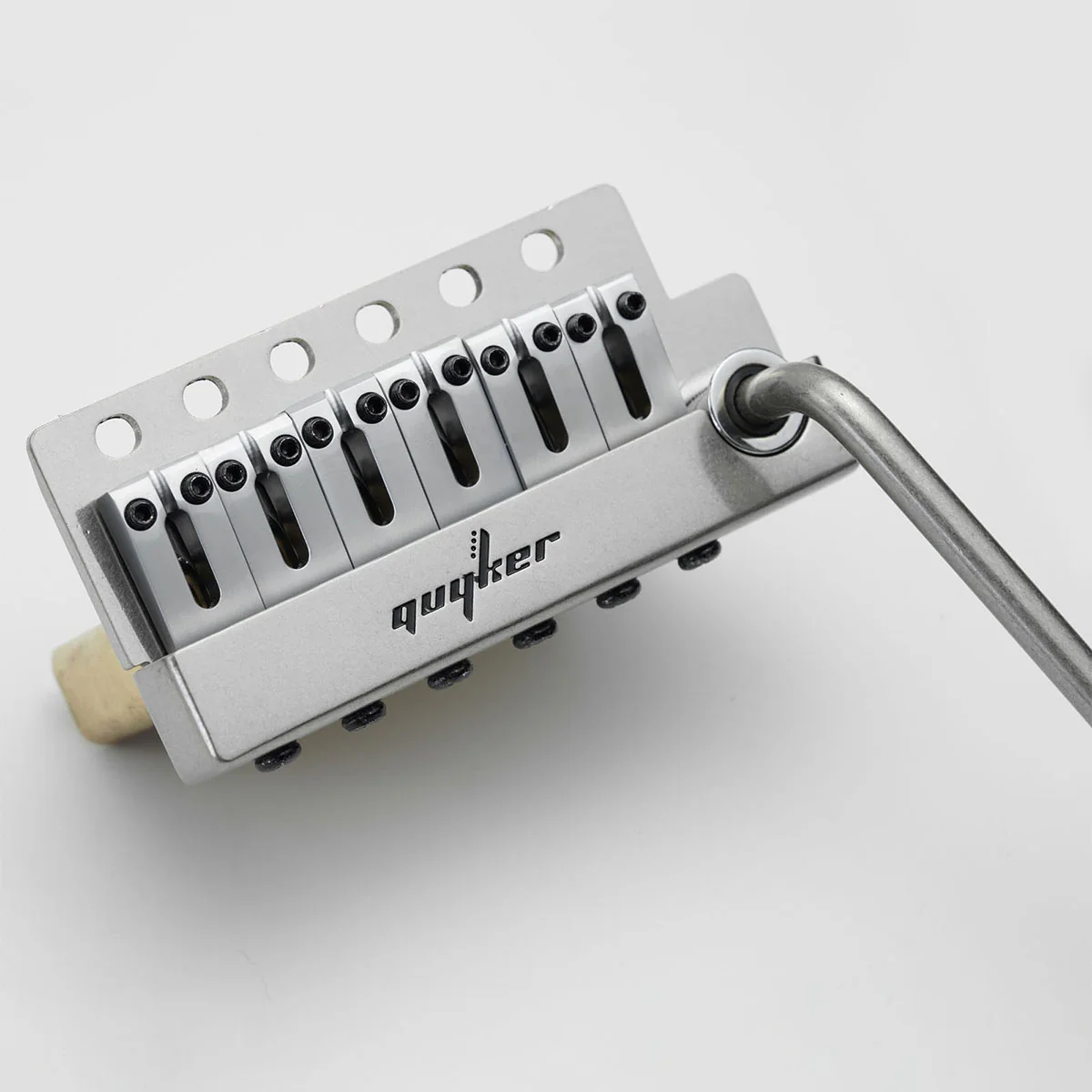

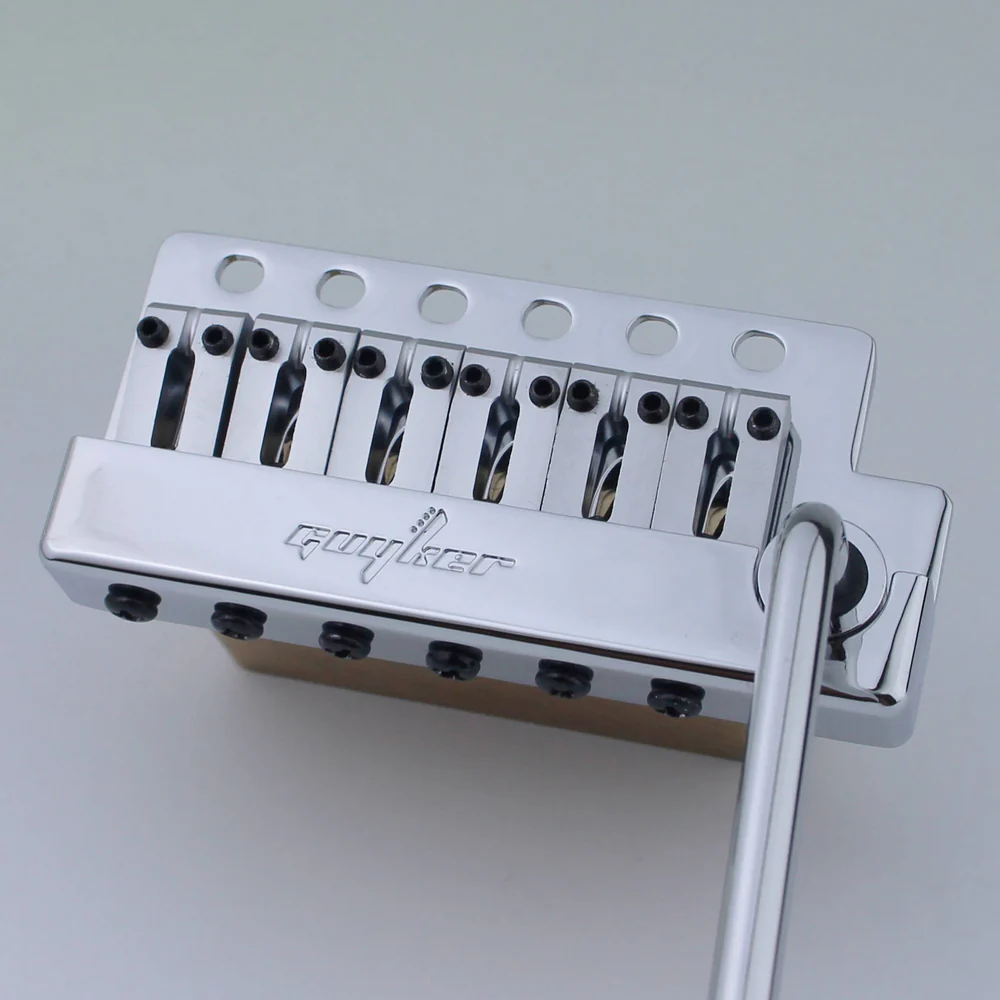

• 6-point ST-style tremolo bridge for electric guitar upgrade or replacement projects.

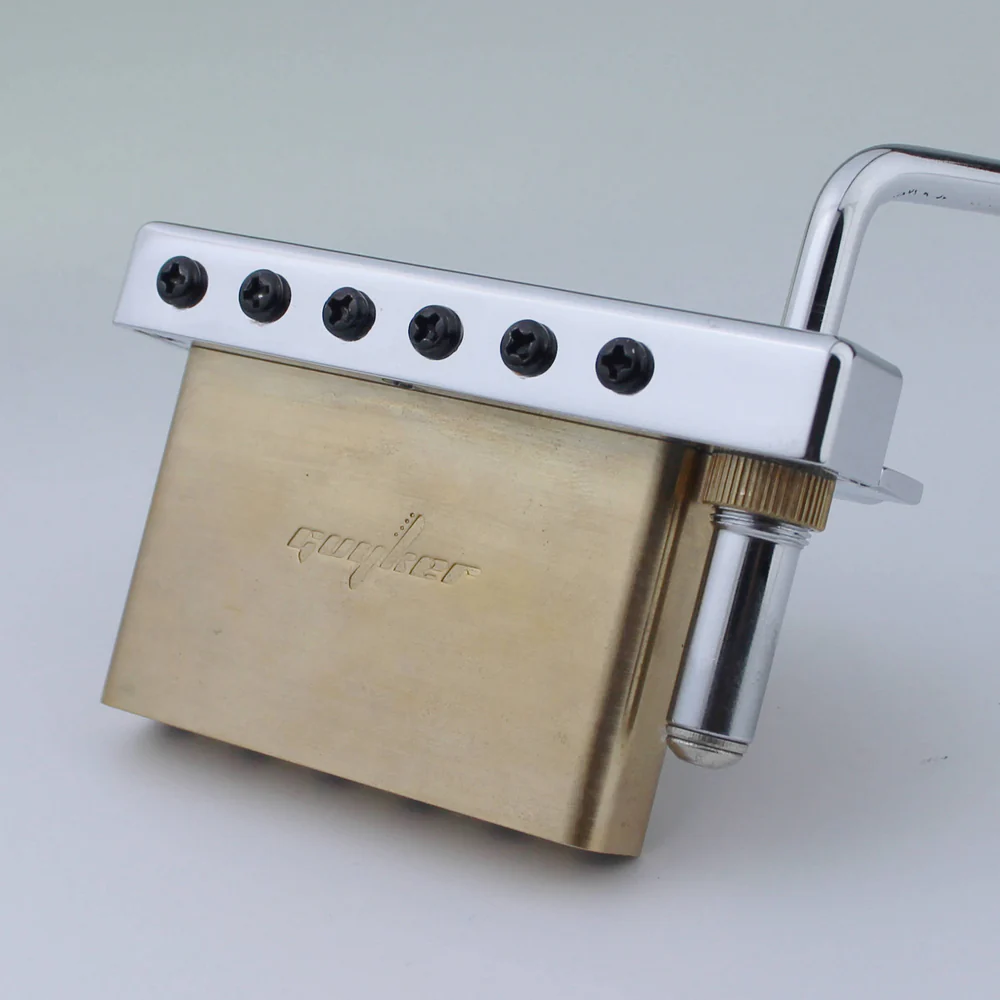

• Brass saddles and a solid brass block provide durable construction and stable string contact.
• 10.8 mm string spacing suits guitars built for this bridge format.
• Push-in tremolo arm design allows practical installation and use.
• Complete install kit includes the bridge and the main mounting hardware needed for installation.
• Suitable for projects where the mounting layout and body routing match the listed dimensions.

Specifications:

• Material: Brass saddles, brass block, metal construction

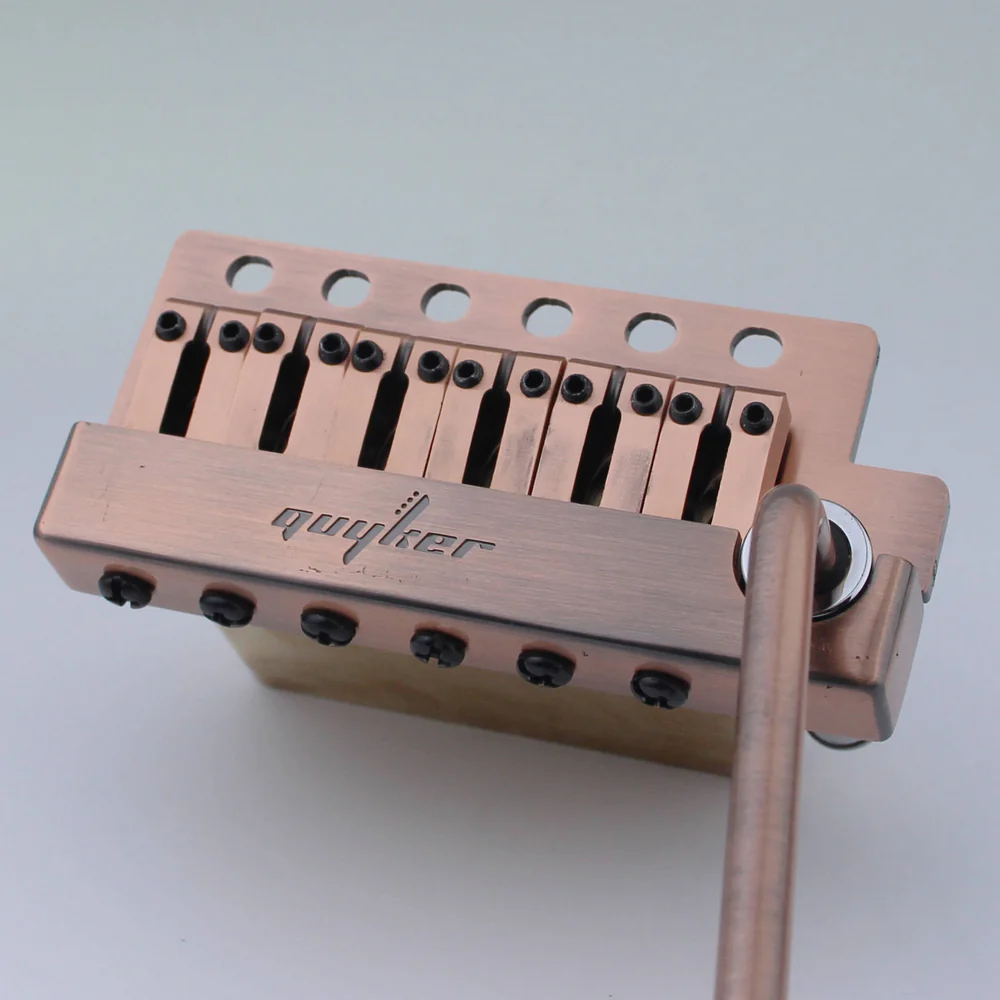

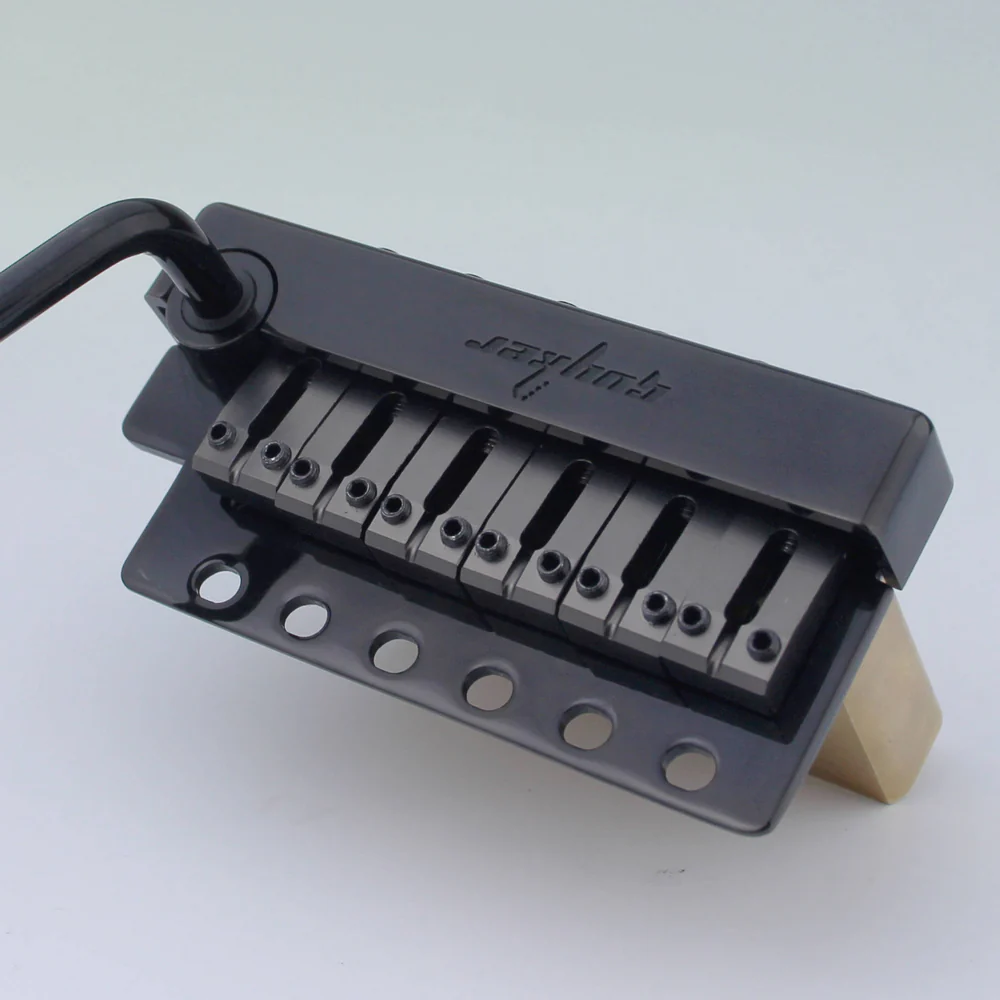

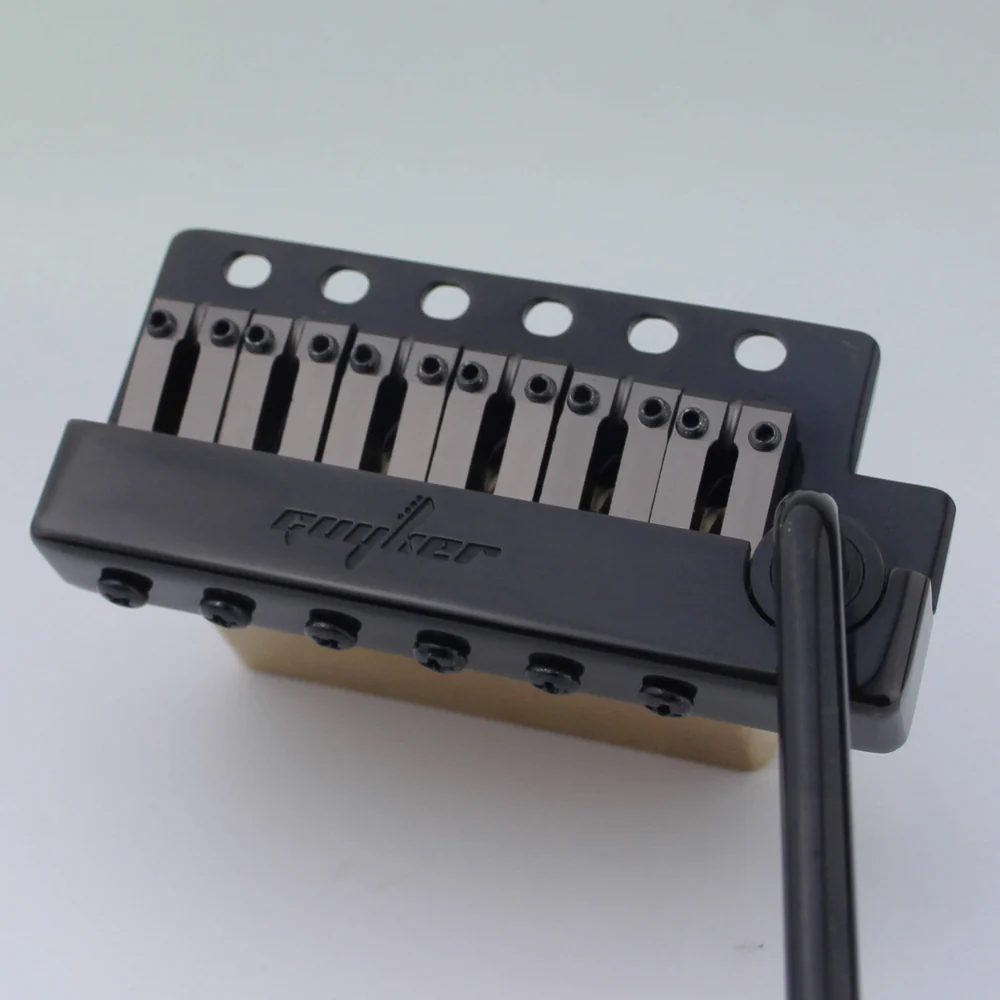

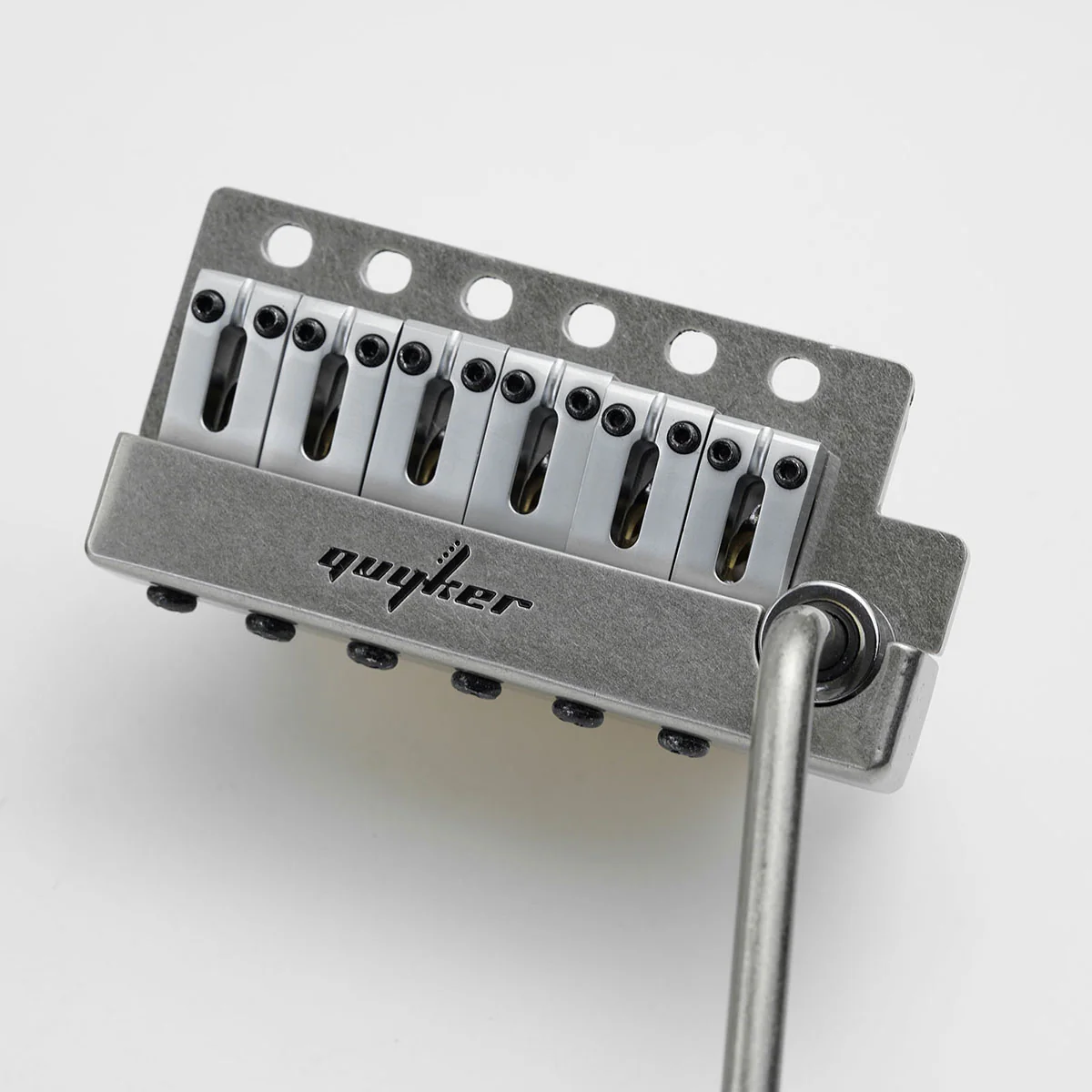

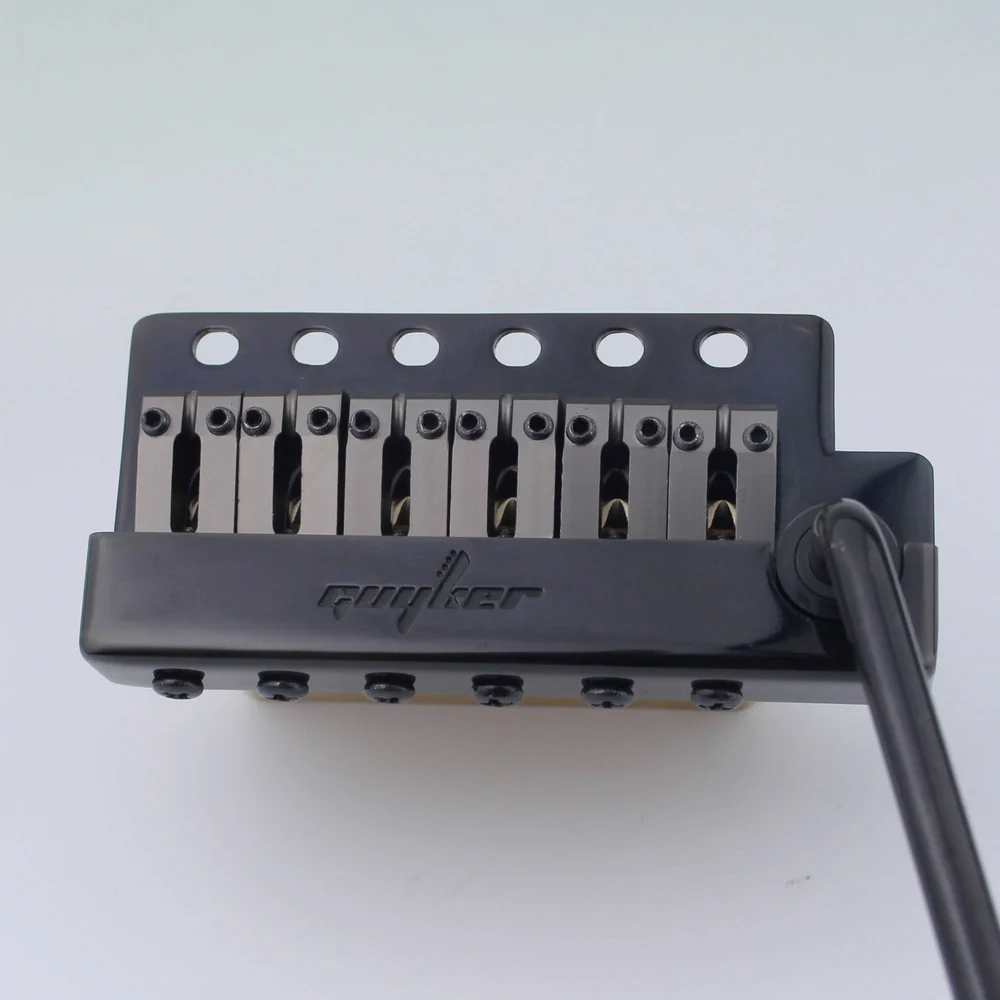

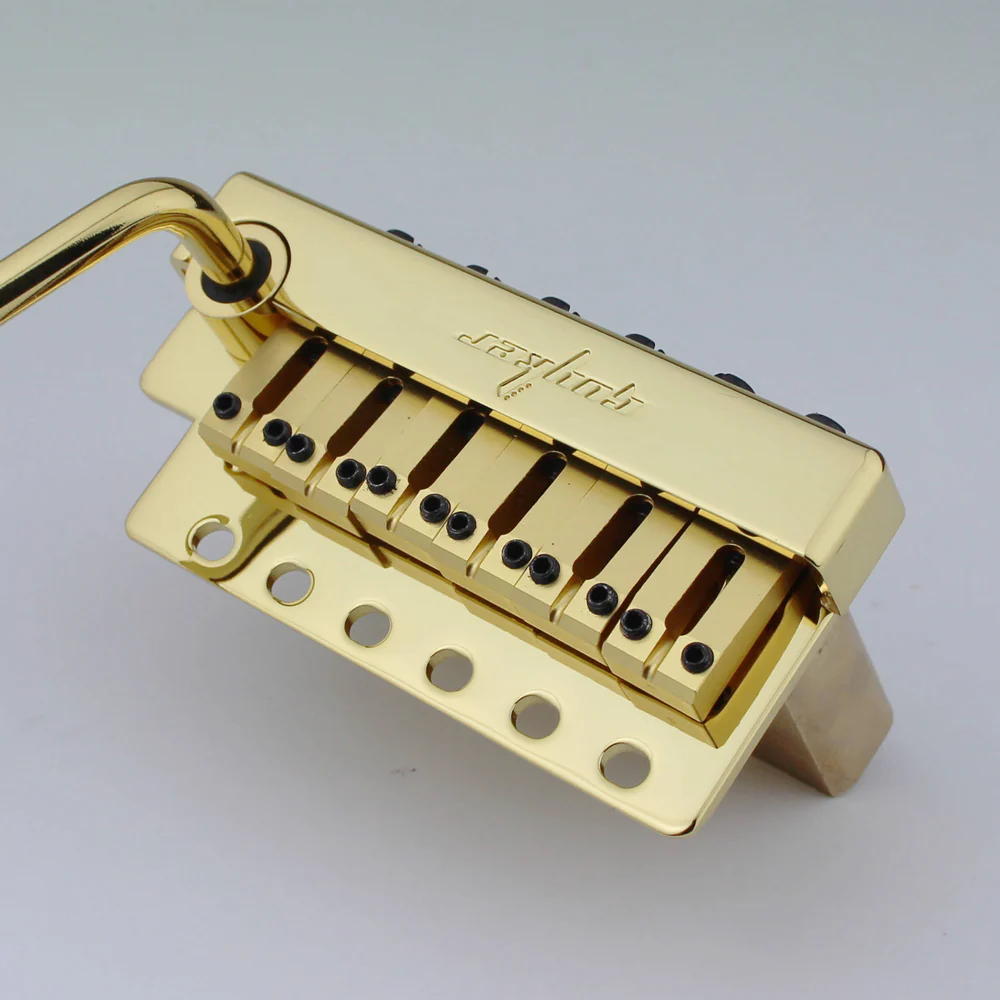

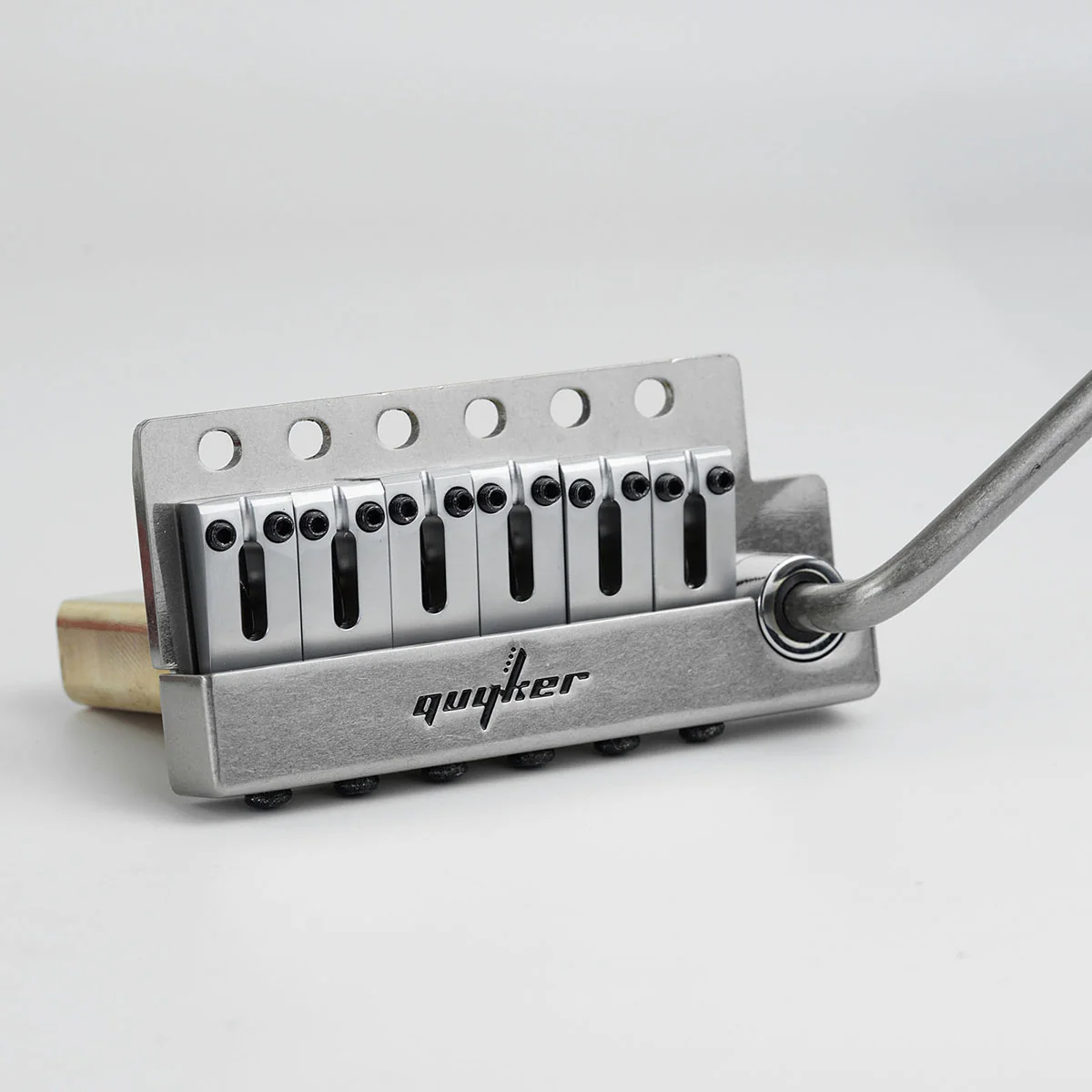

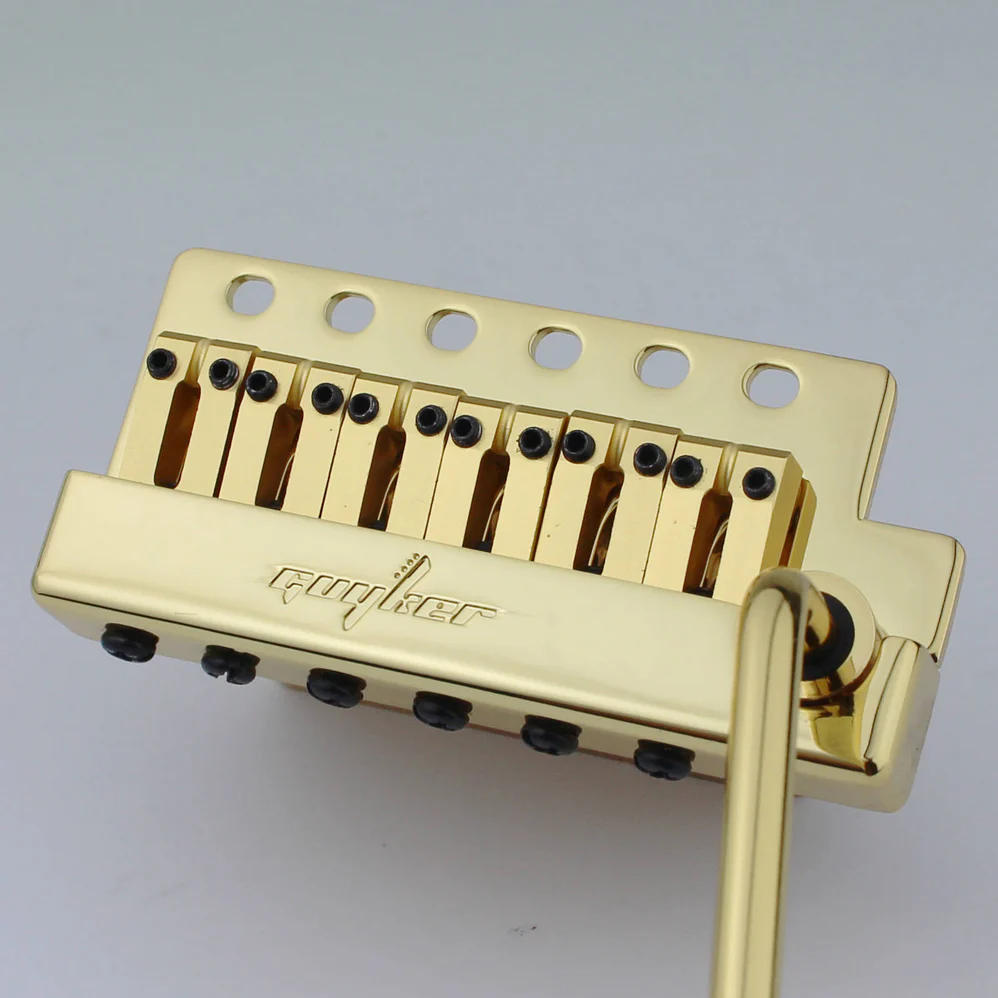

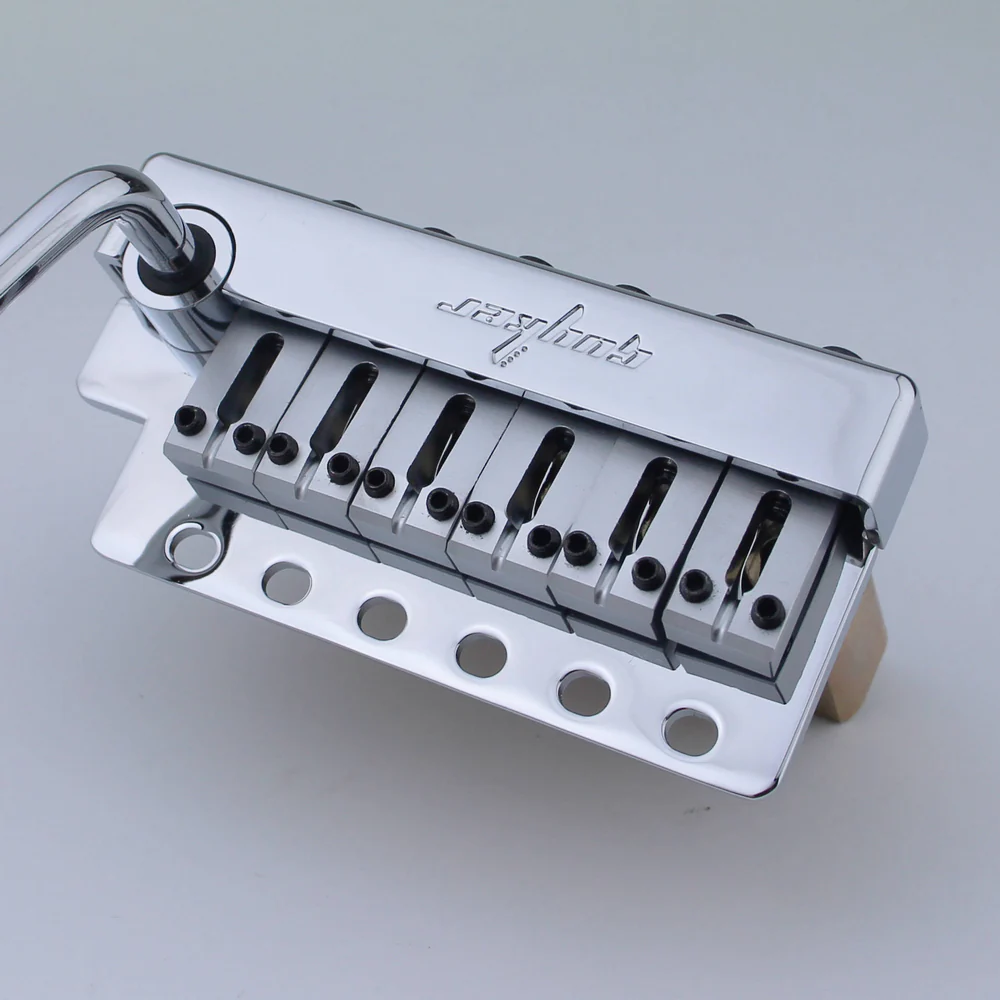

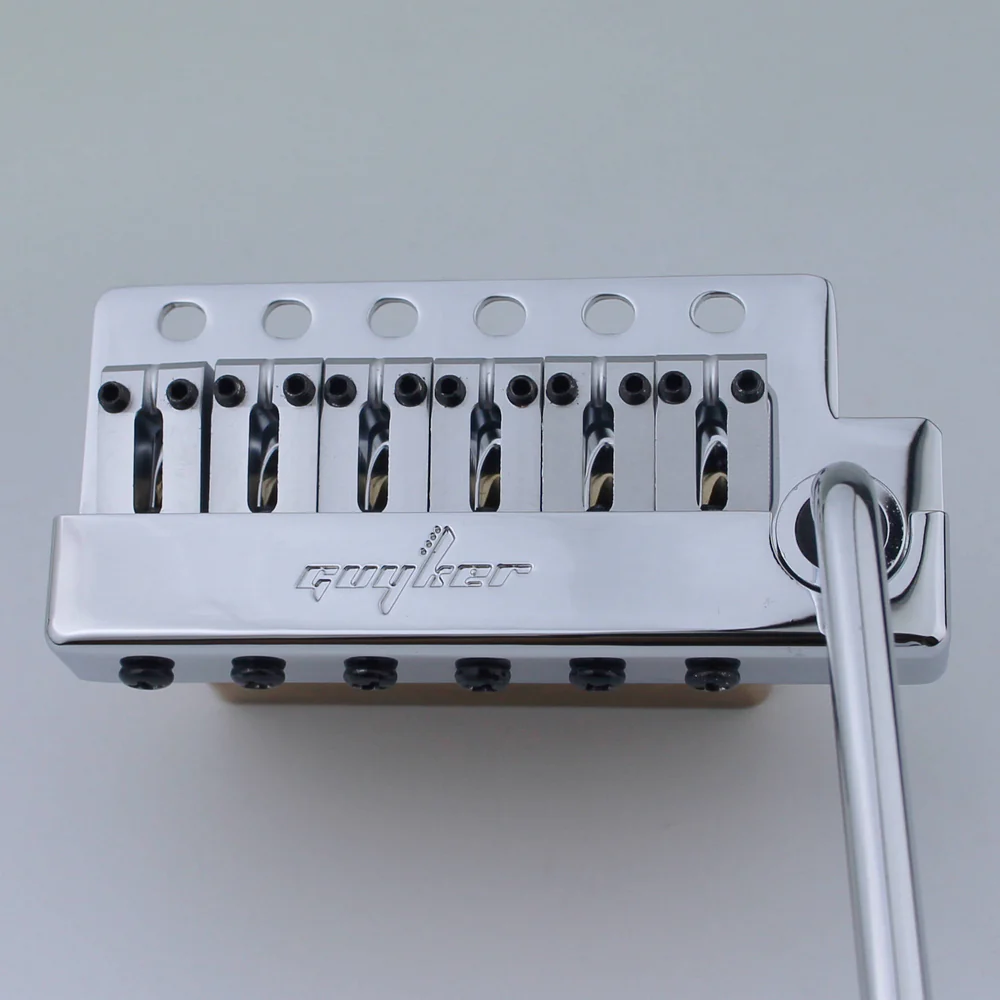

• Color: Chrome / Gold / Black / Bronze / Antique Silver
• Suitable For: 6-string electric guitar with matching tremolo layout

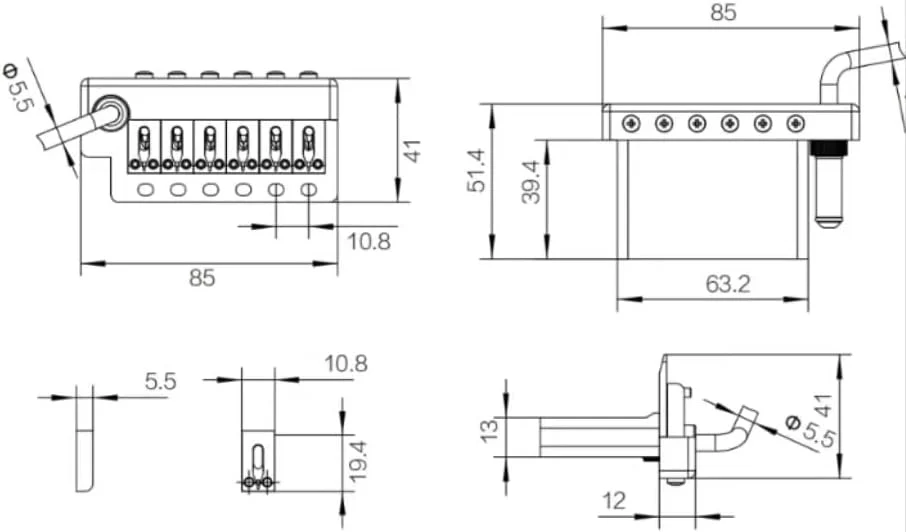

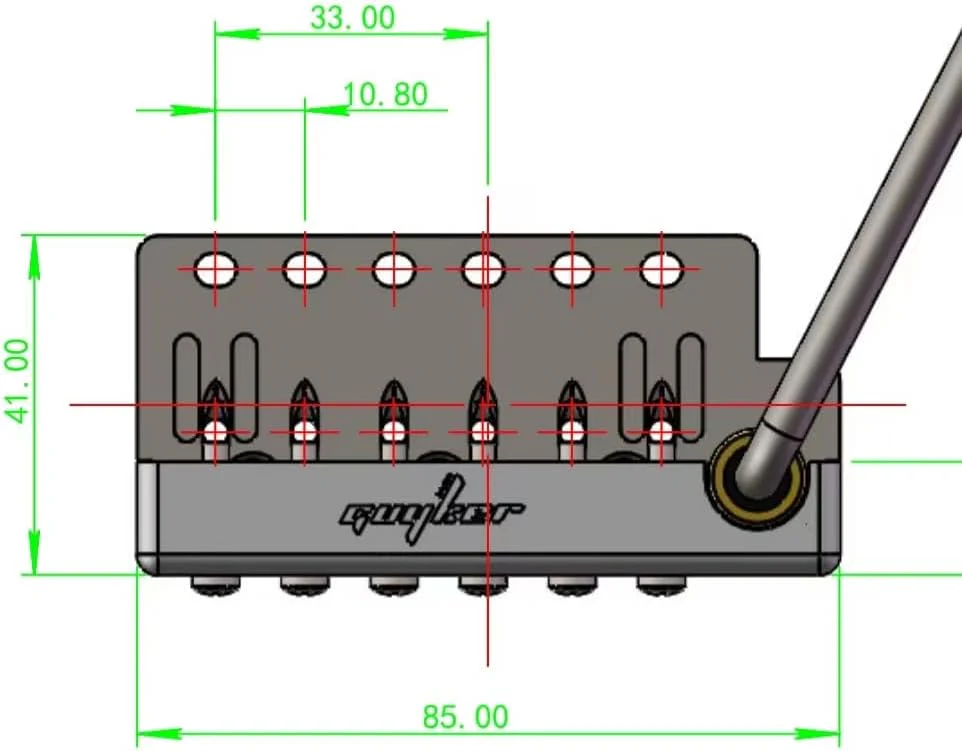

• Overall Length: 85 mm
• Bridge Width: 41 mm
• String Spacing: 10.8 mm

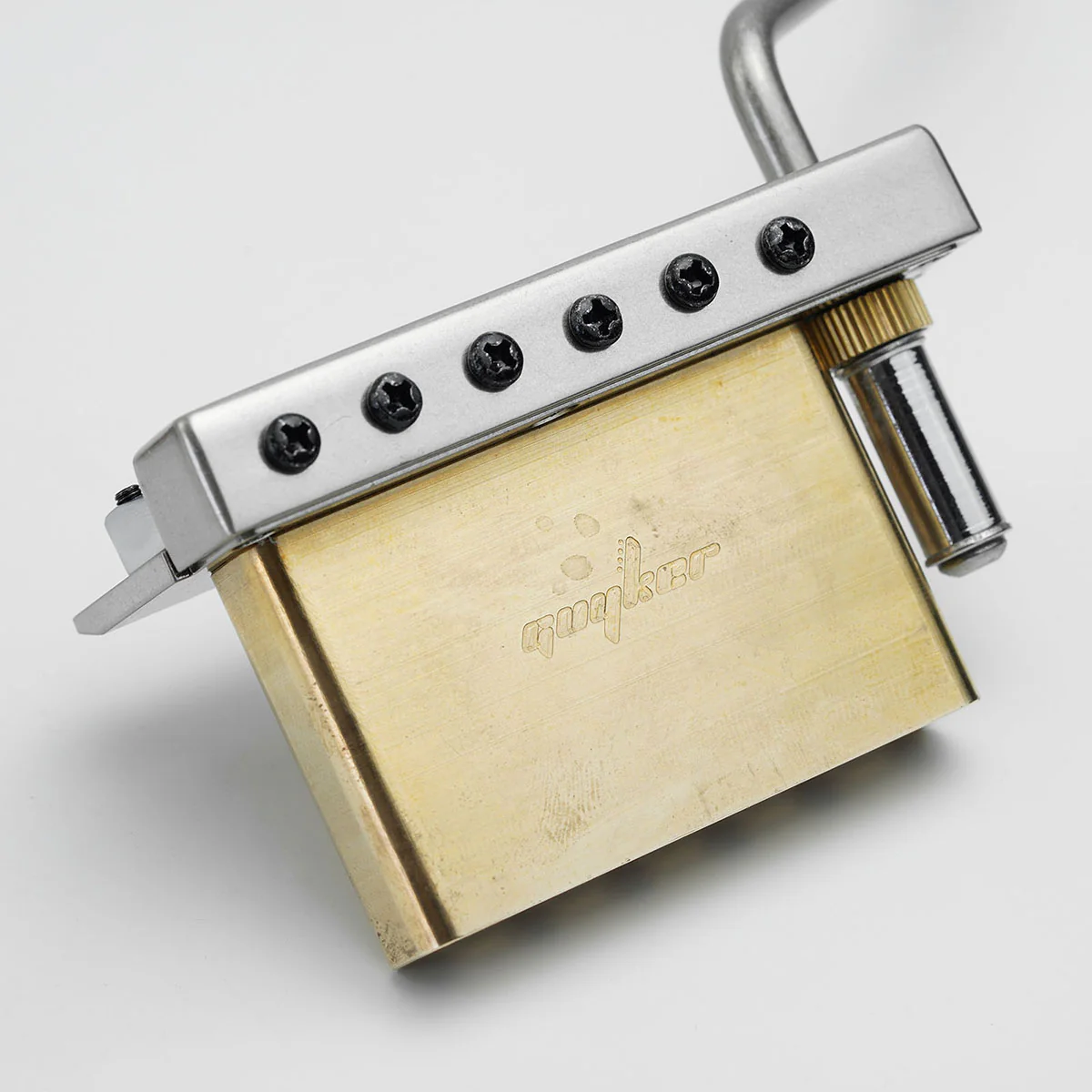

• Block Length: 63.2 mm
• Overall Height: 51.4 mm
• Block Height: 39.4 mm
• Block Thickness: 13 mm
• Saddle Width: 5.5 mm
• Saddle Height: 19.4 mm
• Front Section Depth: 12 mm
• Tremolo Arm Diameter: 5.5 mm

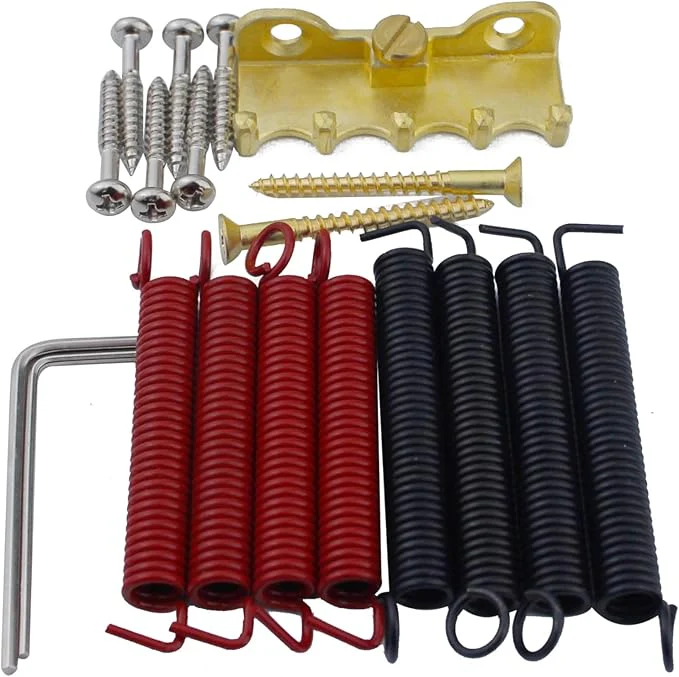

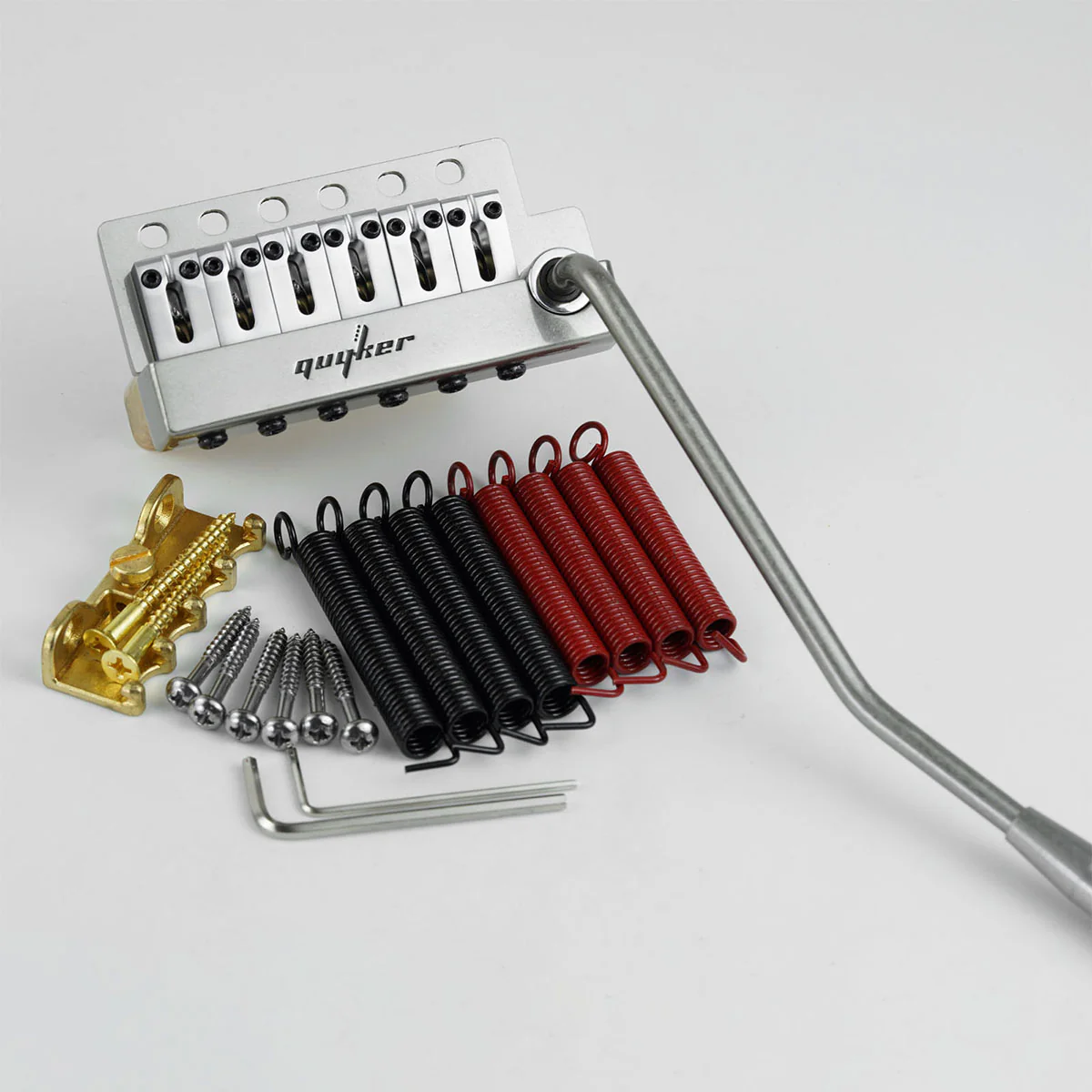

Package Includes:

• 1 x tremolo bridge
• 1 x push-in tremolo arm
• Tremolo springs
• 1 x spring claw
• Mounting screws
• Installation hardware

Fitment Note / Warm Reminder:
Please verify your original bridge dimensions before ordering, especially the 85 mm overall length, 41 mm bridge width, 10.8 mm string spacing, block size, and 6-point mounting layout. This bridge is recommended only for guitars with a matching tremolo route and installation structure.
