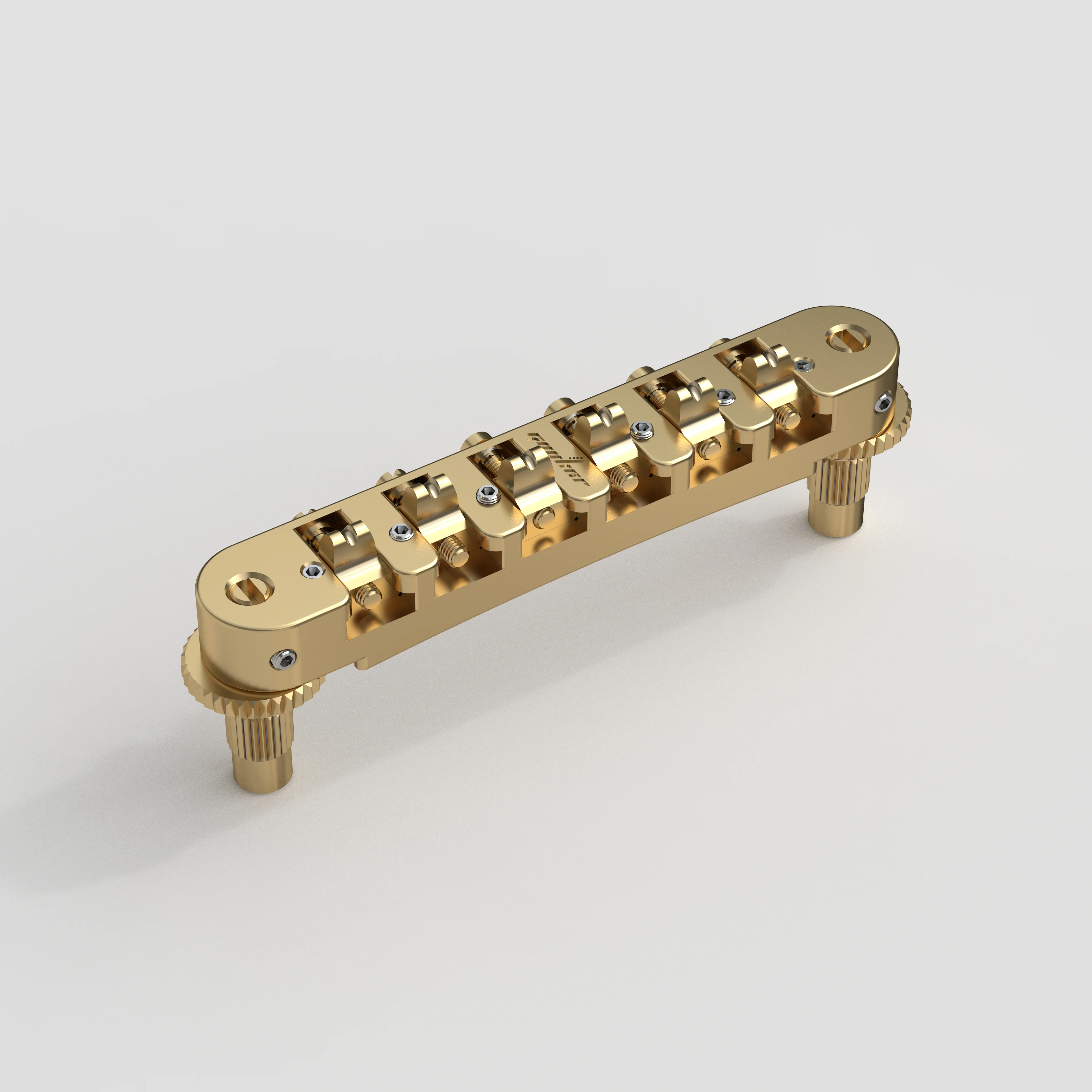

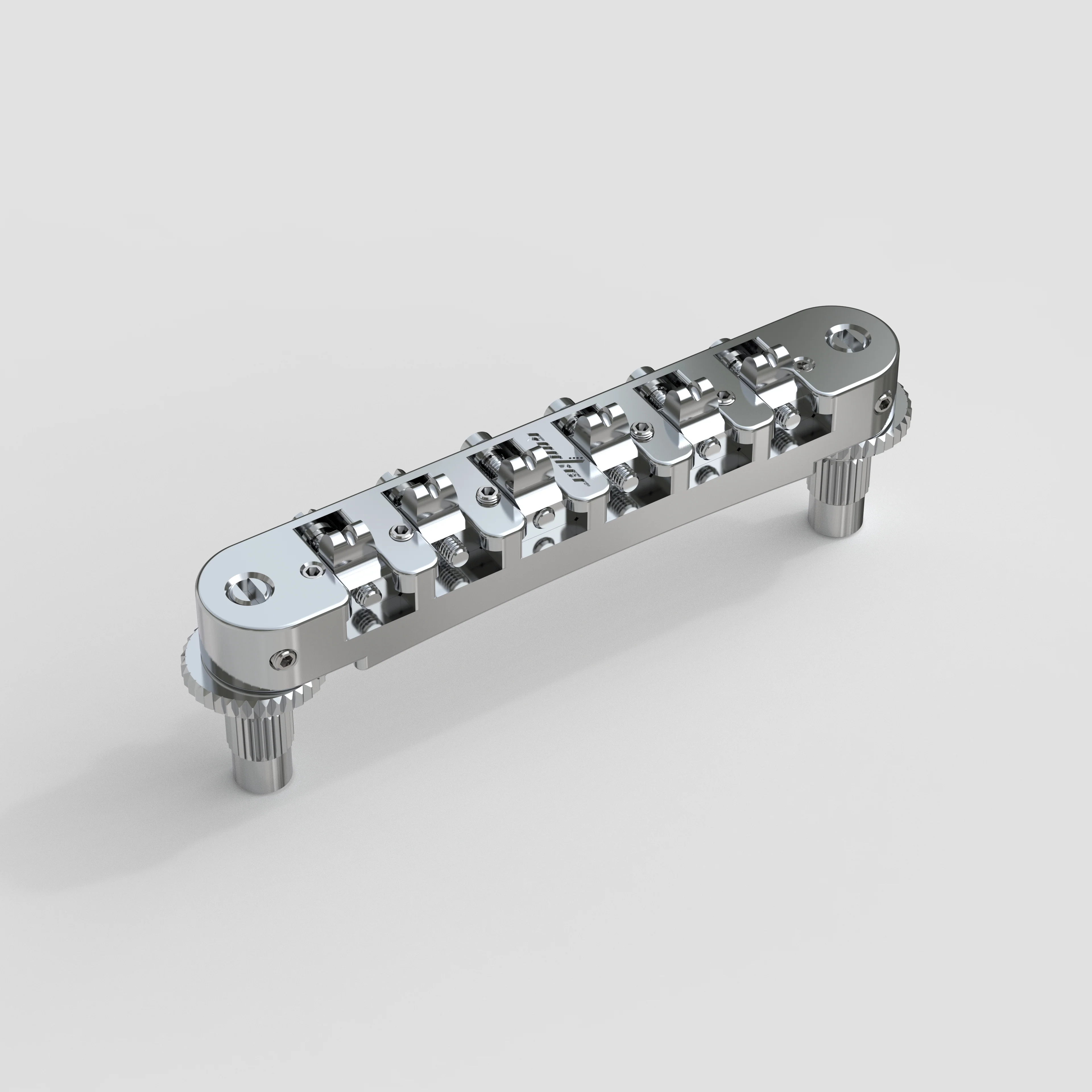

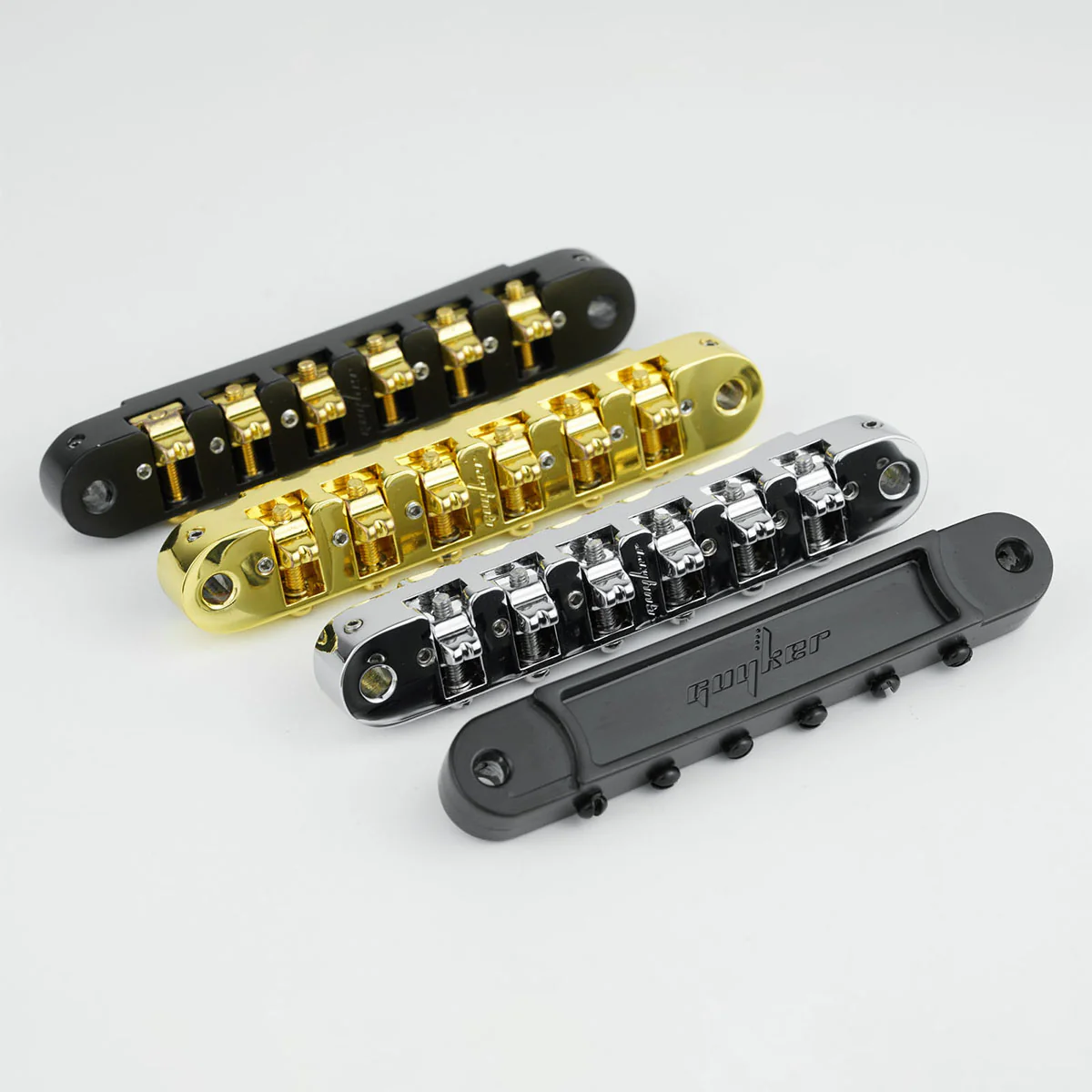

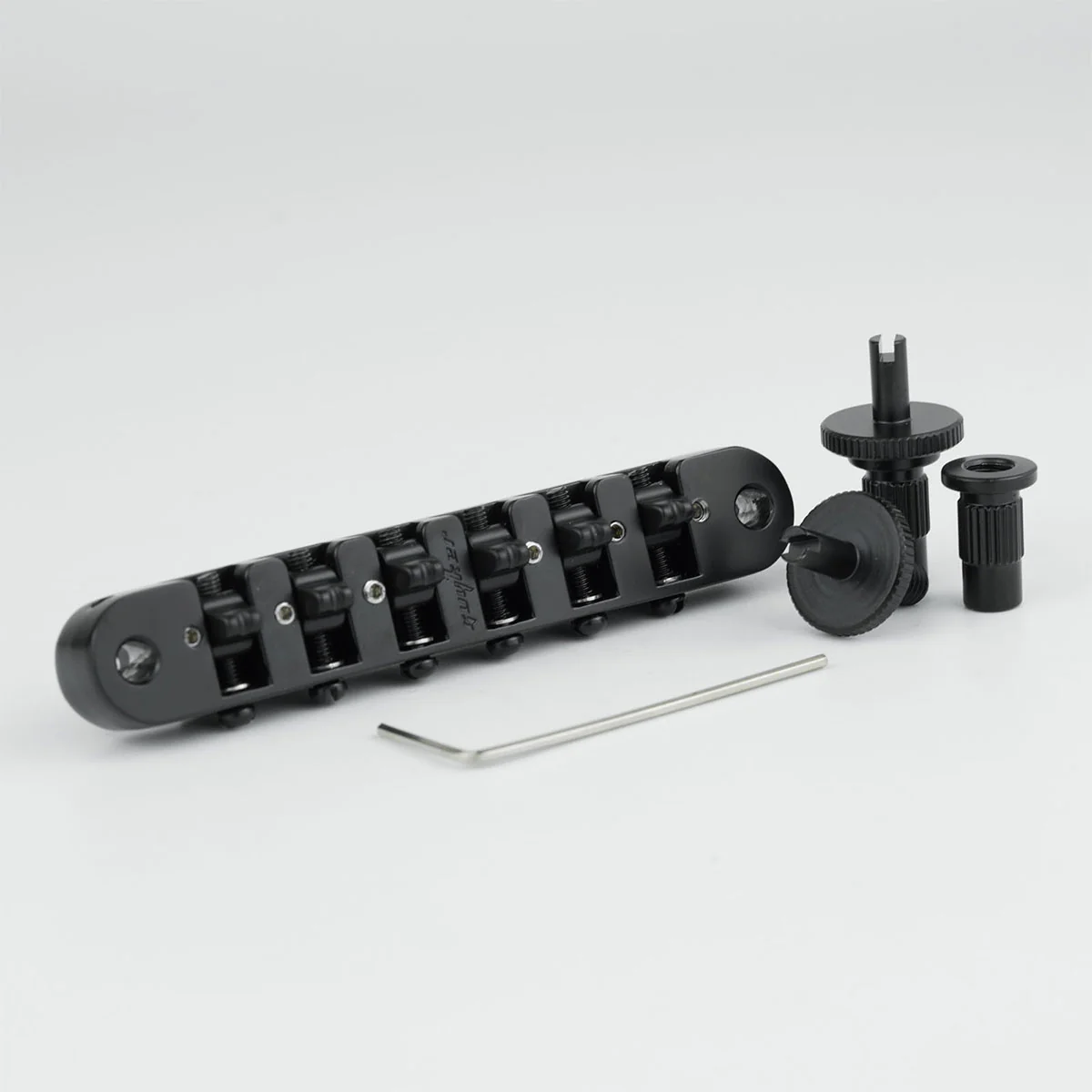

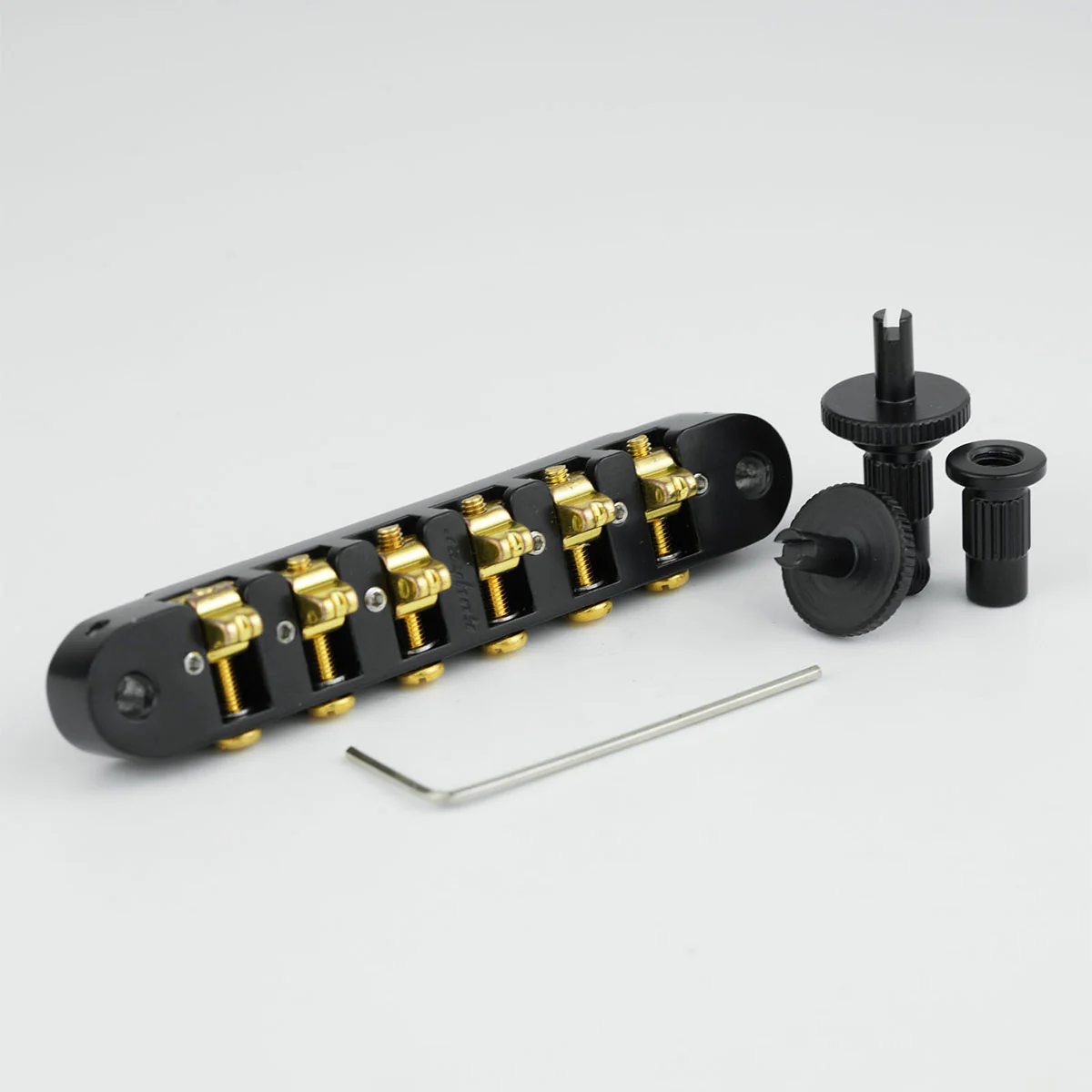

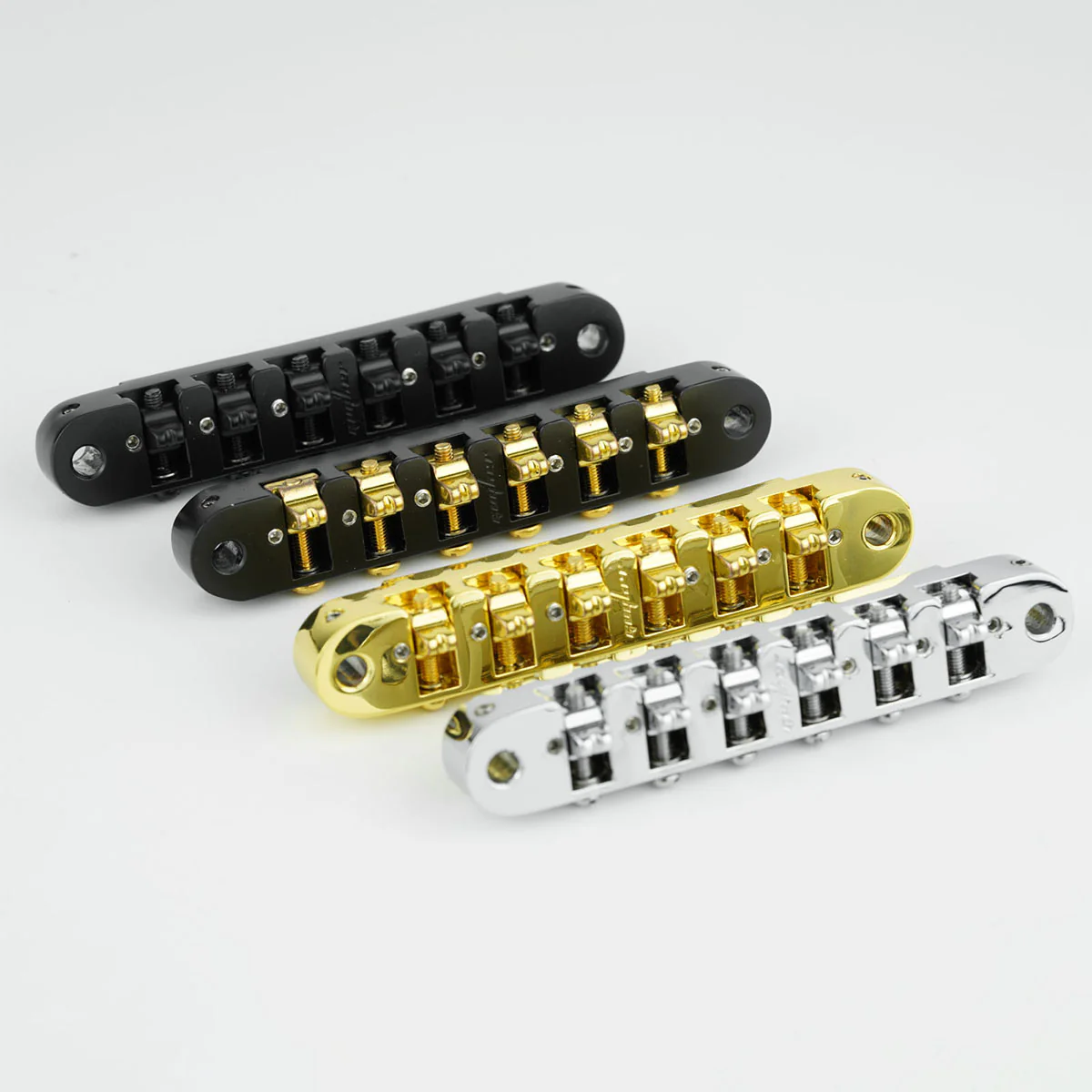

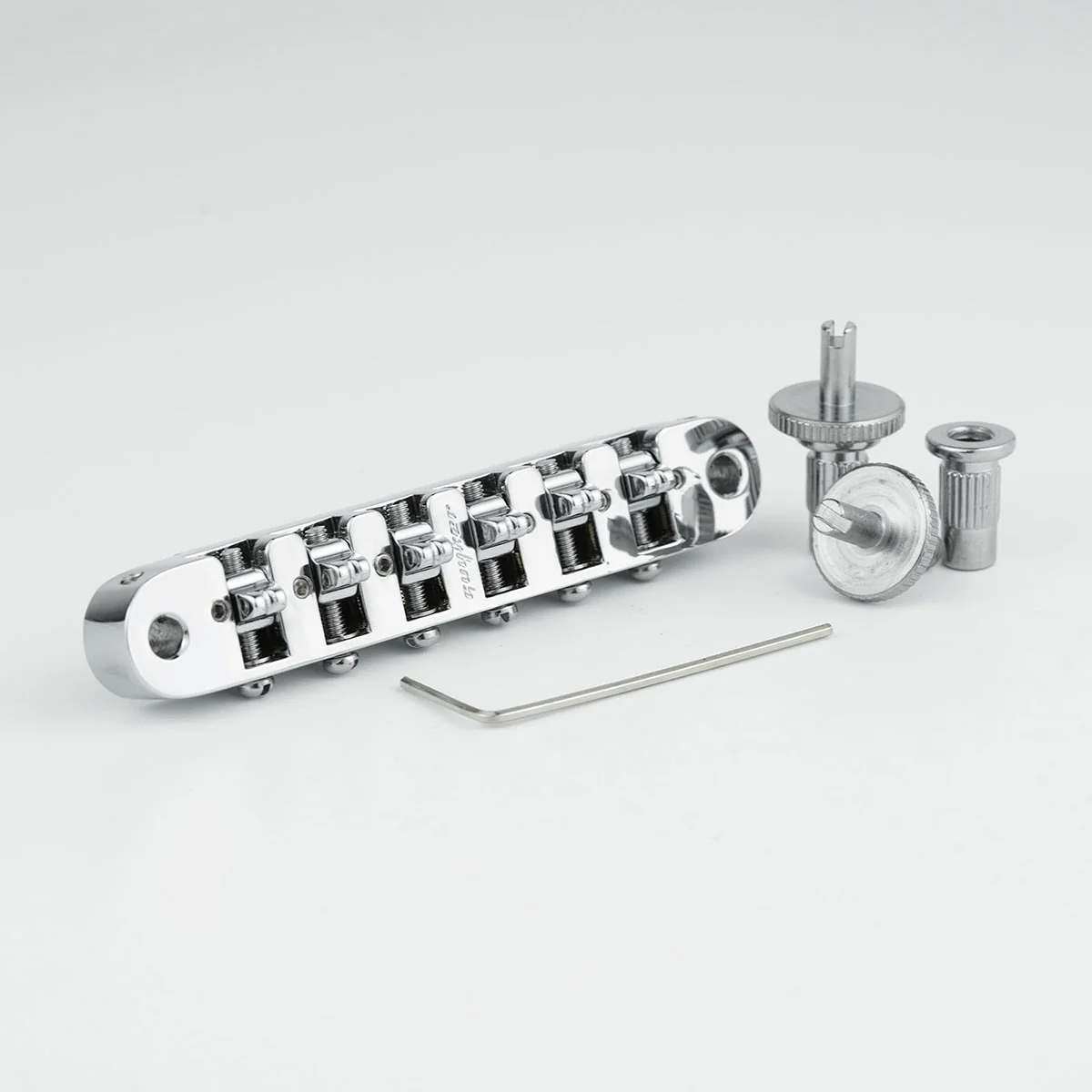

Guyker GM010 Adjustable Locking Bridge – Zinc Alloy for Electric Guitars
Materials
- Body: Zinc alloy
- Saddles: Stainless steel
Dimensions
-
Post Spacing: 74mm
-
String Spacing: 52mm (10.4mm × 5)
-
Overall Length: 89mm
-
Base Width: 15.96mm
-
Total Side Height: 30.3mm
-
Post Diameter: Ø7mm
-
Thread: M5
-
Radius: R350mm

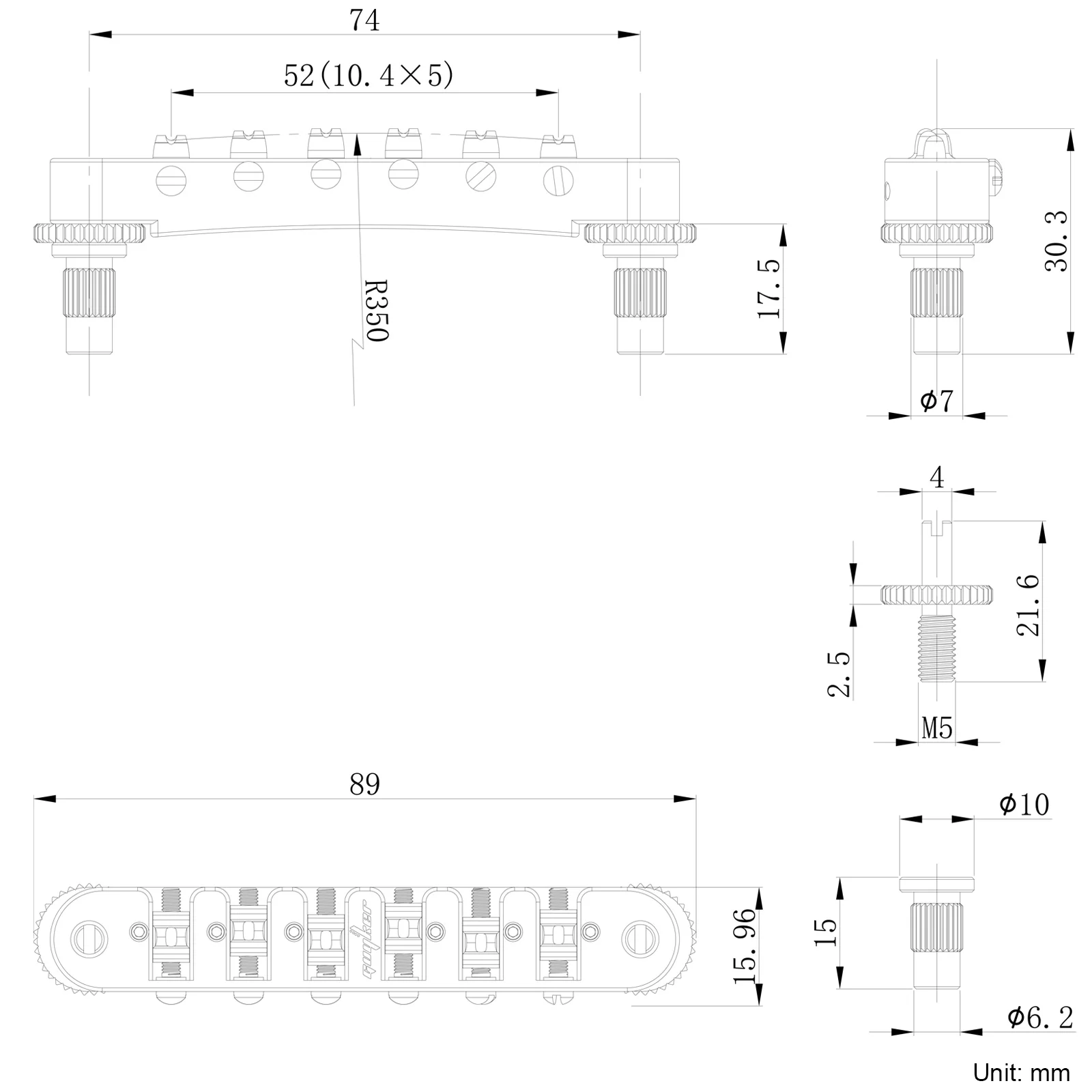

Technical Drawing
Key Features:
-
Independent Adjustment & Locking Design
Each saddle is independently adjustable, with fine-tuning screws for front-to-back adjustments, and front locking screws to ensure stability.
-
High-Quality Zinc Alloy Construction
Built with strong and durable zinc alloy, providing lasting reliability and stability.
-
Precise & Stable Adjustment Mechanism
Designed to offer precise tuning and keep the saddles locked in place, ensuring stable pitch and accurate performance.
-
Smaller Screws for Wide Compatibility: The GM011 features smaller screws (M5 size), making it suitable for a variety of guitar models.
Original: $25.99
-65%$25.99
$9.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Materials
- Body: Zinc alloy
- Saddles: Stainless steel
Dimensions
-
Post Spacing: 74mm
-
String Spacing: 52mm (10.4mm × 5)
-
Overall Length: 89mm
-
Base Width: 15.96mm
-
Total Side Height: 30.3mm
-
Post Diameter: Ø7mm
-
Thread: M5
-
Radius: R350mm
Technical Drawing
Key Features:
-
Independent Adjustment & Locking Design
Each saddle is independently adjustable, with fine-tuning screws for front-to-back adjustments, and front locking screws to ensure stability.
-
High-Quality Zinc Alloy Construction
Built with strong and durable zinc alloy, providing lasting reliability and stability.
-
Precise & Stable Adjustment Mechanism
Designed to offer precise tuning and keep the saddles locked in place, ensuring stable pitch and accurate performance.
-
Smaller Screws for Wide Compatibility: The GM011 features smaller screws (M5 size), making it suitable for a variety of guitar models.
