Key Features:

• Mosrite-style roller bridge designed for 6-string electric guitar replacement or upgrade projects.
• H59 brass roller saddles help reduce friction and string wear during string movement.
• Zinc alloy bridge body with stainless steel hardware provides durable, stable construction.
• Adjustable stud-mount system supports setup on compatible guitars.
• Compact design with 74 mm post spacing and 10.5 mm string spacing for measurement-based fitment checks.

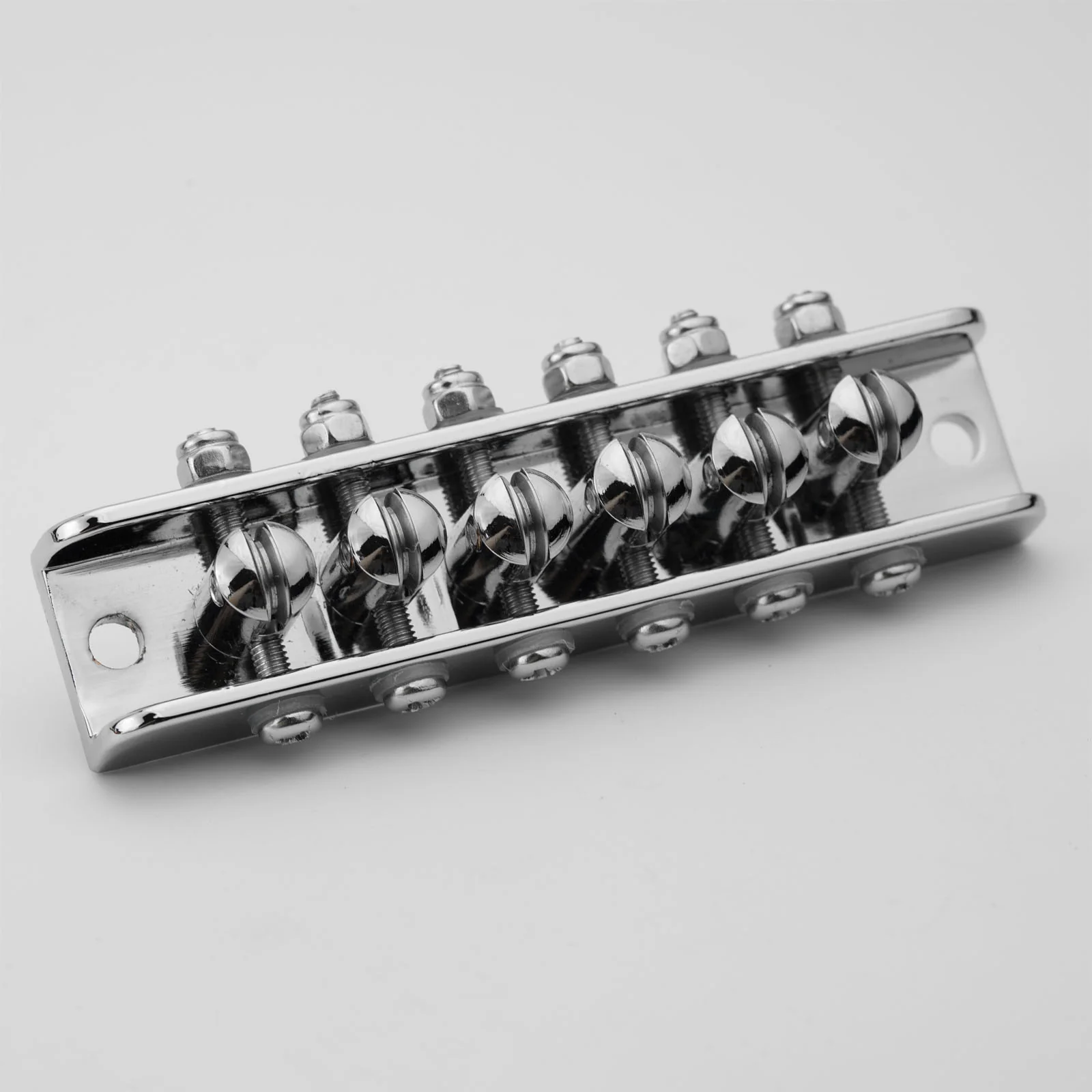

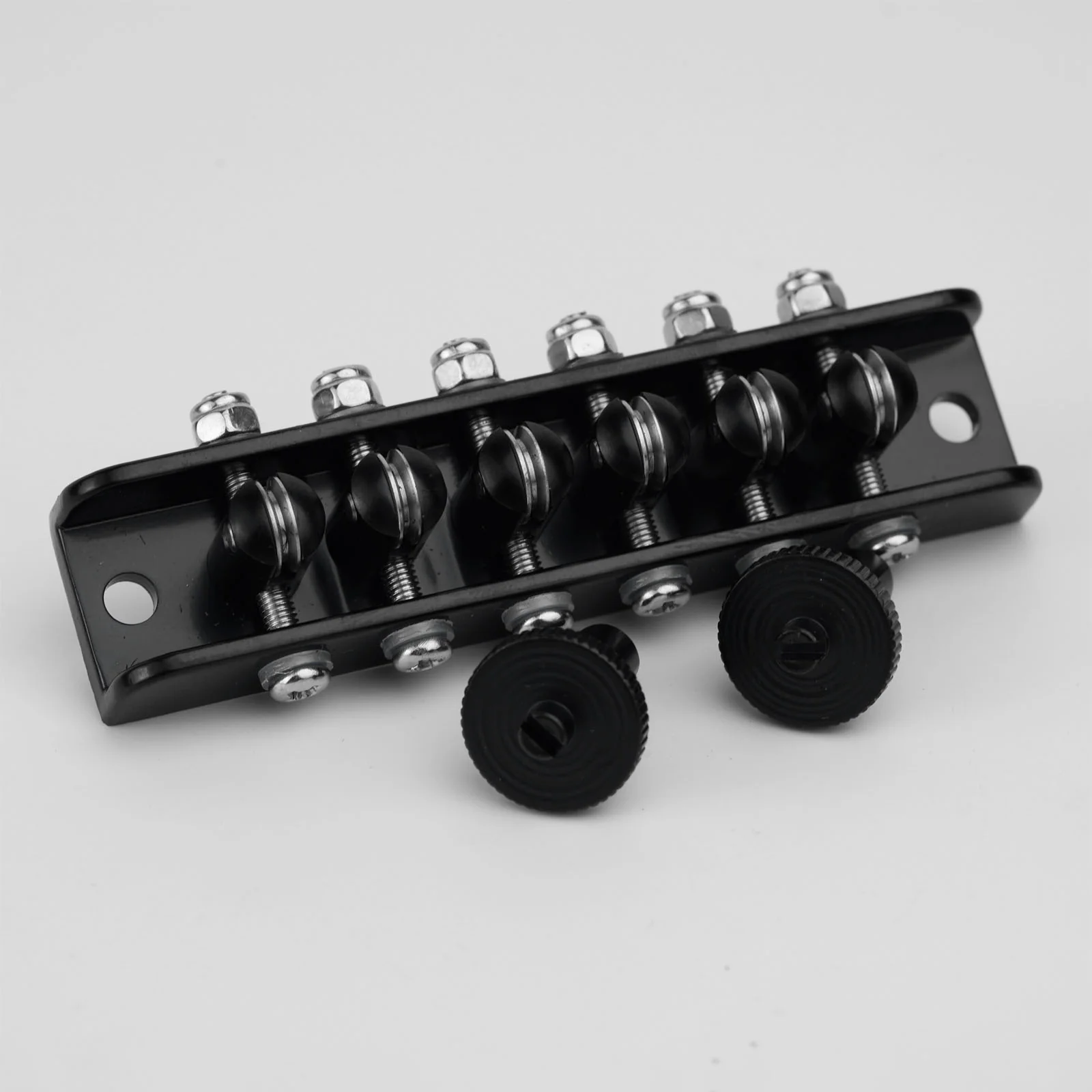

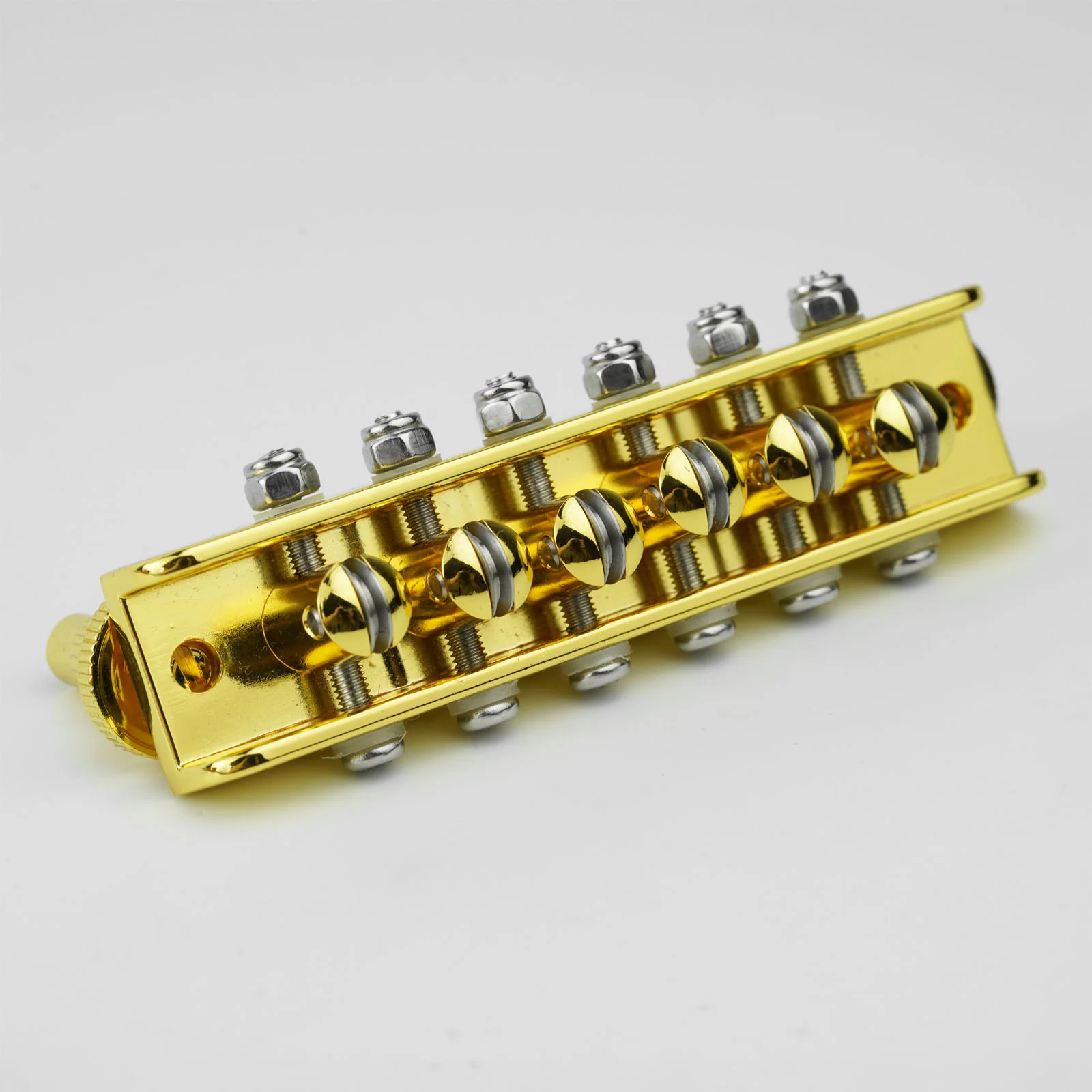

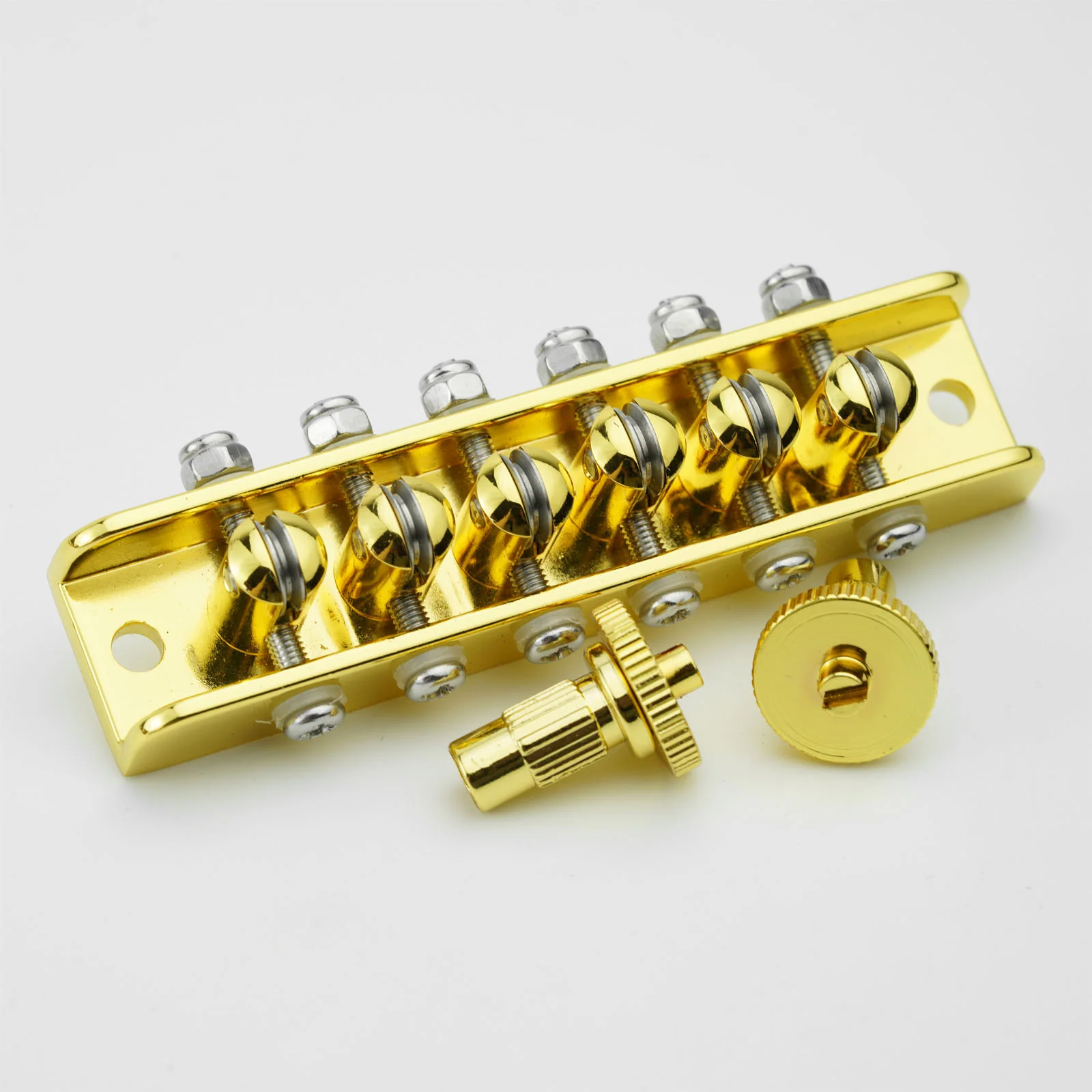

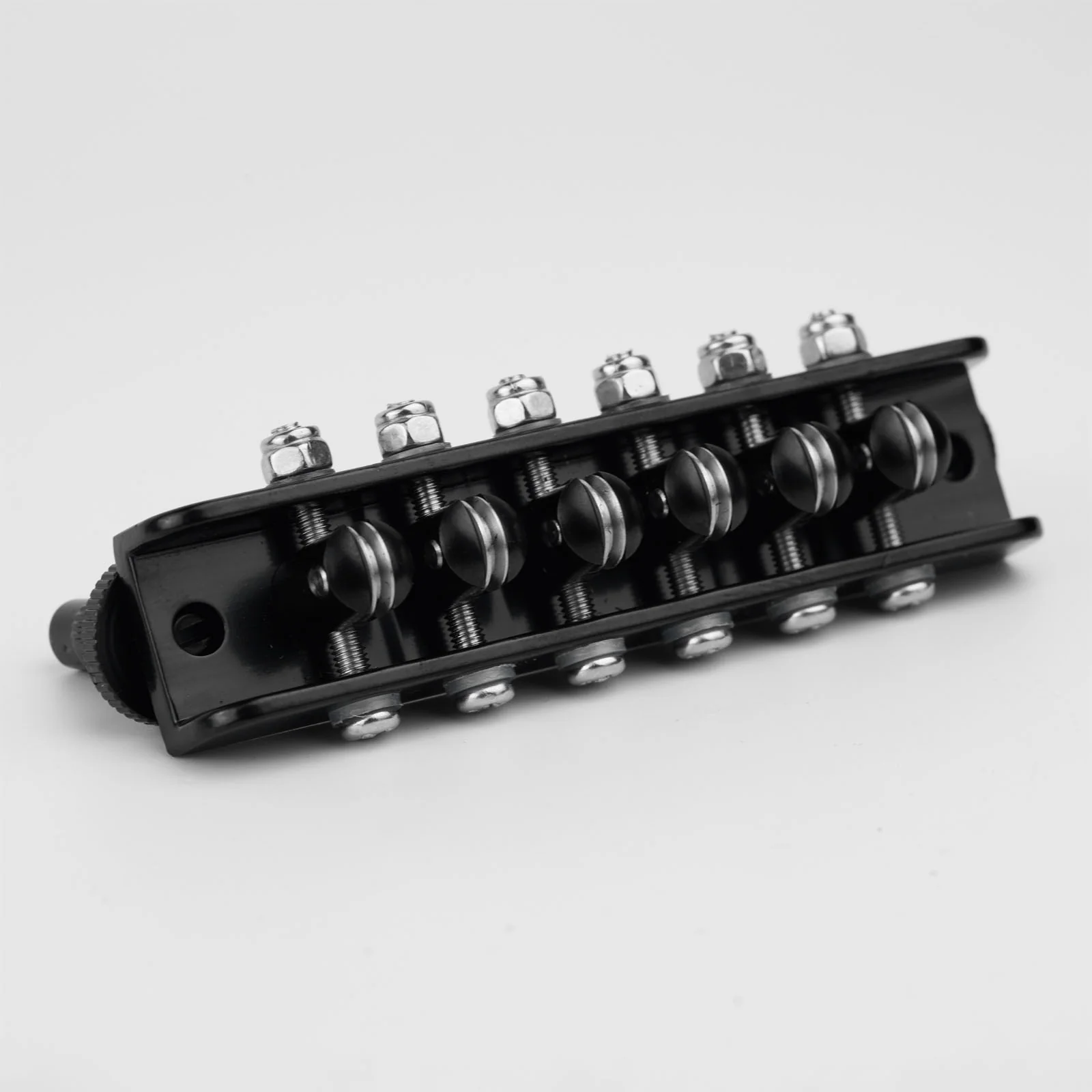

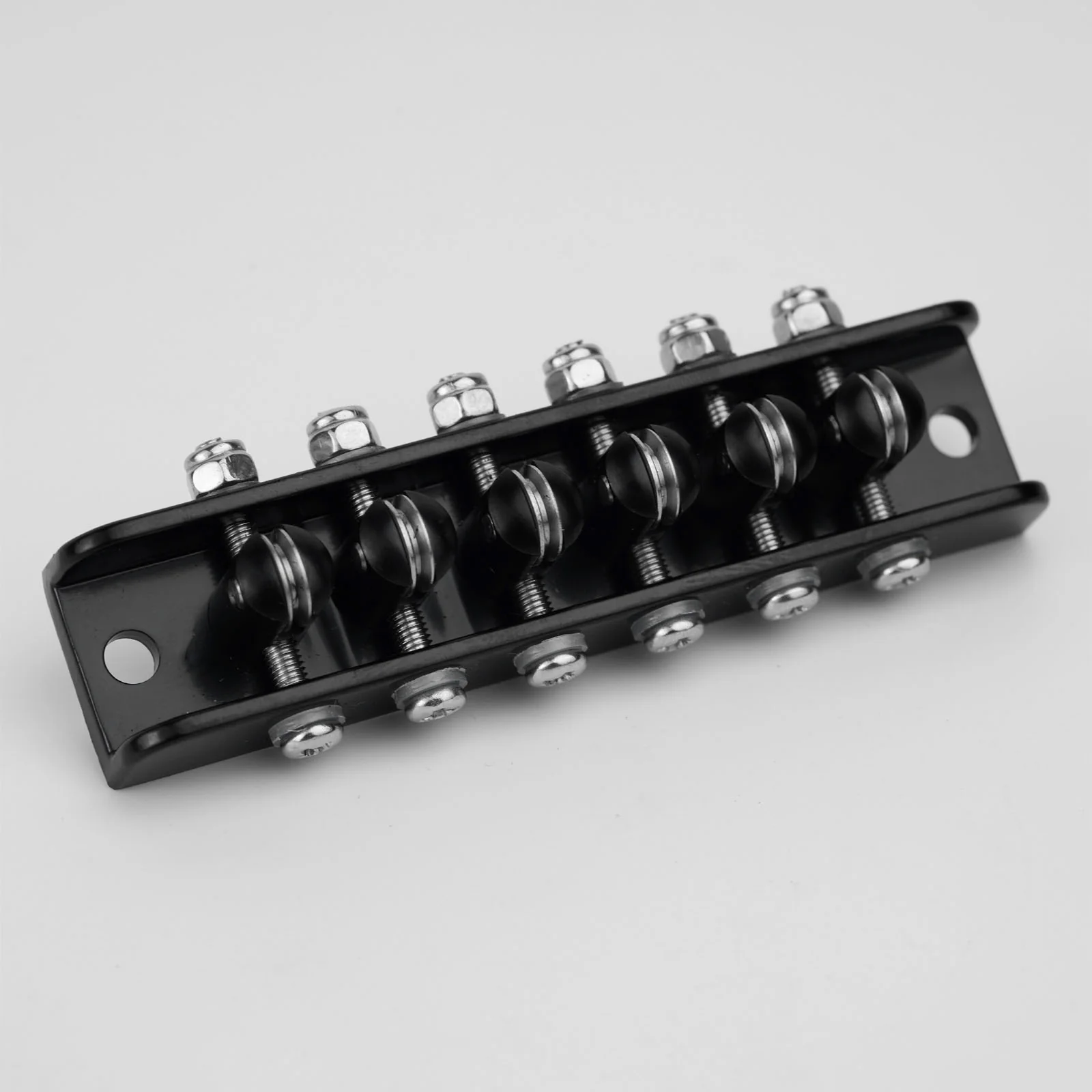

• Available in Chrome, Black, and Gold finishes.

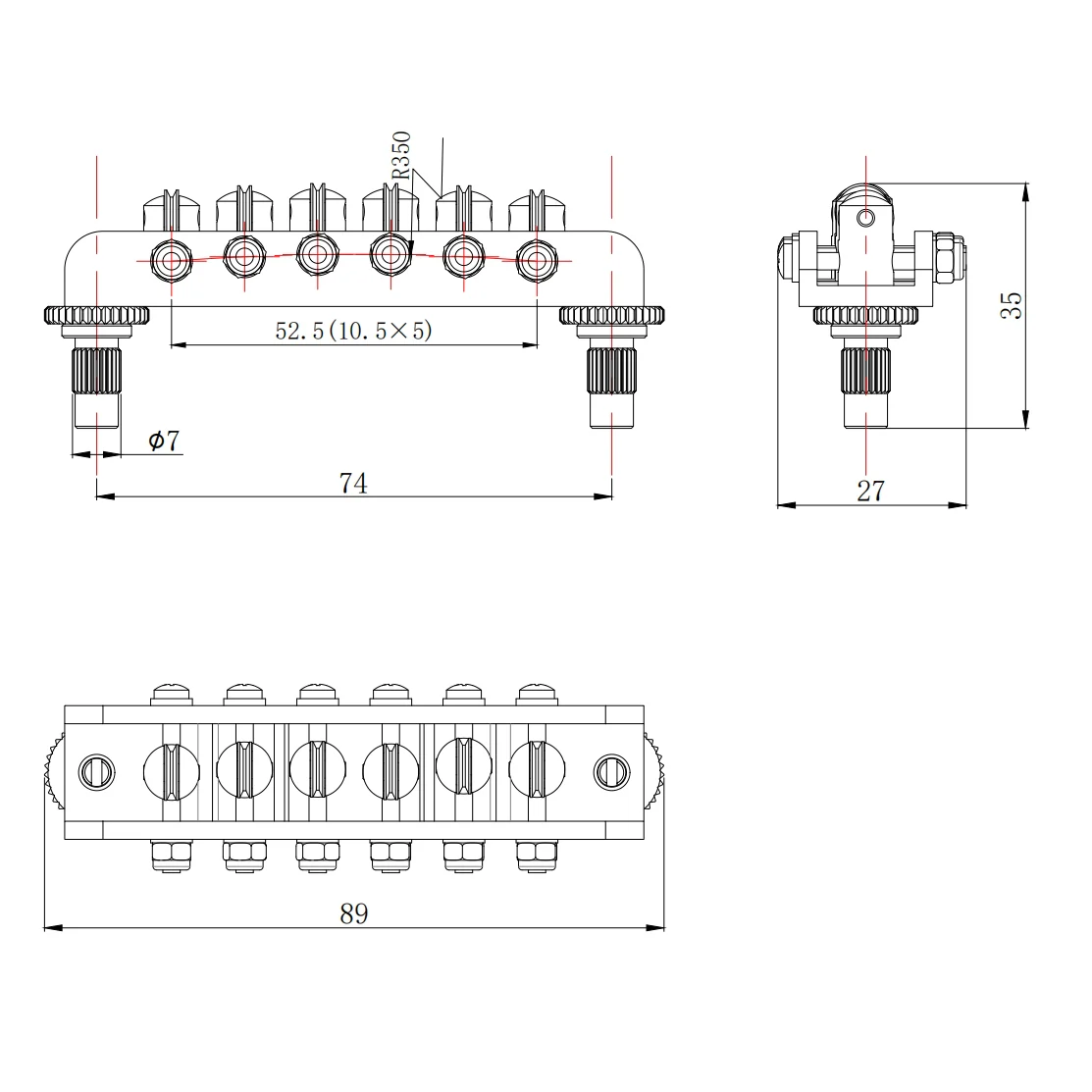

Specifications:

• Material: Zinc alloy body, H59 brass rollers, stainless steel screws and roller shafts, plated steel posts and knurled anchor studs
• Color: Chrome / Black / Gold
• Suitable For: 6-string electric guitar
• String Spacing: 52.5 mm (10.5 × 5)
• Post Spacing: 74 mm
• Radius: 350 mm
• Bridge Height: 35 mm
• Post Diameter: Ø7 mm
• Mounting Width: 27 mm

Package Includes:

• 1 x roller guitar bridge
• Mounting studs
• 1 x hex wrench

Fitment Note / Warm Reminder:
Please verify your original bridge dimensions before ordering, especially the 74 mm post spacing, 52.5 mm total string spacing, 35 mm bridge height, and Ø7 mm post diameter. This bridge is recommended only for guitars with a matching Mosrite-style stud-mount bridge layout.
