Key Features:

• Mosrite-style roller bridge designed for 6-string electric guitar replacement or upgrade projects.
• H59 brass roller saddles help reduce friction and support smoother string movement.
• Zinc alloy body with stainless steel hardware provides durable, stable construction.
• Adjustable stud-mount design supports practical action and intonation setup on compatible guitars.
• Compared with the GM018 model, this version uses larger mounting posts and a wider base for broader compatibility where the measurements match.
• Suitable for projects where the 74 mm post spacing, 52.5 mm string spacing, and related dimensions match the original bridge.

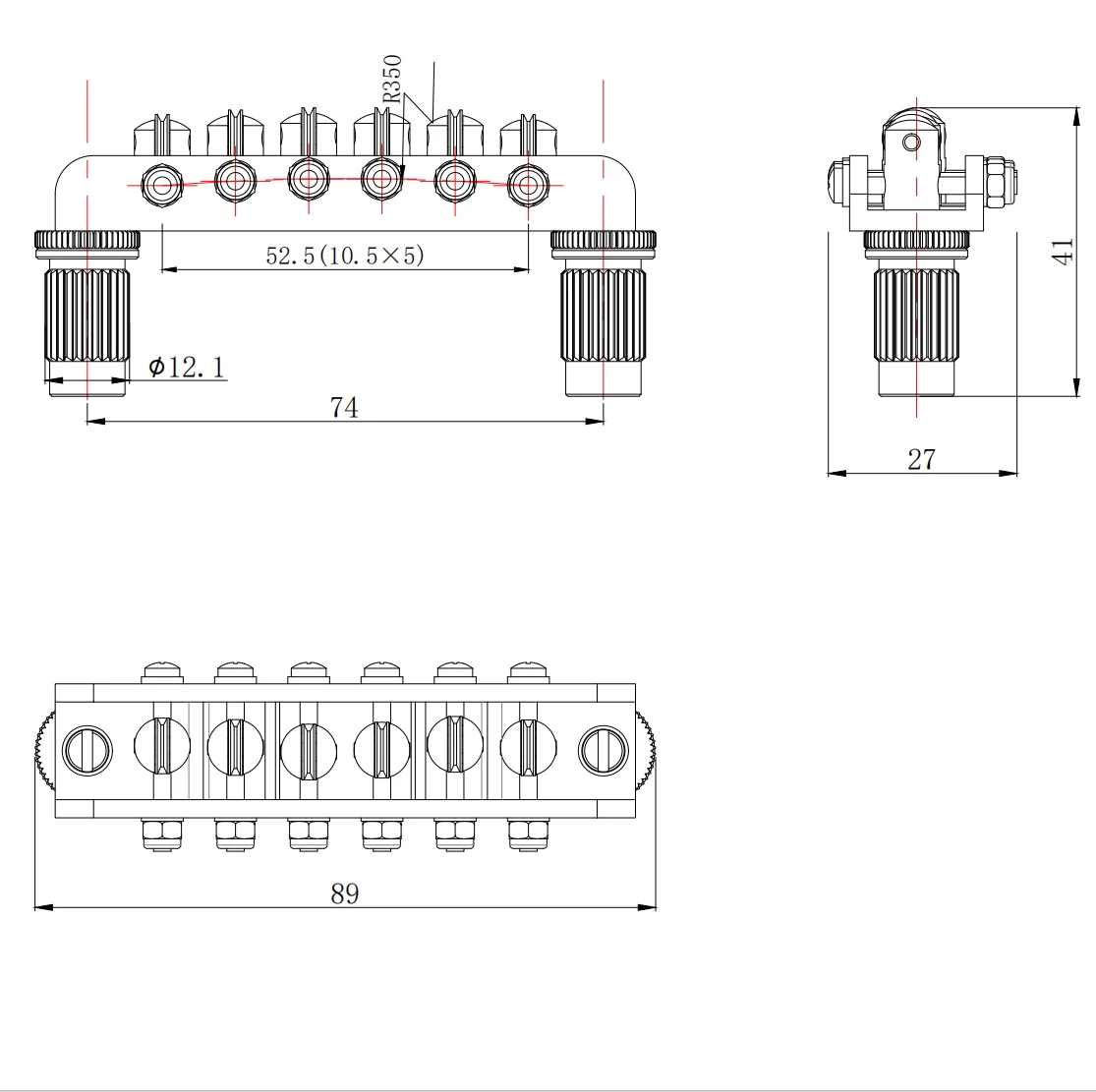

Specifications:

• Material: Zinc alloy body, H59 brass rollers, stainless steel screws and roller shafts, plated steel mounting posts and anchors
• Color: Chrome / Black / Gold
• Suitable For: 6-string electric guitar
• Radius: R350
• String Spacing: 52.5 mm (10.5 × 5)
• Post Spacing: 74 mm
• Bridge Height: 41 mm
• Post Diameter: Ø12.1 mm
• Mounting Width: 27 mm

Package Includes:

• 1 x roller guitar bridge
• Mounting studs
• 1 x hex wrench

Fitment Note / Warm Reminder:
Please verify your original bridge dimensions before ordering, especially the 74 mm post spacing, 52.5 mm total string spacing, R350 radius, 41 mm bridge height, Ø12.1 mm post diameter, and 27 mm mounting width. This bridge is recommended only for guitars with a matching Mosrite-style stud-mount bridge layout.
