Key Features:

• Tune-O-Matic roller bridge design helps reduce string friction during tuning and vibrato use.
• Brass roller saddles provide smooth string contact and stable string travel across the saddles.
• CNC machined aluminum alloy bridge body for lightweight strength and precise construction.
• Adjustable structure supports height and intonation adjustment for setup flexibility.
• Available in Aluminum Anodized Chrome, Black, Red, and Green finishes.

Specifications:

• Material: Aluminum Alloy (CNC Machined) body, Brass Roller Saddles
• Application: Electric Guitar

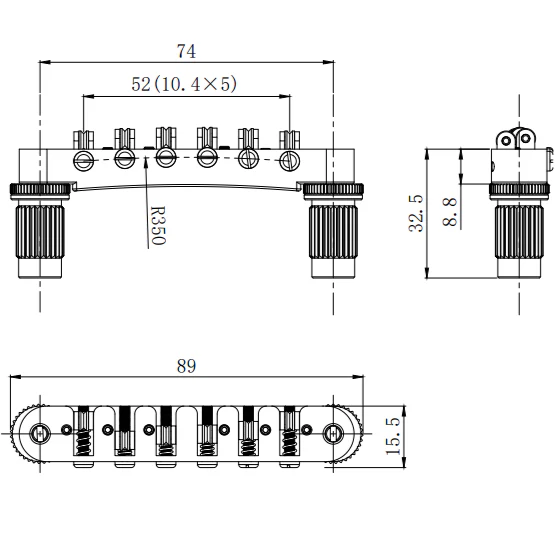

• Length: 89mm
• Width: 15.5mm
• Body Height: 8.8mm
• Overall Height: 32.5mm
• Post Spacing (Center to Center): 74mm
• String Spacing (E to e): 52mm (10.4mm × 5)
• Post Thread: M8
• Radius: R350mm
• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Black, Aluminum Anodized Red, Aluminum Anodized Green

Package Includes:

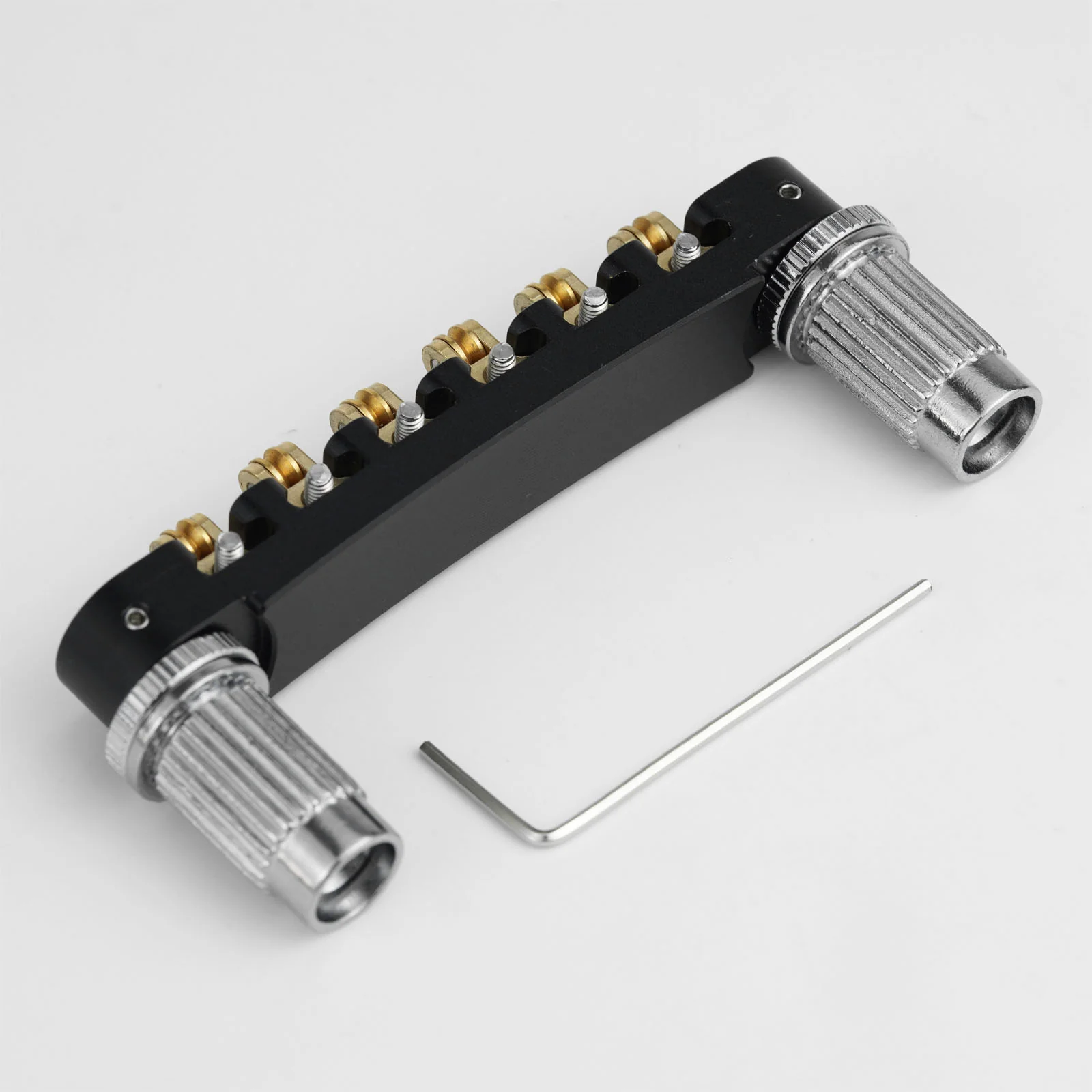

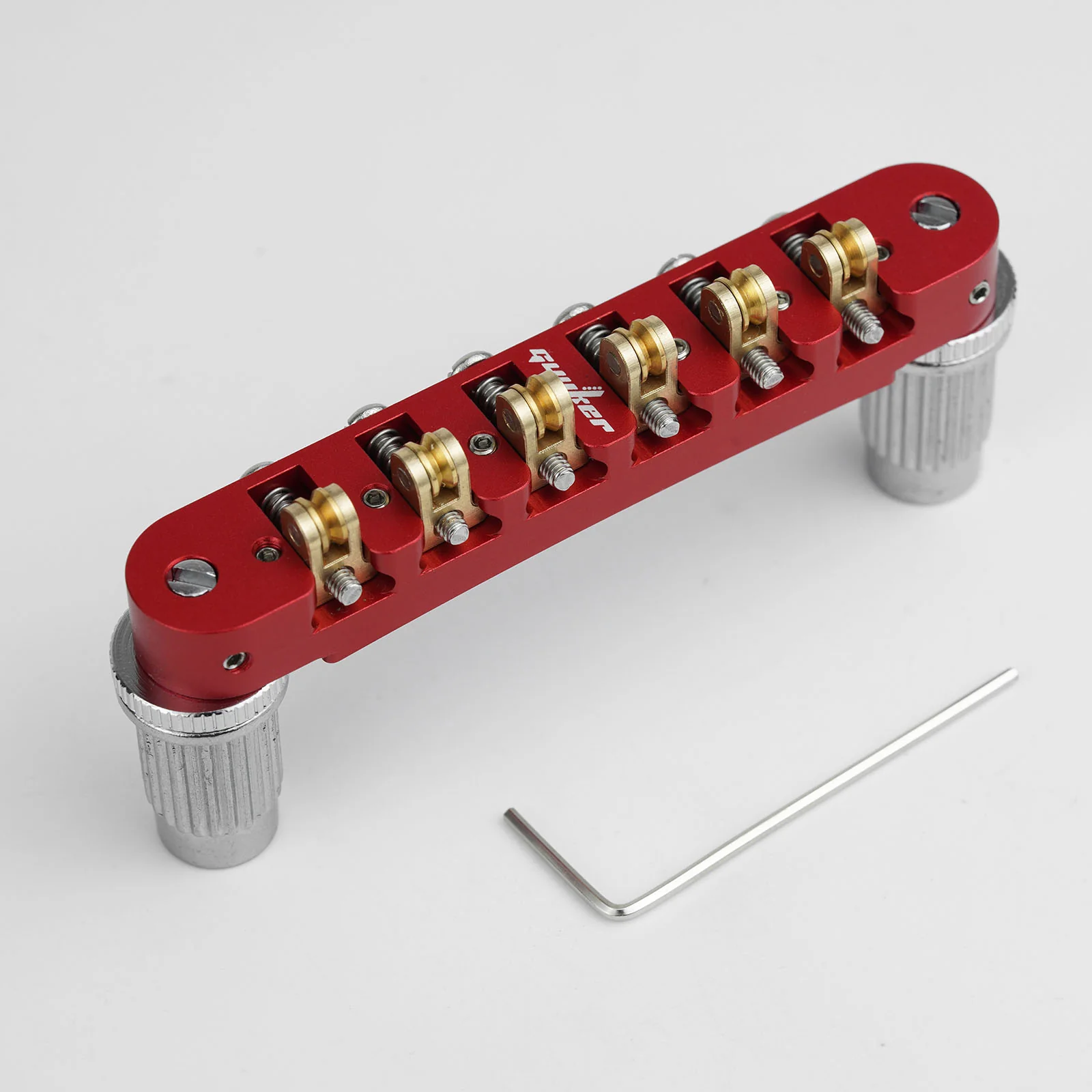

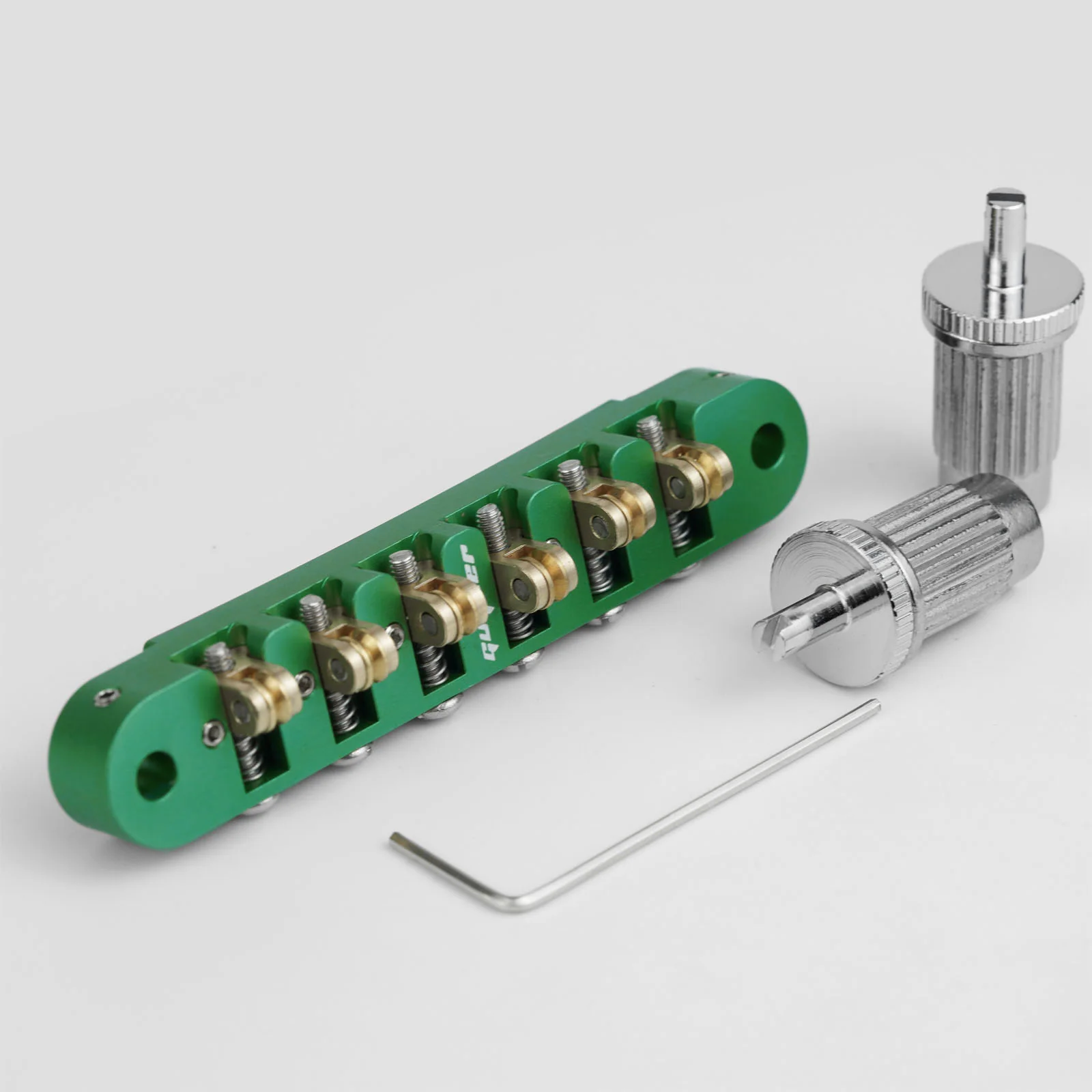

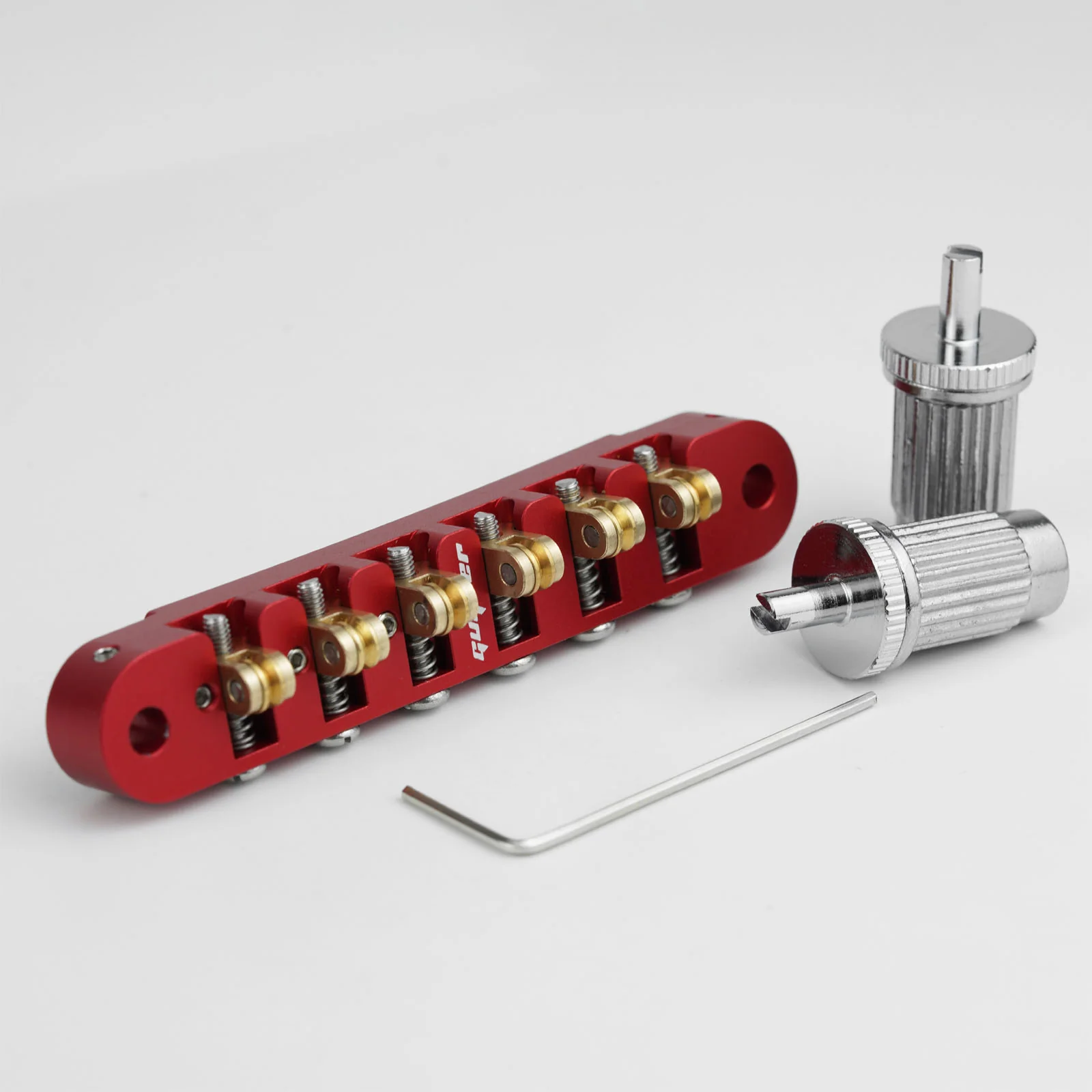

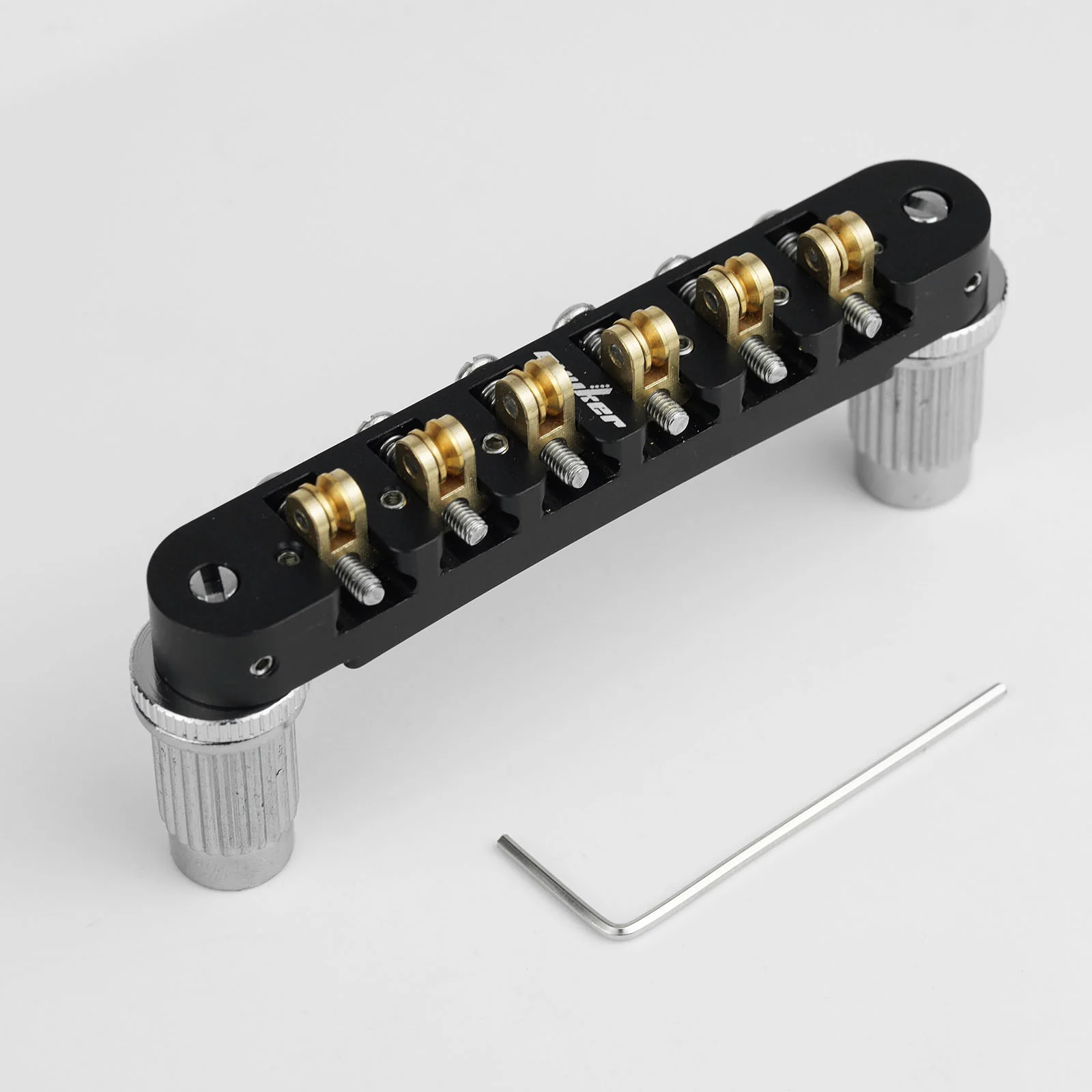

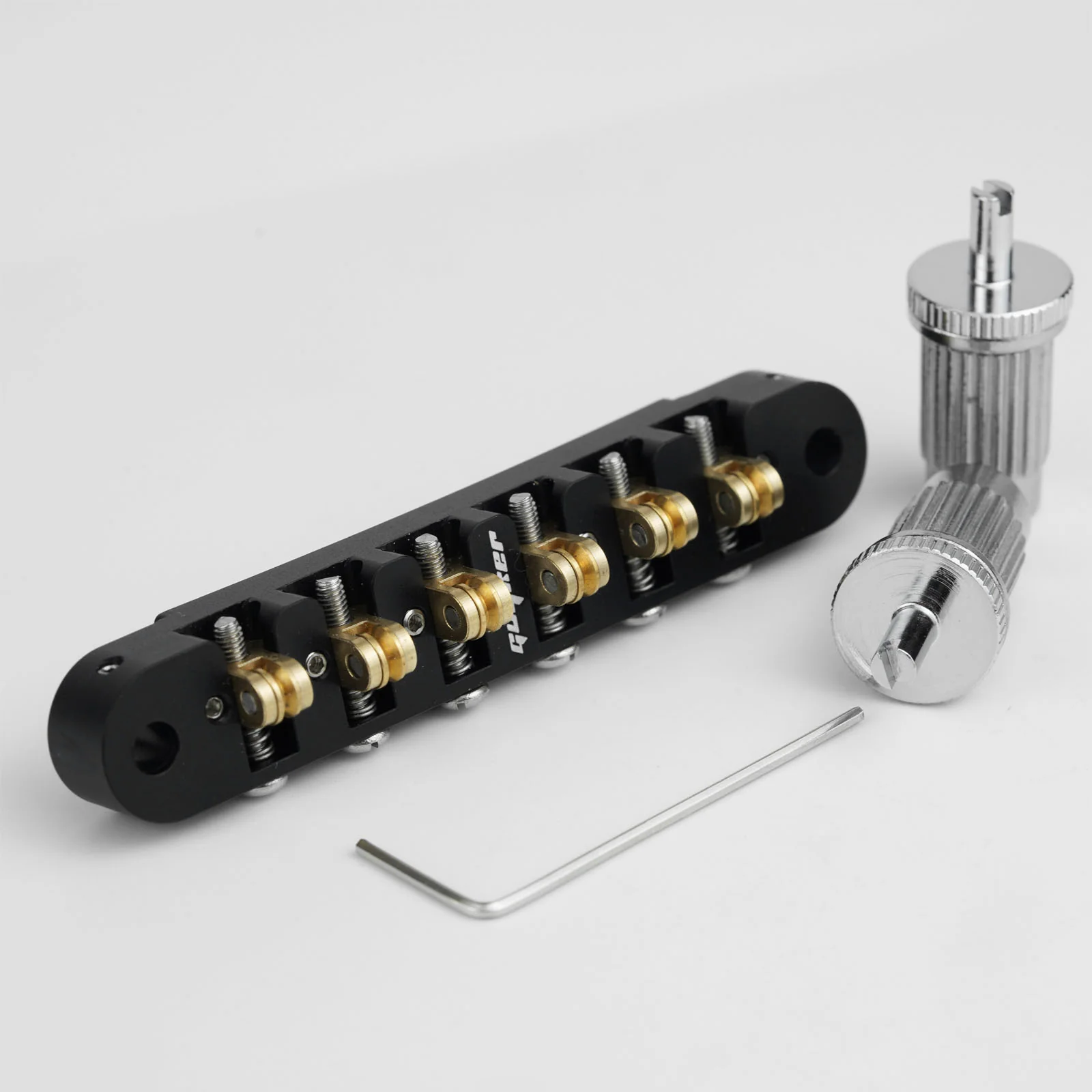

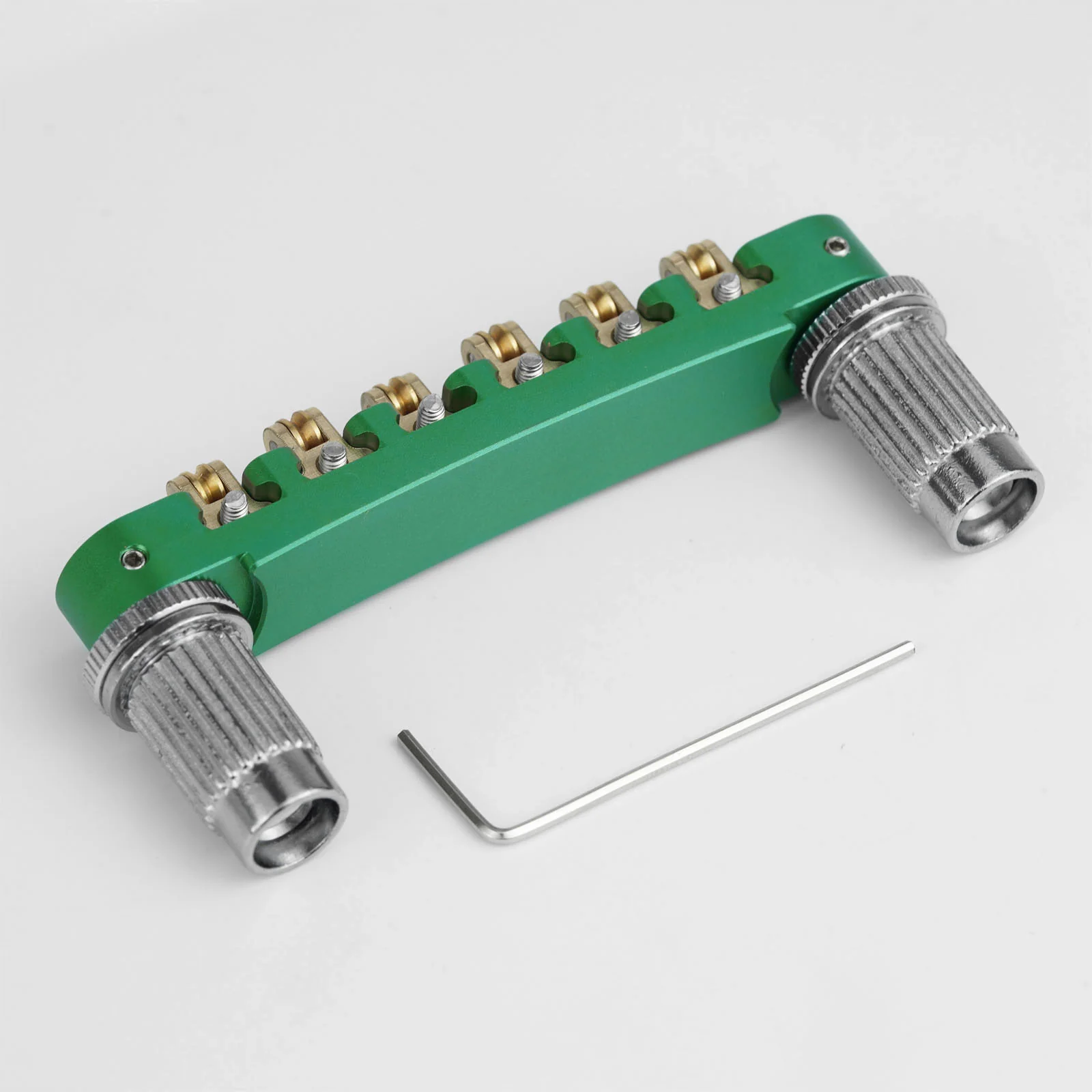

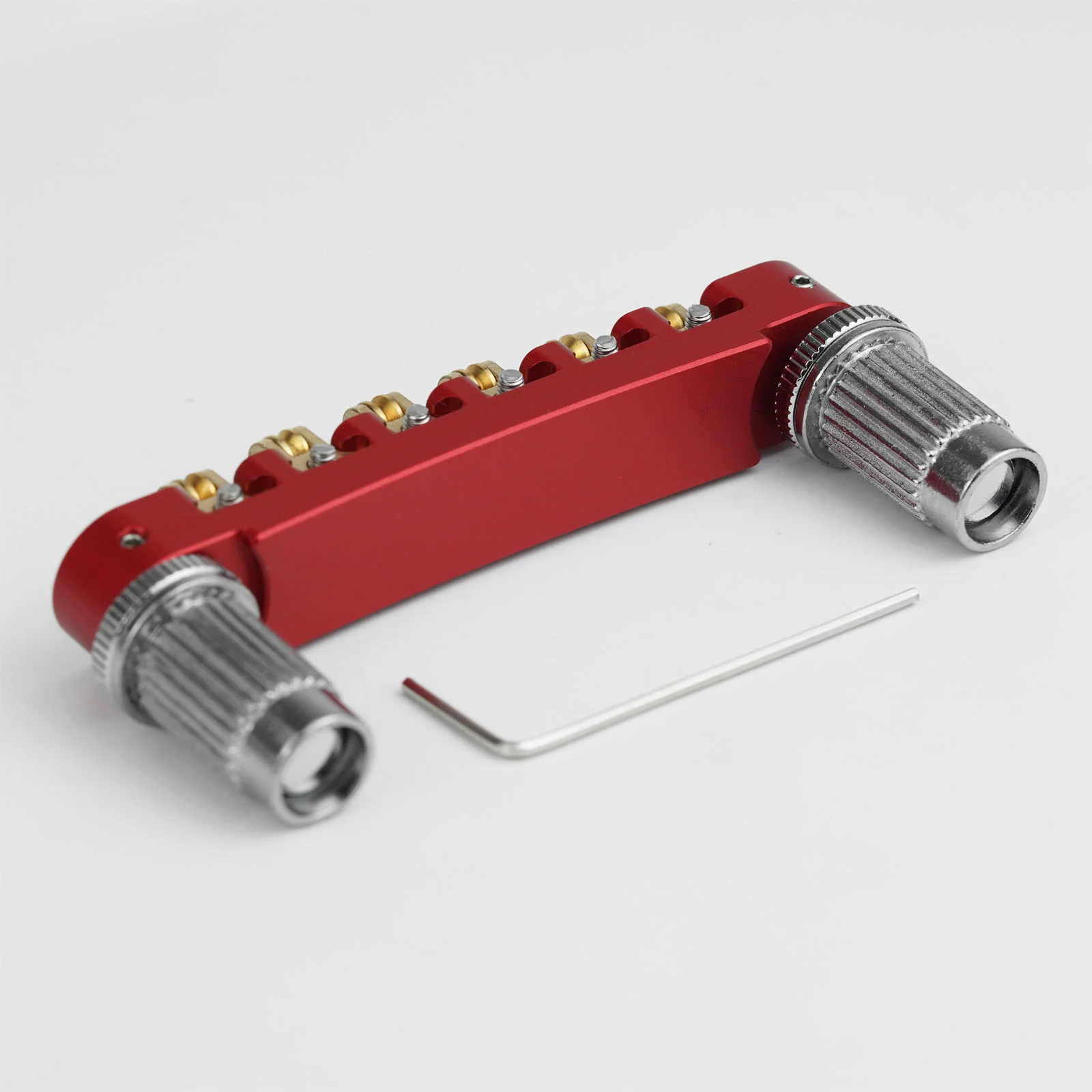

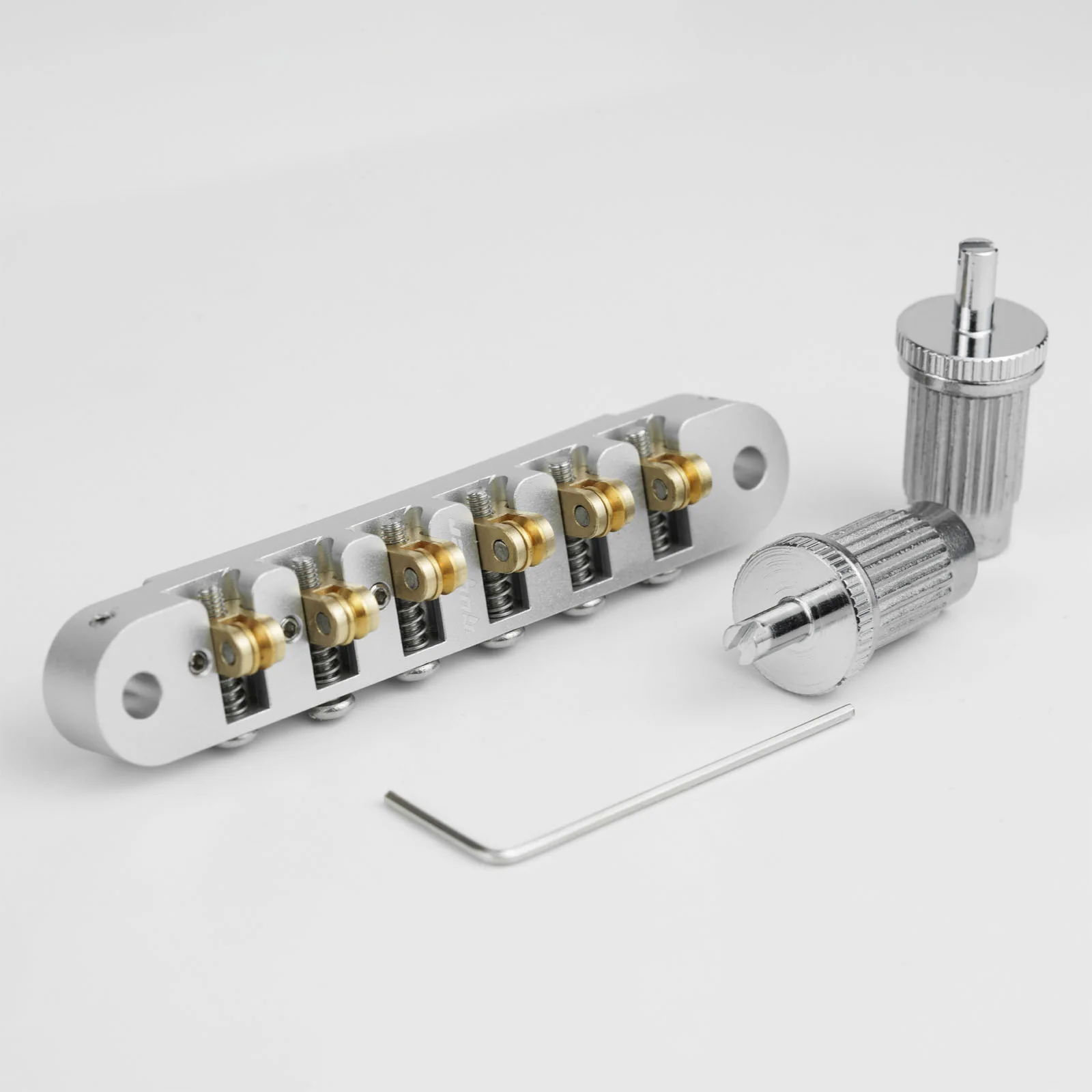

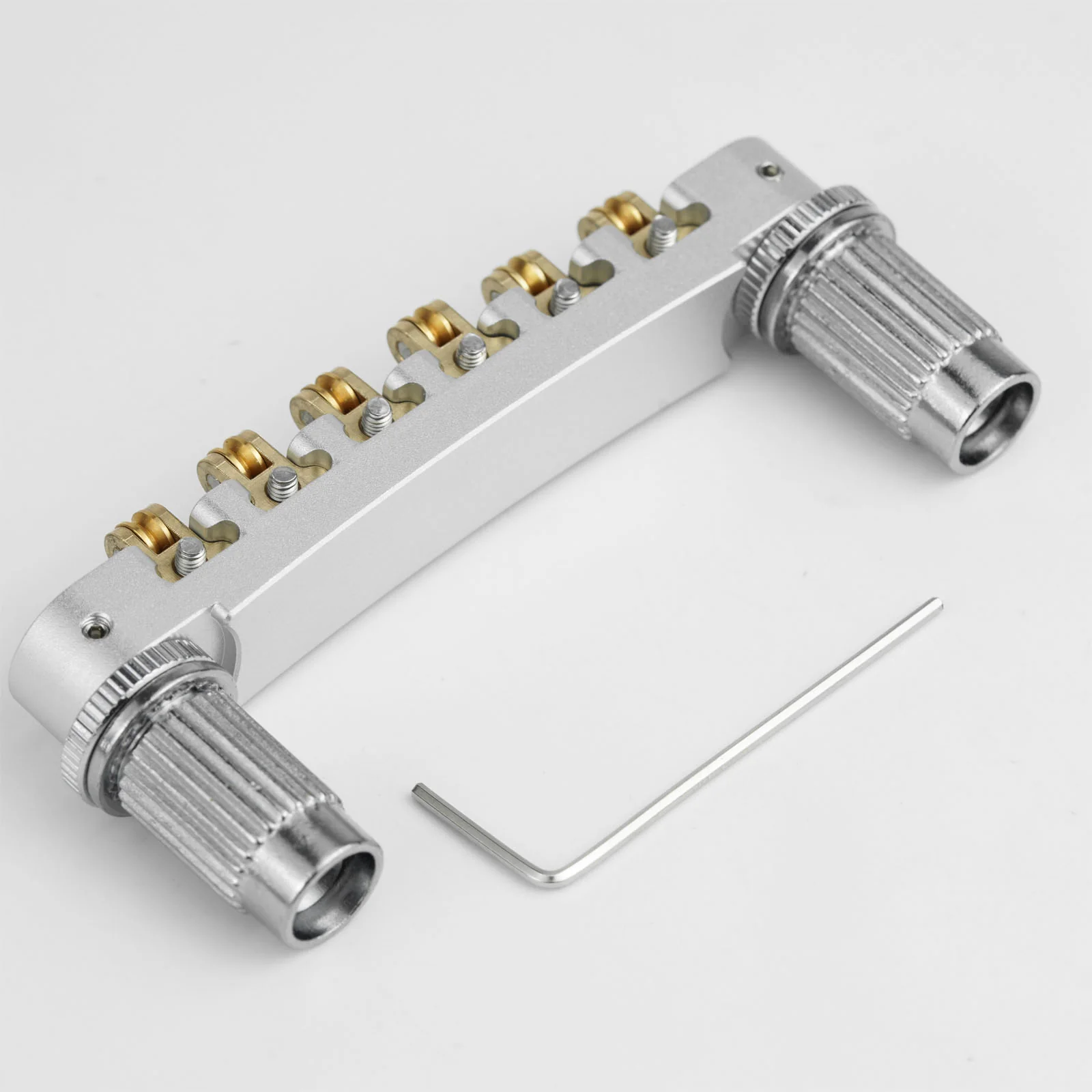

• 1 x Roller Bridge
• 2 x Bridge Posts
• 1 x Hex Wrench

Fitment Note / Warm Reminder:
Please verify your guitar’s bridge type, post spacing, thread size, radius, and string spacing before ordering. This bridge uses 74mm post spacing, M8 post thread, 52mm E-to-e str
