Key Features:

• Individually adjustable saddle height helps support more precise setup across different string positions.
• Precision CNC machining helps deliver cleaner edges, more consistent dimensions, and more accurate fitment for upgrade and replacement applications.
• Supports different fingerboard radii with an adjustable radius design for custom setups.
• Built with an aluminum alloy bridge body, brass saddles, and steel studs/posts for durable performance.
• A practical upgrade for guitars that need more flexible saddle height adjustment than traditional LP-style bridges.

Specifications:

• Product Type: Tune-O-Matic Style Guitar Bridge
• Model: GMA-009B
• Bridge Body Material: Aluminum Alloy
• Saddle Material: Brass
• Studs / Posts Material: Steel

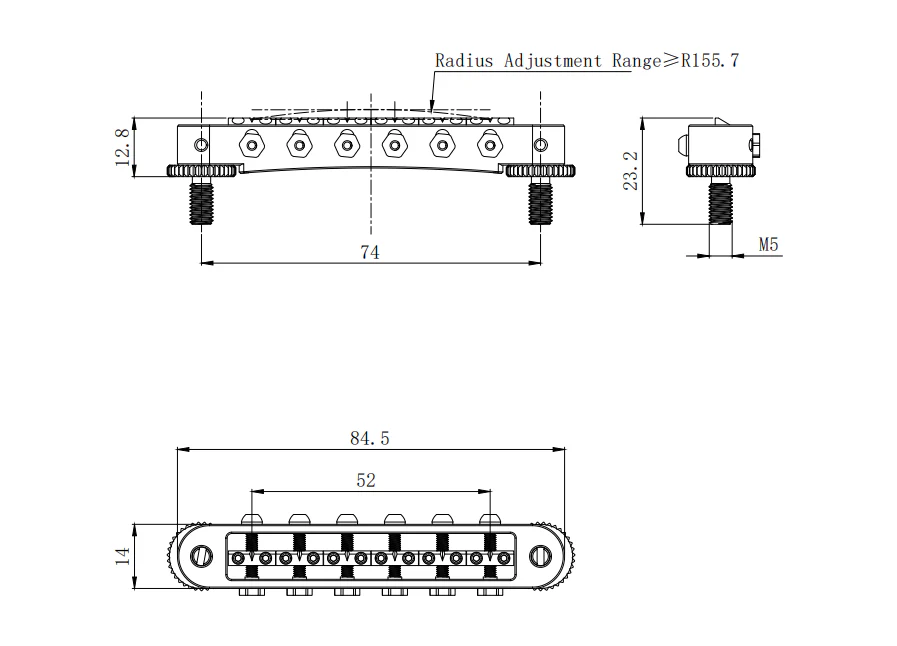

• Length: 84.5mm
• Width: 14mm
• Body Height: 12.8mm
• Overall Height: 23.2mm
• String Spacing (E to e): 52mm
• Post Spacing (Center to Center): 74mm
• Post Thread: M5
• Radius: Adjustable Radius (Minimum: R155.7 / 6.13")

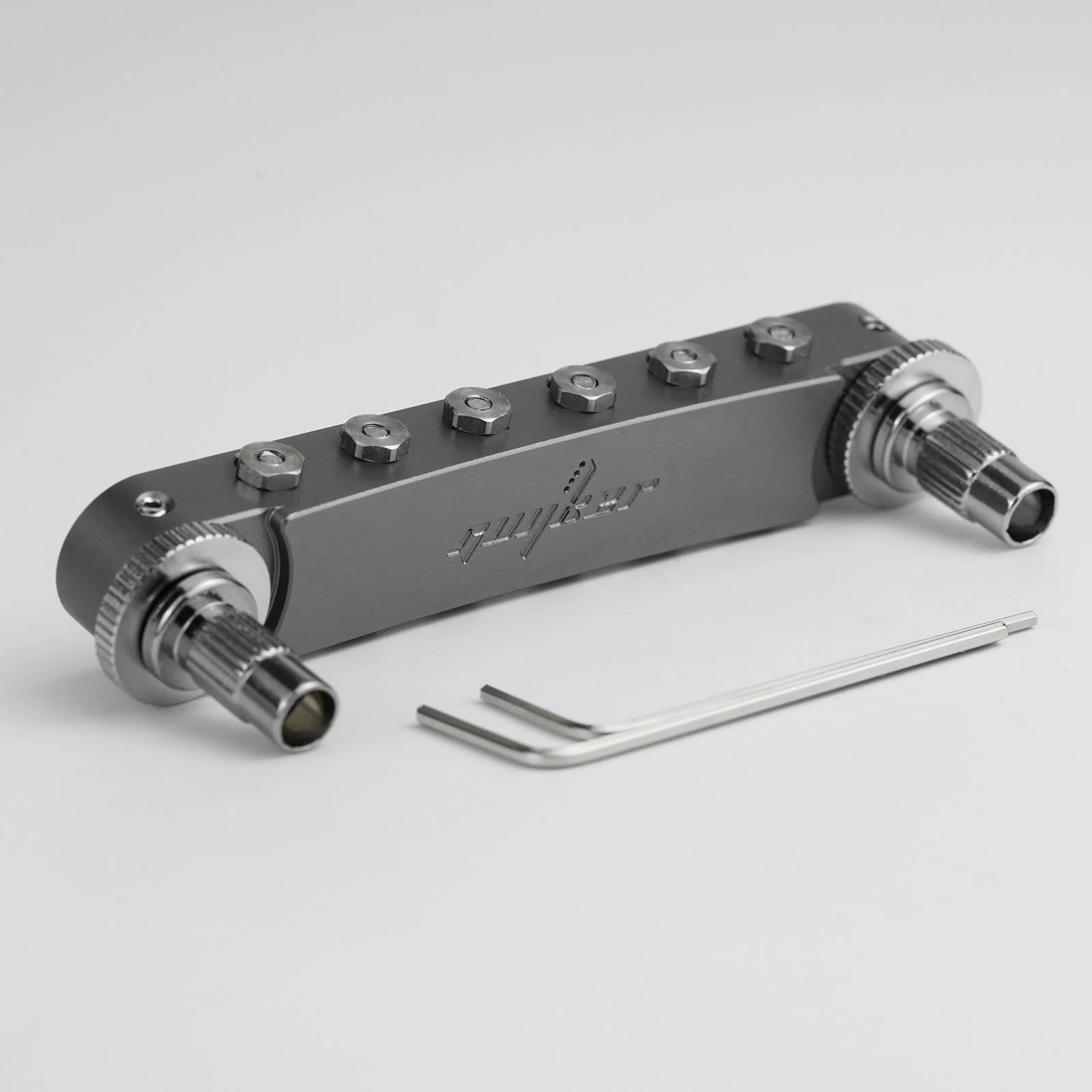

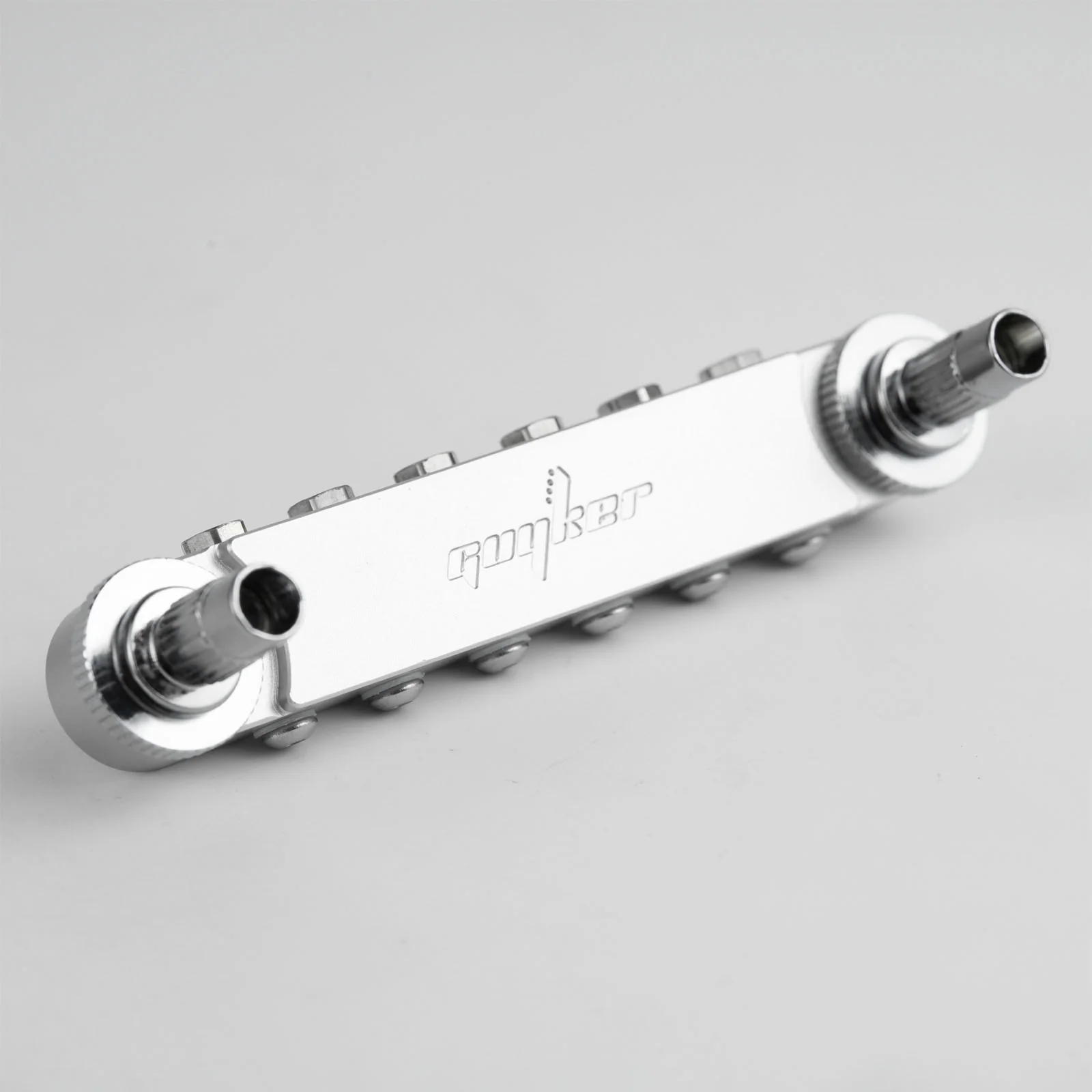

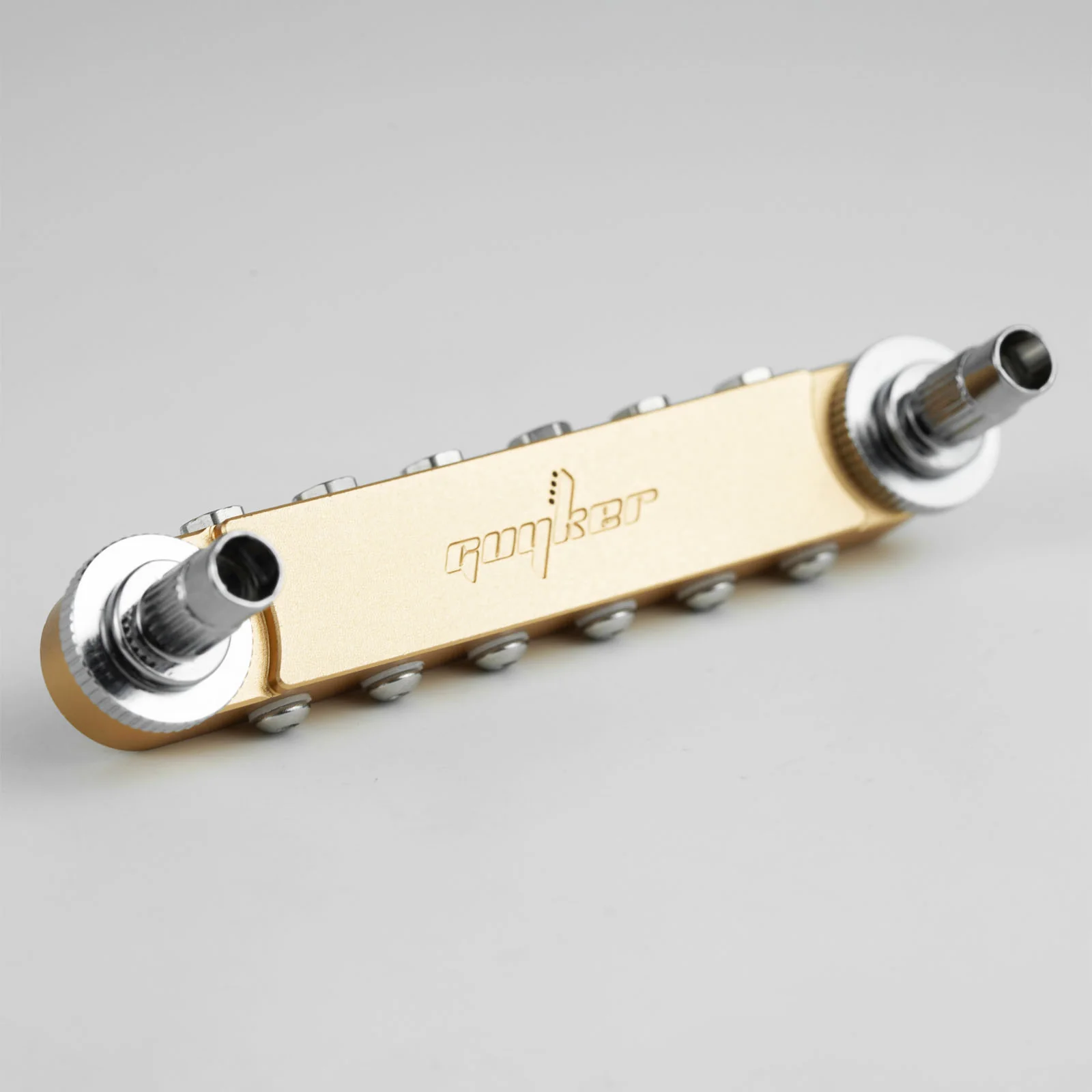

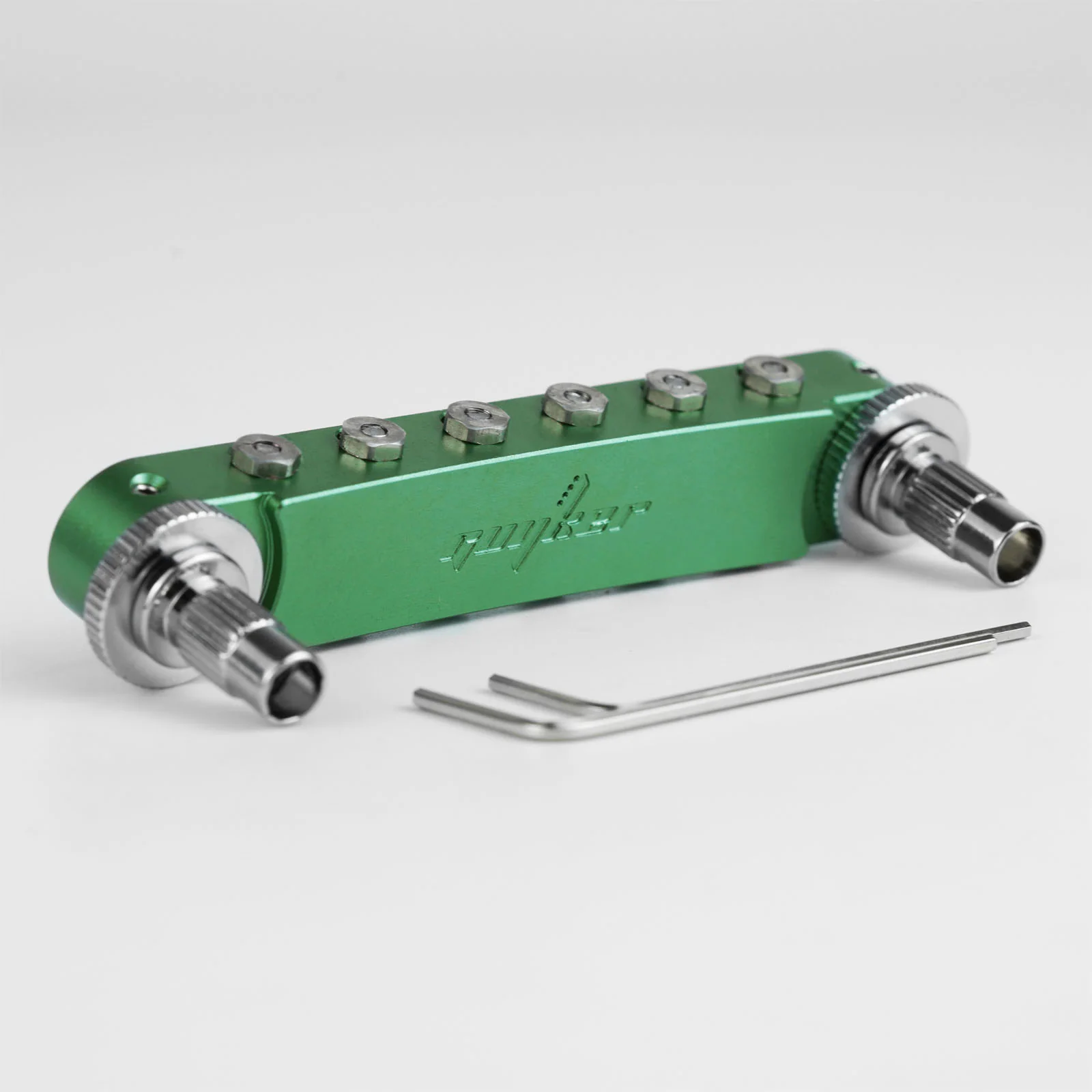

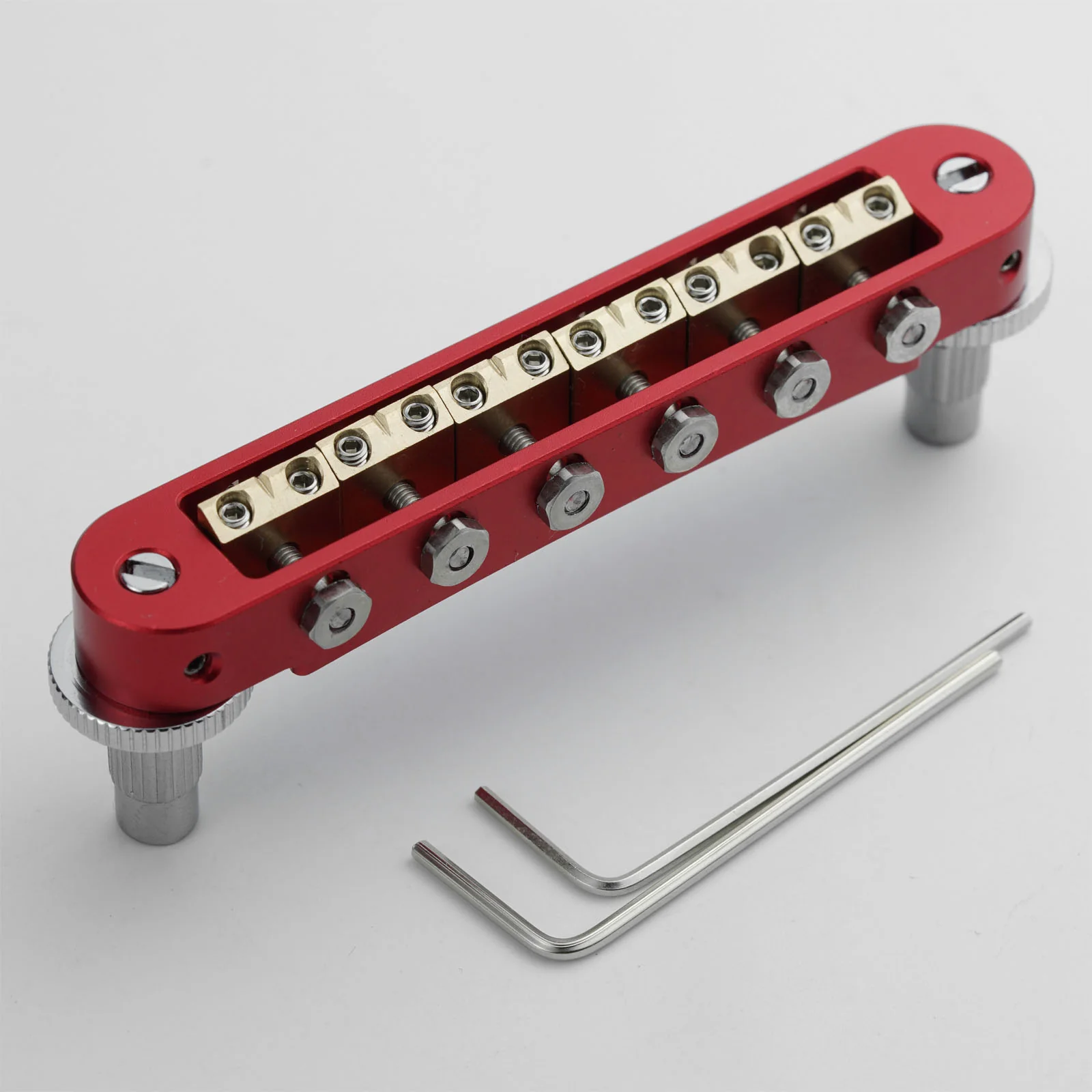

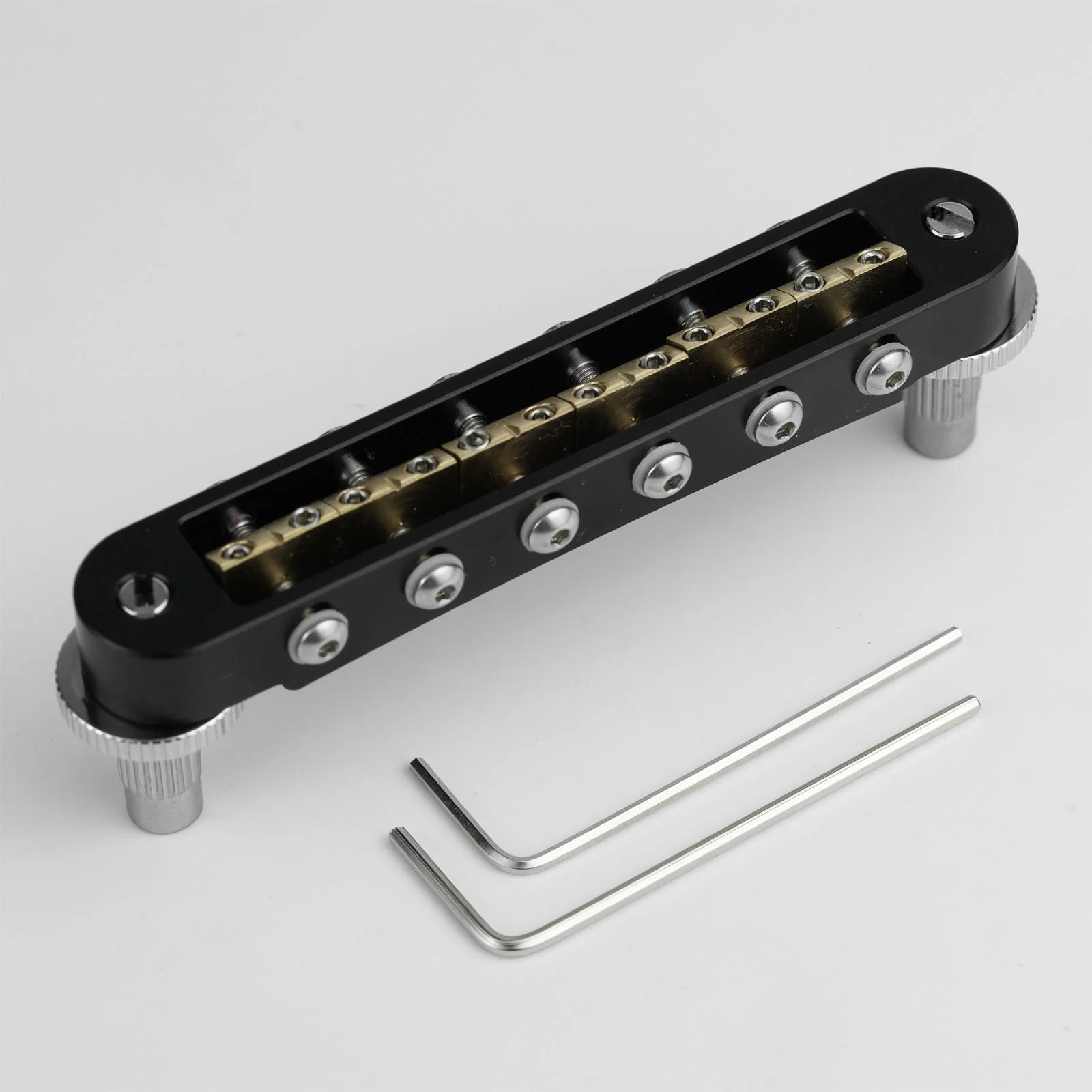

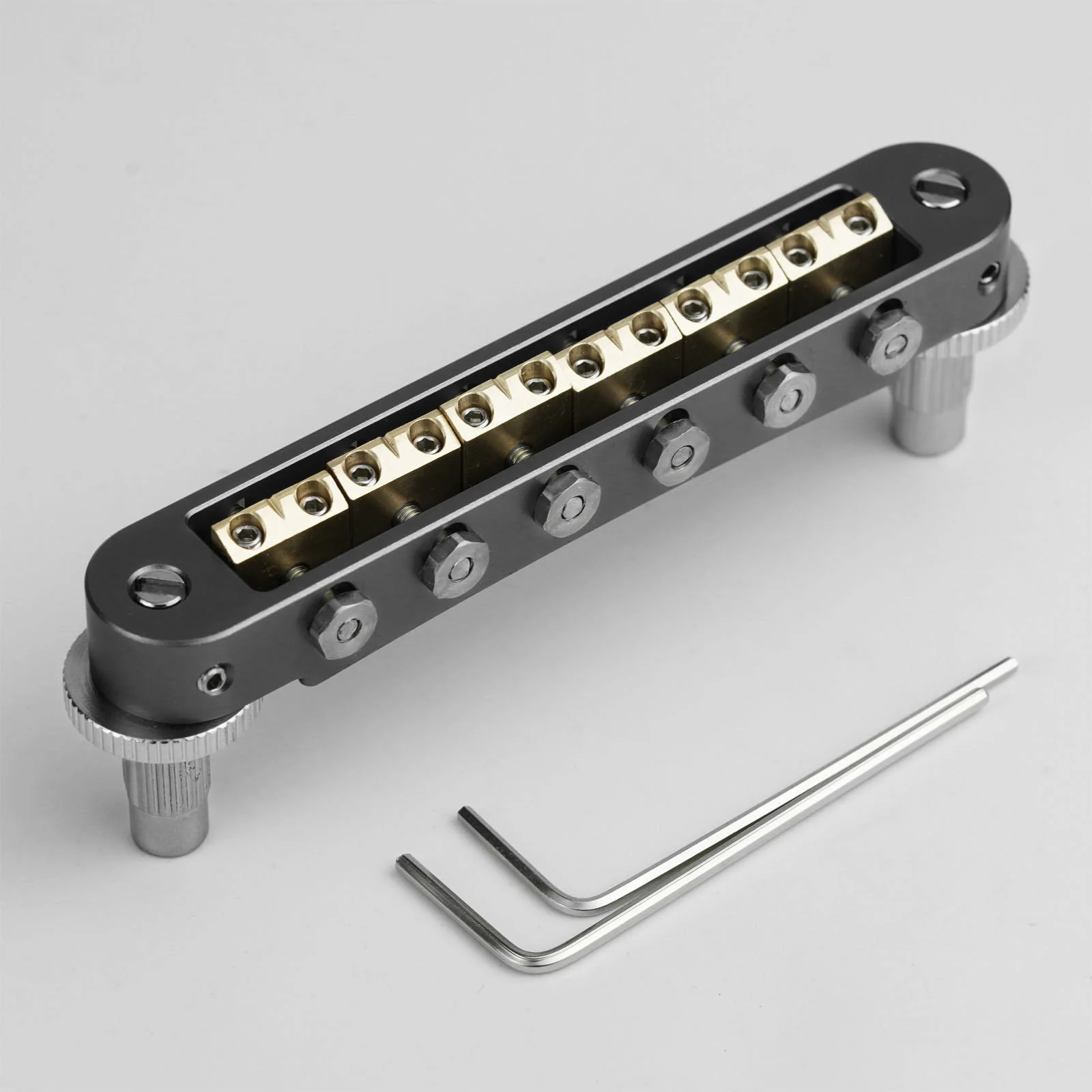

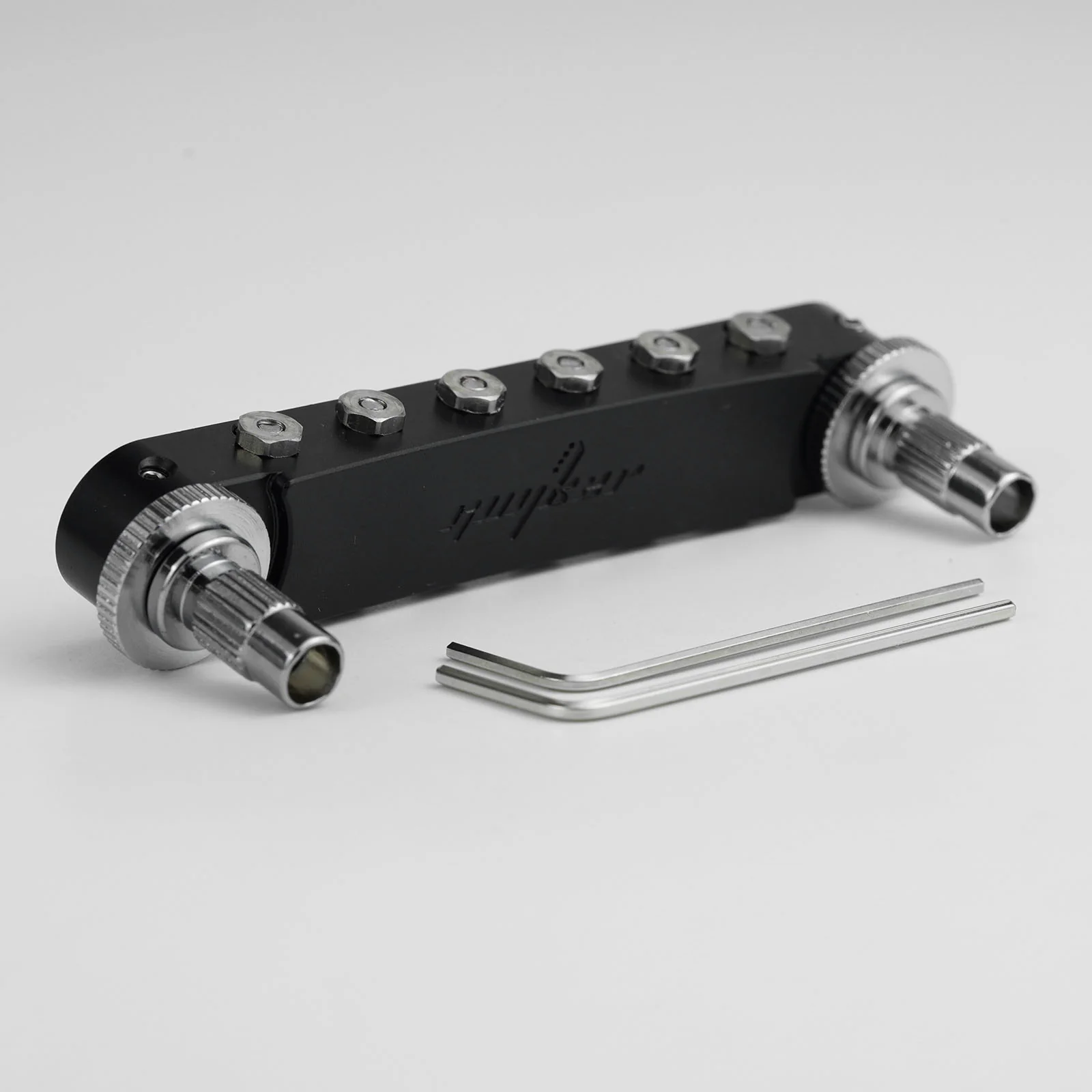

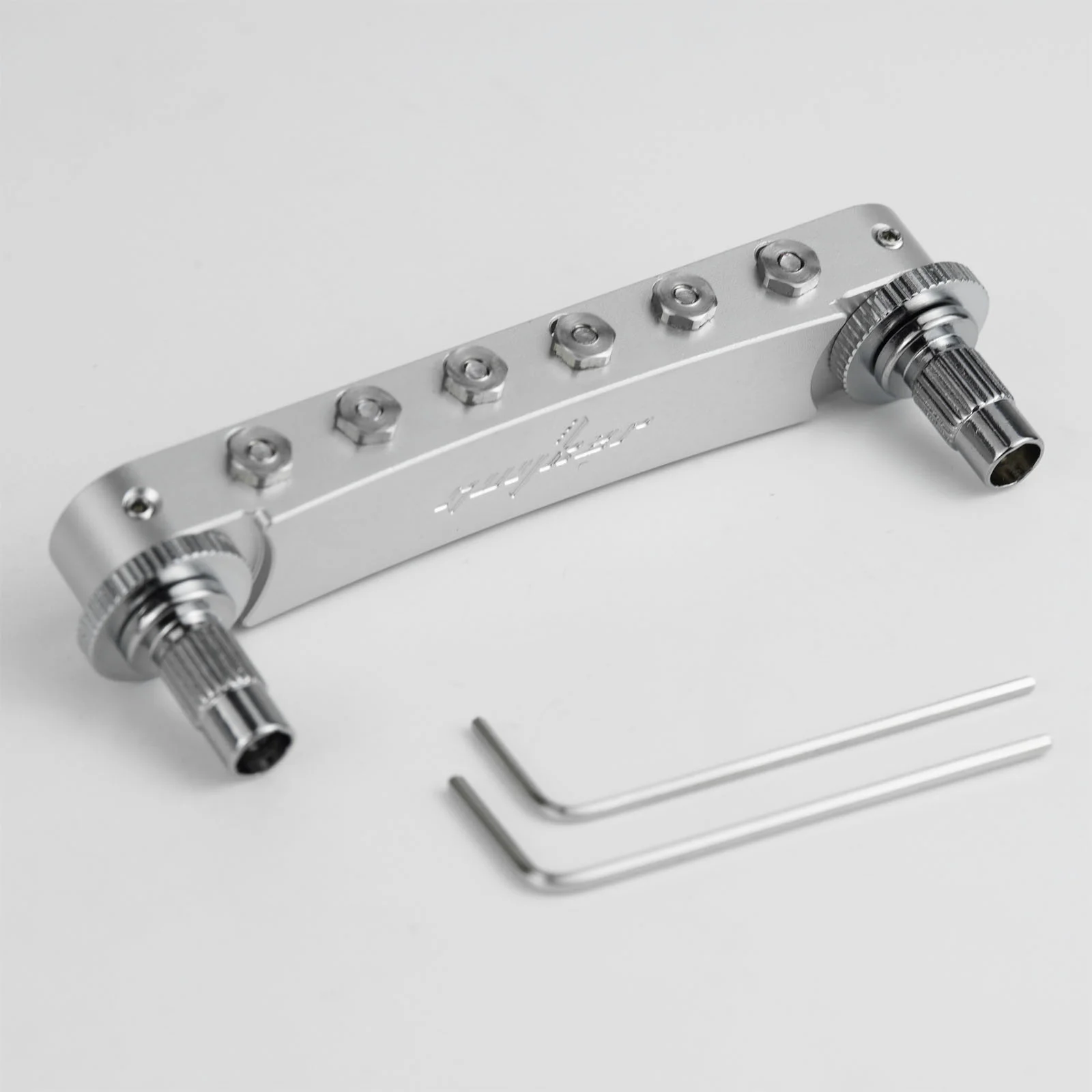

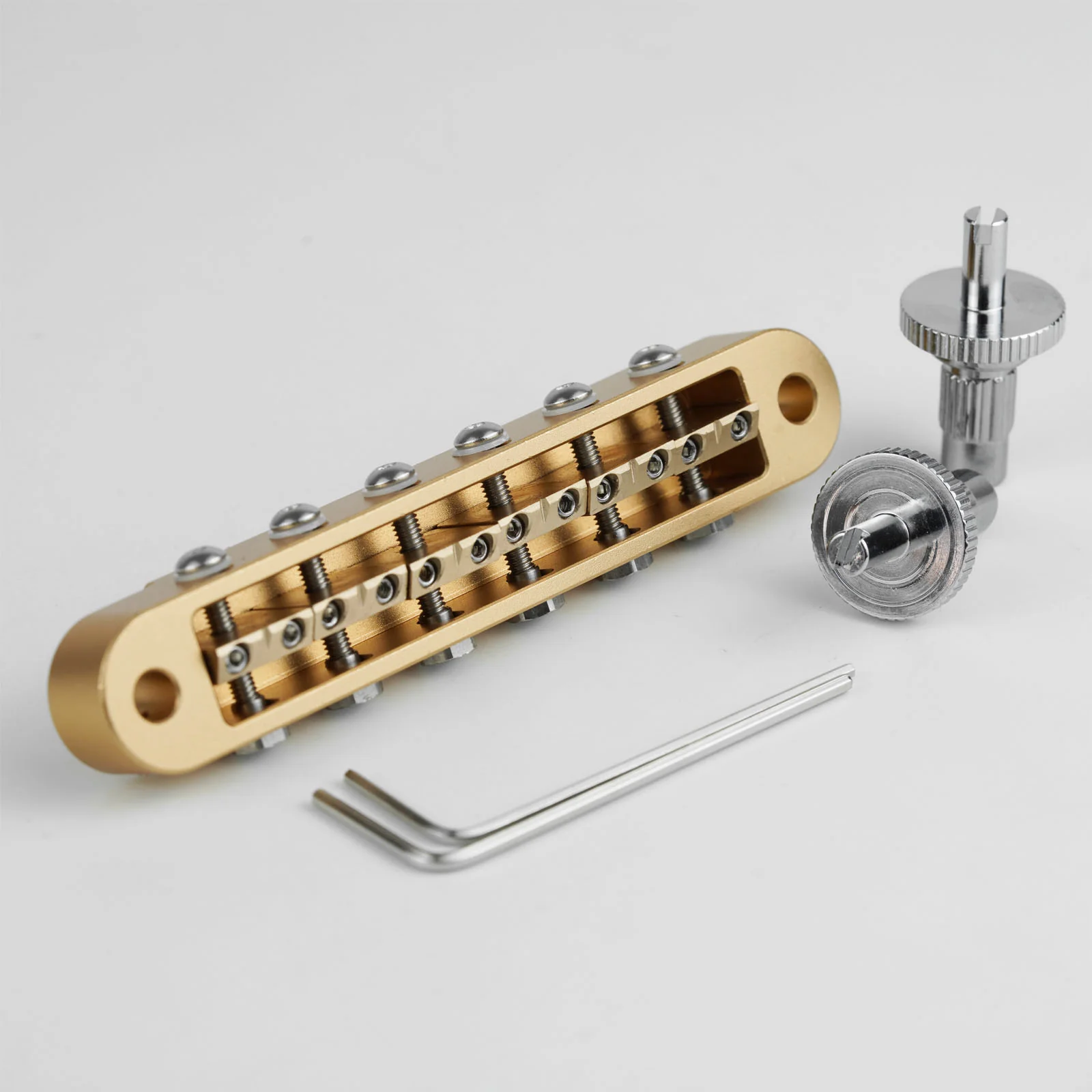

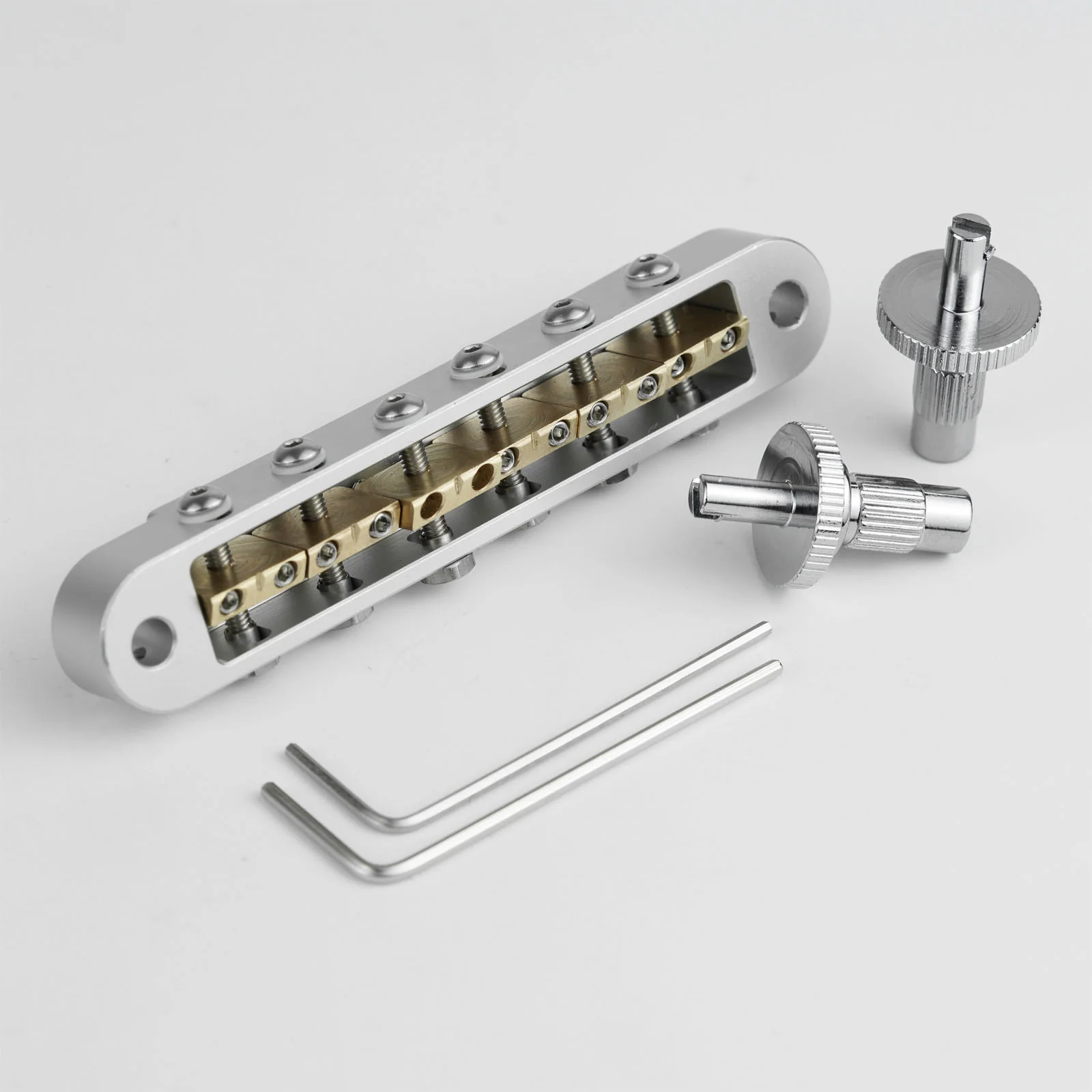

• Color Options: Aluminum Anodized Chrome, Aluminum Anodized Black, Aluminum Anodized Gold, Aluminum Anodized Red, Aluminum Anodized Green, Aluminum Anodized Grey

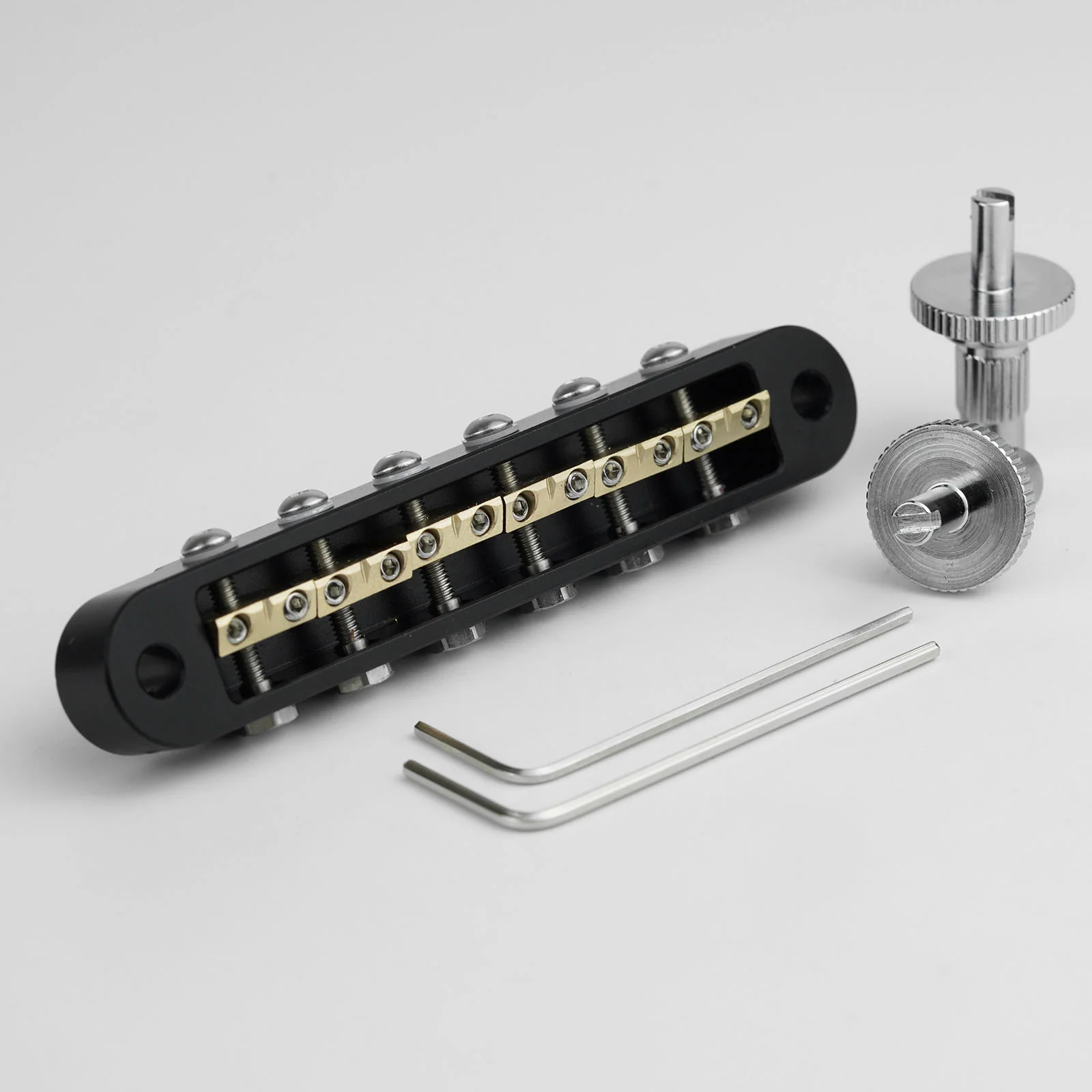

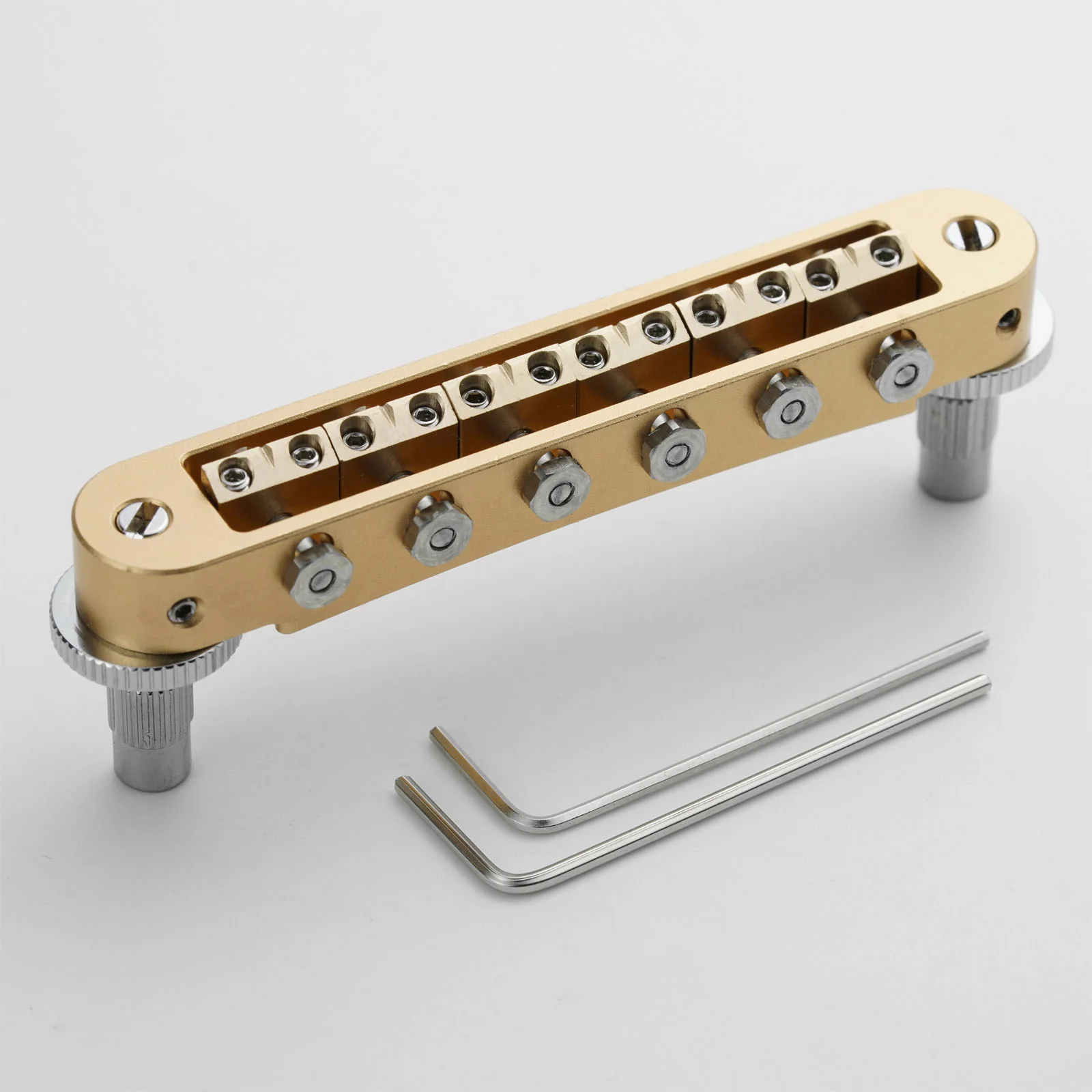

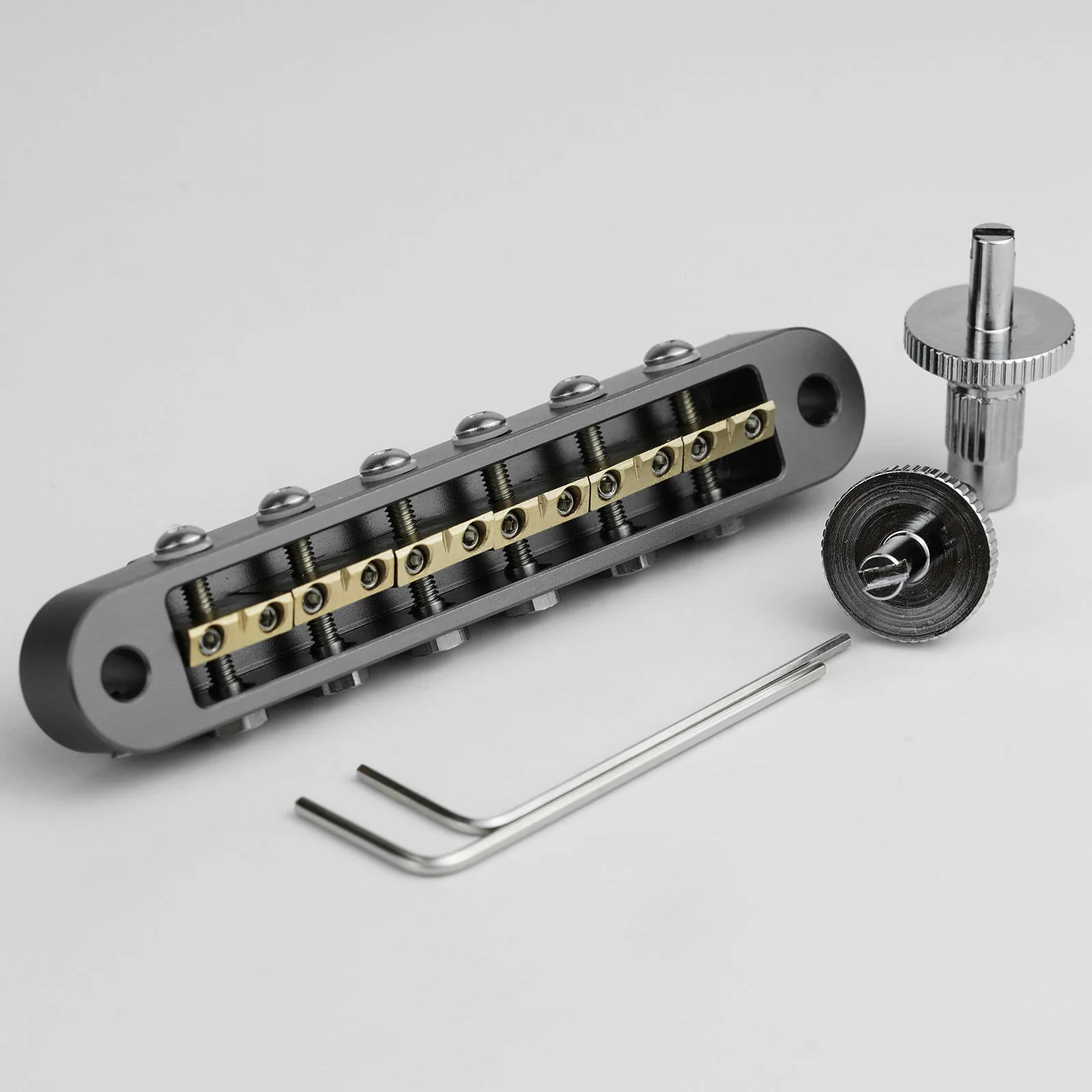

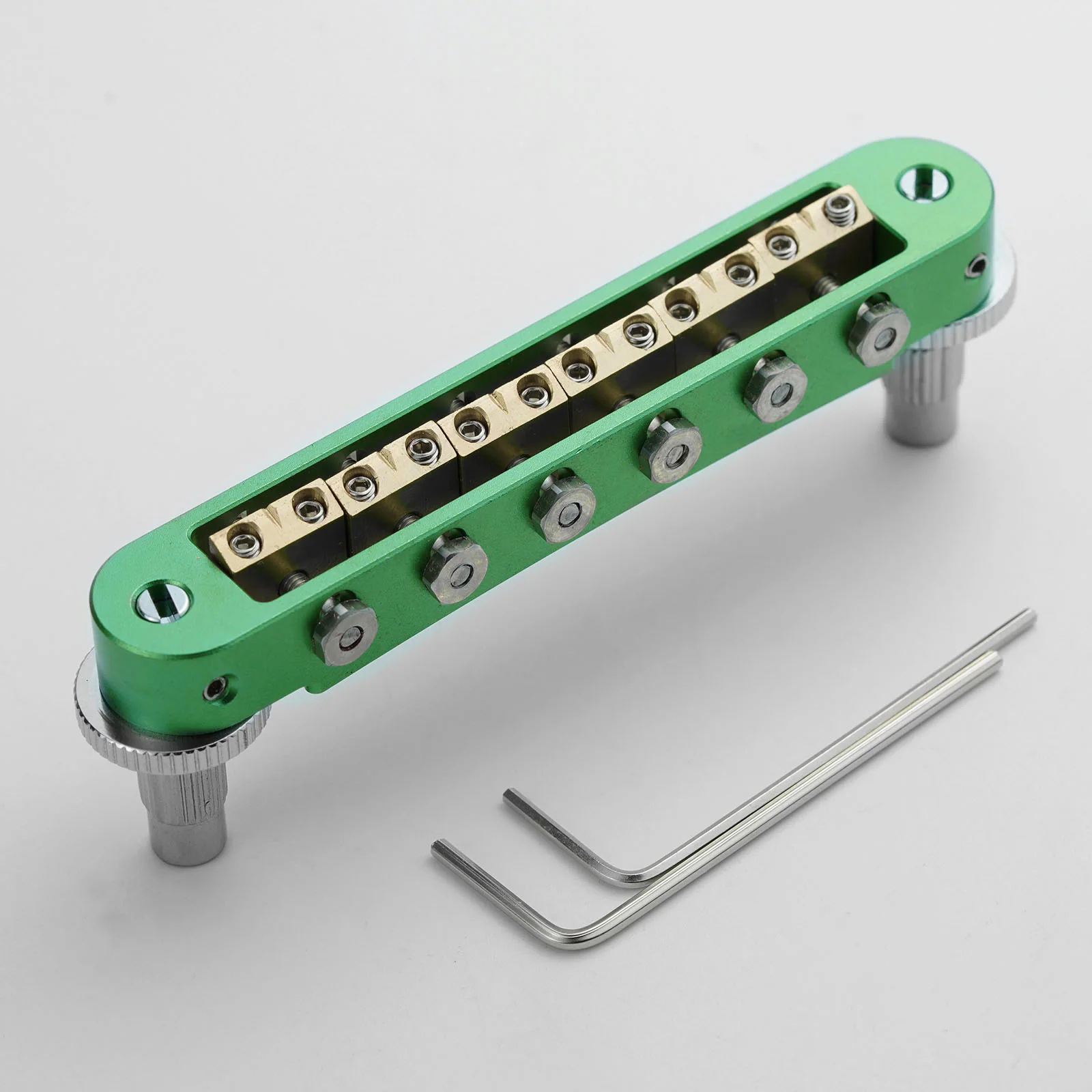

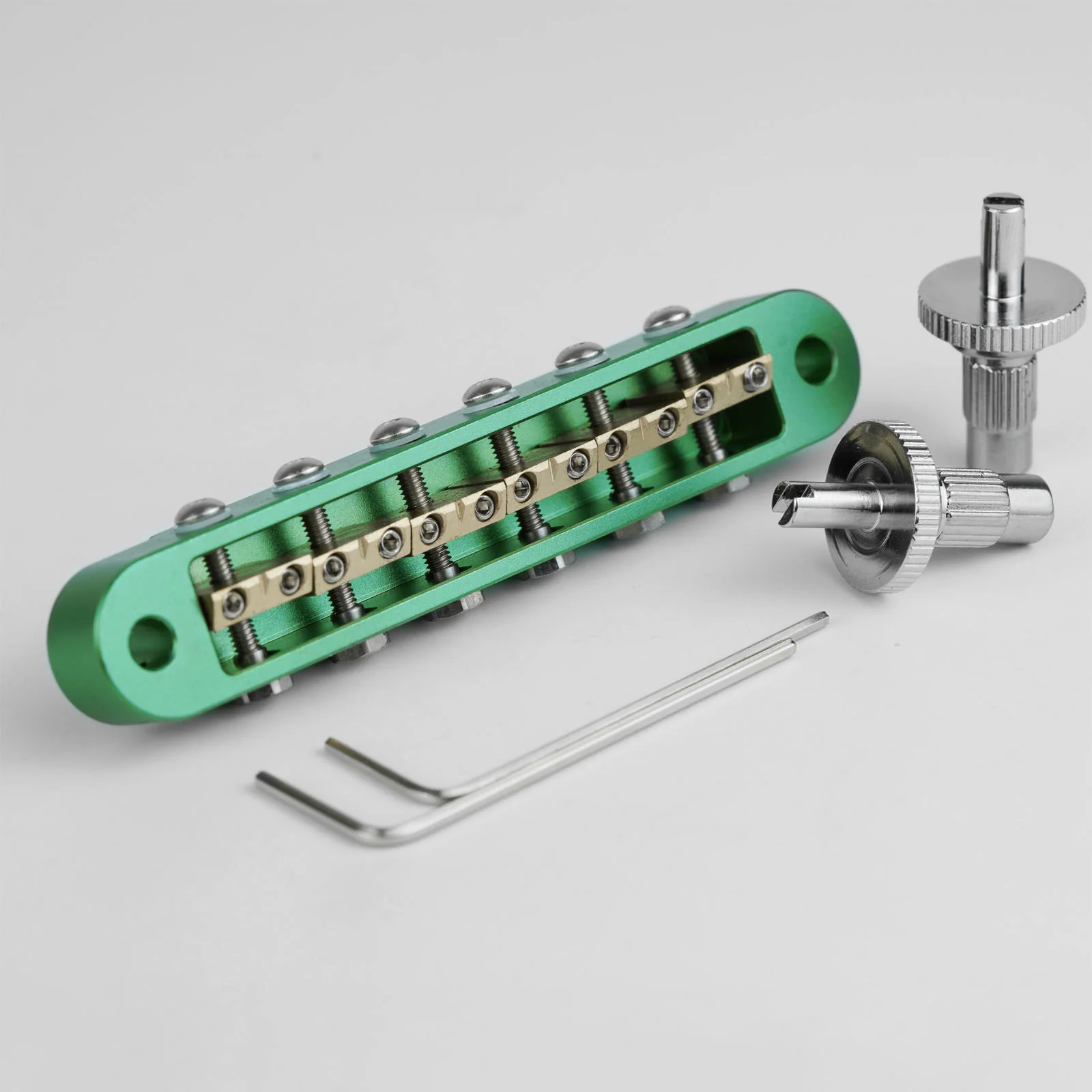

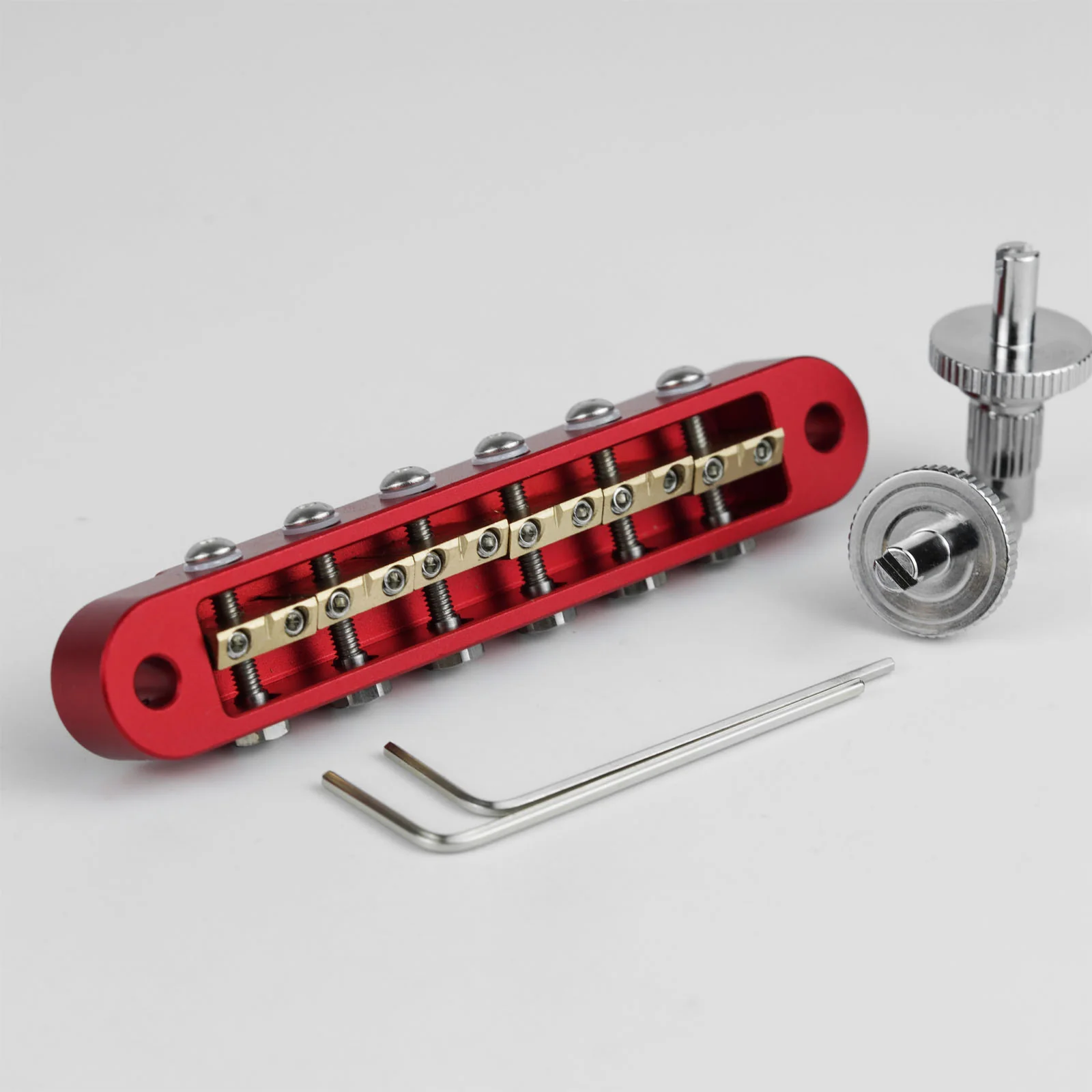

Package Includes:

• 1 x Guitar Bridge
• 2 x Posts
• 2 x Hex Keys

Fitment Note / Warm Reminder:
Please carefully verify your guitar’s post spacing, post thread, bridge dimensions, and fingerboard radius requirements before ordering. This bridge is designed with 74mm post spacing, M5 post thread, and an adjustable radius structure. The product page also notes that dimensions may vary by ±1mm due to manual measurement.
