Key Features:

• Roller bridge design helps reduce string friction at the saddle contact point for smoother string movement.
• CNC-machined aluminum bridge body for improved durability and consistent machining accuracy.
• Designed for 6-string Jazzmaster-style electric guitar applications with 9.5" or 7.25" radius options.
• Available in Aluminum Oxidized Chrome, Red, and Green finishes.

Specifications:

• Material: CNC-machined aluminum bridge body.
• Application: 6-string Jazzmaster electric guitar.

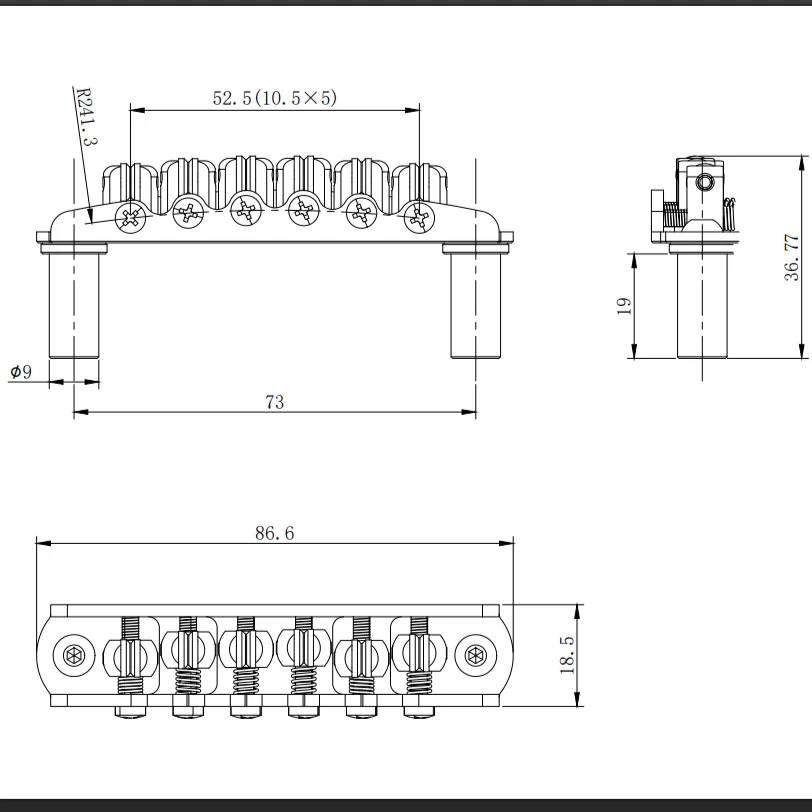

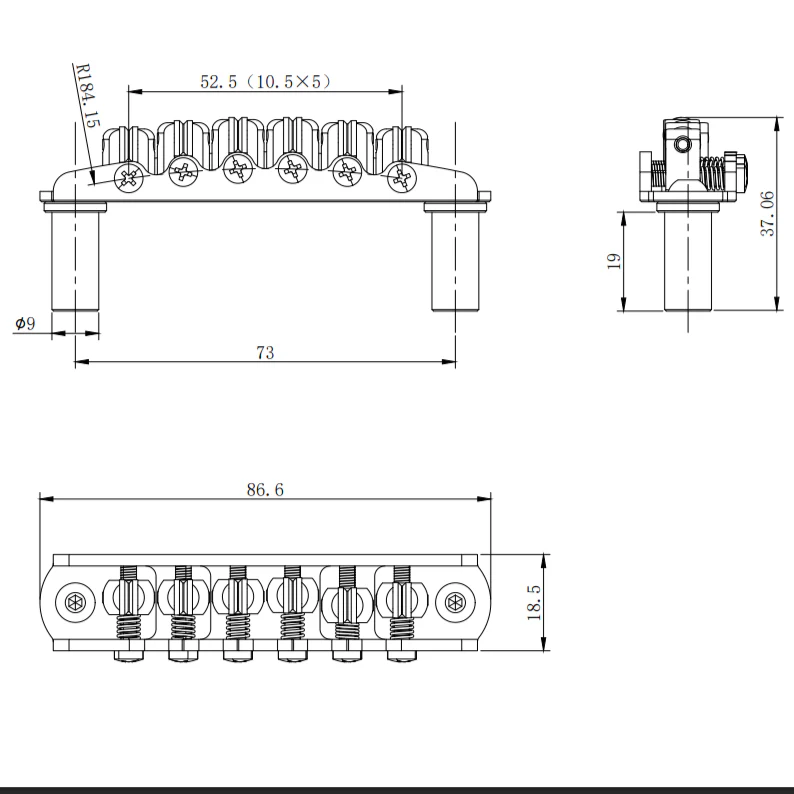

• Overall Length: 86.6mm.
• Bridge Width: 18.5mm.
• String Spacing (E to e): 52.5mm.
• Single String Spacing: 10.5mm.
• Post Spacing (Center to Center): 73mm.
• Post Diameter: Ø9mm.
• Post Height: 19mm.
• Bridge Height: 17.77mm for 7.25" radius / 18.06mm for 9.5" radius.
• Saddle Radius: R184.15 for 7.25" radius / R241.3 for 9.5" radius.
• Color Options: Aluminum Oxidized Chrome, Aluminum Oxidized Red, Aluminum Oxidized Green.

Package Includes:

• 1 x Roller Bridge
• 2 x Bridge Posts. The product images show the bridge assembled with two posts and do not show extra screws or tools.

Fitment Note / Warm Reminder:
Please verify your guitar’s bridge type, post spacing, post diameter, and fretboard radius before ordering. This bridge is intended for Jazzmaster-style setups using 73mm post spacing and Ø9mm posts, and it is offered in 7.25" and 9.5" radius versions. All dimensions may vary by ±1mm due to manual measurement.
